Overview
The MAD XP6S Drone Arm Set is an integrated propulsion system designed for agricultural and transport drones. Featuring a 160KV motor, 80A ESC, and IPX6 waterproof rating, it provides a maximum thrust of 12kgF per rotor with continuous thrust ranging from 3.5-5.5kgF. The arm set includes a 24-inch polymer folding propeller, offering enhanced efficiency and reduced noise. Its robust 30mm carbon tube ensures structural stability, making it ideal for quadcopter and hexacopter configurations in precision farming and heavy-lift drone applications.
Key Features
- High Thrust Performance: Delivers a maximum thrust of 12kgF per rotor, making it suitable for payload-carrying drones.
- Integrated ESC: Built-in 80A ESC with intelligent control algorithms for optimized motor performance.
- Waterproof Protection: IPX6 rating, ensuring reliability in harsh environments, including rain and dust exposure.
- Advanced Propeller Design: 24-inch polymer folding propeller enhances aerodynamics, reducing vibration and increasing flight efficiency.
- LED Navigation Lights: Built-in high-brightness LED light for improved visibility and flight safety.
- Efficient Heat Management: High-quality stator materials and optimized cooling design ensure stable long-duration operation.
- Easy Installation: Pre-integrated system allows for quick assembly, reducing setup time.
Technical Specifications
| Specification | Details |
|---|---|
| Motor KV | 160KV |
| Maximum Thrust | 12kgF/rotor |
| Continuous Thrust | 3.5-5.5kgF/rotor |
| ESC Max Current | 80A |
| Voltage Range | 12-14S Lipo |
| Operating Temperature | -20°C to 50°C |
| Waterproof Rating | IPX6 |
| Arm Tube Diameter | 30mm |
| Propeller Size | 24*8.0 inches |
| Weight | 766±10g |
| Max Signal Frequency | 50-500Hz |
Applications
- Agricultural Drones: Suitable for 5L quadcopter and 10L hexacopter configurations, supporting take-off weights from 14kg to 33kg.
- Transport Drones: Designed for heavy payload and long-duration flight operations.
- Industrial and Inspection UAVs: Ideal for mapping, surveying, and infrastructure inspection.
Details
Intelligent integrated arm set MAD XP6S KV160 for agriculture drones. Single rotor continuous thrust 3.5-5.5kg, maximum 11.9kg. Drone arm weight 766±10g, IPX6 rainproof, 30mm arm diameter, 24*8.0 propeller.
XP6S Recommended Drone: Quadcopter with 5L mounting capacity, 14-20kg take-off weight; Hexcopter with 10L capacity, 21-33kg weight. Ideal for agriculture tasks.

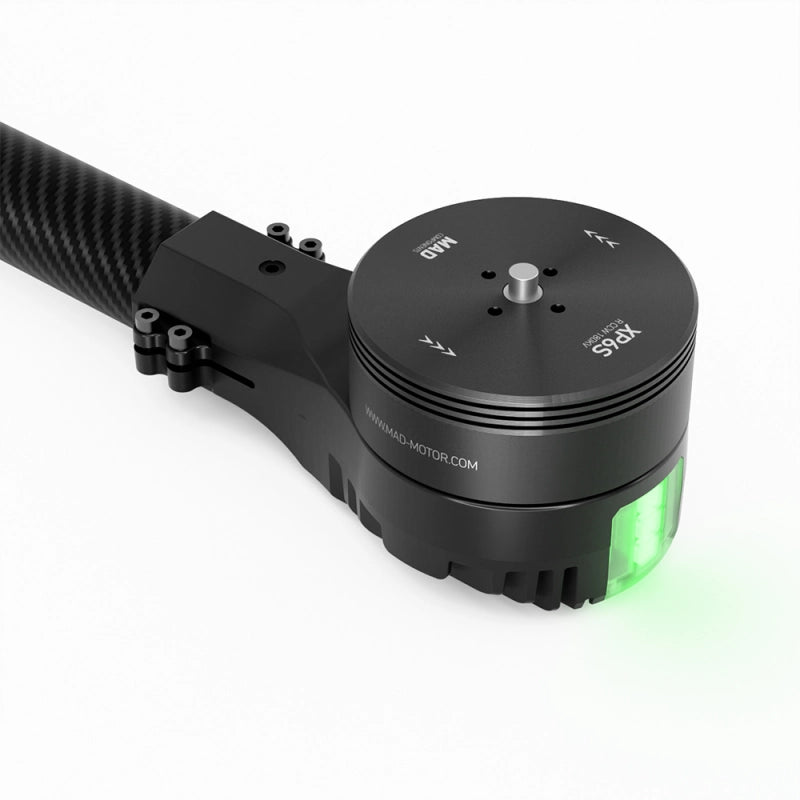

Navigate LED light for professional flight. Drone arm set equipped with LED navigate lights at the bottom, providing a secure and professional flight experience.

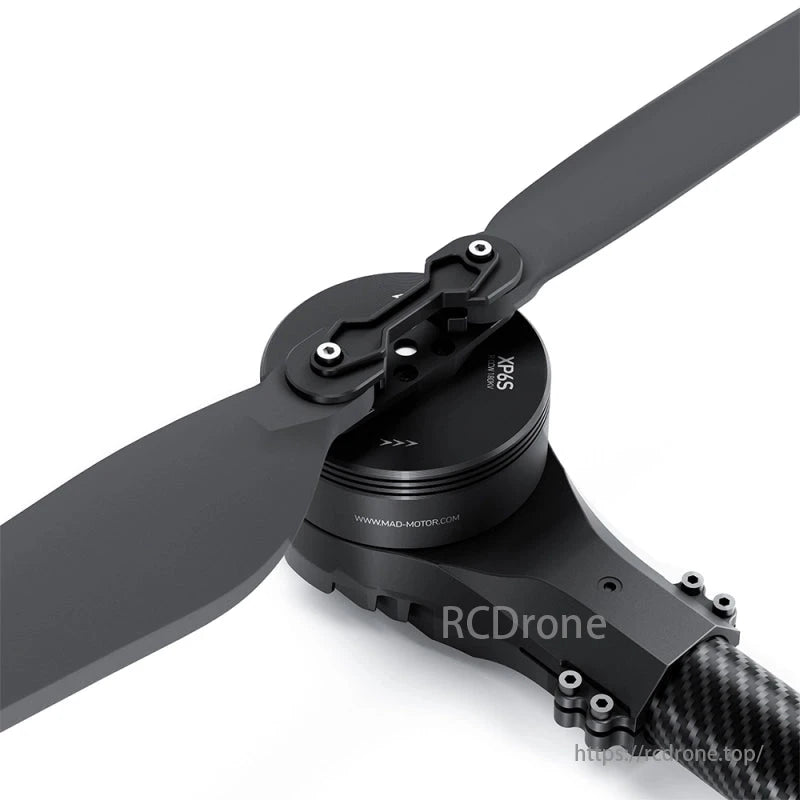

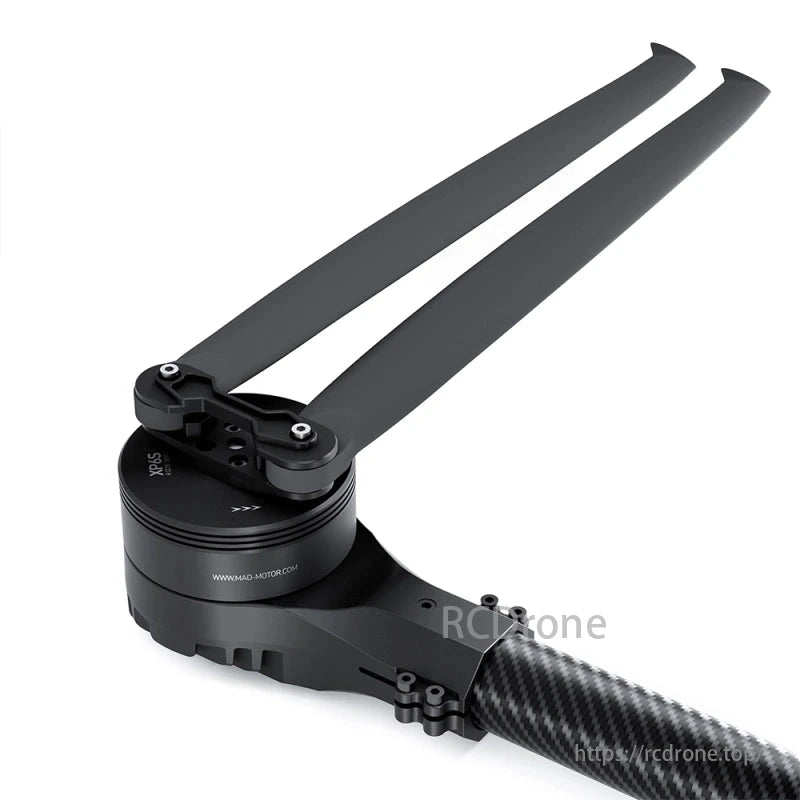

Silence and balance folding polymer propellers. XP6S power system with 24-inch unique airfoil design reduces vortex, vibration, noise, and increases efficiency.
Easy installation. Internal ESC, intelligent algorithm ensures efficient, stable motor control. Ready to use.
Strict testing, quality assurance. -20~50°C high and low temperature experiments. 800h+ flight test. 2000+ laboratory durability aging test. IPX6 tested in rainy day.
Basic parameters for XP6S KV160 include max thrust of 11.9kg/rotor, continuous thrust of 3.5-5.5kg/rotor, recommended battery of 12-14S Lipo, operating temperature of -20 to 50°C, weight of 766±10g, and waterproof rating of IPX6. Propeller size is 24*8.0 inches, motor stator size is 64*15mm, and ESC supports up to 500Hz.
Product drawing details dimensions, carbon fiber tube depth 38 mm.
Test parameters for MAD XP6S KV160 motor at 12S. Data includes throttle, voltage, current, input power, torque, RPM, thrust, and power efficiency across various percentages. Stator reaches 85°C after 30 minutes under max tension with ambient at 20°C.
