MAD XP8 15KG Drone Motor Arm Set – 110KV 12S-14S for Agriculture & Delivery Drones

Overview

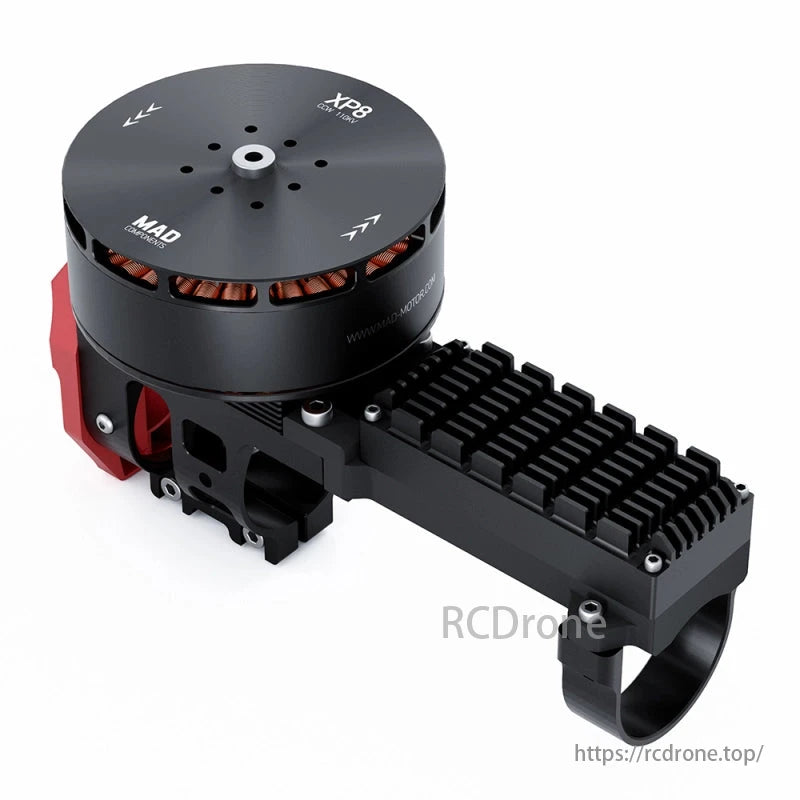

The MAD XP8 KV110 is a heavy-duty integrated drone arm set, designed for large agricultural and logistics UAVs requiring reliable performance under high load. With a maximum thrust of 15 kg per rotor, IPX6 waterproof protection, and a modular structure combining motor, ESC, and propeller, the XP8 provides outstanding power density and system simplicity for professional drone operations in demanding environments.

Key Features

• High Thrust Output: Delivers up to 15 kg of thrust with 30×11 folding propeller.

• Wide Load Range: Recommended takeoff weight per rotor: 5–7 kg.

• IPX6 Protection: Waterproof and dustproof for all-weather field use.

• FOC Vector Control: Enables precise control of motor speed and torque, enhancing flight efficiency and smoothness.

• Modular Design: Integrates motor, ESC, carbon fiber arm, and wiring into a single unit, reducing assembly errors and saving time.

• Status Recorder: Supports onboard monitoring and fault tracking.

• PWM + CAN Protocol: Compatible with multiple flight control systems.

• Integrated LED Light: Built-in high-brightness light for improved visibility in low-light conditions.

Specifications

XP8 Arm Assembly

Motor

Propeller

ESC

Performance Test Data (12S Battery, 30×11 Propeller)

• Peak thrust: 15079 gf (15.08 kgf) at 100% throttle

• Maximum efficiency: 12 gf/W at 30% throttle

Mechanical Dimensions

• Arm tube diameter: 40 mm

• Mounting base diameter: 52.4 mm

• Propeller span: 30 inches (784 mm)

• Signal wire length: 1050 ±10 mm

• Power wire length: 950 ±10 mm

Application Scenarios

• Agricultural quadcopters (takeoff weight 22–28 kg)

• Agricultural hexacopters (takeoff weight 30–42 kg)

• Spraying drones with 10–16 L capacity

• Small transport drones for cargo delivery and mapping

Available Configurations

• KV: 110 KV

• Rotation Direction: CW / CCW

• Propeller Option: With or without 30 × 11 folding propeller

Details

MAD XP8 KV110 is an intelligent integrated arm set for agricultural drones and small transport. It features modular design, FOC vector control, IPX6 protection, PWM + CAN for safer flight, and a status recorder. Capable of handling 22-42kg take-off weight and mounting capacities up to 16L.

XP8 KV110 specifications: 15 kg max thrust, 5-7 kg recommended takeoff weight per rotor. Compatible with 12-14S Lipo batteries. Operating temperature -20 to 50°C. Weight 1150±10g, waterproof IPX6. Motor weighs 600g, ESC max voltage 61V, max current 80A.

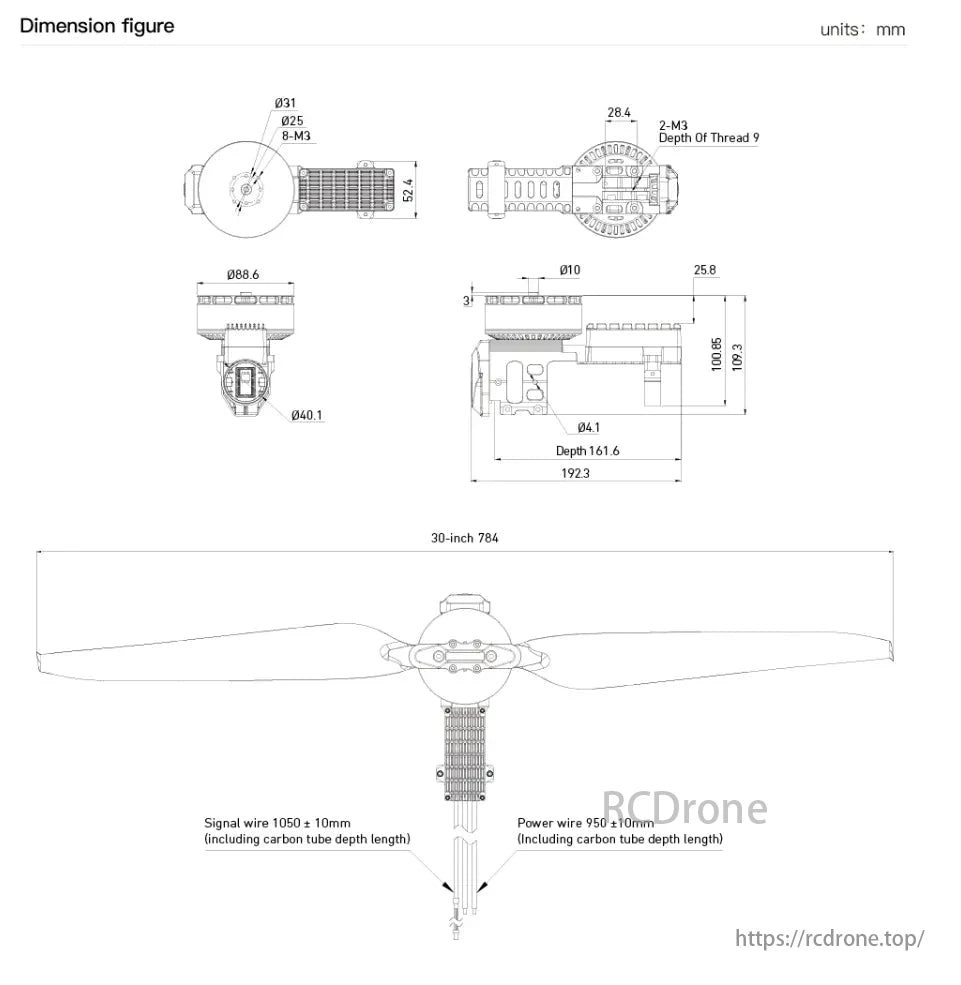

Dimension figure in mm. Propeller with 30-inch 784 span, signal wire 1050 ± 10mm, power wire 950 ± 10mm. Detailed measurements for assembly and specifications provided.

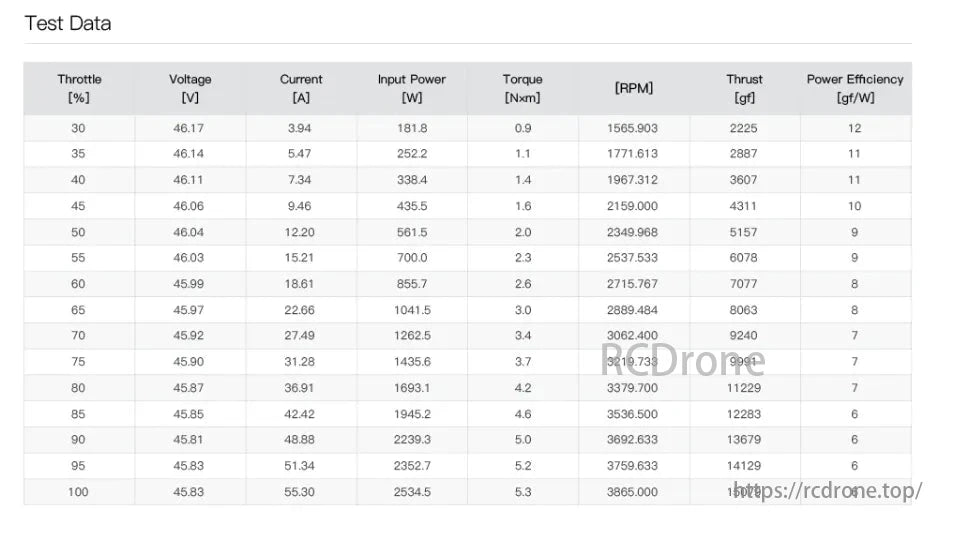

Test Data includes throttle percentage, voltage, current, input power, torque, RPM, thrust, and power efficiency. As throttle increases from 30% to 100%, voltage slightly decreases, while current, input power, torque, RPM, and thrust increase. Power efficiency peaks at 12 gf/W at 30% throttle and drops to 6 gf/W at 100%.
