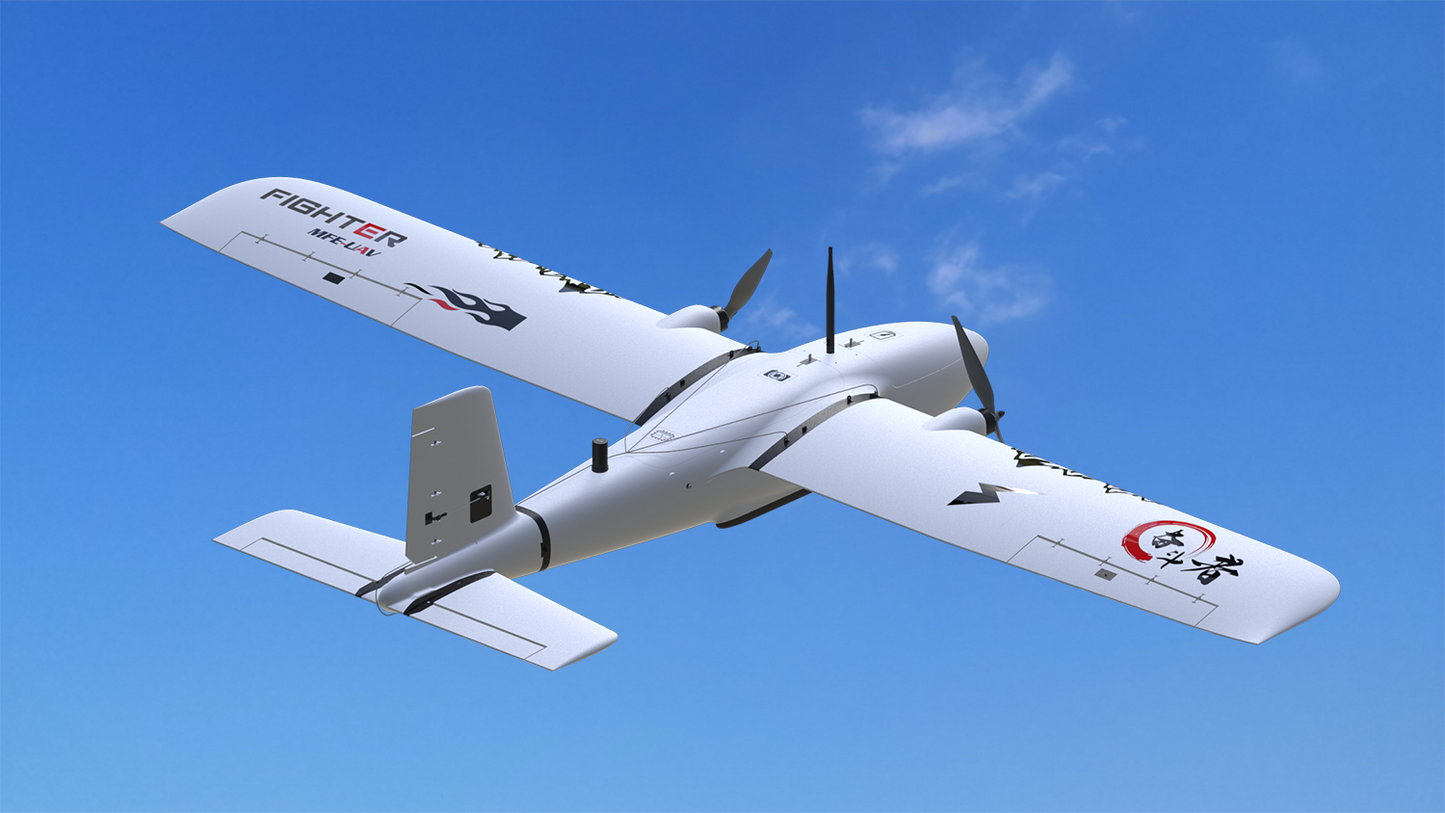

Makeflyeasy Fighter Hand Version - 2430mm Wingspan 1.5KG Payload 250KM Range Fixed Wing Aircraft EPO Portable Aerial Survey RC Airplane KIT

Note:
This item is the KIT Version, not include any electronic devices, the description Images are for reference only.
This item supports Feiyu 3-axis Gopro gimbal,but requires you to DIY the camera bay.

KIT Version Package Included:

1x Fighter 2430mm Wingspan EPO Portable Aerial Survey Aircraft RC Airplane KIT

PNP Version Package Included：

1x Fighter 2430mm Wingspan EPO Portable Aerial Survey Aircraft RC Airplane KIT
2x 3520 Motor
2x 60A ESC
5x Emax ES3154 Servos

1x  Emax ES08MDII servo for Parachute cabin
2x 1510 Propeller

Recommended Part for Believer (Not Included):

Battery: 4S 20000mAh or 6S 16000mAh
Charger: Balance Charger
Radio System: 2.4G 7CH
Flight Controller: Pixhawk Flight controller
Camera: Sony  A7R
Video Transmitter and Receiver

Description

The fighter is a 10kg fixed-wing flight platform (hand parachute/VTOL), which is easy to carry,friendly to operate,stable and durable.The fighter is positioned as a heavy-duty,long-endurance fixed wing,which greatly reduces the difficulty of aerial survey,further liberates productivity and improves the efficiency of aerial survey

The modular design concept makes the aircraft easy and fast to assemble.The wings,folding arms and tail fins can be easily dismantled, making the aircraft practical and portable and user-friendly.The open flight control cabin is compatible with Pixhawk flight control and supports mounting of Sony A7R2 4200W pixel full-frame camera /1.5kg lightweight lidar. The maximum support is 12s@22000mah lithium polymer battery,which can achieve ultra-long range and high-quality shooting effect

Using proper control point cooperatively,the final mapping would satisfy 1:1000 and 1:2000 aerial survey standard,which realized a wide-ranging application such as geography surveys,farmland,forestry land and grassland protection,power line inspection,environment protection,water conservancy and etc

Specification:
Item Name: Fighter

Material: EPO,EVA,carbon fibre,engineering plastic,and etc.
Wingspan: 2430mm
Fuselage Length: 1450mm
Fuselage Height: 180mm
Wing Load: 72.5dm⊃2;
Maximum payload:1.5kg

Longest flight range：>250km
Max. Take-off Weight: 11.5kg
Recommended Flying Speed: 20m/s
Stalling Speed: 10m/s

Feature:
EPO materail,lightweight and durable.
Hatch cabin inching design,convenient and reliable.
Bigger and more reasonable fuselage capacity.
ESC hatch cover can be removed,easy to replace the ESC.
Aileron servo can be removed,no need to modify the servo cable.
Bottom buffer layer design,reduce landing impact, protect fuselage and camera.
Ergonomic design of rear fuselage,to make lifting easier and throwing more stable.
Support tilt photography,meet the 1:1000 and 1:1200 aerial survey.
Support hand throwing and parachute landing fall.

Installation Attention:
- In the welding of high current connector, we must pay attention to the welding line sequence to correspond to each other, so as not to burn ESC and servo.
- Rcommend to use the Emax ES3154 digital servo, or other servos with the same size and servo horn, easy to install the servo, and the installation of the vertical stabilizer quick release device.

Flying Attention:
- Please avoid flying and swerving at 10m/s, so as to avoid stalling.
- Before the flight, please be sure to check the motor and the propeller are installed correctly and secure, the ESC signal line and the power cord plug connection is reliable and reliable.
