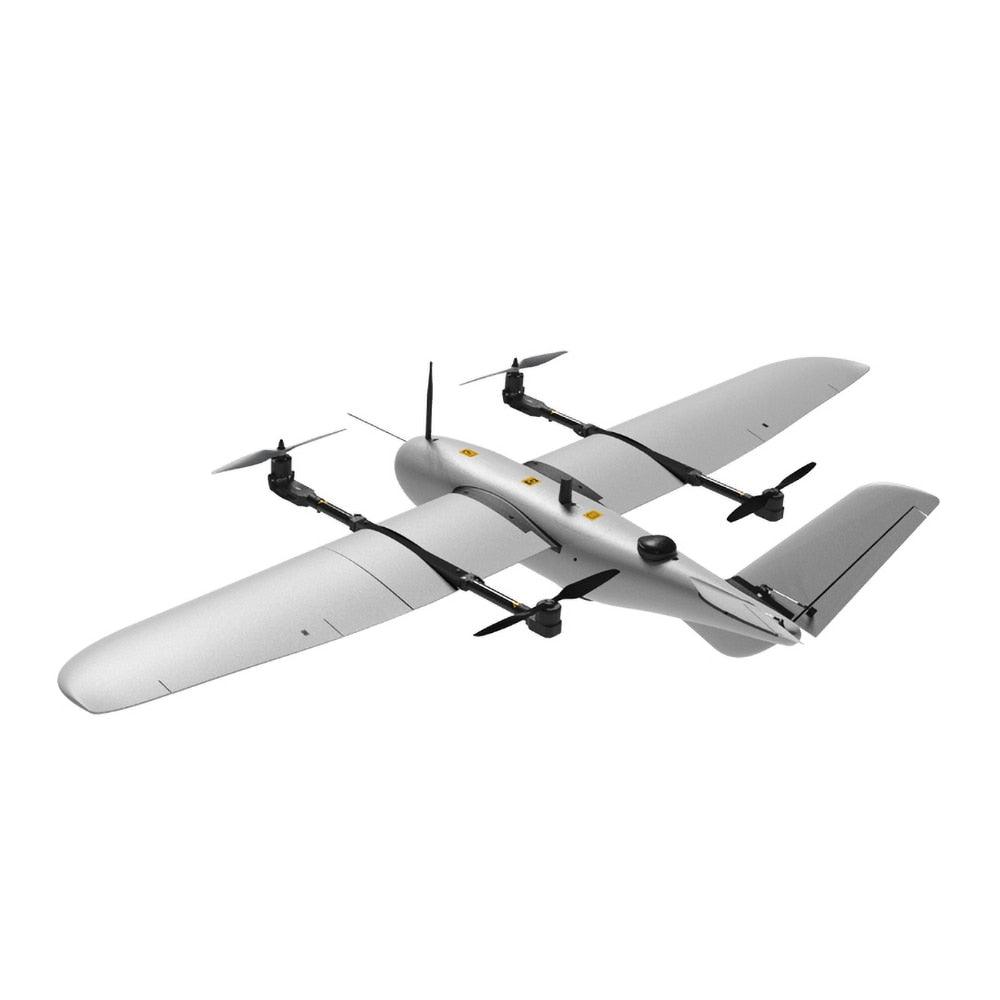

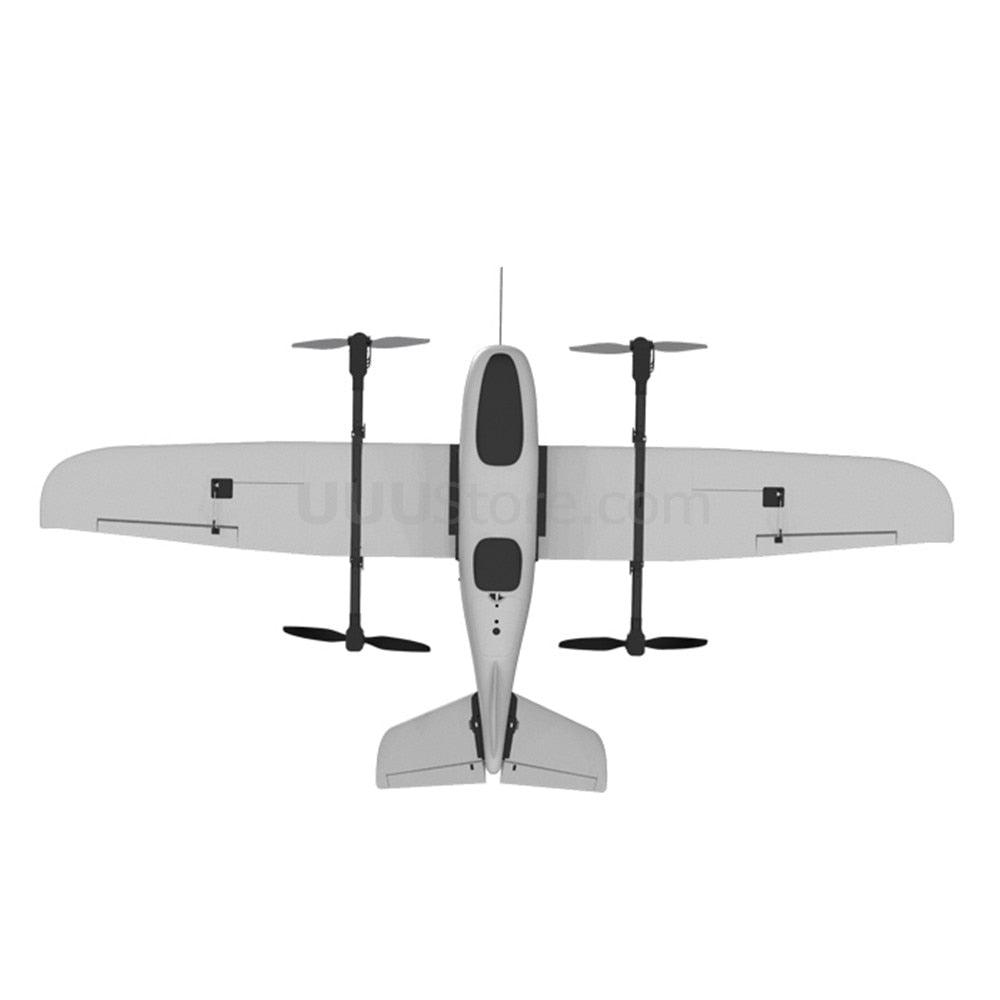

Makeflyeasy Freeman 2300 - 1KG Payload 80KM Range 2300mm Wingspan Tilt VTOL Fixed Wing Aircraft Aerial Survey Carrier Span Fpv Rc Plane UAV mapping Long range drone

Makeflyeasy Freeman 2300 Tilt VTOL Aerial Survey Carrier Span Fpv Rc Fix-wing Model drone Wing 2300mm UAV mapping Long range

Freedman -- is a vertical take-off and landing fixed wing with tilting transformation. The wing length is 2.1 meters, the flight speed is 18m/s, the A7R camera is mounted, the battery is 6S16000mah, the flight time is 70 minutes, the take-off weight is 6.5kg.

Specifications:

Brand Name: MFE

Item Name: Freedman

Material: EPO,EVA,carbon fiber,PC,engineering plastics and etc.

Wingspan: 2300mm

Fuselage Length: 1070mm

Max take-off Weight:8kg

Suggested Load:1000g

Suggested Flight Speed: 17~20m/s

Stalling Speed: 10m/s

Maximum Payload: 1.5kg

Payload Cabin Size: 120*150*120mm

Longest Flight Range: >80km(600g load)

Practical Ceiling Height: 4000m

Flight Duraion:80 Min

Sugeested Flight Speed:65km/h(18m/s)

Wind Resistance: 5

Take-off and Landing Approach: VTOL

Dismounting Way: Tool-free

Transport Case Size: 1.23mx0.45mx0.33m

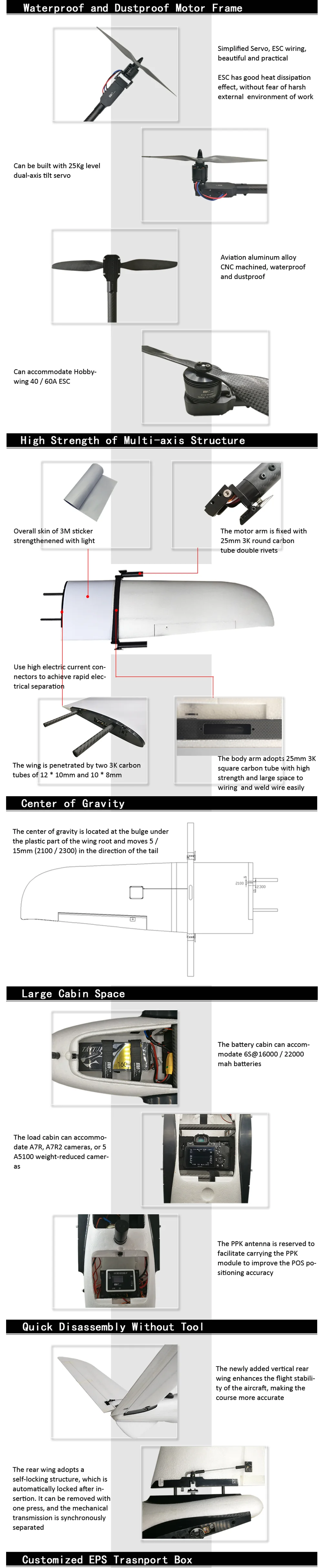

CG: Under the raised position of fuselage hook and the wing root plastic(same position)

Features:

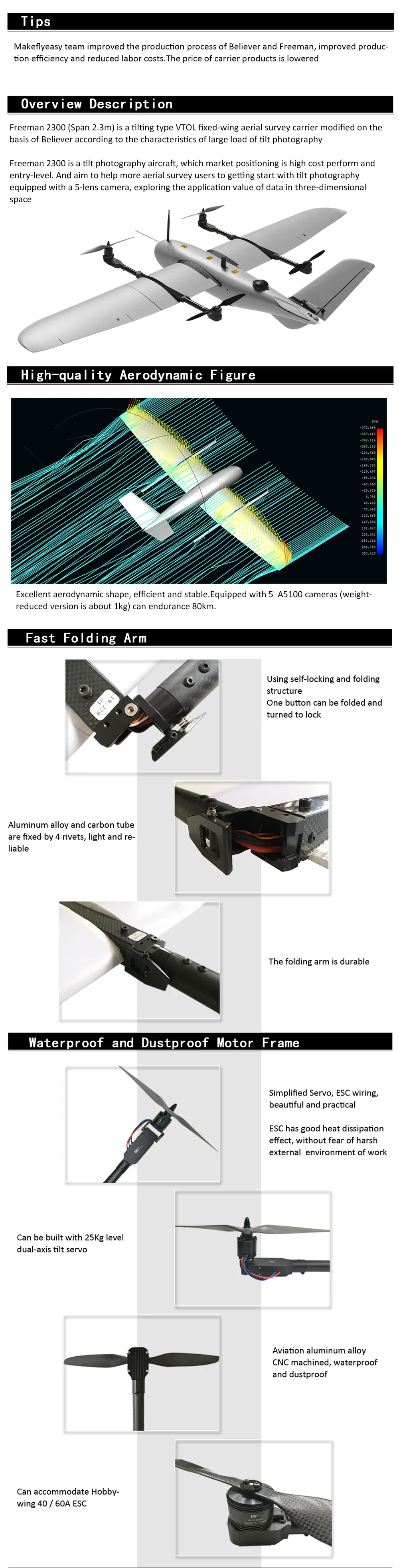

- Efficient Aerodynamics, on the basis of the conventional inverted T layout,the Fighter have optimized the aerodynamic figure and relative positions of the wings,horizontal tail,vertical tail and fuselage.

- Light but Stable.

- The wing and tail adopt a toolless quick-release structure, disassembly quickly.

- IPX3 waterproof level.

- Large fuselage cabin,low resistance.
