Makeflyeasy HERO VTOL - 1KG Payload 144km Range 136min 2180mm Wingspan Fix Wing Aircraft Airplane Drone for Inspection Surveying Mapping Monitoring

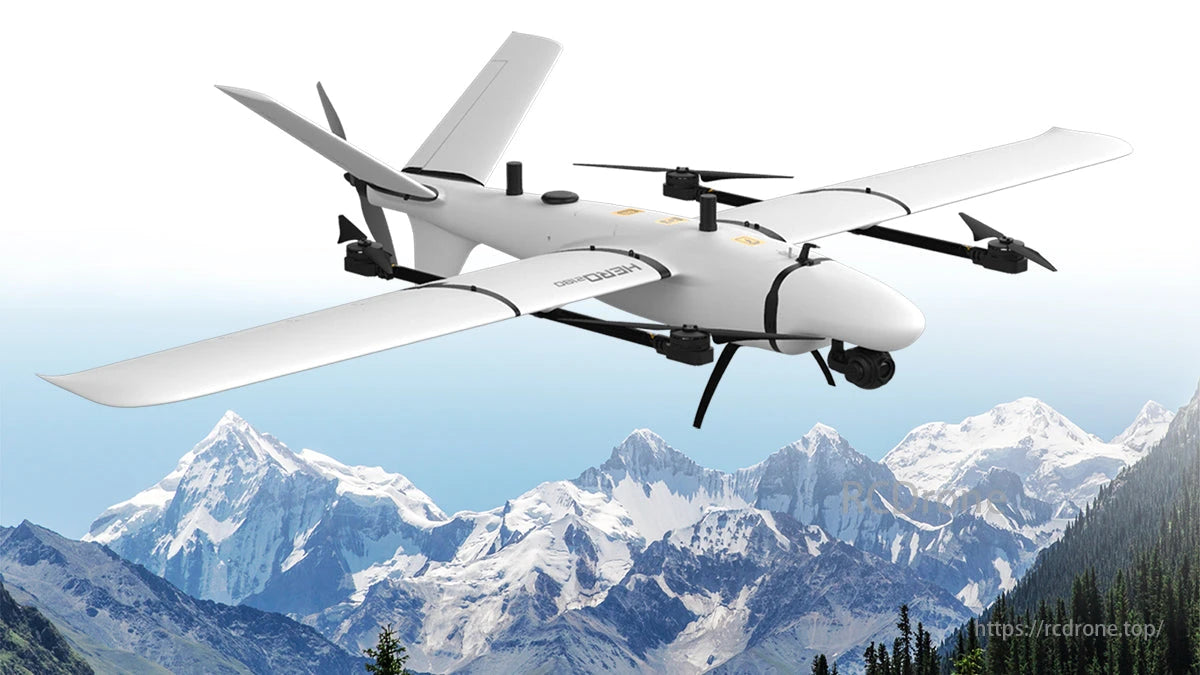

Makeflyeasy HERO VTOL Overview

The Makeflyeasy HERO VTOL is a versatile and advanced vertical take-off and landing (VTOL) fixed-wing drone designed for multiple applications, including inspection, surveying, mapping, and monitoring. With a wingspan of 2180mm and a wing area of 53dm², it offers stable and efficient flight performance. The HERO VTOL operates at a cruising speed of 17-22m/s and can reach a ceiling altitude of 6500m, making it suitable for high-altitude missions.

Key specifications include a take-off weight of less than 7kg, a payload capacity of up to 1kg, and impressive endurance capabilities: 136 minutes for mapping and 125 minutes for monitoring, with a respective range of 144km and 126km. The drone is built from durable materials such as EPO, carbon fiber, aviation aluminum alloy, and engineering plastics, ensuring robustness and reliability.

The HERO VTOL features quick disassembly without tools, a vertical take-off and landing capability, and excellent wind resistance up to Level 5. The innovative interchangeable nose design allows for the integration of various camera systems, including orthophoto and tilt cameras, enhancing its adaptability and reducing operational costs.

Overall, the Makeflyeasy HERO VTOL is an ideal choice for professionals in need of a reliable and multifunctional drone for complex aerial tasks.

Makeflyeasy HERO VTOL Specifications

What's Include?

1) Kit Version

Flight platform:

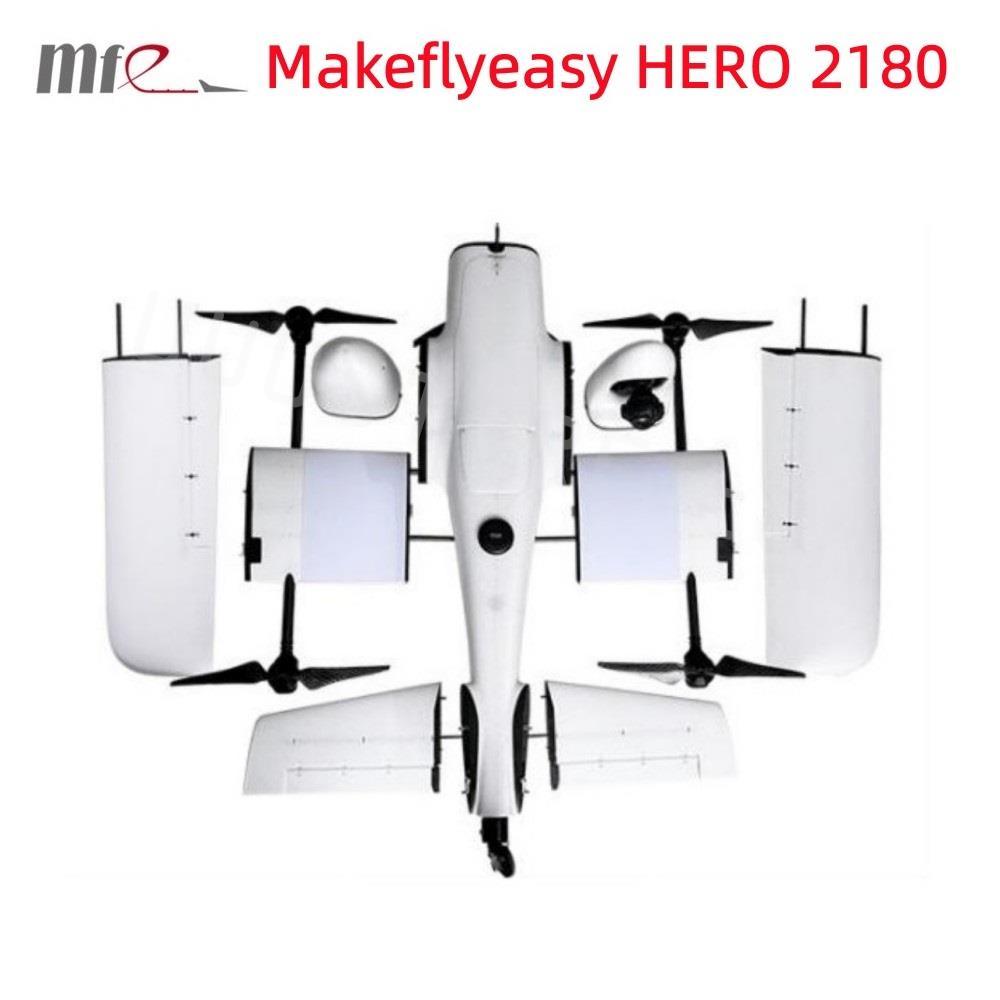

• 1 x HERO left wing root section
• 1 x HERO left wing tip section
• 1 x HERO right wing root section
• 1 x HERO right wing tip section
• 2 x HERO Pendant Boom (with fixing parts)
• 4 x HERO Pendant Motor Block
• 1 x HERO Fuselage (Double Nose)
• 1 x HERO Fuselage Accessories
• 1 x HERO V-Tail
• 1 x HERO Parts Kit
• 1 x HERO Foam Box
• 1 x HERO Carton

2) PNP Version

1 x Kit version

Powertrain:

• 1 x Cruise 3520 kv500 motor
• 1 x Cruise 6S 100A Brushless ESC
• 1 x Cruise Propeller APC1510
• 4 x Pendant 5008 kv450 disc motor
• 4 x Pendant 6S 50A Brushless ESC
• 2 x Carbon Fibre Forward and Reverse Propeller 1555
• 4 x Fixed Wing Servo 3054
• 1 x Custom 3S-14S UBEC 6V10A
• 2 x Wing Terminal Blocks
• 1 x PNP special wire kit

3) Mapping Pro Version

1 x PNP Version

Flight Control System:

• 1 x PixPilot V6 Flight Control Module
• 1 x POS1 (GPS and Compass)
• 1 x PMU Power Management Module
• 1 x I2C Digital Airspeed Controller

Telemetry System:

• 1 x T900 Pro Telemetry (Pair)
• 1 x 5dBi Rubber Stick Antenna
• 1 x Digital Signal Extension Cable

4) Mapping IND Version

1 x PNP Version (exclude Custom 3S-14S UBEC 6V10A)

Flight Control System:

• 1 x PixSuvey A1 Flight Control
• 1 x PixSuvey A1 GPS and Magnetic Compass
• 1 x PixSuvey A1 Centre Board
• 1 x PixSuvey A1 Power Management
• 1 x PixSuvey A1 Airspeed Meter & Accessories

Telemetry System:

• 1 x T900 Pro Telemetry (Pair)
• 1 x 5dBi Rubber Stick Antenna
• 1 x Digital Signal Extension Cable
• 1 x 17dBi Fibreglass Antenna

Remote Control System:

• 1 x ET10 Transmitter
• 1 x ET10 Receiver & Cable
• 1 x ET10 Battery

5) Monitoring Pro Version

1 x PNP Version

Flight Control System:

• 1 x PixPilot V6 Flight Control Module
• 1 x POS1 (GPS and Compass)
• 1 x PMU Power Management Module
• 1 x I2C Digital Airspeed Controller

Remote Control System:

• 1 x H16 Remote Controller
• 1 x H16 Air Terminal
• 1 x H16 Remote Controller Charger

Drone Pod System:

• 1 x ZR10 Zoom Camera
• 1 x Power and Serial Control Cable
• 1 x Network Interface and RJ45 Data Cable

6) Monitoring IND Version

1 x PNP Version (exclude Custom 3S-14S UBEC 6V10A)

Flight Control System:

• 1 x PixSuvey A1 Flight Control
• 1 x PixSuvey A1 GPS and Magnetic Compass
• 1 x PixSuvey A1 Centre Board
• 1 x PixSuvey A1 Power Management
• 1 x PixSuvey A1 Airspeed Meter & Accessories

Remote Control System:

• 1 x H16 Remote Controller
• 1 x H16 Air Terminal
• 1 x H16 Remote Controller Charger

Drone Pod System:

• 1 x ZR10 Zoom Camera
• 1 x Power and Serial Control Cable
• 1 x Network Interface and RJ45 Data Cable

7) Monitoring Youth Version

Flight platform:

• 1 x Inverse Left Wing Root Section
• 1 x Inverse Left Wing Tip Section
• 1 x Inverse Right Wing Root Section
• 1 x Inverse Right Wing Tip Section
• 2 x Inverse Vertical Takeoff Arm (including fixing parts)
• 4 x Inverse Vertical Takeoff Motor Base
• 1 x Inverse Fuselage (Monitoring Camera)
• 1 x Inverse Fuselage Accessories
• 1 x Inverse V-Tail
• 1 x Inverse Parts Kit

Power System:

• 1 x Cruise 3520 kv500 Motor
• 1 x Cruise 6S 100A Brushless ESC
• 1 x Cruise Propeller APC1510
• 4 x Vertical Takeoff 5006 kv450 Disc Motor
• 4 x Vertical Takeoff 6S 50A Brushless ESC
• 2 x Vertical Takeoff Forward and Reverse Carbon Fiber Propeller 1555
• 4 x Fixed Wing Servo 3054
• 2 x Wing Terminal Blocks
• 1 x PNP Special Wire Kit

Flight Control System:

• 1 x Pixsuvey A1 Flight Control
• 1 x Pixsuvey A1 32G Memory Card
• 1 x Pixsuvey A1 Card Reader
• 1 x Pixsuvey A1 GPS & Compass
• 1 x Pixsuvey A1 Central Board
• 1 x Pixsuvey A1 Safety Switch
• 1 x Pixsuvey A1 Power Distribution Board
• 1 x Pixsuvey A1 Airspeed Meter & Accessories

Wireless Communication System:

• 1 x H16 Remote Controller (10km)
• 1 x H16 Air Terminal
• 1 x MIPI Camera
• 1 x H16 Remote Controller Charger

8) Monitoring  Flagship Version

• 1 x Monitoring Youth Version
• 1 x Graphene Battery 6S@22000mAh
• 1 x Power Battery Fast Charger
• 1 x Battery Voltage Monitor

Makeflyeasy HERO VTOL Details

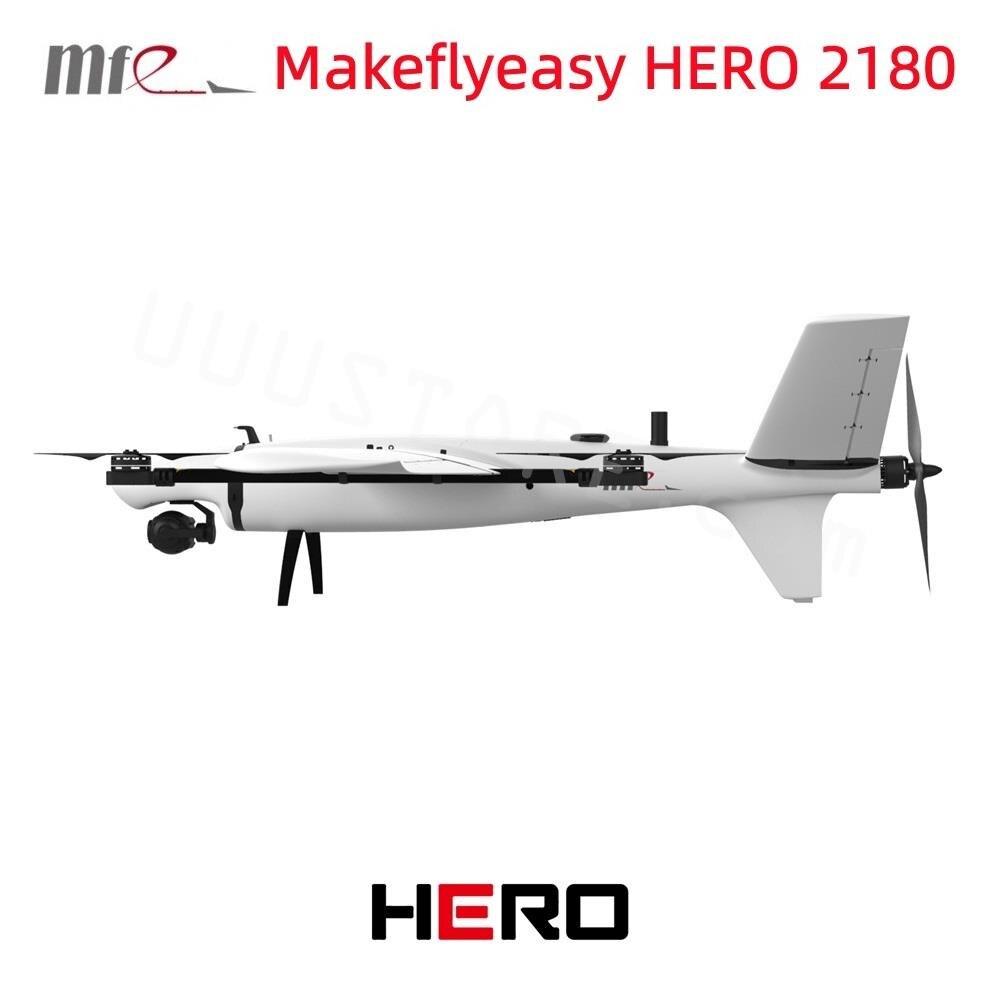

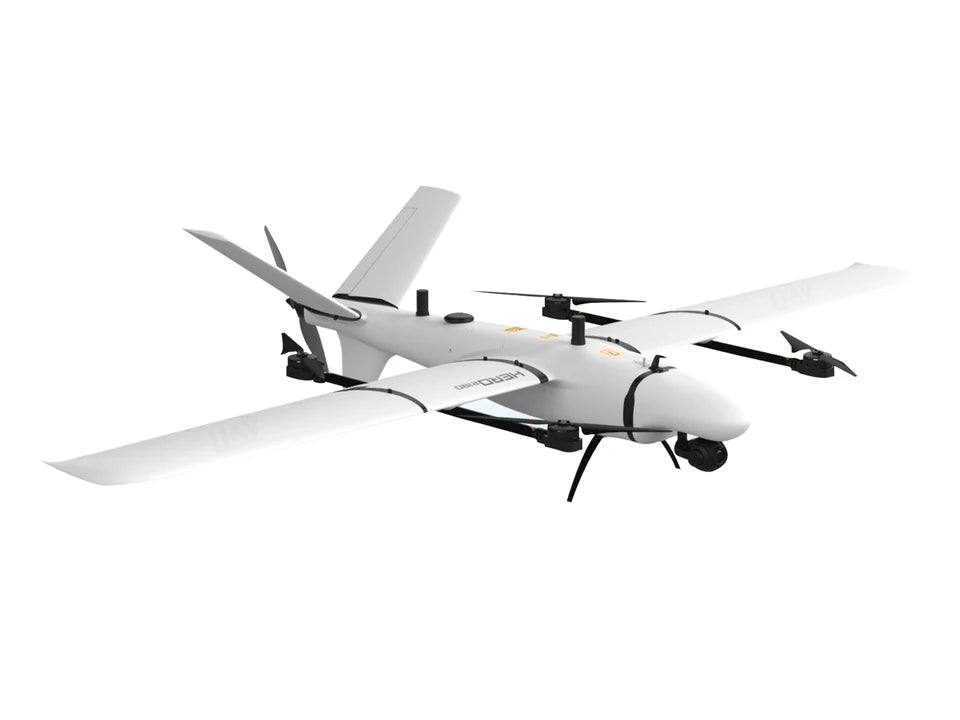

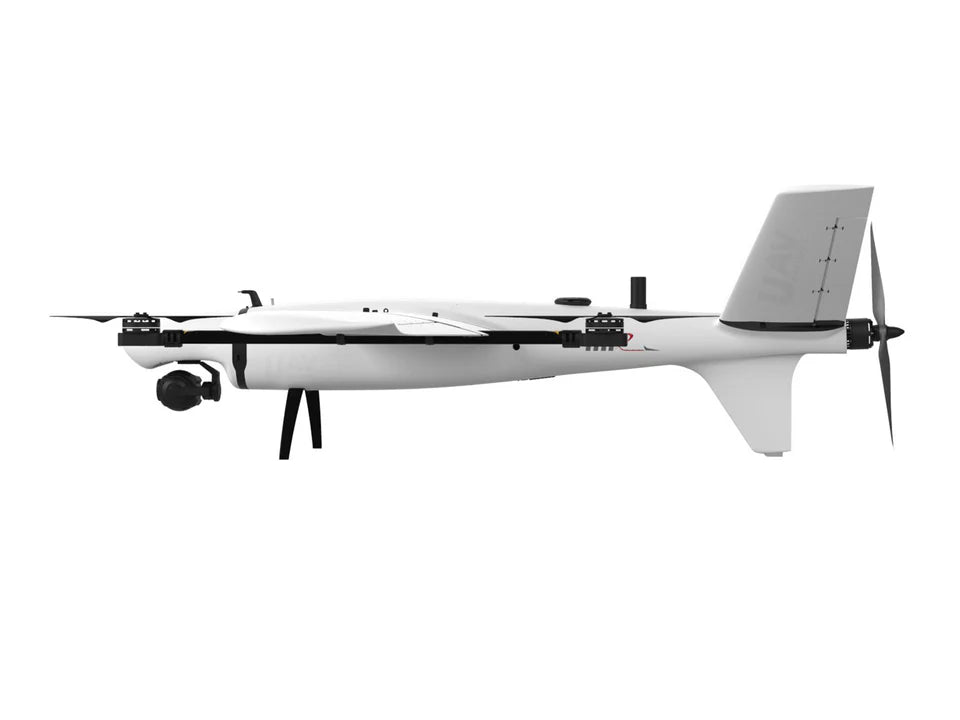

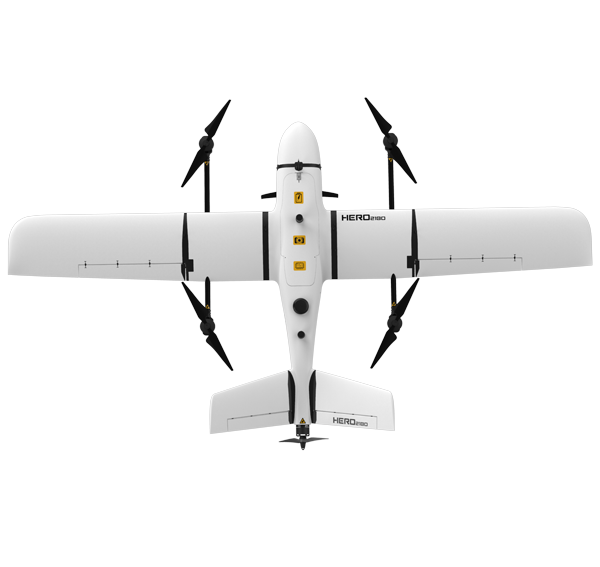

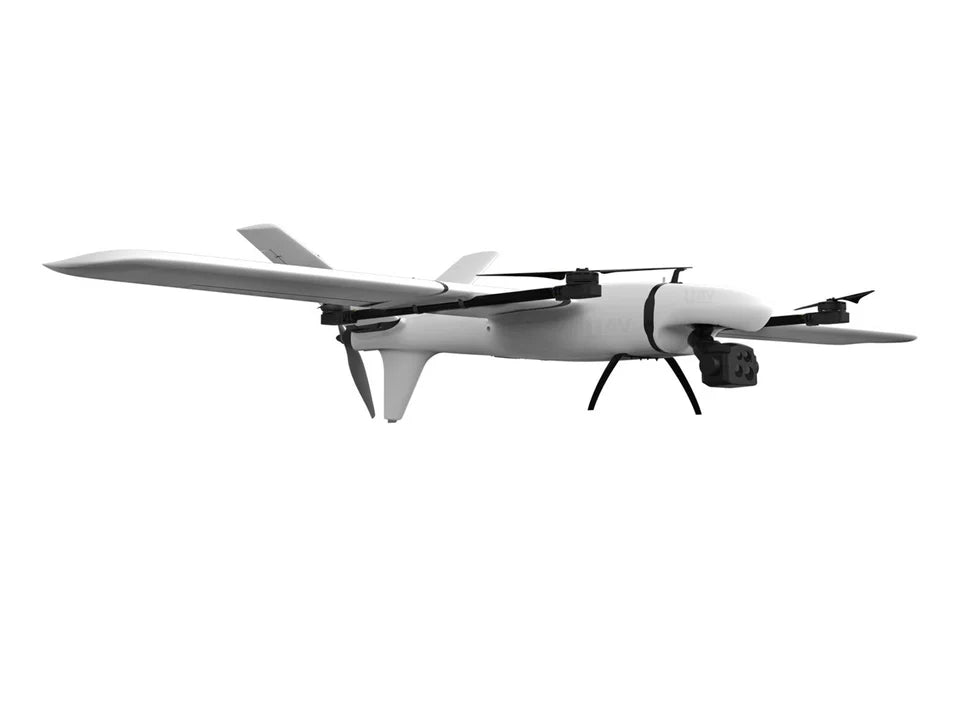

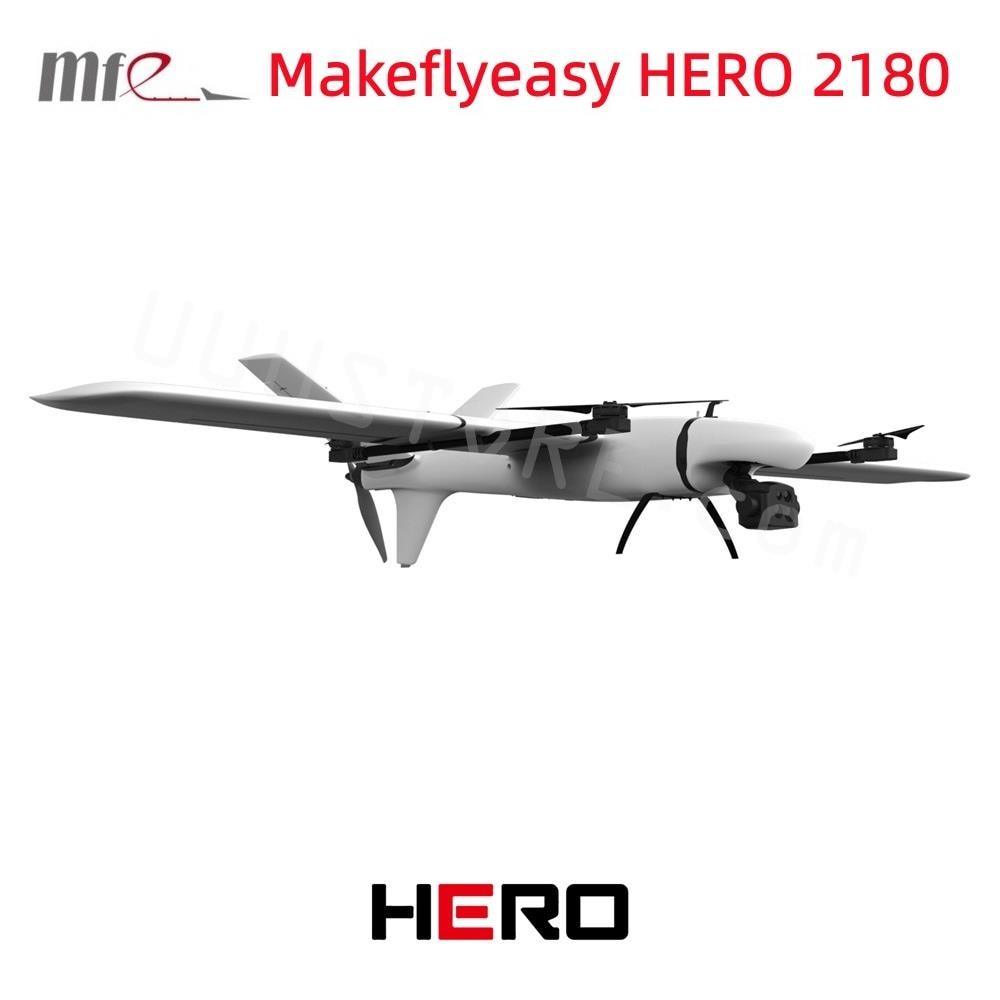

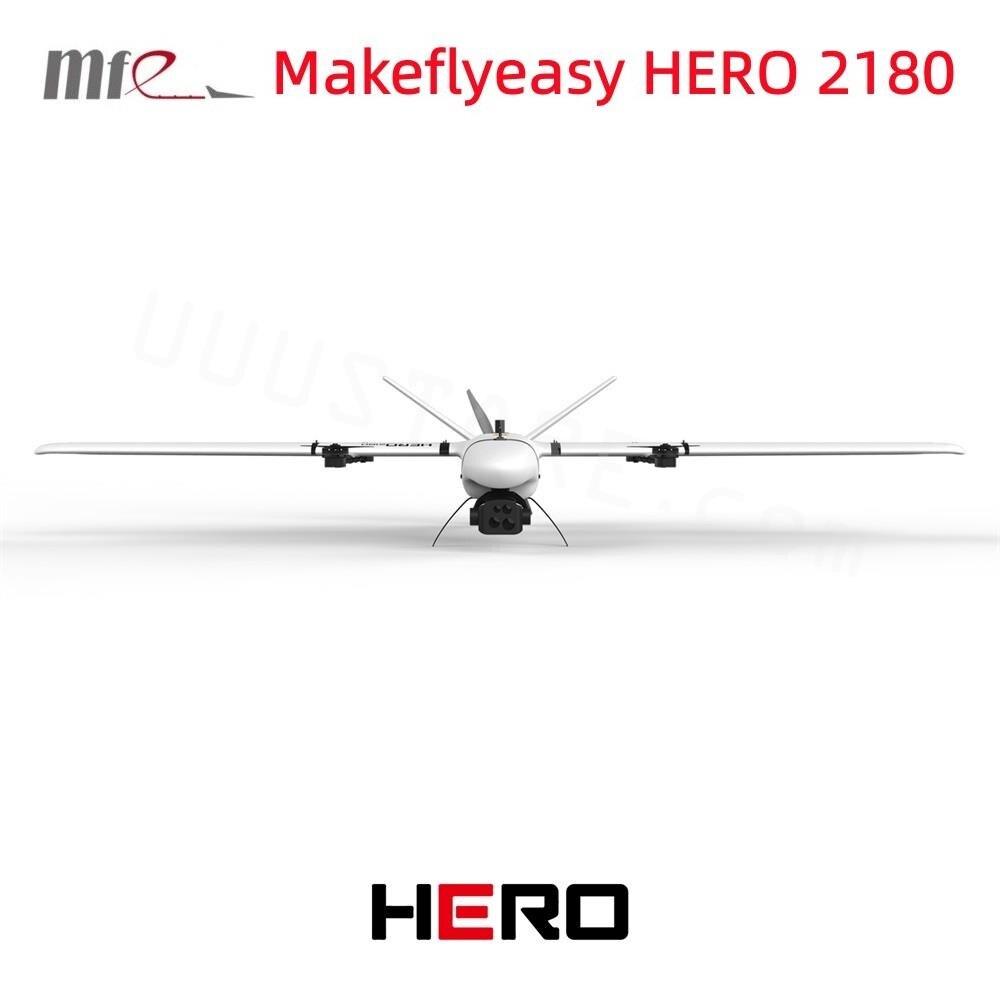

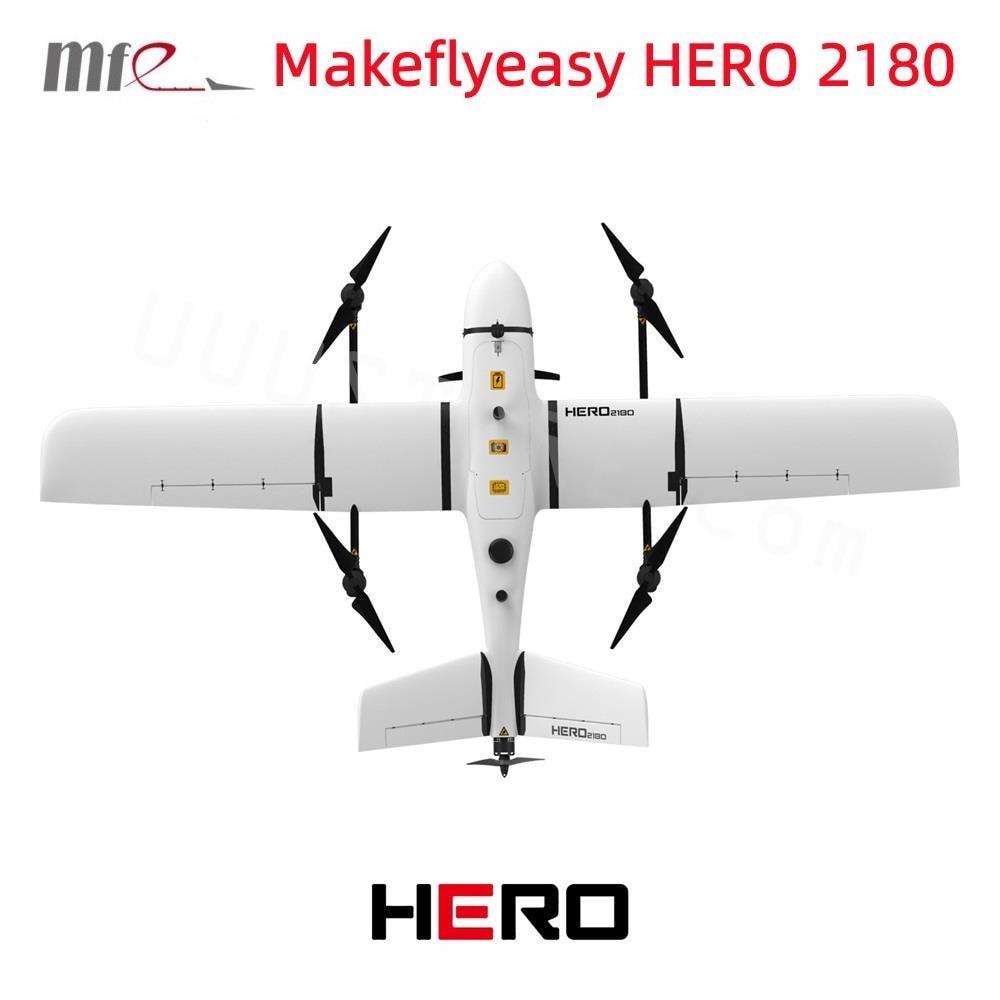

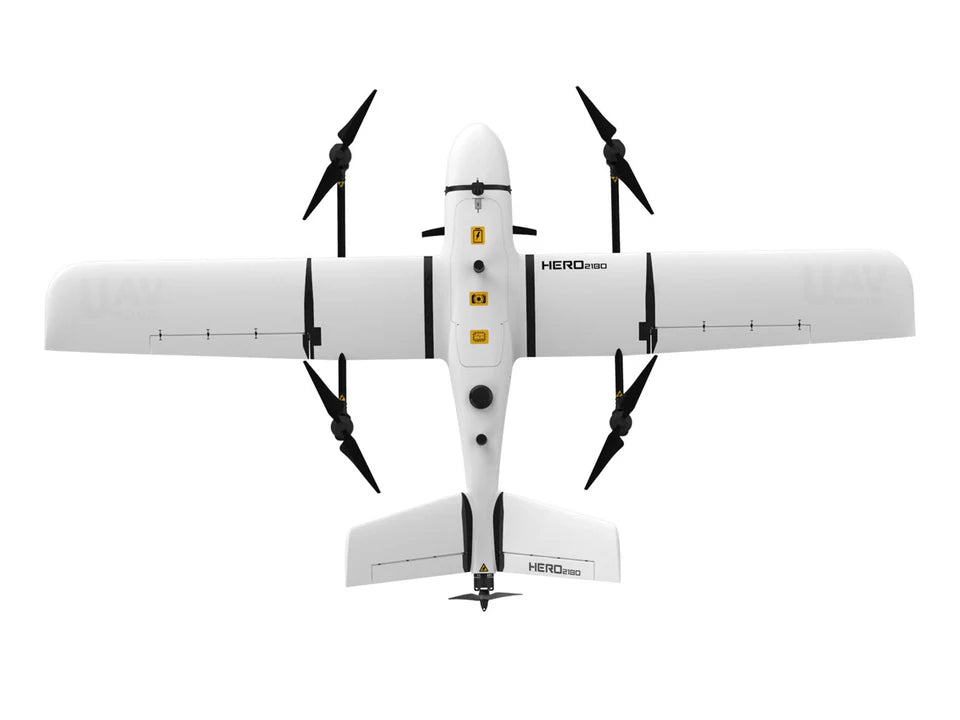

The Hero VTOL is a multi-purpose vertical take-off and landing fixed wing. The nose can be replaced, and it can be equipped with an orthophoto camera or a tilt camera for surveying and mapping, and an optoelectronic pod for monitoring.

Makeflyeasy HERO VTOL inspection drone Aerial survey carrier Vertical take-off landing fixed wing Surveying mapping Monitoring

Meet the Hero VTOL, a versatile fixed-wing drone for inspection, surveying, mapping, and monitoring. Its interchangeable nose design allows for camera configurations, including orthophoto and tilt cameras, expanding its applications and reducing costs.

The Makeflyeasy HERO VTOL drone features a wingspan of 2180mm, with a vertical arm length including motor base at 755mm and an area of 53dm2. The aircraft has a body height of 255mm including tripod, cruising speed of 17-22m/s, and a stall airspeed of 12m/s. It can carry a payload of <1kg, with a take-off weight of <3000m, ceiling altitude of 6500m, and wind resistance level 5 for normal operation. The drone has a V-tail angle of 28° up and 20.5° down, and disassembles quickly without tools. It's made from EPO, carbon fiber, aviation aluminum alloy, and engineering plastic.

The Hero VTOL features efficient aerodynamics through its high-efficiency V-tail design and optimized tail-fuselage configuration, resulting in reasonable load distribution, increased lift and drag, and improved flight efficiency. Endquote

Built with high-strength HERO and lightweight materials, including carbon fibers, wooden boards, and PC boards, this aircraft features embedded box structures that enhance its structural strength and rigidity. Optimized through an 'overload experiment', the design minimizes unnecessary weight while ensuring precision and stability.

HERO VTOL features quick disassembly and tool-free design, ideal for mapping and monitoring applications. The aircraft supports 1kg payload with 144km range and 136min flight time. Its 2180mm wingspan offers stable flight performance. The wing and tail are designed for easy assembly and disassembly, reducing installation steps and disassembly time.

The HERO VTOL features a rear three-point landing gear at the bottom of its fuselage, providing high ground clearance and ample mounting space. The tail rotor is designed to avoid ground contact. Inside the fuselage, wire grooves and removable baffles simplify wiring installation, ensuring efficient cabin wiring.

Features a four-point connection structure in the nose cabin for stability and reliability, with two 9-pin connectors reserved for connections like image transmission, remote control, and airspeed signals to the fuselage flight control system.

The cabin features a layered design for efficient space use. The bottom layer accommodates power distribution and landing radar, while the middle layer can install open-source or commercial flight control systems. The top layer houses PPK or Hah Precision GNSS module image transmission equipment. A screw-secured hatch ensures dust-proofing and prevents foreign objects from falling.

Equipped with GPS, compass, and PPK antenna modules for precise positioning and navigation. The tail push ESC is situated below the flight control cabin, encased in an external aluminum shell for effective heat dissipation.

Equipped with a 195mm rat-tail glue stick antenna that can be pre-buried in the vertical tail, this HERO VTOL drone features improved support strength and a clean electromagnetic environment. The V-tail also boasts a tool-free quick-release structure, allowing for easy locking and release with one push. This design simplifies maintenance by eliminating the need to pre-embed the tail servo. Additionally, the built-in rocker arm ensures accurate rudder surface execution, even if the drive column is loose.

The HERO VTOL's wing can be divided into two segments: the wing root and tip. Its structure features carbon tubes, auxiliary supports, and plastic components forming a strong frame, reducing storage volume.

Featuring 3M-strengthened wing roots for enhanced rigidity and torsion resistance, this drone also boasts a servo-driven wing design for simplicity and durability.

Fixed-wing VTOL aircraft features a durable aluminum alloy rotor arm with easy installation and removal for simple maintenance, featuring an open mid-section for ESC and servo cable installation (optional).

Equipped with a large 65mm outer rotor motor and an optional customized ESC (67*31*12mm), this drone features excellent heat dissipation, water resistance, and dustproofing, ensuring reliable performance in harsh environments.

ESC ESC BEC 6V 10A 6S 50A 6s 50A A3 6V A1 Camera shutter cable A5(11) (9) A1 Right front motor Rear left motor A2(10) (12) A4 Rear right motor Left aileron M1 A1- Left ace servo Left tail M2 M6| Right tail serv o 3054 ArduPilot 3054 Accelerator |M3 M8 M4 PPM 'SBUS' Left

Makeflyeasy aerial survey series products are sensitive items . it is prohibited to use it for military purposes . keep the aircraft out of the reach of children .



APPLICATION AREAS

With small storage volume, flexible and convenient use, it can be widely used in topographic mapping, land survey, engineering survey, digital city, planning and construction, landscape planning, precision agriculture, environmental protection monitoring, ecological monitoring and other fields.
