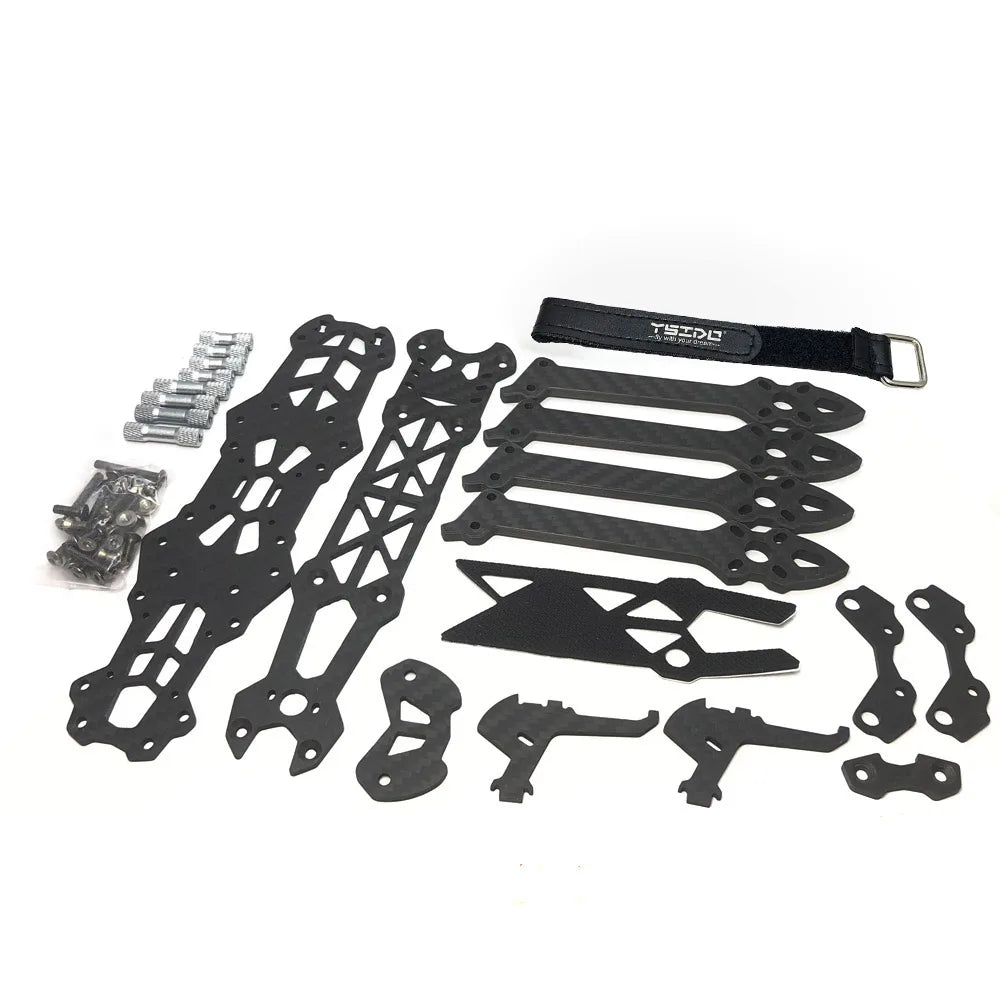

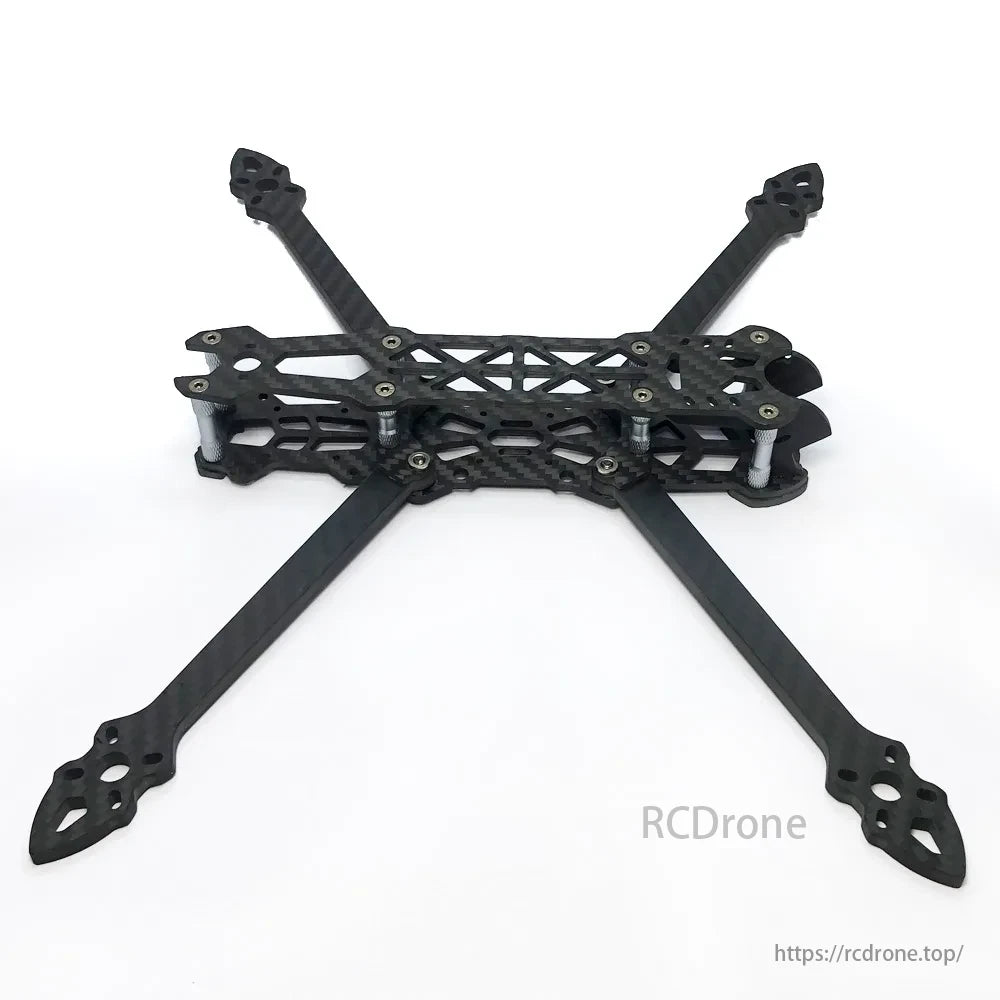

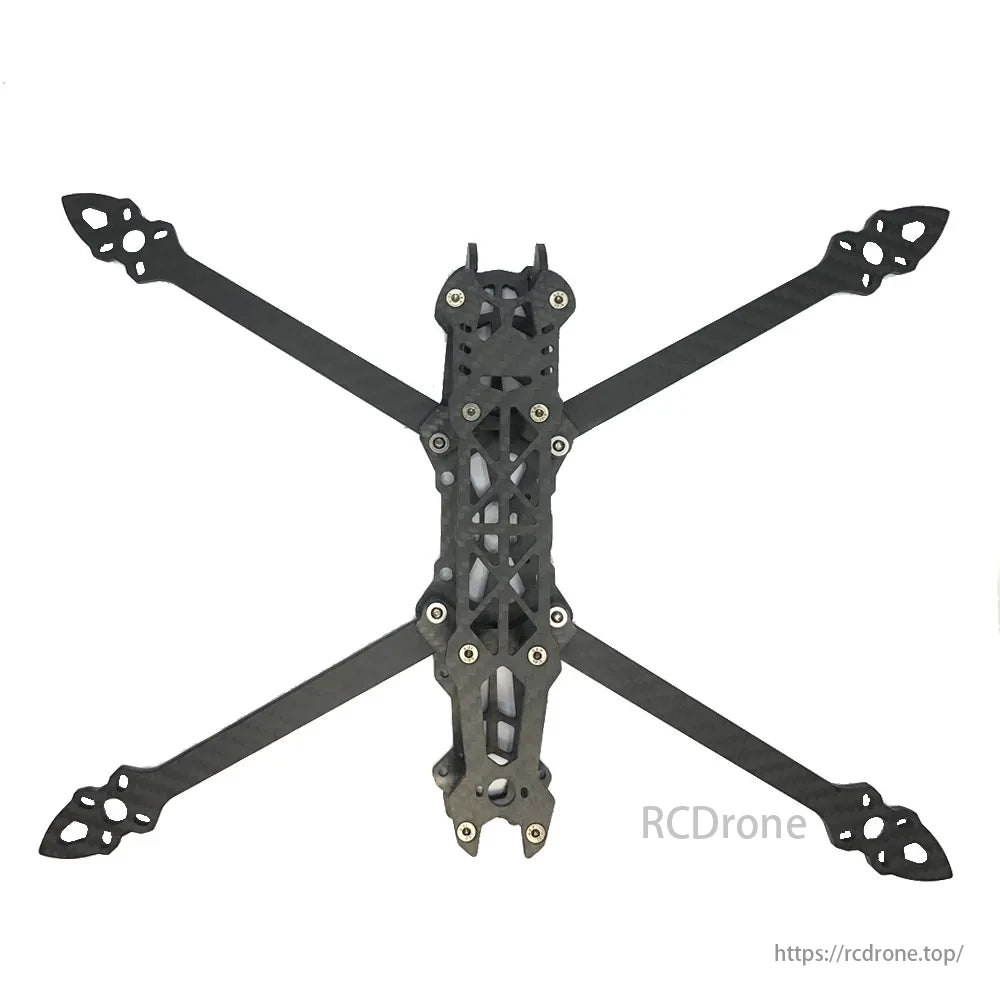

MARK4 7inch 295mm Wheelbase Carbon Fiber Frame 2807 1300KV Brushless Motor propeller 2.5W VTX Camera For FPV 7" Long Range Drone

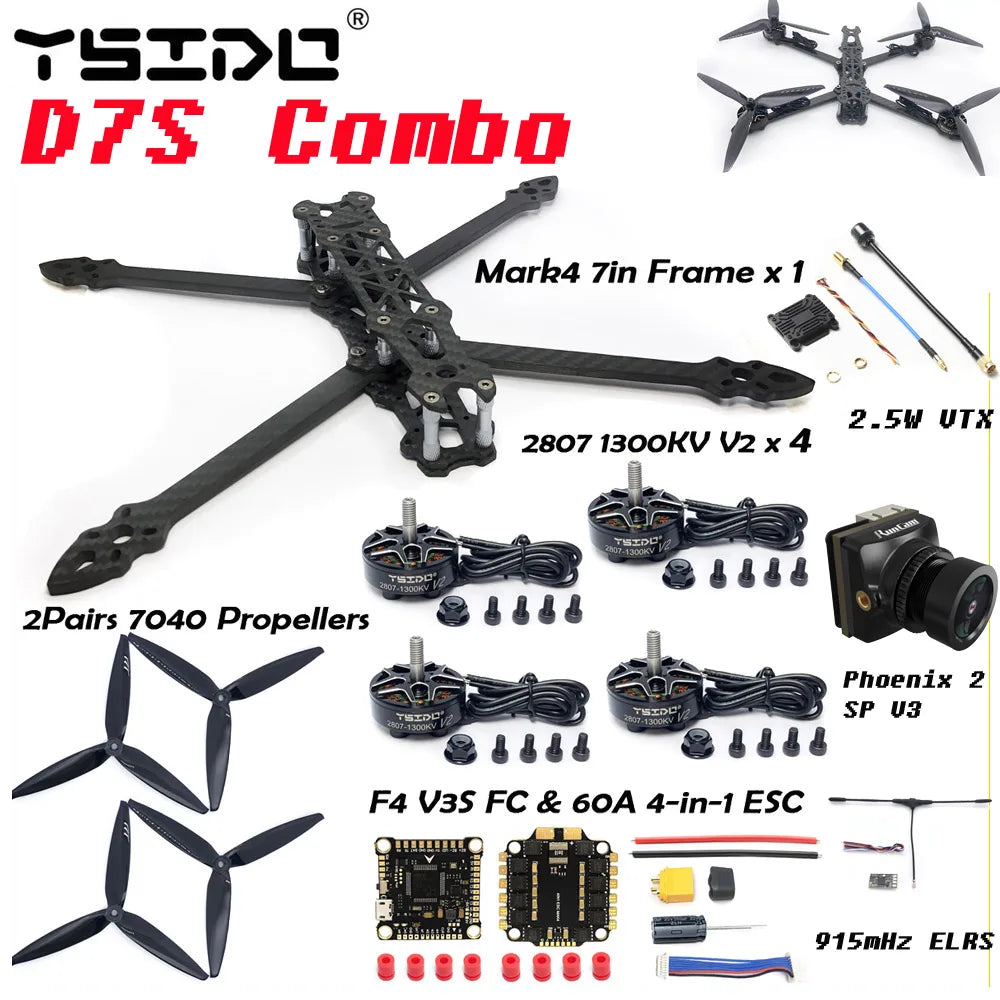

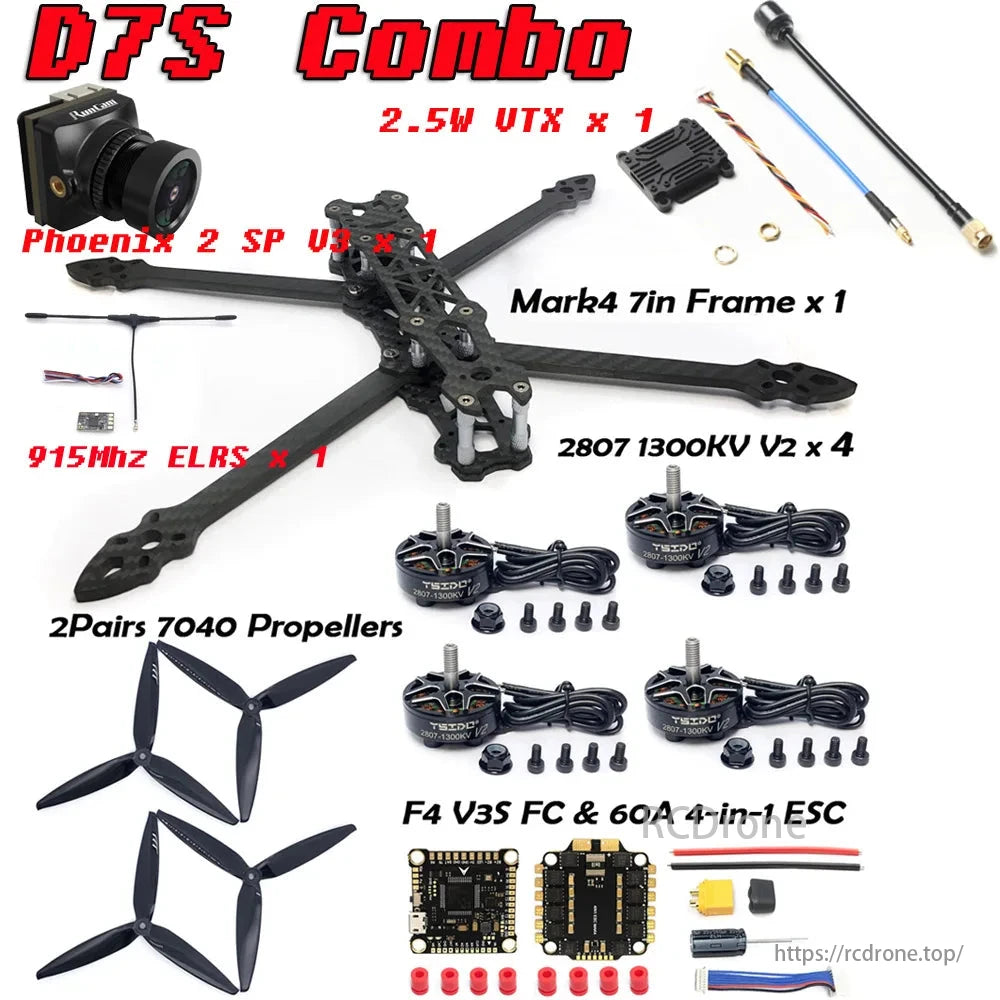

D7S Combo includes a 2.5W VTX, Phoenix 2 SP V3 camera, and Mark4 7in Frame. It has four 2807 1300KV V2 motors, two 7040 propeller pairs, and an F4 V3S FC with a 60A 4-in-1 ESC. Also included is a 915Mhz ELRS module, along with connectors, screws, and accessories for assembly. This kit offers high performance and reliability, making it ideal for FPV drone enthusiasts.

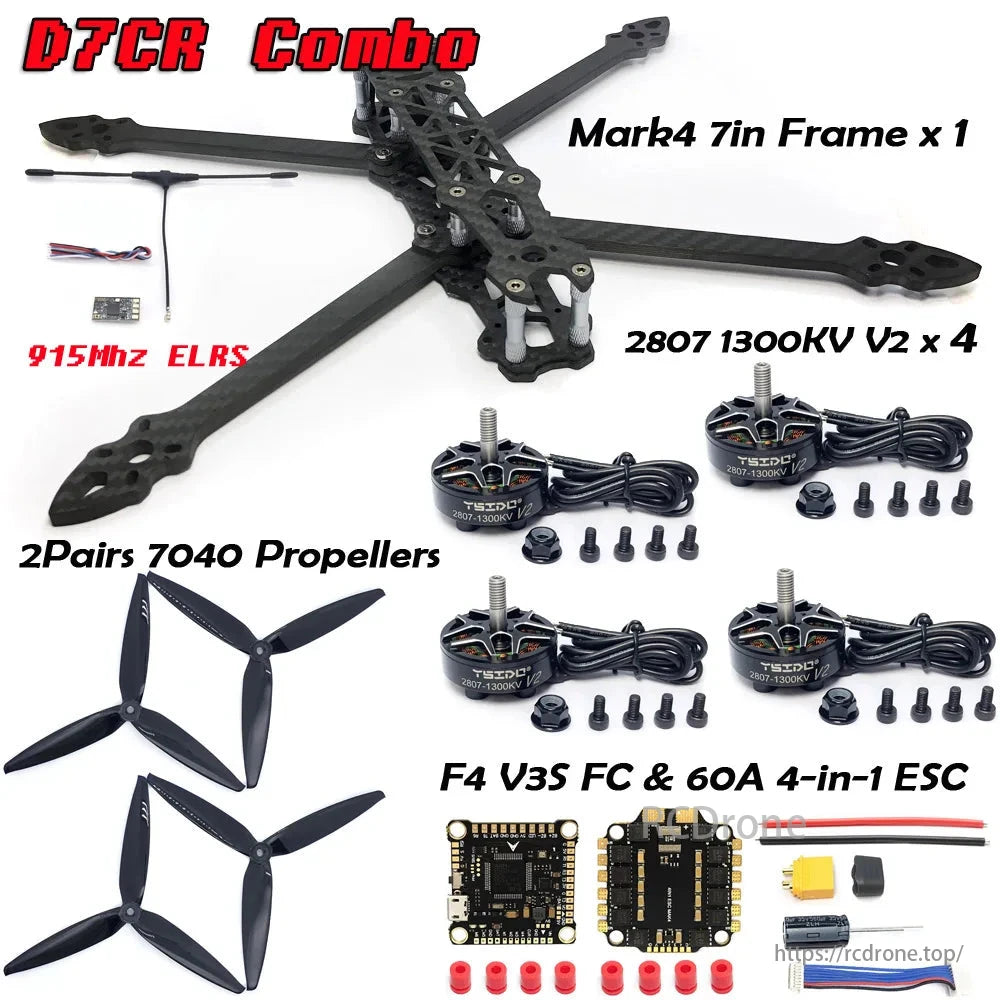

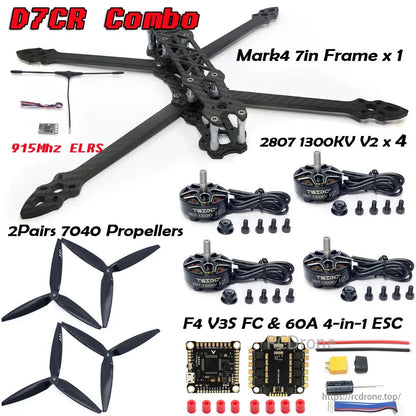

D7CR Combo includes Mark4 7in Frame, 2807 1300KV V2 motors (x4), 915Mhz ELRS, 2 pairs 7040 Propellers, F4 V3S FC & 60A 4-in-1 ESC. Ideal for FPV drone enthusiasts.

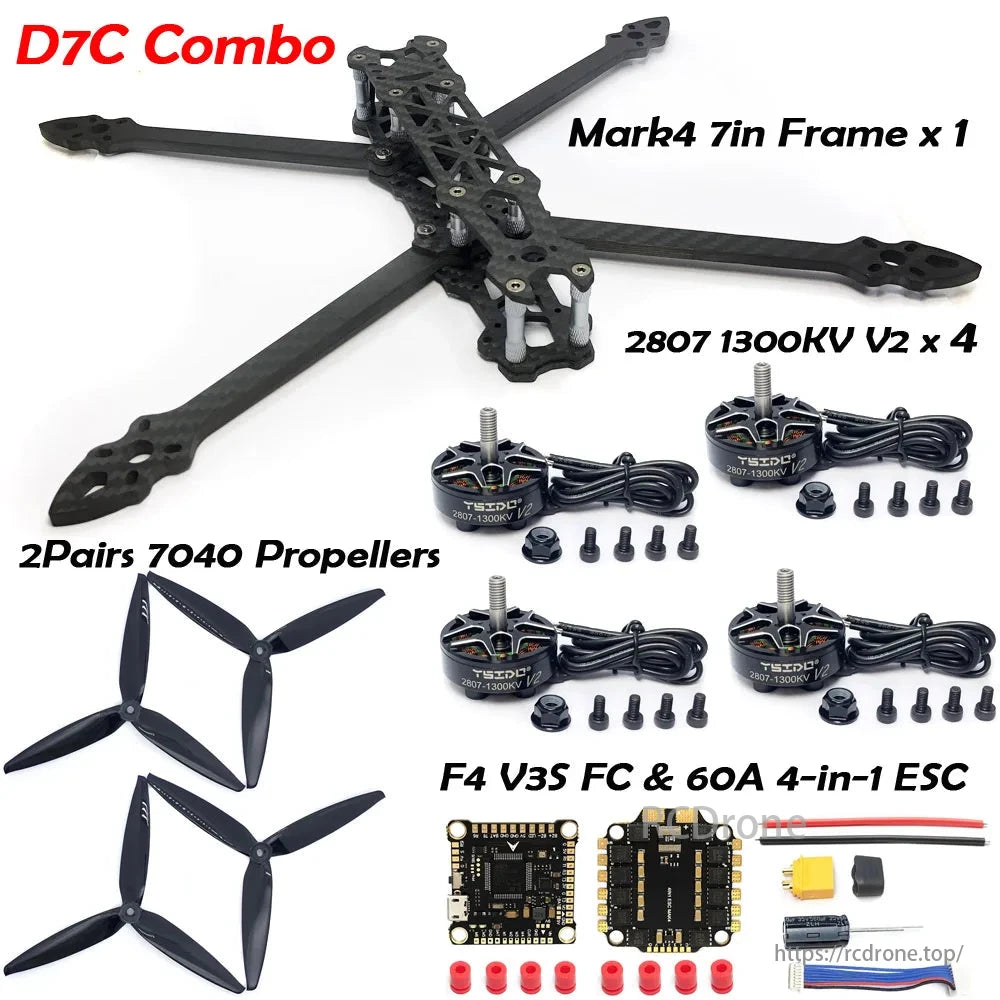

D7C Combo includes Mark4 7in Frame, 2807 1300KV V2 motors (x4), 2 pairs 7040 Propellers, F4 V3S FC & 60A 4-in-1 ESC. Ideal for FPV drone enthusiasts.

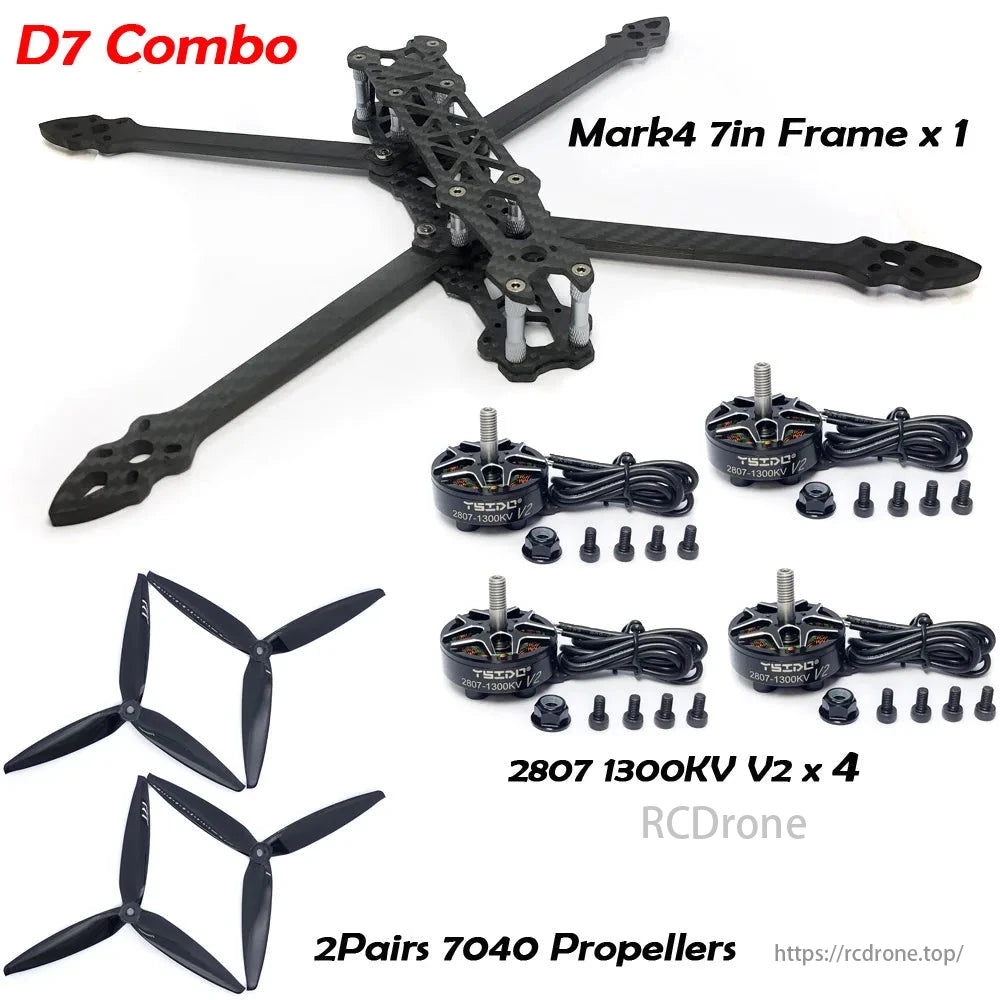

D7 Combo includes Mark4 7in Frame, 4x 2807 1300KV V2 motors, and 2 pairs of 7040 propellers for FPV drone assembly.

FAQ

Does F4 flight control support the traditional aircraft model remote controller?

F4 flight control only supports receivers in sbus or ppm mode, and also supports receivers in crsf protocol, such as TBS receiver and ELRS receiver; Traditional pwm receiver is not supported.

Does F4 flight control support GPS fixed points?

F4V3plus flight control supports inav firmware, and GPS with magnetic compass can achieve fixed-point function.

Does F4V3plus flight control support rescue mode?

Support.

Can F4V3plus flight control be connected to DJI O3 air unit?

It can be connected to O3 air unit, but it needs to be connected by welding wires. There is no separate air unit interface.

What is the model of F4V3plus flight control and tower chip?

The main control chip uses F405.

Do I need to insert a memory card for F4V3plus flight control parameter adjustment?

No, you can adjust the parameters by connecting the data cable directly to the computer.

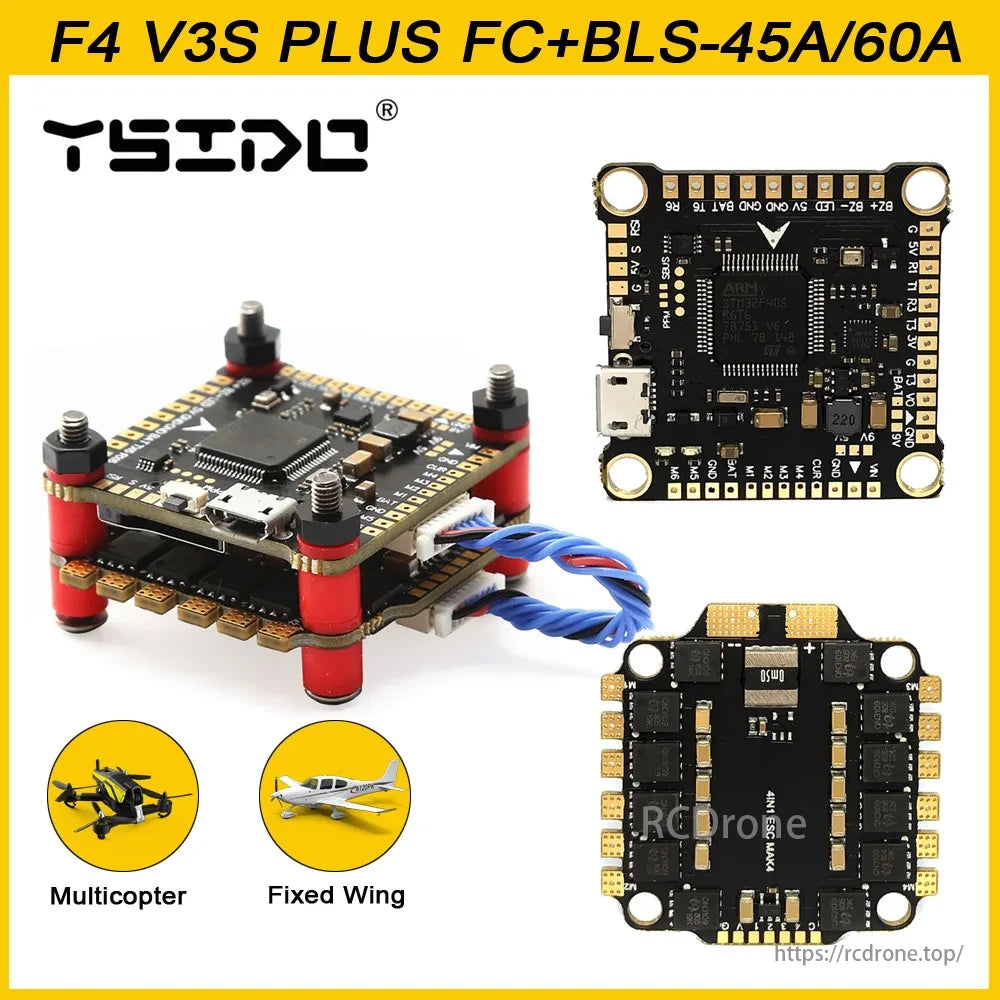

F4 V3S PLUS FC+BLS-45A/60A flight controller by TSIDO. Supports multicopter and fixed-wing drones. Features ARM STM32F405 chip, USB port, and 4-in-1 ESC design for efficient performance.

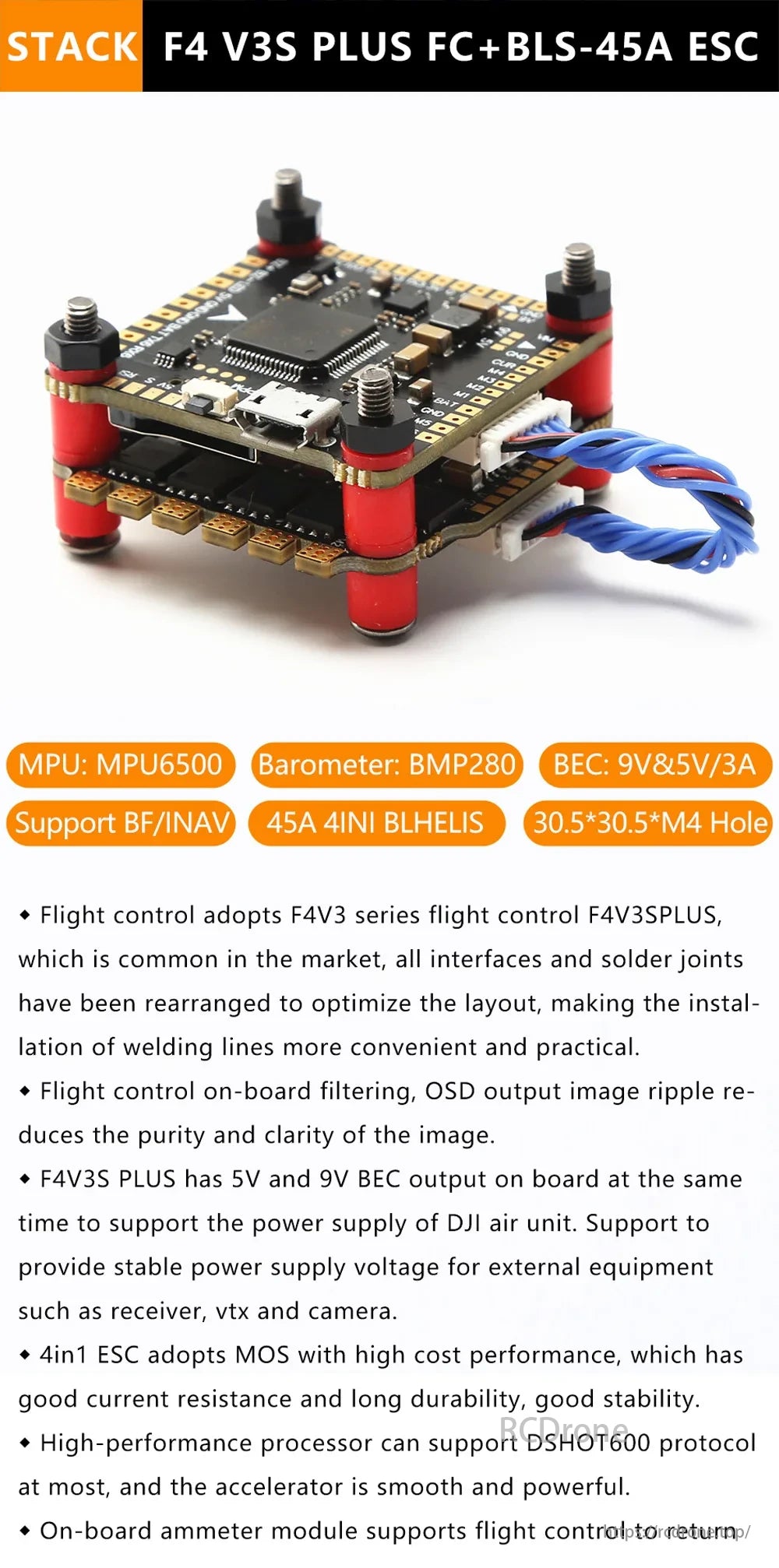

STACK F4 V3S PLUS FC+BLS-45A ESC with MPU6500, BMP280, 9V&5V BEC. Supports BF/INAV, 45A BLHELI_S, DSHOT600, ammeter, and has an optimized layout with on-board filtering and stable power.

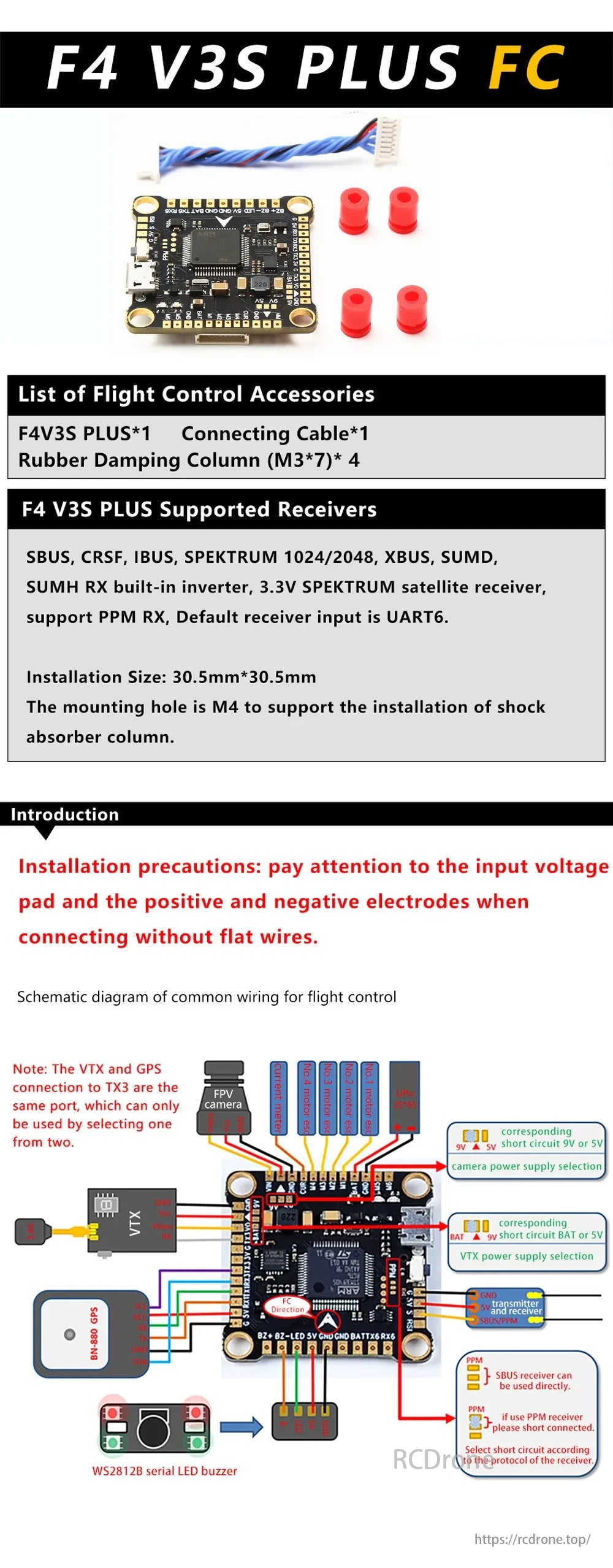

F4 V3S PLUS FC flight controller with accessories. Supports SBUS, CRSF, IBUS, SPEKTRUM receivers. 30.5mm x 30.5mm size. Includes wiring diagram and installation precautions for FPV drones.

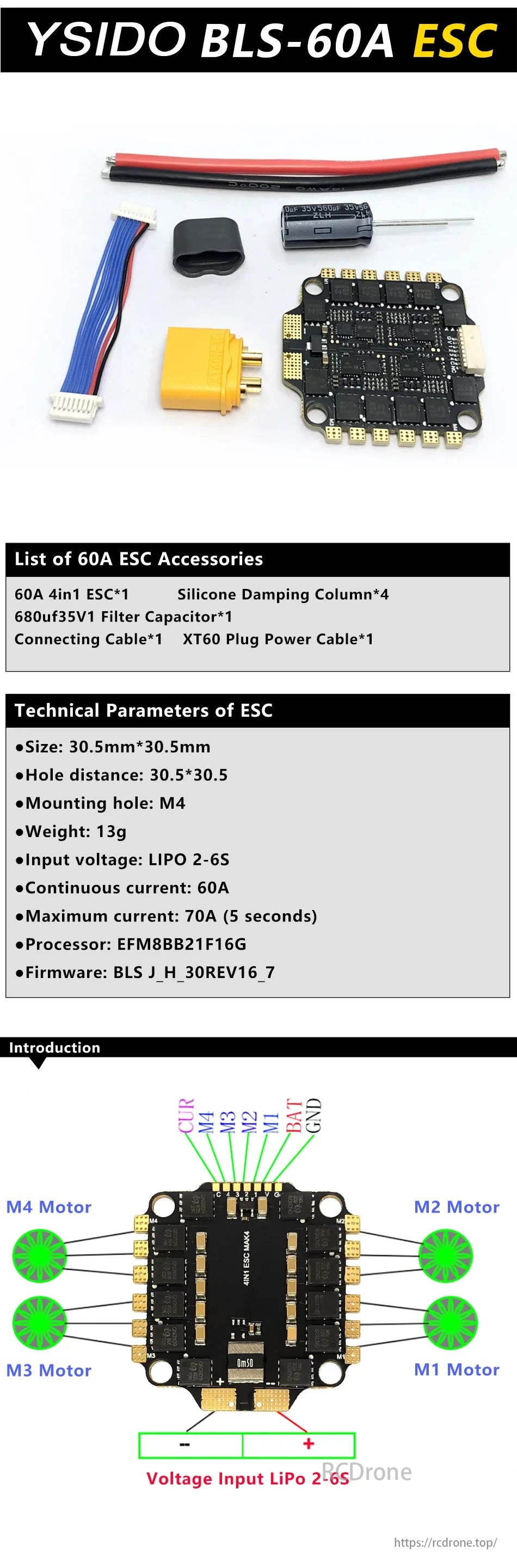

YSIDO BLS-60A ESC: 60A 4-in-1, 30.5mm x 30.5mm, 13g, LIPO 2-6S, 60A continuous, 70A max (5s), EFM8BB21F16G processor, BLS J_H_30REV16_7 firmware. Includes accessories and technical parameters.

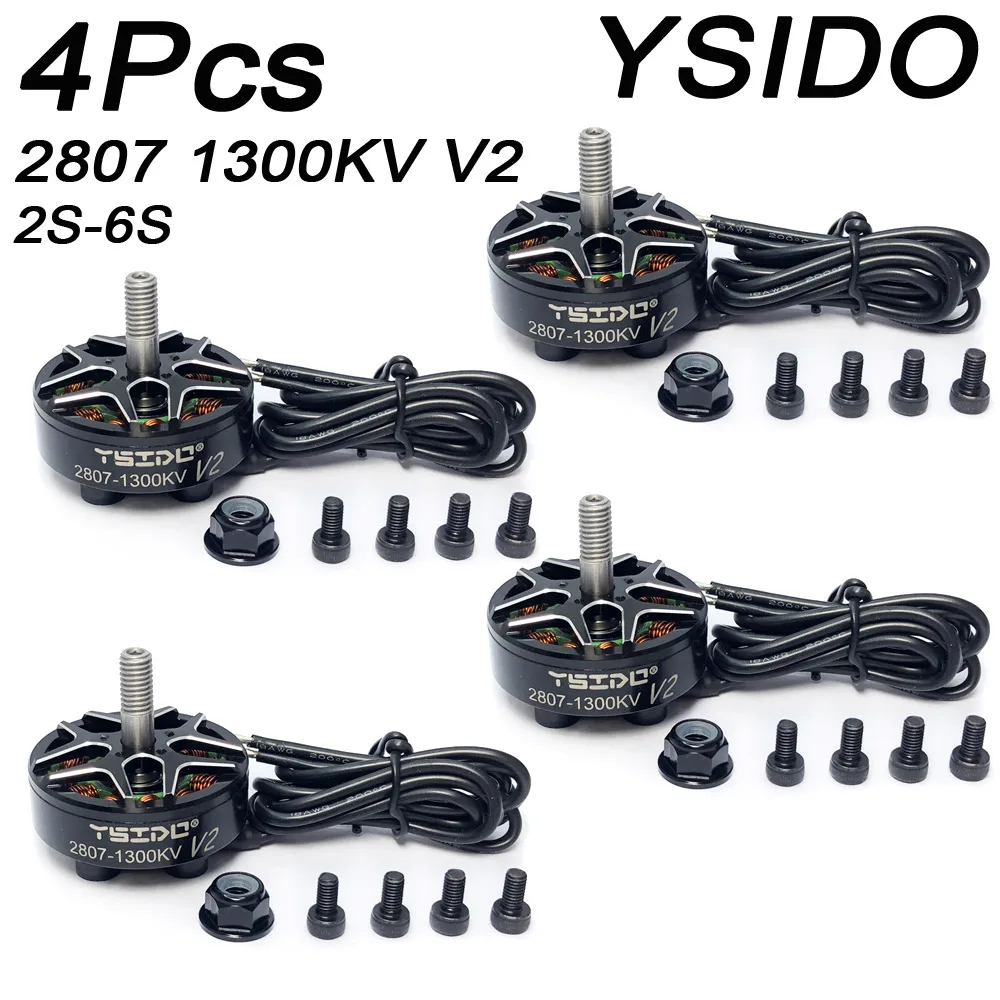

4Pcs YSIDO 2807 1300KV V2 motors for FPV drones, compatible with 2S-6S batteries. Includes screws and nuts for secure attachment.

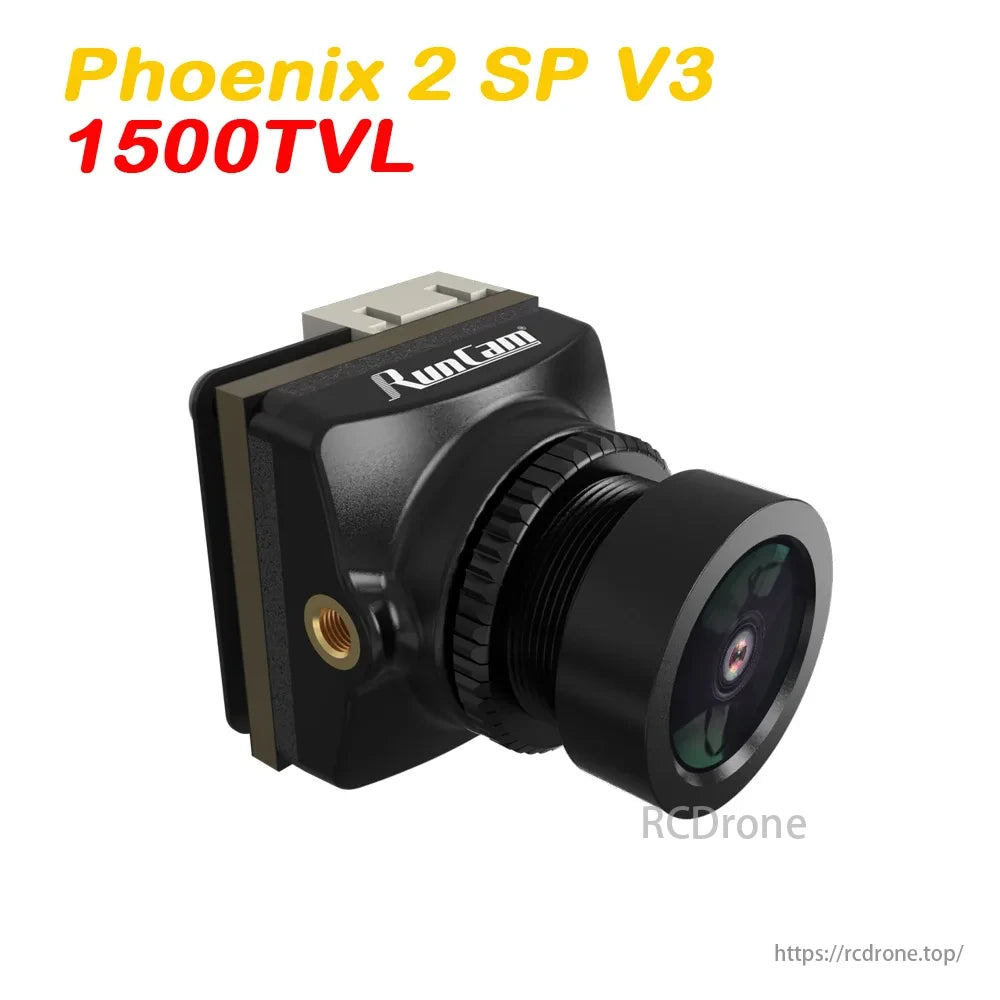

RunCam Phoenix2 SP specs: 1/2.8" Starlight COMS sensor, 1500TVL, FOV up to 155°, NTSC/PAL, rolling shutter, 15000mV/Lux·sec sensitivity, global WDR, color/BW modes, cable control, DC 5-36V power, 7.5g weight, 19x19x21mm size.

Package includes: 1x Camera, 1x 6pin FPV cable, 1x screw set, 1x Manual.
