Mark4 V2 10 inch 427mm FPV Racing Freestyle Drone Frame Kit With F722 F7 Flight Control 60A 4IN1 ESC 3115 900KV Motor 1050 Propeller

Mark4 V2 10 inch 427mm FPV Racing Freestyle Drone Frame Kit With F722 F7 Flight Control 60A 4IN1 ESC 3115 900KV Motor 1050 Propeller

RCDrone

$299.00 USD
$299.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Default Title
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

SPECIFICATIONS

Brand Name: Readytosky

Choice: yes

For Vehicle Type: Airplanes

Hign-concerned Chemical: None

Is Electric: No battery

Material: Composite Material

Model Number: Mark4 V2 10inch Frame

Origin: Mainland China

Recommend Age: 14+y

Use: Vehicles & Remote Control Toys

Mark4 V2 FPV Racing Drone, Power system for DJI LDO, supporting dual-channel BEC with stable power supply.

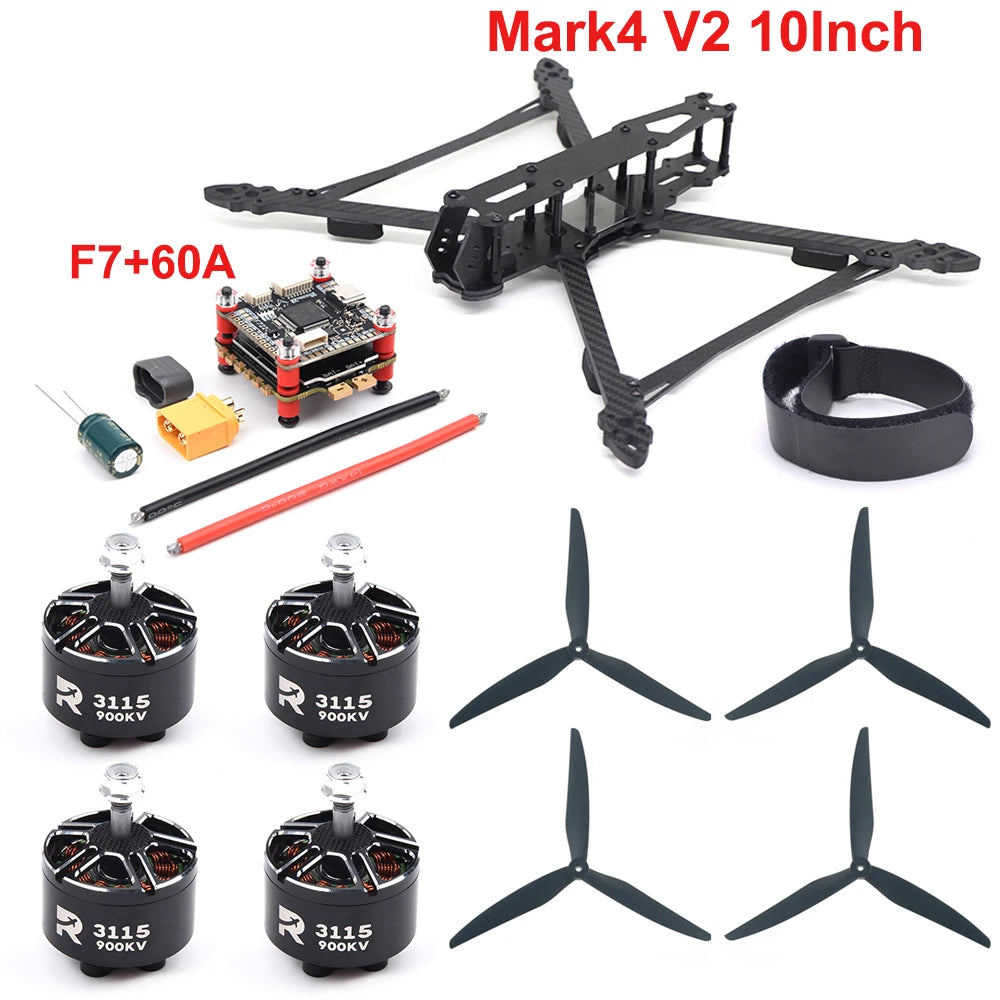

Package Included:

1Set x Mark4 V2 10inch 427mm Carbon Fiber frame (unassembled)

4PCS x 3115 900KV Brushless Motor

1PCS x F7 Flight Control Board

1PCS x 60A BLheli_S 4In1 ESC  (there are two kinds of esc board , will send at random )


2Pairs x 1050 3-blades Propeller

1PCS x Battery Strap

Mark4 V2 FPV Racing Drone, Mark4 V2 10Inch FPV Racing Drone kit features F7+60A controller, 3115 900KV motors, and propellers for enhanced performance.

Mark4 V2 10Inch FPV Racing Drone kit includes F7+60A flight controller, 3115 900KV motors, and propellers.

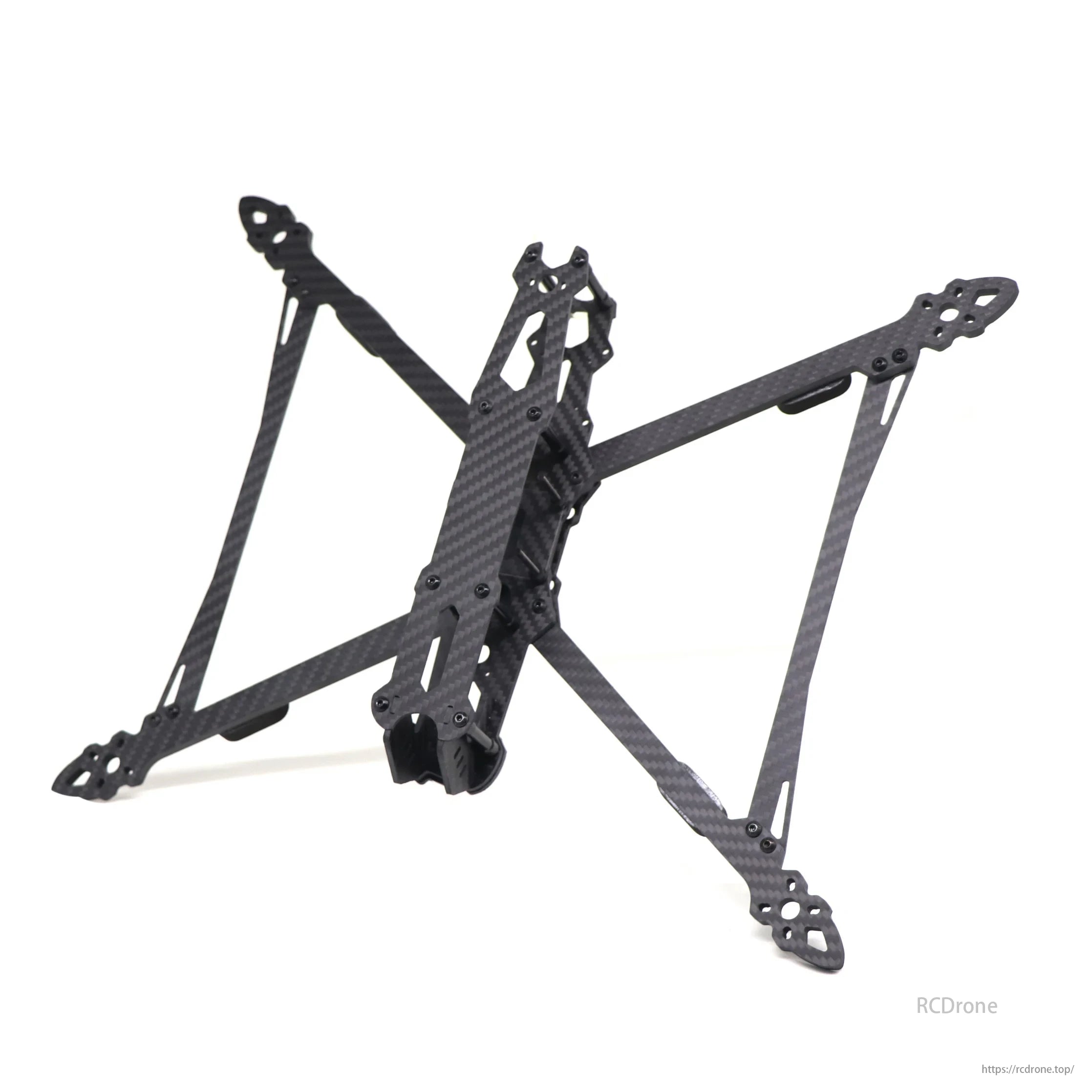

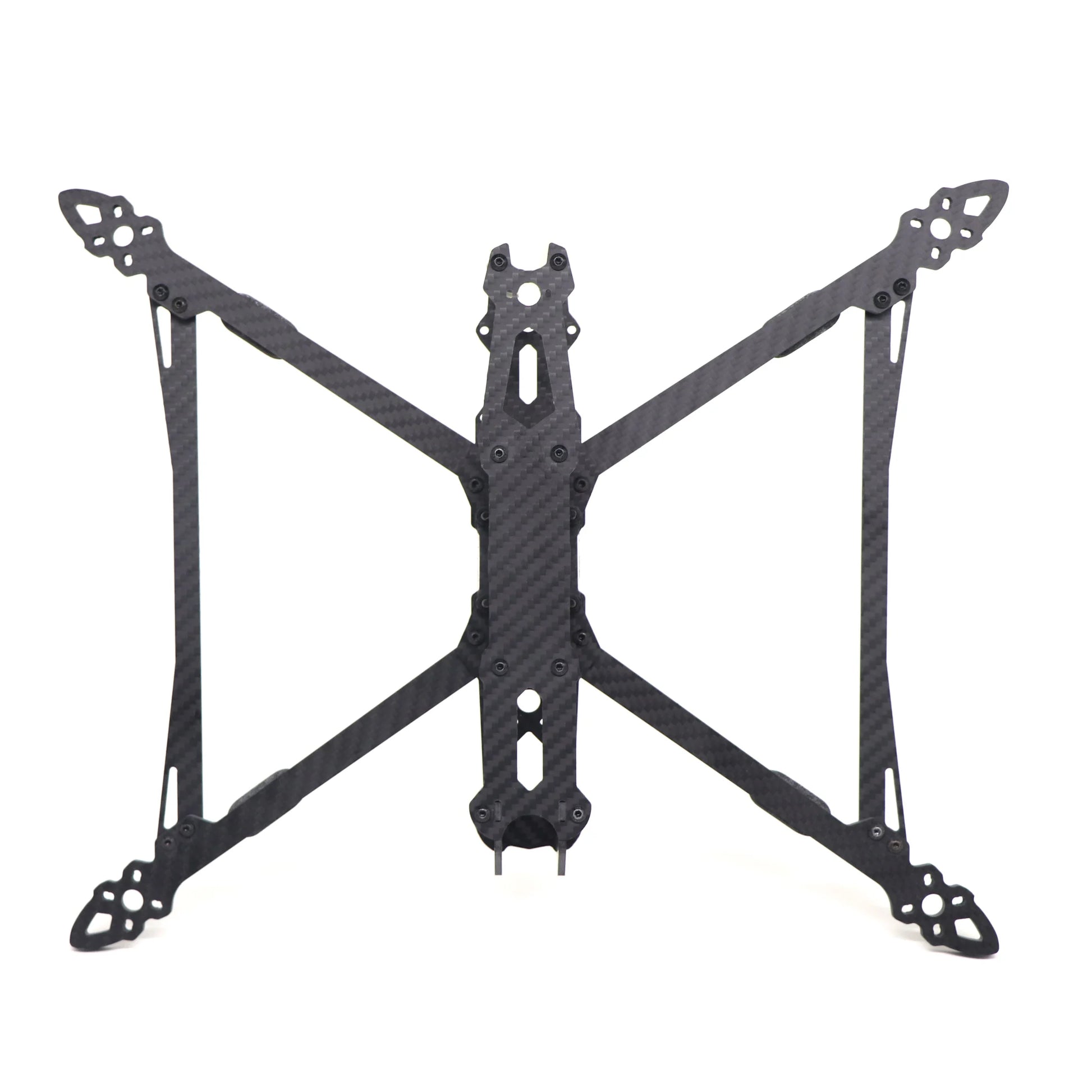

Mark4 V2 10Inch 427mm Carbon Fiber Frame:

Parameters:

Frame structure: X-Type

Wheelbase: 427mm

Size: 268.18mm*332.07mm

Bottom plate thickness: 3.0mm

Medium plate thickness: 3.0mm

Upper plate thickness: 2.0mm

Arm thickness: 7.5mm

Connecting plate: 2.0mm

Camera side plate thickness: 2.5mm

Camera installation hole spacing: 19mm

Image transmission installation hole spacing: 20*20mm & 30.5*30.5mm

Flight control installation hole spacing: 20*20mm & 30.5*30.5mm

Inner space height: 35mm

Motor installation hole position: 16*16mm & 19*19mm

Mark4 V2 FPV Racing Drone, FPV racing drone frame kit with F722 flight control and 4IN1 ESC, suitable for freestyle flying.Mark4 V2 FPV Racing Drone, Mark4 V2 drone frame kit with F722 flight control, 60A ESC, and 3115 motor.

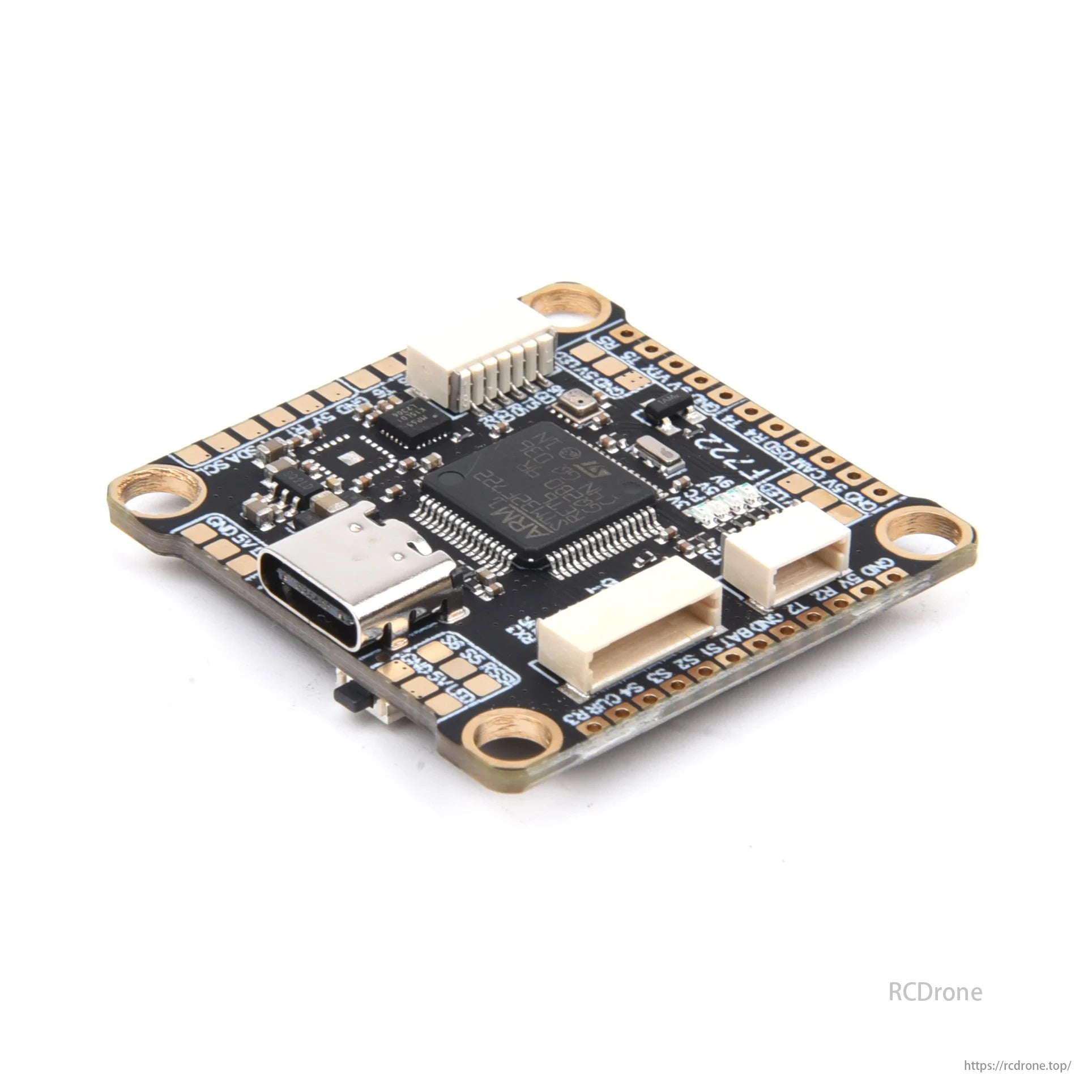

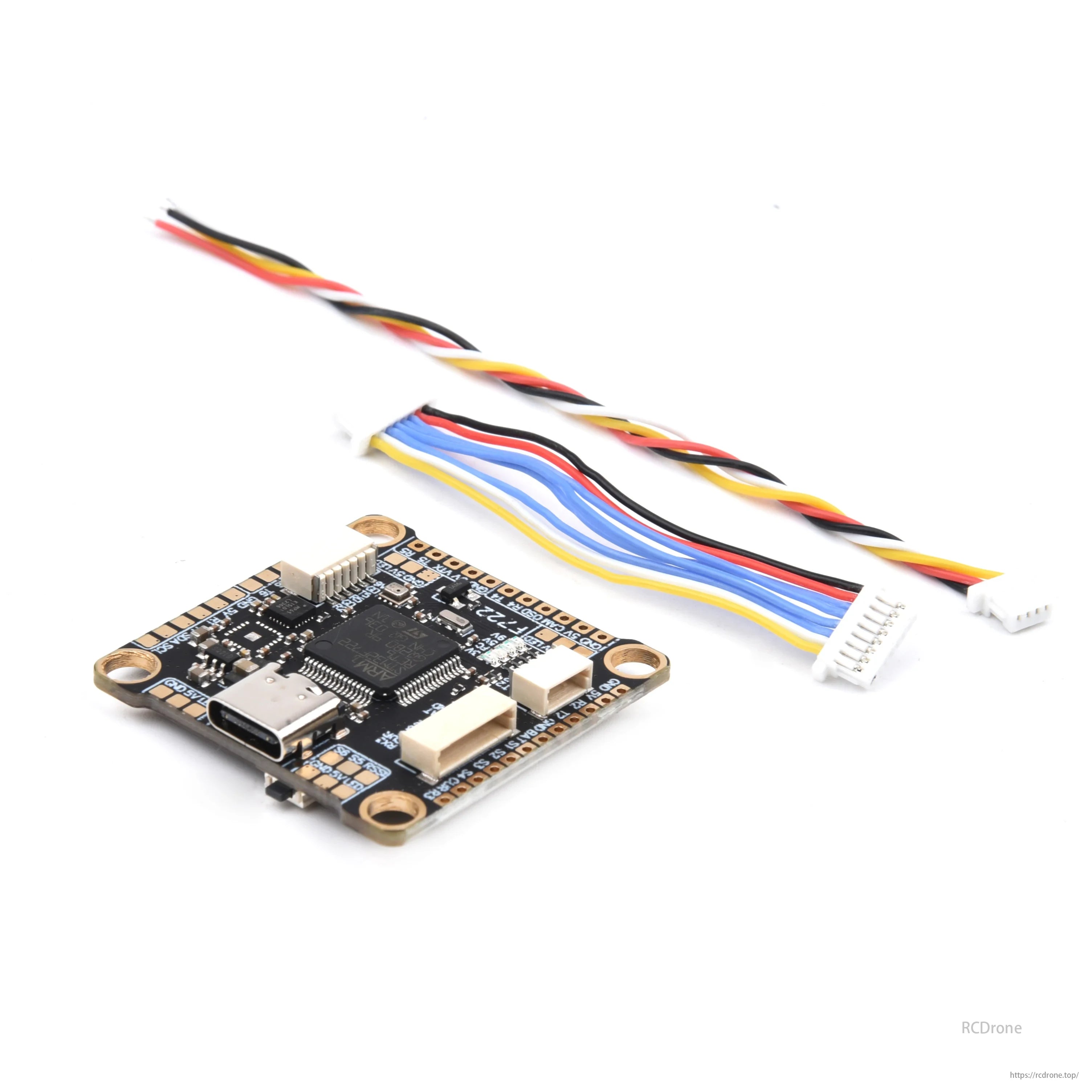

F7 Flight Controller Specifications:

MCU: STM32F722RET6 216MHz

Gyroscope: Mpu6500

Baro:Bmp280

OSD: Betaflight SPI OSD DJI HD OSD(UART5)

Black box: 16MB

6x Uarts: UART 1/2/3/4/5/6

4x PWM outputs

1x I2C

2x LEDs for FC STATUS (Blue) and 3.3V indicator(Red) and 5V indicator(Red) and 9V indicator(Red)

USB Type-C(USB2.0)

1x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Curr/Rx3)

1x JST-SH1.0_6pin connector (9V/GND/T5/R5/GND/R2)

VTX 9V filtered power

DJI FPV OSD is supported by any spare UART

LED: 4 LED independent pads, support WS2812 programming lamp output.

Receiver: Support Sbus, crsf, ibus, SBUS, XBUS receiver,

The default receiver input is UART2(You can solder ELRS RX on UART2), F7 has a built-in inverter, which can actually be installed in any spare UART.

Power:

Input voltage: 3-6S

BEC: 5V/10V 3A max dual-channel BEC supports stable power supply on the sky side of DJI

LDO 3.3V: Max.1A

FC Firmware:

BetaFlight firmware:DAKEFPVF722

INAV firmware:DAKEFPVF722

Mounting:

Installation size: 30.5mm × 30.5mm The installation hole is M4 and supports shock column installation

External size 36mm × 36mm

Flight control weight: 6.9g

Flight control onboard voltage sensor.

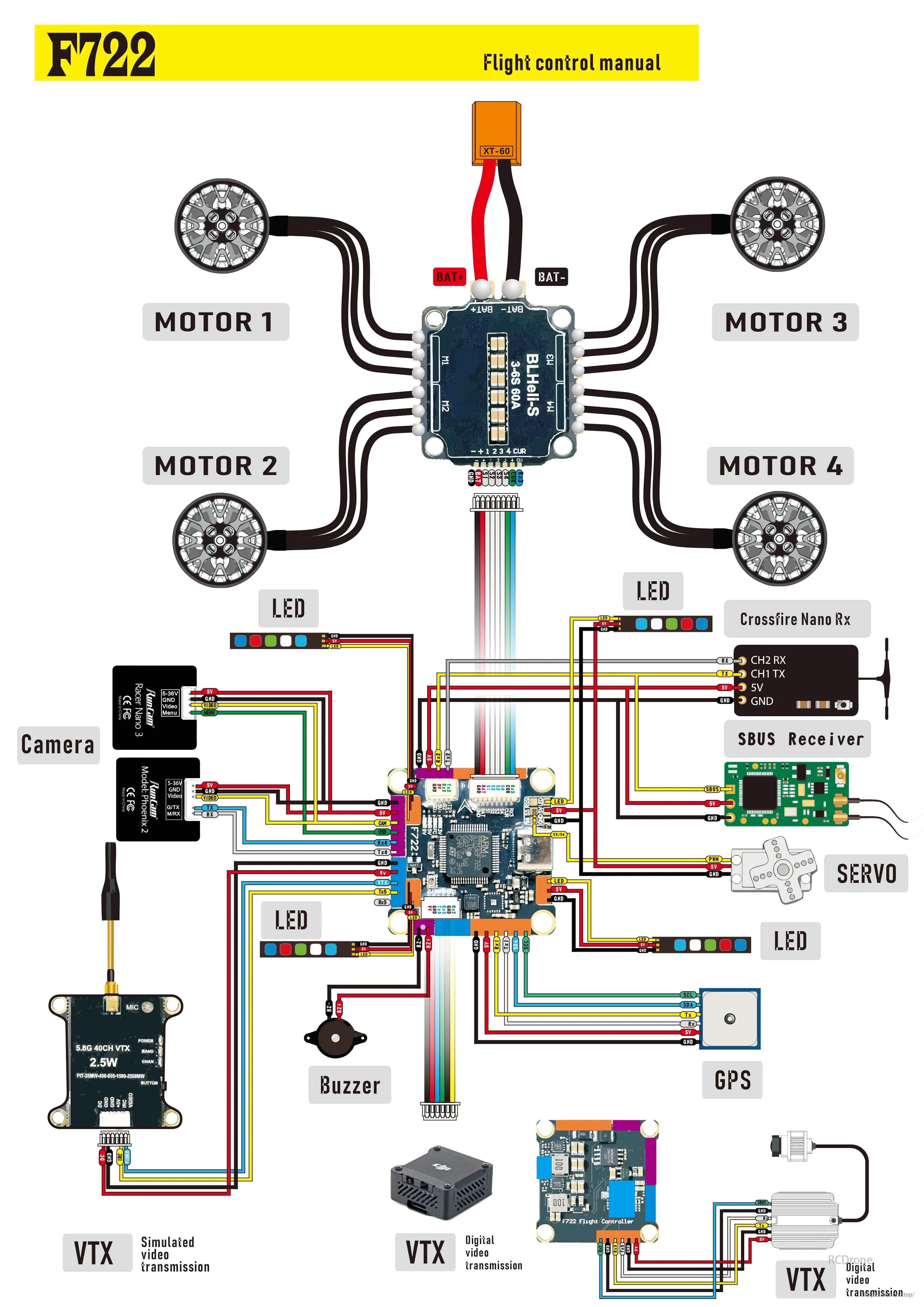

Mark4 V2 FPV Racing Drone, Mark4 V2 FPV drone wiring diagram with F722 flight board, BLHeli-S ESCs, Crossfire Nano Rx, SBus Receiver, and digital/simulated video transmission for racing.     A Mark4 V2 FPV Racing Drone featuring a circuit board and multi-colored wires for enhanced performance and control.

A Mark4 V2 FPV Racing Drone with a circuit board and multi-colored wires.

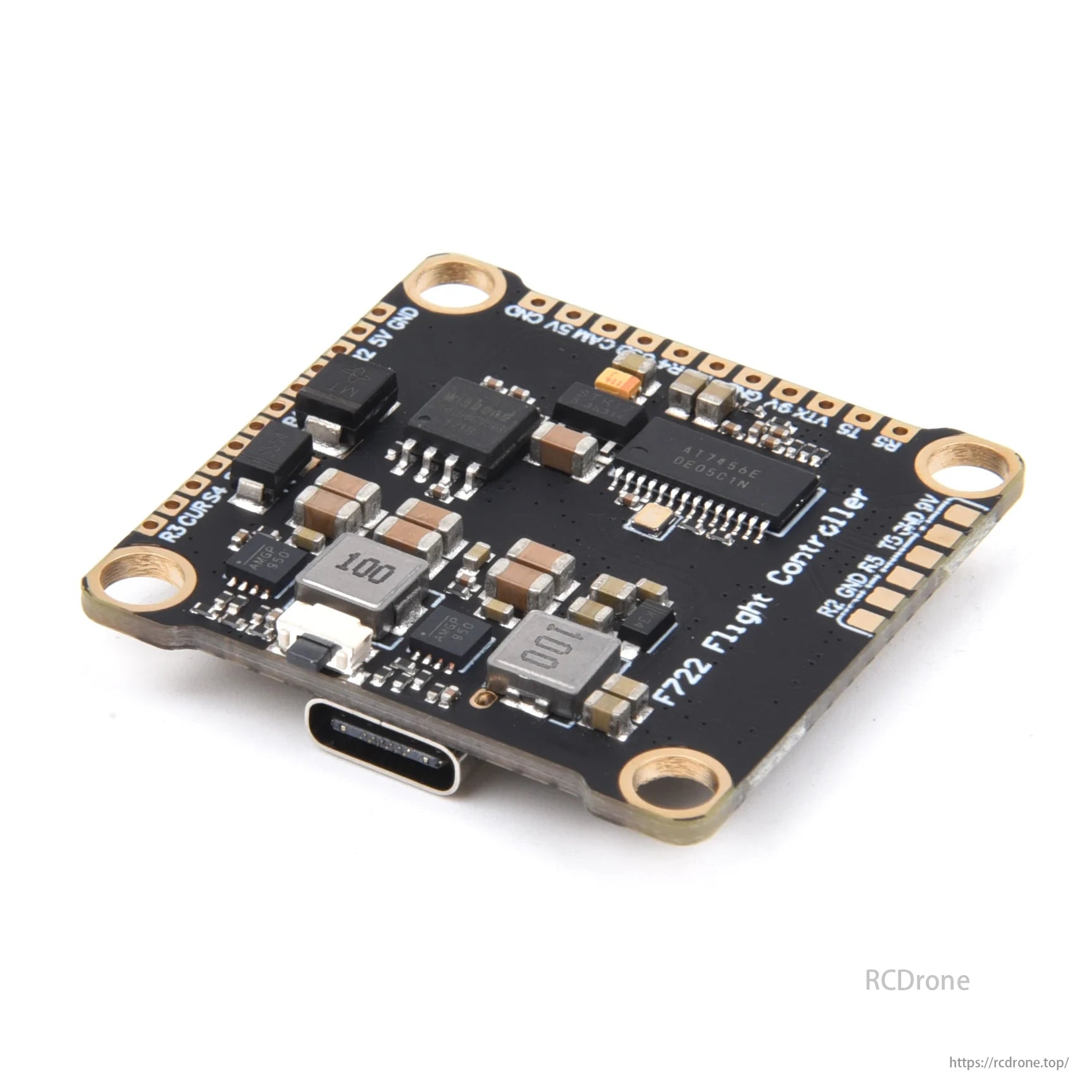

Mark4 V2 FPV Racing Drone, Mark4 V2 FPV Drone features a compact circuit board, micro USB, GPIO pins, and various components for enhanced functionality.

Mark4 V2 FPV Drone with compact circuit board, micro USB, GPIO pins, and components.

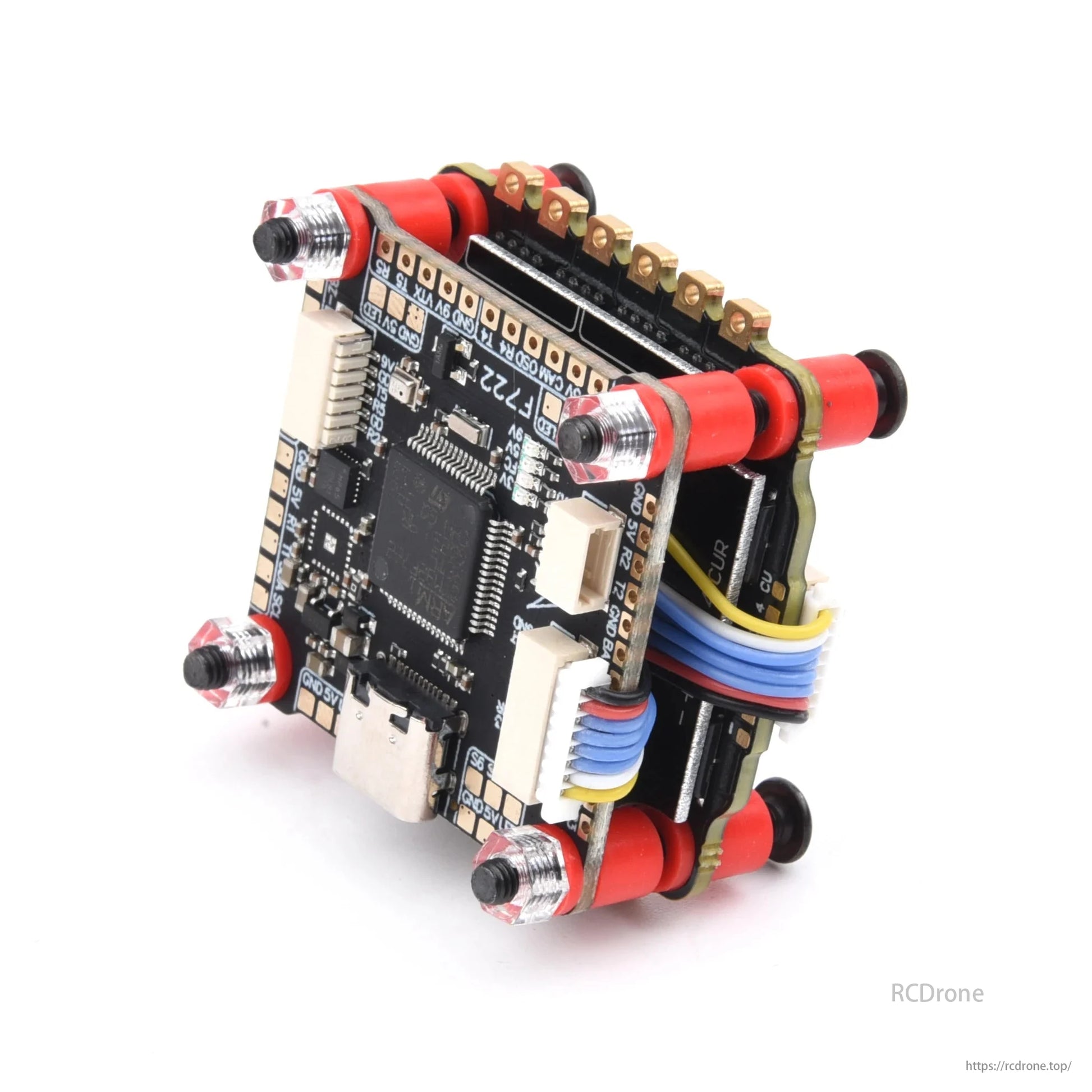

Mark4 V2 FPV Racing Drone, Compact F722 Flight Controller with connectors and capacitors, perfect for FPV racing drones.

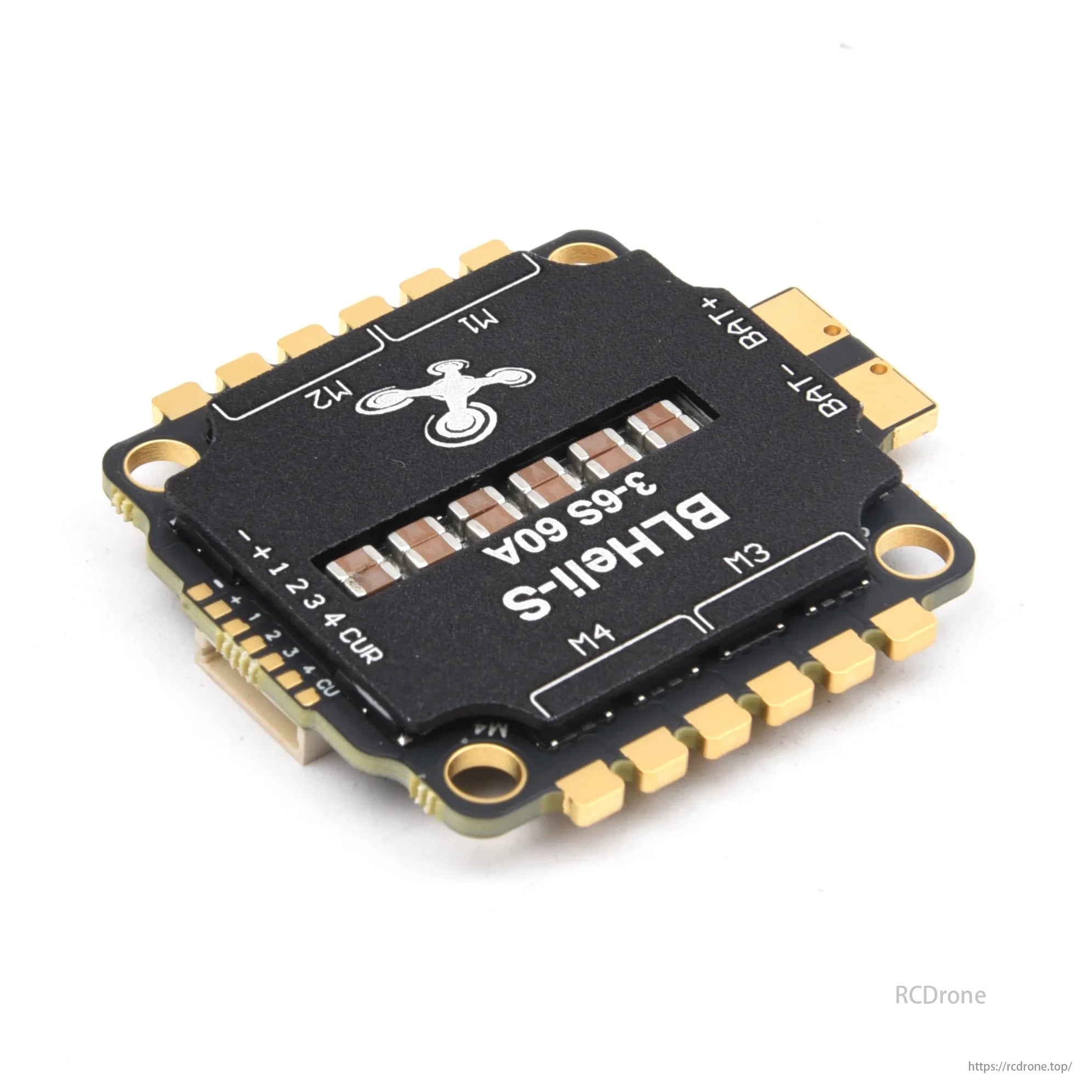

BLHeli-S 60A 3-6S DShot600 4-in-1 ESC:

Support Dshot600, Dshot300, Dshot150, Oneshot125, Multishot, PWM control signal

Power supply voltage: 3-6S (12-26V)

Continuous working current: 60A

No built-in 5V BEC output

Firmware: BLHeli-S

Screw hole spacing: 30.5*30.5MM

Aperture: 4MM

Weight: 14.6g

- The ESC has an on-board filter capacitor that suppresses the back electromotive force, stabilizes the battery voltage, and protects the flight control ESC precision components.

- EMI Shell provides stronger anti-interference capability.



Note : there are two kinds of esc board , will send at random

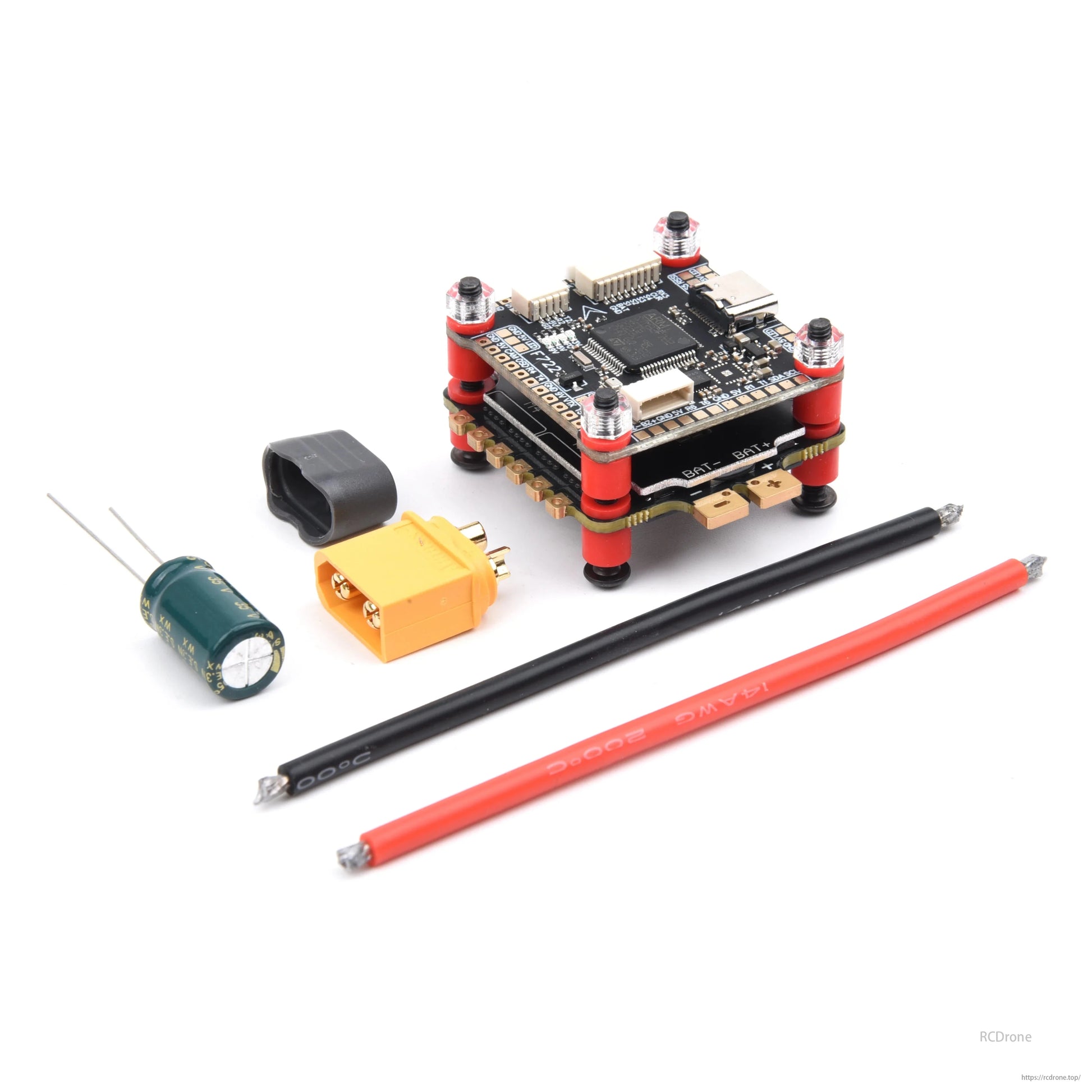

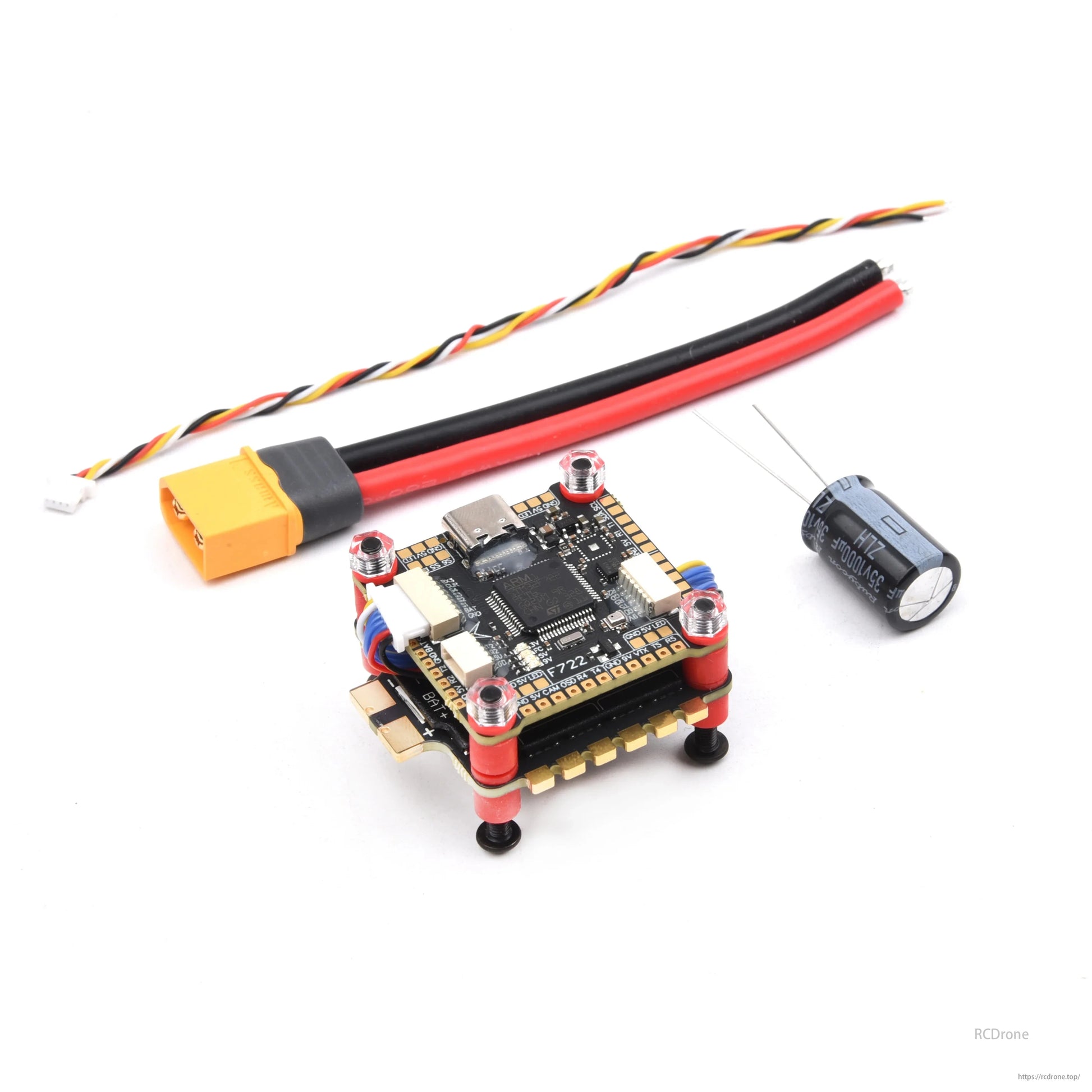

Mark4 V2 FPV Racing Drone, BLHeli-S 60A 3-6S DShot600 ESC supports various protocols and has an on-board filter capacitor for stabilization.Mark4 V2 FPV Racing Drone, BLHeli-S 60A ESC supports Dshot protocols, has on-board filter capacitor for stabilized power supply and protectionMark4 V2 FPV Racing Drone components include ESC, capacitor, wires, and connectors for efficient performance.

Mark4 V2 FPV Racing Drone components: ESC, capacitor, wires, and connectors.

Mark4 V2 FPV Racing Drone, BLHELI-S ESC for FPV drones, 3-6S 60A, features connector markings for easy identification.

BLHELI-S ESC for FPV drones, 3-6S 60A, with connector markings.

Mark4 V2 FPV Racing Drone, A flight control with dual-channel BEC, supporting DJI LDO, featuring betaflight firmware and onboard voltage sensor.

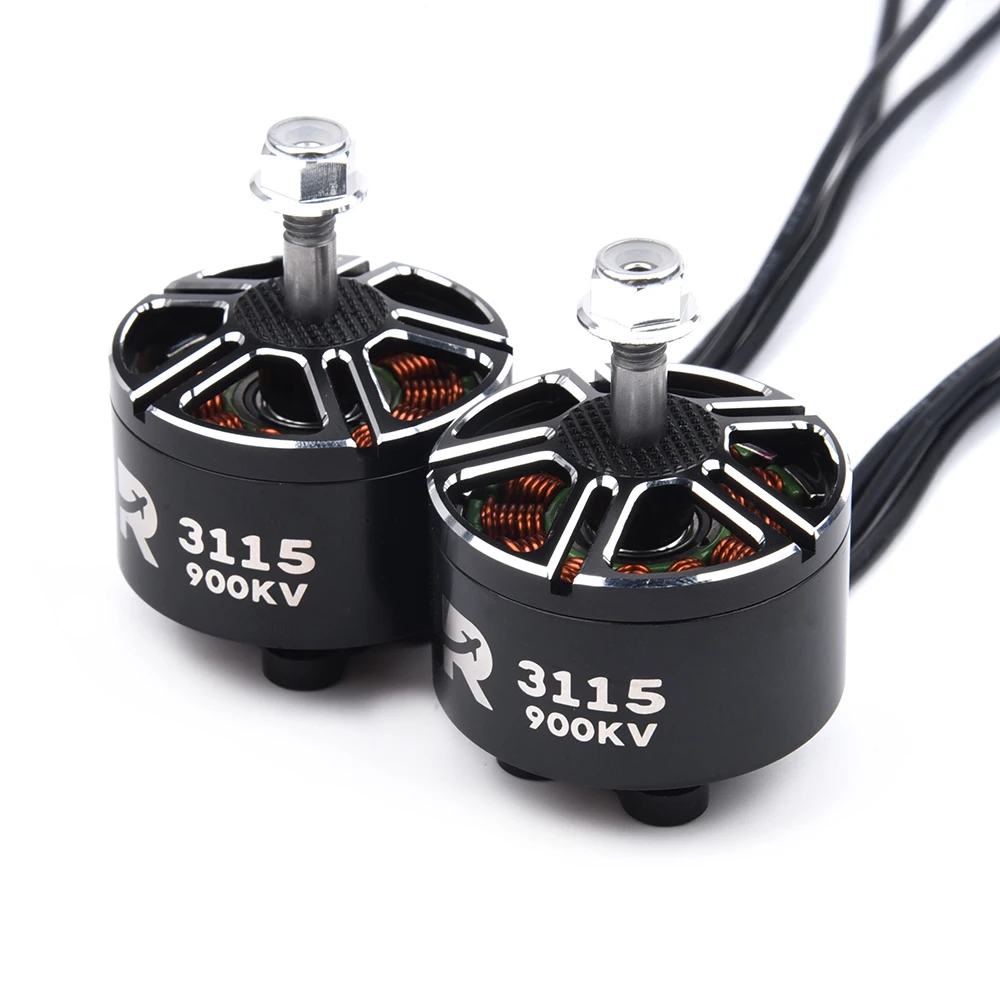

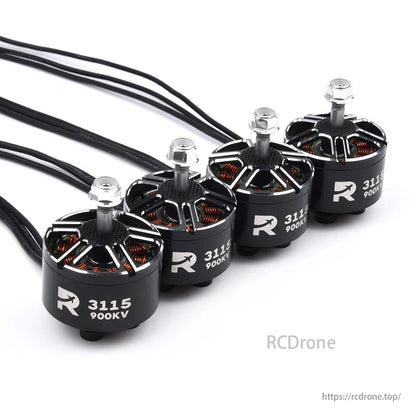

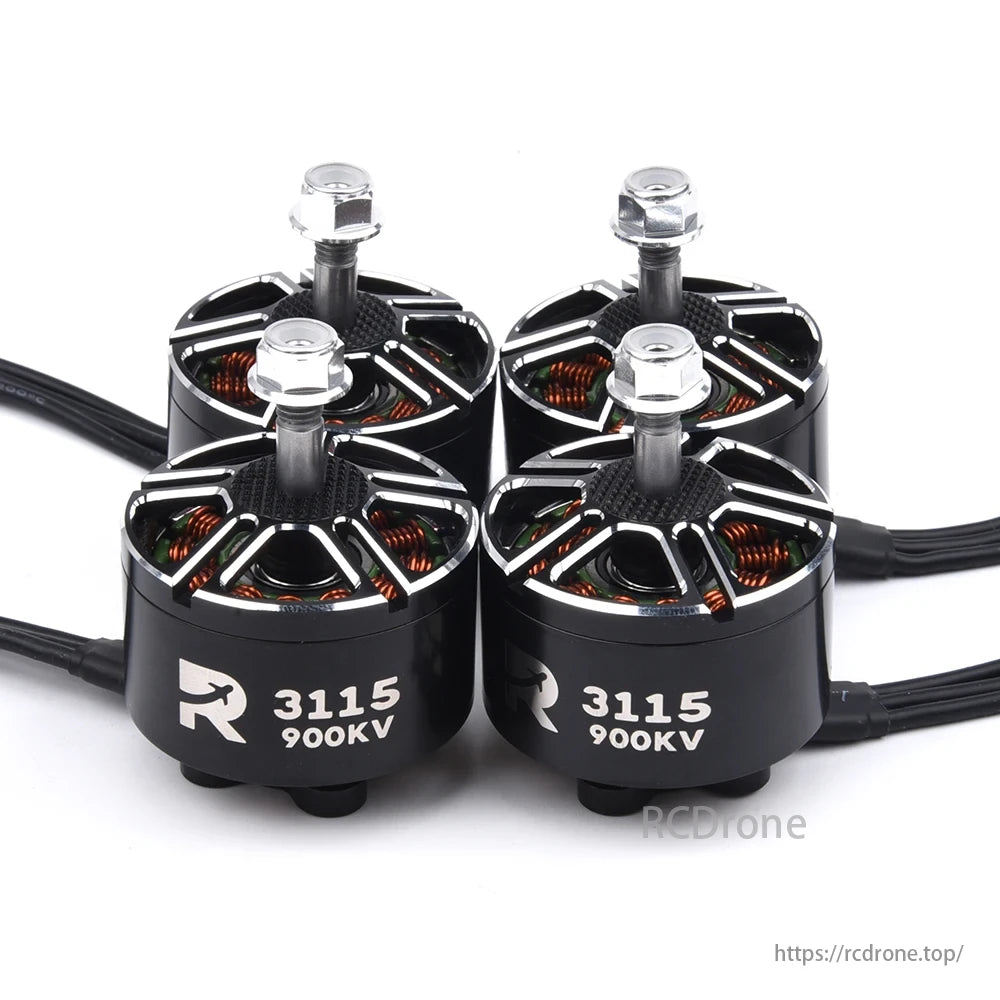

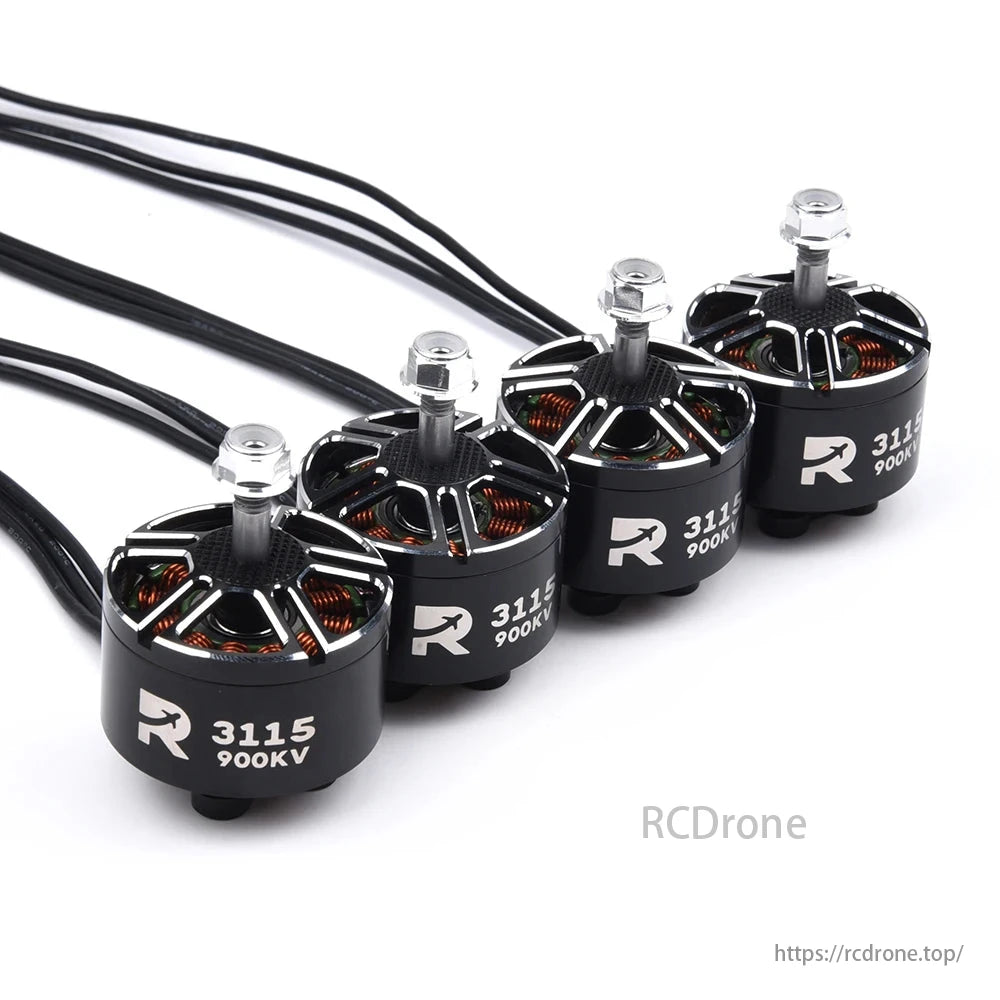

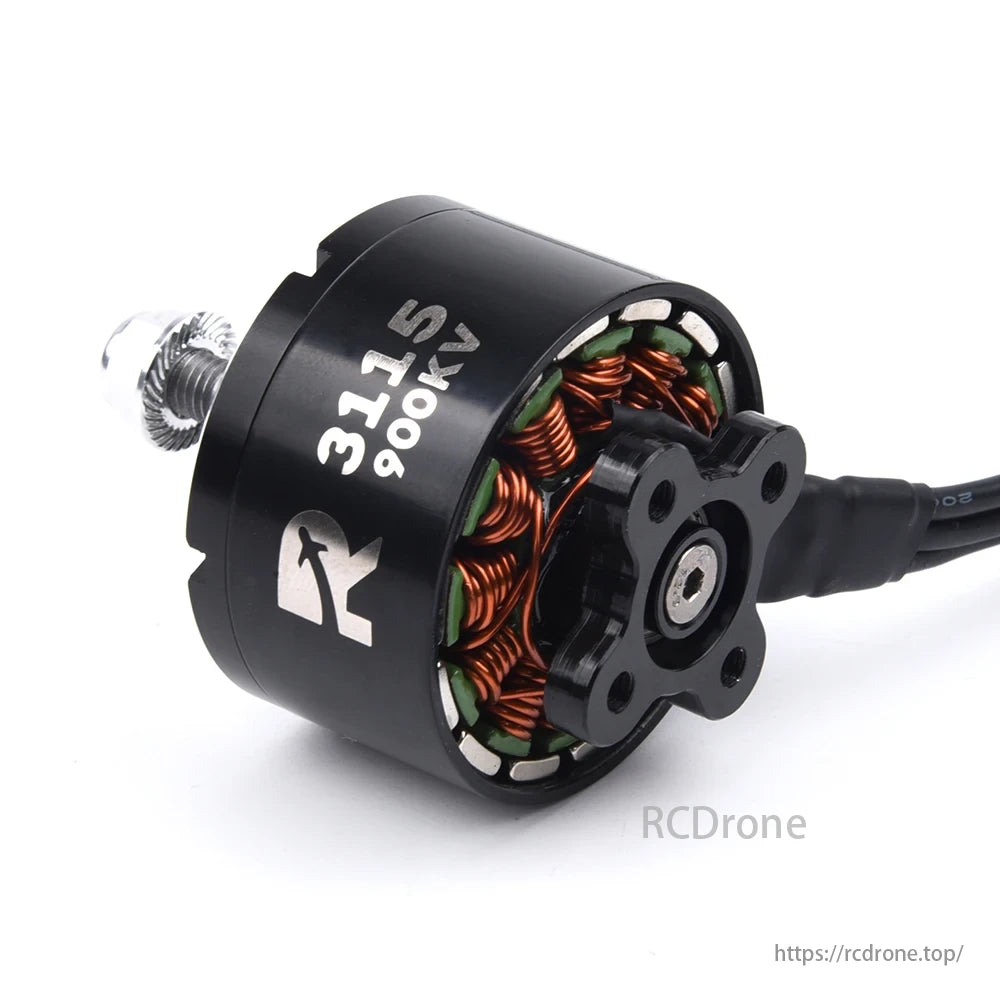

3115 900kv Motor Description:

KV: KV900

Operating rated voltage (Lipo): 3-6S

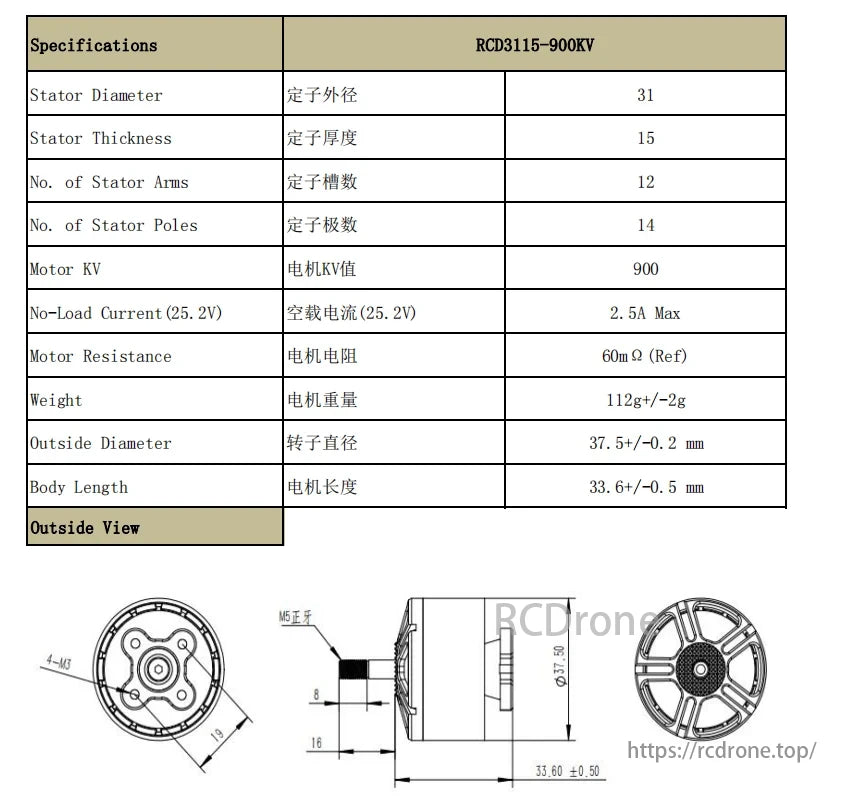

Mark4 V2 FPV Racing Drone, RCD 3115-900KV motor specs: 31x15mm stator, 12 arms, 14 poles, 900KV, 2.5A no-load current, 60mΩ resistance, 112g weight, 37.5mm diameter, 33.6mm length; includes diagram.

RCD 3115-900KV motor specs: stator 31mm x 15mm, 12 arms, 14 poles, 900KV, 2.5A max no-load current, 60mΩ resistance, 112g weight, 37.5mm diameter, 33.6mm length. Includes outside view diagram with dimensions.

Mark4 V2 FPV Racing Drone, The 3115-900KV motor specs with 1050 prop compatibility include PWM, voltage, current, thrust, torque, RPM, temperature, power consumption, efficiency, and thrust-to-power ratio. Custom options are color, engraving, KV value, and cable length.

Specifications for a 3115-900KV motor with 1050 propeller compatibility include PWM, voltage, current, thrust, torque, RPM, temperature, power consumption, efficiency, and thrust-to-power ratio. Customization options are color, engraving, KV value, and cable length.


Mark4 V2 FPV Racing Drone, FPV racing drone frame kit with flight control and motor.Mark4 V2 FPV Racing Drone, The device supports various receivers and defaults to UART2 for SBUS/Crsf/IBUS/SBUS/XBUS reception.Mark4 V2 FPV Racing Drone, Description of a 900KV motor with operating range of 3-6S and compatible with lithium-ion batteries.Mark4 V2 FPV Racing Drone, Mark4 V2 drone frame kit with F722 flight control and 3115 motor for FPV racing and freestyle flying.
