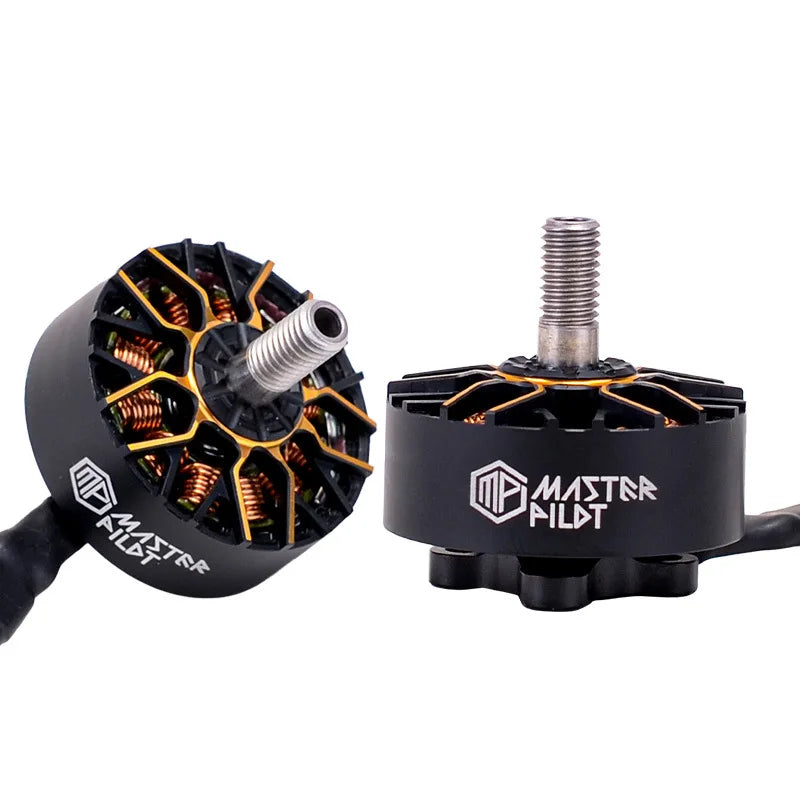

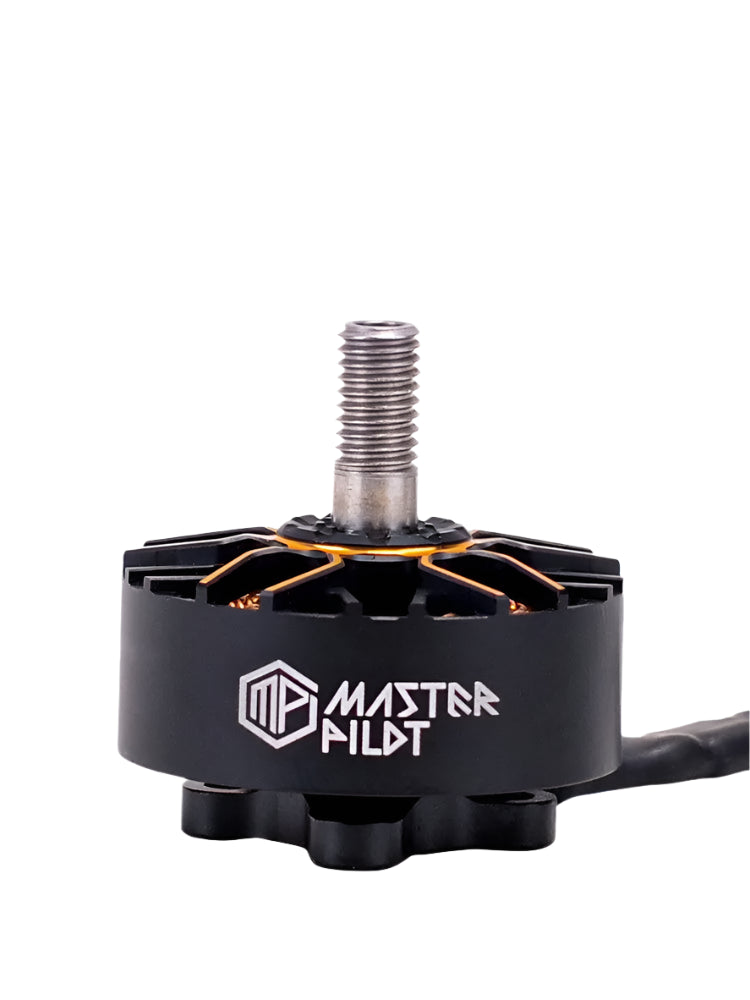

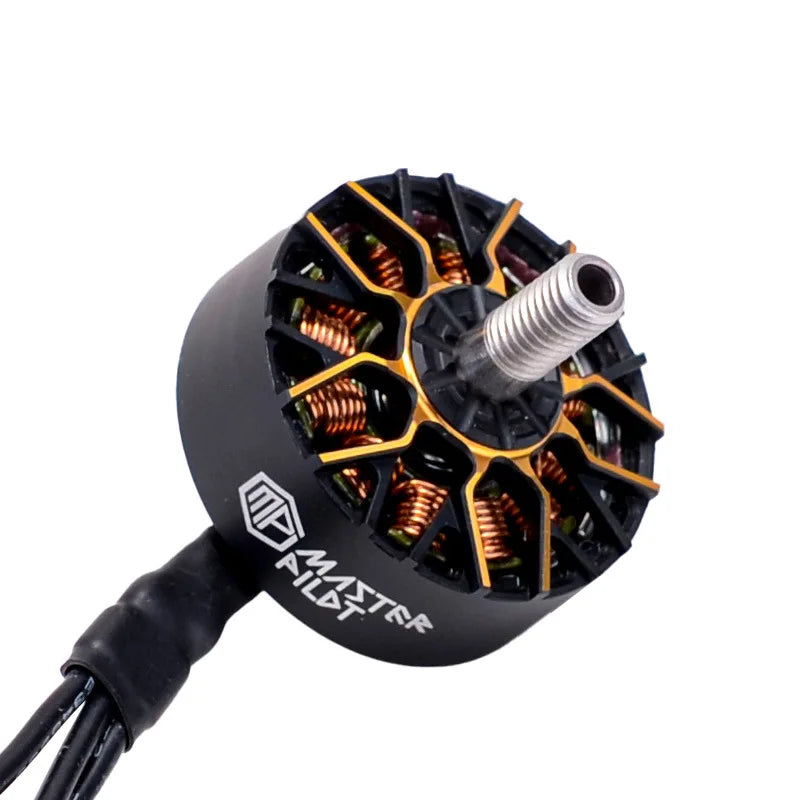

Master Pilot Pale 2307 1750KV / 1950KV 6S Brushless Motor for 5 Inch FPV Freestyle Racing Drones

Master Pilot Pale 2307 1750KV / 1950KV 6S Brushless Motor for 5 Inch FPV Freestyle Racing Drones

Master Pilot

$90.84 USD
$90.84 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details


The Master Pilot Pale 2307 series is designed for competitive FPV pilots seeking power, precision, and durability. Available in 1750KV and 1950KV, this motor is optimized for 5-6 inch freestyle builds running 6S LiPo. Featuring high-grade N52SH arc magnets, smooth NMB684 bearings, and a robust 7075 aluminum bell, it provides exceptional torque and response in high-G maneuvers.

Whether you're cruising low and cinematic or diving into sharp freestyle flips, the Pale 2307 motor delivers reliable performance and responsiveness.

Key Specifications:

Parameter Value
KV Rating 1750KV / 1950KV
Stator Size 23mm (Dia) × 7mm (Height)
Magnet Type N52SH Arc Magnets
Stator Core Diameter 11.5mm

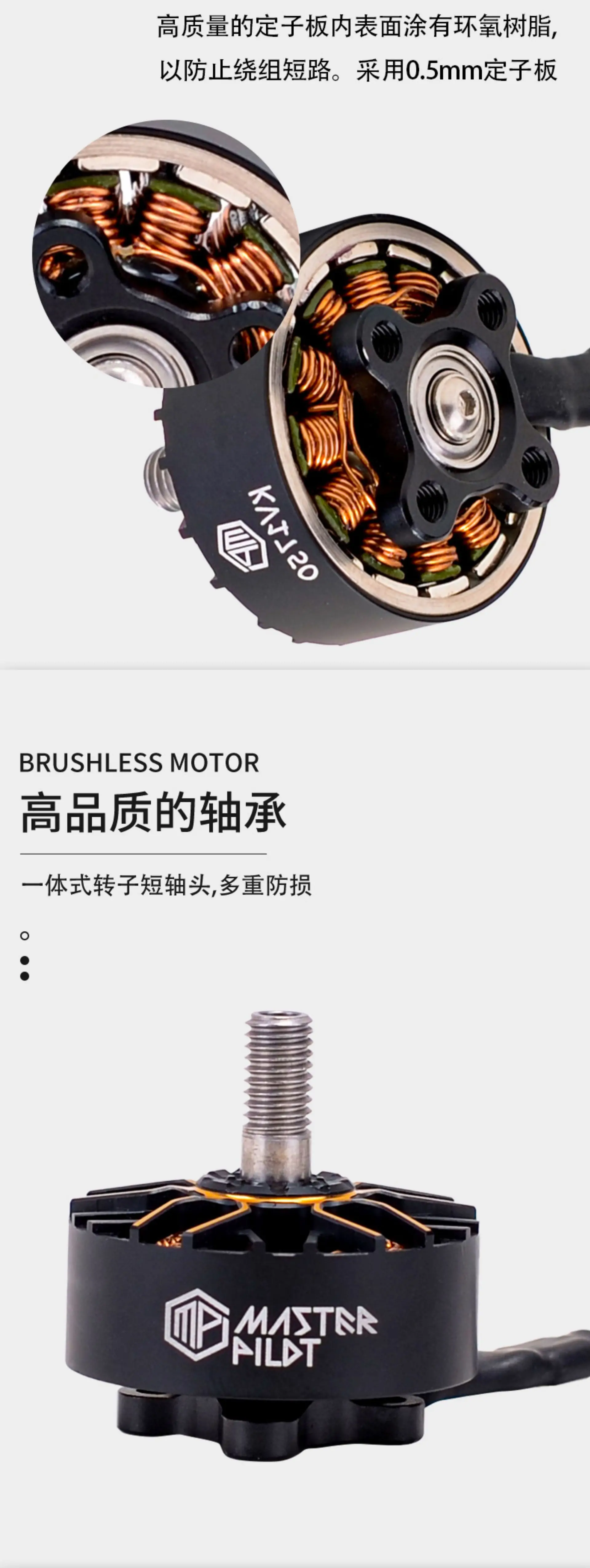

Bearing Japanese NMB684
Weight 36.5g (with wires)
Supported Battery 6S LiPo
Max Current 45A
Internal Resistance 64mΩ
Wire Gauge & Length 20AWG, 135mm

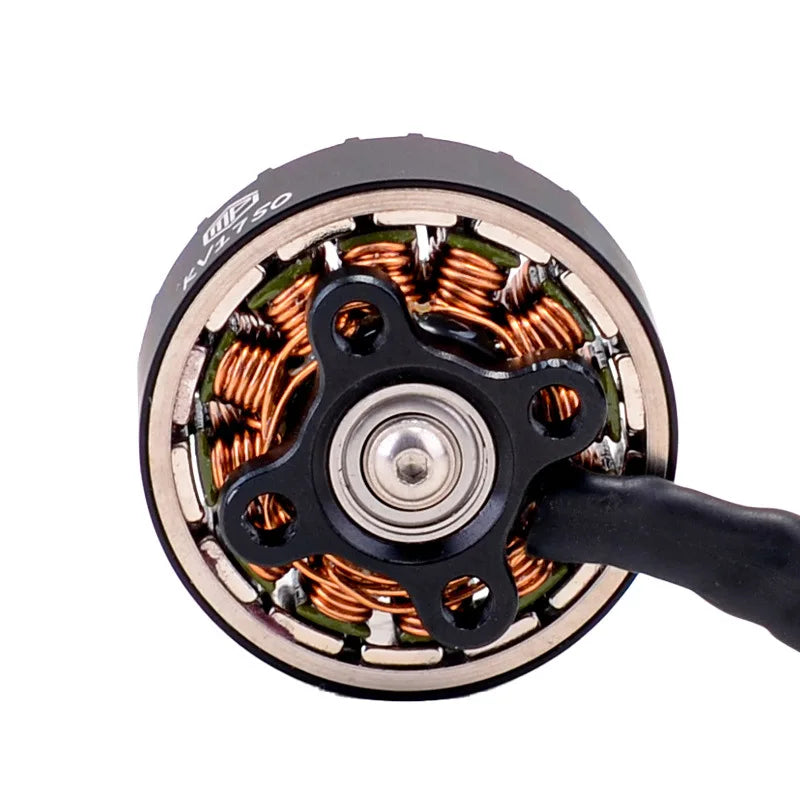

Motor Mounting 16×16mm M3 mount
Motor Dimensions Φ28.6mm × 18.2mm

Recommended Use:

  • Freestyle FPV 5"-6" Drones

  • 6S Battery Setup

  • Compatible ESC: ≥45A

  • Propeller: 5"-5.5" recommended
