MATEK F405-TE Flight Controller Baro OSD - Dual BEC 220A Current Senor MicroSD Blackbox 3-8S PDB 30X30mm for FPV Freestyle Drones

MATEK F405-TE Flight Controller Baro OSD - Dual BEC 220A Current Senor MicroSD Blackbox 3-8S PDB 30X30mm for FPV Freestyle Drones

MATEK

Regular price $77.85 USD
Regular price $116.78 USD Sale price $77.85 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

62 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Tool Supplies: Battery

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Speed Controllers

Origin: Mainland China

Model Number: MATEK F405-TE

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Helicopters

Brand Name: uuustore

Specifications

  • MCU: 168MHz STM32F405RGT6
  • IMU: ICM42688-P (SPI)
  • Baro: SPL06-001 (I2C)
  • OSD: AT7456E (SPI)
  • Blackbox: MicroSD slot (SPI)
  • 6x UARTs,  1x Softserial_Tx option(INAV/BF)
  • 11x PWM outputs (8x Dshot compatible with BF/ArduPilot)
  • 1x I2C
  • 4x ADC (VBAT, Current, RSSI, Airspeed)
  • 1x spare PINIO
  • 4x individual ESC power/signal pads
  • 1x Group of  G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
  • Built in inverter on UART2-RX for SBUS input
  • Switchable Dual Camera Input

PDB Specifications

  • Input: 9~36V (3~8S LiPo)
  • PDB: 4x 35A (Max.4x 50A)
  • BEC: 5V 1.5A
  • BEC: 12V 2A
  • LDO 3.3V: 200mA
  • Current Senor: 220A,  3.3V ADC  (INAV/BF scale 150,  ArduPilot  66.7 A/V)
  • Battery Voltage divider 1K:20K (INAV scale 2100,  BF scale 210,  ArduPilot BATT_VOLT_MULT 21.0)

Firmware

  • ArduPilot: MatekF405-TE
  • INAV: MATEKF405TE_SD
  • BetaFlight: MATEKF405TE

Physical

  • Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
  • Dimensions:  36 x 46 mm
  • Weight: 10g

Including

  • 1x F405-TE
  • 6x silicon grommets M4 to M3
  • 1x Rubycon ZLH 35V/470uF (Low ESR)

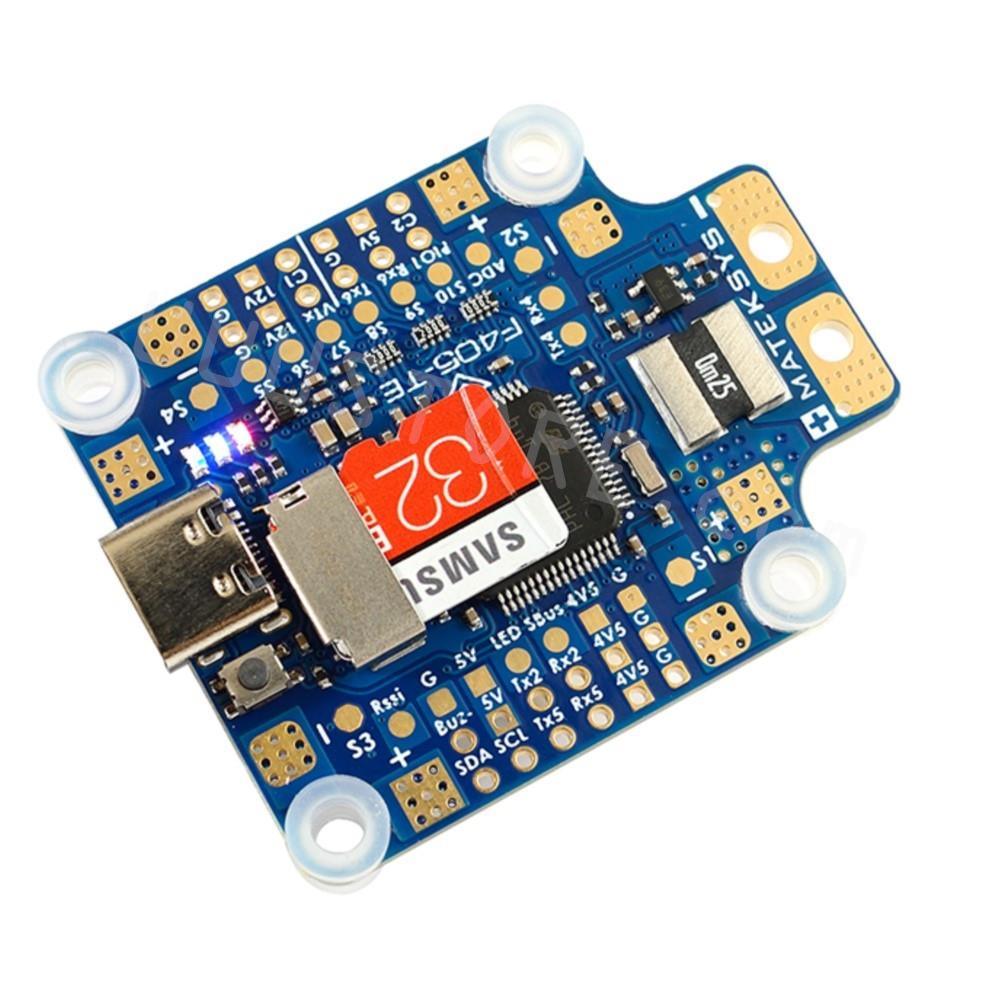

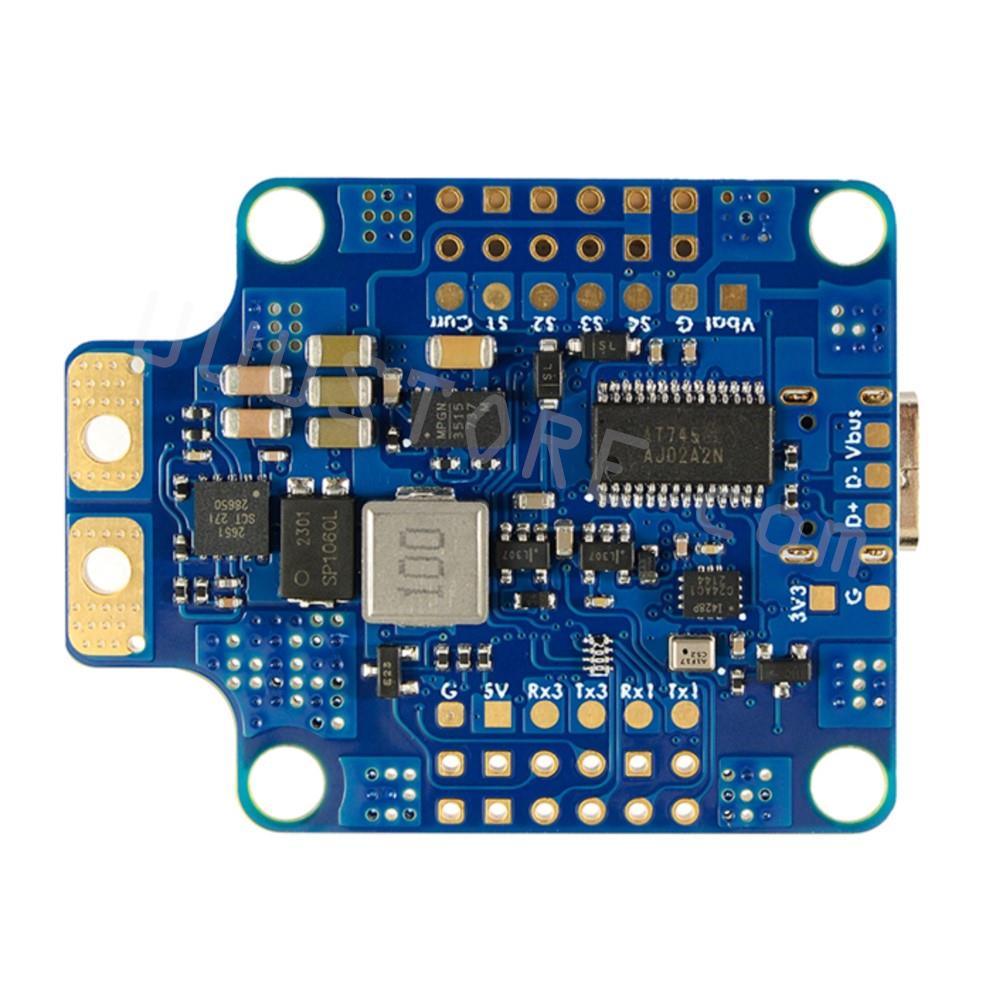

MATEK F405-TE Flight Controller Baro OSD, MATEK F405-TE Flight

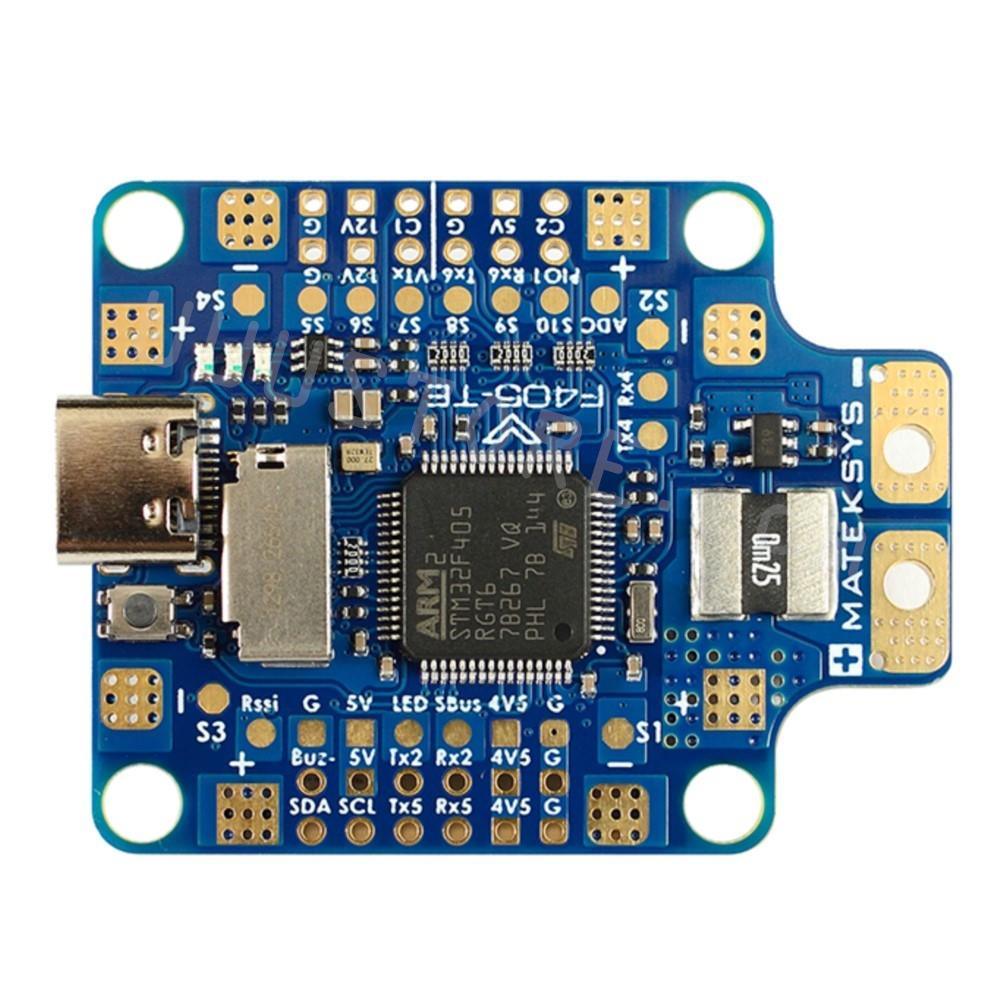

LAYOUT 5V: onboard BEC 12V, 24 cont. RX6 & TX6: UART6_RX & S9/S10: PWM outputs (ESC, Servo) 4.4-4.8V, Max 80OmA, the voltage is also supplied when connecting via USB .

MATEK F405-TE Flight Controller Baro OSD, 5 IBUSIDSM can be connected to any spare UART_RX PPM

The F405-TE flight controller features two uninverted ports, including RX2, which can be remapped to softserial1_TX. Additionally, any spare UART_RX port can be connected to IBUS_IDSM. However, please note that PPM is not supported in INAV4.
