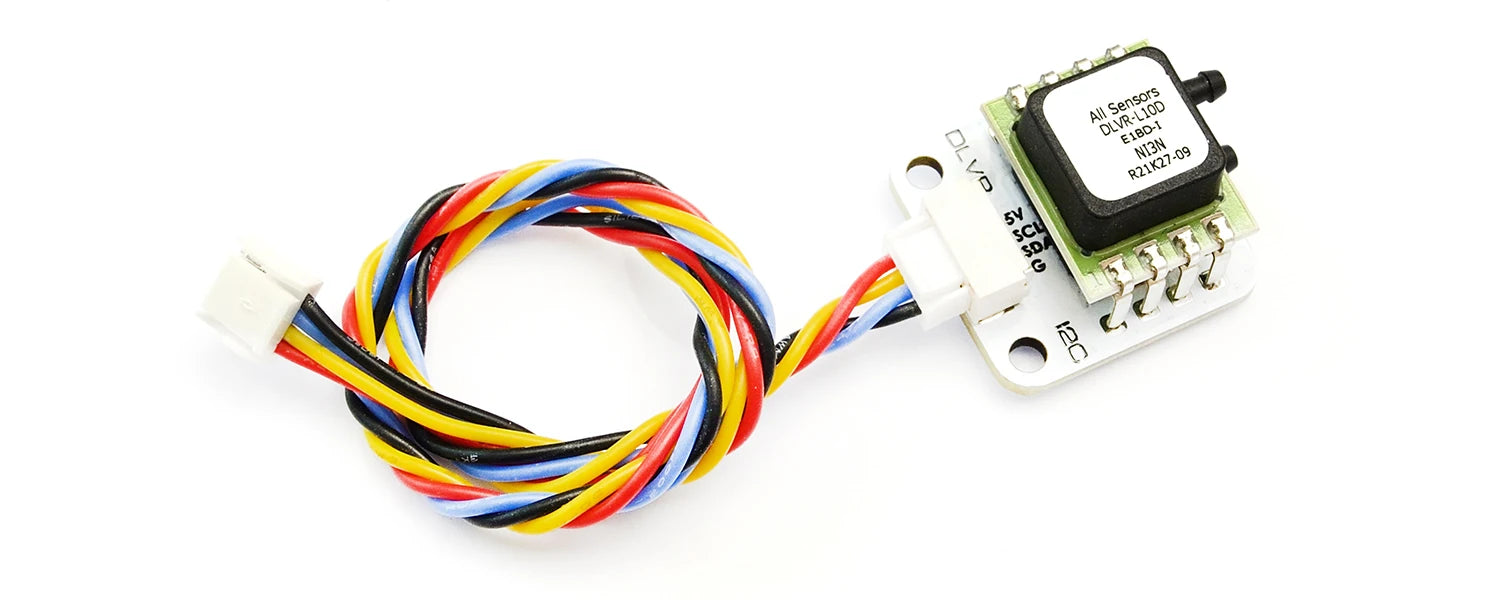

MATEK  AS-DLVR-I2C - Mateksys DIGITAL AIRSPEED SENSOR SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y,14+y,3-6y,6-12y,0-3y

Origin: Mainland China

Material: Composite Material

Brand Name: MATEKSYS

Iweh MATEKSYS 3 Digltal I AlrSpeed Sensor DLVR IZC AS-OLVR-IZC 635" SDA SCL sv JST-GH-4P 1Smm M2.5 R0mm

• All sensors DLVR series is the best airspeed sensor ArduPilot currently support.

Specifications

• Sensor: All sensors DLVR-L10D,  Industrial temperature range

• DLVR-L10D Sensor datasheet, pls visit  www.allsensors.com

• Interface: I2C (SCL & SDA)

• Sensor I2C address: 0x28

• Pressure Ranges: 2500Pa

• Maximum Pressure: 75kPa

• Operating Temperature: -25°C ~ 85°C

• Board Supply voltage: 4~5.5V DC

• Working current: 5mA

• Red LED:  3.3V power indicator

• JST-GH sequence: 5V, SCL, SDA, GND

• Weight: 3.5g (sensor board)

Including

• 1x AS-DLVR-I2C Sensor Board.

• 1x JST-GH-4P to JST-GH-4P 20cm silicon wire

• Pitot Tube.

• Clear silicon tubing  40cm

Wiring

• 5V to FC 4~5.5V

• SCL to FC I2C_SCL

• SDA to FC I2C_SDA

• G to FC GND

Parameters

• ArduPilot: ARSPD_TYPE = 9 (I2C-DLVR-10in)

Tips

• Compatible with ArduPilot only for now, INAV doesn’t support it.

• AS-DLVR-I2C support I2C interface only.  for CAN connection, pls visit ASPD-DLVR page, or use AS-DLVR-I2C with CAN Node L431

• 3D step file AS-DLVR_I2C_STEP.zip
