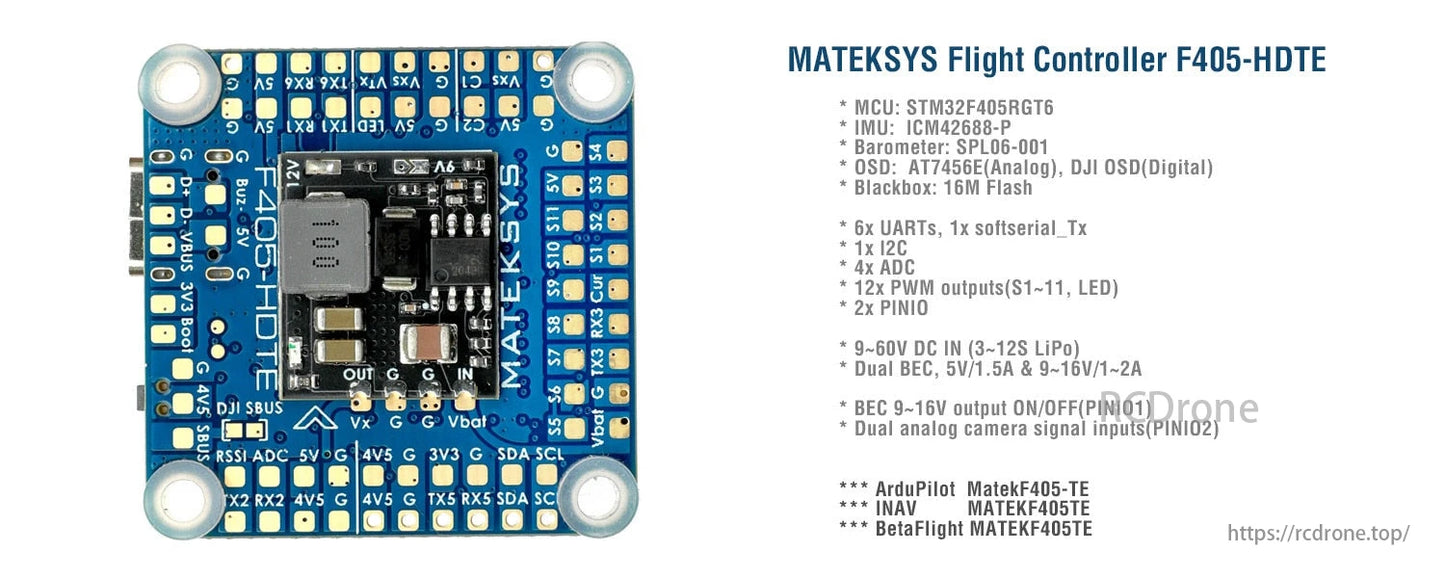

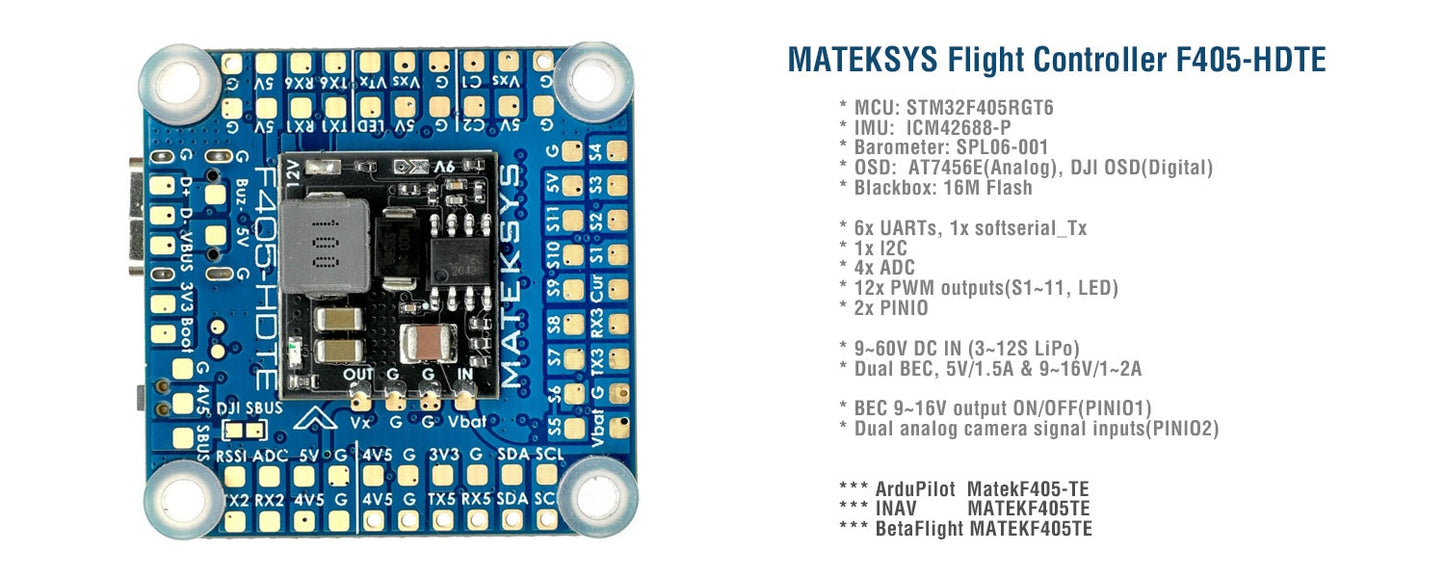

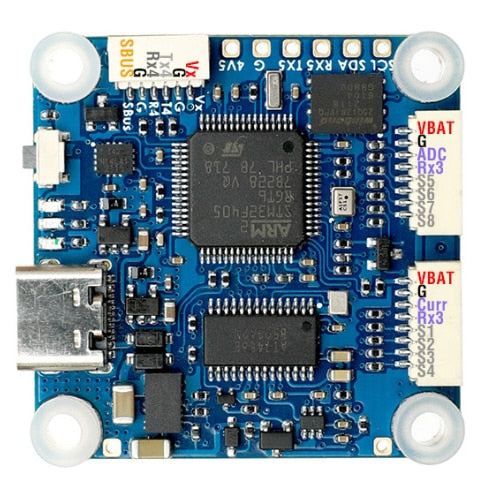

MATEK Mateksys FLIGHT CONTROLLER F405-HDTE SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y,14+y,6-12y

Origin: Mainland China

Material: Composite Material

Brand Name: MATEKSYS

Features

• STM32F405 has 1MB flash which can run ArduPilot/INAV/BetaFlight

• InvenSense the 3rd generation IMU ICM42688-P

• 9-60V(3~12S LiPo) wide input voltage and voltage sense. and a 9~16V BEC for DJI OSD or analog VTX.

• 8motors+3servos in INAV/BF multirotor mixer.

• 2x SH1.0_8pin connector for PnP with 2x 4in1 ESC

• 1x SH1.0_6pin connector for PnP with HD System(Caddx Vista & Air Unit)

• USB pin breakout for connecting to external USB adapter.

Specifications

• MCU: STM32F405RGT6

• IMU: ICM42688-P

• OSD: AT7456E, DJI OSD

• Baro: SPL06-001 (I2C)

• Blackbox: 16M-byte Flash memory

• 6x UARTs,  1x Softserial_Tx option

• 12x PWM outputs (8x Dshot)

• 1x I2C

• 4x ADC (VBAT, Current, RSSI, Airspeed)

• 2x PINIO

• 2x SH1.0_8pin connector for 4in1 ESC

• 1x SH1.0_6pin connector for HD System(Caddx Vista & Air Unit)

• 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)

• 9~16V(Vxs) output ON/OFF switchable

• Dual analog camera signal switchable

Power

• Input: 9~60V (3~12S LiPo)

• BEC: 5V 1.5A

• BEC: Vx,  9~16V/1~2A (3S IN/9V 2A, 4S IN/12V 2A, 6S IN/16V 2A, 8S IN/16V 1.5A, 12S IN/16V 1A)

• Battery Voltage Sensor: 1K:20K (INAV scale 2100, BF scale 210)

• No Current Sensor built-in, supports external current sensor of PDB/4in1

Firmware

• ArduPilot: MatekF405-TE

• INAV: MATEKF405TE

• BetaFlight: MATEKF405TE

Physical

• Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm

• Dimensions: 36 x 36 x 9 mm

• Weight: 7g

Including

• 1x FC F405-HDTE

• 6x Silicon grommets M4 to M3

• 1x SH1.0_8pin cable 5cm,  2x SH1.0_8pin connectors

• 1x SH1.0_6pin to GH1.25_8pin cable 8cm for HD System(Caddx Vista & Air Unit)

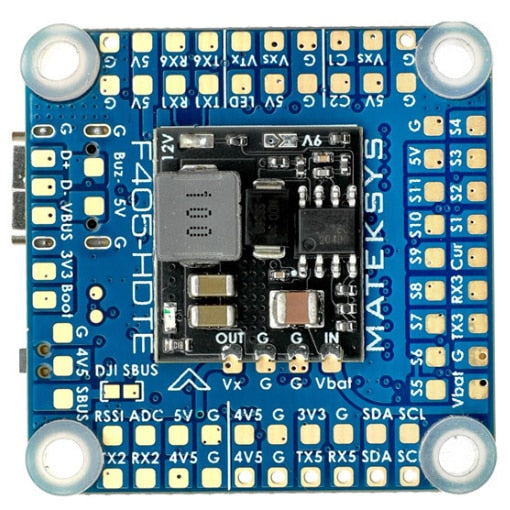

onboard BEC 5V, Voltage-Vx Vxs ON/OFF can be switched via ArduPilot Relay or Modes/USER1 (BFIINAV) DJI SBUS 4V5: 4.44.8V, Max. 80OmA, the voltage is also supplied when connecting via USB 313: LDO3.3V Max.2OOmA .

JOIOW INAV MATEKF4OSTE BetaFlight ADC pin: can be remapped as current sense ADC M8 1 Ardu: BATT_CURR2_PIN 10 M7 (ArduPilot support Zx Current readout)
