MATEK F411-WTE - Mateksys FLIGHT CONTROLLER SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y,14+y,3-6y,6-12y,0-3y

Quantity: 1 pcs

Origin: Mainland China

Material: Composite Material

Brand Name: MATEKSYS

MATEKSYS Flight Controller F411-WTE STM32F41ICEU6 IMU BMI27O Barometer SPLO6-001 OSD AT7456E 2 1 No Blackbox 2x UARTs, Zx Full Softserial Ix I2C 1 Ax ADC (Vbat; Current, RSSI, AirSpeed) 6-30V DC IN (26S LiPo) 1324 current sensor (90A continuous)

Matek F411-WTE Flight Controller Features: Fall-WS-Interface, BMI220 Accelerometer, Barometer SPLO6-001, BMP280/DPS310 Pressure Sensor, SoftSerial UARTs (2x full-speed and 1x half-speed), PWM outputs (4x), Analog-to-Digital Converters (4x).

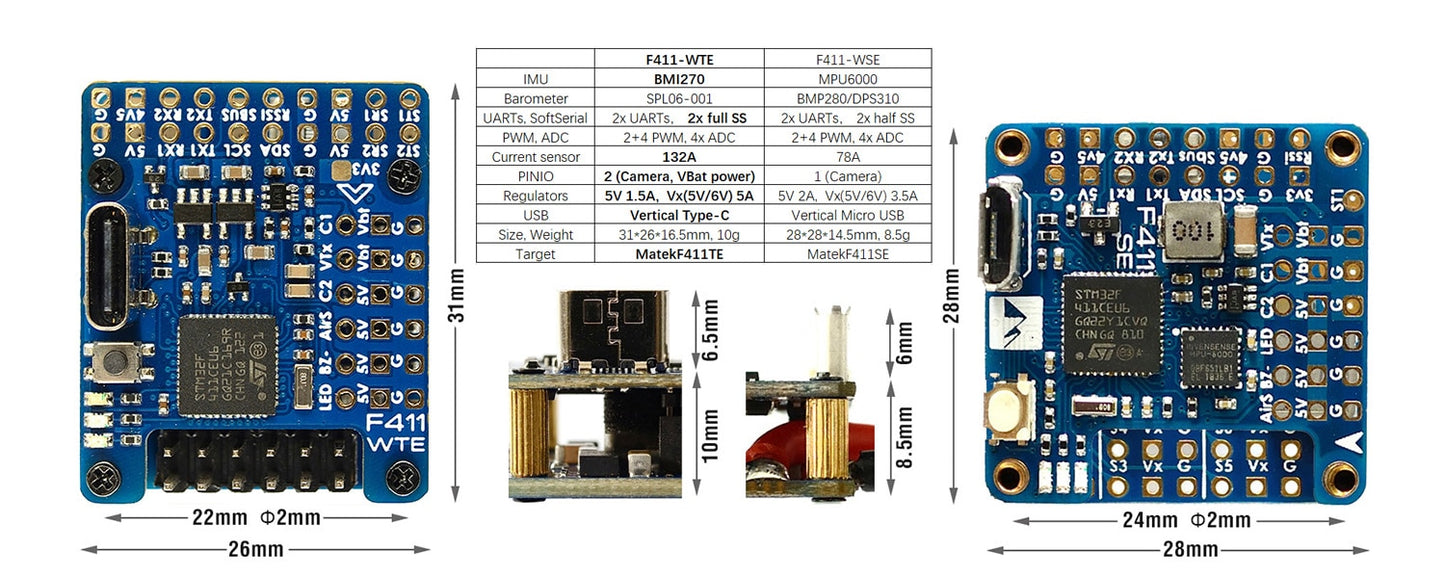

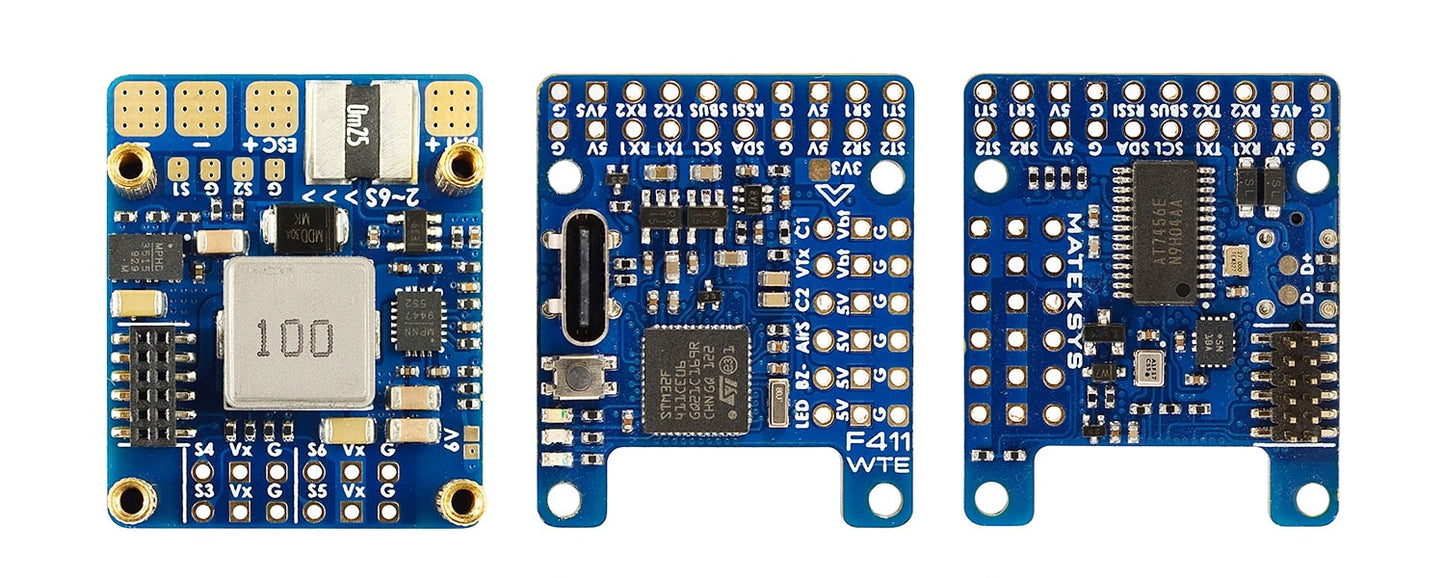

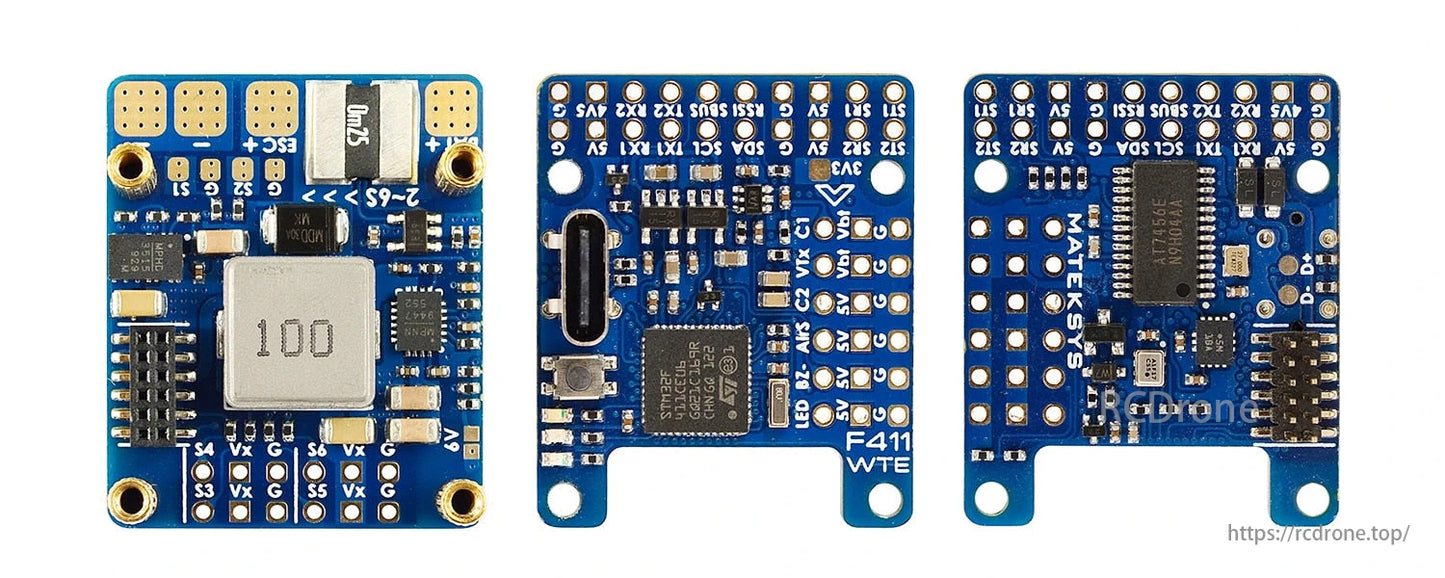

FC Specifications

• MCU: 100MHz STM32F411CEU6

• IMU: BMI270 (SPI)

• Baro: SPL06-001 (I2C)

• OSD: AT7456E (SPI)

• Blackbox: No

• 2x Uarts

• 2x Full Softserial

• 6x PWM outputs (2x Motors, 4x Servos)

• 1x I2C

• 4x ADC (VBAT, Current, RSSI, AirSpeed)

• 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)

• Built in inverter on UART2-RX for SBUS input

• Switchable Dual Camera Inputs

• Vbat power ON/OFF switchable for VTX and camera

• PPM receiver: not supported

Power

• 6~30V DC IN (2~6S LiPo)

• 132A Current Sense (Scale 250)

• PDB/Current sense resistor: 90A continuous, 132A burst.

• BEC 5V 1.5A for FC & Peripherals

• BEC Vx 5A for servos, 5V/ 6V option

• Vbat for VTX and camera (ON/OFF switchable)

• LDO 3.3V 200mA

• Battery Voltage Sensor: 1k:10k

FC Firmware

• INAV Target: MATEKF411TE ( INAV4.1 or newer)

Physical

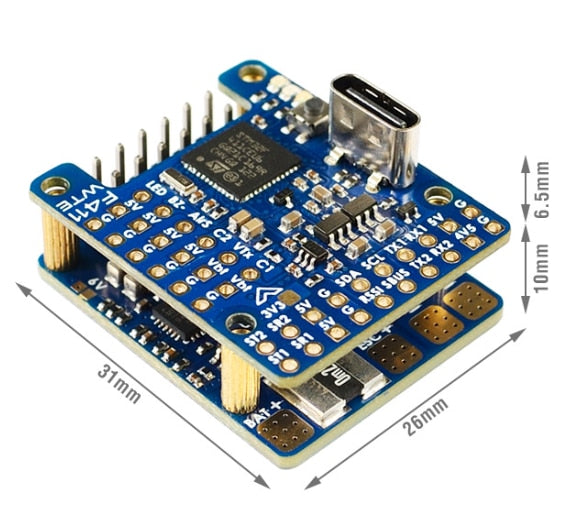

• Dimensions: 31 x 26 x 16.5 mm

• Mounting: 22 x 22mm, Φ2mm

• Weight: 10g

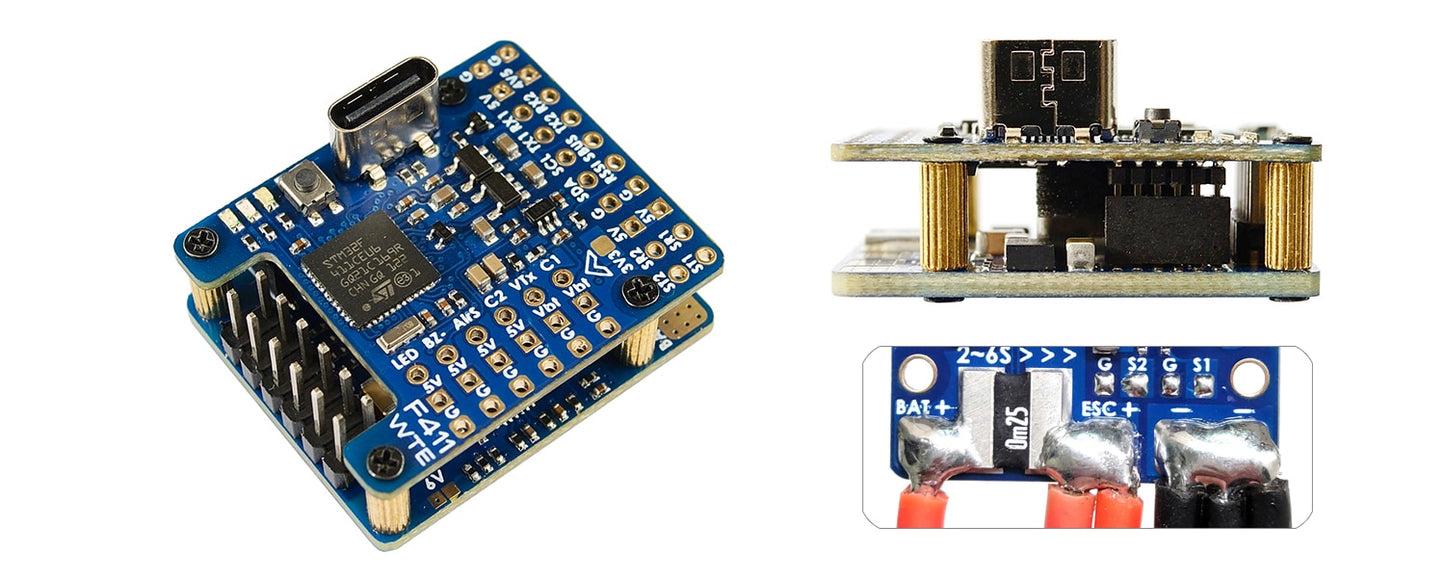

Including

• 1x FC F411-WTE

• Dupont 2.54 pins  (Board is shipped unsoldered)

5V is not supplied when connecting USB only: 6 4V5: 4.44.8V, Max. 80OmA 4V 5 is also supplied when connected USB only . LED: WS2812 LED signal output Bz-/SV: General active SV buzzer .

TIPS

• F411-WTE has INAV fw 4.1.0 preloaded for QC

• Start with INAV5.0, MatekF411TE target will be listed in INAV configurator.

• Download INAV firmware 4.x.x from our website(click “Firmwares” button at upper right corner)

• You may download INAV 5.x or newer version directly from INAV configurator.
