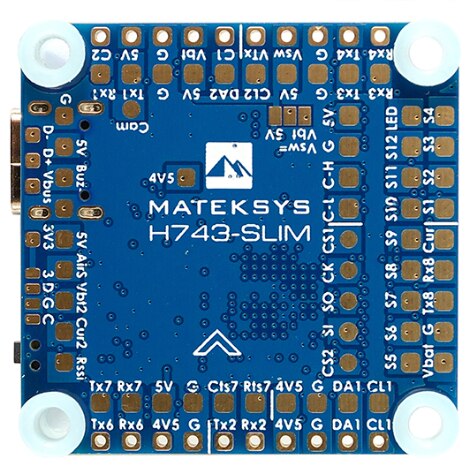

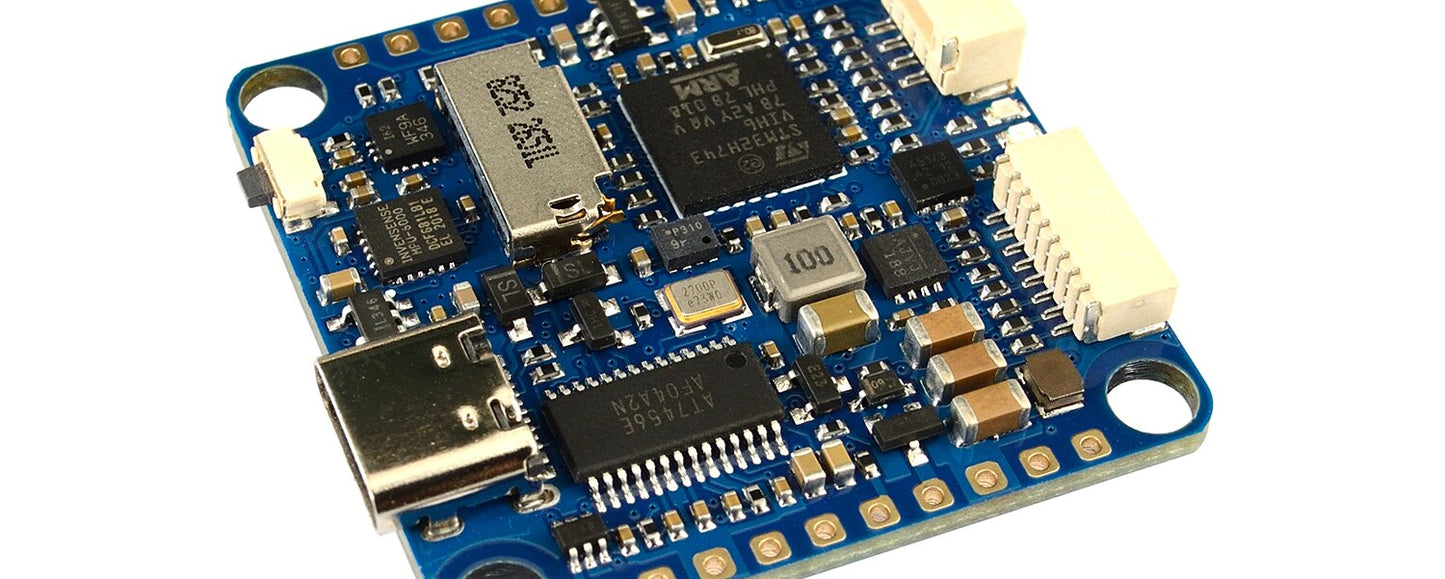

MATEK  H743-SLIM V3 - Mateksys FLIGHT CONTROLLER SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y,14+y,6-12y

Origin: Mainland China

Material: Composite Material

For Vehicle Type: Airplanes

Brand Name: MATEKSYS

FLIGHT CONTROLLER H743-SLIM

FC Specifications

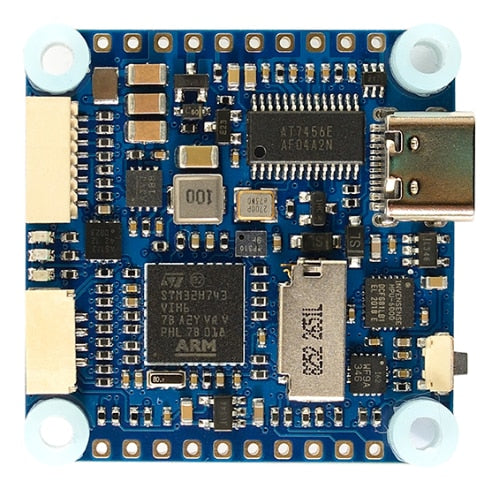

• MCU: STM32H743VIH6, 480MHz , 1MB RAM, 2MB Flash

• Board V1.0 IMU: MPU6000 (SPI1) & ICM20602 (SPI4)

• Board V1.5 IMU: MPU6000 (SPI1) & ICM42605 (SPI4)

• Baro: Infineon DPS310 (I2C2)

• OSD: AT7456E (SPI2)

• Blackbox: MicroSD card socket (SDIO)

• 7x Uarts (1,2,3,4,6,7,8) with built-in inversion.

• 13x PWM outputs(including “LED” pad)

• 2x I2C

• 1x CAN

• 6x ADC (VBAT, Current, RSSI, Analog AirSpeed, Vbat2, Cur2)

• 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)

• 1x SPI3 breakout

• USB Type-C(USB2.0)

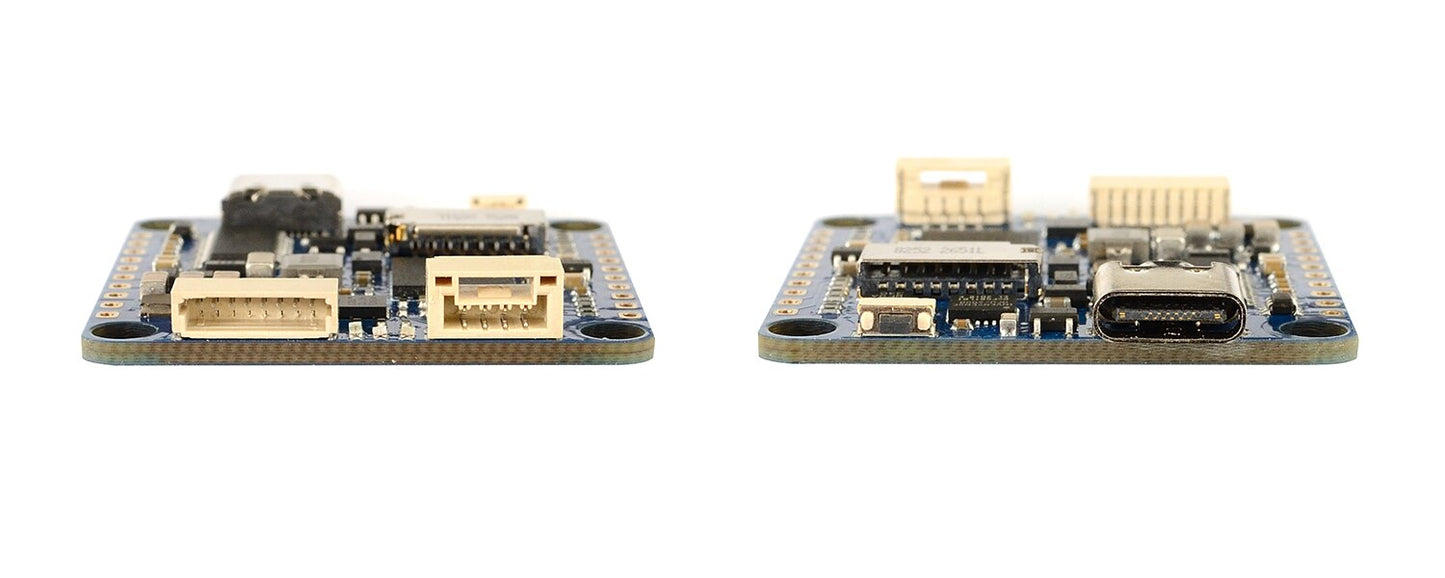

• 1x JST-SH1.0_8pin connector (Vbat/G/Curr/Rx8/S1/S2/S3/S4)

• 1x JST-GH1.25_4pin connector (5V/CAN-H/CAN-L/G)

• Dual Camera Inputs switch

• 5V/Vbat filtered power ON/OFF switch

• DJI FPV OSD is supported by any spare UART

Power

• Vbat Input: 6~36V (2~8S LiPo)

• BEC: 5V 2A cont. (Max.3A)

• LDO 3.3V: Max.200mA

• No Current Sensor built-in

• ADC Vbat2 pad supports Max. 69V (voltage divider: 1K:20K)

• Static power: 200mA@5V with Betaflight,  150mA@5V with ArduPilot

FC Firmware

• ArduPilot(ChiBiOS): MATEKH743

• BetaFlight: MATEKH743

• INAV: MATEKH743

Physical

• Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm

• Dimensions: 36 x 36 x 5 mm

• Weight: 7g

Including

• 1x H743-SLIM

• 6x Silicon grommets M4 to M3

• 1x JST-SH1.0_8pin cable, 5cm

• 2x JST-SH1.0_8pin connectors

• 1x JST-GH-4P to JST-GH-4P cable for CAN port, 20cm

What is new on the H743-slim V3

• ICM42688-P+ICM42605 instead of MPU6000+ICM42605

• Other functions, layout and components are same as previous board version.

• H743-slim V3 has betaflight_4.3.0 preloaded for QC

ArduPilot

• H743-mini-V3 with ICM42688-P is supported by ArduPilot 4.2 or higher,

• ICM42688-P is defined as first IMU (IMU0) ,  ICM42605 is the 2nd (IMU1).

• with ArduPilot 4.2, set INS_ENABLE_MASK to 7 or default 127.

• It is recommended to use STM32CubeProgrammer to erase MCU and upload firmware.  check this blog http://www.mateksys.com/?p=6905

INAV

• H743-slim-V3 is not supported by INAV4.1 downloaded from configurator. pls download inav_4.1.0_MATEKH743_42688 from our website.

• Starting with INAV5.0,  V1/V1.5/V3 will share the same firmware.

BetaFlight

• IMU ICM42688-p is supported by BetaFlight 4.3 or higher.

• icm42688-p is the first IMU(default), ICM42605 is the second IMU.

• Target MATEKH743 in BetaFlight 4.2.x list doesn’t support ICM426XX series, You need to flash it with BF4.3_RC or latest
