• MATEK 3901-L0X, 1 STM3ZLO51C8T6 1 EO- 30.Smm
  • MATEK 3901-L0X - Mateksys OPTICAL FLOW & LIDAR SENSOR
  • MATEK 3901-L0X - Mateksys OPTICAL FLOW & LIDAR SENSOR
1 3

MATEK 3901-L0X - Mateksys OPTICAL FLOW & LIDAR SENSOR

MATEK 3901-L0X - Mateksys OPTICAL FLOW & LIDAR SENSOR

MATEKSYS

$49.54 USD
$74.32 USD $49.54 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

142 orders in last 90 days
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y,14+y,3-6y,6-12y,0-3y

Origin: Mainland China

Material: Composite Material

Brand Name: MATEKSYS

OPTICAL FLOW & LIDAR SENSOR 3901-L0X


MATEK 3901-L0X, 1 STM3ZLO51C8T6 1 802 30.5mm 03mmMATEK 3901-L0X, maximum range of VL53L0X is 2m, throttle 0100%MATEK 3901-L0X, MATEKSYS OPTICAL FLOW & LIDAR SENSOR 3901MATEK 3901-L0X, 3 MCU STM3ZF722RET6 Gyro Accel Baro GPS

Specifications

  • Optical Flow: PMW3901

  • Lidar: VL53L0X

  • Interface UART

  • Protocol: MSP

  • Working Range: 8cm~200cm

  • Field of view: 42 degree(PMW3901), 27 degree(VL53L0X)

  • Minimum Illumination >60Lux

  • Input voltage: 4.5~5.5V

  • Power Consumption: 40mA

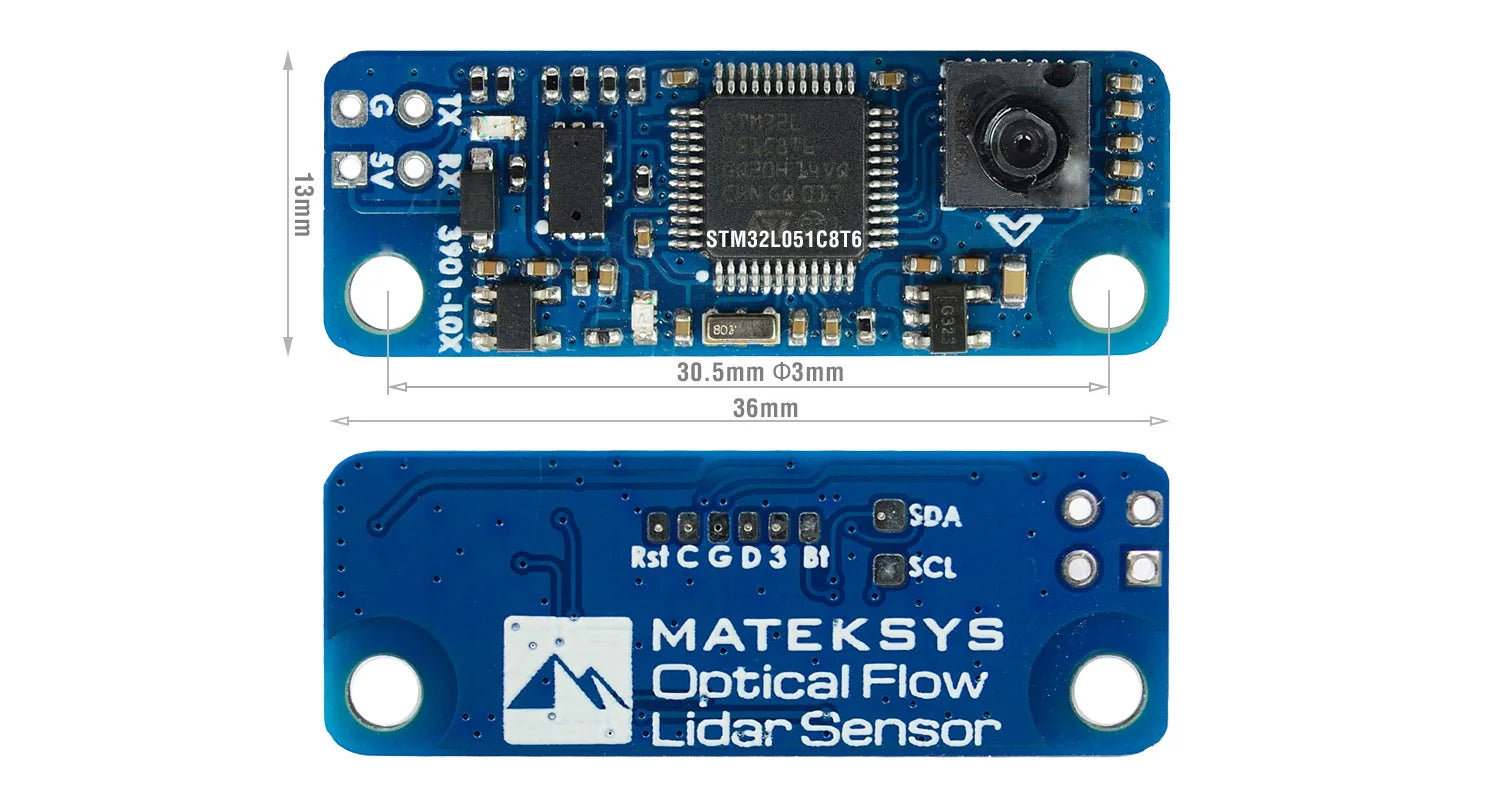

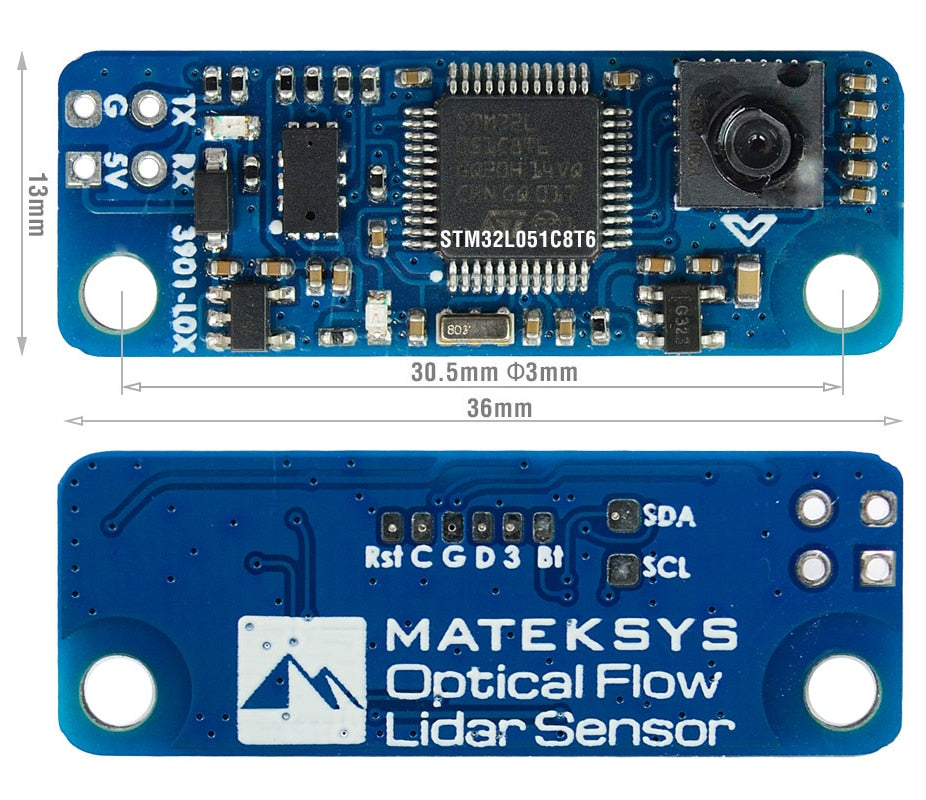

  • Size: 36*12mm (F051 version),  2g

  • Size: 36*13mm (L051 version)  2g


Packing

  • Module 3901-L0X,  1pc


Tips

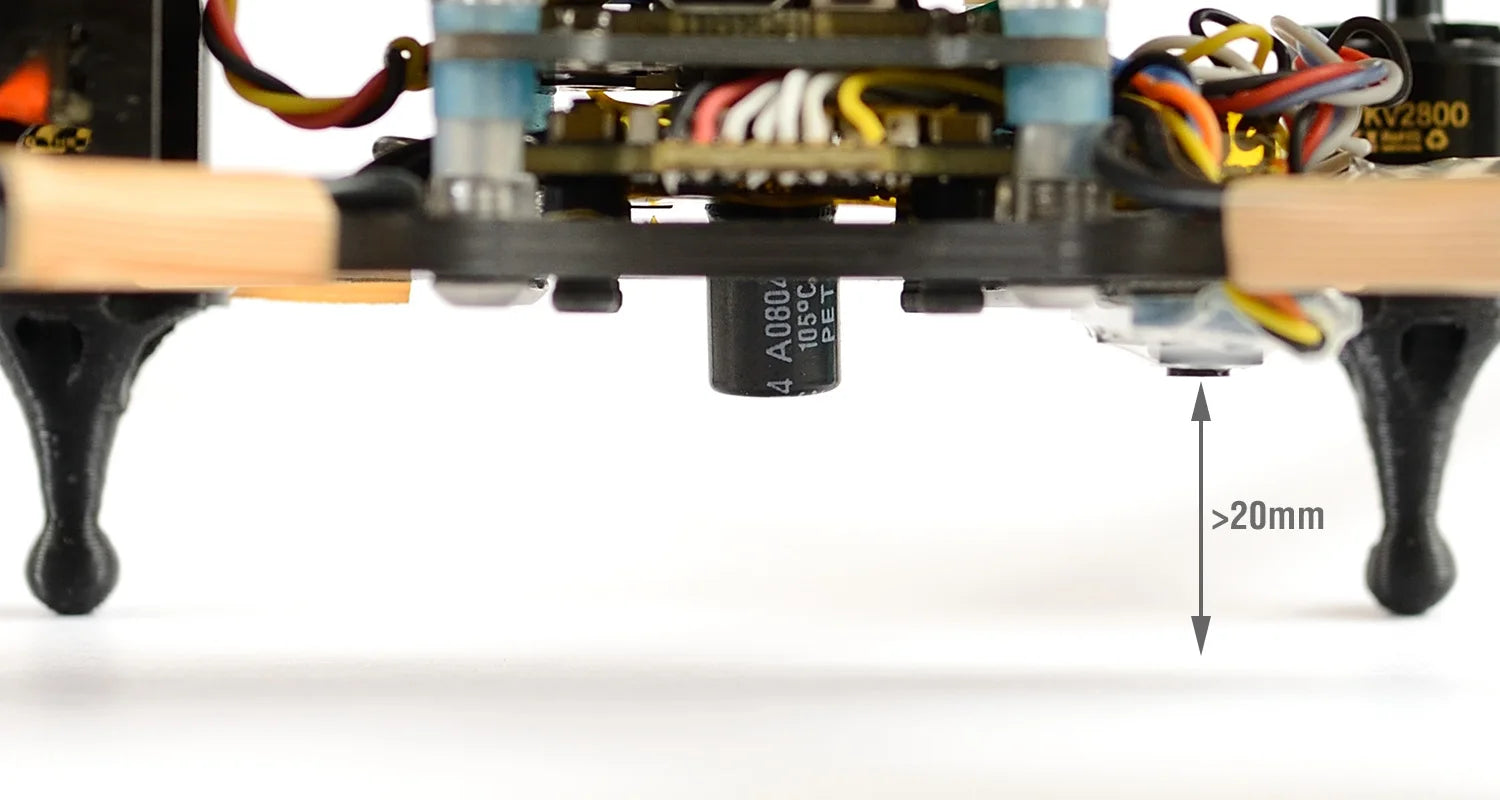

  • Make sure Optical Flow lens to ground >2cm for opflow initialization while FC starting up.

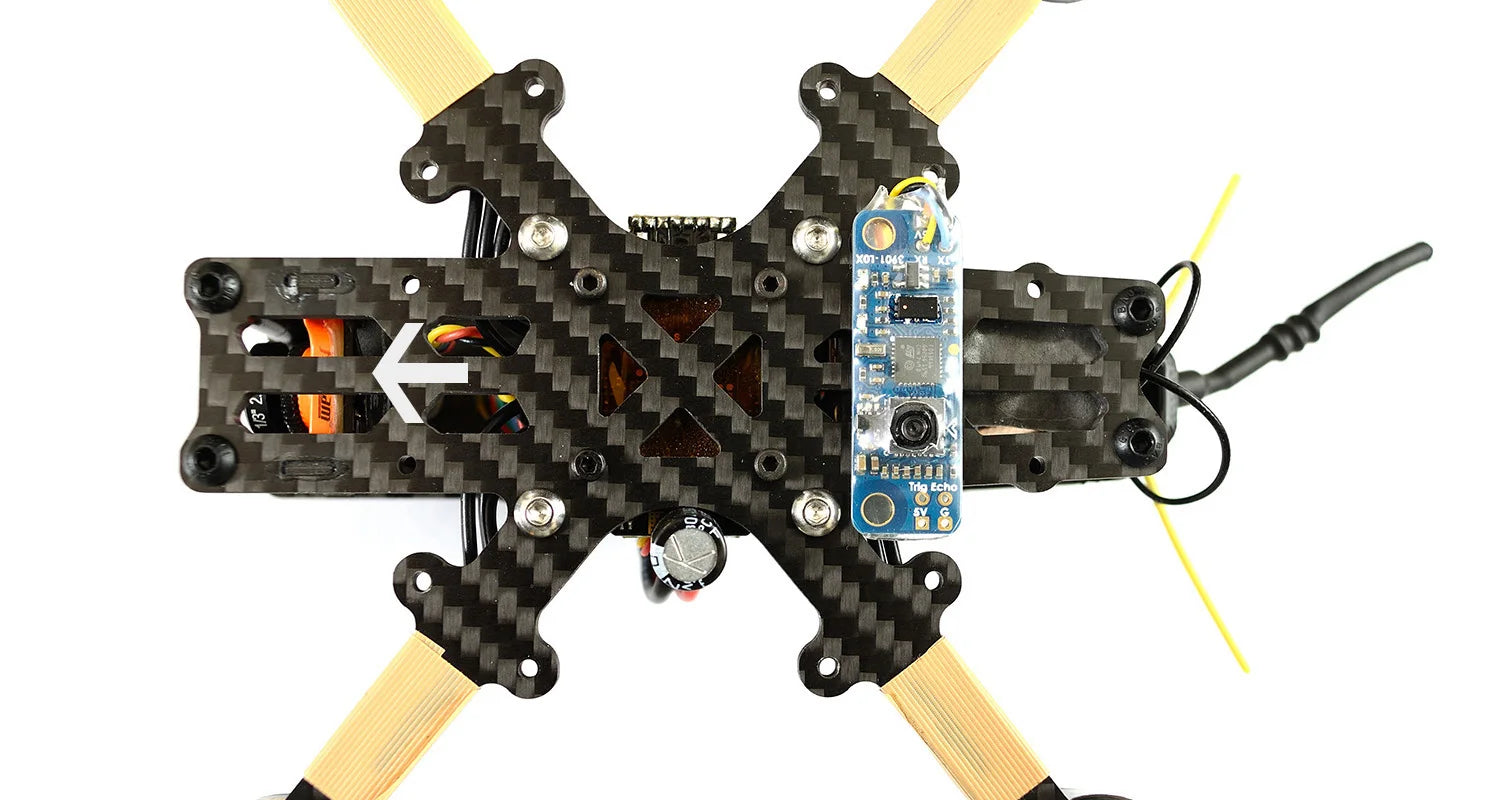

  • Maximum range of VL53L0X is 2m,   Altitude hold 0~2m @ throttle 0~100% if VL53L0X is enabled.

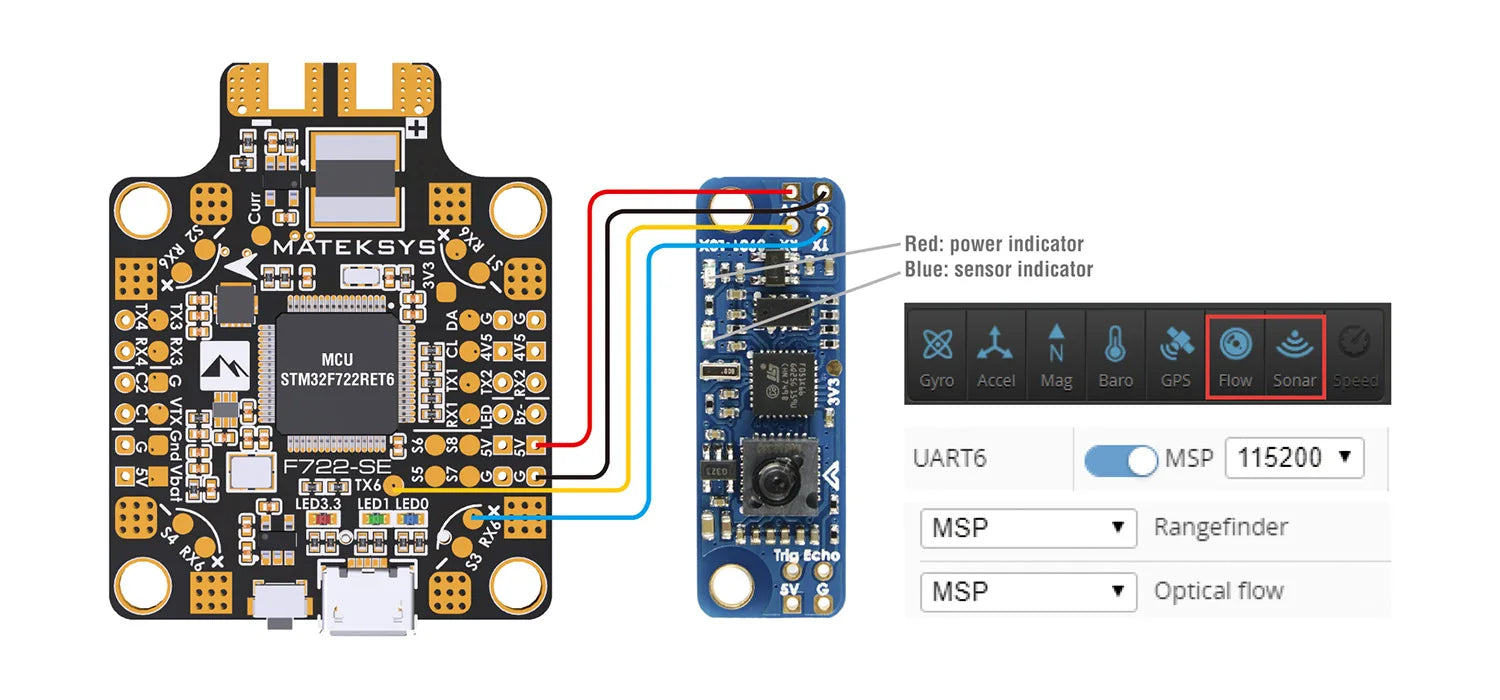

  • Any unused UART of FC supports it

  • Sonar connection (Trig & Echo) has not been implemented

  • If your flight controller doesn’t have a barometer detected, you won’t be able to select “NAV ALTHOLD” in modes tab.
