MATEK Mateksys PDB-HEX, 12S SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Recommend Age: 12+y
Origin: Mainland China
Material: Composite Material
Brand Name: MATEKSYS
MATEKSYS PDB-HEX 660V DC IN (212S LiPo) BEC 54, 5V/9V/12V ADJ, 5v Default PDB 140A cont. 264A burst . 6 pairs of ESC power pads 126 1K:ZOK voltage divider 40*49*6mm, 12g mounting 30.Smm & 2Omm, @3mm Delauy 3 1/21 Vbat E.
![6x ESC power /signal/ telemetry pads for ESC tele](https://rcdrone.top/cdn/shop/files/Sb59a61bc8e394334b40df73b6e56caf7j.webp?v=1715359067)
![MATEK Mateksys PDB-HEX, 12S SPECIFIC](https://rcdrone.top/cdn/shop/files/S359271906b5a4ec2b1b7178ec33abd79o.webp?v=1715359076)
![MATEK Mateksys PDB-HEX, 12S SPECIFIC](https://rcdrone.top/cdn/shop/files/S42f8b228d740411e8e3f05c643eabc53x.webp?v=1715359086)
QUICK START GUIDE (PDF 13M)
PDB
-
Input voltage range: 6~60V (2~12S LiPo)
-
PDB/current sense resistor: 140A cont, 264A burst.
-
ESC power pads: 60A cont. 100A burst
-

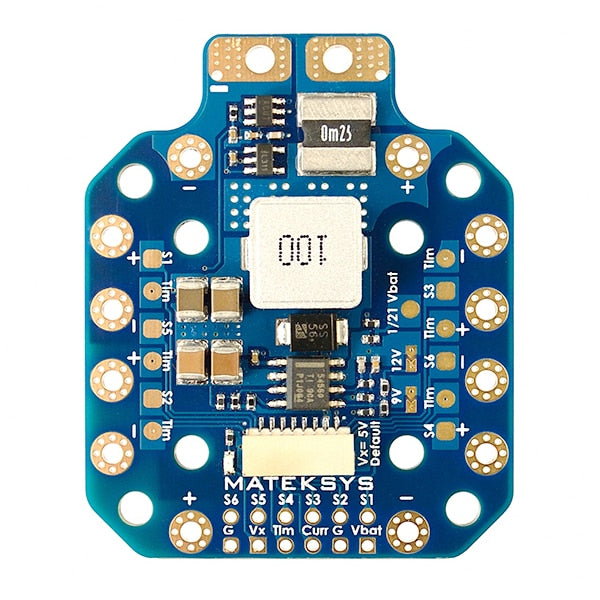

6x ESC power /signal/ telemetry pads
-
Current Senor: 264A, 3.3V ADC
-
Current Scale 125(INAV/BF), BATT_AMP_PERVLT 80 (ArduPilot)
JST-SH-8P Connector and Pads
-
Vbat: Battery voltage
-
G: ground
-
Curr: current signal
-
Tlm: Duplicates Tlm pads for ESC telemetry
-
S1/S2/S3/S4/S5/S6: ESC signal
-
Vx: Regulator output
BEC Vx output (5V default)
-
Vx= 5V by default, Continuous 5 Amps
-
Bridge 9V jumper, Vx= 9V, Continuous 4 Amps, Max.5A
-
Bridge 12V jumper, Vx= 12V, Continuous 4 Amps, Max.5A
-
Output Short-circuit tolerant (1 seconds)
-
Overcurrent protection & self-recovery
Voltage divider
-
1K:20K resistors
-
Output 1/21 Vbat voltage

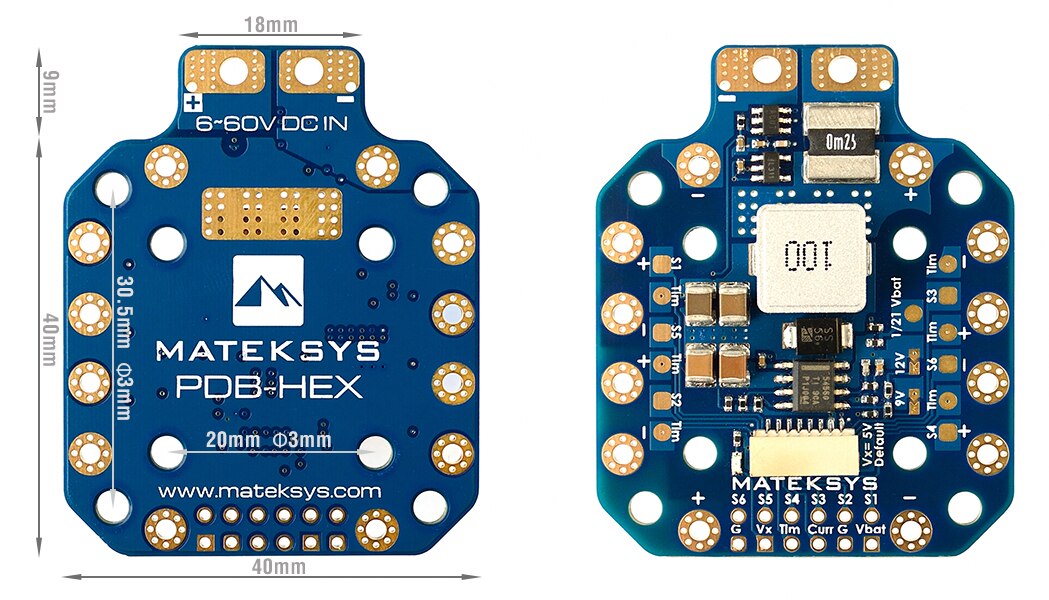

Physical
-
Mounting: 30.5 x 30.5mm, 20 x 20mm, Φ3mm
-
Dimensions: 49 x 40 x 6 mm
-
Weight: 12g
Including
-
1x PDB-HEX
-
1x Rubycon ZLJ 63V 390uF
-
1x JST-SH1.0_8pin cable, 5cm
-
2x JST-SH1.0_8pin connectors
![MATEK Mateksys PDB-HEX, 12S](http://rcdrone.top/cdn/shop/products/S949071bb0a3d4251be1cb296df0c8ff5U.jpg?v=1689781613&width=1445)
![MATEK Mateksys PDB-HEX, 12S](http://rcdrone.top/cdn/shop/files/Sa9868ea9f68b4b83baa2692dc38f91a9A.jpg?v=1689781618&width=1445)
![MATEK Mateksys PDB-HEX, 12S](http://rcdrone.top/cdn/shop/files/S54e51a2d7a3e40f0a3f8603b34995527S.jpg?v=1689781621&width=1445)
