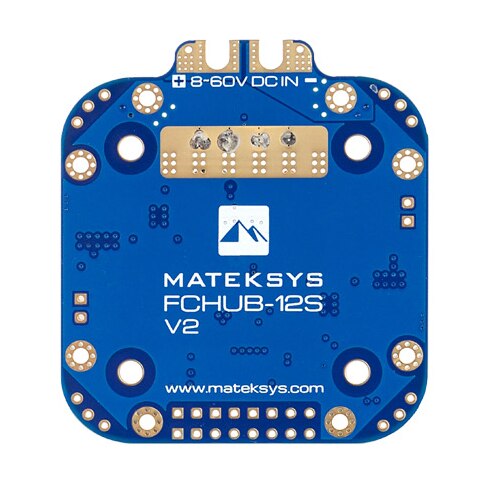

MATEK FCHUB-12S - Mateksys XCLASS PDB SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Recommend Age: 12+y
Origin: Mainland China
Material: Composite Material
Brand Name: MATEKSYS
XCLASS PDB FCHUB-12S
Designed specificaly for XClass Quad. supports 8~60V DC input, 5V 5A and 12V 4A regulators, high precision current sense up to 440A range.
Quick Start Guide (PDF)
PDB
-
Input voltage range: 8~60V (3~12S LiPo)
-
4x70A cont, 4x110A burst
-
4x ESC power /signal/ telemetry pads
-
Current Senor: 440A, 3.3V ADC, Scale 75
-
2x LED indicators for 5V, 12V
-
1K:20K voltage divider built-in

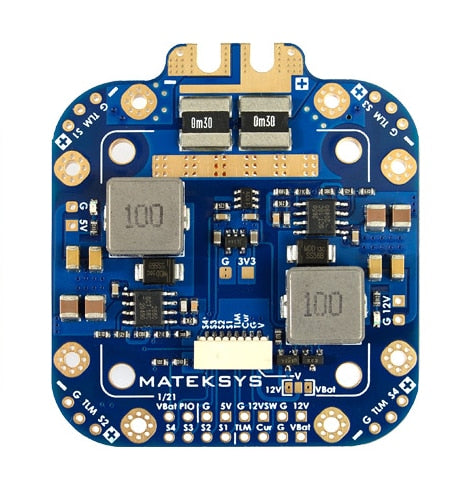

JST-SH 8pin connector
-
“V” pad: 12V or VBat voltage selectable
-
G: GND
-
Curr: current sensor signal
-
TLM: for BlHeli32 ESC telemetry
-
S1~S4: ESC signal
BEC 5V output (5V pad)
-
Voltage: 5.1 +/- 0.1VDC
-
Continuous current 5 Amps, Max.6A
-
Short-circuit tolerant (2 seconds)
-
Overcurrent protection & self-recovery
BEC 12V output (12V pad)
-
Voltage: 12.0 +/- 0.2VDC (Input voltage >=12V)
-
Continuous current 4 Amps, Max.5A
-
Input voltage<12V, Output voltage = Input voltage
-
Short-circuit tolerant (2 seconds)
-
Overcurrent protection & self-recovery
Switchable 12V output (12VSW pad)
-
12V ON/OFF switchable via PINIO(high/low level)
-
support constant 2A
-
can be use for powering VTX,LED etc.
BEC 3.3V output
-
Linear Regulator
-
Continuous current: 500mA
Physical
-

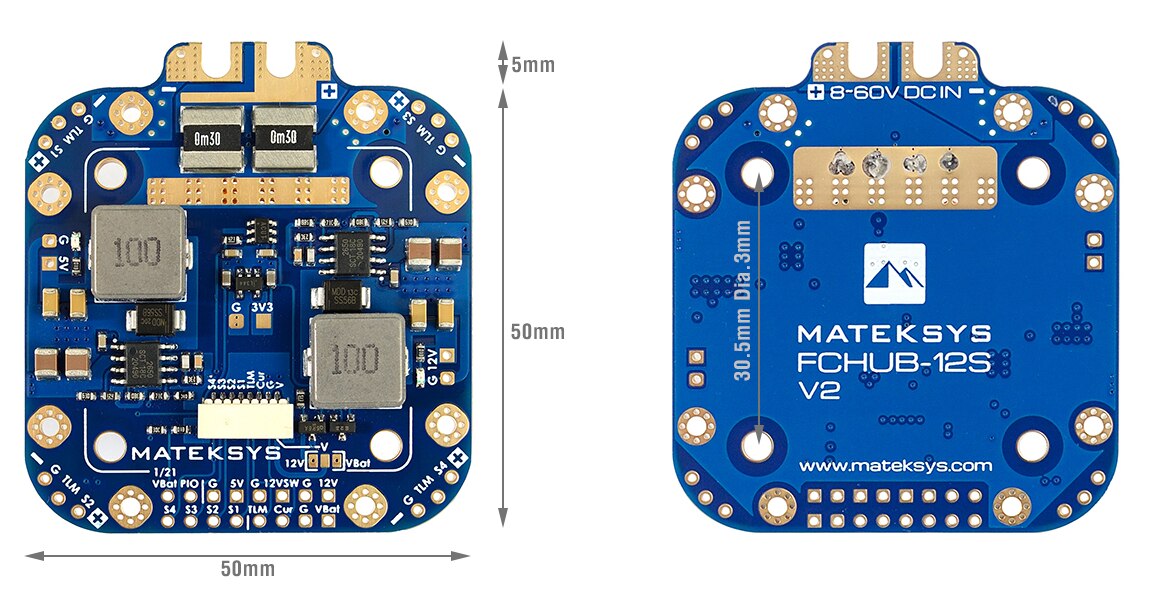

Mounting: 30.5 x 30.5mm, Φ3mm
-
Dimensions: 55 x 50 x 6 mm
-
Weight: 21g
Including
-
1x FCHUB-12S V2
-
1x SH1.0_8pin cable 5cm, 2x SH1.0_8pin connectors
