Matek Systems ASDP-4525 Flight control sensor SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Adapter
Tool Supplies: Battery
Technical parameters: Value 10
Size: As description
Remote Control Peripherals/Devices: Receivers
Recommend Age: 14+y,12+y
RC Parts & Accs: Connectors/Wiring
Quantity: 1 pcs
Origin: Mainland China
Model Number: Matek ASDP-4525
Material: Composite Material
Four-wheel Drive Attributes: Motors
For Vehicle Type: Airplanes

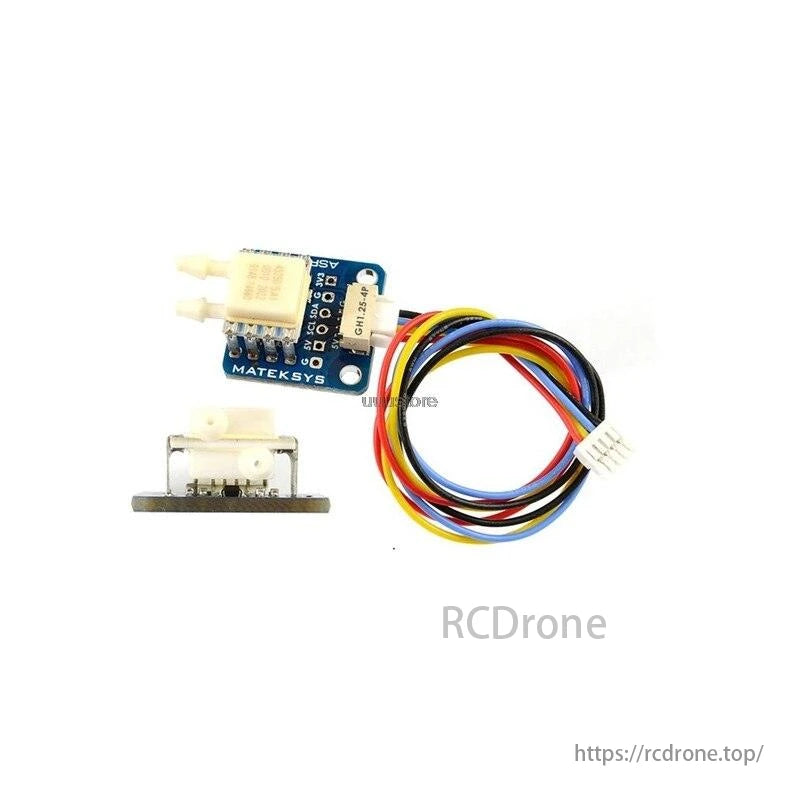

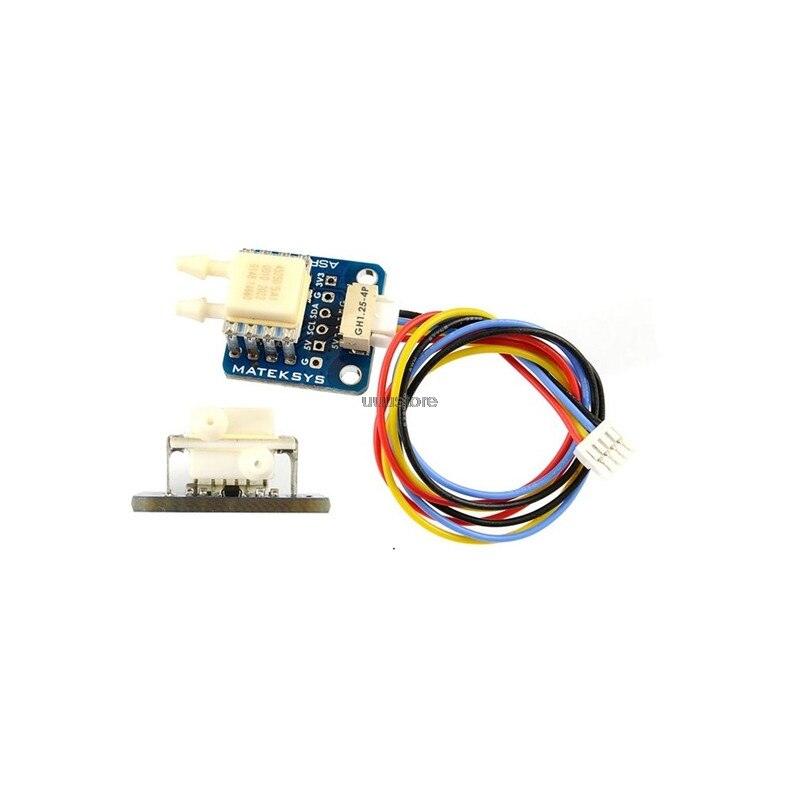

2020 New Matek Systems digital Airspeed Sensor ASDP-4525 Flight control sensor for F4 F7 F722 765 WING IANV Flight Controller
Package include:
ASPD-4525 Sensor Board.
JST-GH to JST-GH 20cm silicon cable.
Pitot Tube.
Clear silicon tubing 40cm
Sensor: MS4525DO
Working current: 5mA
Output: I2C (SCL & SDA)
Pressure Ranges: 1 PSI (6.89kPa)
Maximum Pressure: 20 PSI (137.9kPa)
Operating Temperature: -40°C ~ 125°C
Accuracy: ±0.25% SPAN
Red LED: power indicator

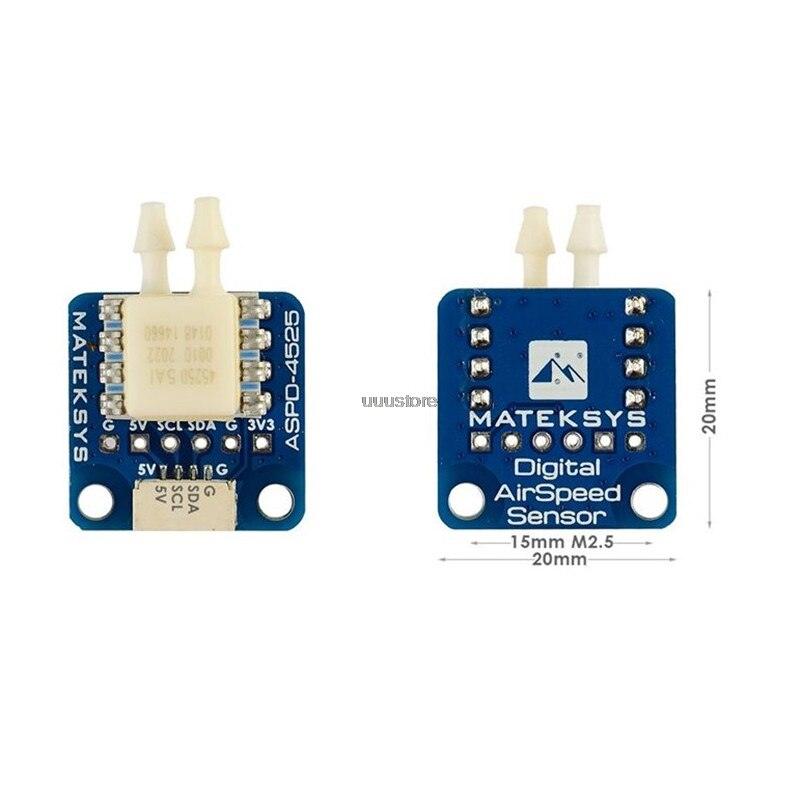

JST-GH sequence: 5V, SCL, SDA, GND
Weight: 3.5g (sensor board)
SCL to FC I2C_SCL
SDA to FC I2C_SDA
G to FC GND
