Mini FPV DVR Module SPECIFICATIONS

Wheelbase: Bottom Plate

Upgrade Parts/Accessories: Other

Tool Supplies: Battery

Technical parameters: Value 7

Size: as description

Remote Control Peripherals/Devices: Other

Recommend Age: 14+y,12+y

RC Parts & Accs: Other

Origin: Mainland China

Model Number: LS-DVR

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Helicopters

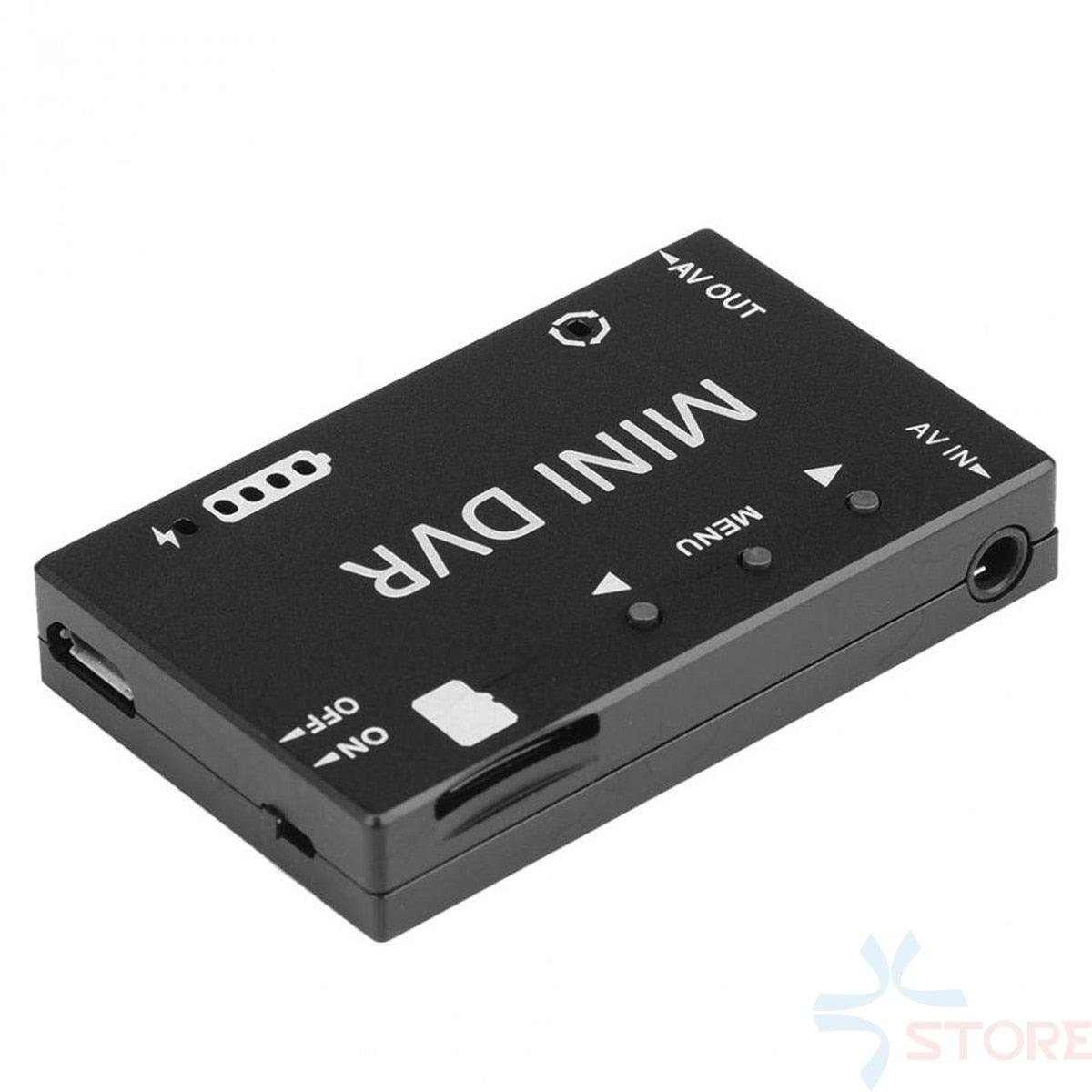

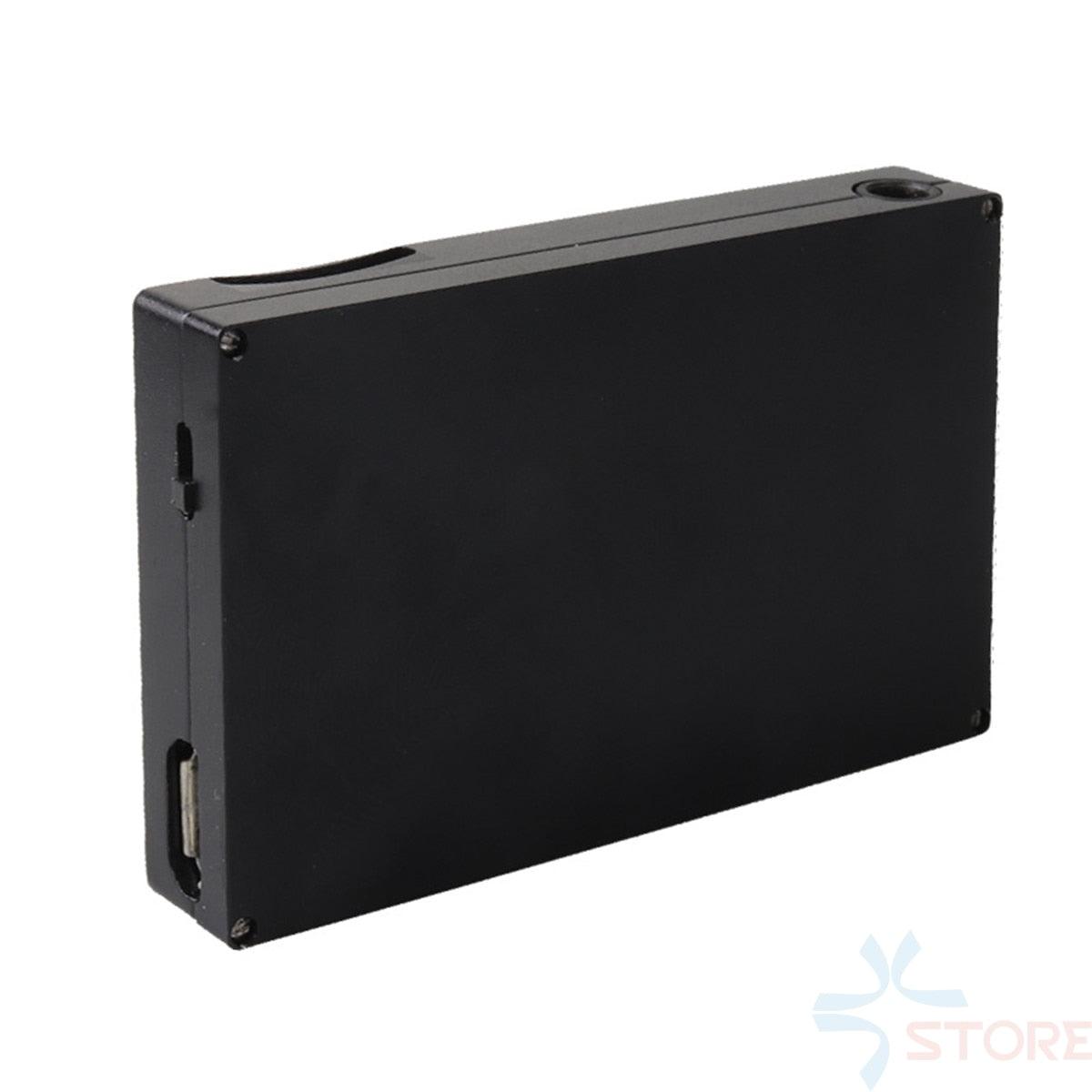

Mini FPV DVR Module NTSC/PAL Switchable Built-in Battery Video Audio FPV Recorder for RC Models Racing FPV Drone

Micro Mini HMDVR-S DVR Video Recorder For FPV Monitor RC Quadcopter Drone Audio Video Transmitter DIY Parts USD 10.89 / piece /lot 1

Micro DVR VCR Module Mini Video Recorder Support Record Playback 32G TF Card For FPV Monitor Indoor FPV Racing USD 18.99 / piece /lot 1

Micro Mini DVR LANTIAN 720P FPV Video Recorder Module Support 32G TF card For FPV Racing Drone USD 19.39 / piece /lot 1

Micro D1M 1CH 1280x720 30f/s HD DVR FPV AV Recorder Support 32G TF SD Works with CCTV ANALOG camera USD 27.99 / piece /lot 1

Ready to use 5.8G FPV Receiver UVC Video Downlink OTG VR Android Phone+5.8G Video Transmitter + CMOS 1200TVL Camera FPV Combo USD 4.37 / piece /lot 1

Description:
Item name: Mini FPV DVR



System startup time: 3 seconds

Video input format: NTSC/PAL

Video input impedance: 75? Typ.

Video compression format: MJPEG

Record file resolution: VGA (640 * 480) / D1 (720 * 480) / HD (1280 * 720) selectable

Record file format: AVI

Recording sound: ON/OFF selectable

Cycle recording time: 10min/20min/30min

Frame rate: 30 Frames

Memory card: TF card, support up to 32GB (C10 recommended)

Menu language: 11 language choices

Optical frequency: 50Hz/60Hz can be selected

Video playback: CVBS output (connected to the monitor)

Audio input interface: 3.5mm AV jack

Audio output interface: 3.5mm AV jack

Charging interface: micro USB interface

Charging voltage: 5V DC

Charging current: 500mA Max

Battery (non-removable): Built-in 3.7V/400 mAh lithium ion polymer battery

Battery life: Each working load is 1.5 to 2 hours of working time.

Operating temperature: -10~60°C

Operating humidity: 85% RH

Dimension: 53mm * 33mm * 9mm

Weight: 24.5g
Menu language: English, French, German, Italian, Spanish, Portuguese, Traditional Chinese, Simplified Chinese, Japanese, Russian, Korean.

Features:

* Small size and light weight;

* Low power consumption, operating current 200 mA;

* Aluminum alloy casing (CNC processing);

* Support 32GB TF card (10 level recommended);

* Built-in 3.7V/400 mAh lithium ion polymer battery;

* Universal USB charging interface;

* High-precision 4-level battery power indicator;
* Multi-language menu, 11 menu language choices;

* CVBS signal input (built-in video decoder);

* Support playback and AV signal output (built-in video encoder)

Package included:

1* FPV minimum DVR

2* AV cable

1* magic tape

Short press (More than sec)- Enters REC mode . SD-card slot: Supports TF-Card_ Up to 32GB (C1O recommend)

the same as the input and output GND Audio Video 3.Smm AV cable: video Audio GNO Audio Audio Suite product connection instructions: OFF
