  • Mini ZMR250 QAV250 250mm Carbon Fiber Frame 2205 2300KV Motor 30A BLHeli_S ESC F405 / F4 V3S Flight Control 1200TVL Camera Kit
  • ONS Ut otpnv Mw0o9 Ut Obp
  • Mini ZMR250 QAV250 250mm Carbon Fiber Frame 2205 2300KV Motor 30A BLHeli_S ESC F405 / F4 V3S Flight Control 1200TVL Camera Kit
  • Mini ZMR250 QAV250 250mm Carbon Fiber Frame 2205 2300KV Motor 30A BLHeli_S ESC F405 / F4 V3S Flight Control 1200TVL Camera Kit
  • Mini ZMR250 QAV250 250mm Carbon Fiber Frame 2205 2300KV Motor 30A BLHeli_S ESC F405 / F4 V3S Flight Control 1200TVL Camera Kit
1 7

Mini ZMR250 QAV250 250mm Carbon Fiber Frame 2205 2300KV Motor 30A BLHeli_S ESC F405 / F4 V3S Flight Control 1200TVL Camera Kit

Mini ZMR250 QAV250 250mm Carbon Fiber Frame 2205 2300KV Motor 30A BLHeli_S ESC F405 / F4 V3S Flight Control 1200TVL Camera Kit

RCDrone

$155.79 USD
$218.11 USD $155.79 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

37 orders in last 90 days

Color
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Cutting

Technical parameters: Value 6

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y,14+y

RC Parts & Accs: Principal Axis

Origin: Mainland China

Material: Carbon Fiber

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: Readytosky

readytosky is a professional FPV RC Module accessories company . we will

ReadyToSky is a professional manufacturer specializing in FPV RC module accessories. For inquiries regarding wholesale or bulk purchases, please feel free to contact us.

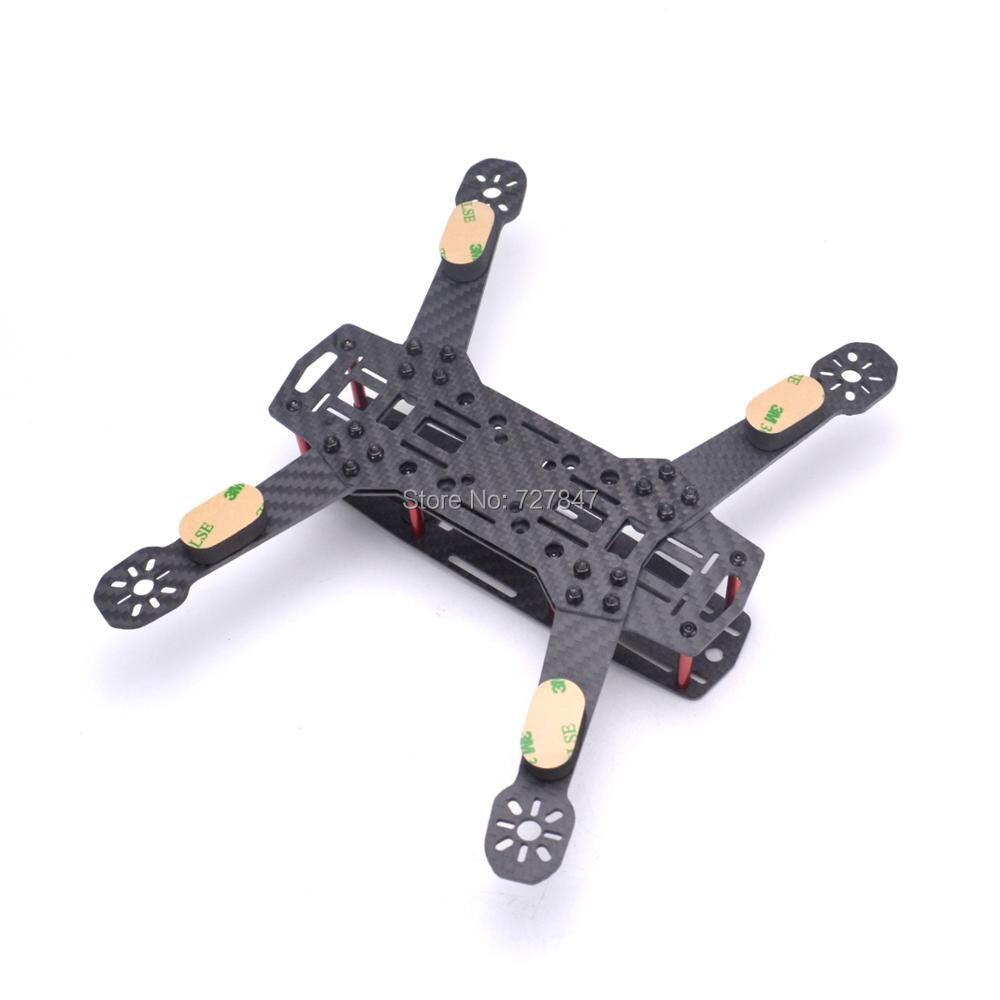

Mini ZMR250 QAV250 250mm Carbon Fiber Frame 2205 2300KV Motor

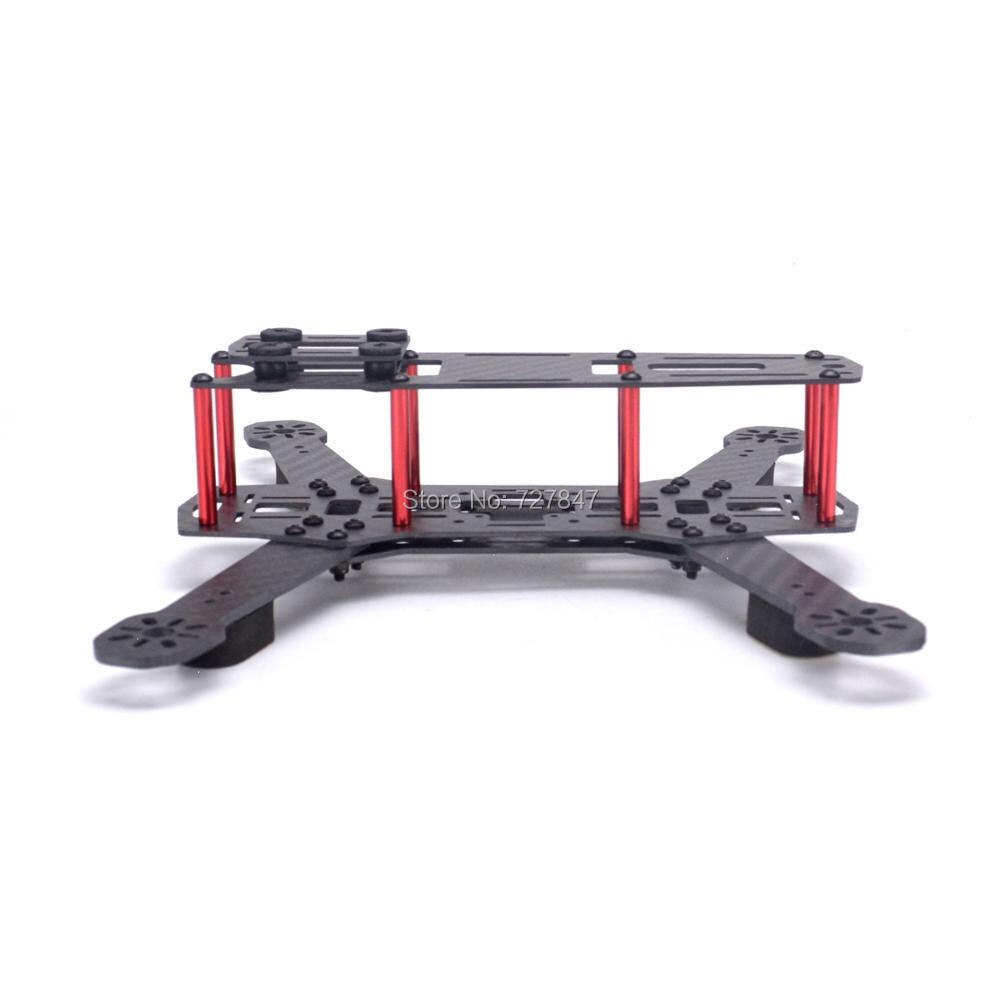

Full carbon version 250 frame



Specifications:
- Main material: Full carbon fiber
- With rubber damper to decrease vibration during flight
- Aluminum alloy spacer, light weight, reliable
- Wheelbase: 250mm

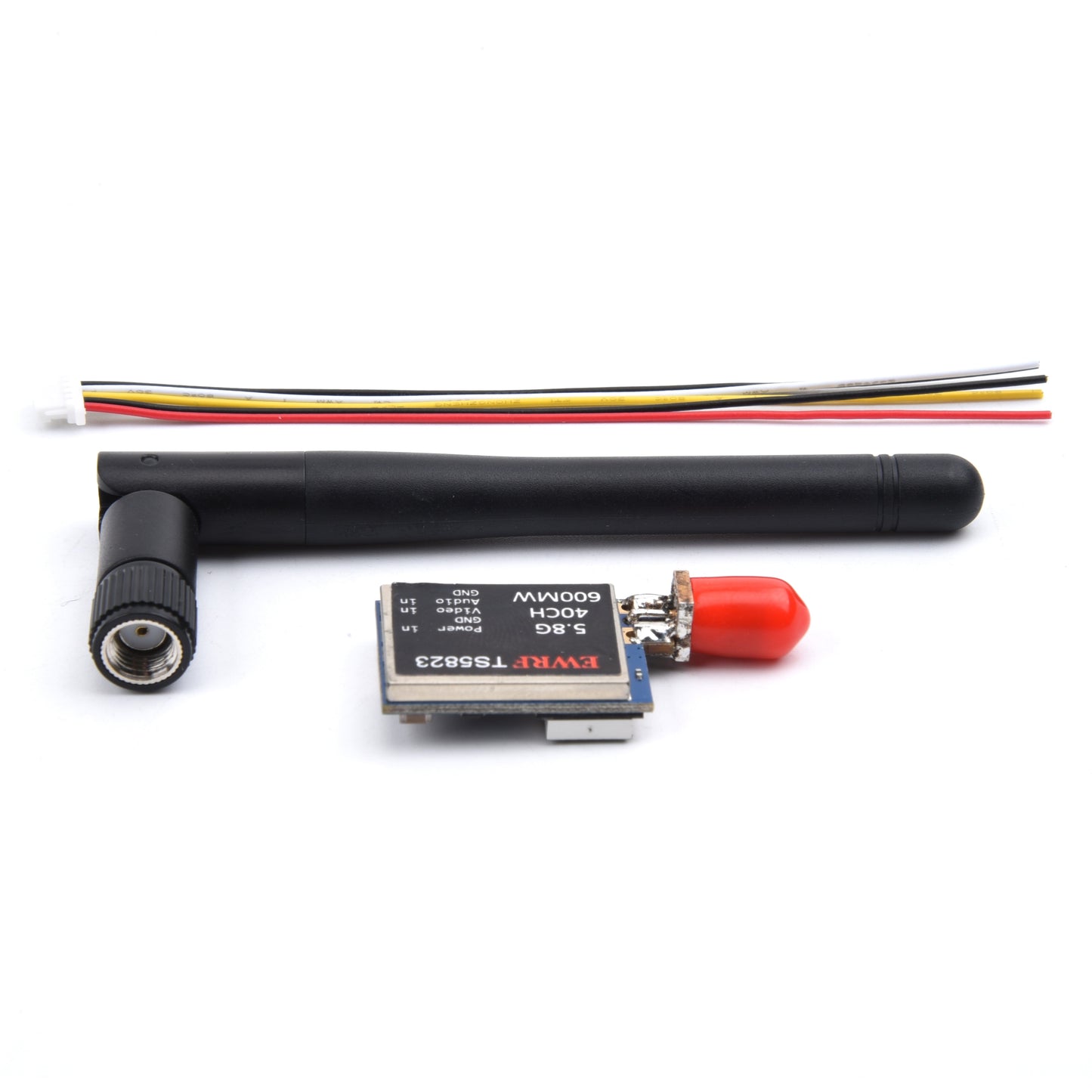

EWRF TS5823 600mW 40CH Video Wireless Transmitter Module 5.8GHz VTX with LED For RC FPV Quadcopter Drone Part


EWRF TS5823 transmits a tiny amount of power and the transmitting

EWRF TS5823 transmits a tiny amount of power and the transmitting distance is about 2- 3 meters . press the button twice will toggle the ON/OFF of Pitmode .

Mini ZMR250 QAV250 250mmMini ZMR250 QAV250 250mm Carbon Fiber Frame 2205 2300KV Motor
TS5828L 40ch Description: (2 models send at random)
Item Name: FPV Transmitter
Channel: 40CH (send at random)
Frequency: 5.6G-5.9G
Current: 190mA/12V
Temp.:-10-85  Degree
Video Bandwidth: 8M
Audio Bandwidth: 6.5M
Antenna: RP-SMA
Size: 38x18x8mm
Weight: 16g

FVT LittleBee 30A-S ESC Input Voltage: 2-6S


Model: Readytosky RS2205-2300KV


Framework: 12N14P


No. of Cells: 3 - 4S


Color: Red


Length: 31.7mm


Shaft: M5


KV: 2300


Max Thrust: 1024g


Diameter: 27.9mm


Propeller Suggested: HQ 5045 BN


Weight: 30g

Features:


1. Race Spec Performances


2. High Strength N52 Neodyum Magnets


3. Active Cooling Fins Greatly Reduce Motor Temeratures


4. Low CG, Light Weight Design


5. Japanese Bearing For Performances


6. Enchance Anti Off U Ring For Safety & Stablility


7. Dual Lock CW / CCW Locknuts


Item name: FVT LittleBee 30A-S ESC
Input Voltage: 2-6S Lipo
BEC Output: No
Continue Current: 30A, Burst Current: 35A up to 10S
Size: 35*17mm
Weight: 9g(include Power and signal wire)
Support Damped mode, Oneshot125, Oneshot42 and Multshot
Main IC: SILABS EFM8BB21F16, MCU run 48MHz
MOS: Both low and high side fets are Nfets
Switching speed is very fast, it has dedicated driver chip
BLHeli_S Bootloader & Firmware
F4 V3S PLUS Flight Controller Firmware Omnibus-f4 Size: 36x

The F4 V3S PLUS Flight Controller features Omnibus-f4 firmware, with a size of 36x36mm and mounting holes measuring 30.5x30.5mm. It utilizes an STM32 F405 MCU, supports Dshot, and offers drag-and-drop OSD configuration via Betaflight. The controller also includes a BMI270 MPU6500 6-axis SPI gyro and accelerometer.

EWRF TS5823 600mW 40CH Video Wireless Transmitter Module 5.
the V2 pro version now includes a built in BEC . you can power this

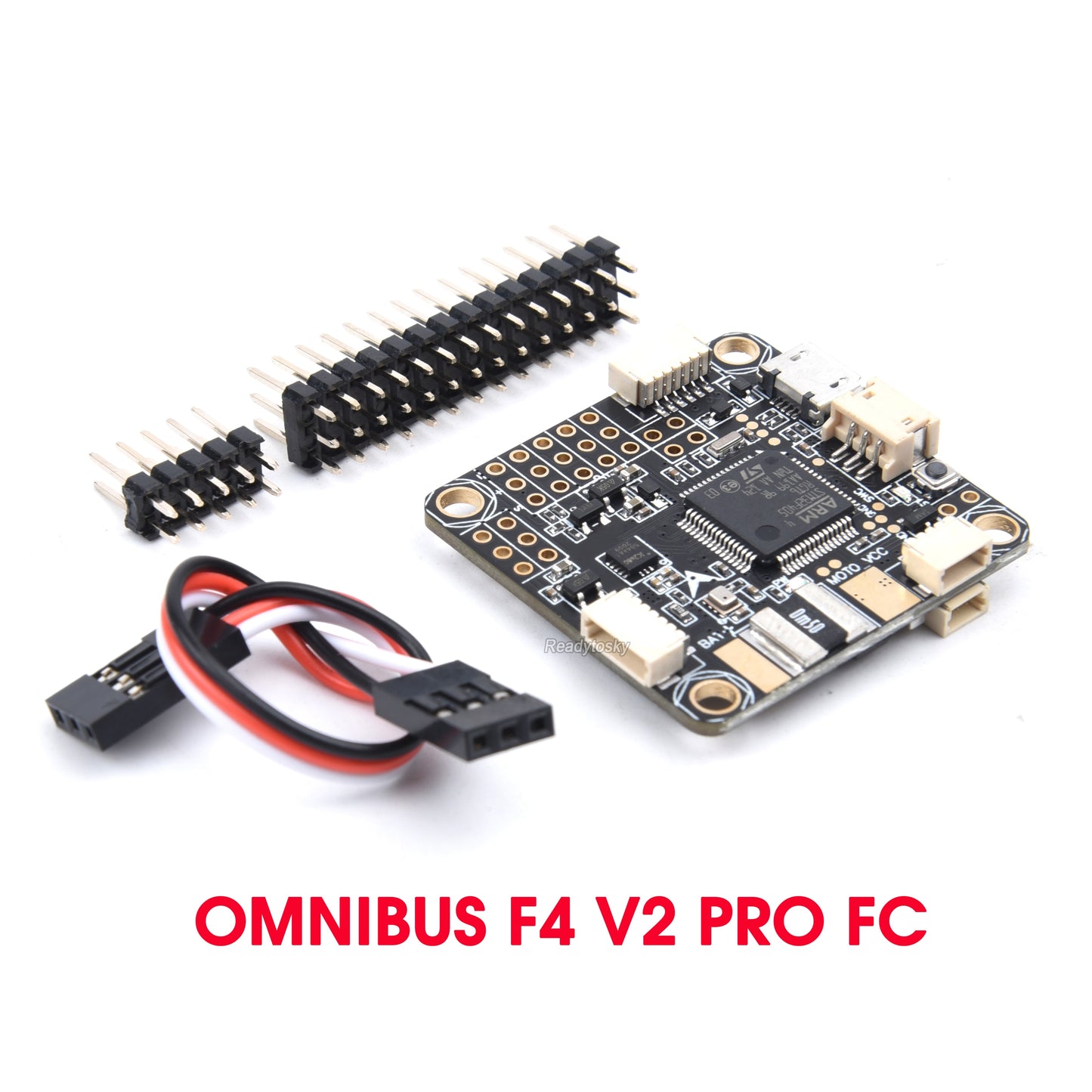

New OMNIBUS F4 Pro V2 V3.5 V3S Flight Control Built-in OSD / BEC for INAV Betaflight APEX FPV Racing Drone DIY Quadcopter BN220 GPS


This is the all new omnibus F4 Pro, based on the design of the popular omnibus F3 pro.  However this main advantage of this board is that is uses the more powerful STM F4 processor for even faster loop times.  It has all the other things you love from the Omnibus F3 pro including an OSD module, SD card reader, low noise IC268G IMU connected via SPI, a current and voltage sensor etc..
The V2 pro version now includes a built in BEC , so you can power this board directly from your flight battery (up to 4s)
SPECIFICATIONS:
SPI Gyro IC268G
On-Board OSD (controllered by Betaflight, FC over SPI bus)
MicroSD Blackbox
Baro (BMP280)( default is closed,need to open in configuration,if not know how to open,contact with us)
F4 Processor (F405)
5v3a SBEC
Built-in Current Sensor
On-Board Video Filter (only can supply 5V to VTX and Camera)
USING PPM
If you have trouble geting the FC to recognise your PPM receiver, here is what you need to do. You need to enable RX_serial in the GUI and turn UART3 on.   Save and reboot the flight controller.  Then re-selecting RX_PPM again on the GUY and the FC now communicates with your PPM receiver
Mini ZMR250 QAV250 250mm Carbon Fiber Frame 2205 2300KV MotorMini ZMR250 QAV250 250mm Carbon Fiber Frame 2205 2300KV Motor

Product Parameters


Name: Aocoda-RC F4 special flight controller for Jingsu Huafei



Main control chip: STM32F405RGT6



MPU: MPU6500



Character overlay: AT7456E



Black box: integrated 16M Flash



Barometer: BMP280



Serial port: 4 optional



Motor output: 8 channels optional



LED strip: support



Buzzer: support



Input voltage: 3-6S Lipo



Power output: 5V/2A, 9V/2A



Weight: 6.0g



Size: 36x36mm, mounting hole 30.5mm



Firmware: AOCODAF405



Aocoda-RC F405 V1.0 Flight Controller MPU65OO

Aocoda-RC F405 V1.0 Flight Controller with MPU6500 processor, 88kHz sampling rate, 28 channels, 3-axis gyro, 4-axis accelerometer, ready for SkyTCS T1 navigation system.

the Omnibus F3 pro comes with an OSD module, SD card reader, low noisethis board uses the more powerful STM F4 processor for even faster loop times .











READYTSSKY |Package Included



1Set x QAV250 5inch 250mm FPV Frame kit

1pc x F4 OMINBUS V3S Plus / F405 / F4 V2 Pro flight controller(send it as your choice)

1pc x 5V/12V PDB

1pc x 5V UBEC

1pc x 1200TVL Camera

1pc x TS5823 or TS5828L 40CH 600mw Transmitter

4pcs x 2205 2300KV Motor

4pcs x Littlebee 30A-s ESC

4pcs x Anti-Vibration Fixed Screws

4pcs x LEDs

1pc x battery belt

4pairs x 5045 3 blade Propeller

1pc x Remote control strap as gift


Mini ZMR250 QAV250 250mm Carbon Fiber Frame 2205 2300KV Motor

Readytosky OFFICIAL QAV250 Frame Kit Mtuubiu Doo

Readytosky OFFICIAL QAV250 Frame Kit Mtuubiu Doolovit 288 gift 48 8 0 0, 8 OPTO avourite DLMt UttLebee .

Readytosky OFFICIAL QAV250 Frame Kit '55028L 66

Ready to Sky Official QAV250 Frame Kit: Mini ZMR250/ QAV250, a 250mm carbon fiber frame, featuring a 2205 2300KV motor, 30A BLHeli_S ESC, F405/F4 V3S flight control system, and a 1200TVL camera kit. (Note: This product is an official gift for the aw gift community.)

-68 Lipo LITTLebee = Opto BLHeli 130

To Sky Ready: I'm ready to sky with my favorite 30A BL Heli motor, paired with an 8-inch (20cm) carbon fiber frame, featuring a 2205 2300KV motor, 30A BLHeli_S ESC, F405/F4 V3S flight control system, and 1200TVL camera.

Enchance Anti Off U Ring For Safety & StablilityMini ZMR250 QAV250 250mm Carbon Fiber Frame 2205 2300KV Motor


the V2 pro version now includes a built in BEC . you can power thisthe Omnibus F3 pro comes with an OSD module, SD card reader, low noiseMini ZMR250 QAV250 250mm Carbon Fiber Frame 2205 2300KV MotorActive Cooling Fins Greatly Reduce Motor TemeraturesMini ZMR250 QAV250 250mm Carbon Fiber Frame 2205 2300KV Motorthe Omnibus F3 pro comes with an OSD module, SD card reader, low noise
