MKS DS760 Digital Servo Motor Coreless Tail/Rudder Servo for RC Helicopters, 760us/560Hz, 4.8-7.0V
MKS DS760 Digital Servo Motor Coreless Tail/Rudder Servo for RC Helicopters, 760us/560Hz, 4.8-7.0V
MKS Servos
Couldn't load pickup availability
Overview

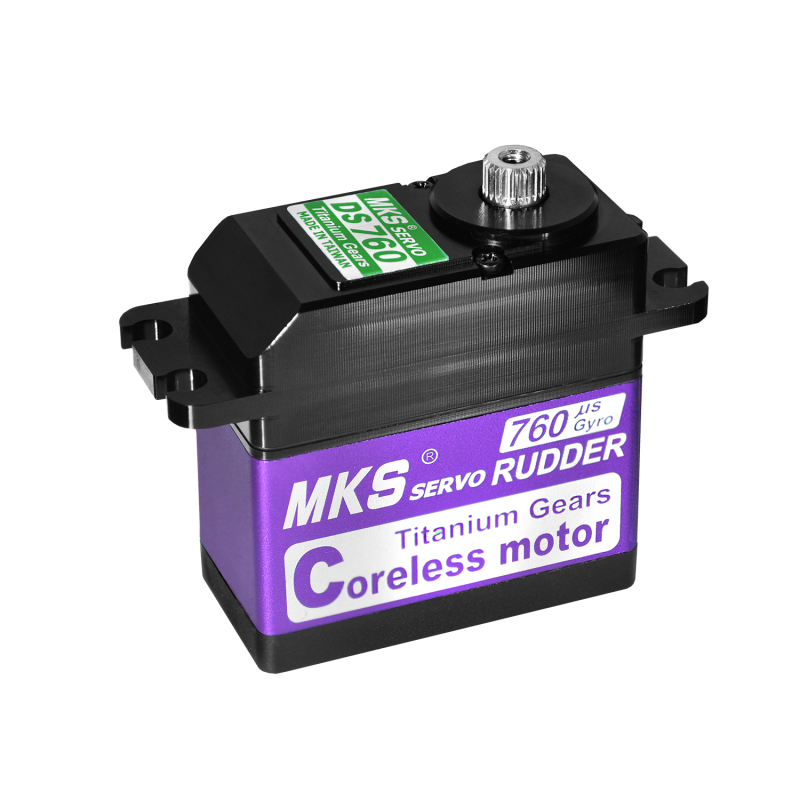

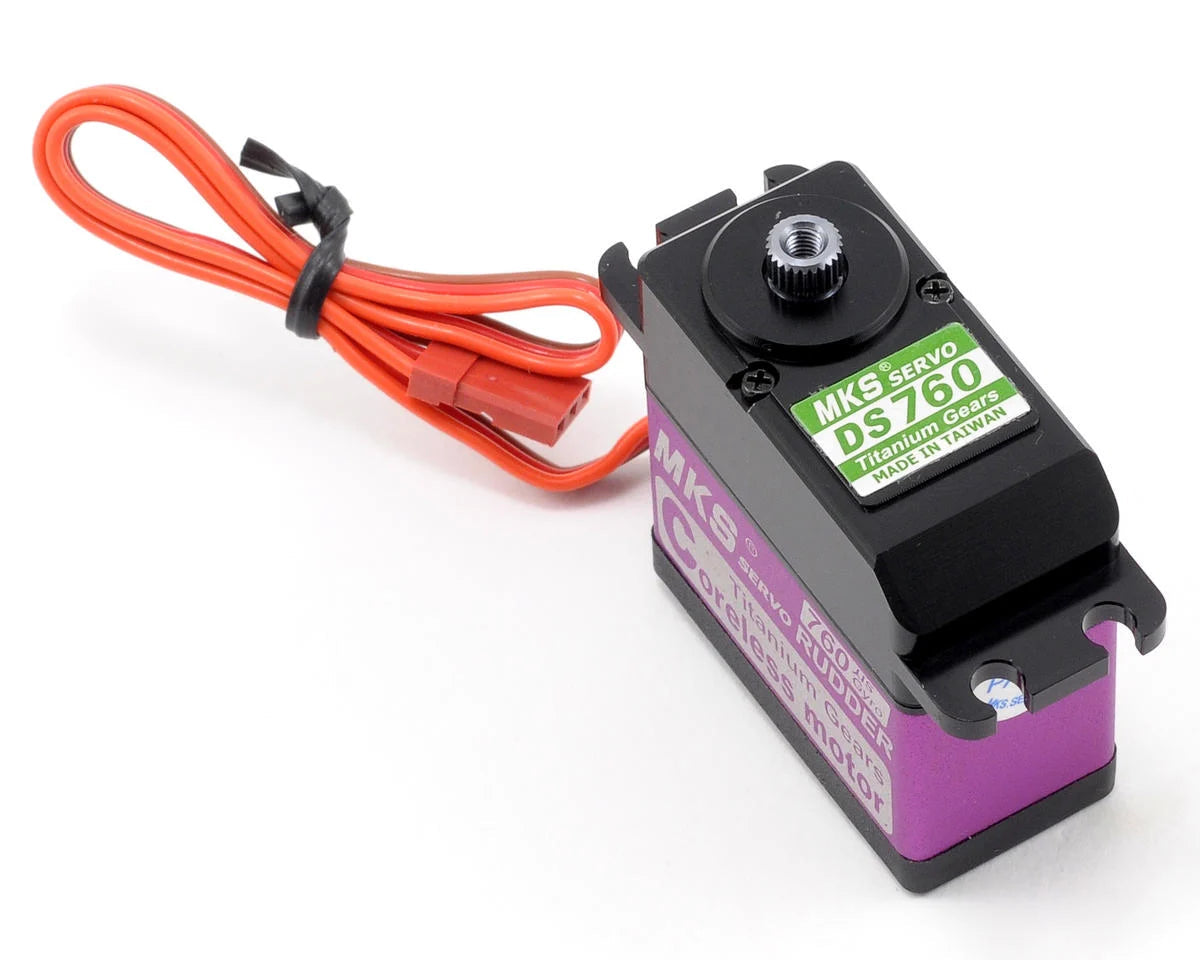

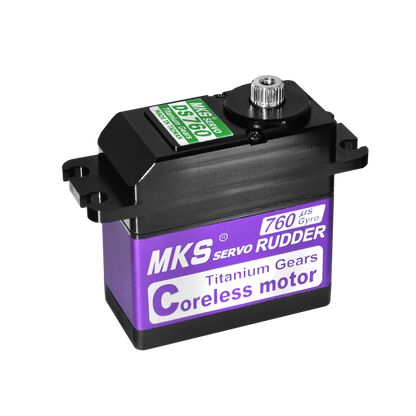

MKS DS760 is a digital Servo Motor designed as an ultra-speed standard tail (rudder) servo for RC helicopter tail applications. The provided description states high-resolution control with an aluminum case and titanium gears for durability and performance.
Key Features
- Digital, high-resolution servo
- Coreless motor
- Aluminum case (per provided description)
- 2 x ball bearing
- Designed for helicopter tail (rudder) use
Specifications
| Stall Torque (kg-cm) | 3.9 (4.8V) / 4.9 (6.0V) |
| Stall Torque (oz-in) | 54.17 (4.8V) / 67.78 (6.0V) |
| No-load Speed | 0.034 s (4.8V) / 0.027 s (6.0V) |
| Stall Current | 3.3A (4.8V) / 4.1A (6.0V) |
| Working Voltage | 4.8V ~ 7.0V DC Volts |
| Working Frequency | 760us / 560Hz |
| Dead Band | 0.0004ms (Default) |
| Bearing | 2 x Ball Bearing |
| Gear | Metal Alloy Gear |
| Motor | Coreless Motor |
| Weight | 75 g (2.64 oz) |

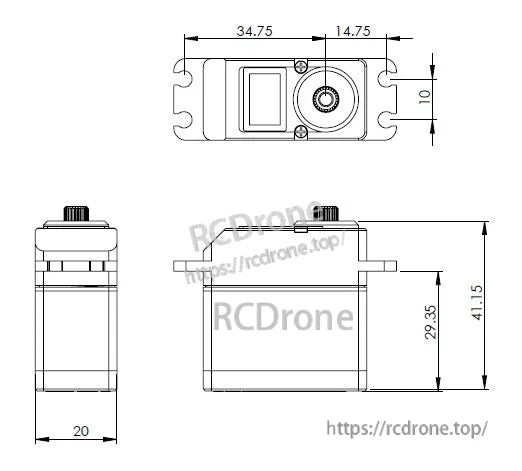

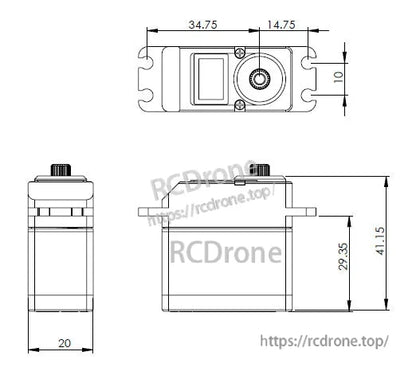

| Dimensions | 40 x 20 x 40 mm |
Recommended Compatible Gyros
Spartan DS760, Spartan Quark, Futaba GY611, GY601, GY520, ALIGN GP700, GP750, Mikado V-Bar Tail, CSM SL720, Curtis Youngblood Mini-G, Solid G, Thunder Tiger TG-7000, BeastX Mircobeast
Applications
- RC helicopter tail (rudder) control
For product selection and support, contact https://rcdrone.top/ or email support@rcdrone.top.
