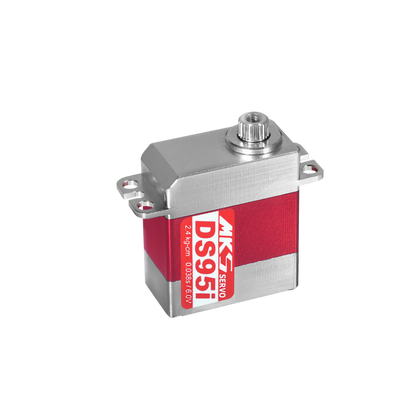

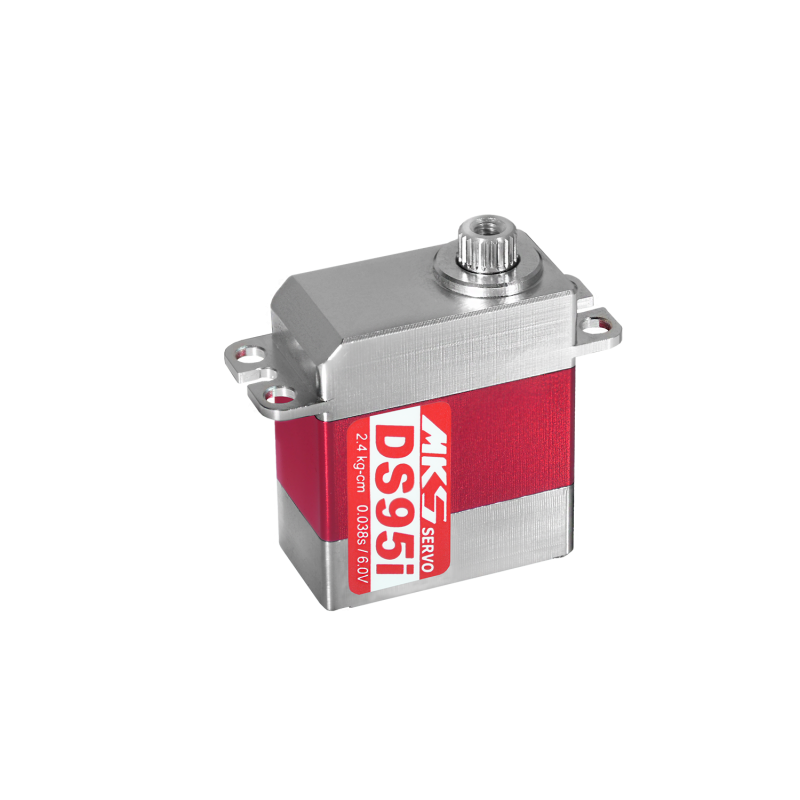

• MKS DS95i Digital Tail Servo Motor for RC Helicopters, 4.8V-7.0V, 760 us/560Hz, 21.21 g
  • MKS DS95i Digital Tail Servo Motor for RC Helicopters, 4.8V-7.0V, 760 us/560Hz, 21.21 g
  • Digital tail servo for RC helicopters, 4.8V–7.0V, 760µs/560Hz, weighs 21.21g, includes dimensions.
1 3

MKS DS95i Digital Tail Servo Motor for RC Helicopters, 4.8V-7.0V, 760 us/560Hz, 21.21 g

MKS DS95i Digital Tail Servo Motor for RC Helicopters, 4.8V-7.0V, 760 us/560Hz, 21.21 g

RCDrone

$149.00 USD
$149.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The MKS DS95i is a digital tail servo motor for RC helicopters, designed for high-speed tail control and gyro operation at 760 us / 560 Hz.

Key Features

  • Working frequency: 760 us / 560 Hz
  • Metal alloy gear train
  • 2 x ball bearing
  • Japanese-made coreless motor

Specifications

Stall Torque (kg-cm) 1.92 (4.8V) / 2.40 (6.0V)
Stall Torque (oz-in) 26.7 (4.8V) / 33.3 (6.0V)
No-load Speed 0.047 s (4.8V) / 0.038 s (6.0V)
Stall Current 0.6A (4.8V) / 0.8A (6.0V)
Working Voltage 4.8V ~ 7.0V DC Volt
Working Frequency 760 us / 560Hz
Dead Band 0.0005 ms (Default)
Bearing 2 x Ball Bearing
Gear Metal Alloy Gear
Motor Japanese-made Coreless Motor
Weight 21.21 g (0.75 oz)

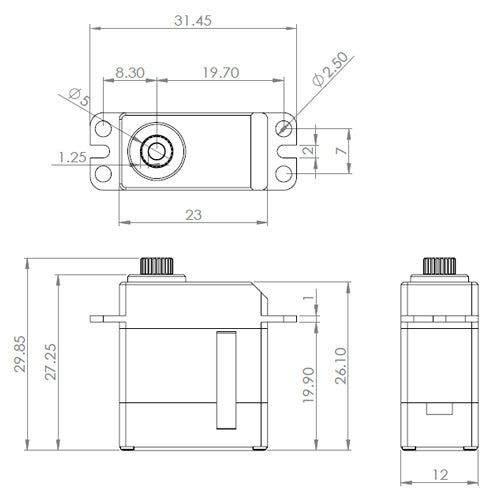

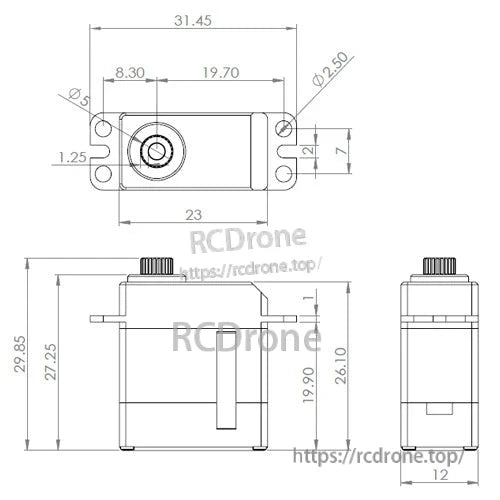

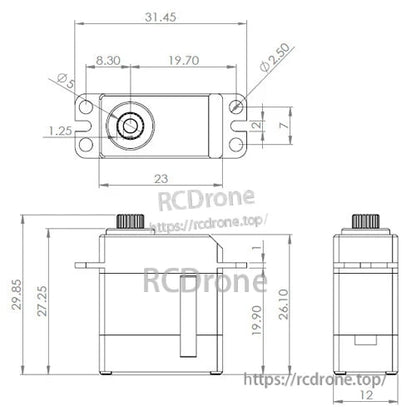

Dimension 23 x 12 x 27.25 mm

Compatible Gyros (Recommended)

Spartan DS760, Spartan Quark, Futaba GY611, GY601, GY520, ALIGN GP700, GP750, Mikado V-Bar Tail, CSM SL720, Curtis Youngblood Mini-G, Solid G, Thunder Tiger TG-7000, BeastX Microbeast

Applications

  • RC helicopter tail rotor servo setups

For product support and order assistance, contact support@rcdrone.top or visit https://rcdrone.top/.
