MKS DS97 Digital Coreless Cyclic Servo Motor for RC Helicopters | 4.8V-7.0V, 4.3 kg-cm, 0.058 s
MKS DS97 Digital Coreless Cyclic Servo Motor for RC Helicopters | 4.8V-7.0V, 4.3 kg-cm, 0.058 s
MKS Servos
Regular price
$95.00 USD
Regular price
Sale price
$95.00 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Overview

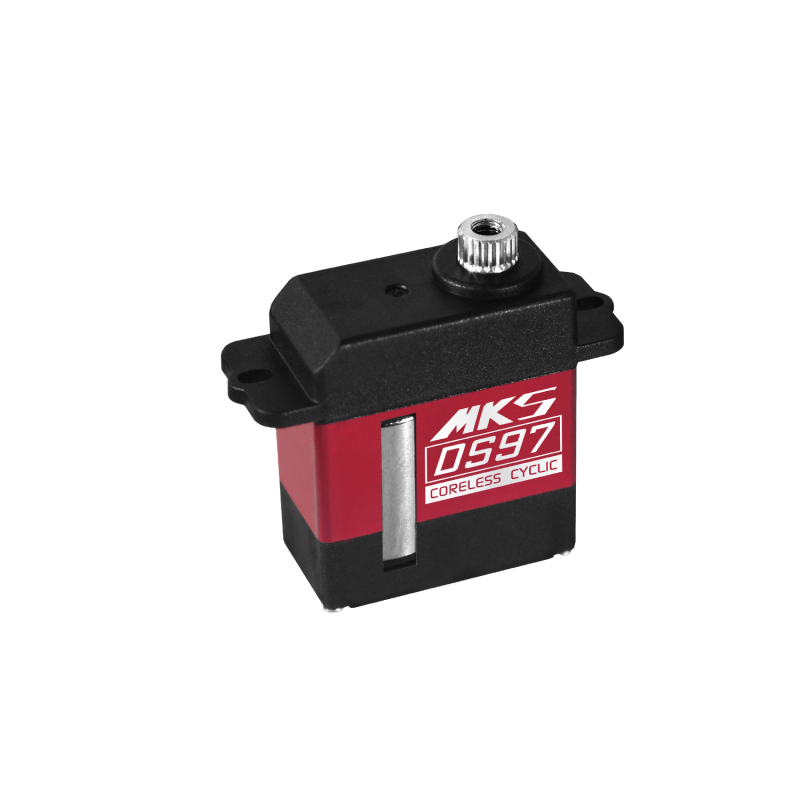

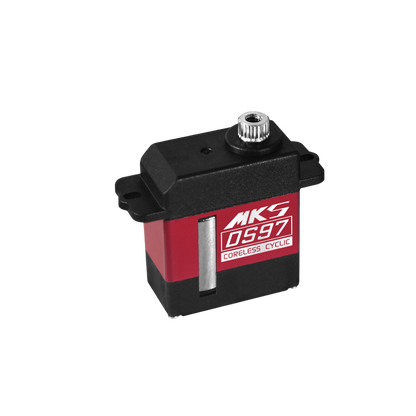

The MKS DS97 is a digital coreless cyclic Servo Motor designed for RC helicopter control. It supports 4.8V to 7.0V DC operation with fast response and metal alloy gears.
Key Features
- Digital servo with coreless motor
- Metal alloy gear set
- 2* ball bearing support
- Working frequency: 1520us / 333Hz
- Dead band: 0.001 ms (Default)
Specifications
| Torque (4.8V) | 3.80 kg-cm / 52.77 oz-in |
| Torque (6.0V) | 4.30 kg-cm / 59.71 oz-in |
| Speed | 0.070 s (4.8V) / 0.058 s (6.0V) |
| Weight | 17.73 g (0.62 oz) |

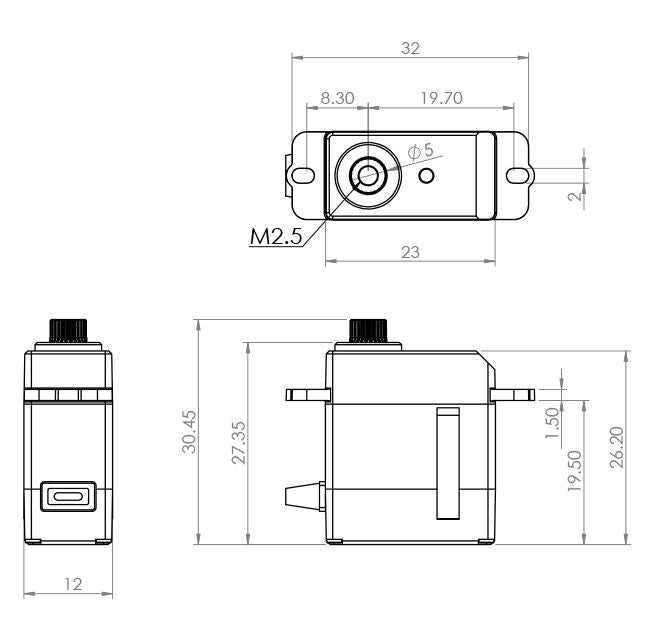

| Dimension | 23 x 12 x 27.25 mm |
| Stall Current | 2.9A (4.8V) / 3.6A (6.0V) |
| Working Voltage | 4.8V ~ 7.0V DC Volt |
| Working Frequency | 1520us / 333Hz |
| Dead Band | 0.001 ms (Default) |
| Bearing | 2* Ball Bearing |
| Gear | Metal Alloy Gear |
| Motor | Coreless Motor |
For product selection and compatibility questions, contact customer service at https://rcdrone.top/ or support@rcdrone.top.
Applications
- RC helicopters (cyclic control)
