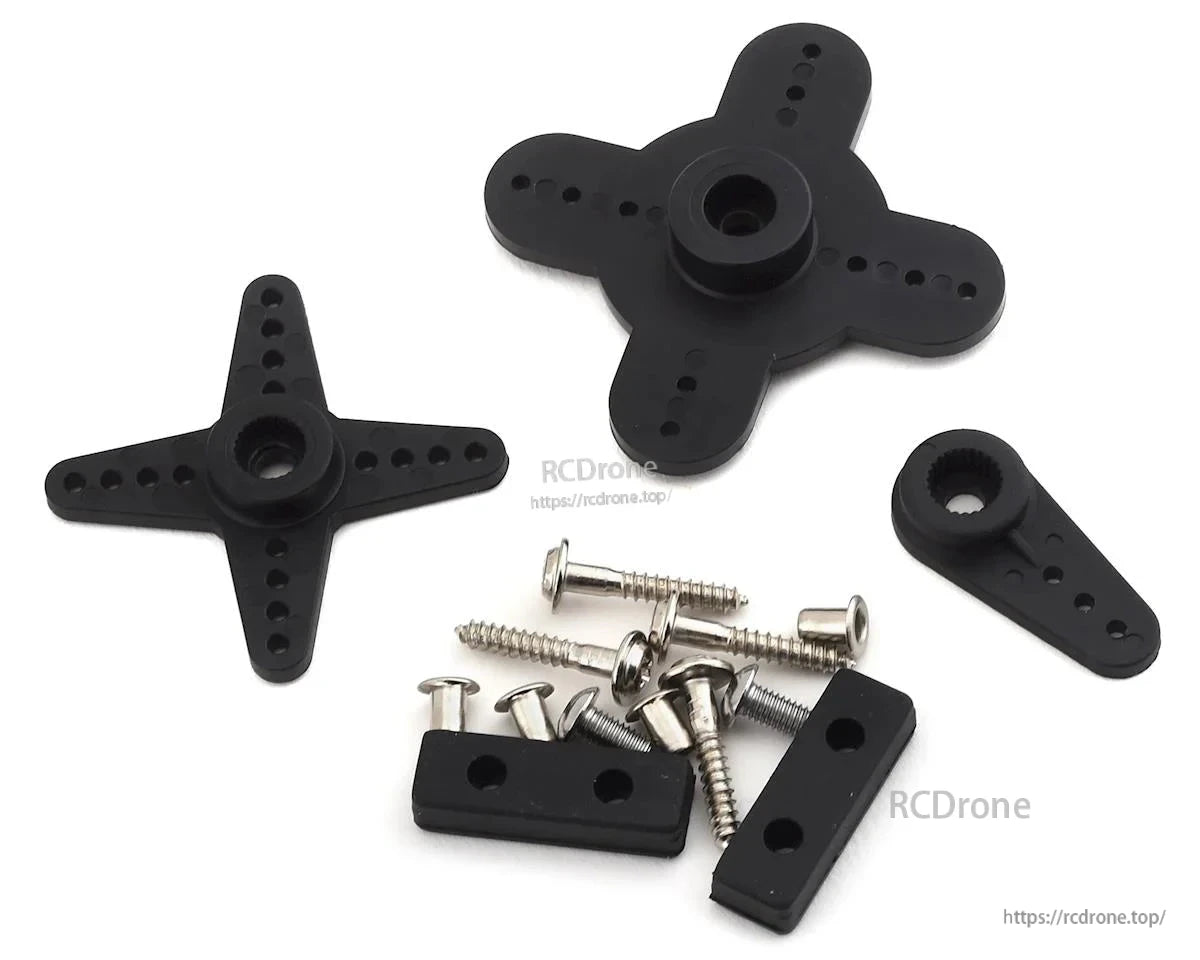

  • Black servo mounts, screws, and hardware neatly arranged on white for RC drone assembly.

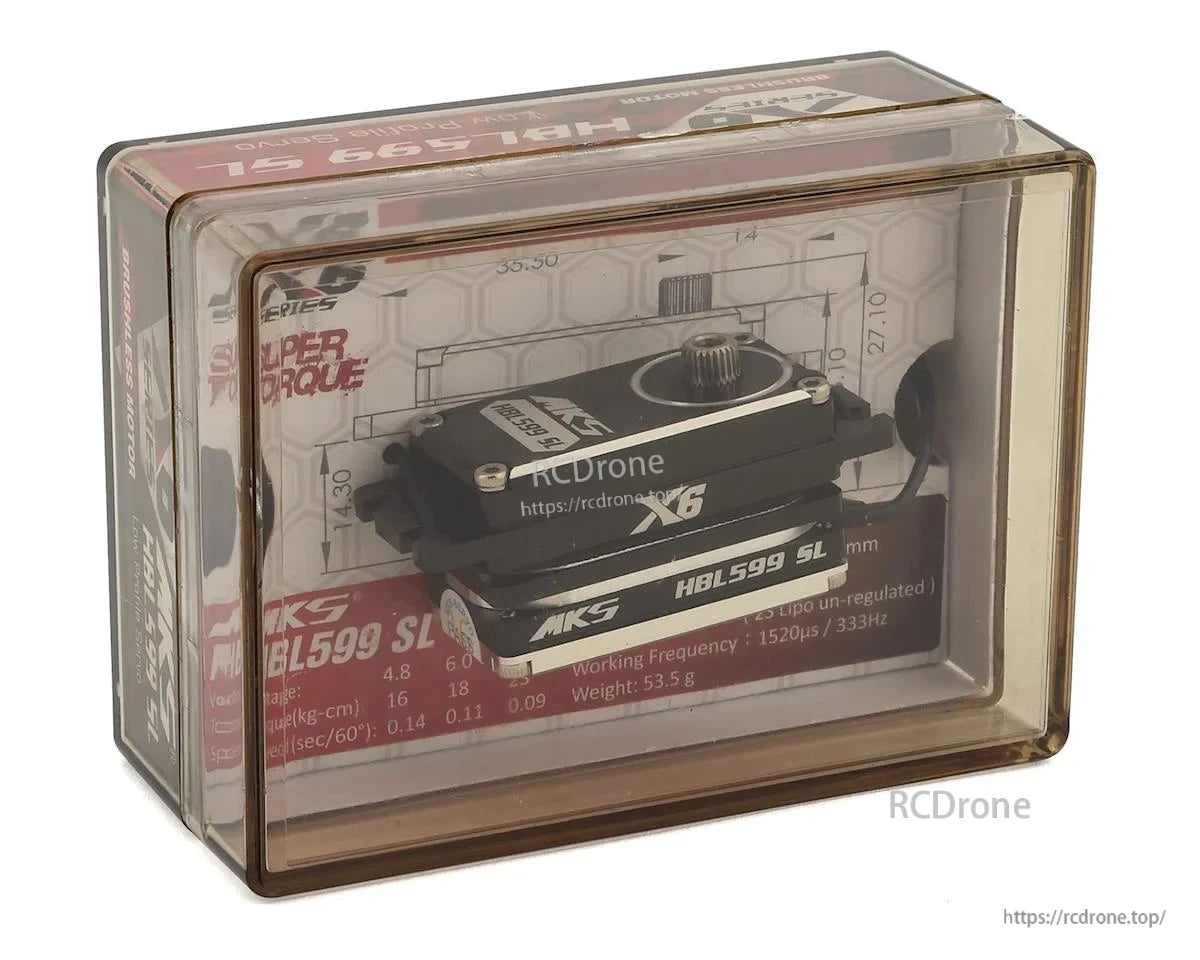

  • MKS X6 HBL599SL: 8.4V brushless servo, 16kg-cm torque, metal gears, for RC use.
  • MKS X6 HBL599SL: 8.4V high-torque digital brushless servo with metal gears.
1 5

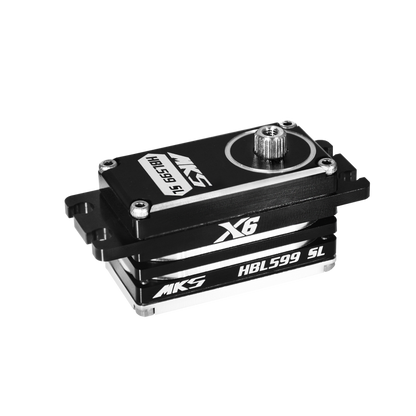

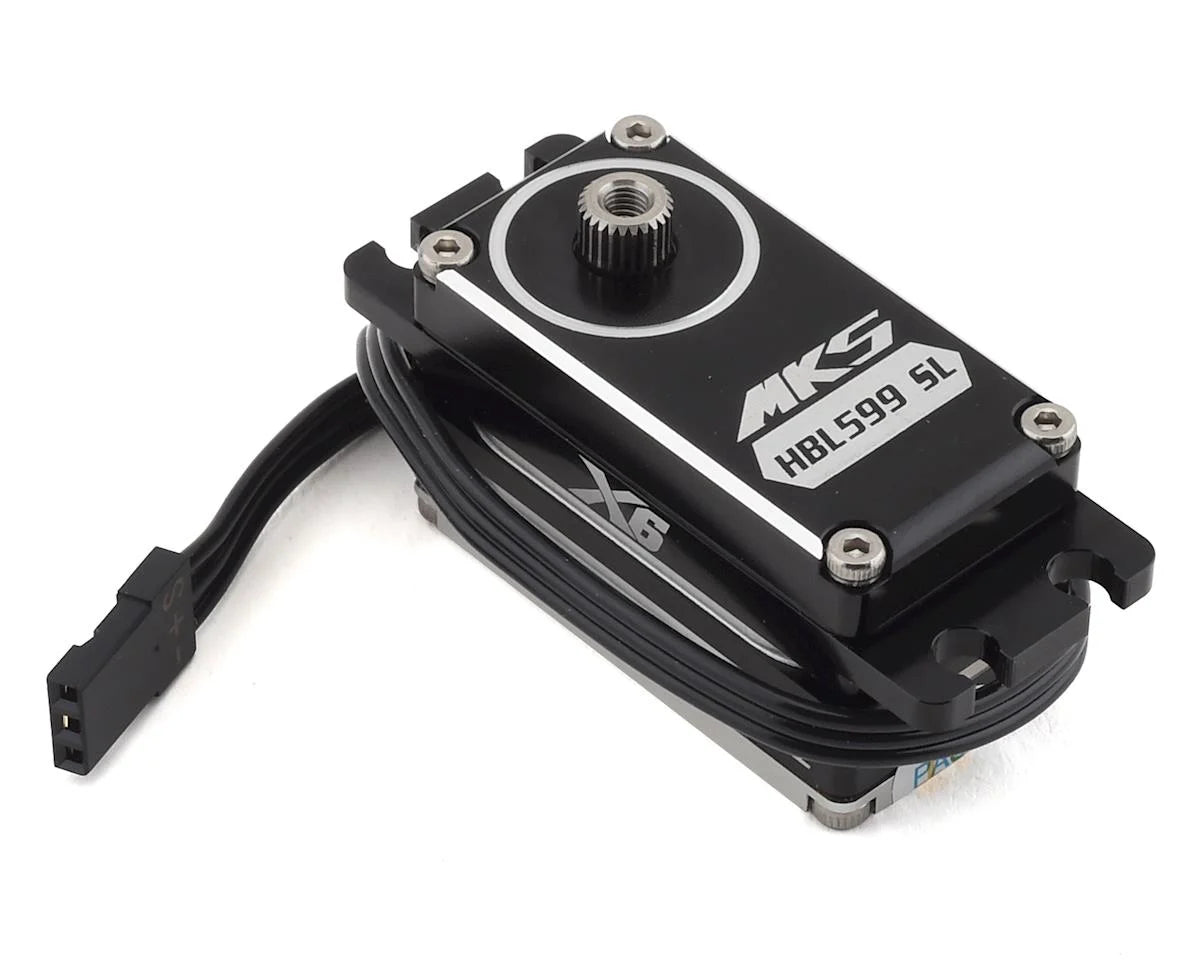

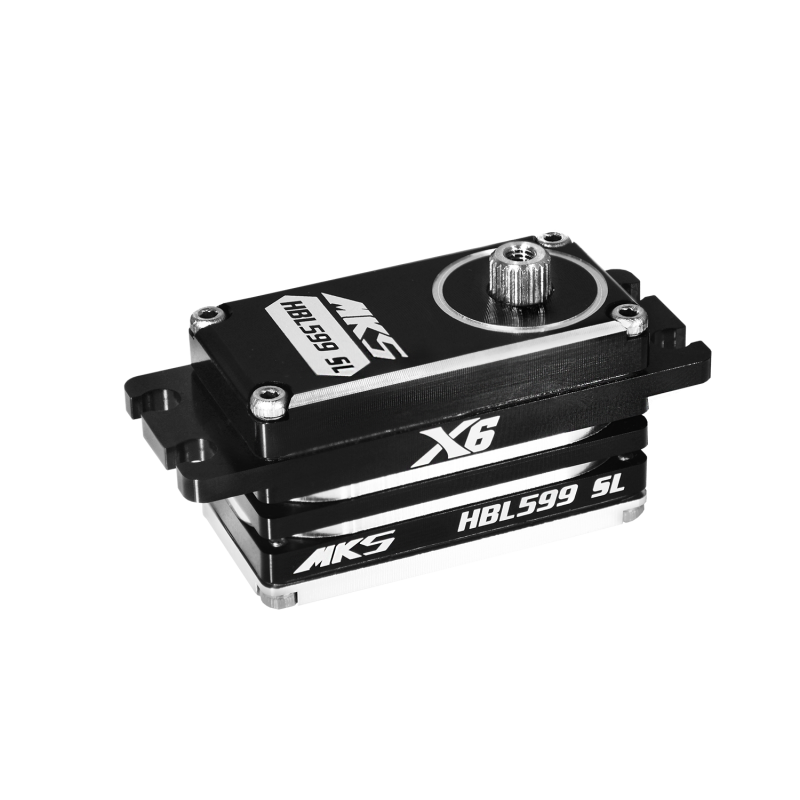

MKS X6 HBL599SL 8.4V High Torque Digital Brushless Servos Motor Metal Gear

MKS X6 HBL599SL 8.4V High Torque Digital Brushless Servos Motor Metal Gear

MKS Servos

$249.00 USD
$249.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The MKS X6 HBL599SL 8.4V High Torque Digital Brushless Servos Motor is designed for high-voltage applications that require strong torque, precise control, and high reliability. It features a Japanese-made brushless motor and metal alloy gear train, making it suitable for demanding radio control setups and other precision motion systems.

For technical or order-related questions, please contact customer service at support@rcdrone.top or visit https://rcdrone.top/.

Key Features

  • High torque performance up to 23 kg-cm (319.4 oz-in) at 7.4V
  • Wide working voltage range from 4.8V to 8.4V DC
  • Digital control with fast response and precise positioning
  • Japanese-made brushless motor for high efficiency and durability
  • Metal alloy gear train for improved strength and wear resistance
  • Dual ball bearing output for smoother operation
  • High working frequency of 1520 μs / 333 Hz
  • Very small dead band of 0.0008 ms (default) for accurate centering
  • Compact and lightweight housing at 53.5 g

Specifications

Servo Specification
Stall Torque (kg-cm) 16 (4.8V) / 18 (6.0V) / 23 (7.4V)
Stall Torque (oz-in) 222.2 (4.8V) / 249.9 (6.0V) / 319.4 (7.4V)
No-load Speed 0.14 s (4.8V) / 0.11 s (6.0V) / 0.09 s (7.4V)
Stall Current 2.2A (4.8V) / 2.8A (6.0V) / 3.5A (7.4V)
Working Voltage 4.8V ~ 8.4V DC Volts
Working Frequency 1520 μs / 333 Hz
Dead Band 0.0008 ms (Default)
Bearing 2* Ball Bearing
Gear Metal Alloy Gear
Motor Japanese-made Brushless Motor
Torque (4.8V) 16 kg-cm / 222.2 oz-in
Torque (6.0V) 18 kg-cm / 249.9 oz-in
Torque (7.4V) 23 kg-cm / 319.4 oz-in
Speed 0.14 s (4.8V) / 0.11 s (6.0V) / 0.09 s (7.4V)
Weight 53.5 g (1.89 oz)

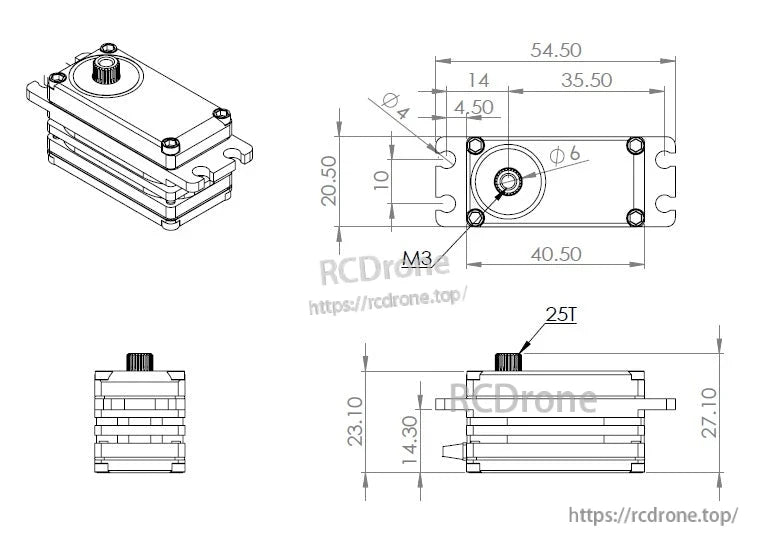

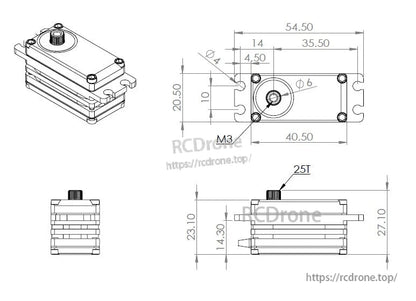

Dimension 40.5 x 20.5 x 23.1 mm

Applications

  • High-precision radio control servos motor installations
  • Projects requiring high torque and compact dimensions
  • Systems operating on high-voltage power supply up to 8.4V DC
