Overview

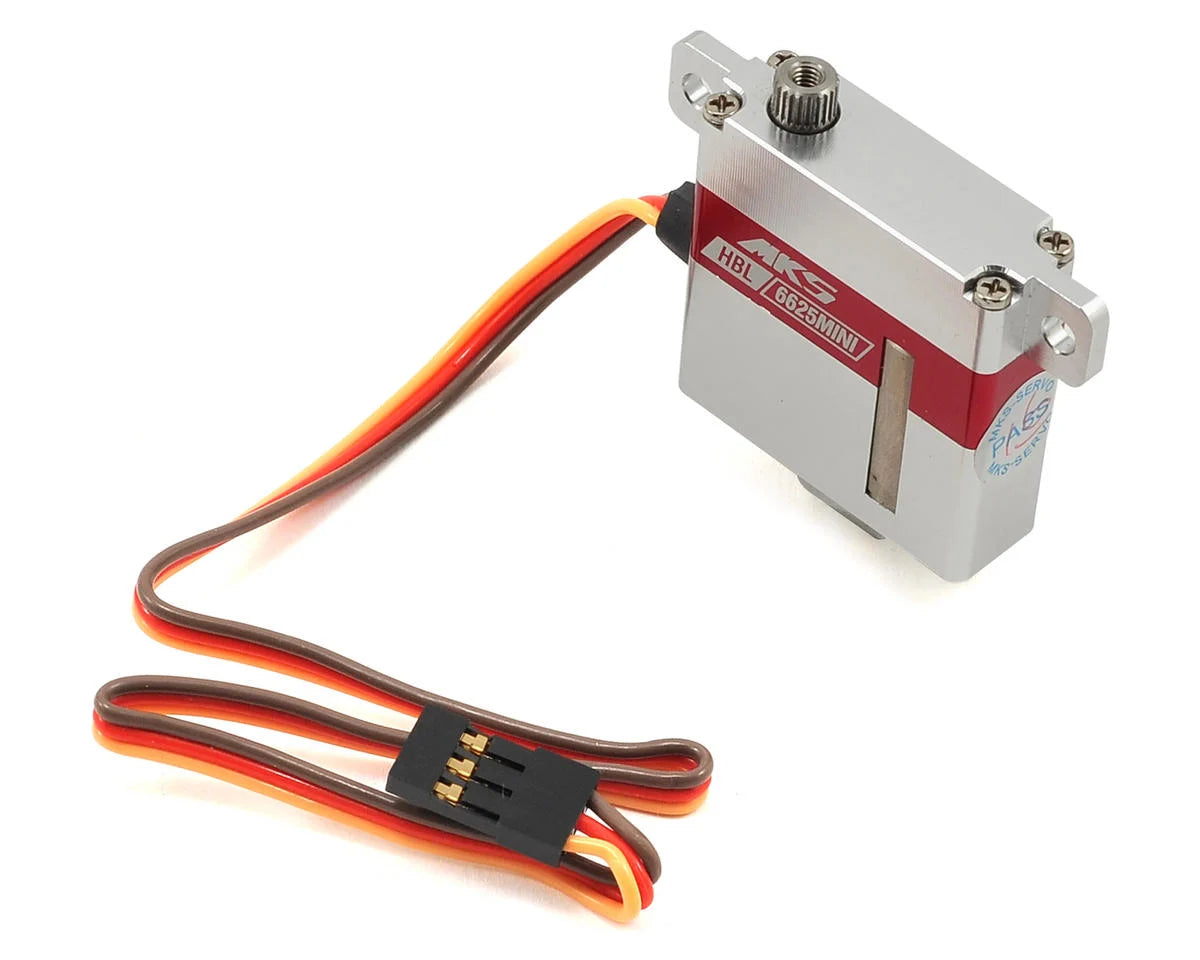

The MKS Servos HBL6625 Mini Titanium Gear Glider Wing Servo Motor with Aluminum Case (High Voltage) is designed for high-performance discus launch, hand launch, and F3K glider applications. This compact high voltage servo motor offers precise positioning, low power consumption, and superior holding torque, combined with a precision machined aluminum case and high voltage brushless circuitry.
For customer service and technical inquiries about this servo motor, please contact https://rcdrone.top/ or support@rcdrone.top.
Key Features
- Mini high voltage servo motor optimized for glider wing installations
- Titanium gear train with metal alloy gear construction

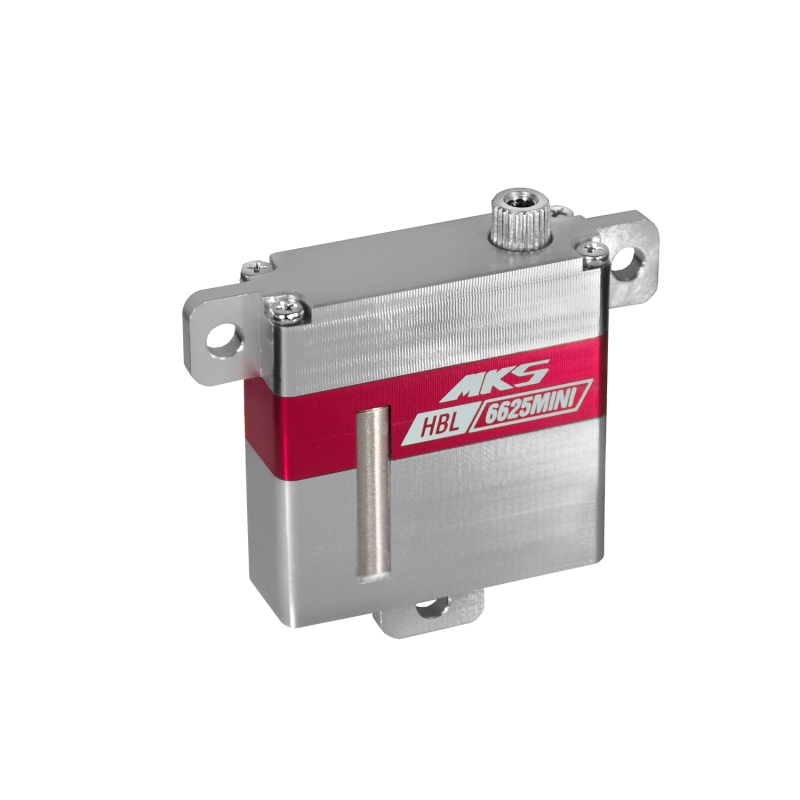

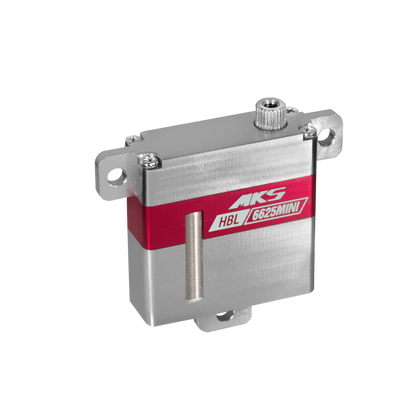

- Precision machined aluminum case for improved rigidity and heat dissipation
- Japanese-made brushless motor for high efficiency and durability
- Low dead band of 0.001 ms for precise control response
- Supports wide working voltage range from 6.0V to 8.4V DC
- Dual ball bearing output shaft for smooth, low-friction operation
Specifications
| Parameter | Value |
|---|---|
| Product Type | Servo Motor |
| Model | MKS HBL6625 Mini Glider Wing Servo |
| Stall Torque (kg-cm) | 5.2 (6.0V) / 5.6 (7.4V) / 6.0 (8.2V) |
| Stall Torque (oz-in) | 72.2 (6.0V) / 77.8 (7.4V) / 83.3 (8.2V) |
| No-load Speed | 0.14 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V) |
| Stall Current | 1.1A (6.0V) / 1.3A (7.4V) / 1.4A (8.2V) |
| Working Voltage | 6.0V ~ 8.4V DC Volts |
| Working Frequency | 1520μs / 333Hz |
| Dead Band | 0.001 ms (Default) |
| Bearing | 2 x Ball Bearing |
| Gear | Metal Alloy Gear |
| Motor | Japanese-made Brushless Motor |
| Torque (6.0V) | 5.2 kg-cm / 72.2 oz-in |
| Torque (7.4V) | 5.6 kg-cm / 77.8 oz-in |
| Torque (8.2V) | 6.0 kg-cm / 83.3 oz-in |
| Speed (6.0V) | 0.14 s |
| Speed (7.4V) | 0.11 s |
| Speed (8.2V) | 0.10 s |
| Weight | 26.97 g (0.95 oz) |

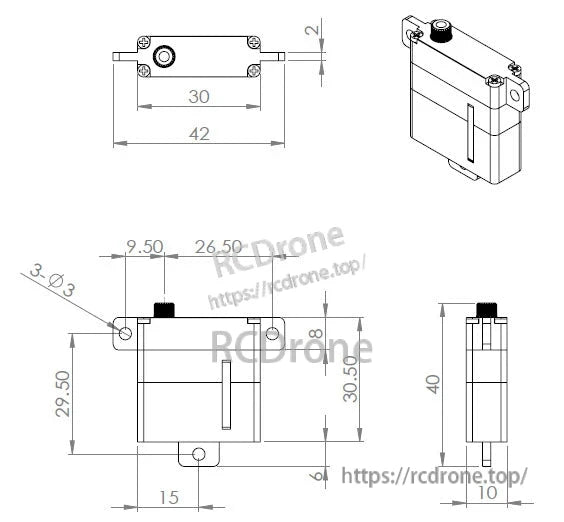

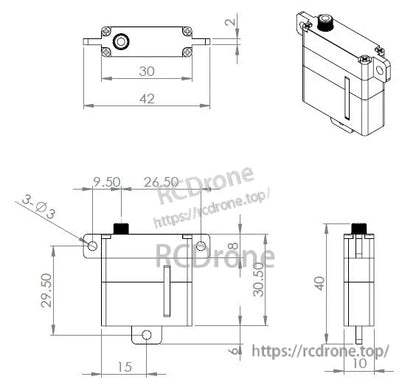

| Dimensions | 30 x 10 x 30.5 mm |
Applications
- Discus launch gliders (DLG)
- Hand launch gliders
- F3K and similar competition glider wing servo installations
- Other lightweight models requiring a compact high voltage wing servo motor
