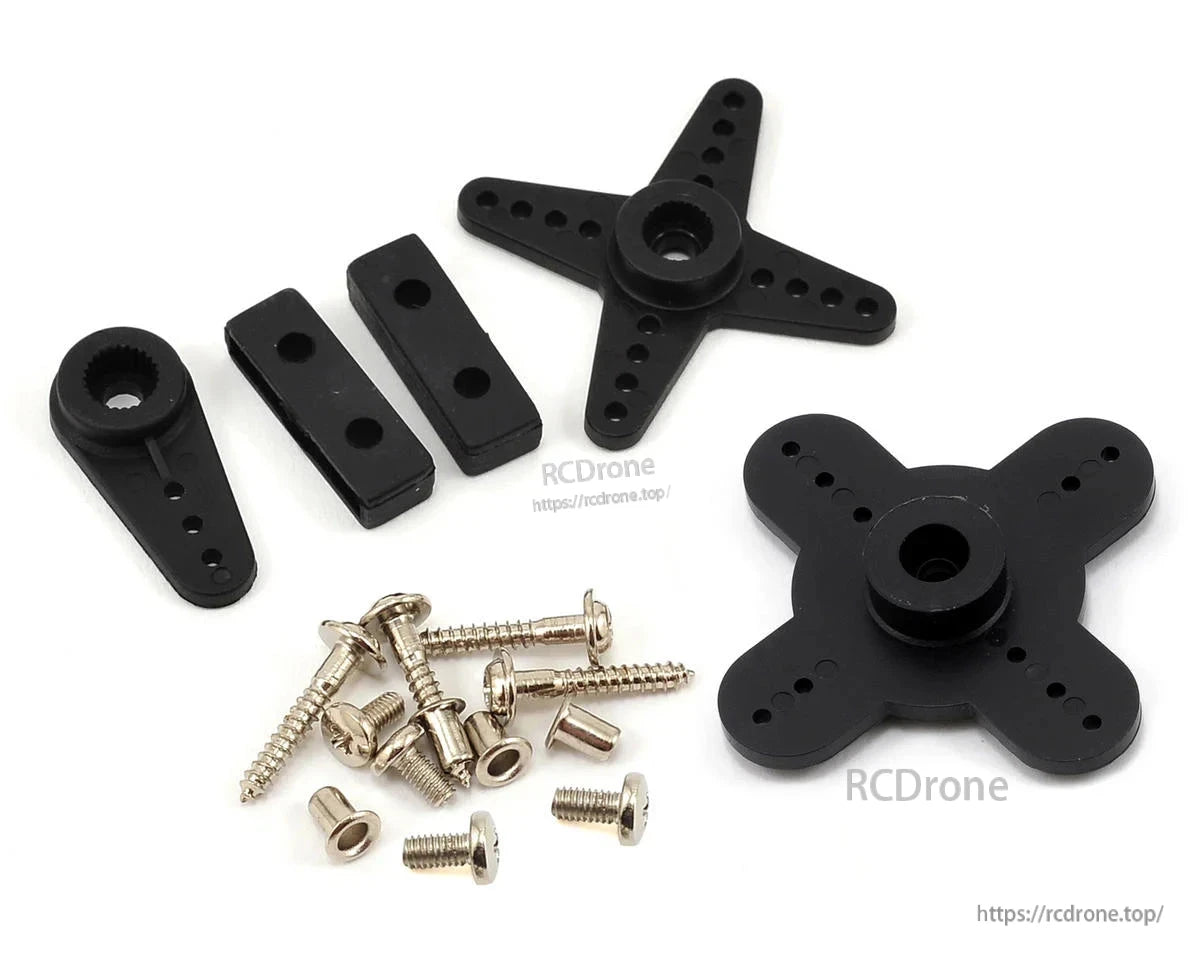

  • Neatly arranged black servo parts for assembling high-speed digital brushless motor systems.

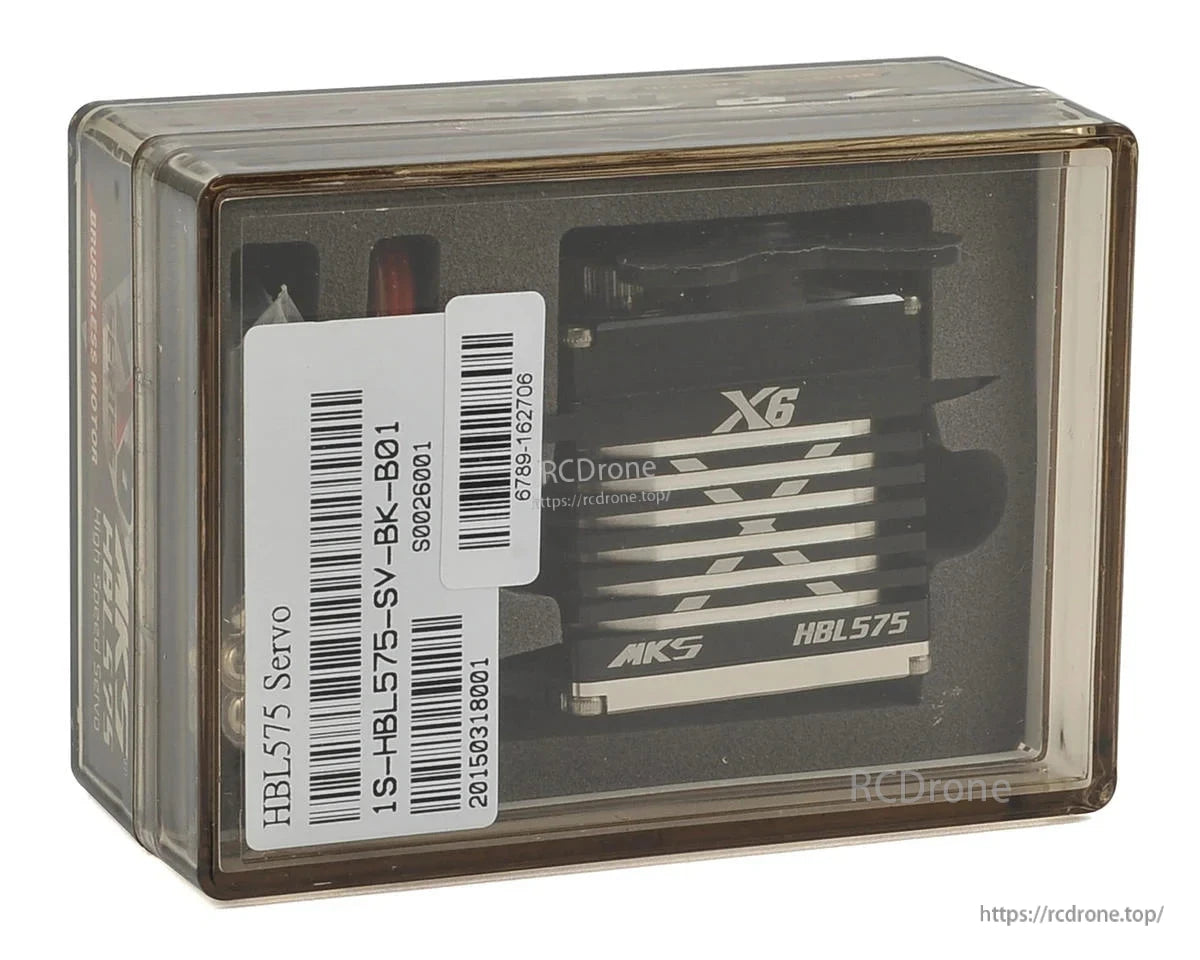

  • MKS X6 HBL575 brushless titanium-gear high-speed digital servo, packaged with visible barcode labels.

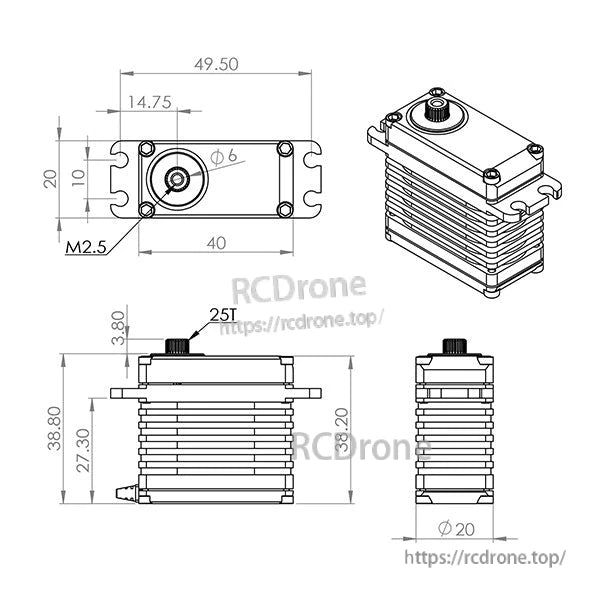

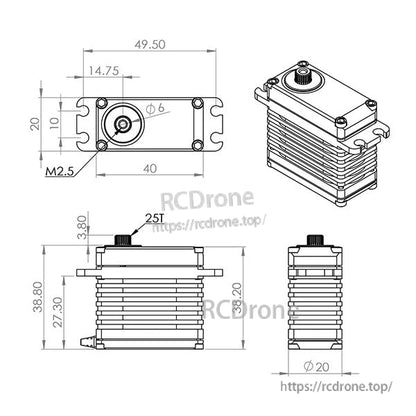

  • MKS X6 HBL575: high-speed digital servo with brushless motor, titanium gears, and detailed dimensions.
1 5

MKS X6 HBL575 Brushless Titanium Gear High Speed Digital Servo (High Voltage)

MKS X6 HBL575 Brushless Titanium Gear High Speed Digital Servo (High Voltage)

MKS Servos

$299.00 USD
$299.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The MKS X6 HBL575 is a high-speed brushless digital Servos Motor designed for 1/10 and 1/8 scale buggies and similar high-performance RC applications. It features a Japanese-made brushless motor, CNC-machined metal case for improved cooling, HD 4096 resolution with a 0.0008 ms dead band, and a chrome-titanium alloy gear train for enhanced strength and holding torque. Working voltage range: 6.0V ~ 8.4V DC.

Key Features

  • Brushless digital motor: Japanese-made brushless motor for efficiency and durability.
  • High resolution: HD 4096 resolution with 0.0008 ms dead band (default).
  • CNC machined metal case for improved cooling under load.
  • Chrome-titanium alloy gear (listed in marketing) with metal alloy gear noted in specifications.
  • Dual ball bearings for smooth operation.
  • High-speed response suitable for racing and precision control.

Customer service: support@rcdrone.top

Specifications

Parameter Value
Model MKS X6 HBL575
Category Servos Motor
Stall Torque (kg-cm) 18 (6.0V) / 22 (7.4V) / 24 (8.2V)
Stall Torque (oz-in) 250 (6.0V) / 305.5 (7.4V) / 333.3 (8.2V)
No-load Speed 0.082 s (6.0V) / 0.066 s (7.4V) / 0.06 s (8.2V)
Stall Current 4.4A (6.0V) / 5.4A (7.4V) / 6.0A (8.2V)
Working Voltage 6.0V ~ 8.4V DC
Working Frequency 1520us / 333Hz
Dead Band 0.0008 ms (Default)
Bearing 2 x Ball Bearing
Gear Metal Alloy Gear
Motor Japanese-made Brushless Motor
Resolution HD 4096
Weight 71.4 g (2.51 oz)
Dimensions (L x W x H) 40 x 20 x 38.8 mm

Applications

Recommended for 1/10 and 1/8 scale buggies and other RC vehicles where high speed, precise control, and strong holding torque are required. Suitable for racing and competition use within the specified voltage and current limits.
