MKS X6 HBL680SL Digital Brushless Servo Motor for RC Helicopters, HV 4.8-8.4V, CNC Aluminum Case

MKS X6 HBL680SL Digital Brushless Servo Motor for RC Helicopters, HV 4.8-8.4V, CNC Aluminum Case

RCDrone

$279.00 USD
$279.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The MKS X6 HBL680SL is a digital brushless servo motor designed specially for R/C helicopters, suitable for tail and cyclic servo applications. It features a high-voltage capable design, a CNC-machined aluminum case, and a lightweight low-profile form factor.

For product and order support, contact support@rcdrone.top or visit https://rcdrone.top/.

Key Features

  • High voltage capable
  • Designed specially for R/C helicopters
  • Powerful high-performance brushless motor
  • All CNC-machined aluminum case
  • All-in-one tail and cyclic servos combo
  • Robust chrome titanium gears
  • Lightweight and low-profile design

Specifications

Servo Specification
Working Voltage 4.8V ~ 8.4V DC Volts
Stall Torque (kg-cm) 7.0 (6.0V) / 8.6 (7.4V) / 9.5 (8.2V)
Stall Torque (oz-in) 97.2 (6.0V) / 119.4 (7.4V) / 131.9 (8.2V)
No-load Speed 0.056 s (6.0V) / 0.045 s (7.4V) / 0.041 s (8.2V)
Stall Current 2.8A (6.0V) / 3.5A (7.4V) / 3.87A (8.2V)
Working Frequency 760us / 560Hz
Dead Band 0.001 ms (Default)
Bearing 2* Ball Bearing
Gear Metal Alloy Gear
Motor Japanese-made Brushless Motor
Weight 54 g (1.90 oz)

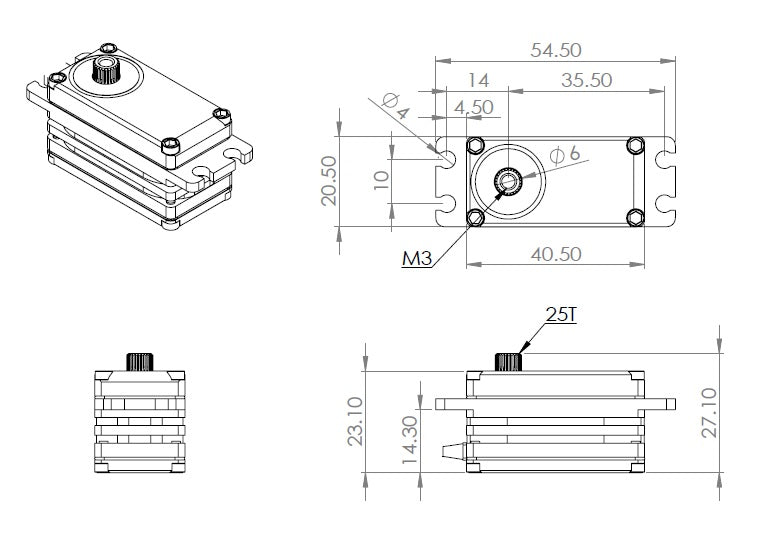

Dimensions 40.5 x 20.5 x 23.1 mm

Applications

  • R/C helicopter tail servo use
  • R/C helicopter cyclic servo use
