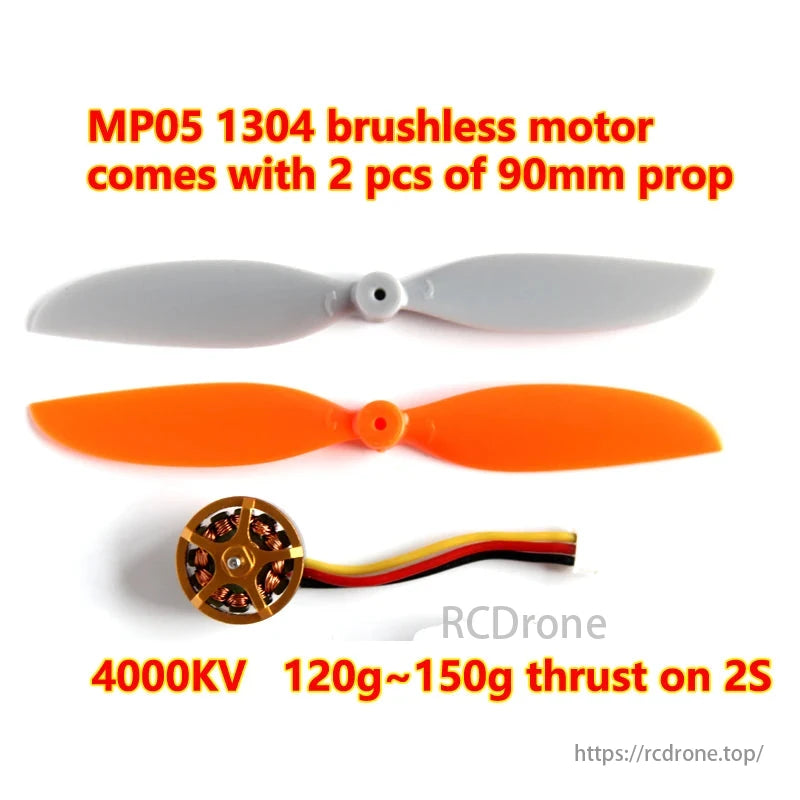

  • MP05 brushless motor, MP05 1304 brushless motor includes 2pcs 90mm propellers, features 4000KV, providing 120g-150g thrust on 2S.
  • MP05 brushless motor 1304 motor for mini airplanes wings 120g thrust on 2S RX62HE-A2 FlySky 2A TELEM receiver
  • MP05 brushless motor 1304 motor for mini airplanes wings 120g thrust on 2S RX62HE-A2 FlySky 2A TELEM receiver
  • MP05 brushless motor 1304 motor for mini airplanes wings 120g thrust on 2S RX62HE-A2 FlySky 2A TELEM receiver

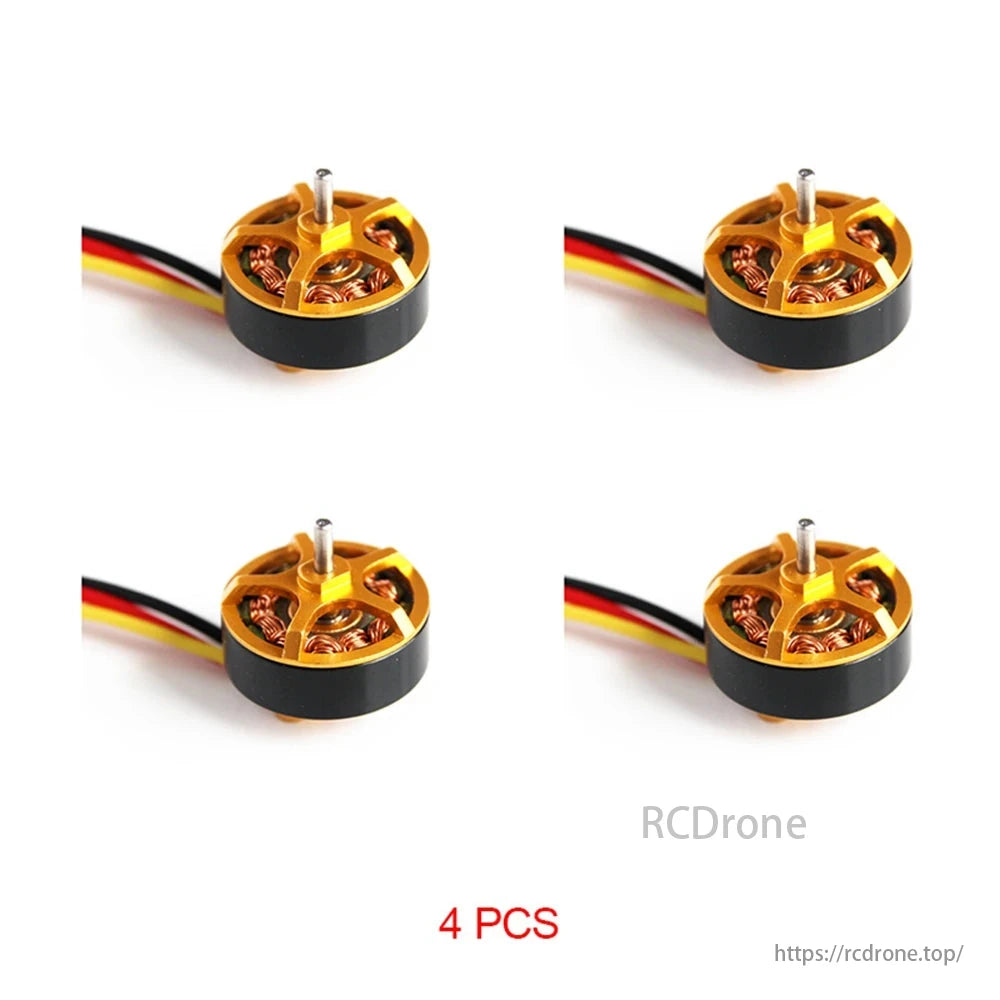

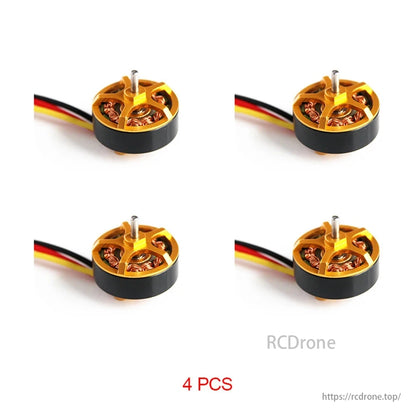

  • MP05 brushless motor 1304 for mini airplanes, wings; 4 PCS included.
  • MP05 brushless motor kit with prop saver, GWS5030, motor mount, and screws included.

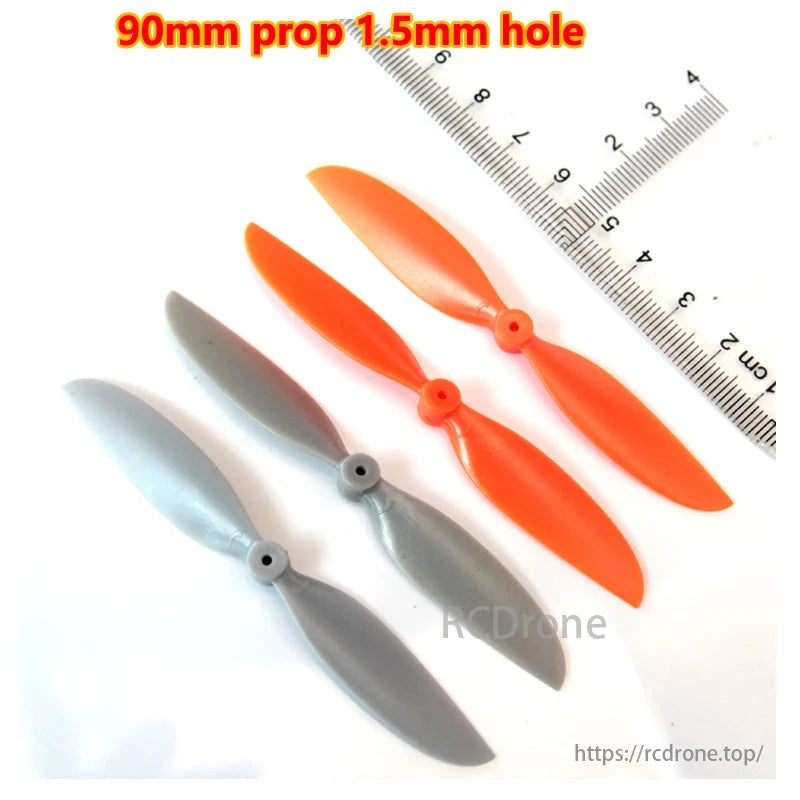

  • MP05 brushless motor, 90mm propellers with 1.5mm hole for mini airplanes, providing 120g thrust on 2S battery, ideal for wings and drones.
  • MP05 brushless motor, MP05 4000KV motor with RX62HE-A2 receiver, includes 2 props and prop saver, providing 125g pull for mini airplanes with 120g thrust on 2S battery.
1 11

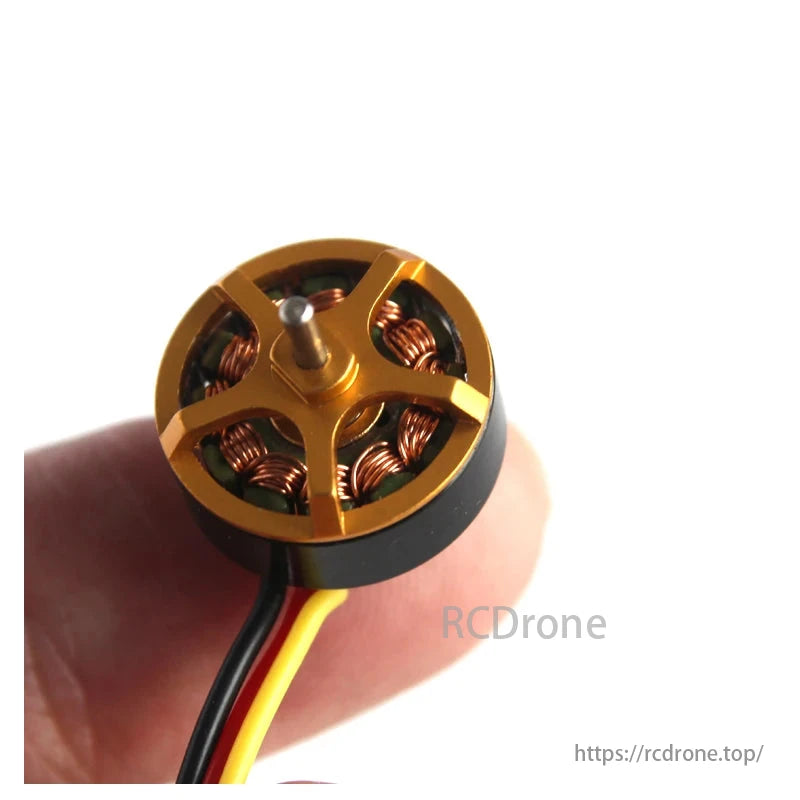

MP05 brushless motor 1304 motor for mini airplanes wings 120g thrust on 2S RX62HE-A2 FlySky 2A TELEM receiver

MP05 brushless motor 1304 motor for mini airplanes wings 120g thrust on 2S RX62HE-A2 FlySky 2A TELEM receiver

RCDrone

$14.20 USD
$14.20 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Description(MP05 motor)

Weight: 5.4g including cables
size:1304
KV: 4000
Plug: 1.5mm JST 3P
Thrust is 120g-150g with GWS5030mm prop at 2S
Idle current:　0.27A/7.4V   0.18A/3.7V

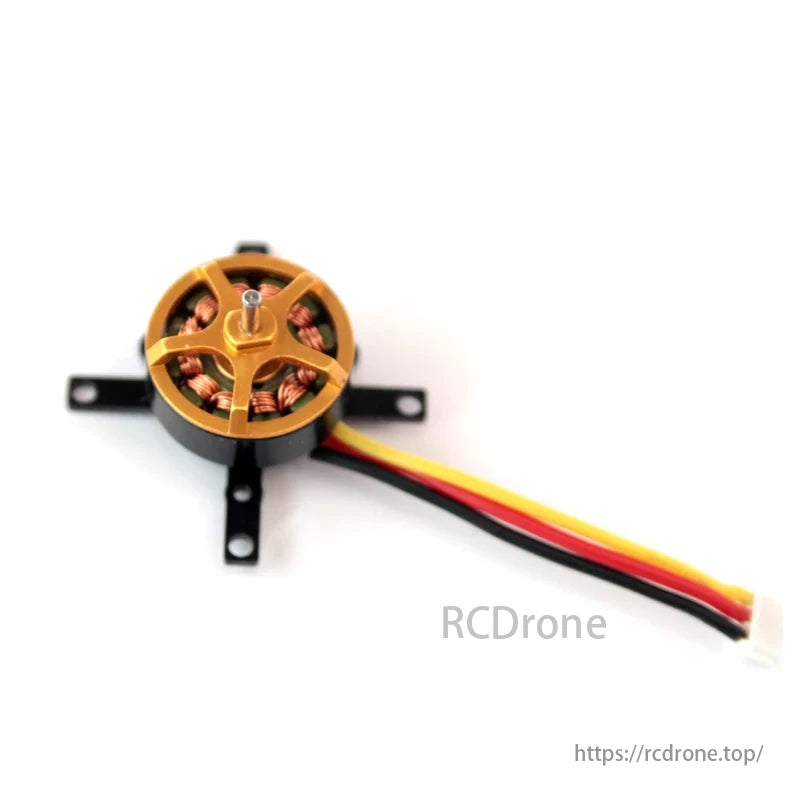

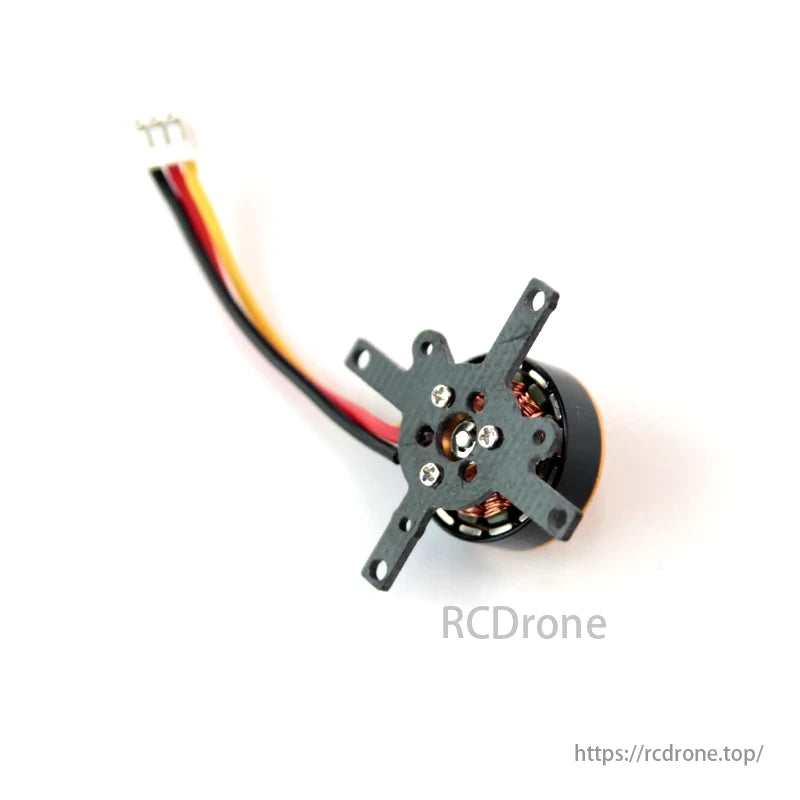

All the motors on the list will comes with a motor mount for free like the following:
MP05 brushless motor, The MP05 motor has a weight of 5.4g, KV of 4000, thrust of 120-150g, and an idle current of 0.27A/7.4V.
MP05 brushless motor, TELEM function monitors battery voltage, receiver signal strength, and temperature in real-time for better control and reduced risk of loss or over-discharge.
MP05 brushless motor, The FlySky AFHDS 2A protocol features super small and light design with built-in ESC, DCDC buck circuit, and optimized binding process.

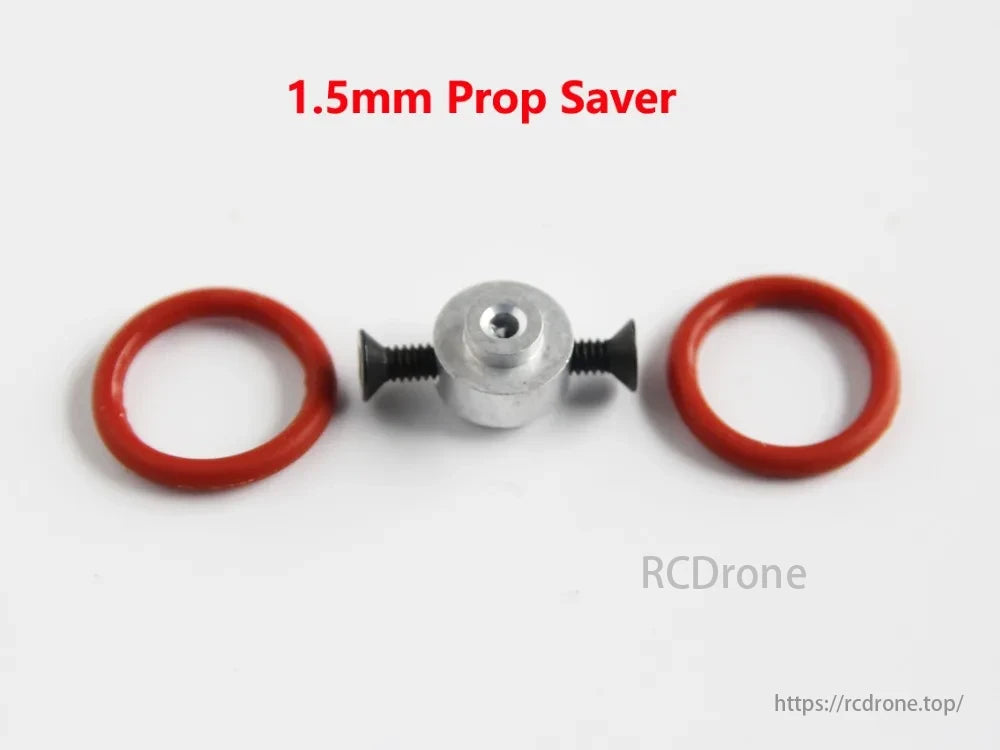

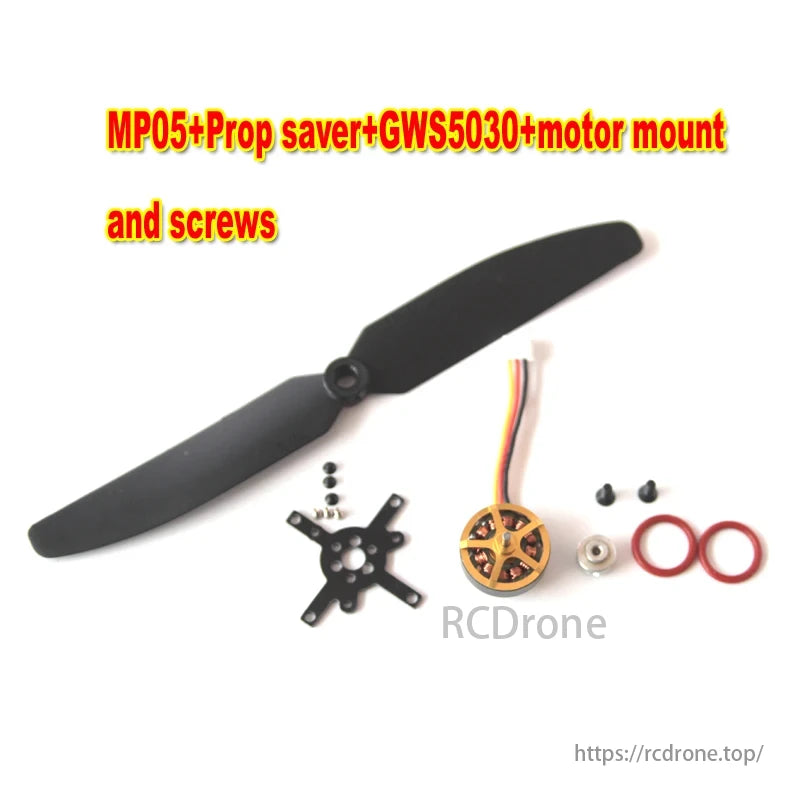

MP05 brushless motor kit contains prop saver, GWS5030 propeller, motor mount, screws, and red O-rings for easy assembly and performance.
Description for RX62HE-A2 FlySky AFHDS 2A receiver TELEM with 2S ESC:
Ma-RX62HE-X series receivers were developed upon Ma-RX42E-X series receivers,  with a built-in 7A/2S(5A/3S) brushless ESC  and 6 independent servo ports on board, in this case, RX62HE-X receiver can provide more power and more channels to work on larger size or more complicated model planes. We can supply 8 versions in total with TELEM function.

Protocol: FlySky AFHDS 2A

Specification：
⚫ Super small size：24.0*16.0*6.5mm(not including antenna)；
⚫ Super light)：1.85g(not including power cables and motor connectors) ；
⚫ Working voltage):7.4~11.1V；
⚫ Comes with a built-in 7A/2S or 5A/3S brushless  ESC；
⚫ Built-in DCDC buck circuit(2.2A/3.9V)
⚫ Supports double-aileron mode(reversed)
⚫ Optimized binding process(DSMX/2)
⚫ Auto binding;
⚫ Supports TELEM function(only advanced version)
⚫ 1.0mm 3P servo connectors;

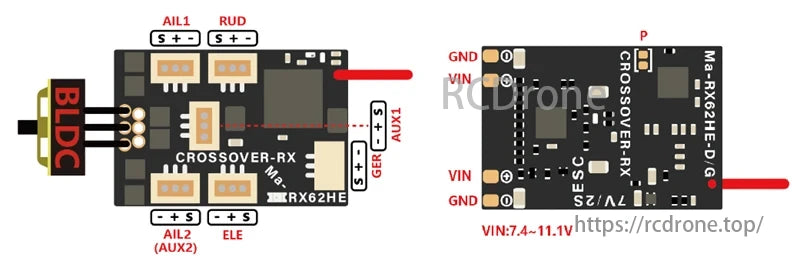

Ports

MP05 brushless motor with crossover RX module, featuring multiple control channels and VIN 7.4~11.1V connections.

MP05 brushless motor with crossover RX module, featuring AIL1, RUD, AUX1, AIL2 (AUX2), ELE, VIN 7.4~11.1V connections.


Double-aileron mode：
Double-aileron mode is developed for those model airplanes using double ailerons. This function can simplify servo wiring connection and transmitter set up. Default is double-aileron mode, you can turn off double-aileron mode by short connect P ports on the above picture, then AIL2 will be set as AUX2 output.
Auto Binding：
As it is difficult to reach the binding button when the receiver has been installed inside the plane, we developed self-binding function, it works like this: The receiver will enter binding mode automatically after powered and no signal for 15 seconds (slow flashing LED light turns to fast flashing), then complete the binding operation according to your transmitter binding manual.
TELEM Function
TELEM function is useful on monitoring battery voltage, receiver working voltage and its signal strength as well as its working temperature in real time, through which customer can get working state of receiver and battery discharging state under control, so flying out of control range and over discharging will rarely happen ( for brushless motor rotation speed or flight height monitoring, customer needs to choose a more advanced receiver) NOTE: The effective control range of TELEM function depends on transmitter, it is possible that this would happen: the working range of the receiver is far more than TELEM function effective range, it is normal and alright!

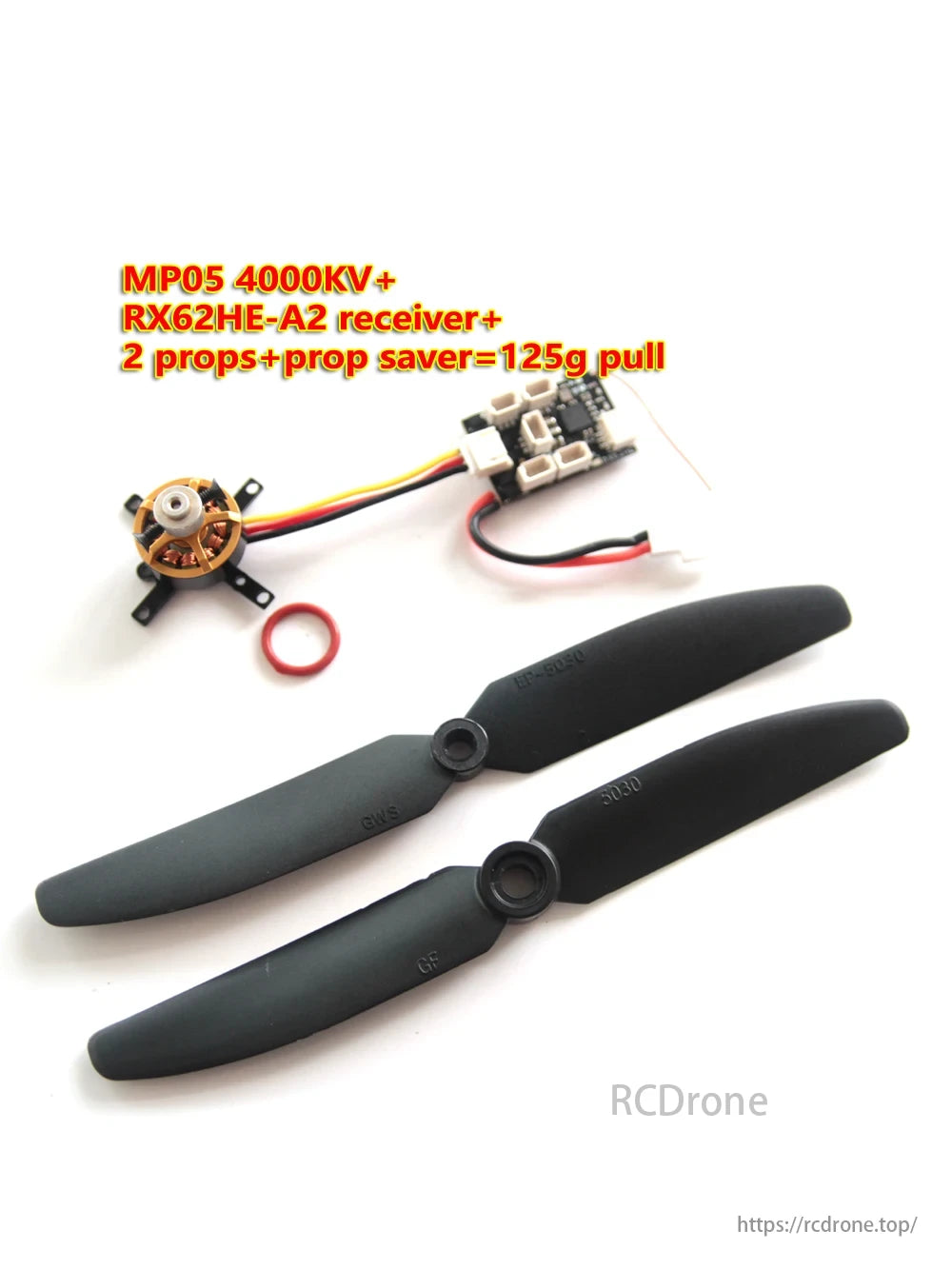

MP05 brushless motor, MP05 4000KV motor, RX62HE-A2 receiver, two props with prop saver included; weighs 125g.

MP05 4000KV motor, RX62HE-A2 receiver, two props, prop saver; 125g pull.

MP05 brushless motor, The motor, receiver, ESC, prop, motor mount, and prop saver weigh 11 grams, shown on a digital scale.

Motor, receiver, ESC, prop, motor mount, and prop saver weigh 11 grams. Components displayed on a digital scale.

MP05 brushless motor, FlySky AFHDS 2A has super small and light size, working voltage, built-in ESC and DCDC buck circuit, and supports double-aileron mode.
The above weight was added 3 pcs of 2.2g digital servo
MP05 brushless motor, TELEM function monitors battery voltage, receiver state, signal strength, and temperature for real-time control and minimizes flying out of range or over discharging.
MP05 brushless motor, Default is double-aileron mode, turning off with short connection P ports sets AIL2 as AUX2 output.
