MQ-9 UAV SPECIFICATIONS
Video Capture Resolution: Other
Type: Airplane
State of Assembly: Unassembled Kit
Remote Distance: 2km
Remote Control: Yes
Recommend Age: 12+y
Power Source: Electric
Plugs Type: T/XT60
Package Includes: Original Box
Origin: Mainland China
Operator Skill Level: Beginner
Model Number: MQ-9
Material: Fiberglass
Indoor/Outdoor Use: Outdoor
Flight Time: 2hours
Features: Other
Dimensions: 1632*310*335mm
Dimensions: ≥2m
Controller Mode: MODE1,MODE2
Controller Battery: 20000mah
Control Channels: 8 Channels
Charging Voltage: 12V
Charging Time: 1hours
Certification: CE
Camera Mount Type: Other
CE: Type
Brand Name: uuustore
Barcode: No
Aerial Photography: No

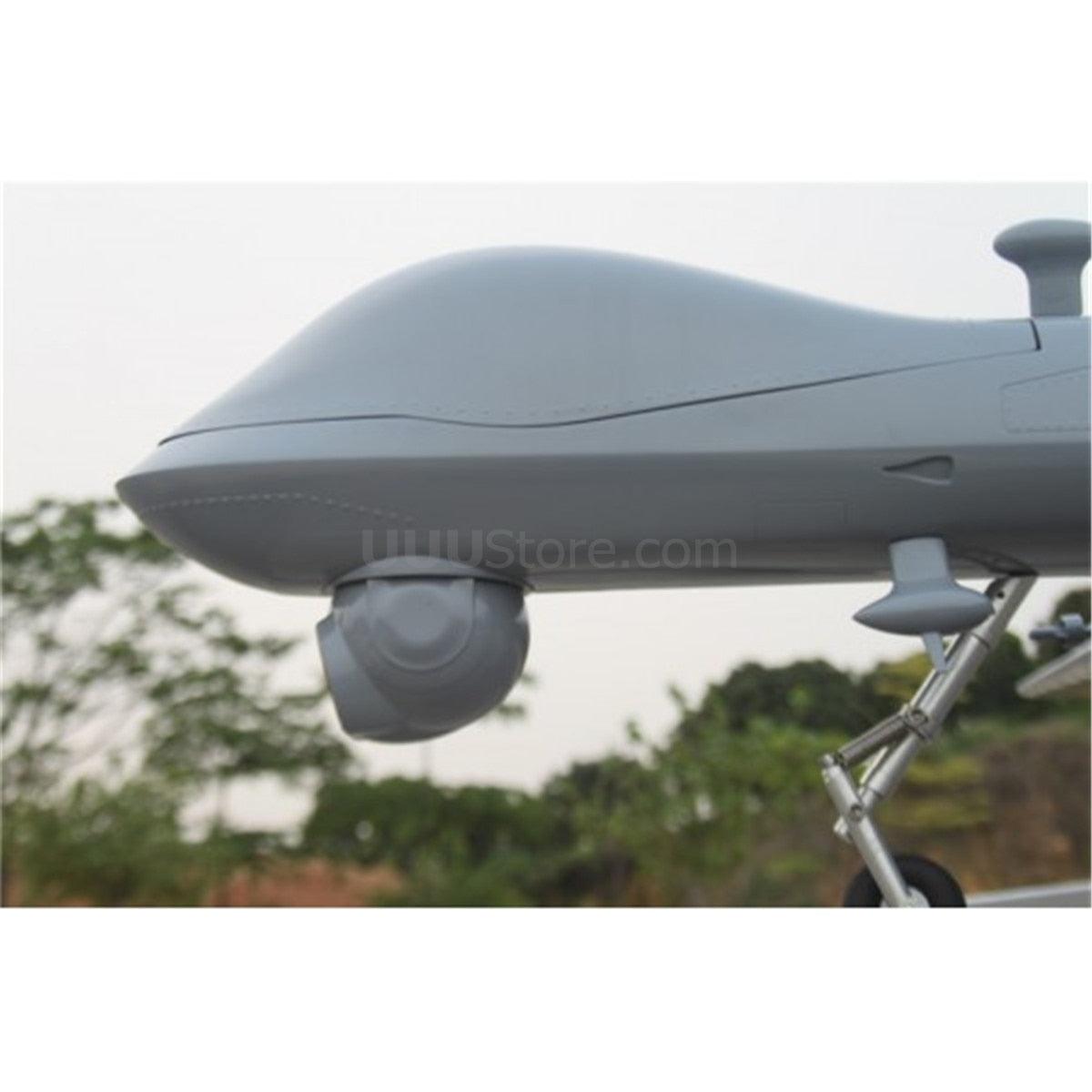

MQ-9 UAV Scale Predator of Fiberglass/Balsa Construction FPV/UAV Composite Platform MQ9 Reaper KIT
MQ-9 Reaper is one of the most iconic military drones in the world. Although we prefer more friendly civilian drones, we are proud to present highly detailed model of MQ9.
This platform may probably not be the most useful (flight time, payload capability, ...) in our FPV/UAV range ... but we can guarantee tha you won't remain unnoticed where ever you go fly with this beast.
Fiber-glass fuselage; Balsa main wing/vertical and horizontal stabilizer
Wingspan: 3000mm(118")
Overall Length: 1560mm(62")
Wing Area: 64dm2
Kit Weight(with landing gear): 3.2kgs
* Fiber glass Material
* Large size cabin for FPV equipment
* Wingspan: 3m
* Max payload: 10kg
* Cruise Speed: 50km/hr
* Max Speed: 80km/hr
* Takeoff runway: 30-50m
* Water resistance electronic equipment room
Recommended configuration:
Power System: 4130-KV400 brushless motor wiht 17*8 propeller, 80-100A ESC and 6S 10000-20000mah battery
or 20-30CC Gasoline Engine with 18*6 propeller
Servo: 17g metal gear servo*4pcs and 9g metal gear servo*4
Packing:1 piece per carton, Carton size: 1632*310*335mm, Gross weight: 9.4kgs
Kit package include:
MQ-9 UAV Scale Predator x1
PNP package include:
MQ-9 UAV Scale Predator x1
80A ESC x1
