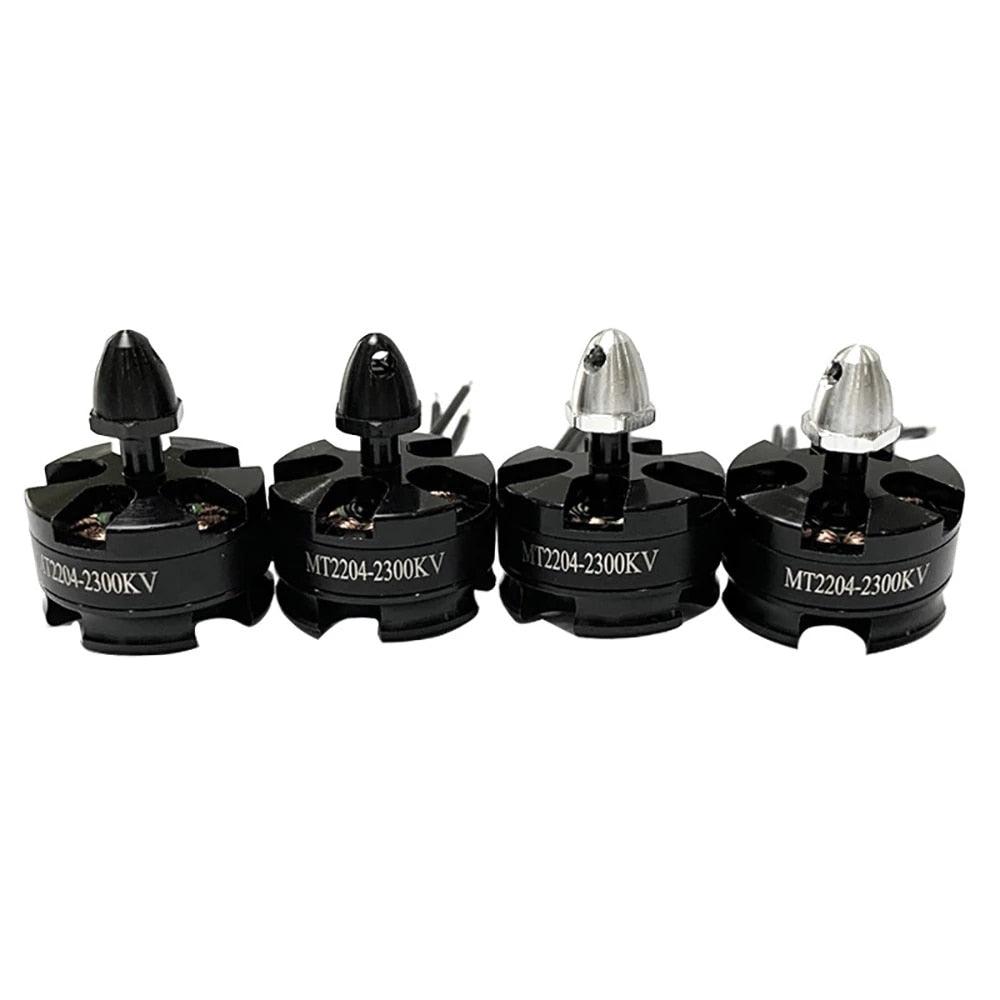

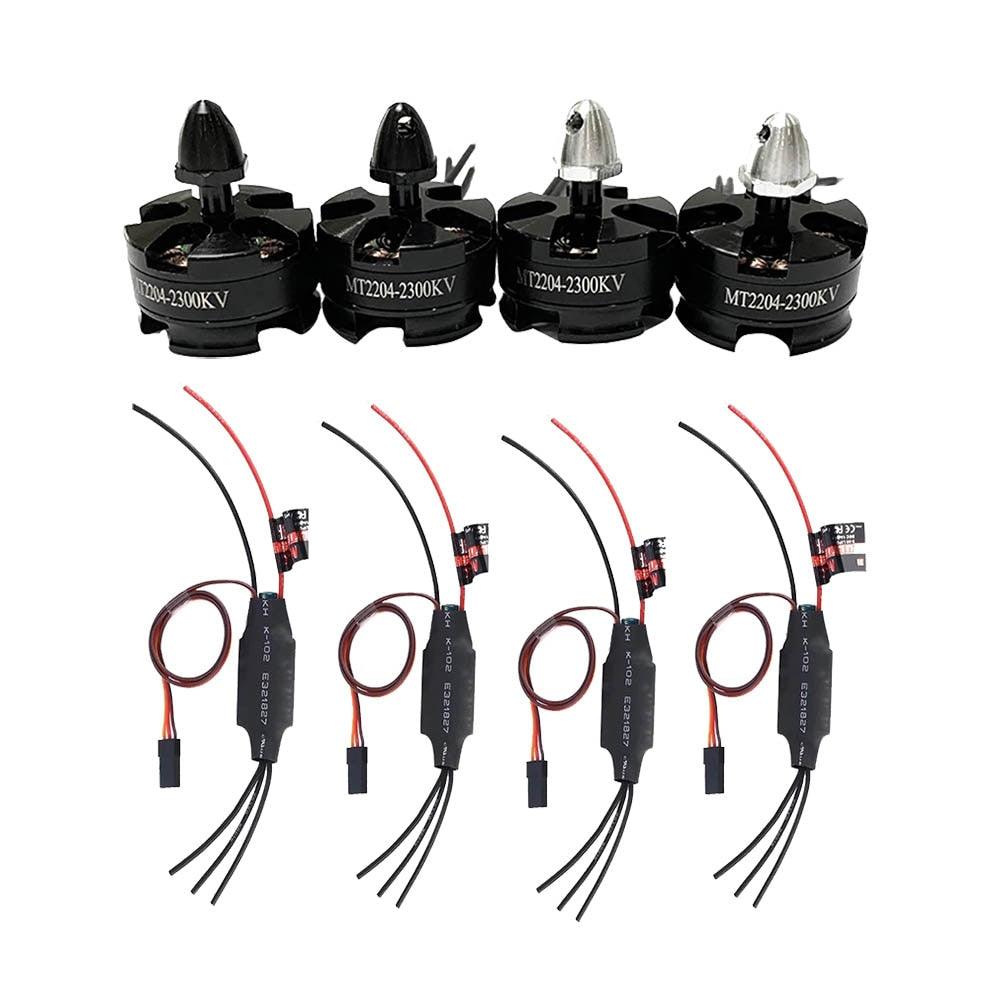

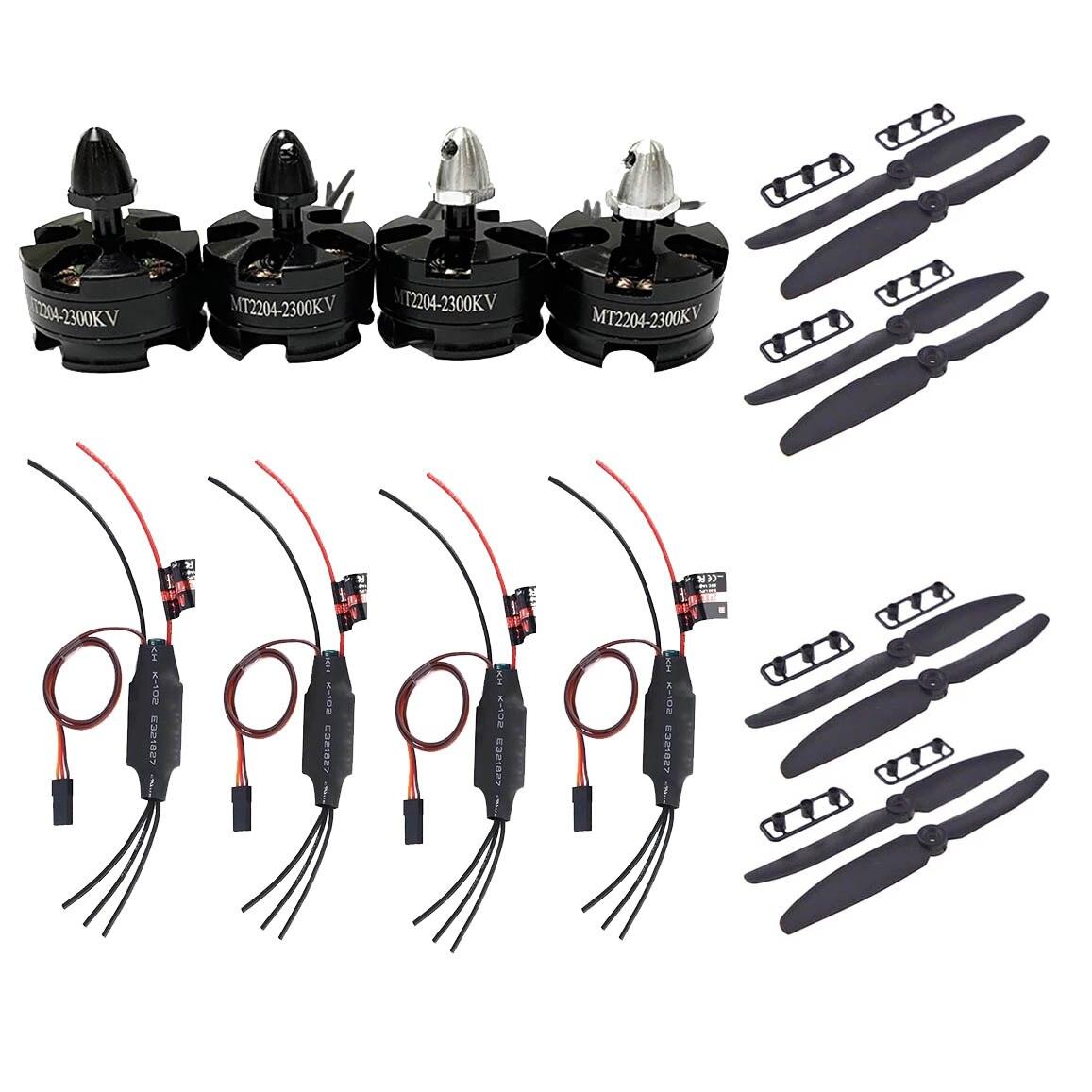

MT2204 2204 2300KV CW / CCW Brushless Motor +MR.RC 12A ESC Quadcopter 250 QAV250 for Mini 210 250 280MM Four axis aircraft FPV

MT2204 2204 2300KV CW / CCW Brushless Motor +MR.RC 12A ESC Quadcopter 250 QAV250 for Mini 210 250 280MM Four axis aircraft FPV

RCDrone

Regular price $15.36 USD
Regular price $30.72 USD Sale price $15.36 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

189 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Wheelbase: Upper Shell

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Motor

Tool Supplies: Assembled class

Technical parameters: Value 3

Remote Control Peripherals/Devices: Motor

Recommend Age: 18+

RC Parts & Accs: Motor Components

Quantity: 1 pcs

Origin: Mainland China

Model Number: 2204

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: Skyquist

MT2204 2204 2300KV CW / CCW  Brushless Motor, Skyquist MT2204 Motor: - With dynamic balance test - Brand

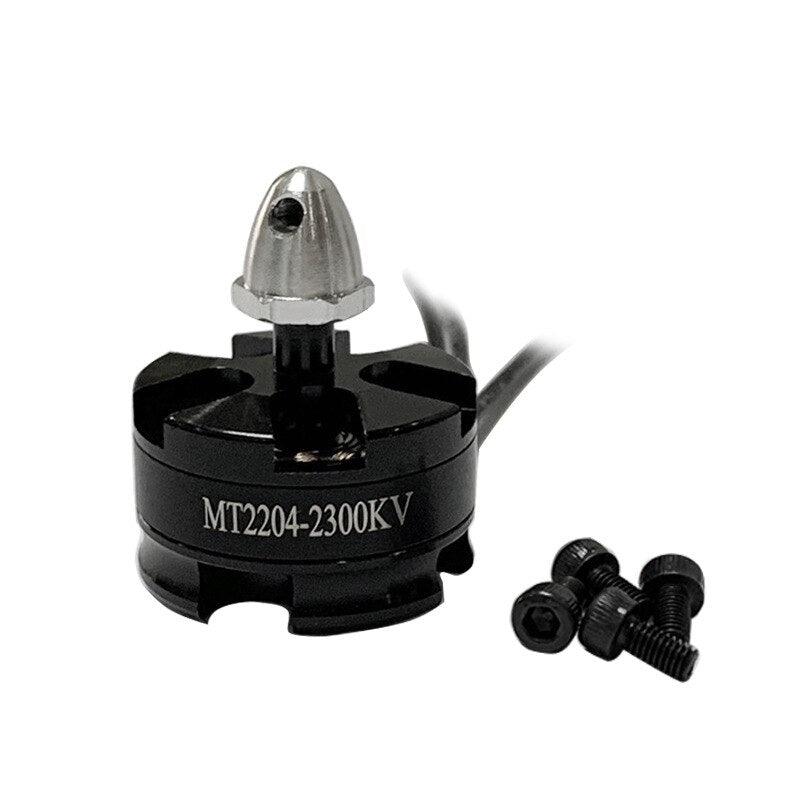

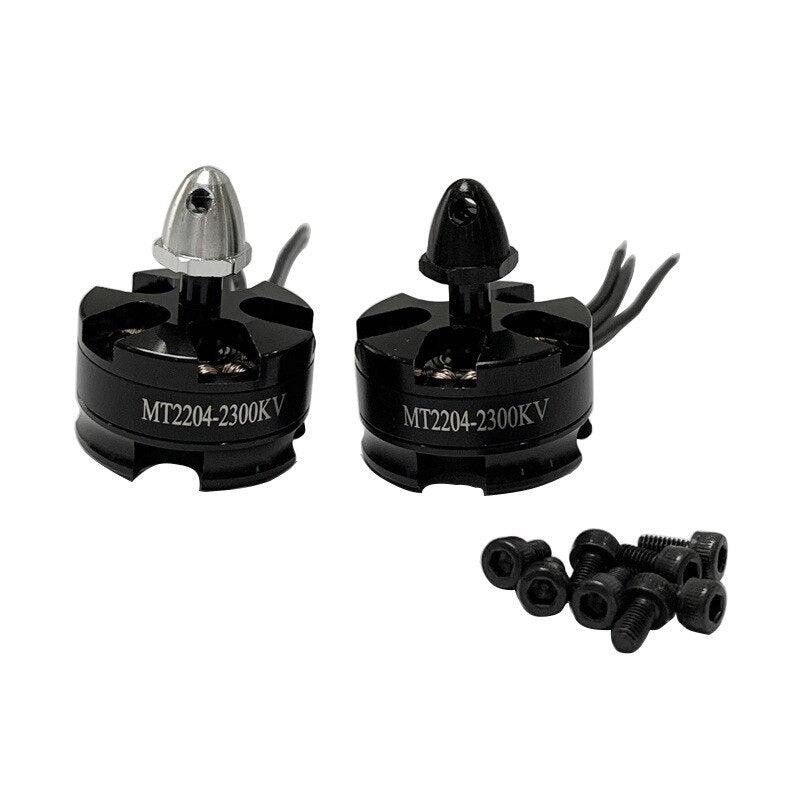

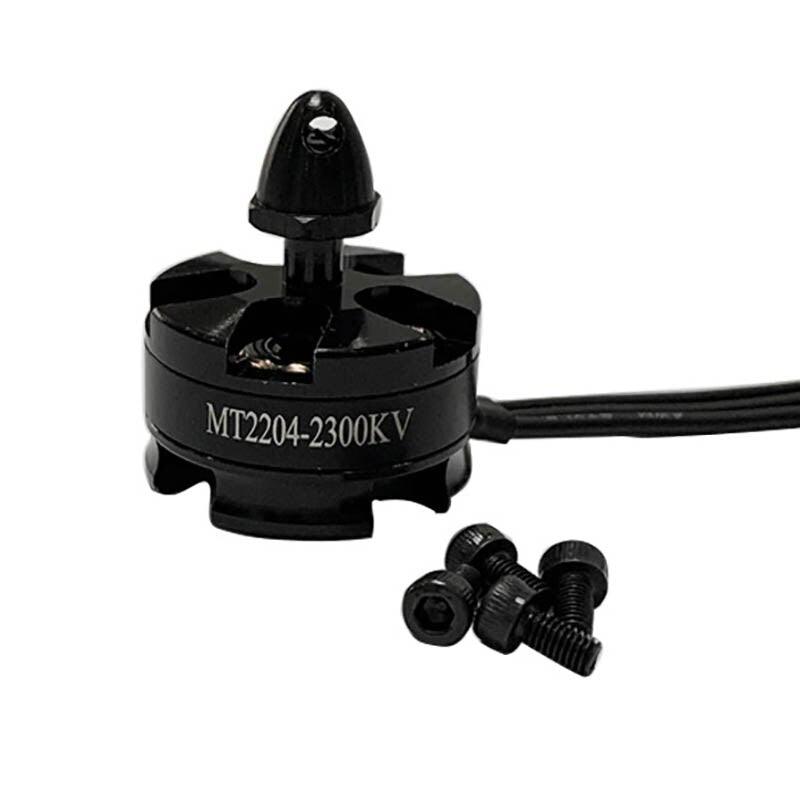

MT2204 Motor:

- With dynamic balance test
- Brand new and high quality
- KV : 2300
- MAX Thrust : 440G
- No. of Cell : 2-3S
- Framework : 12N14P
- Propeller : 5"~6"
- Length : 32.2mm
- Weight : 28.5g
- Shaft : 3mm
- Diameter : 27.9mm

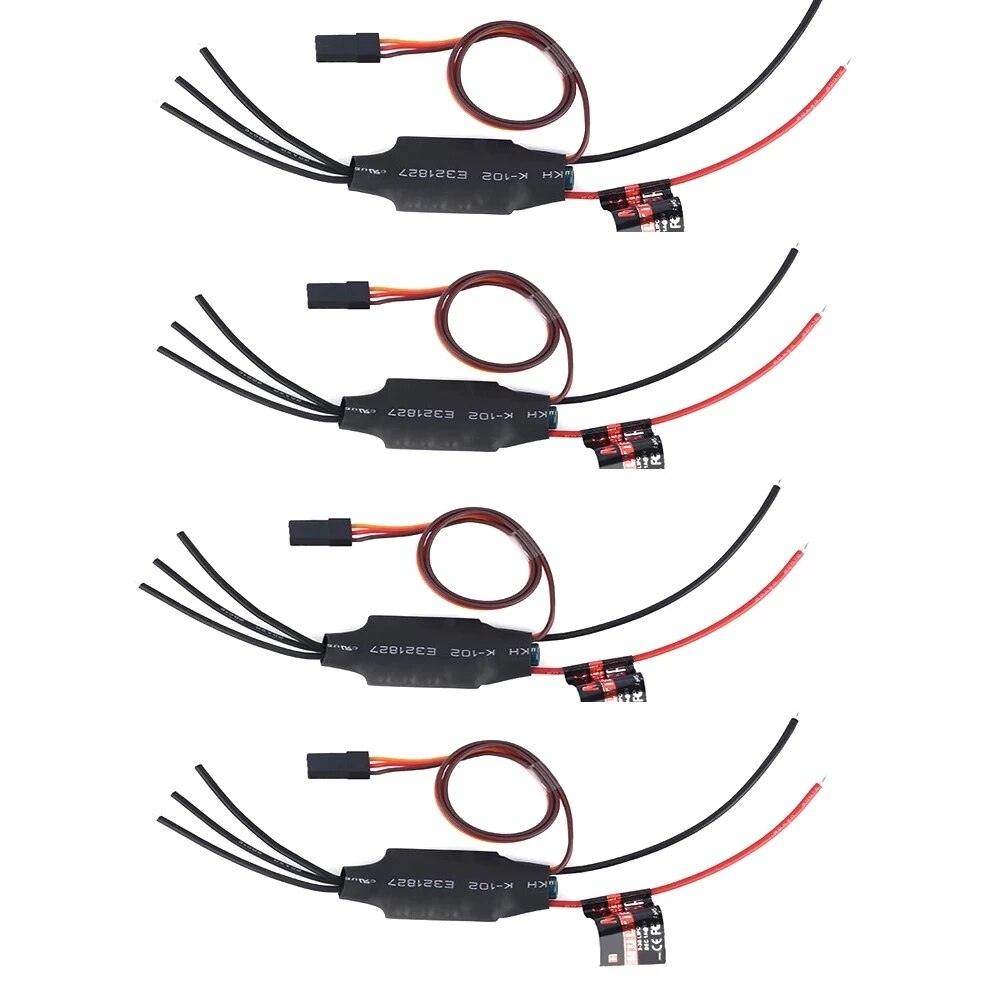

ESC 12A :

100% Brand New, Emax Original Product
Based on Simon K firmware, further optimized to the perfect drive performance.

Low-voltage protection, over-heat protection and self-check functions.

Separate power supply for MCU and BEC, enhancing the ESC\'s ability of eliminating magnetic interference.
Parameters of the ESC can be set via transmitter.
Throttle range can be set to be compatible with different receivers.

Equipped with built-in linear BEC or switch BEC.
Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole.

Specifications:
Continuous Current: 12A
Burst current (10S): 15A
Li-xx Battery (cell): 2-3

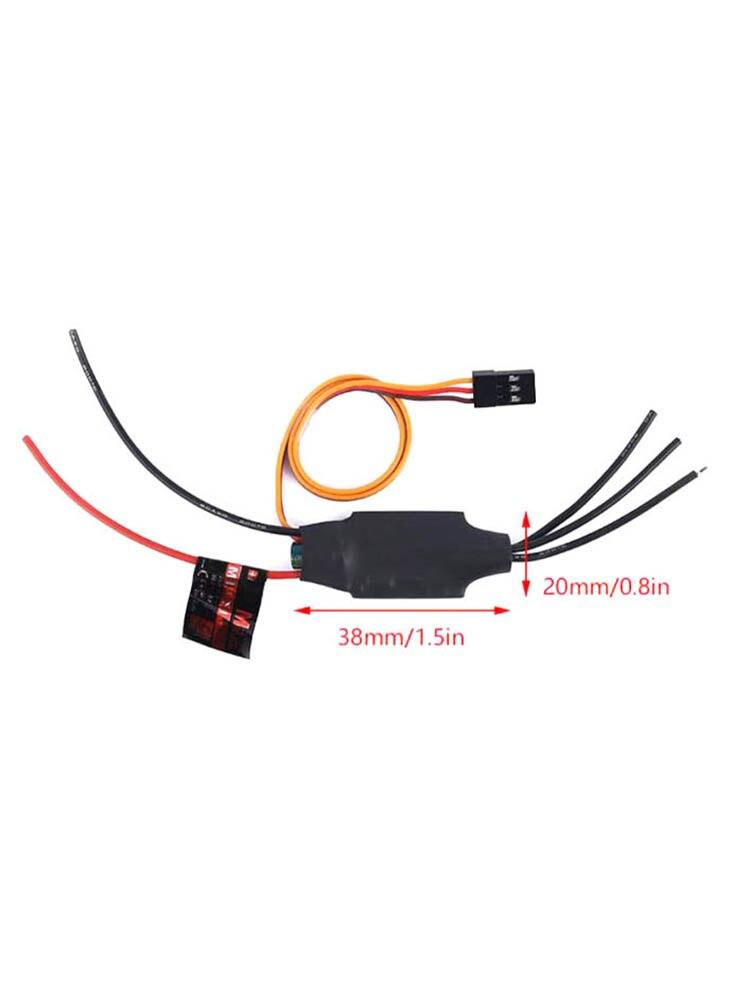

Dimension (L*W*H): 25mm x 20mm x 7mm
Weight wires Included: 9
BEC Mode: Linear
BEC Output: 1A/5V
Programmable: Yes
Net Weight: 7g(approx.)

speed: 210,00 rpm for 2-pole, 70,000 for 6-pole,Built-in linear BEC or switch BEC.Separate power supply for MCU and BEC, enhancing ESC's abilityParameters of the ESC can be set via transmitterESC 12A : 100% Brand New, Emax Original Product Based on Simon K firmwarelow-voltage protection, over-heat protection and self-check functionsSkyquist MT2204 Motor: - With dynamic balance test - BrandSpecifications: Continuous Current: 12A Burst current (10S): 15A LiParameters of the ESC can be set via transmitter
