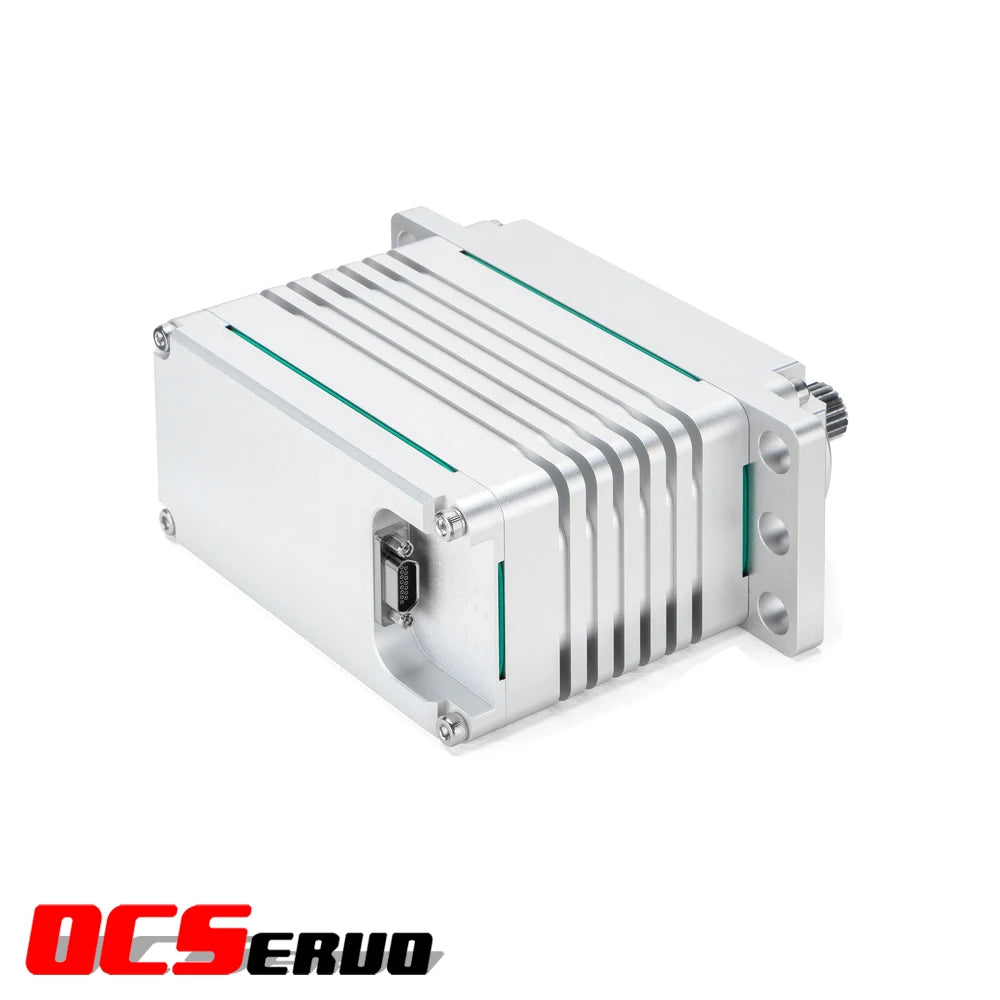

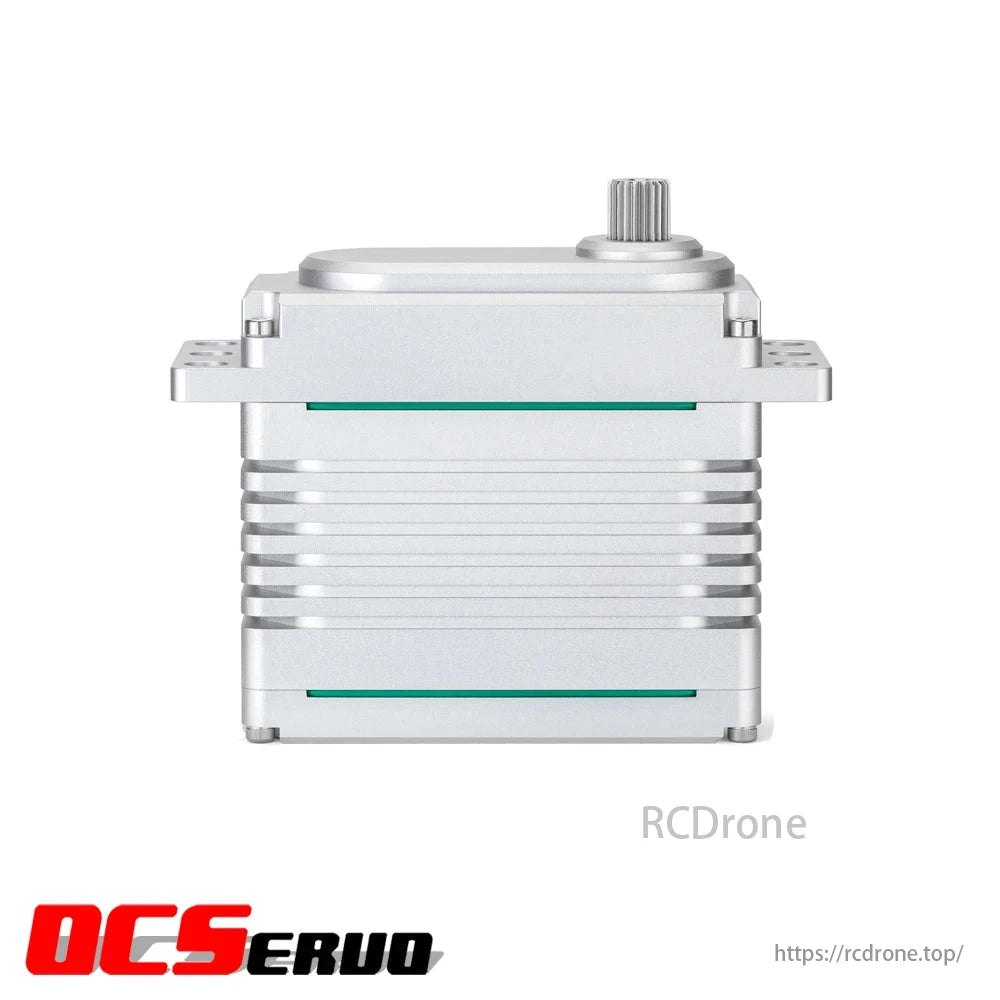

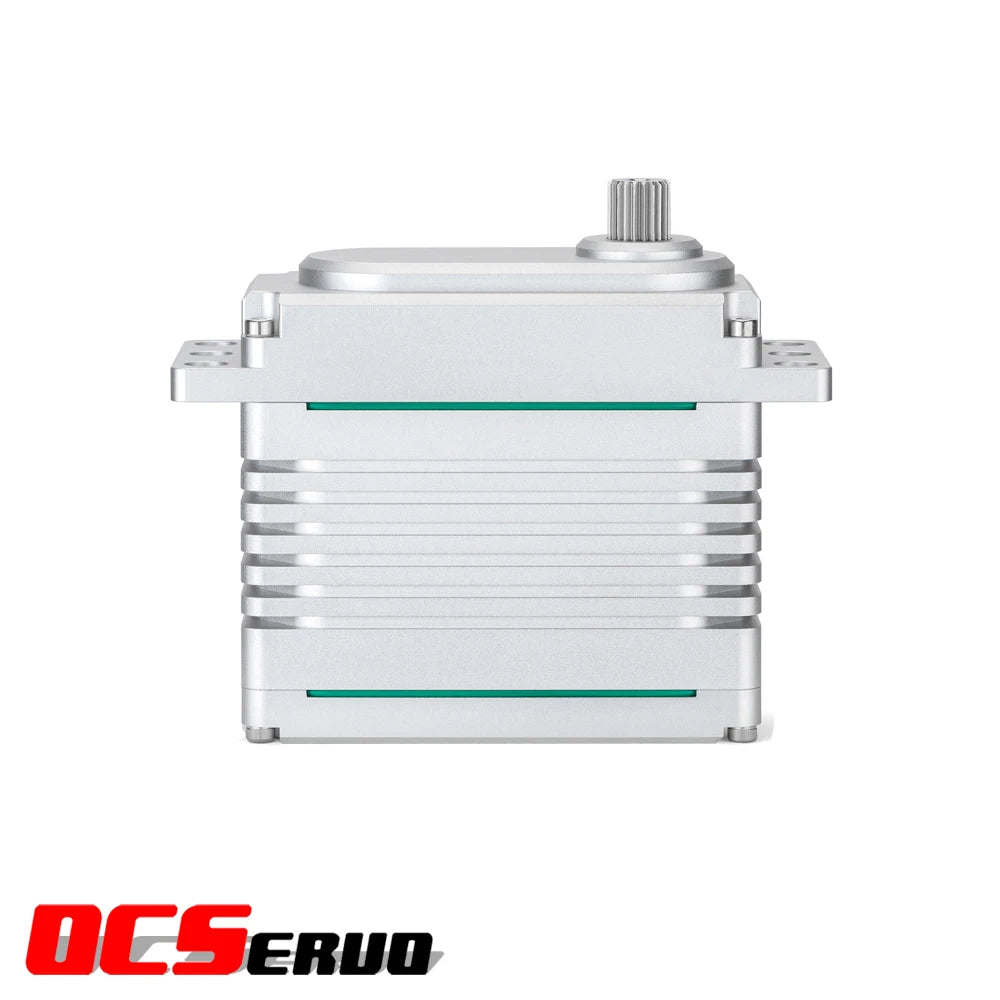

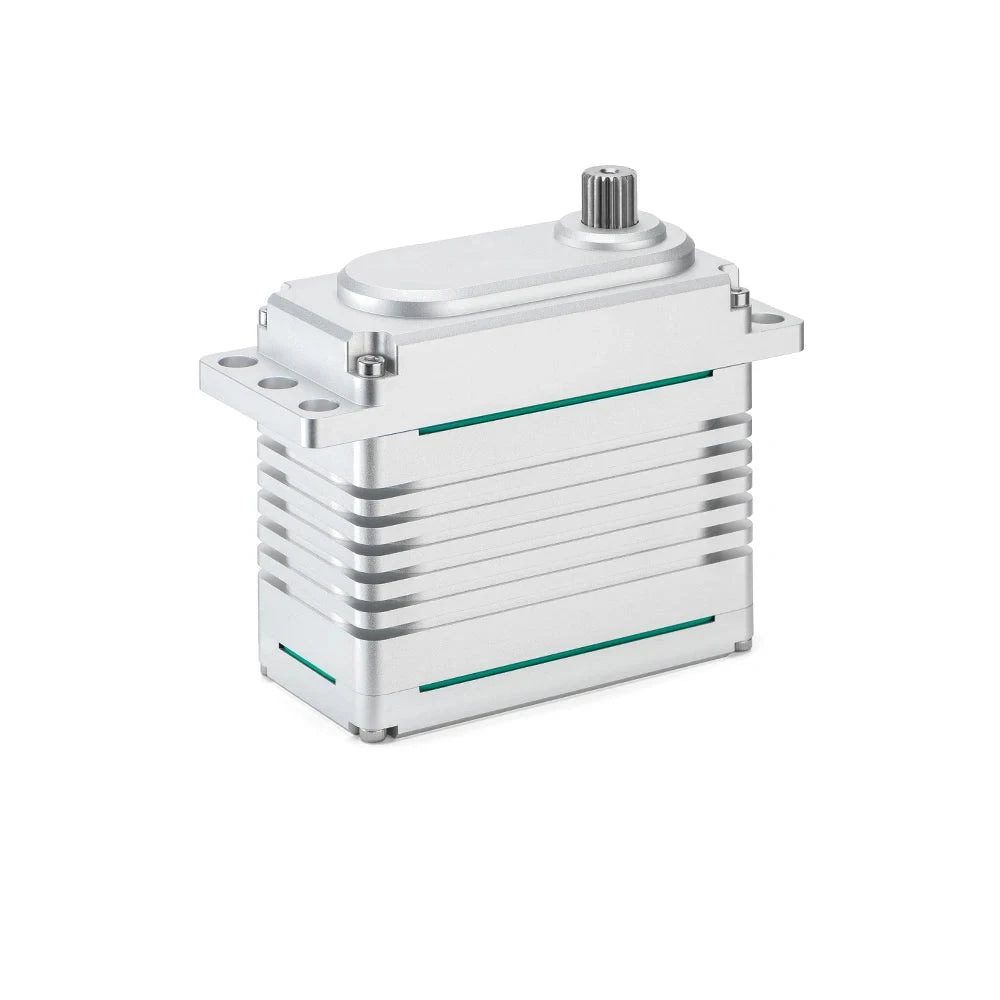

OCSERVO OCS-D9501 950KG.CM @30V 1750g CNC Digital Brushless PWM CAN 485 High Torque Servo Steel Gear UAV Metal horn

OCS-D9501 950KG.CM @30V CNC Digital Brushless Servo for UAV and Robotics

The OCS-D9501 Servo Motor is an advanced high-torque solution designed for heavy-duty UAVs, drones, robotics, and industrial machinery. Featuring a torque capacity of up to 950KG.CM at 30V, a robust CNC aluminum casing, and 10 ball bearings for smooth performance, this servo is ideal for applications demanding power, precision, and reliability. Its compatibility with PWM, CAN, and 485 protocols ensures seamless integration into diverse systems.

OCSERVO OCS-D9501 950KG.CM Servo Specifications

Mechanical Specifications

Electrical Specifications

Control Specifications

OCSERVO OCS-D9501 950KG.CM Servo Key Features

1. Exceptional Torque: Generates up to 950KG.CM at 30V for heavy-duty applications.
2. Durable Design: CNC aluminum casing and steel gears for reliable performance in tough environments.
3. Smooth Operation: Integrated with 10 ball bearings to ensure stability and precision.
4. Flexible Control: Supports PWM, CAN, and 485 protocols, making it suitable for diverse systems.
5. High Efficiency: Brushless motor for longer lifespan and lower maintenance.

Applications

The OCS-D9501 Servo is perfect for heavy-duty UAVs, drones, robotic systems, and industrial machines. Its high torque and customizable control options make it a reliable solution for precision-demanding operations in harsh conditions.

Package Includes

• 1 × OCS-D9501 Servo Motor
• Optional connector wire (sold separately).

Invest in the OCS-D9501 Digital Brushless Servo to experience unparalleled performance and durability for your advanced projects.

Product Specification of OCSERVO Product Page 1/3 Ov900 ^ FT EFIHEHL Product Name: 28.0kg-cm BLS Servo Model: OCS-D950l Environmental Condition: Storage Temperature Range -30°C to +70°C Operating Temperature Range -20°C to +60°C Mechanical Specification: * Size: 120mm x 60mm x 111.5mm * Weight: 1750g * Gear type: Steel Gear * Limit angle: 3-6 NJL taj t [R Mj * Bearing: 10 Ball bearings * Horn gear spl: 25T 14.98 Mn * Horn type: Metal * Case: Aluminium CNC * Connector wire: J30J-1STJL (needs to be purchased separately) * Motor: BLS motor Electrical Specification: * Operating Voltage Range: 24V, 28V, 30V * No load speed: 0.35 sec/60, 0.28 sec/60, 0.25 sec/60 * Running current (at no load): 400 ma, 460 ma, 500 ma * Stall torque: 850 kg·cm, 920 kg·cm, 950 kg·cm * Stall current: <21 A, <25 A, <26.5 A * Rated torque: 280 kg·cm, 320 kg·cm, 350 kg·cm * Rated current: 23.5 A, 24 A, 24.3 A * Idle current: 60 ma

dc Servo Robot @FAMABA Specifications of Product Page 2/3: RARTK: 28. Overload Protection: FT & FR High-Level. Product Name: 28. Oversized-cm Brushless Servo. Model: OCS-D95OL. Control Specification: No. Item Specification: 5-1 Command Type: PWM, CAN, or 485. 5-2 Joint Amplitude: Digital Controller. 5-3 Hysteresis: EEEE Zero Pulse Width Range: 500~2500 usec Customizable. 5-4 Neutral Position: 1500 usec Customizable. 5-5 Holding Torque: Running Degree: 90 (when 1000 ~ 2000 L sec) Customizable. 5-6 Dead Band Width: 3 usec. 5-7 Rotating Direction: CCW (when 1000~2000 Asec) Customizable.

Specification of Product Page 3/3 Renk: 28. OVI650 FTZWienhelle Product Name: 28 OV651-cm BLS Servo F0@5 Model: OCS-D6501 Connection type: J3OJ-152KP PWM/S-BUS Emuzzy RS485 Eltizzy CAN The OC Servo rWEZTNMABRAA 7z features a specific product page with details about the OVI650 FTZWienhelle, which is part of the OV651-cm BLS Servo F0@5 Model. This connection type supports PWM/S-BUS and Emuzzy RS485 Eltizzy CAN communication protocols. The product has several specifications listed, including 2 DC inputs, 3 (EMA FEtr) EE RTWtx) (EME REtk), and 4-6 DC inputs with corresponding outputs.

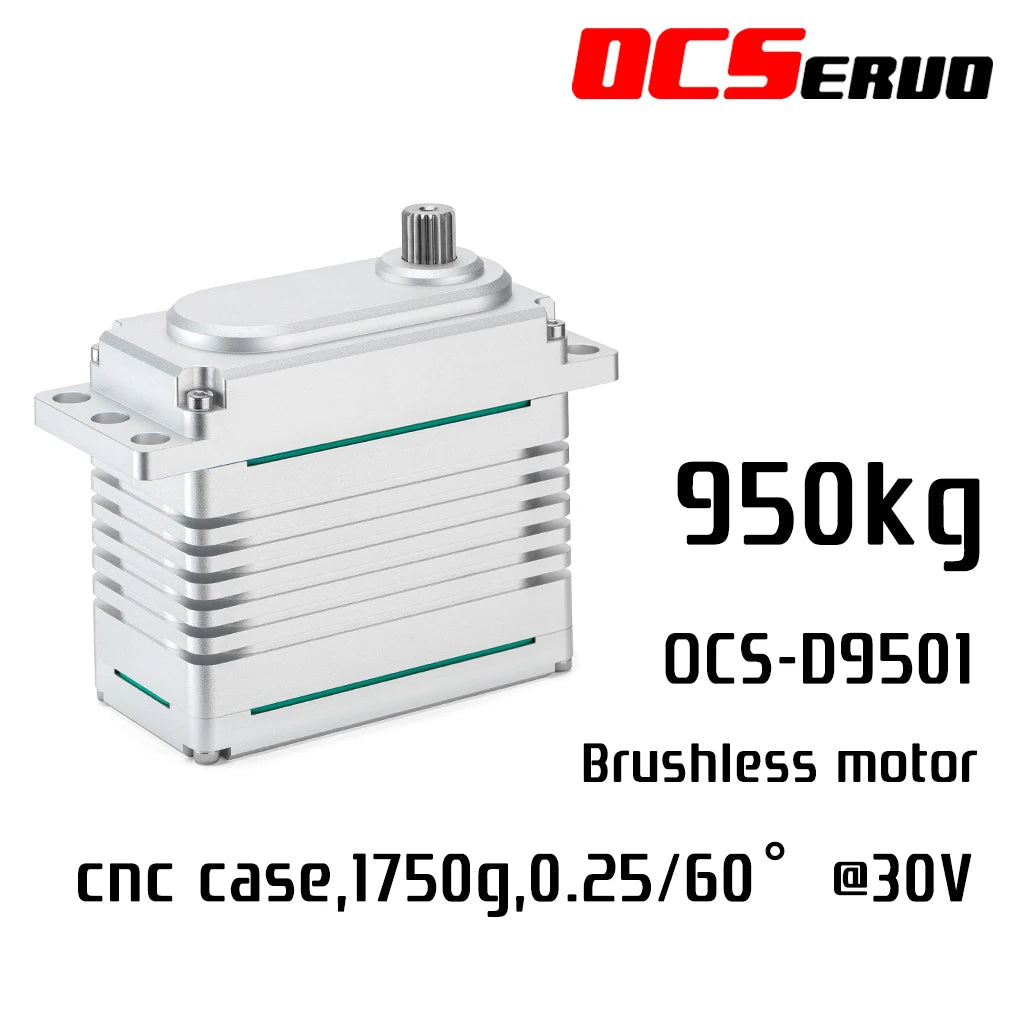

WCServo 950kg motor with CNC case and brushless design, weighing 1750g, and operating at a speed of 0.25/60 RPM at 30V.
