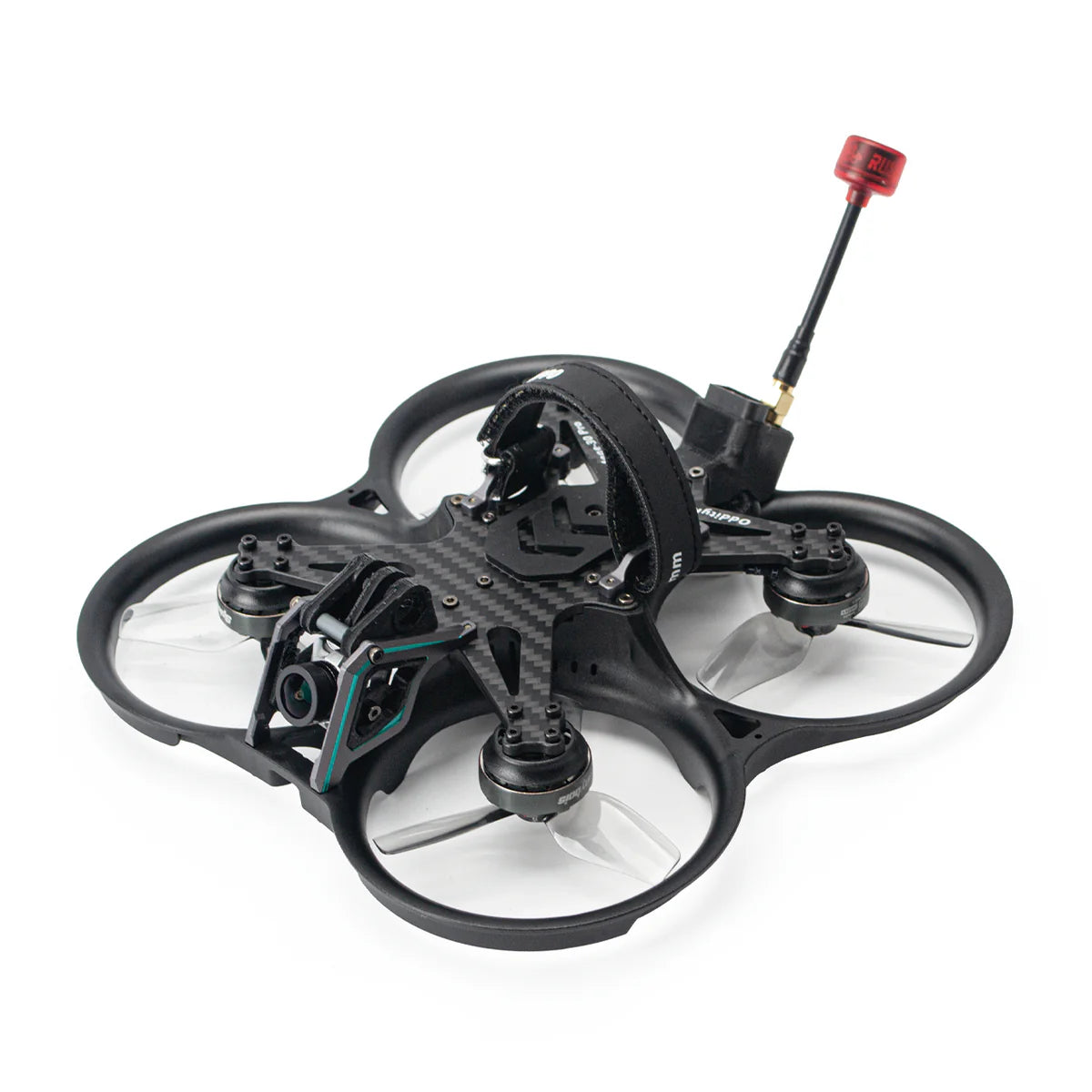

OddityRC Mage Pro Analog 6S 3-Inch Cinewhoop FPV Drone with 2650KV 2004 Motors & 1.3W VTX

Overview

The OddityRC Mage Pro Analog Version 6S is a premium 3-inch FPV cinewhoop built for power, endurance, and analog clarity. Developed by the OddityRC team, this model combines a compact 131mm wheelbase with robust engineering to deliver stable and aggressive performance in tight spaces and freestyle environments. Equipped with high-efficiency Spinnybois 2004 2650KV motors, paired with HQProp DT76 tri- or quad-blade props, it achieves a perfect blend of thrust and maneuverability on 6S power.

At the core lies the OddityRC F7 40A AIO flight controller running Betaflight 4.4.3, featuring the STM32F722 chip and ICM42688P gyro for ultra-smooth and responsive flight. The PandaRC VT5804_BAT LITE 1.3W analog VTX ensures strong, clean signal transmission with MMCX interface and up to 1300mW output, supported by the Rush Cherry antenna and Ratel 2 FPV camera for vivid imaging in both day and night.

Specifications

Frame & Structure

• Product Name: Mage Pro Analog

• Frame: OddityRC Mage Pro Analog Version

• External Dimensions: 186 × 186 × 33mm

• Wheelbase: 131mm

• Propeller Diameter: 76mm

• Main Plate Thickness: 3mm

• Battery Plug: XT60H-M

Flight Controller & ESC

• FC: OddityRC F7 40A AIO

• MCU: STM32F722RET6

• Gyro: ICM42688P

• UART Ports: 5

• Barometer: Supported

• ESC Firmware: Bluejay v0.19.2 (48kHz)

• Input Voltage: 4S–6S

• Continuous Current: 40A / Max Instant: 50A

• Mounting: 25.5mm / 26.5mm

• Weight: 8.8g

Power System

• Motor: Spinnybois 2004 2650KV

  • Shaft: SUS420 stainless steel

  • Iron Core: 0.2mm

  • Magnet: Sintered NdFeB 55H

  • End Cap: A2A12 aviation aluminum alloy

  • Bearing: 730ZZ

  • Magnet Wire: Class C, 220°C rated

• Propeller: HQProp DT76-3 / DT76-4

Video Transmission

• VTX: PandaRC VT5804_BAT LITE

  • RF Output Power: 0 / 25 / 200 / 400 / 800 / 1300mW

  • Channels: 40CH

  • Interface: MMCX

  • Input Voltage: 6–36V

  • Size: 28 × 28 × 6mm

  • Weight: 6g (without antenna)

  • Installation: 20mm × 20mm

• Camera: Caddx Ratel 2

• Antenna: Rush Cherry

Receiver Options

• PNP (No Receiver)

• ELRS 2.4GHz

• ELRS 915MHz

• TBS Nano RX

Battery Recommendation

• 6S 850mAh ~ 1100mAh (Coddar recommended)

Key Features

• Compact 3-inch frame with high-strength carbon and tight 131mm wheelbase

• Analog transmission up to 1300mW, ideal for long-range or urban flying

• Durable, efficient 2004 2650KV motors with CNC-grade build quality

• Betaflight-ready with F7 FC, Bluejay ESC, and barometer support

• Ideal for indoor freestyle, cinematic flying, and analog enthusiasts

Package Includes

• 1 × Mage Pro Analog FPV Drone (6S)

• 2 × Sets of HQProp DT76 Propellers

• 1 × Spare Screw Kit

Details

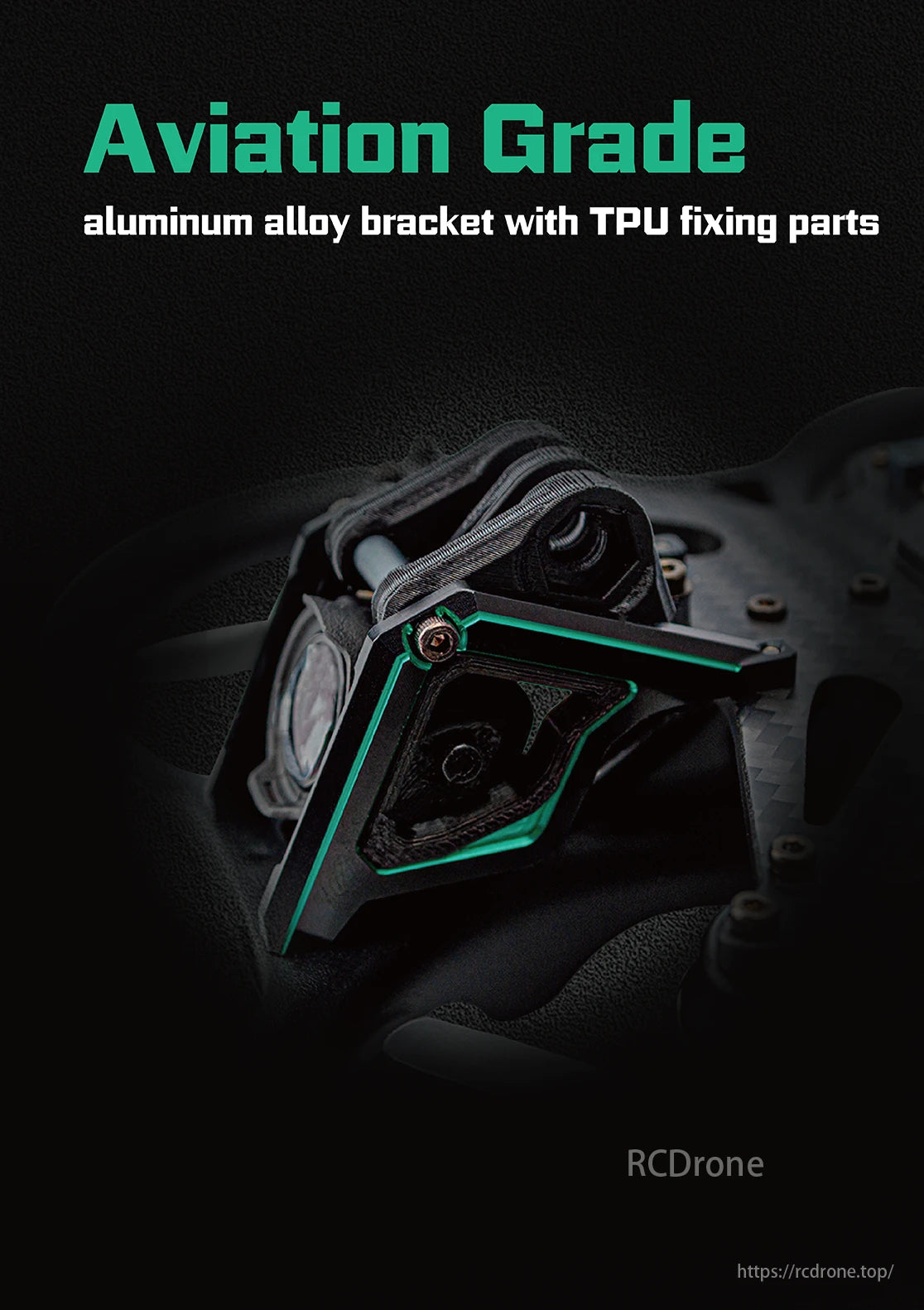

Aviation Grade aluminum alloy bracket with TPU fixing parts.

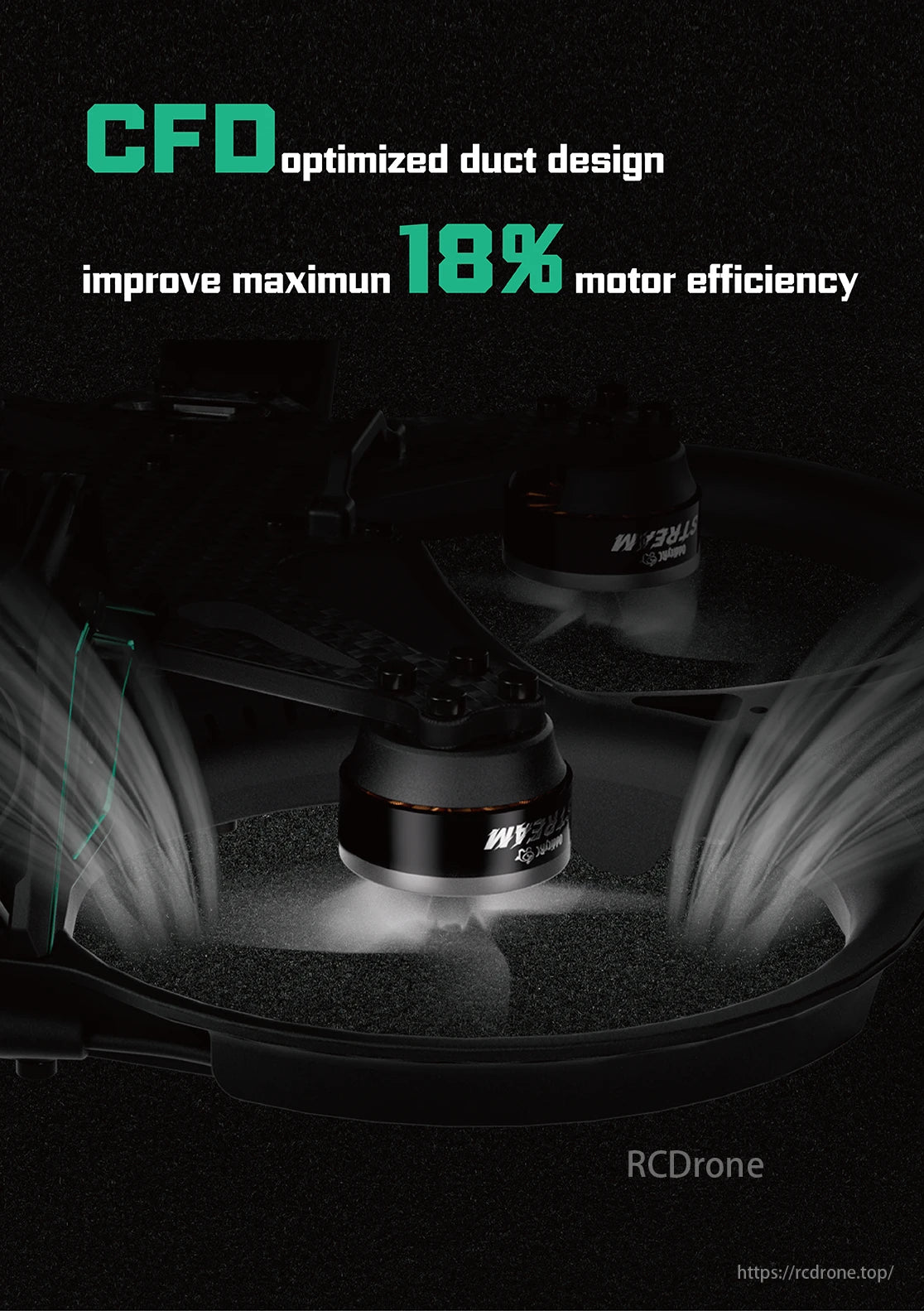

CFD-optimized duct design improves maximum motor efficiency with watts at nominal watts.

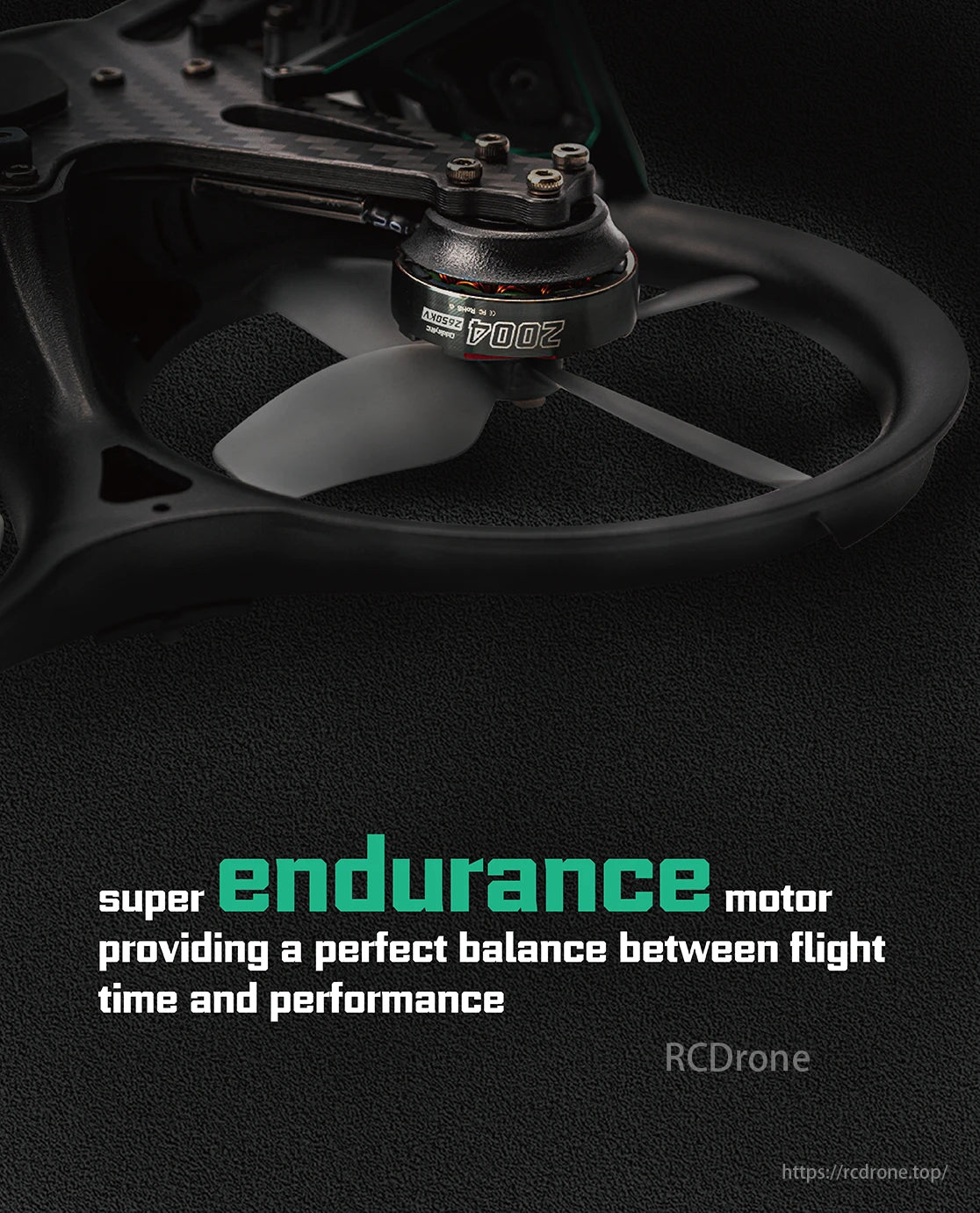

The Dooz Super Endurance Motor offers a perfect balance between flight time and performance.

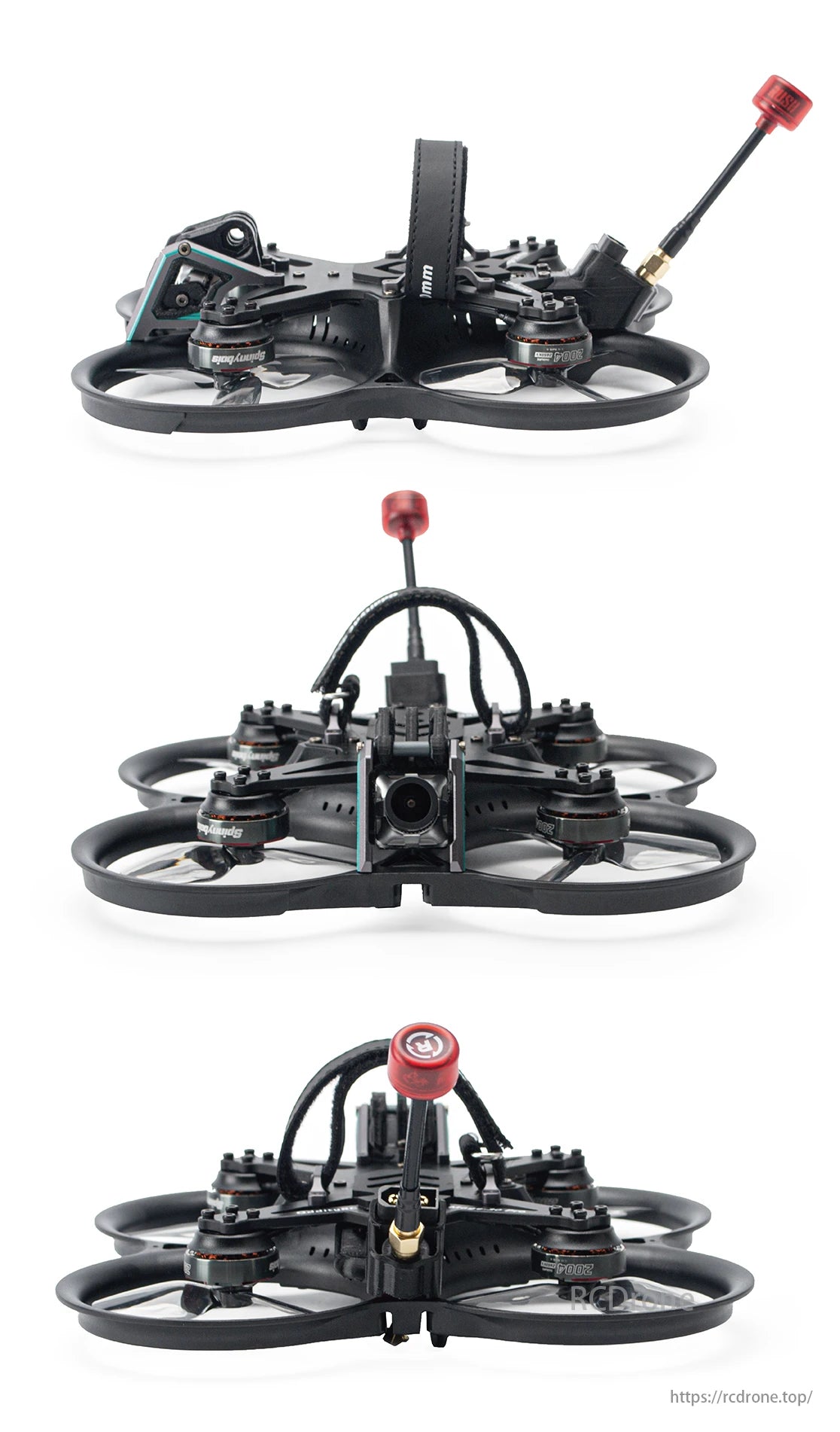

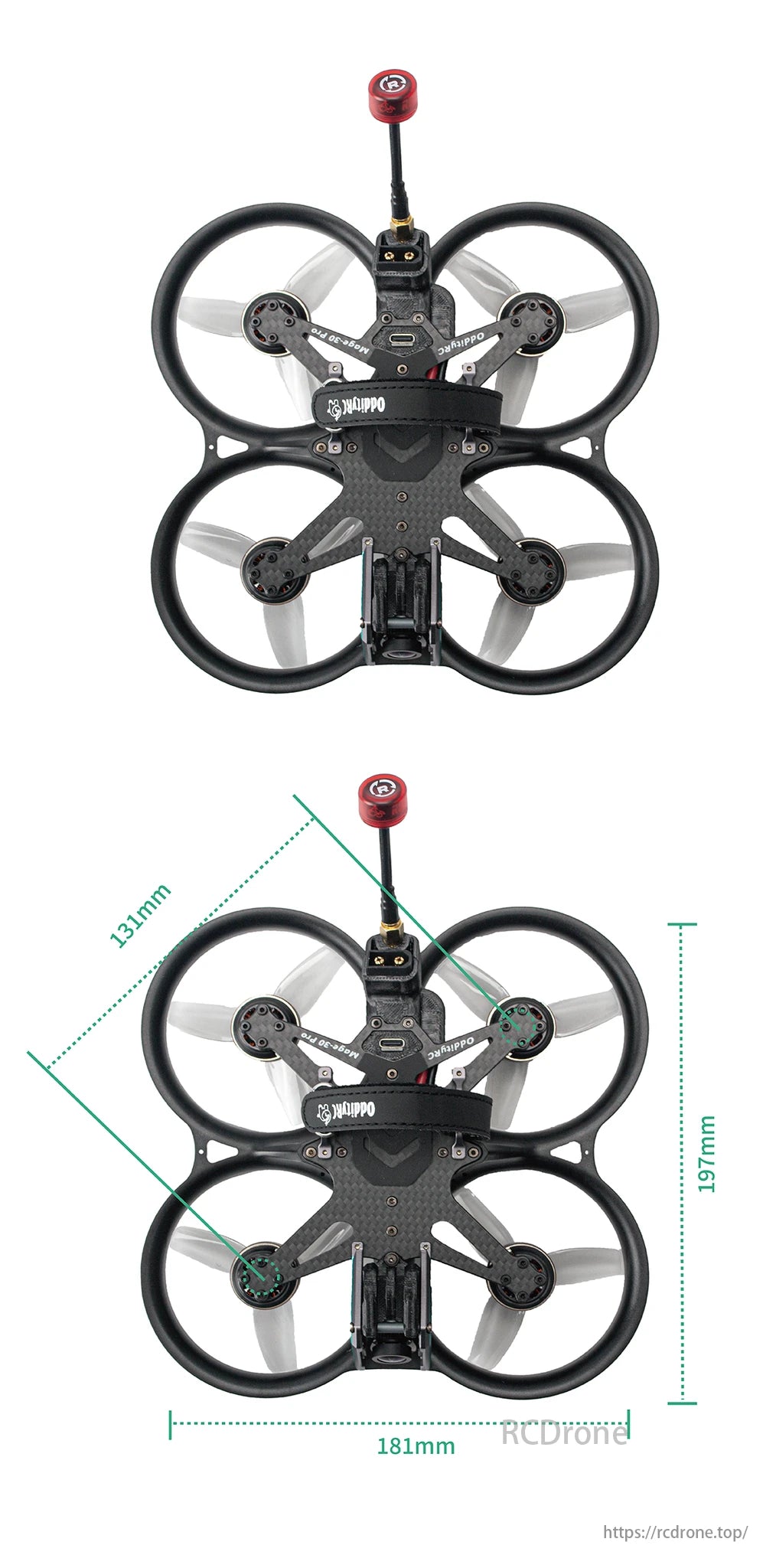

OddityRC Mage Pro Analog 6S 3-Inch Cinewhoop FPV drone with dimensions: 197mm height, 181mm width, 131mm diagonal.
