OddityRC XI20 Pro 2-Inch Analog Cinewhoop FPV Drone 4S with 1W VTX & 5500KV Motors

Overview

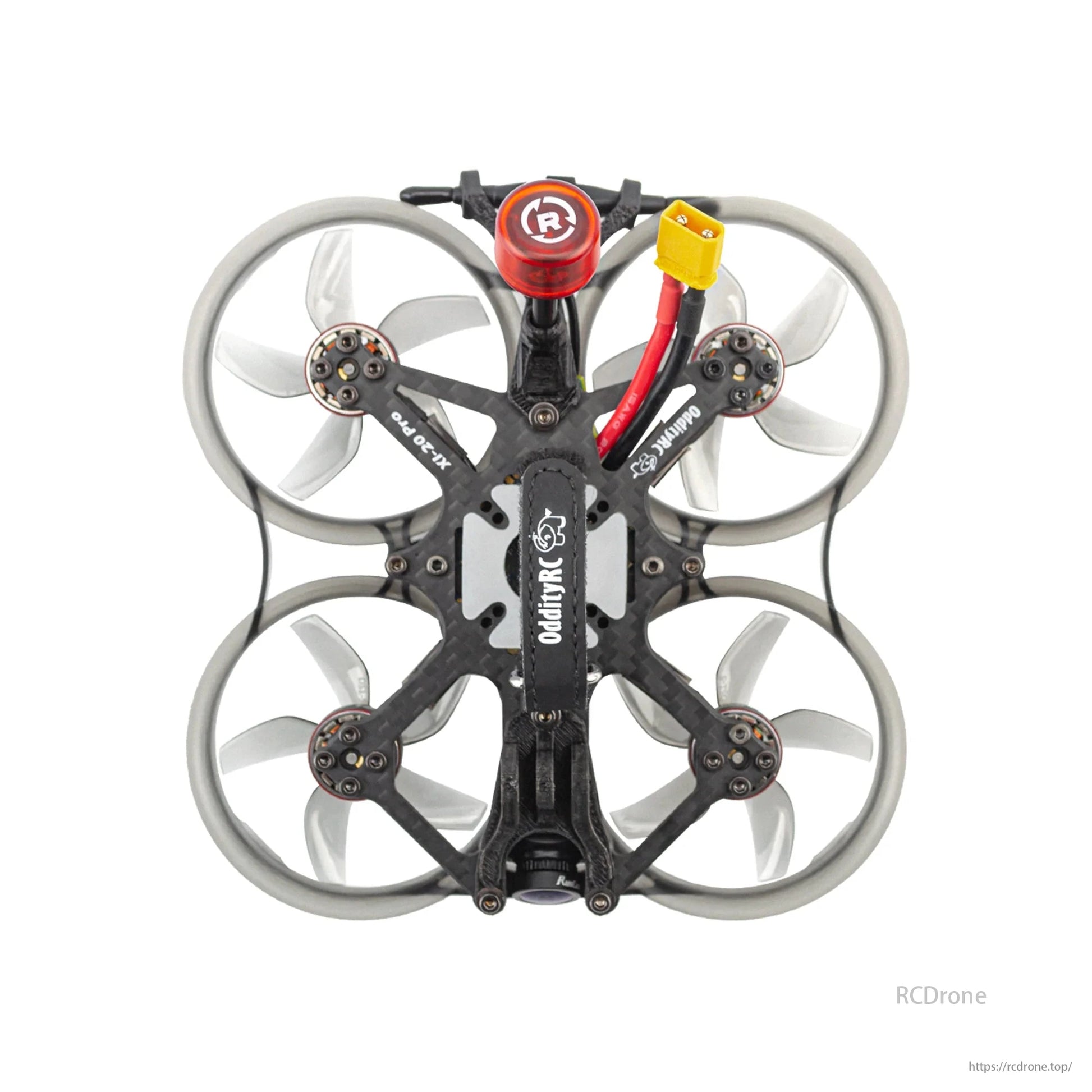

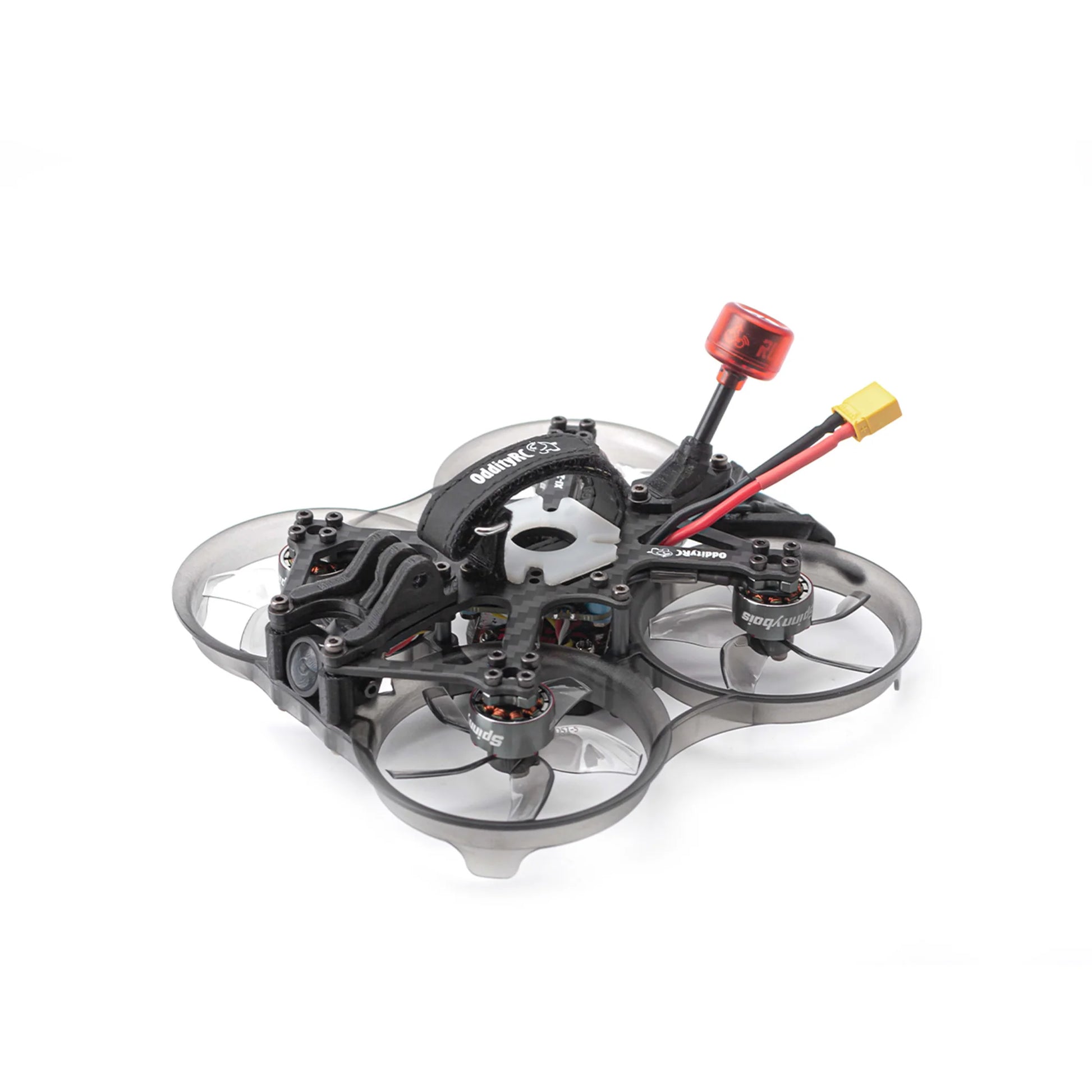

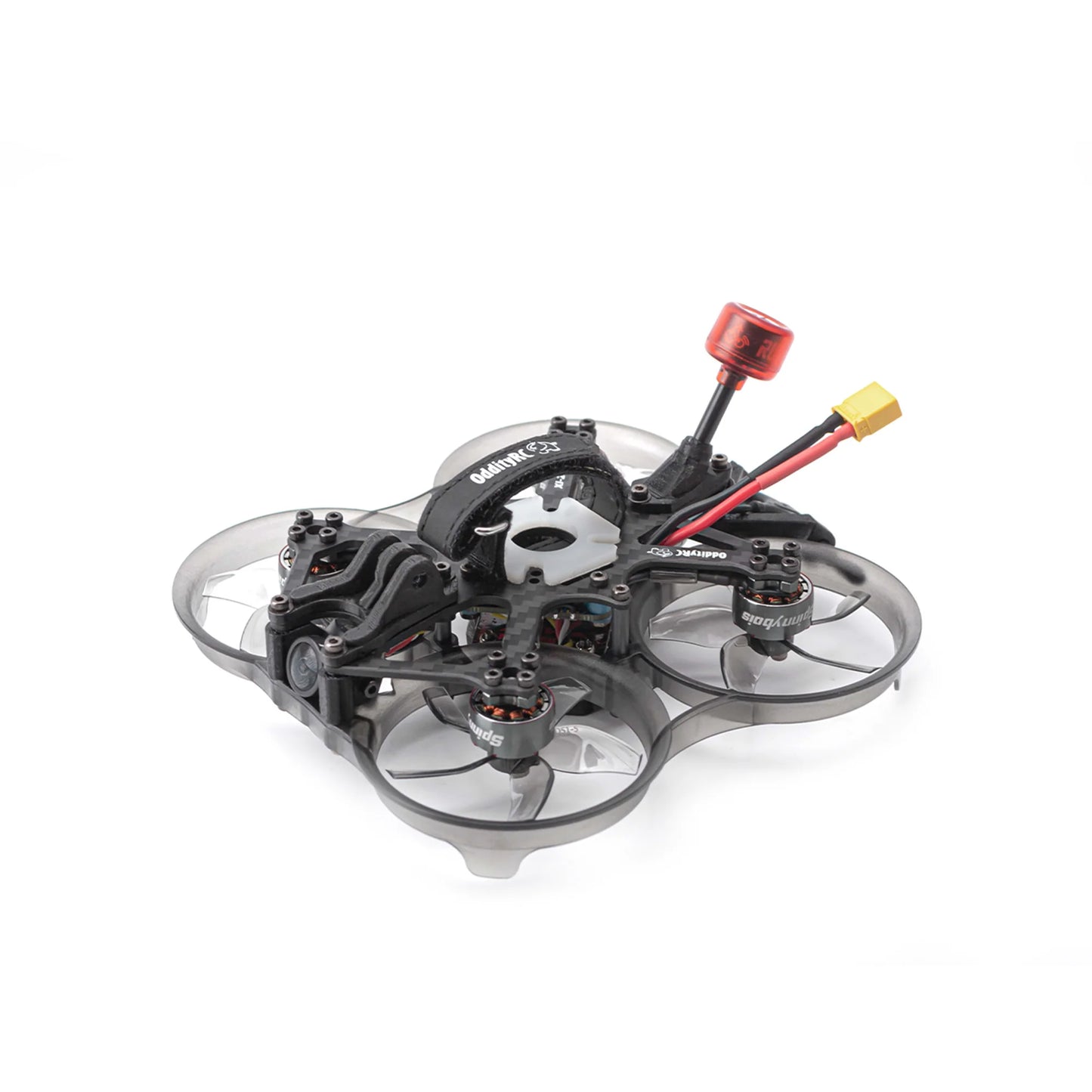

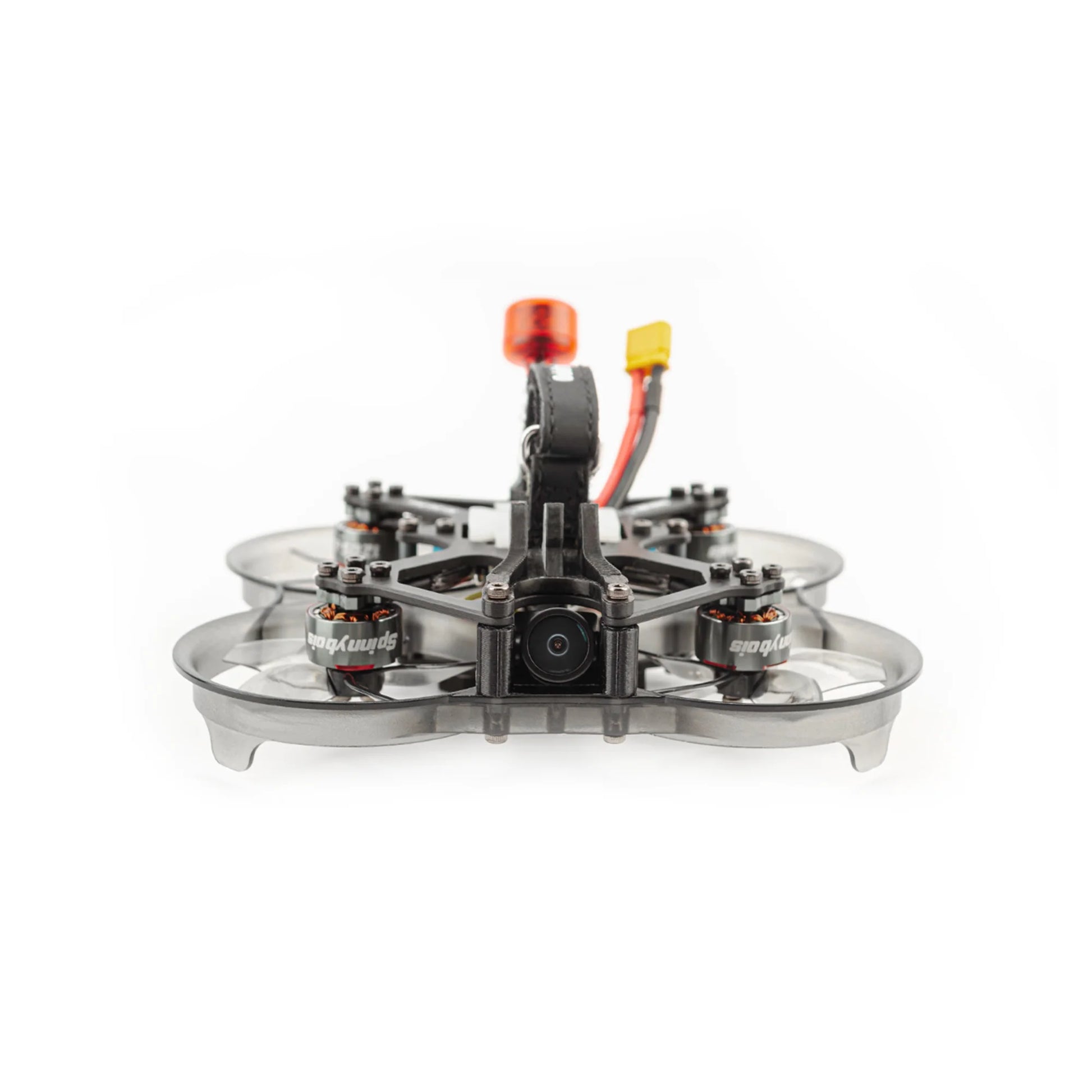

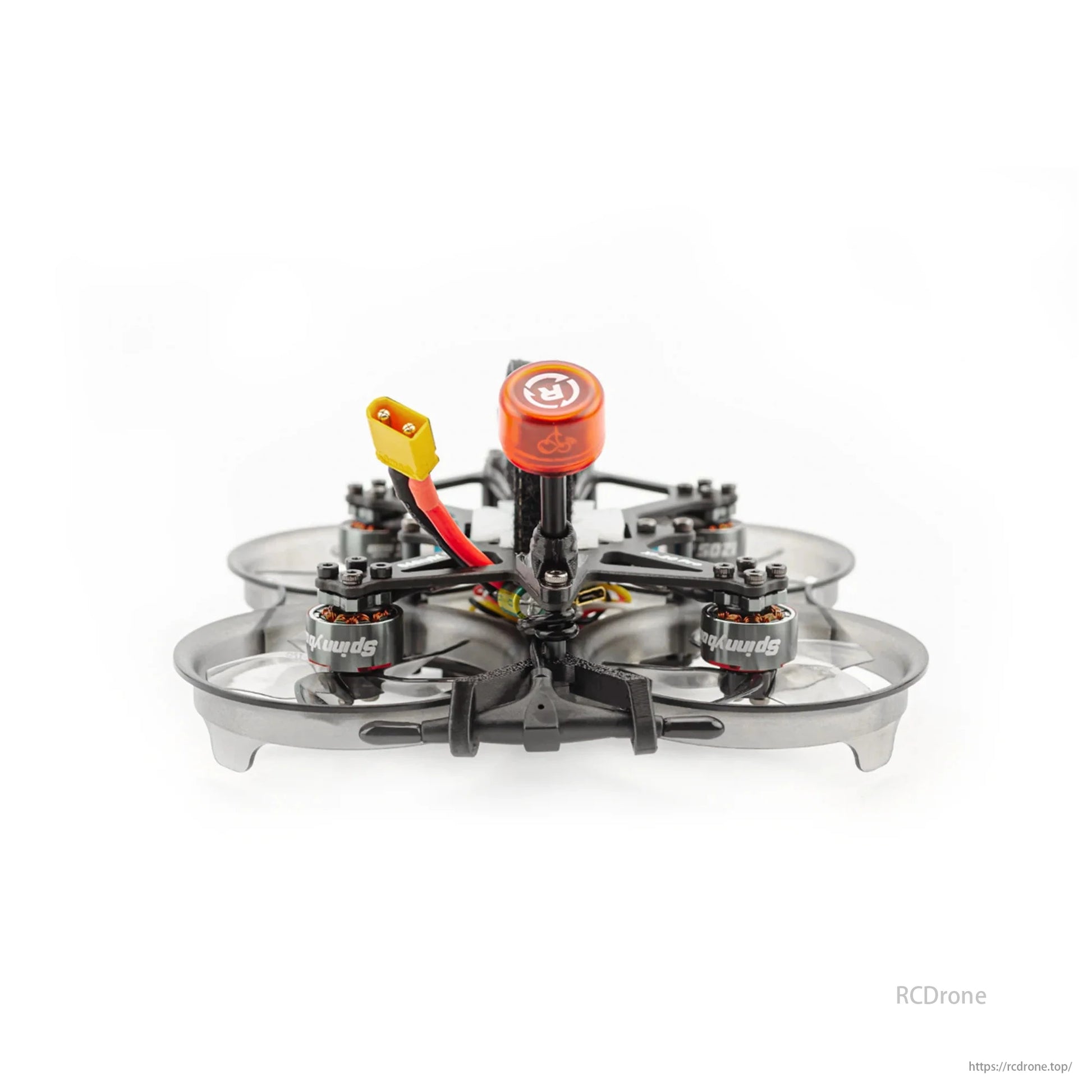

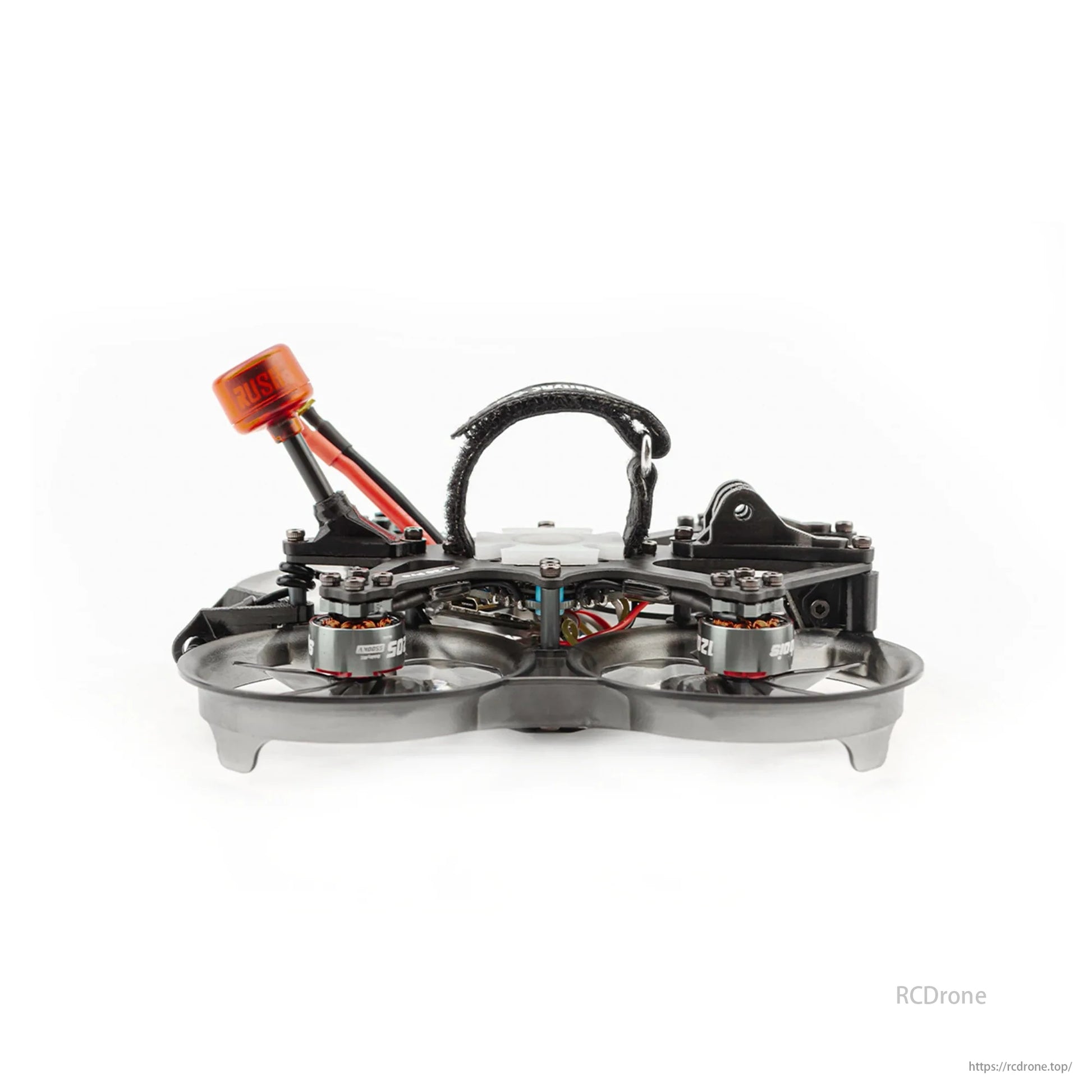

The OddityRC XI20 Pro Analog Version is a compact and powerful 2-inch FPV cinewhoop drone optimized for 4S performance. Built on a 95mm wheelbase with lightweight 113g frame (excluding battery), it offers high maneuverability for tight indoor spaces and agile outdoor flights. Upgraded with Spinnybois 1205 5500KV motors and a JHEMCU F405 40A AIO flight controller, this drone delivers responsive control and reliable power. Designed to carry Insta360 or Naked GoPro, it's ideal for cinematic micro FPV footage.

Specifications

Frame & Dimensions

• Frame: OddityRC XI20 Pro

• Wheelbase: 95mm

• Main Plate: 2mm

• Bottom Plate: 1.5mm

• Dimensions (L × W × H): 103 × 130 × 40mm

• Weight: 113g (without battery)

Electronics & Power System

• Flight Controller: JHEMCU F405 40A AIO (upgraded from HAKRC F411D on Dec 31, 2023)

• Motor: Spinnybois 1205 5500KV

• Propellers: GEMFAN D51-4

Analog FPV System

• VTX: 5.8GHz 1W Analog VTX

• Camera: Runcam Nano 2

• Antenna: Rush Cherry Antenna

Receiver Options

• PNP (no receiver)

• ELRS 2.4GHz

• ELRS 915MHz

• TBS Nano RX

Recommended Battery

• 4S 650mAh ~ 850mAh (Coddar recommended)

Key Features

• Lightweight 2-inch cinewhoop ideal for tight environments and low noise flights

• Spinnybois 1205 motors deliver strong thrust and quick response

• Capable of carrying Insta360 or Naked GoPro for HD video recording

• Includes high-power 1W VTX for extended analog FPV range

• Supports multiple receiver types for flexible setup

Package Includes

• 1 × XI20 Pro FPV Drone (BNF)

• 2 × 2-Inch Cinematic Propeller Sets

• 1 × Spare Screw Kit
