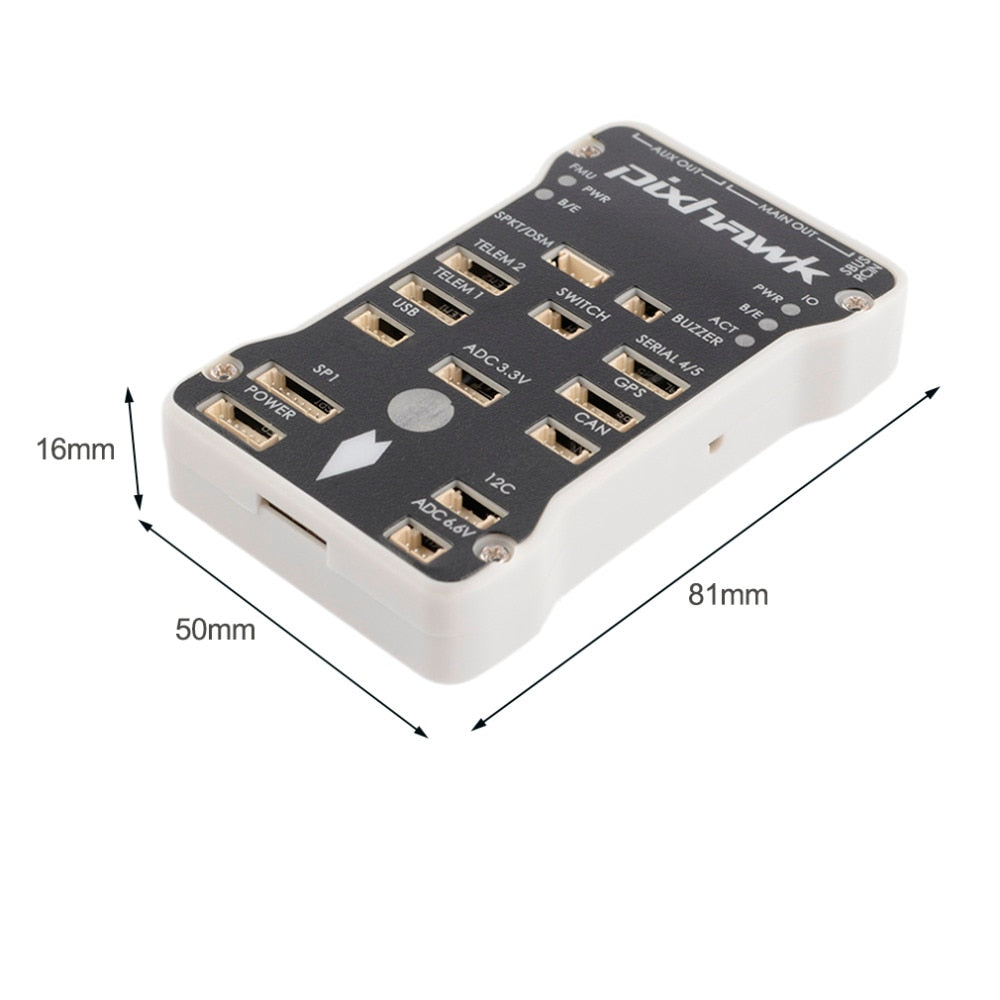

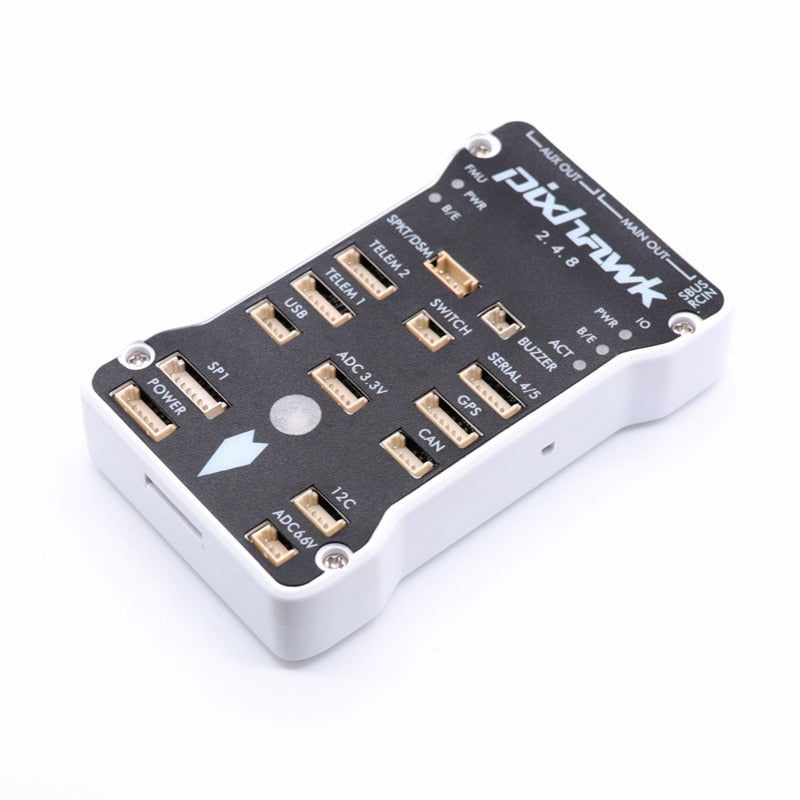

Pixhawk PX4 Autopilot PIX 2.4.8 32Bit Flight Control SPECIFICATIONS

Wireless Communication: Wire Control

Use: Universal

Origin: Mainland China

- The board integrates with PX4FMU+PX4IO
- Pixhawk is with new 32 bit chip and sensor technology

Features:
- Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system;

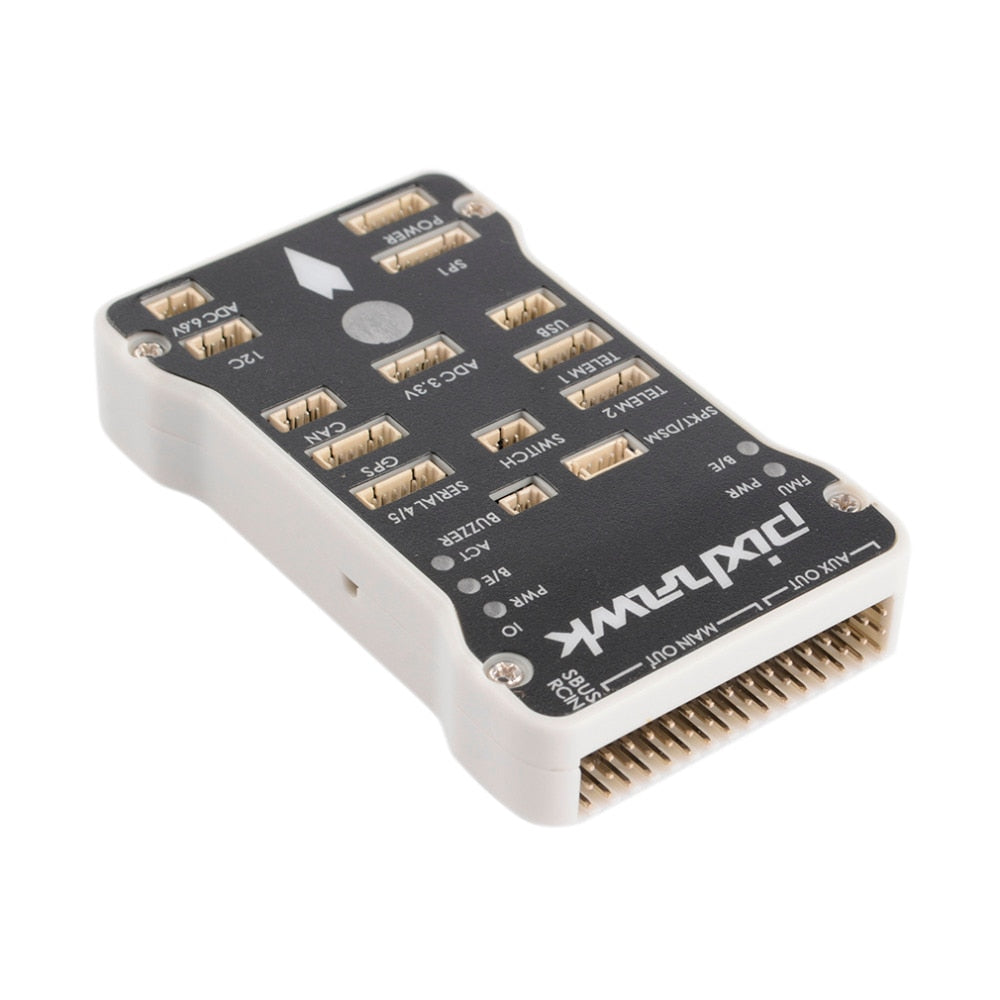

- 14* PWM/ actuator output;
- Bus interface (UART, I2C, SPI, CAN);
- Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control;
- Provide automatic and manual mode;
- Provide redundant power input and fault transfer function;
- Color LED lamp;
- Multi tone buzzer interface;
- Micro SD to record flight data;

Processor:
- 32 bit 2M flash memory STM32F427  Cortex M4, with hardware floating point processing unit
- Main frequency: 256K, 168MHZ RAM
- 32 bit STM32F103 backup co processor

Sensor:
- L3GD20 3 axis digital 16 bit gyroscope
- LSM303D 3 axis  14 bit accelerometer /magnetometer
- MPU6000 6 axis accelerometer / magnetometer
- MS5611 high precision barometer

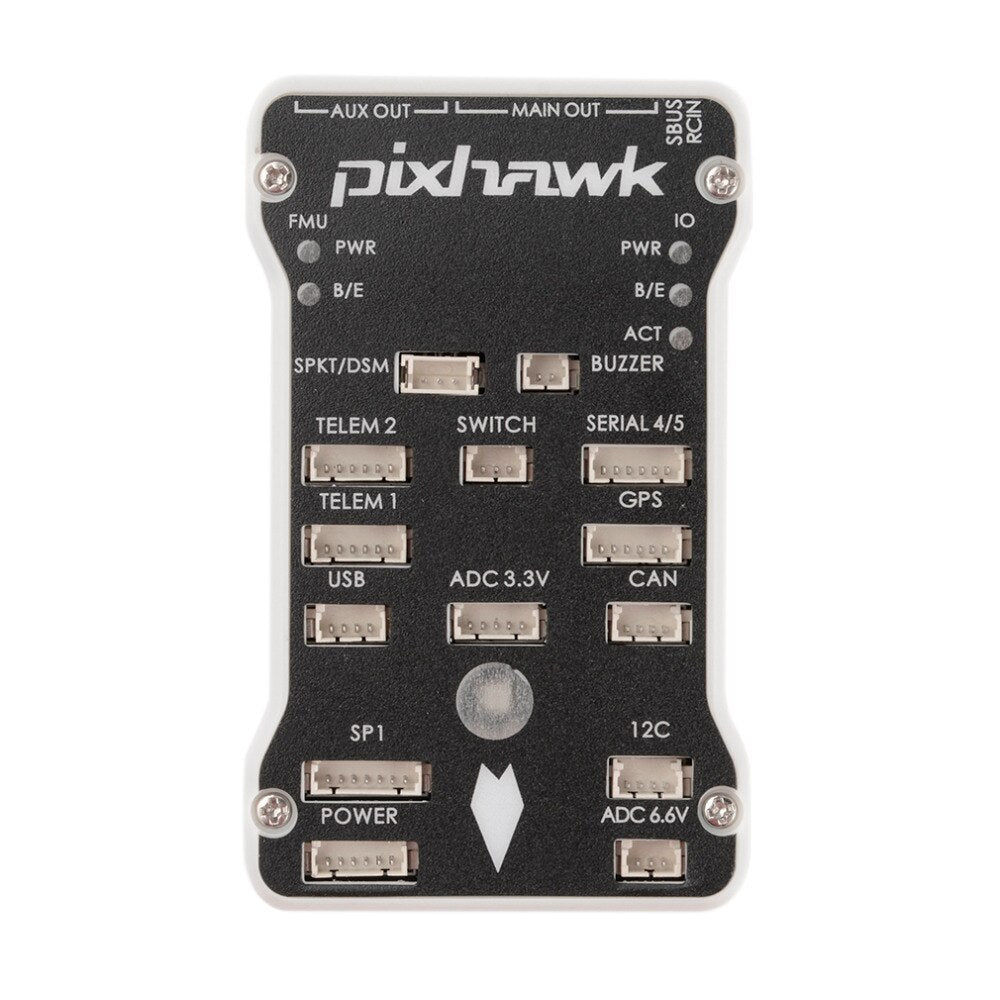

Interface:
- 5* UART, 1*compatible high voltage, 2*hardware flow control
- 2* CAN
- DSM/DSM2/DSM-X satellite receiver compatible input
- Futaba SBUS compatible input and output
- PPM signal input
- RSSI (PWM or voltage) input
- I2C
- SPI
- 3.3 and 6.6VADC input
- External USB MICRO interface

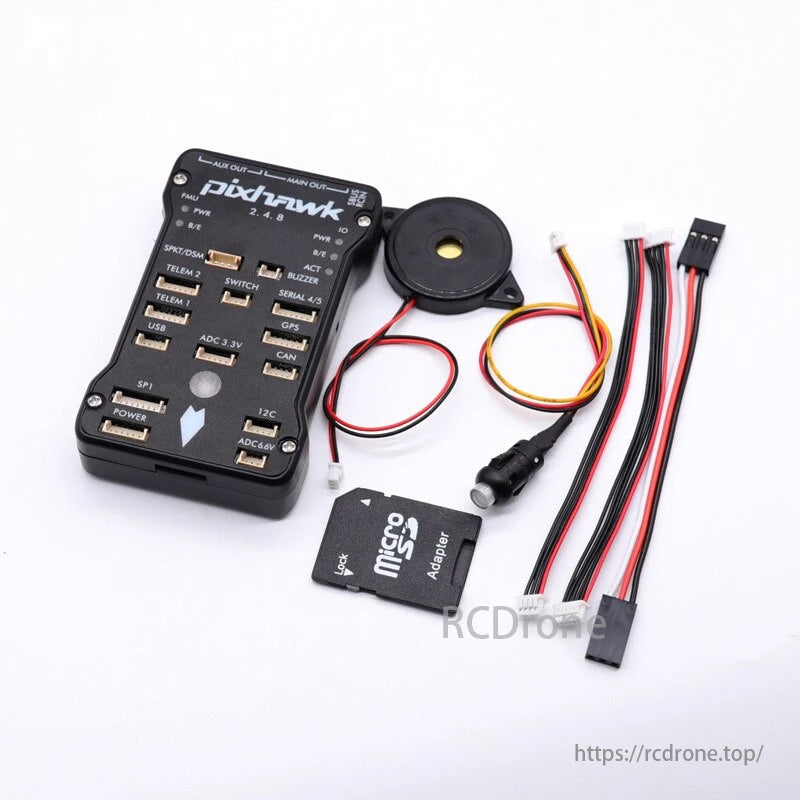

Package included:
1 x 2.4.8 Pixhawk main control
1 x Flight control shell
1 x Safety switch
1 x Buzzer
1 x 6pin to 6pin line
1 x 4Pin to  4Pin line
1 x 3pin DuPont line
1 x 4G SD Card

Gps CwN Mou AAut pidunwk a J SKd Jeltm > switch telu HTELLM Uso AdcJ Jv Tower migce Adgody Adapter .

Pixhawk PX4 Autopilot System for DIY RC Drone Multirotor with 2.4GHz Flight Control, includes PX4FMU and PX4IO Safety Switch Buzzer, compatible with 4G SD Card.

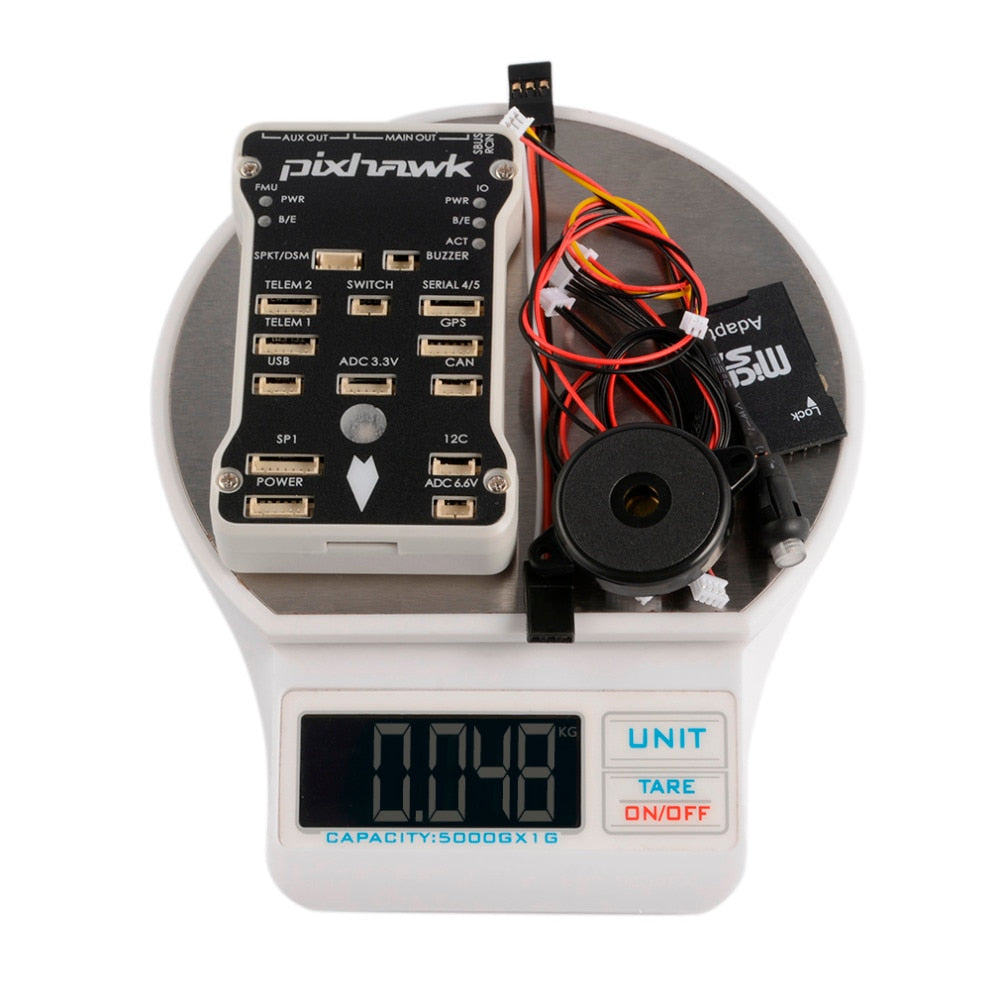

Auxout MANOUT pixdnewk FMU PWR Pwr B/E Bie ACI SPKT/DSM BUZZER TELEM 2 Switch SERIAL 4/5TELEM 1 GPS USB ADC3.Jv CAN 'Sw SPI 12C POWER ADC 66v KG UNIT TARE ONIOFF CAPACiTTsooOGXI G Idepv 4oo
