20W Anti Drone Module - Portable C Band 5725MHz 5850MHz 20W RF Module Power Amplifier For UAV/drone Detection System Signal Anti Drone Device
20W Anti Drone Module - Portable C Band 5725MHz 5850MHz 20W RF Module Power Amplifier For UAV/drone Detection System Signal Anti Drone Device
RCDrone
Couldn't load pickup availability
20W Anti Drone Module SPECIFICATIONS
Brand Name: NoEnName_Null
Origin: Mainland China
DIY Supplies: ELECTRICAL
Type: RF Module
Certification: CE
Certification: RoHS
Model Number: DW-PA-10
Size: 156x70.3x21mm
Style: amplifier module
Output Type: 20W
Frequency: 5725MHz 5850MHz/Customized
DC range of supply voltage:: 24-30v
Gain: 43±1 dB
RF connector: SMA
Power flatness: 1-1.5dB
Working current: 2.5-3A
Supplier Type: OEM/ODM

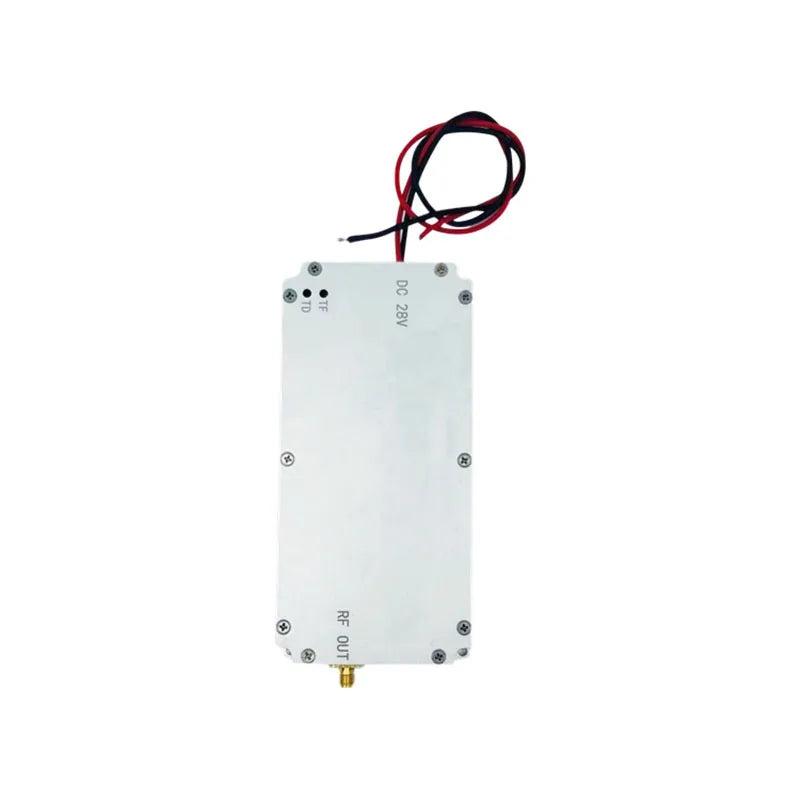

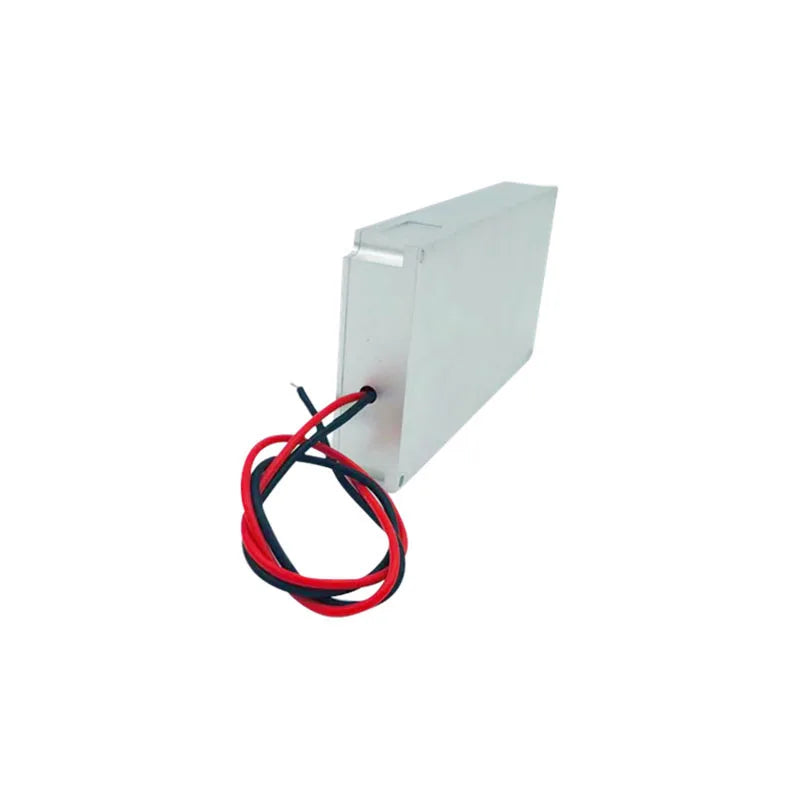

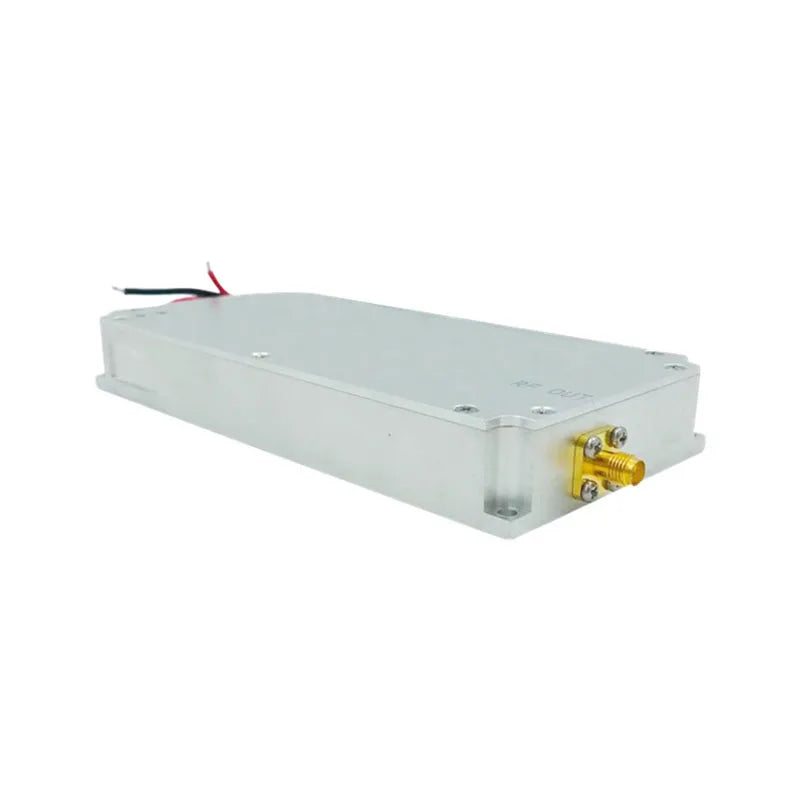

Introducing the Anti Drone Module, Model DW-PA-10: a portable, C-band module that operates within a frequency range of 5725-5850 MHz. This device requires a DC power supply of 27-28V and produces an output power of 20W with a flatness of ±1 dB. The input/output VSWR is 1.5 dB, and the supply current is 2.5-3A. Measuring LWH 156mm x 70.3mm x 21mm, this module features an SMA RF connector, weighs approximately 405g, and operates within a temperature range of -80°C to 80°C.
