SIYI MK32 Enterprise Handheld Ground Station Smart Controller with 7 Inch HD High Brightness LCD Touchscreen

SIYI MK32 Enterprise Handheld Ground Station Smart Controller with 7 Inch HD High Brightness LCD Touchscreen

SIYI

$604.09 USD
$845.73 USD $604.09 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

9 orders in last 90 days

Color
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SIYI MK32 Enterprise Handheld Ground Station SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Remote Control

Tool Supplies: Remote Control

Technical parameters: Value 8

Size: 308 x 148 x 72 mm

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 14+y

RC Parts & Accs: Transmitters

Quantity: 1 pcs

Origin: Mainland China

Model Number: SIYI MK32

Material: nylon

Four-wheel Drive Attributes: Remote Control

For Vehicle Type: Airplanes



Specifications:


Technical

Overall

Model: MK32
Max Transmission Range: 15 kilometers (unobstructed, free of interference)
Channels: 16 physical channels, 16 communication channels
Datalink Compatible Flight Controllers: Pixhawk / APM based flight controllers or any flight controllers with UART datalink output
Image Transmission Compatible Android GCS:
- QGroundControl
- SIYI FPV
Image Transmission Compatible Windows GCS:
- QGroundControl

Ground Station

Monitor: 7-Inch High Definition and High Brightness LCD Touchscreen
System: Android 9.0 OS, 4G RAM & 64G ROM
Dimension (antenna overlapped): 308 x 148 x 72 mm
Weight: 1440 g
Battery Capacity & Type: 10200 mAh 7.4 V 2S Li-ion, 75.48 Wh
Fast Charging Protocol: PD 30W
Charging Time: 3.5 Hours (30W PD Charging)
Battery Life: 10 hours
Interface & Ports:
- Video Output: Standard HDMI
- External Device: USB-A
- MIC Input: Top Audio Port
- Charging: Type-C
- Firmware Upgrade: Type-C
- File Transfer: Type-C / USB-A
- 4G Cellular Network: SIM Card Slot
- External Storage: TF Card Slot / USB-A
- Communication: LAN (Ethernet)
- RC Input / Output: Bottom Audio Port
Waterproof Level: IP4X
Working Temperature: -10 to 50℃

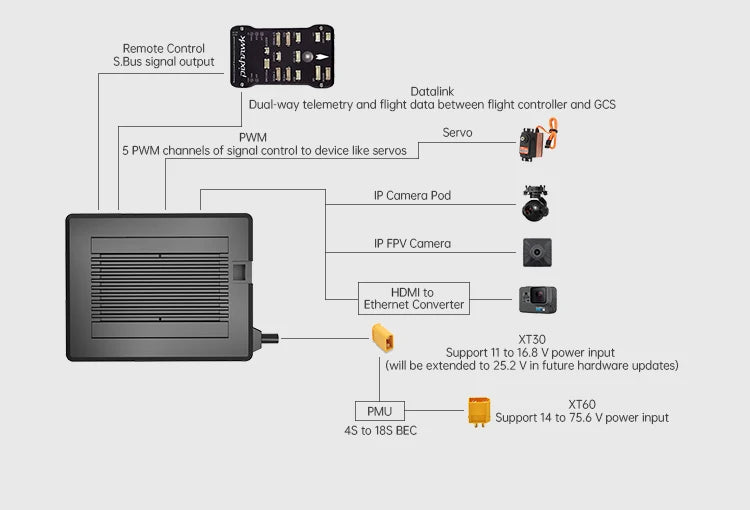

Air Unit
Signal Output: 16 channels of S.BUS, 5 channels of PWM
Interface & Ports:
- SBUS: 3-Pin
- Datalink (to FC): UART 4-Pin
- PWM Channel 1 to 5: 6-Pin
- Video Input: Ethernet 8-Pin
- Firmware Upgrade: Type-C
Dimensions (antenna excluded, fan included): 70 x 55 x 16 mm
Weight (antenna excluded): 74 g
Antenna Gain (standard omni): 5 dBi
Power Input: 11 to 16.8 V (expandable to 4S to 18S with BEC)
Working Temperature: -10 to 50℃

Air Unit HDMI Input Converter
(Optional or Packed with HDMI Combo)

Video Input Port: Mini HDMI
Video Output Port: Ethernet
Working Voltage: 12 V
Power Consumption: 3 W

TF Card Recording Resolution: 1080P (1920*1080) @ 30 fps, 720p (1280 x 720) @ 30 fps

Video Storage Bitrate: 12 Mbps

File Storage Format: FAT32
Video Format: H.265
Supported MicroSD Cards: MicroSD Class10, Max 32GB
Working Temperature: -10 to 50℃

Dimensions: 42 x 41 x 11 mm
Weight: 26 g

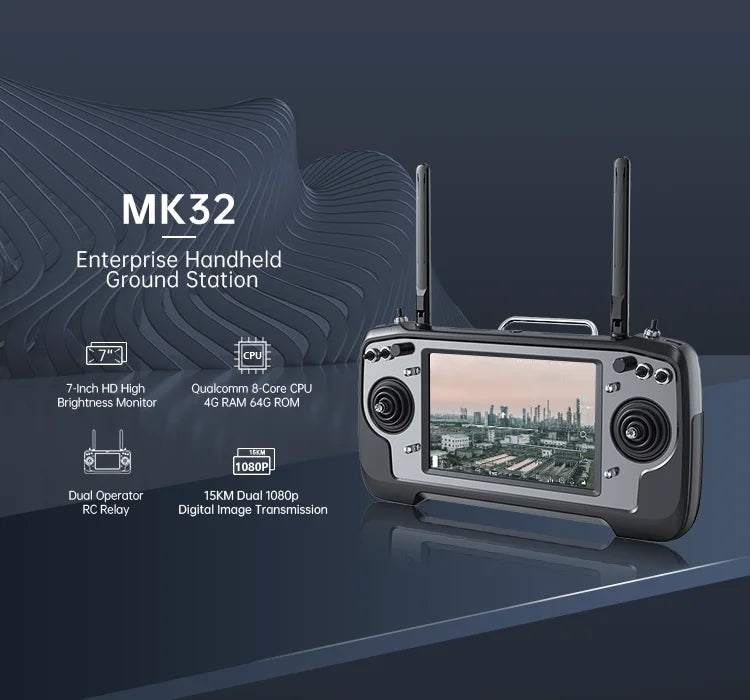

MK32 Enterprise Handheld Ground Station 7-Inch HD High Qualcomm Core CPU Brightness

MK32 Enterprise Handheld Ground Station 7-Inch HD High Qualcomm Core CPU Brightness Monitor 4G RAM 64G ROM 1080P Duol Operator 1SKM Dual 108Op PC Reloy Digital Image

MK32 Enterprise Handheld Ground Station 7-Inch HD High Quakcomm Core

MK32 Enterprise Handheld Ground Station 7-Inch HD High Quakcomm Core CPU Brightness Monitor 4G RAM 64G ROM Duol Operator ISKM Dual 1O8Op RC Reloy Digital Image Transmission .

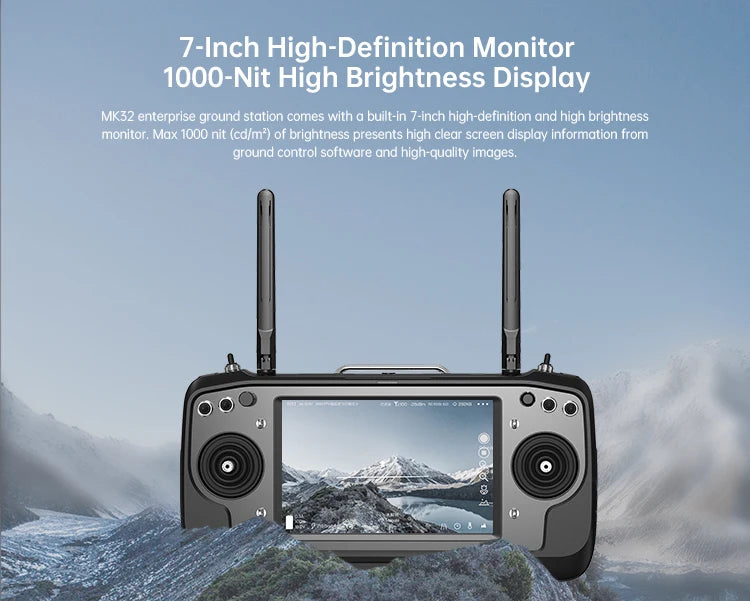

7-inch hlgh-definition and high brightness monltor

built-in 7-inch hlgh-definition and high brightness monltor Max 100O nit (cdlm) of brightness preserts high clear screen display .

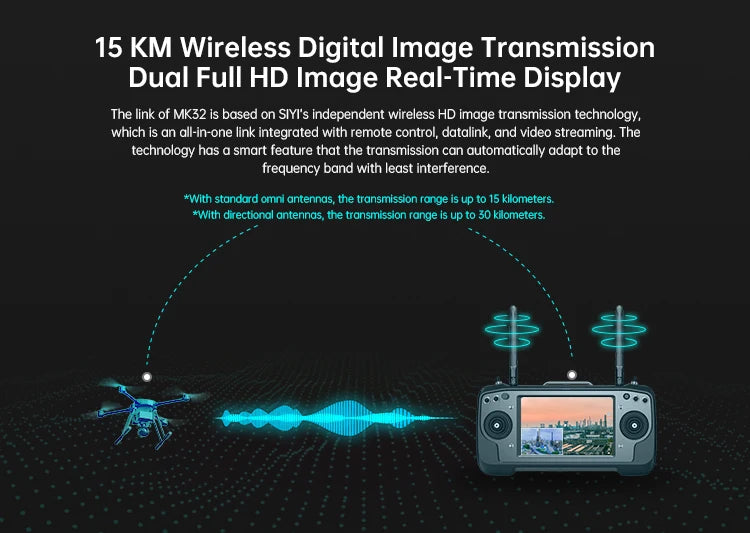

the MK32 is based on SIYI's Independent wireless HD Image transmission technology

the wireless digital image transmission MK32 is based on SIYI's independent wireless HD Image transmission technology . the transmission can automatically adapt to the frequency band wth least interference .

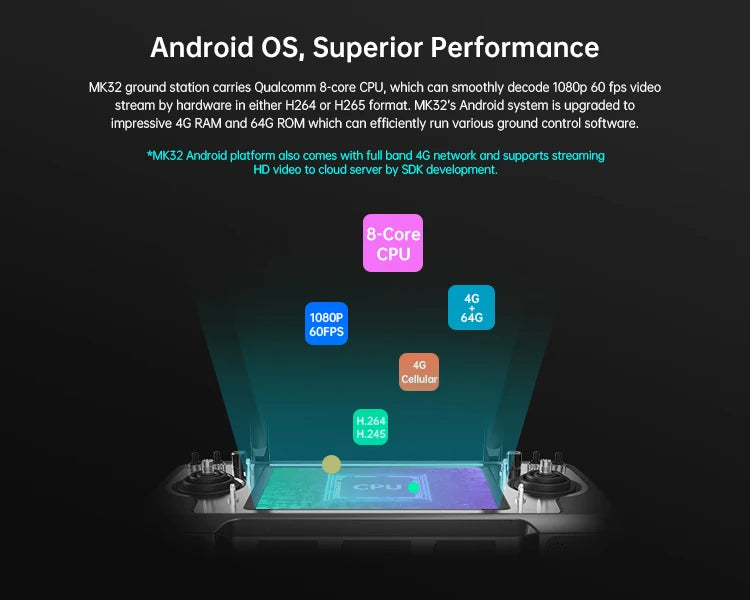

MK32's Android platform comes with full bond 4G network and supports stre

MK32's Android system carries Qualcomm core which can smoothly decode 108Op 60 fps video streom by hardware In elther H264 or H265 format .

dual operator featurc makes it possible that two ground stations can control the same air unit

dual operator featurc makes it possible that two ground stations can control the same air unit . remote control relay feature designed for very long-range flight . feature can be widely used for UAV inspection and surveillance, UAV remote delivery .

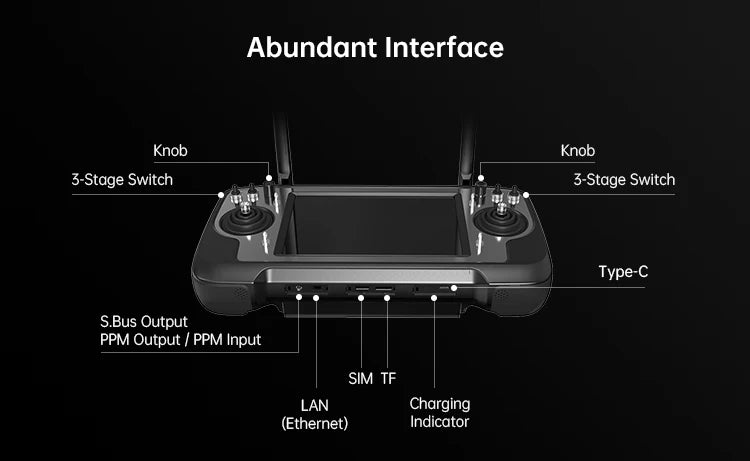

Abundant Interface Knob Knob 3-Stage Switch Type-C SBus Output

Abundant Interface Knob Knob 3-Stage Switch Type-C SBus Output PPM Input SIM TF LAN Charging (Ethernet)

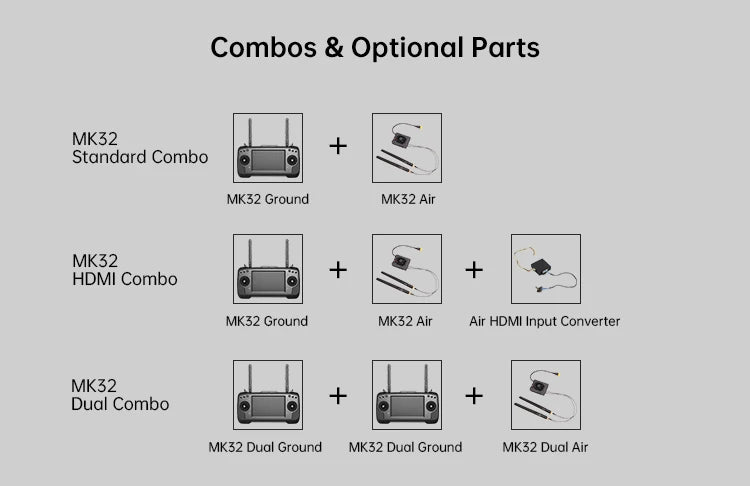

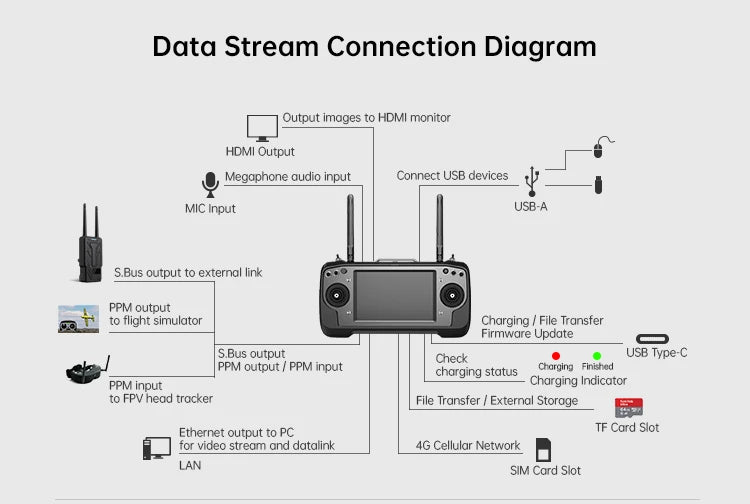

3-Stage Switch MIC Input USB HDMI Button Button Centering Dial CenterMIC Input USB-A SBus output to externol link PPM output SIYI MK32 Enterprise HandheldCombos & Optional Parts Mk32 Standard Combo MK32 GroundSIYI MK32 Enterprise Handheld
