SIYI MK32 Enterprise Handheld Ground Station SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Tool Supplies: Assembled class

Technical parameters: Value 8

Size: 10*10*10

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 14+y

RC Parts & Accs: Transmitters

Origin: Mainland China

Model Number: SIYI MK32

Material: nylon

For Vehicle Type: Airplanes

Certification: CE

Overall

Model: MK32
Max Transmission Range: 15 kilometers (unobstructed, free of interference)
Channels: 16 physical channels, 16 communication channels
Datalink Compatible Flight Controllers: Pixhawk / APM based flight controllers or any flight controllers with UART datalink output
Image Transmission Compatible Android GCS:
- QGroundControl
- SIYI FPV
Image Transmission Compatible Windows GCS:
- QGroundControl

Ground Station

Monitor: 7-Inch High Definition and High Brightness LCD Touchscreen
System: Android 9.0 OS, 4G RAM & 64G ROM
Dimension (antenna overlapped): 308 x 148 x 72 mm
Weight: 1440 g
Battery Capacity & Type: 10200 mAh 7.4 V 2S Li-ion, 75.48 Wh
Fast Charging Protocol: PD 30W
Charging Time: 3.5 Hours (30W PD Charging)
Battery Life: 10 hours
Interface & Ports:
- Video Output:  Standard HDMI
- External Device: USB-A
- MIC Input: Top Audio Port
- Charging: Type-C
- Firmware Upgrade: Type-C
- File Transfer: Type-C / USB-A
- 4G Cellular Network: SIM Card Slot
- External Storage: TF Card Slot / USB-A
- Communication: LAN (Ethernet)
- RC Input / Output: Bottom Audio Port
Waterproof Level: IP4X
Working Temperature: -10 to 50℃

Air Unit
Signal Output: 16 channels of S.BUS, 5 channels of PWM
Interface & Ports:
- SBUS: 3-Pin
- Datalink (to FC): UART 4-Pin
- PWM Channel 1 to 5: 6-Pin
- Video Input: Ethernet 8-Pin
- Firmware Upgrade: Type-C
Dimensions (antenna excluded, fan included): 70 x 55 x 16 mm
Weight (antenna excluded): 74 g
Antenna Gain (standard omni): 5 dBi
Power Input: 11 to 16.8 V (expandable to 4S to 18S with BEC)
Working Temperature: -10 to 50℃

Air Unit HDMI Input Converter
(Optional or Packed with HDMI Combo)

Video Input Port: Mini HDMI
Video Output Port: Ethernet
Working Voltage: 12 V
Power Consumption: 3 W

TF Card Recording Resolution: 1080P (1920*1080) @ 30 fps, 720p (1280 x 720) @ 30 fps

Video Storage Bitrate: 12 Mbps

File Storage Format: FAT32
Video Format: H.265
Supported MicroSD Cards: MicroSD Class10, Max 32GB
Working Temperature: -10 to 50℃

Dimensions: 42 x 41 x 11 mm
Weight: 26 g

MK32 Enterprise Handheld Ground Station 7-Inch HD High Quakcomm Core CPU Brightness Monitor 4G RAM 64G ROM Duol Operator ISKM Dual 1O8Op RC Reloy Digital Image Transmission .

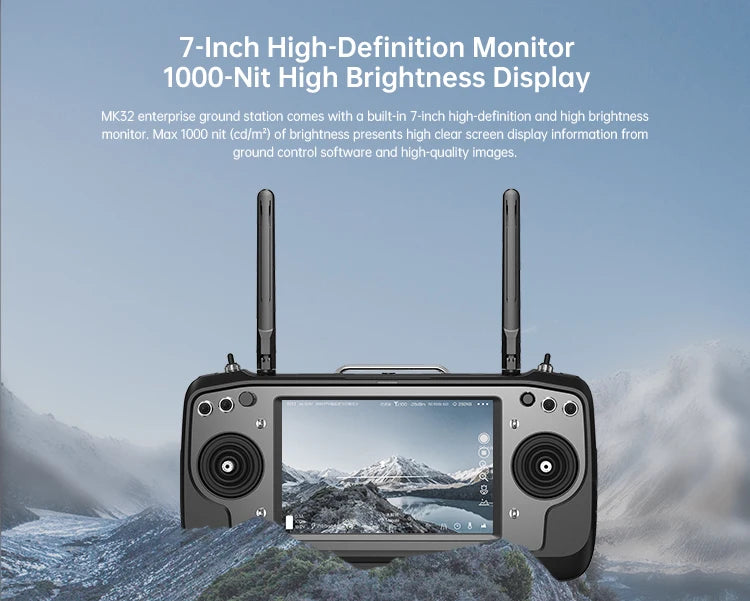

Featuring a built-in 7-inch high-definition and high-brightness monitor with up to 1000 nits (cd/m2) of brightness, it preserves a crisp and clear screen display.

The MK32 Enterprise Handheld Ground Station Smart Controller features wireless digital image transmission capabilities, utilizing SIYI's proprietary wireless High-Definition (HD) image transmission technology. This transmission method is designed to automatically adapt to the frequency band with the least interference, ensuring reliable and efficient communication.

The MK32 features an Android-based system powered by a Qualcomm processor, enabling smooth decoding of high-definition 1080p (60fps) video streams in both H.264 and H.265 formats.

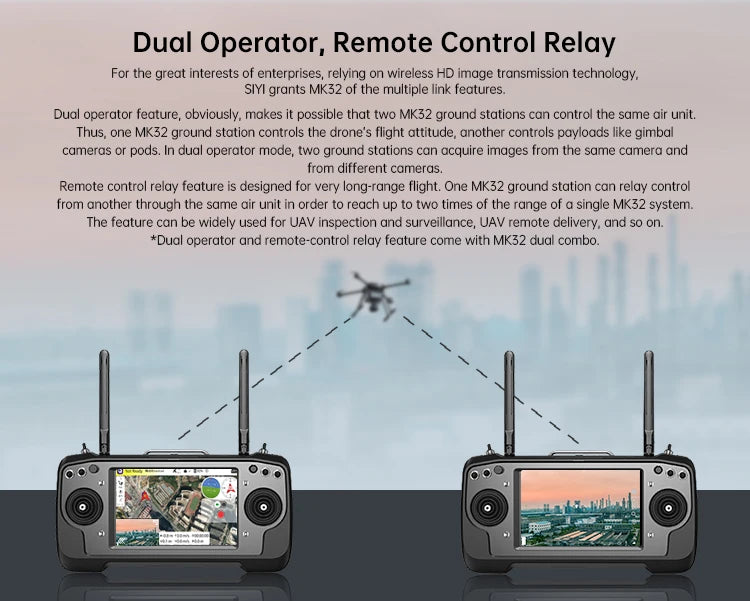

With its dual operator feature, this handheld ground station controller enables two operators to simultaneously control the same aerial unit. The remote control relay function allows for long-range flight operations and can be applied in various applications such as UAV inspection and surveillance, as well as remote delivery services.

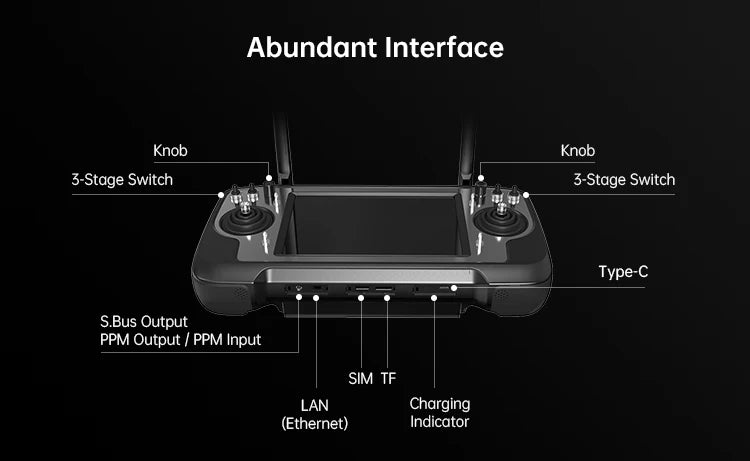

This device features an abundant array of interfaces, including a knob-based controller, a three-stage switch, output options for S-Bus and PPM, input capabilities for SIM and TF cards, as well as Ethernet connectivity via LAN charging.

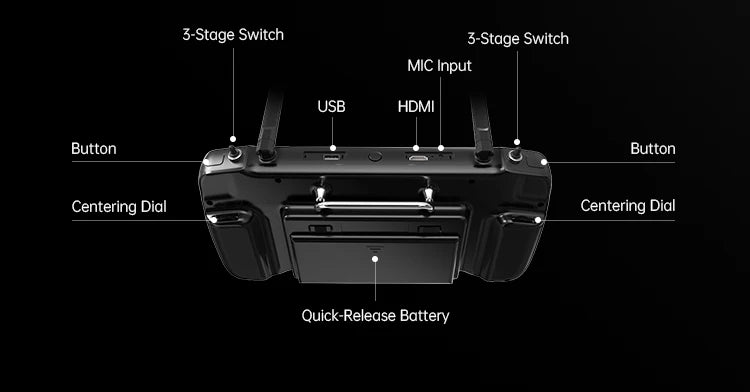

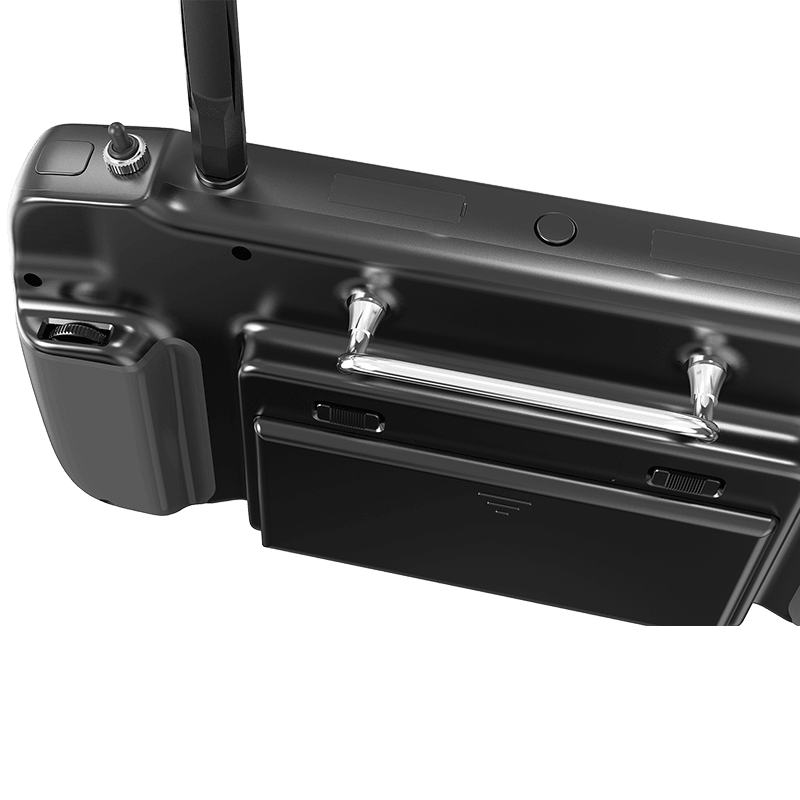

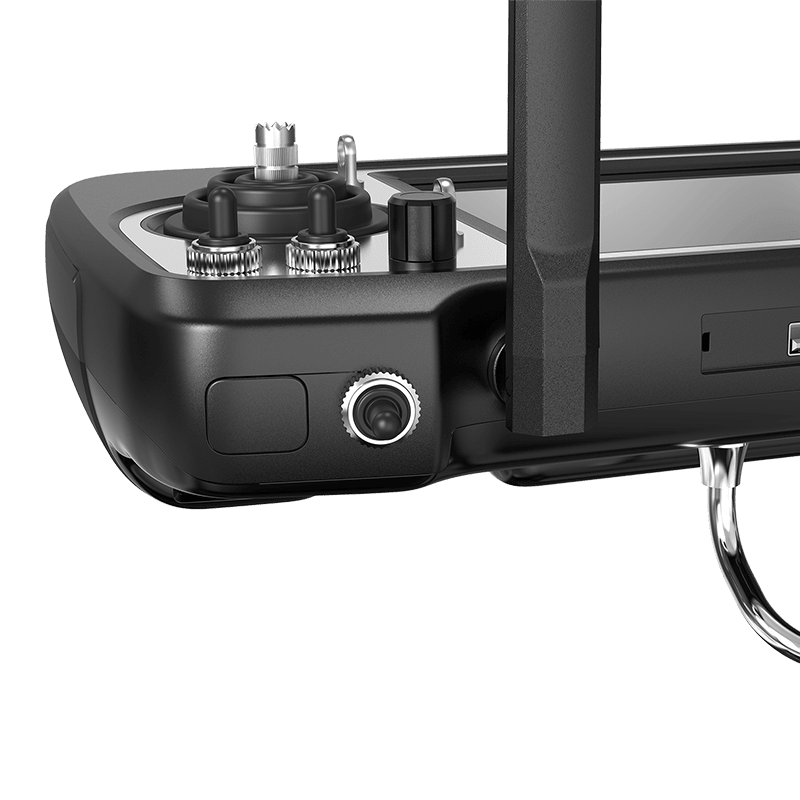

This handheld ground station smart controller features a 3-stage switch, microphone input, USB connectivity, HDMI output, and a range of buttons, including a centering dial and quick-release battery compartment.

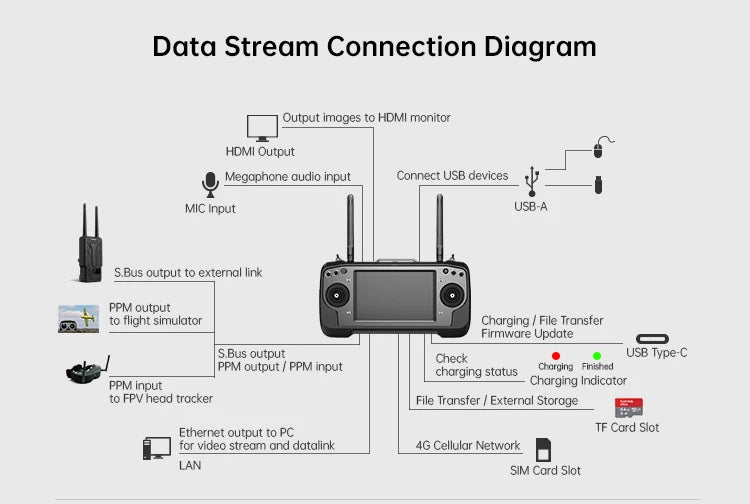

The SIYI MK32 Enterprise Handheld Ground Station Smart Controller features various input/output ports, including MIC input via USB-A, S-Bus output for external links, PPM output for light simulation, and charging capabilities. The device also supports firmware updates, has 5 bus outputs, and includes a check function for the USB type. Additionally, it has PPM output, FPM input, and a charging indicator that displays the charging status. Furthermore, the controller can be connected to an FPV network using a tracker file, and allows for file transfer via external storage or Ethernet output to a PC. The device also features a selection slot for video stream and datalink settings, as well as a cellular network/LAN SIM card slot.

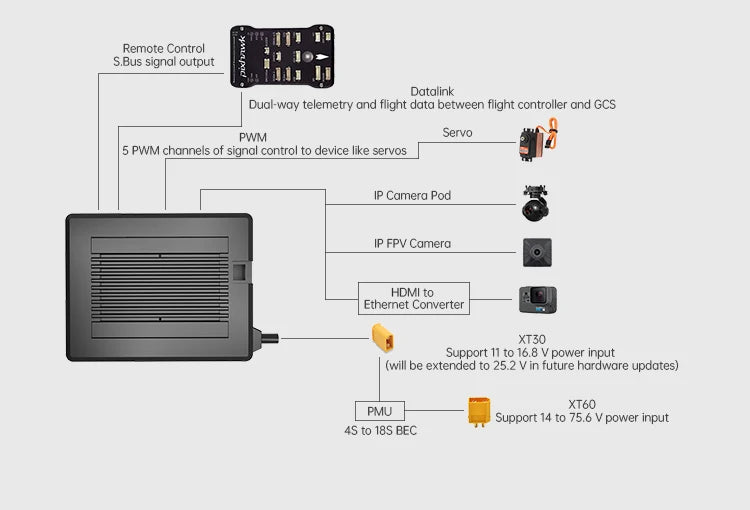

The SIYI MK32 enterprise handheld ground station features a smart controller with a 7-inch HD high-brightness LCD touchscreen, offering control over various devices such as servos, cameras, and HDMI-to-Ethernet converters, including support for up to 16 channels. The device also supports power inputs of 11V to 25.2V (expandable to 25.2V through future firmware updates) from the XT6o PMU, with a built-in BEC providing a stable output voltage of 45V to 185V.

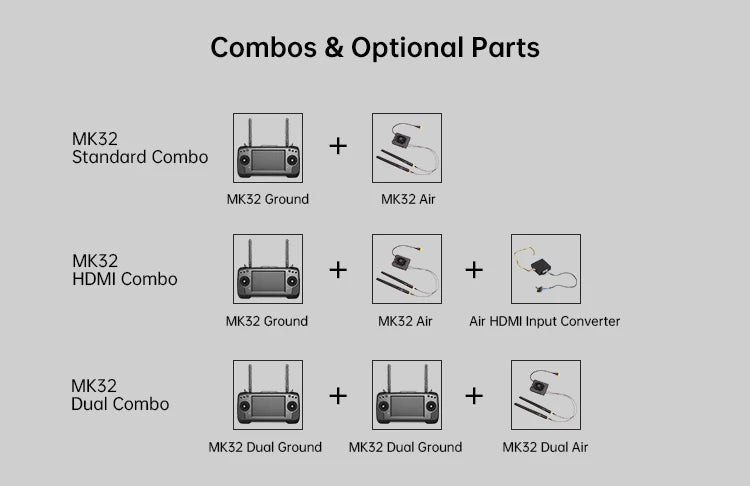

The SIYI MK32 Enterprise Handheld Ground Station Smart Controller features several optional parts, including combos such as the MK32 Standard Combo, MK33 Ground, MK34 Air, MK38 Air with HDMI Input Converter, and dual combos like the MK37 Dual Ground and MK36 Dual Ground.

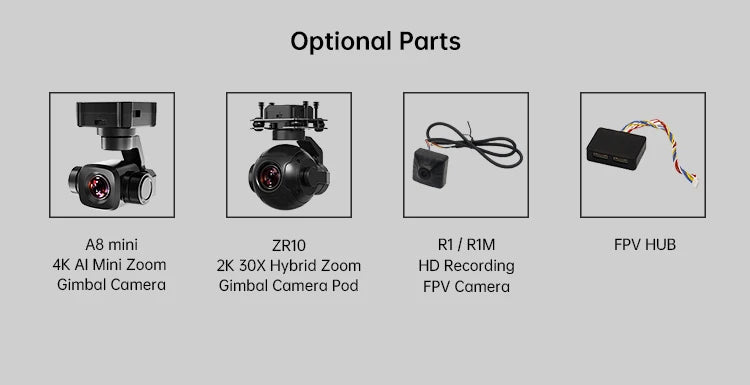

Additional components include the A8 mini ZRIO RIM FPV hub, featuring a 4K miniature zoom camera with 2K resolution and a 30x hybrid zoom capability for high-definition recording and stabilization.
