Products RCGF STINGER ENGINE SPECIFICATIONS
Wheelbase: Screws
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Adapter
Tool Supplies: Assembled class
Technical parameters: Value 8
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Engines
Origin: Mainland China
Model Number: RCGF STINGER 40CC TWIN
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes

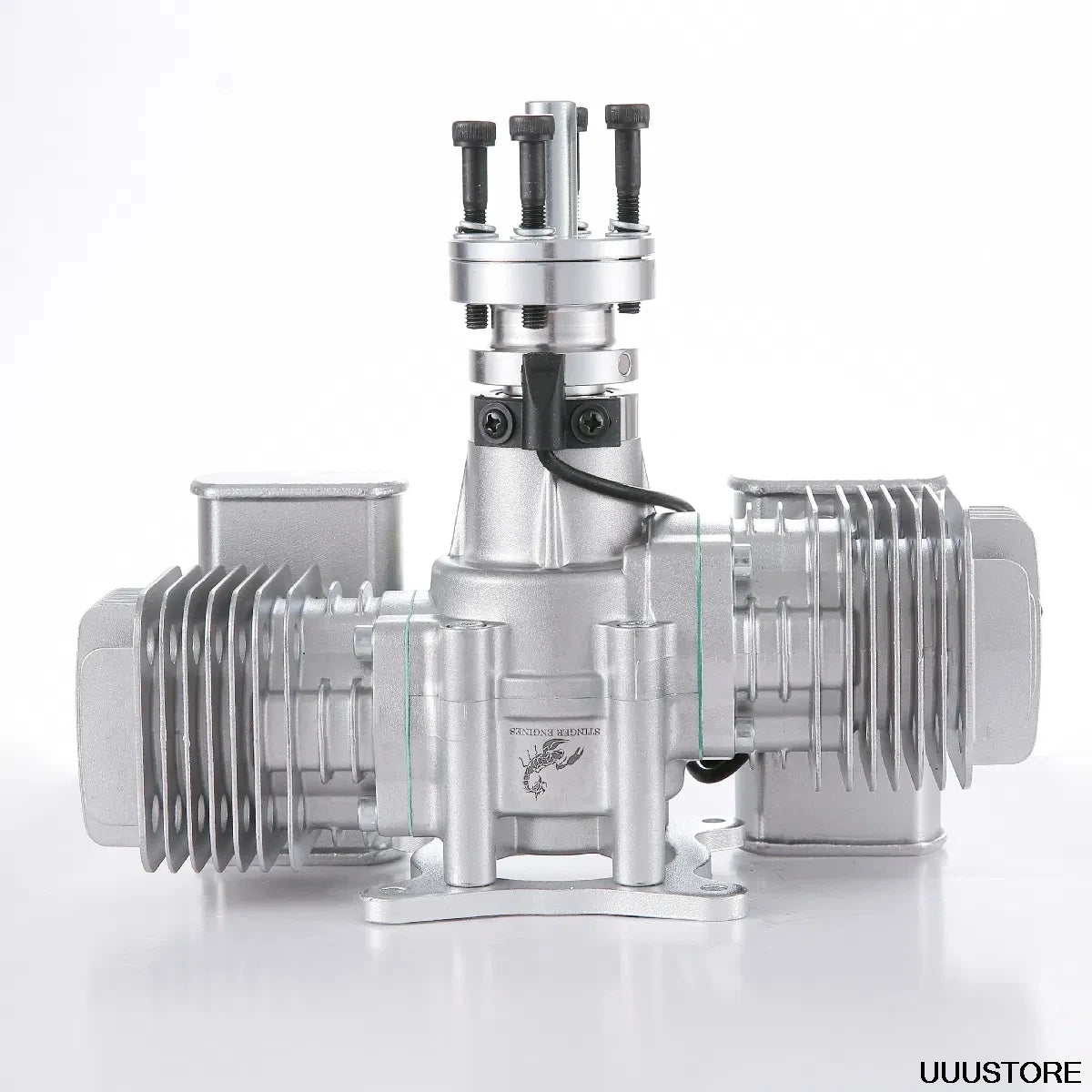

RCGF STINGER 40CC TWIN 2 cycle piston valve type gasoline engine Support 1908 1910 2008 2010 for FPV RC UAV Airplane Fixed-Wing
Type | 2 cycle piston valve type gasoline engine for airplane |
---|---|
Displacement (cc) | 40cc(2.44 cu.in) |
Bore x Stroke (mm) | 1.26 in(32mm) x 1.02 in (26mm) |
Recommended props | 19×8, 19×10, 20×8 & 20×10 |
Maximum Output | 4.6HP/8600rmp |
Power supply | 7.4V-14V |
- Carburetor : Walbro
- Ignition : Stinger DC-CDI (Computer Controlled auto advance, electronic ignition system)
- SPARK PLUG: M8(1/4-32)
- Requires: Gasoline, 2-cycle oil, ignition battery & propeller
- speed rang : 1500-8600rpm
- Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 (recommended : 30:1)
- Lubrication Oil : High quality fully synthetic 2 cylinder oil such as Motul 800 2T 100% synthetic racing motro oil , Red line two-stroke racing motor oil , Stihl Ultra high performance 2 cycle fully synthetic engine oil etc .
- Break in Propeller : 19X8 (Standard Two leafs prop)
- Cooling System : Air Cooled
- RCGF Stinger Engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.
Weight:
- Engine: 2.32 lb (1052g)
- 2XMuffler: 4.45 oz (126 g)
- Ignition Module: 5.1 oz (145 g)
- Total: Weight: 2.92 lb (1323 g)
Technical Data:
- Ignition Battery: 7.4V-14VNiCd or NiMH, 7.4V LiFe or 2S LiPo pack
- Gasoline/Oil Mix: 30:1
- Replacement Spark Plug: M8 1/4-32 or equivalent
- Idle Speed: 1500 rpm/min
Package:
1 x RCGF Stinger 40cc TWIN
![RCGF STINGER 40CC TWIN 2 cycle piston valve type gasoline engine Support 1908 1910 2008 2010 for FPV RC UAV Airplane Fixed-Wing - RCDrone](http://rcdrone.top/cdn/shop/products/H7036877c34f748e4b55564c67f181f6ay.jpg?v=1684076872&width=1445)
![RCGF STINGER 40CC TWIN 2 cycle piston valve type gasoline engine Support 1908 1910 2008 2010 for FPV RC UAV Airplane Fixed-Wing - RCDrone](http://rcdrone.top/cdn/shop/products/H536c24d106424ef09f4f2ea5591bea00h.jpg?v=1684076874&width=1445)
![RCGF STINGER 40CC TWIN 2 cycle piston valve type gasoline engine Support 1908 1910 2008 2010 for FPV RC UAV Airplane Fixed-Wing - RCDrone](http://rcdrone.top/cdn/shop/products/Hf4a017a376364d7692c1cbebf30293a1j.jpg?v=1684076876&width=1445)
![RCGF STINGER 40CC TWIN 2 cycle piston valve type gasoline engine Support 1908 1910 2008 2010 for FPV RC UAV Airplane Fixed-Wing - RCDrone](http://rcdrone.top/cdn/shop/products/H8589b4ea78e94cf99f46b586dc5e4f262.jpg?v=1684076877&width=1445)
![RCGF STINGER 40CC TWIN 2 cycle piston valve type gasoline engine Support 1908 1910 2008 2010 for FPV RC UAV Airplane Fixed-Wing - RCDrone](http://rcdrone.top/cdn/shop/products/H588b6d8b2eeb4d728117f2c40b6fce3d7.jpg?v=1684076879&width=1445)
