SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Tool Supplies: Cutting
Technical parameters: Value 3
Size: 3inch
Remote Control Peripherals/Devices: Remote Controller
RC Parts & Accs: Propellers
Plastic Type: PC
Origin: Mainland China
Model Number: Four-axis Aircraft Paddle Protection Ring
Material: Plastic
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Brand Name: Readytosky
Feature:

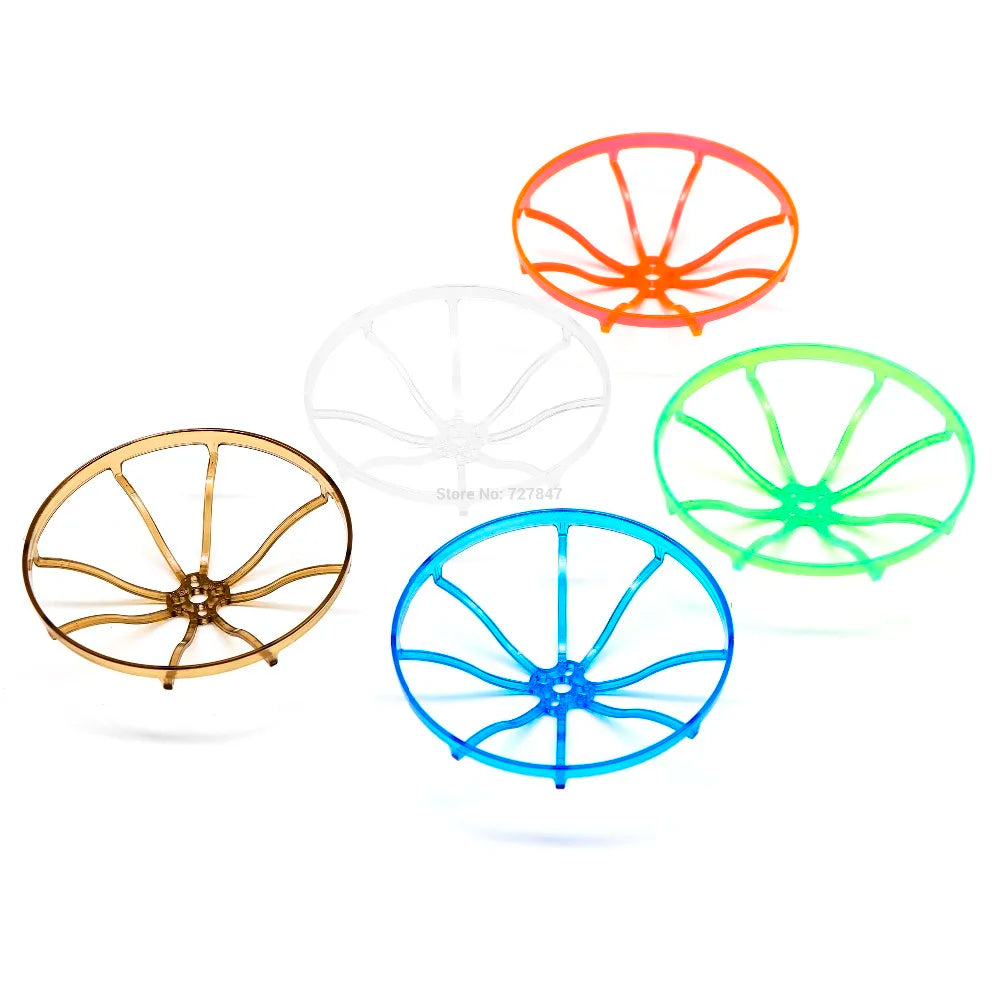

3-inch paddle protection ring
The PC material is the same strength and toughness as the FPV propeller.

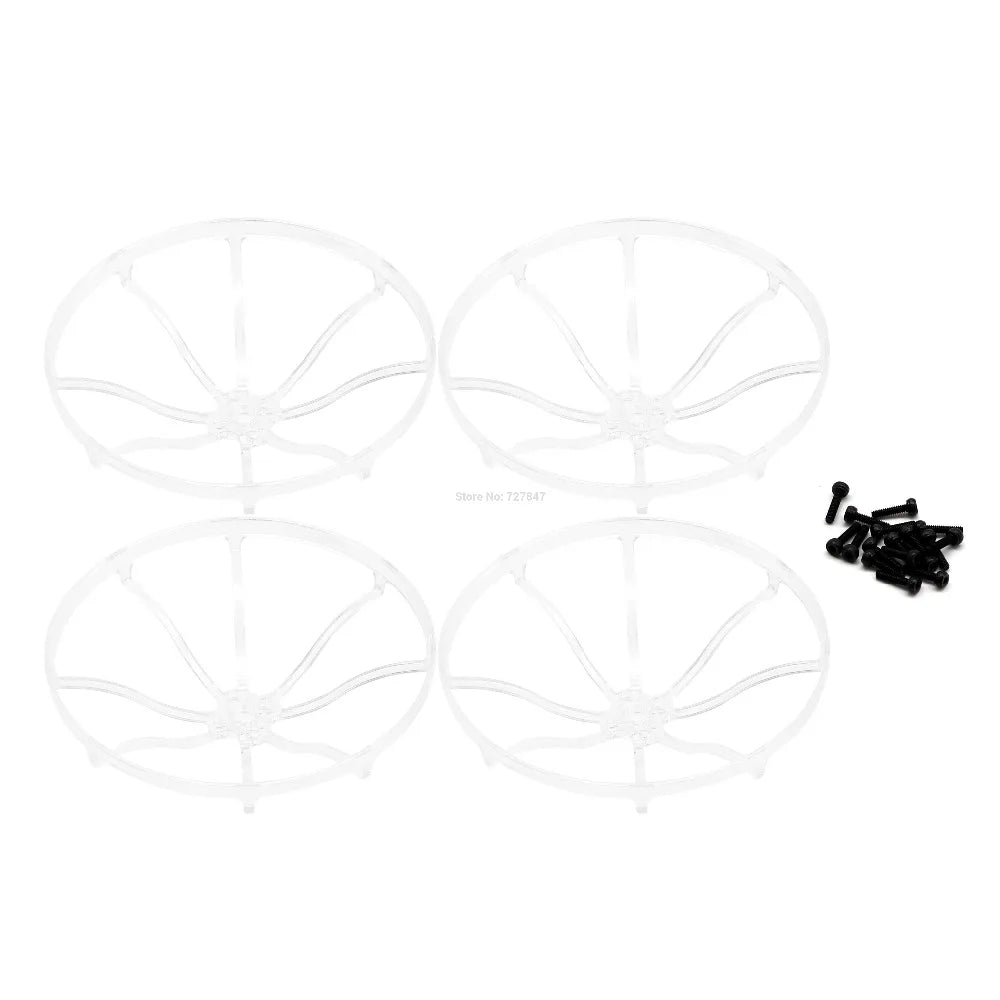

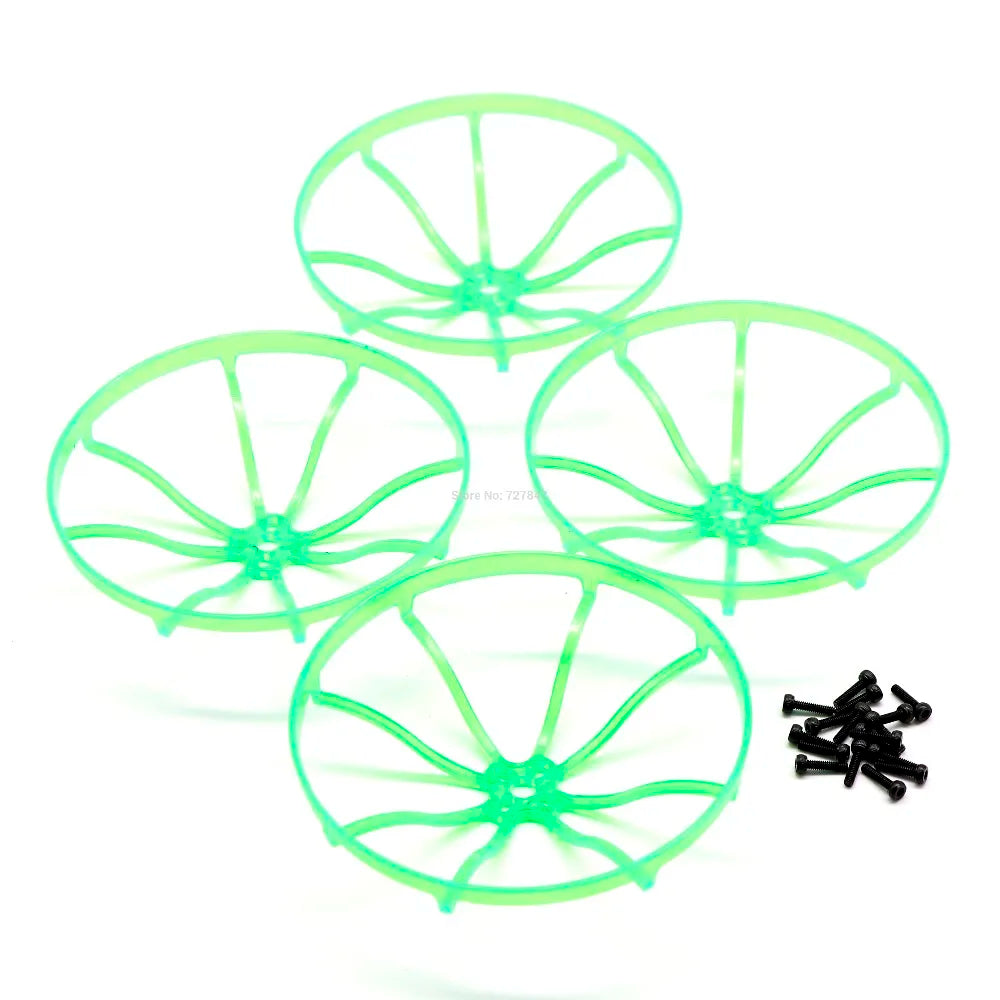

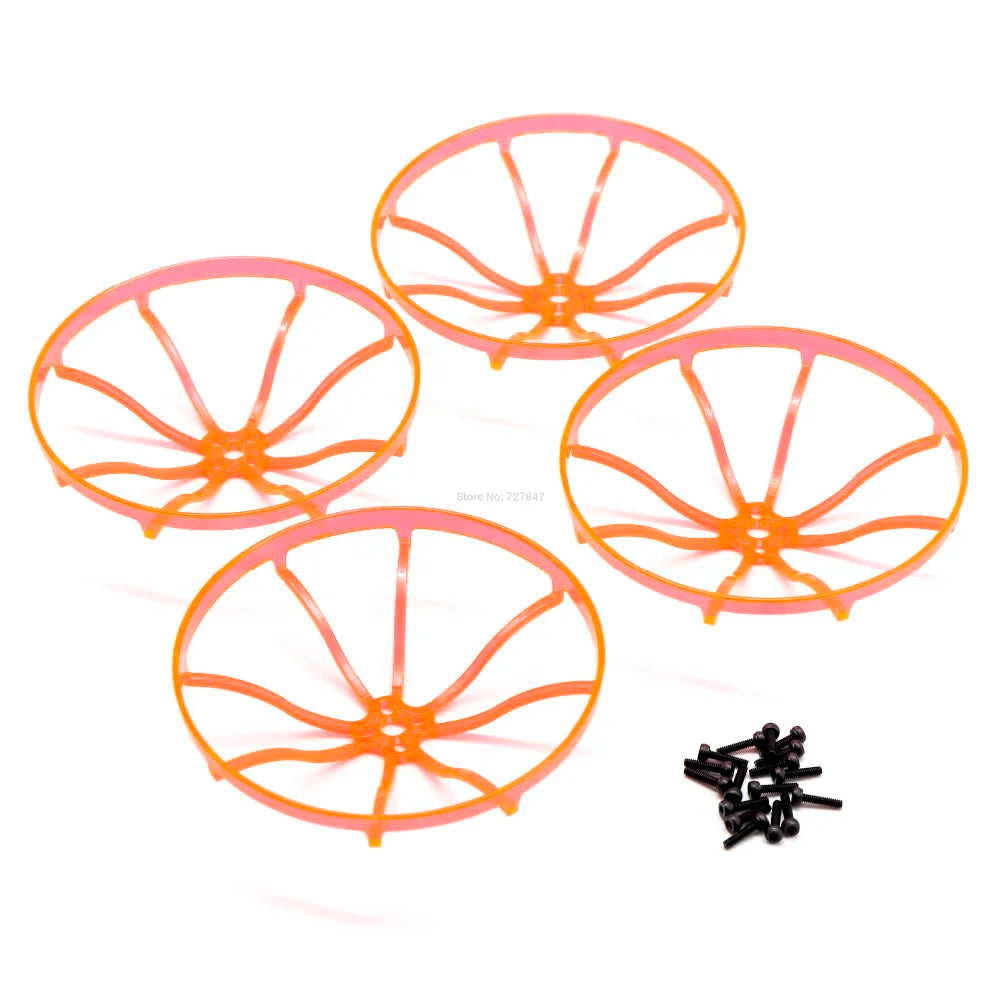

1SET 4 PCS
1set x Only paddle Guard (4pcs) ( other items not included)
Name: X95 95mm Frame
Arm thickness: 2.0MM
Upper board: 1.0MM
Weight: about 38 grams (with protective ring)
Paddle: up to 2 inches
Camera installation space: 19MM/21mm
Support Camera：Foxeer and Caddx camera
Flight control installation: standard 20mm x 20mm
3D print: red
Propeller protection ring: transparent red / transparent blue / transparent gray (three: 1 * 4)
Wheelbase 95MM
2 inches
Flytower F3 Integrated OSD Mini Flight Control
Receiver configuration, when SBUS and DSM receiver input, please configure RX3 as the input interface.
The DSM receiver takes power from 3.3V.
The SBUS and PPM receivers take power from 5V.
Factory firmware: betaflight 3.1.0 OMNIBUS
First, equipped with MPU6000 F3 flight control acceleration faster response; integrated 5V 1A BEC, integrated OSD. (This version is 6DOF, no barometer and electronic compass)
1. This board provides all the features, weighs only 7.7g, fixed hole for the 20MM ( M2.5 hole );
2. For four-axis models tailored, built-in LC filter, support BF firmware;
3. Using STM32F3CCT6 single-chip 256K flash memory, MPU6000 sensor SPI interface connection, faster computing speed;
4. Support 2-4S power input;
5. Built-in 5V 1A output BEC;
Flytower F4 Integrated OSD Mini Flight Control
First, equipped with MPU6000 F4 flight control acceleration faster response; integrated 5V 1A BEC, integrated OSD. (This version is 6DOF, no barometer and electronic compass)
1. This board provides all the features, weighs only 8g, fixed hole for the 20MM ( M2.5 hole );
2. For four-axis models tailored, built-in LC filter, support BF firmware;
3. Support 2-4S power input;
4. Built-in 5V 1A output BEC;
Fetures：
25A 4 in 1 ESC:
1. Input voltage: 2-4S LiPo/2-4S HV LiPo
2. BEC: OPTO (none)
3. Single ESC Constant working current: 25A (maximum current:30A 5 seconds)
4. Four-in-one ESC size: 31*33.5mm (including pad and protruding point maximum size)
5. Four-in-one ESC weight: 4.9g
6. Firmware: BLHELI_S
7. Support DSHOT600, DSHOT300, Dshot150, Oneshot125, Multishot, PWM
8. Processor: SILABS EFM8BB21F16G
9. Mos: AON7202
10. Driver: A new generation of three-in-one MOS driver
The FE200T series is transmitted as a 5.8G ISM band analog image transmission. It has stable output power, long transmission distance and strong power supply filtering. It can ensure that the image has no snowflake and no horizontal stripes under the maximum throttle. The picture adopts the flight control OSD (TXD) signal to control the transmission frequency (IRC Tramp), and only needs to connect any TXD (serial port transmission) of the flight control to the RXD (serial port reception) of the picture transmission, and also The function of manual button switching is retained. Support PIT mode tuning.
Features:
1. The output power is stable and the transmission distance is long.
2. Fast 3-speed power switching, independent two red indicators, indicating the current transmitting power of 25/100/200MW.
3. The frequency point uses 4*3 LEDs to display 40 channel values.
4, support OSD remote tuning (IRC Tramp), support PIT mode tuning, can only be opened in the OSD.
5, small size, the antenna uses IPEX interface, reducing the footprint of the PCB board.
6, small size: 16.5mm * 16.5mm, mounting hole M1.
7, light weight: 1.7g
Performance:
1, input voltage: DC 4.5-5.2V
2. Input current: 200MW = 400 MA
3, power switching: third gear 25MW, 100MW, 200MW
4, signal channel: 40
5, frequency switching: manual button / OSD (IRC Tramp) (simultaneous support)
6, antenna interface: IPEX
7, the dimensions: 16.5MM * 16.5MM
Overall introduction:
GND power supply negative
+5V power supply positive
RXD flight control serial transmission
VIN camera video input
Frequency adjustment:
First, manual adjustment Switch frequency points.
Short press: switch channels, 4 blue LEDs and 3 green LEDs indicate channels.
There are 40 frequency points, and the specific channel frequency refers to the frequency list.
Power switching:
Long press (greater than 2 seconds) power adjustment. Press once to switch the power 25MW, 100MW, 200MW.
The default shipment is 200MW.
OSD Assistant
1. In the PORTS of the flight control, you need to configure the TX port to be used for the OSD adjustment, and the interface needs the interface, as shown in the following figure in UART1.
Select IRC Tramp.
The first step is to properly configure the receiver to ensure that the receiver channels are normal. In the example, the OSD is used for TX1 and the receiver is used for RX6.
Step 2 Put the throttle to the middle position about 50% (THR MID), the direction lever to the far left (YAW LEFT), and the pitch lever to push forward (PITCH UP). Enter the OSD menu
The third step is to switch the VTX channel and transmit power.
On the MAIN page, select the FEATURES item and go to the FEATURES page.
Select the VTX TR option and go to the VTX page.
Select CHANNEL to switch channels and select POWER to switch the transmit power.
Select SET and select YES to make the settings take effect.
Precautions for use
1. Pay attention to the input voltage within the specified range and the positive and negative poles are correct, so as not to damage the internal components;
2. If the antenna is replaced, please select the standing wave and the antenna with good gain to obtain a longer transmission distance;
3. Pay attention to static electricity during transportation and installation;

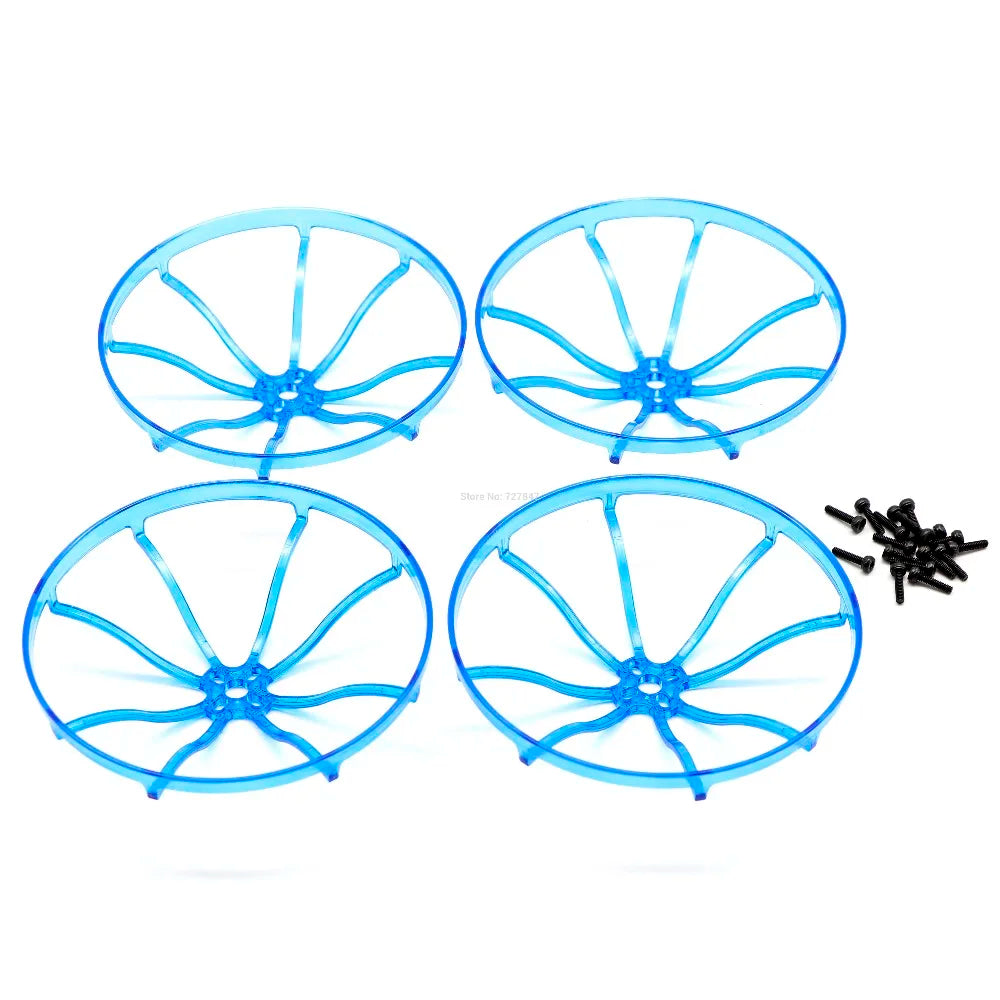

1set x X95 Full carbon Fiber Frame (assembled)
1pcs x Mini F3/F4 Flytower( send as your choice)

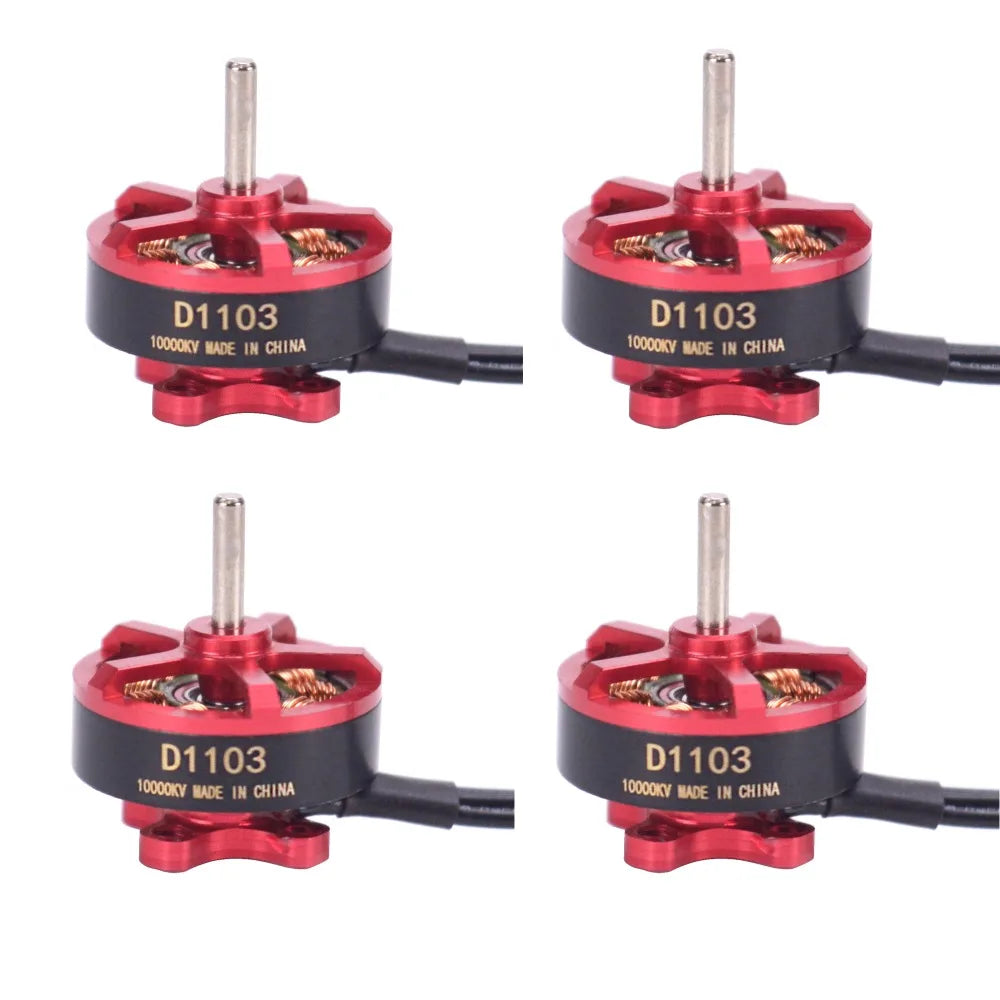

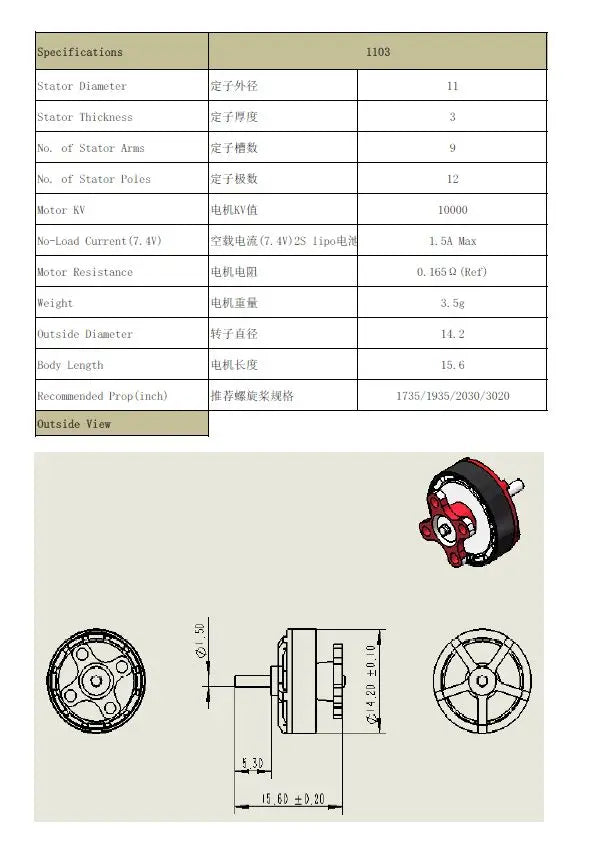

4pcs x D1103 10000KV Brushless Motor
1pcs x 700TVL Mini Camera
1pcs x FE200T Transmitter
1pcs x Lollipop 5.8G 2.3dBi RHCP UFL antenna
4pairs x 2030 Propeller
