PX4 HEX Pixhawk Cube Orange With Here 3 GPS GNSS m8p W/ ADS-B Carrier Board Support S. Bus CPPM DSM Flight control

Overview

Hex Cube Orange targets education, amateur drones lovers, and professionals with cost-effective flight control hardware.
Includes new generation of more powerful H7 processor, with stronger performance, faster processing, increased security with built-in triple-redundant sensors, temperature control shock absorption IMU.
With the help of flight software, Cube Orange can completely fly any remotely controlled aircraft, helicopter or multi-rotor vehicle and turn it into a more professional UAV platform.

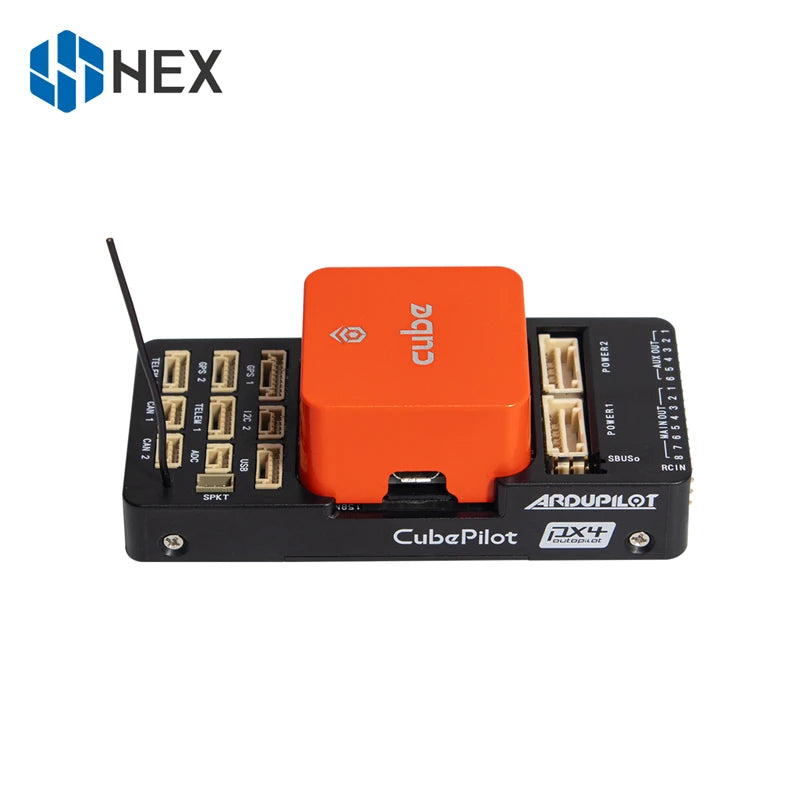

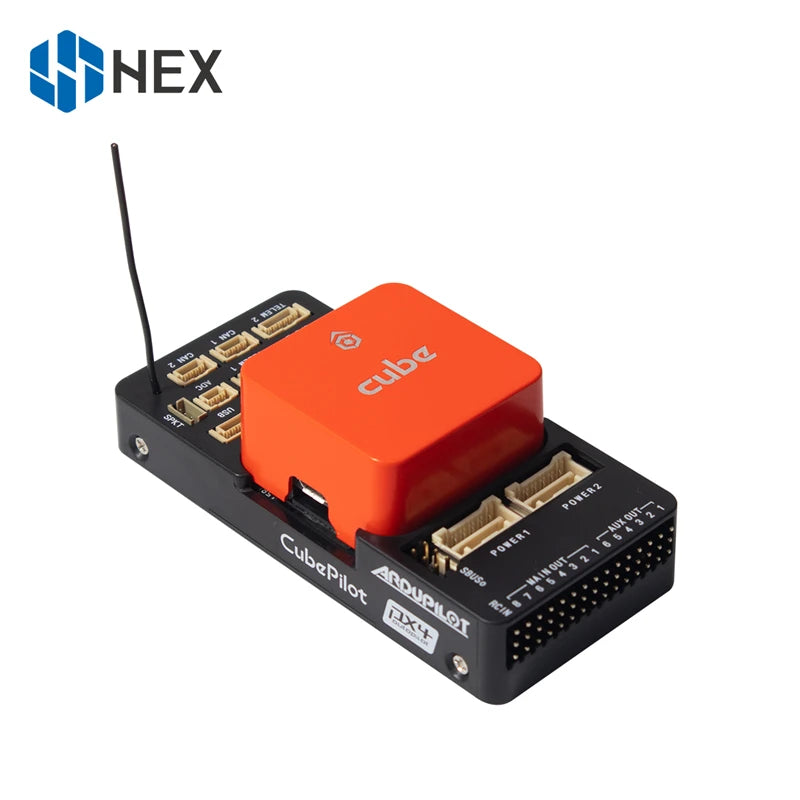

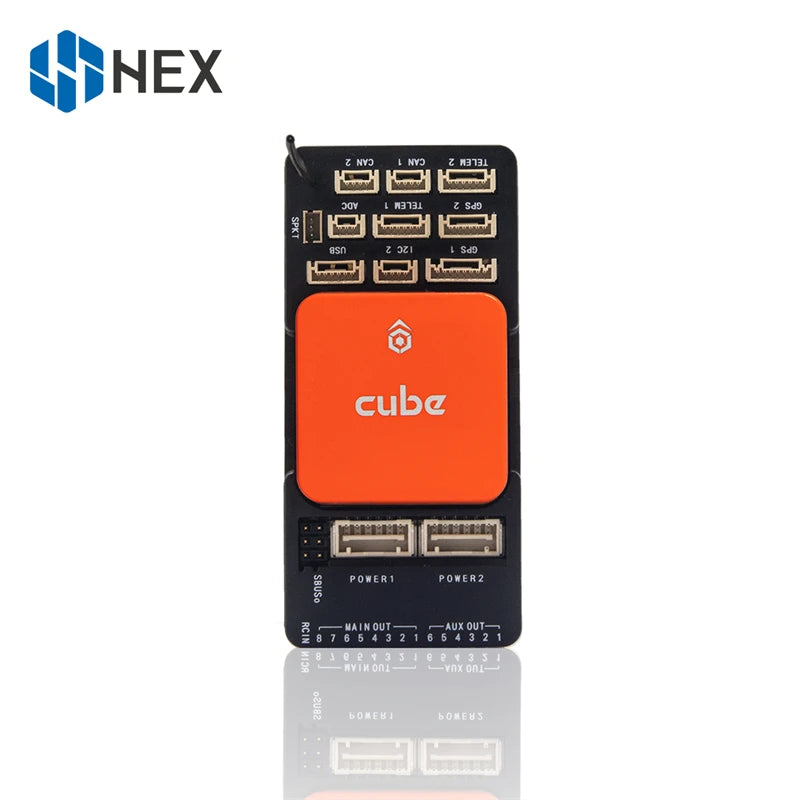

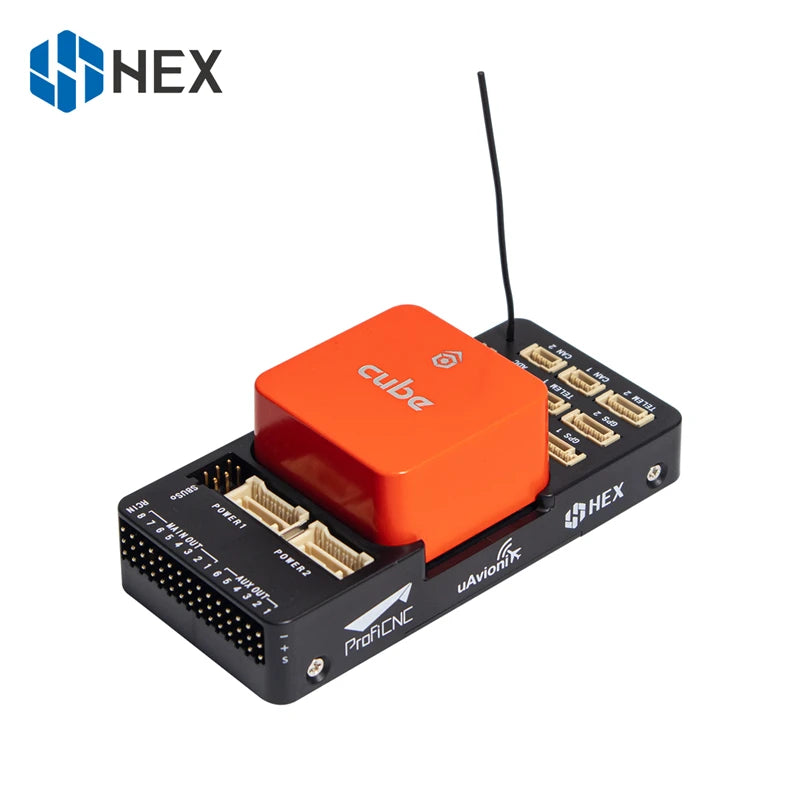

ADS-B Carrier Board

A standard carrier board with an integrated 1090MHz ADS-B receiver allowing the software to receive information about the location of manned aircraft in the area.
Receives information such as position, altitude, speed, etc, which can all be viewed in Mission Planner.
Through settings, you can optionally set up your cube to allow the vehicle to automatically avoid aircraft that are within an exclusion zone set by you.

Features

• Built-in IMU Heating system, allowing flights at extreme temperature (below freezing)
• Robust DF17 Interface connectors give enhanced drop and shock resistance
• Airframes: VTOL, Plane, Multicopter, Traditional Heli, Rover, Boat, Sub, General Robotics

Specifications

• Sensors: Accelerometer, Gyroscope, Compass, Barometric Pressure Sensor
• Power input voltage/rated input current: 4.1-5.7 V / 2.5 A
• Power rated output/input power: 14 W
• USB port input voltage/rated input current: 4-5.7 V / 250 mA
• Servo rail input voltage: 3.3 V / 5 V
• Not waterproof. External waterproof protection is needed
• Operation Temperature: -10°C / 55°C
• Cube Orange Housing Material: CNC Aluminum Alloy
• Standard Carrier Board Housing Material: ABS Molding

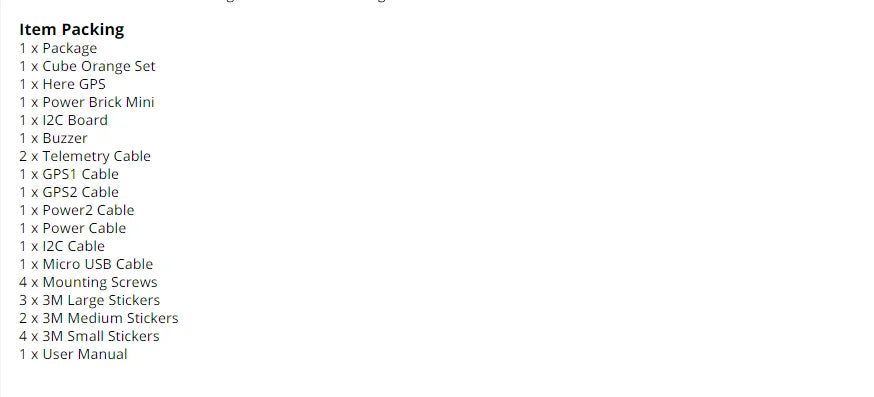

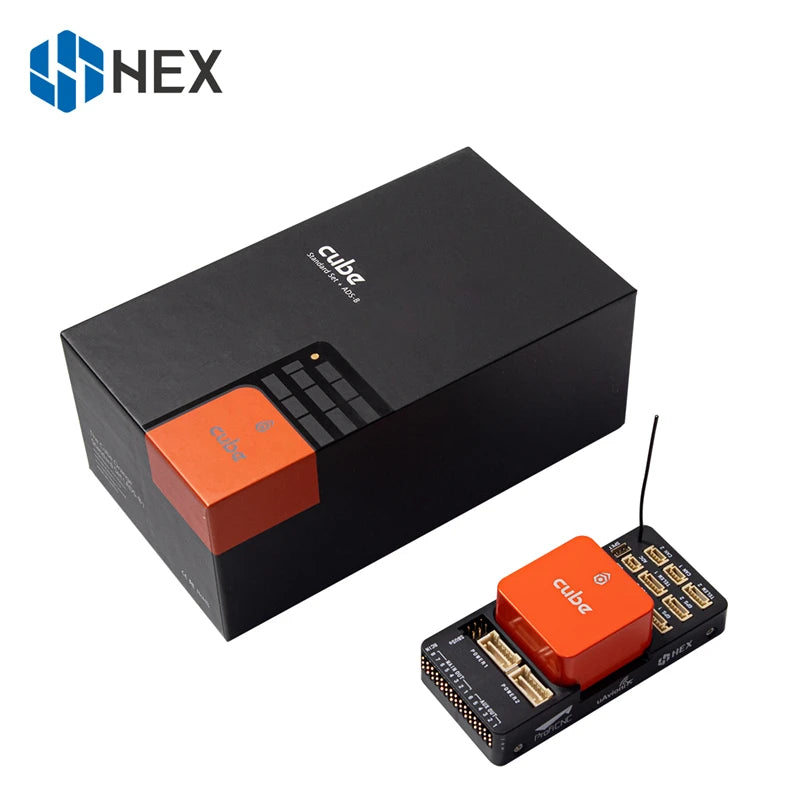

Item Packing

• 1 x Package
• 1 x Hex Cube Orange Set
• 1 x Here GPS
• 1 x Power Brick Mini
• 1 x I2C Board
• 1 x Buzzer
• 2 x Telemetry Cable
• 1 x GPS1 Cable
• 1 x GPS2 Cable
• 1 x Power2 Cable
• 1 x Power Cable
• 1 x I2C Cable
• 1 x Micro USB Cable
• 4 x Mounting Screws
• 3 x 3M Large Stickers
• 2 x 3M Medium Stickers
• 4 x 3M Small Stickers
• 1 x User Manual

The PX4 HEX Pixhawk Cube Orange features a built-in IMU heating system, enabling flights in extreme temperatures (below freezing). Additionally, its robust DF17 interface connectors provide enhanced resistance to drops and shocks. Furthermore, this cube includes a new generation H7 processor, offering stronger performance, faster processing, and increased security.
