QX-MOTOR 2809 800KV 1300KV 3-6S Brushless Motor for 7-9 Inch FPV Drone Racks XL6 XL7

Overview

The QX-MOTOR 2809 Brushless Motor series offers high-performance solutions for 7-9 inch FPV racing and freestyle drones. Available in both 800KV and 1300KV options, these motors are engineered with a 12N14P architecture, a 5mm shaft diameter, and a rugged 19x19mm mounting pattern, making them compatible with popular frames like XL6, XL7, and other 7"-9" setups.

Constructed with high-quality materials and optimized for 3-6S LiPo batteries, the 2809 series motors provide excellent thrust, high efficiency, and robust reliability, ensuring a competitive edge for serious pilots.

Key Features

• Motor Model: 2809

• KV Options: 800KV / 1300KV

• Compatible Voltage: 3S–6S LiPo

• Stator Configuration: 12N14P

• Motor Size: Ø36mm × H41mm

• Shaft Diameter: 5mm

• Mounting Hole: M3, 19x19mm

• Weight: 70g (including wires)

• Lead Wire: 18AWG, 20cm length

• Maximum Current: 40A (800KV) / 50A (1300KV)

• Maximum Power: 960W (800KV) / 1200W (1300KV)

Performance Testing Summary

2809-800KV (Tested with 8x4x3 and 9x5x3 Props)

2809-1300KV (Tested with 7x4x3 and 8x4x3 Props)

Note: Testing based on static thrust conditions. Actual performance may vary depending on propeller, setup, and environment.

Recommended Application

• 7" to 9" FPV freestyle and long-range drones.

• Compatible frames: XL6, XL7, and other large-format 3-6S setups.

• Ideal for pilots seeking a balance of high thrust, efficiency, and durability.

Package Includes

• 1 × QX-MOTOR 2809 800KV or 1300KV Brushless Motor (depending on selection)

QX-MOTOR 2809-800KV motor parameters: KV 800, max power 960W, max current 40A. Test data includes voltage, current, power, thrust, efficiency at various throttle settings. Performance curves and external dimensions provided.

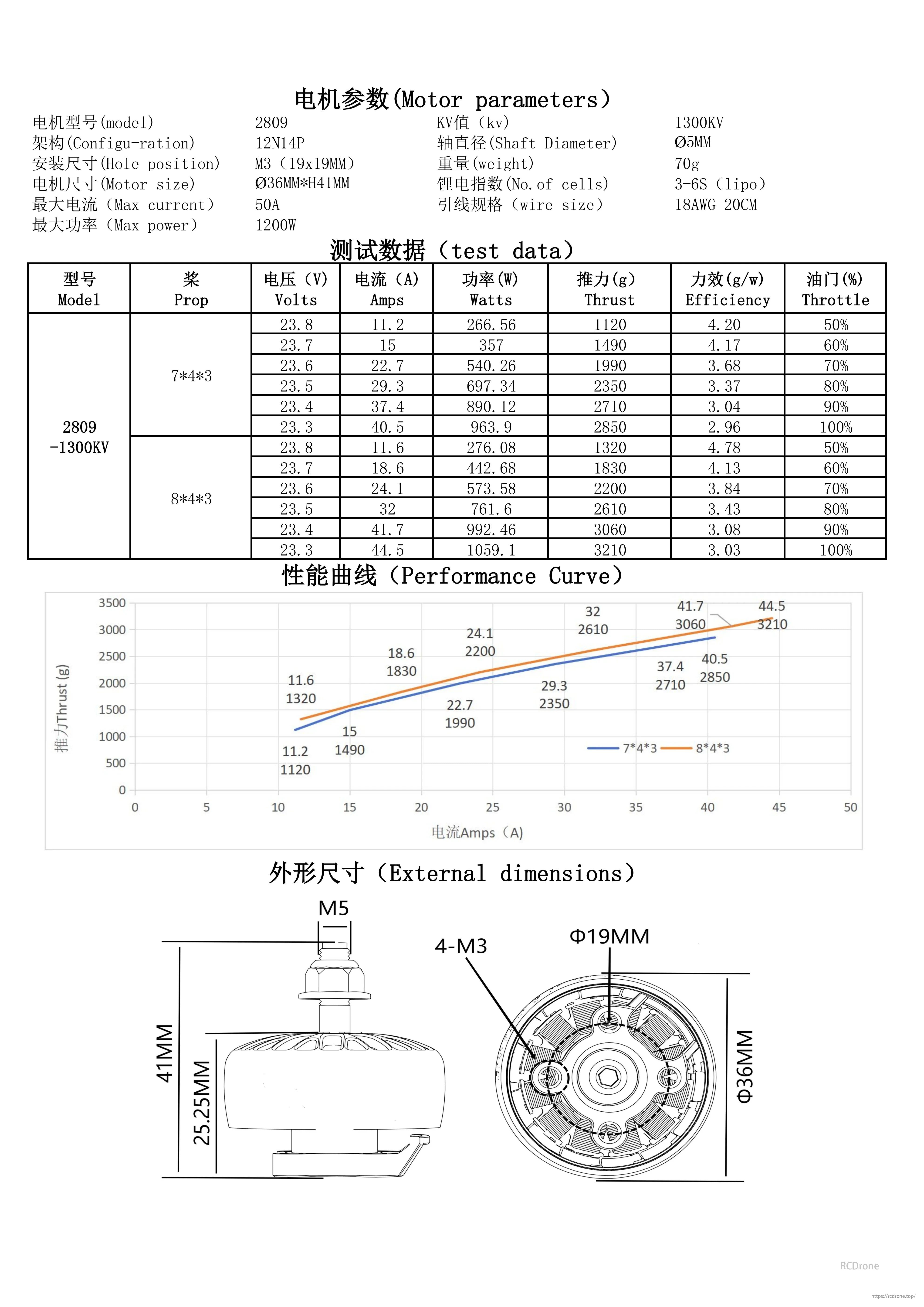

QX-MOTOR 2809-1300KV motor parameters: KV 1300, max power 1200W, weight 70g. Test data includes voltage, current, power, thrust, efficiency, and throttle percentages for various props. Performance curves and external dimensions are provided.

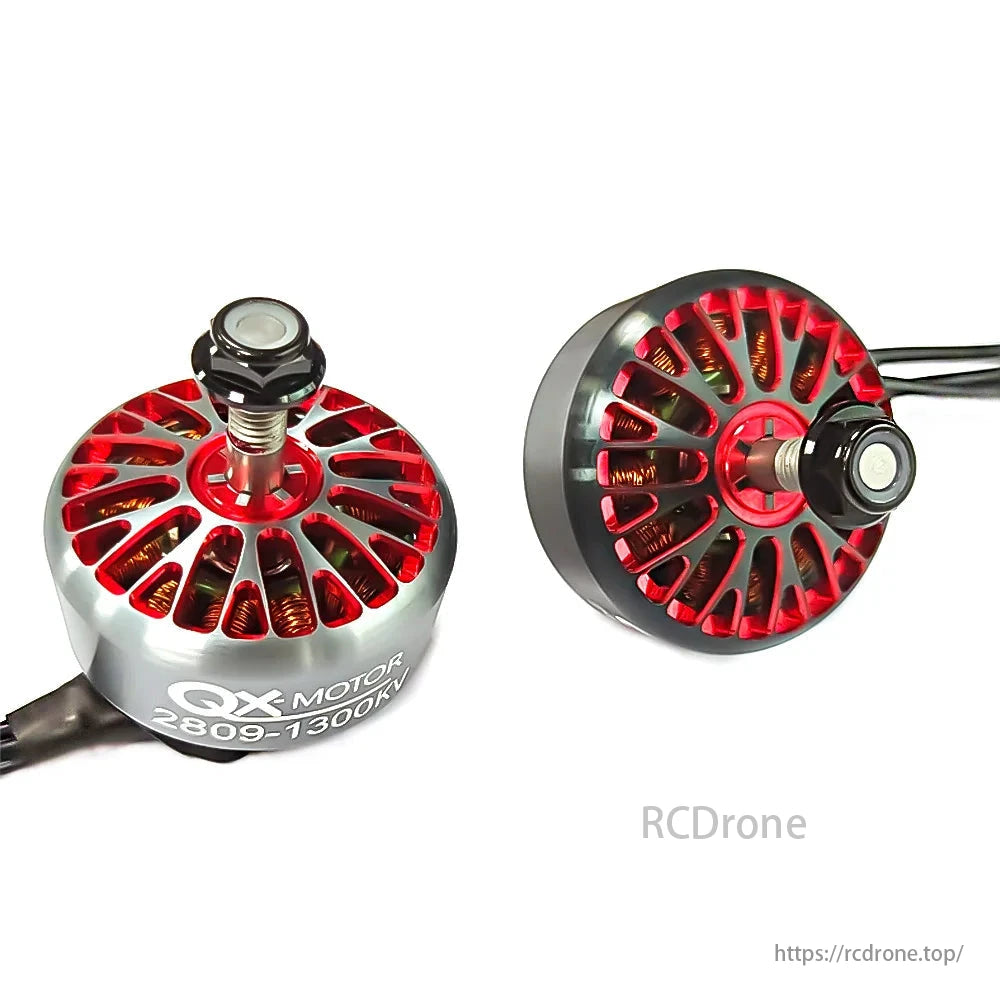

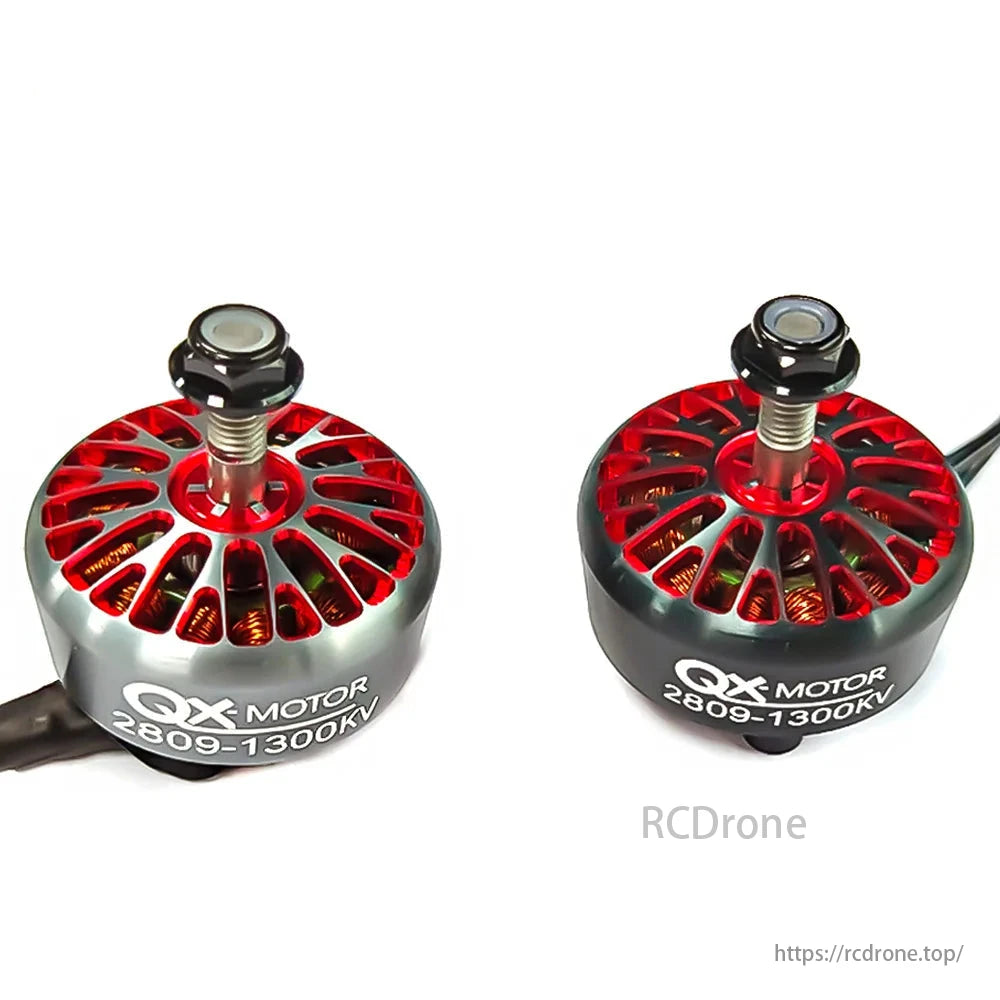

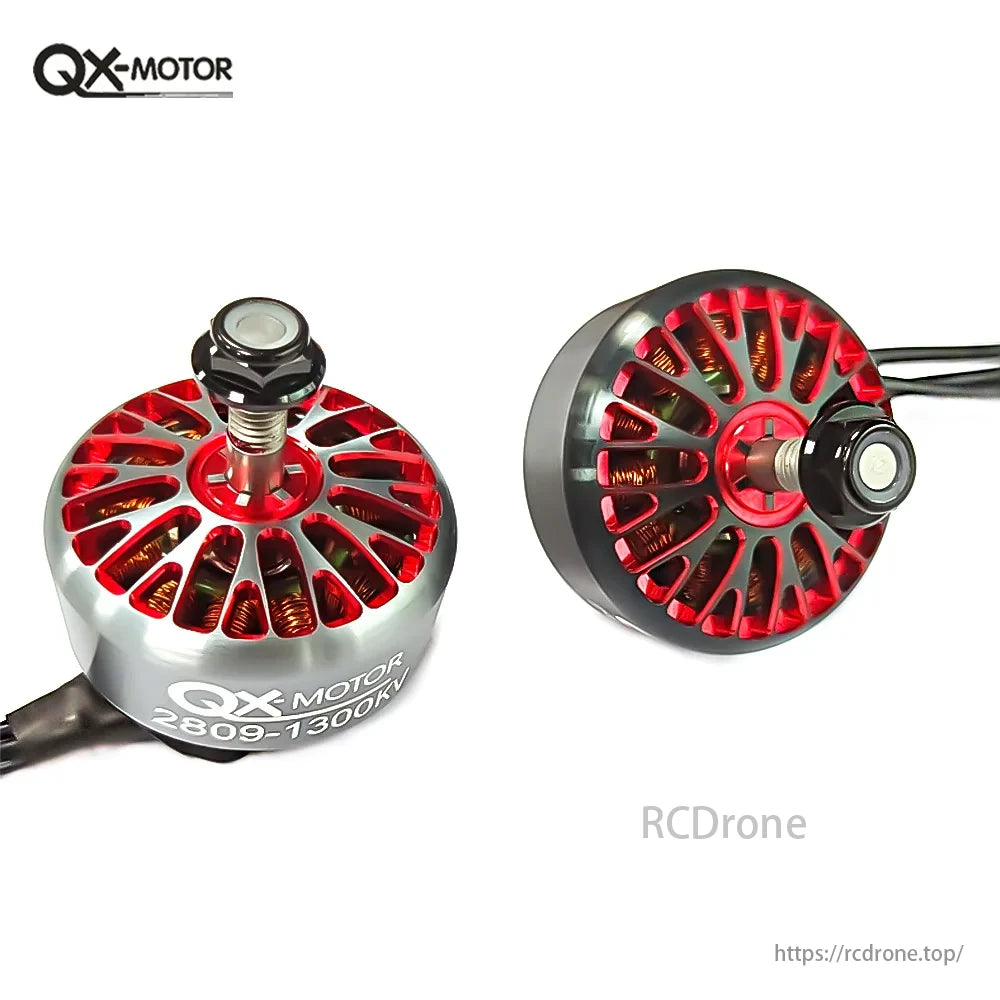

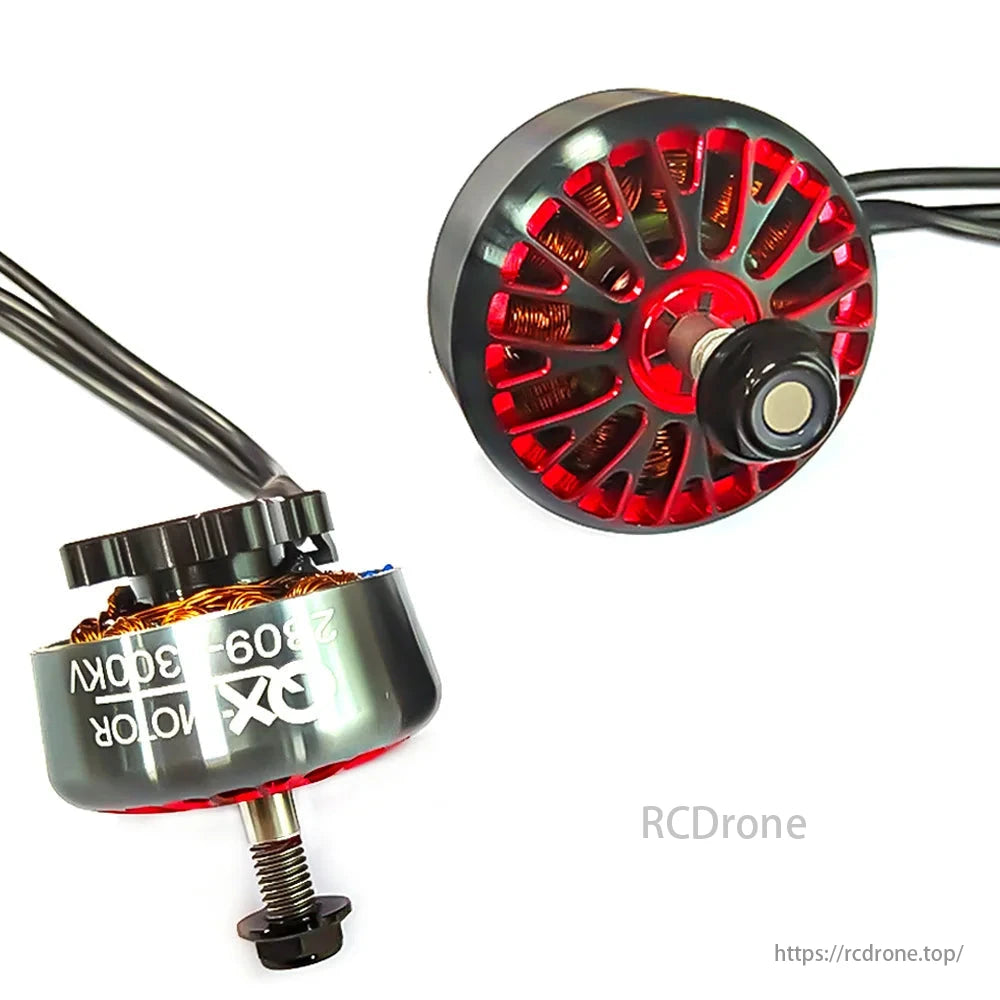

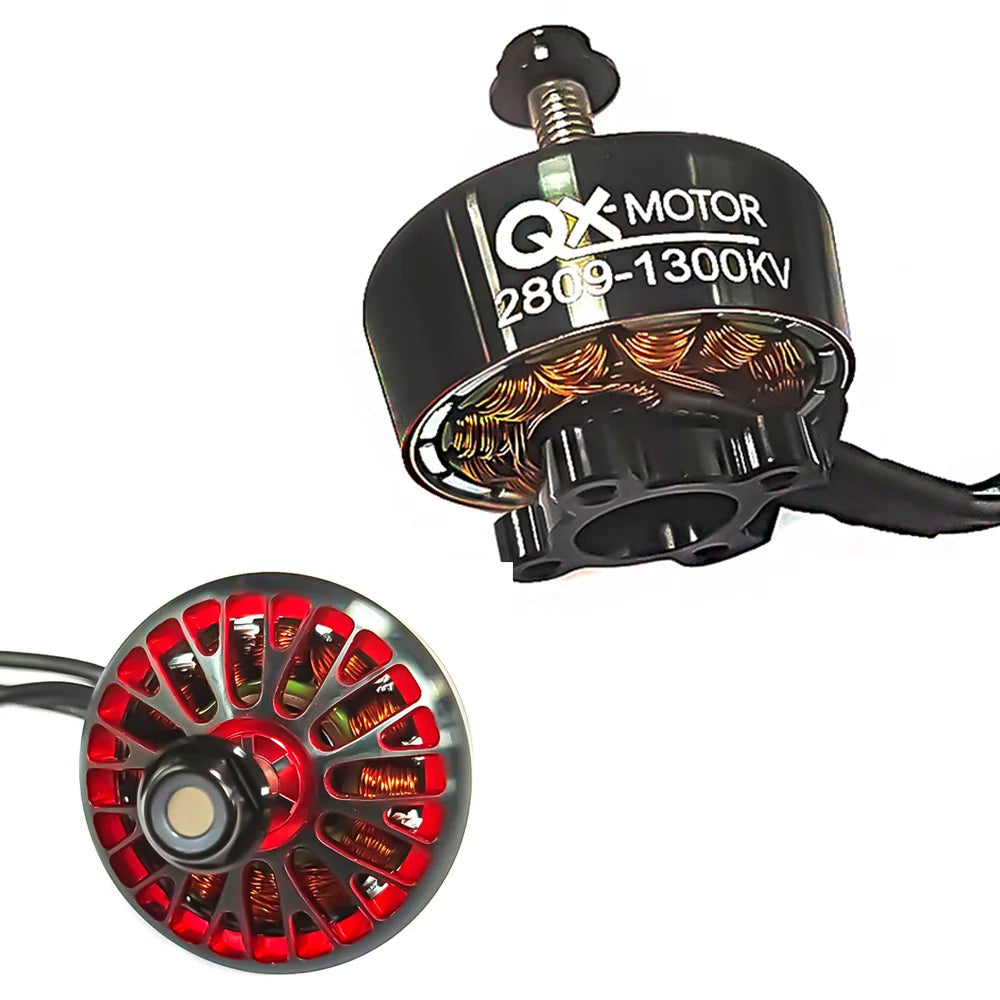

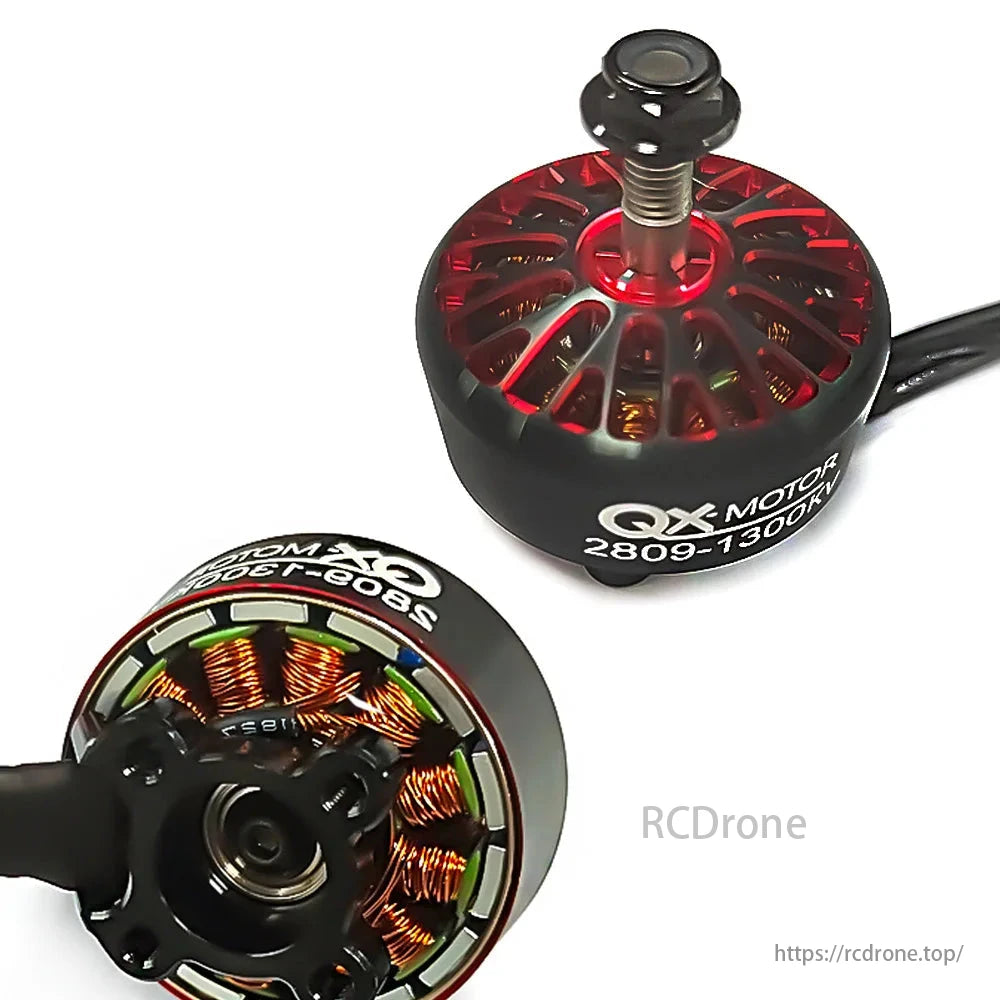

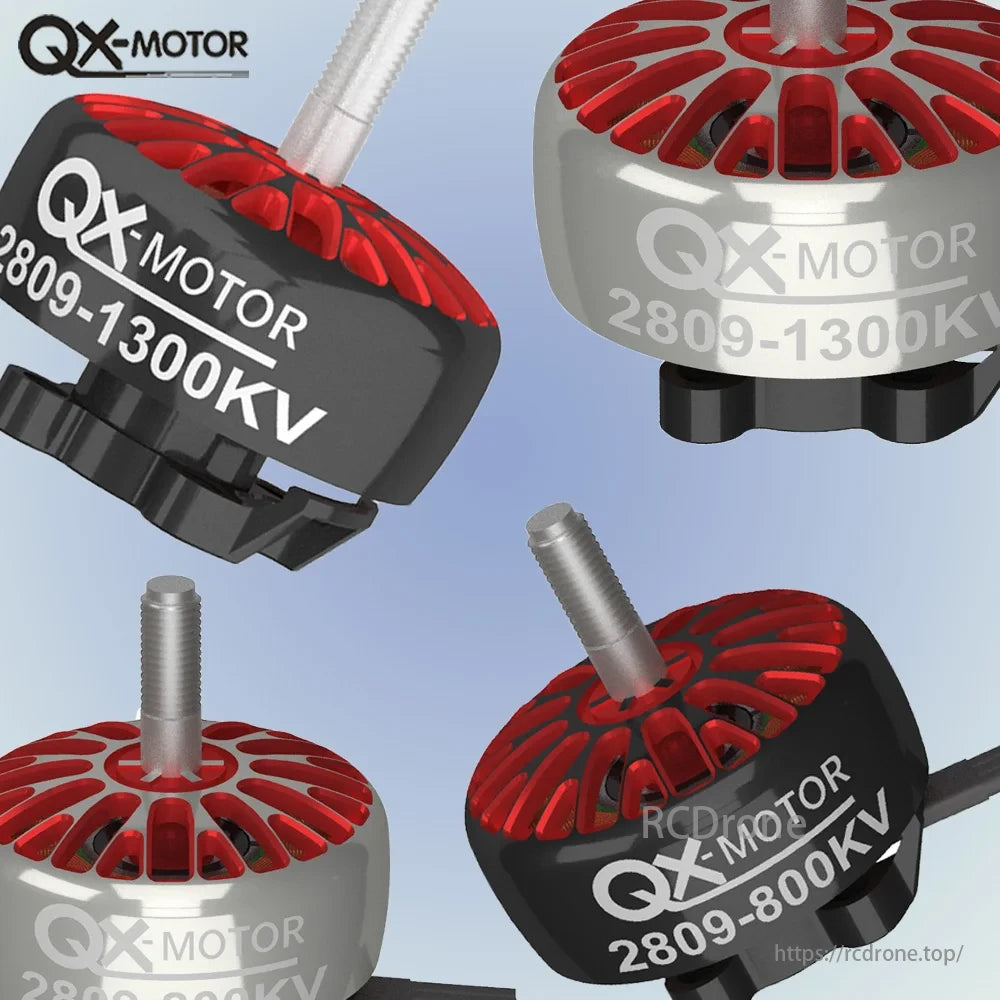

QX-MOTOR 2809-1300KV and 2809-800KV motors, featuring red cooling fins and silver shafts.
