PIXHAWK Flight Controller

Based on the original functions of the 3DR PIX, almost two years of technical development in the field of flight controllers by the Radiolink technical team, redesigned and innovated the PIX original circuit, and repeatedly tested the function to achieve better performance.

Anti-static from SMT to welding, all the chips, processor, sensors and others are import with whole package by primary agency, dust-free environmental protection workshop and automatic manufacture ensure the PIXHAWK are durable.

Reduce the mutual interference of the internal components of the flight control board, achieve noise less, more accurate of compass, and make flight safer.

User Instruction Reference:http://ardupilot.org/planner/docs/mission-planner-overview.html

Radiolink Pixhawk Features:

• 【High-end Configuration】--Advanced 32F427 ARM Cortex M4 Core high-performance processor, 32bit fail-safe co-processor, MPU 6000 3-axis accelerometer.



• 【Excellent Performance】--New layout and technical upgrade base on 3DR PIX. A powerful hardware device can create, you can implement more functions as you want by simple programming.



• 【Stabilization】--Producing by automatic and unique automation software testing, it achieved interference less from inner components, built-in barometer sensor to make altitude hold stabilization.



• 【Easier Setting】--No complicated setup for beginner and professor player, easy to operation calibration settings on Mission Planner, you will have a good experience of using Radiolink Pixhawk.



• 【Multiple Function】--Support OSD and GPS module and more, suit for Long-wheelbase Quadcopter/6-8 Axis Multirotor.

Radiolink Pixhawk Description:

Top Configuration

• 32 bit 32F427 ARM Cortex M4 Core + FPU (floating point unit)

• 168 MHZ / 256 KB RAM / 2 MB Flash

• 32bit Fault Protection Coprocessor

• ST Micro L3GD20H 16 bit gyroscope

• ST Micro LSM303D 14 bit accelerometer/magnetometer

• MPU 6000 3-axis accelerometer/gyroscope

• MEAS MS5611 barometer

Easy to Set Up

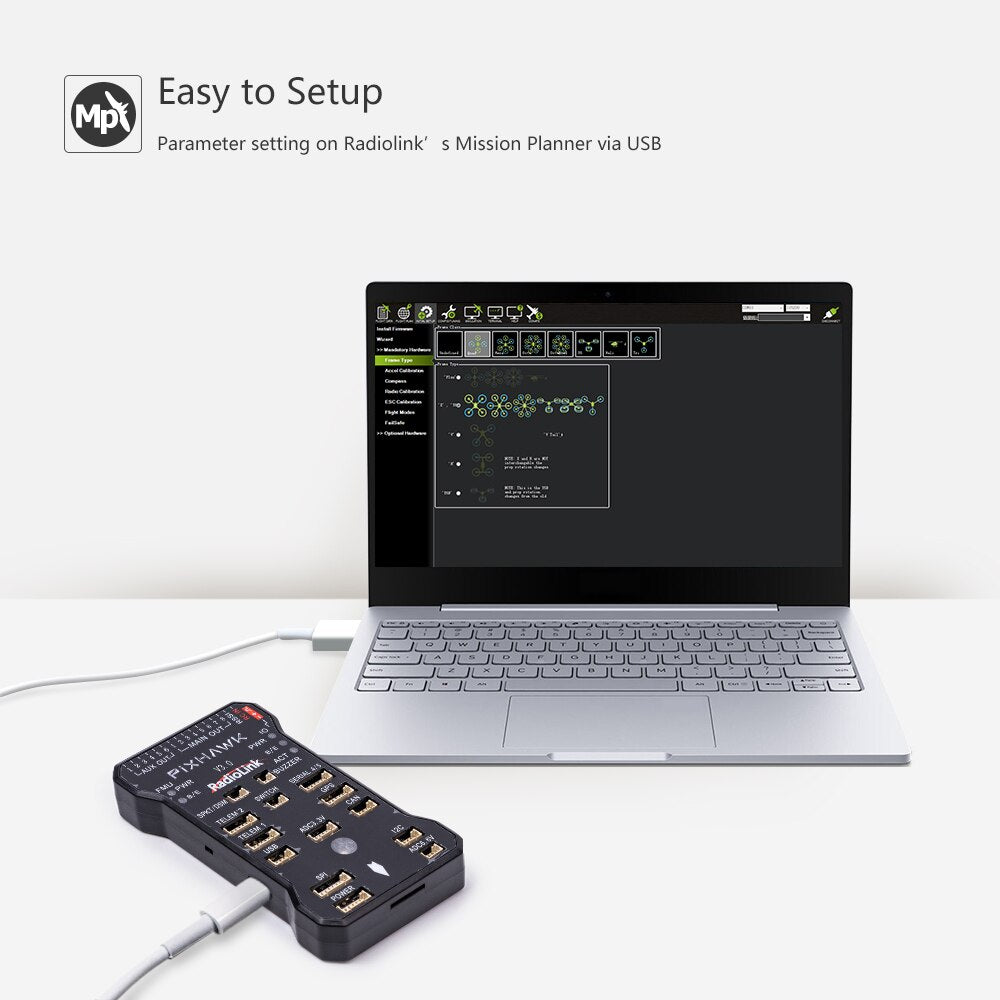

No complicated setup for beginner and professor player, download the Mission Planner from Radiolink website. Via USB cable connect PIX and computer, easy to operation calibration settings on Mission Planner. Then, enjoy your fly.

PIXHAWK Flight Controller Specifications:

• Connector Port: JST GH connector

• Receiver In: PPM/SBUS

• Transmitter: 6 oneshot/PWM

• USB Voltage: 5v+-0.3v

• Work Voltage: 5.1v

• Work Temperature Rang: -40~80°

• Support Models: Long-wheelbase Quadcopter/6-8 Axis Multirotor

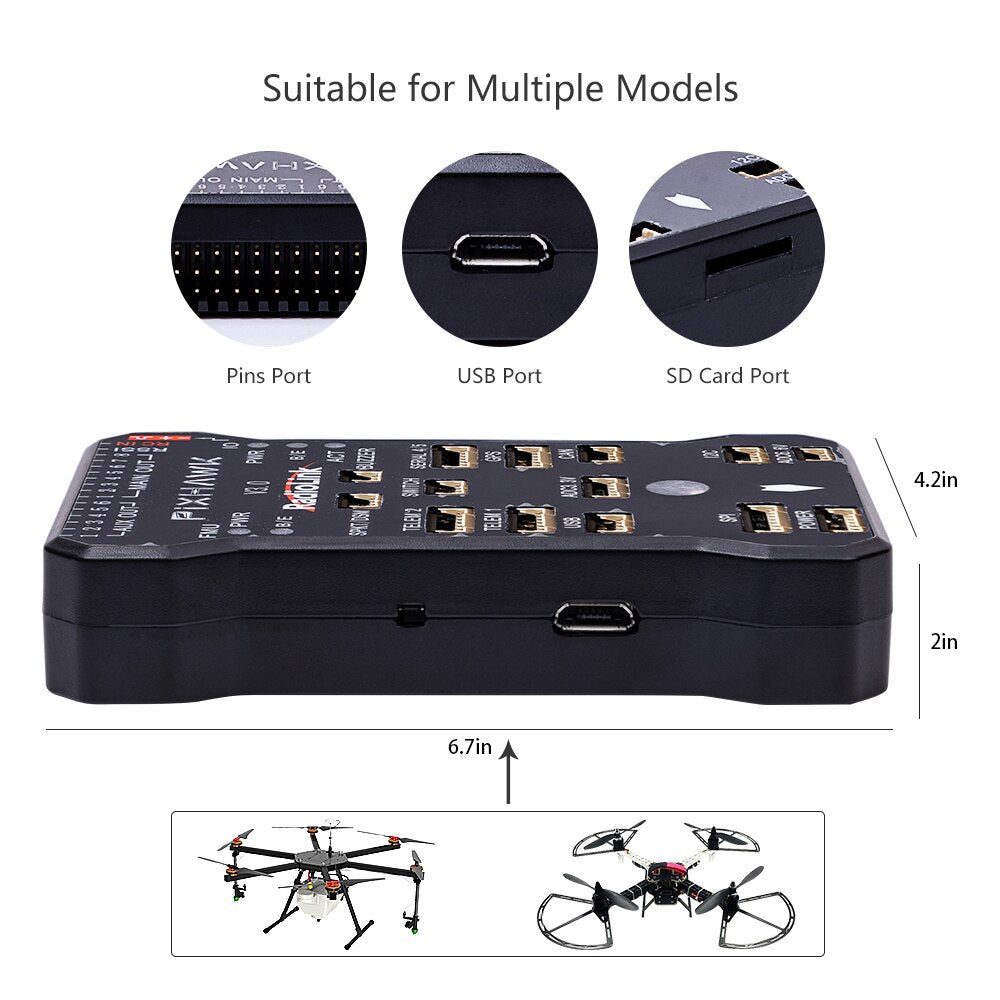

• Mini Pix Size: 8.2*4.3*1.7cm

• Weight: 30g

Package Included(Separately Purchase Pixhawl)

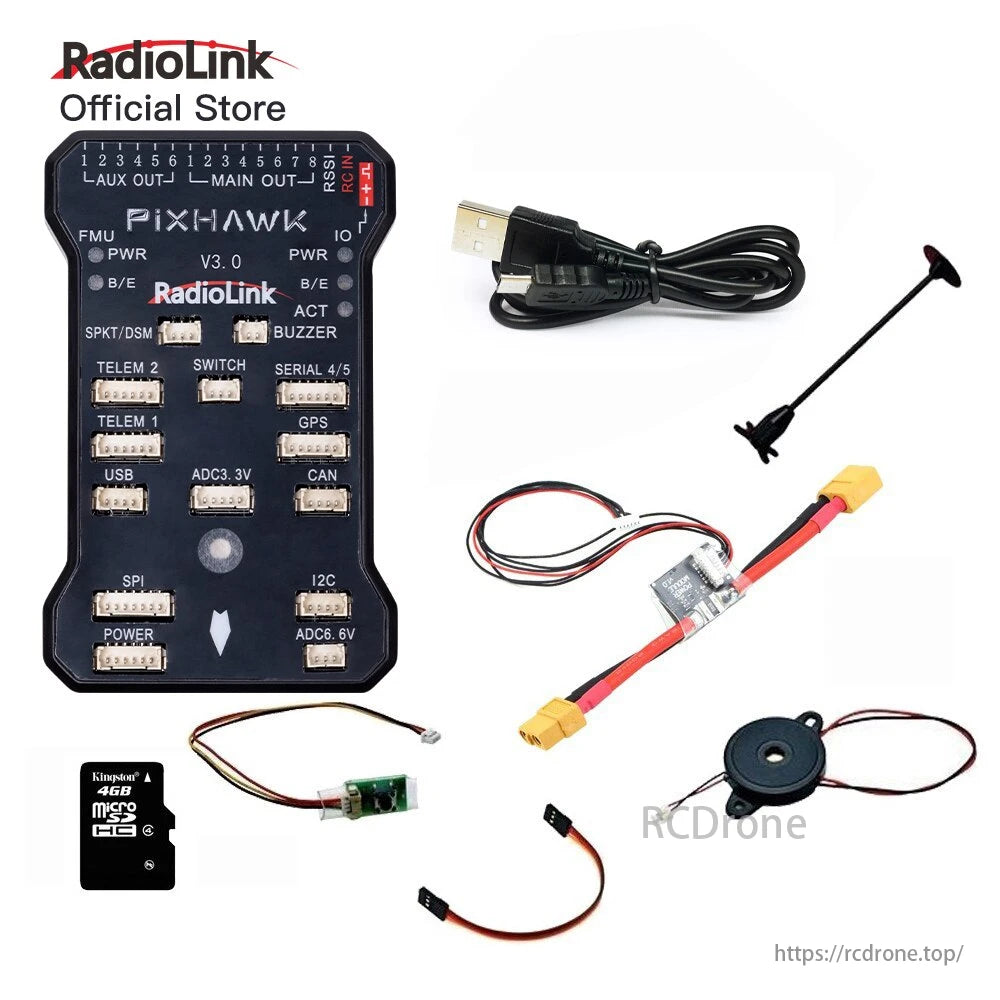

• PIXHAWK x 1

• Power Module (2s-12s)x 1

• Safety Button x 1

• Double-Sided Adhesive Tape x2

• Buzzer x 1

• Micro-SD TF Card(4G) x 1

• Three-wire Servo Cable x 1

• Safety Button Connect Cable x1

• Receiver Connect Cable x1

• Power Module Connect Cable x1

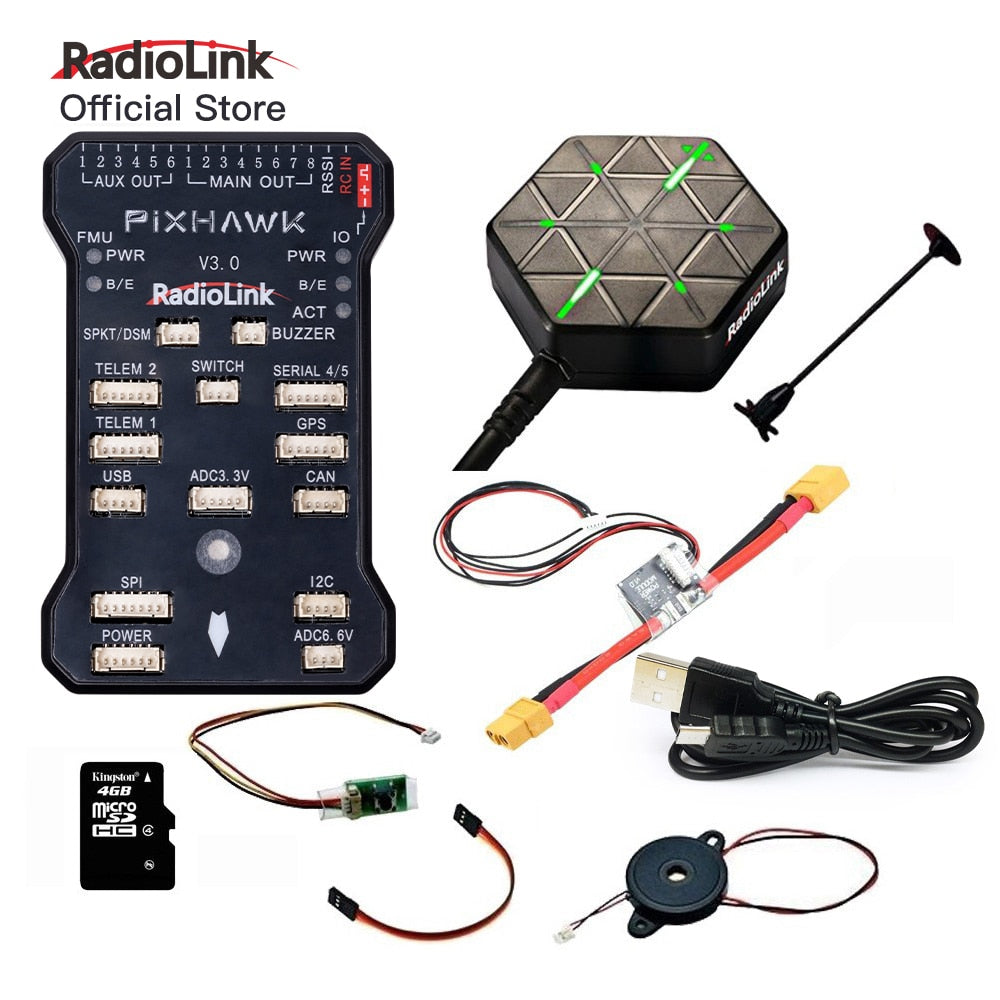

SE100 GPS Module

SE100 GPS Features:

 【Mini Size】: This mini GPS for Radiolink Pixhawk Flight Controller, only 1.89*1.6*0.59in, it’s perfect for you racing drone and quadcopter.            【Excellent Stable】: The ceramic antenna design have enhances the ability to get extremely weak signal even though interference by ideal filter.Double Filter:SAWF(Surface acoustic wave filter)form Murata,Independent dual filtering technology, stronger anti-interference ability.

【Top Configuration】: Design with U-box UBX-M8030(M8), 72-channel, is better than GNSS 7N. 2.5dbl Ceramic Antenna and HMC5983 from Honeywell.

【Positional Accuracy and Quick】: 50 centimeter precision when working with concurrent GNSS, positioning 20 satellites in 6 seconds at open ground and valley station-keeping ability. Support Reception of GPS, QZSS L1 C/A, GLONASS L10F, BeiDou B1.

 【High-performance】: Added GPS signal search satellite indicator function, and obtained exclusive patent, achieving high configuration, low price, giving the model friend a very cost-effective product.

     SE100 GPS Module Specification:

• Velocity Precision: 0.1m/s

• Max Height: 50000m

• Max Speed: 515m/s

• Max Acceleration: 4G

• Update Rate: 10Hz

• Time to First Fix: Cold start: 26s, Hot start: 1s

• Power Supply: voltage 5VDC±5%

• Size: 1.89*1.6*0.59in

• Current: 50~55mA

     GPS Connect Ports:

• A.GPS UART interface, baud rate: 1.2K/4.8K/9.6K/19.2K/38.4K/57.6K/112.5K

• B.Geomagnetic I2C interface

• Current: 50~55mA

• Sensitivity Tracking&Nav: -167dBm; Reacquisition: -163dBm

• Sensitivity Cold Start: -151dBm; Hot start: -159dBm

     Package Include (Separately Purchase):

• M8N SE100 GPS x 1

• Metal rod bracket x 1

• Connecting cable x 1

• Metal fixing gasket x 2

• Foam fixed sticker x 1

RadioLink Radiolink is a high technology manufacturing company dedicated to researching, manufacturing and marketing of RC modeL radio transmitters . our products include_ RC transmitter; flight controller; receiver; GPS drone etc.

PIXHAWK's unique automation software testing system detects all functions, sensors, and output interfaces on the Radiolink Pixhawk PIX 2.4.8 APM 32-bit flight controller in a total test time of 19 minutes, with subsequent tests at 17, 15, 13, 11, 9, 7, 5, 3, and 1 minute.

Radiolink dedicated six months to developing their Automation Software Testing System, making them the only PIX manufacturer that thoroughly tests automation from sensor to interface. As a result, Radiolink has significantly improved testing efficiency compared to traditional manual methods.

After dedicating approximately 19 months to thorough testing and experimentation, we were able to master all the features and achieve significant advancements, including reduced electromagnetic interference between internal components, decreased noise levels, and an even more accurate compass reading.

After a rigorous testing period spanning approximately 19 months, we successfully learned and mastered all the features, resulting in reduced internal component interference, decreased electromagnetic noise, improved compass accuracy, and enhanced overall safety during flight operations.

Radiolink Pixhawk PIX 2.4.8 APM flight controller features GPS M8N SE100 for RC drone quadcopter/multi-rotor applications, with potential uses in fields such as UAV education, agriculture, flight formation, educational institutions, company security, rescue, medical helicopters (MEDEVAC), and public safety cinematography solutions.

GPS Auto Return Custom Flight Path SE1OO SOcm positioning accuracy (not included) Iar EWNour Pixhawk PwR Radiouint E Den Hn .

The Pixhawk PIX 2.4.8 APM boasts double the capacity compared to its predecessor, version 2.4.6. Radiolink invested approximately six months in developing their Automation Software Testing System, which enables more efficient testing than traditional manual methods.

This product includes a Pixhawk FMU V3.0 flight controller, featuring a power supply voltage of 3.3V. It also comes equipped with a Spektrum DSM receiver, buzzer, telemetry module, GPS module, USB interface, analog-to-digital converter, LED indicator, and serial bus (CAN) for communication.

The Pixhawk PIX flight controller offers main outputs for motor control, as well as SBUS signal output and LAUX output for connection to other devices.

The Pixhawk PIX 2.4.8 flight controller features 0.3 [power?] by default, with a bye button for resetting the actuator, 51/8 input/output reset button, 7 GPS modules, a USB port, A/D converter, and a micro-USB port. The dimensions are approximately 16.5mm.

GPS, RadioLink SE100, sent via PRM-03, Jimich SLAL buzzer, obstacle avoidance, SUO4, and AT9S Pro are recommended for various applications.

This item is a Pixhawk GPS unit, part number PIXHAWK MINT. The item dimensions are 48mm x 15mm x 30mm (length x width x height), and it weighs approximately 38g. Note that there are two separate units: one with a weight of 35g and another with a weight of 20g, both powered by the STM32ZF4ZZVIT6 processor.

Package includes: Pixhawk PIX 2.4.8 APM 32-bit flight controller, GPS M8N SE100, power module, buzzer, safety switch, TF card (4GB), double-sided adhesive tape, receiver connect cable, power module connect cable, USB cable, packing box, user manual, and instructions.

RadioLink M8N GPS SE1OO Coolmgicit Poton Aeeyias Positioning 20 Sateilites Seconds Open Ground Supper Valley Station Keeping

Features include a double ceramic antenna, high-gain MMIC chip from Murata, Za5-388 filter, SAW filter, GPS module (QMC5883L) from Japan, geomagnetic sensor, and U-blox UBX-M8030 module.

The Radiolink MBN GPS module, featuring the u-blox M8O3O (MB) chip, outperforms single GNSS receivers with its ZN-2 antenna, which boasts high-gain and selectivity ceramic technology.

Enjoy excellent performance with an accuracy of 50 centimeters, allowing for rapid positioning using up to 20 satellites in just seconds, even when flying over open terrain.

The Radiolink Pixhawk (PIX) flight controller features a connection cable interface compatible with the external socket of the MBN SE100. Its compact design measures approximately 1.89 inches in length, 1.6 inches in width, and 0.59 inches in height.
