RadioLink SE100 M10N GPS Module for Pixhawk with Dual Anti-Interference Technology and 50cm Accuracy

Overview

The RadioLink SE100 M10N GPS Module is a high-performance GNSS solution featuring Ublox M10050, dual anti-interference technology, and triple-frequency quad-constellation support. With an impressive 50cm positioning accuracy, it supports 20 satellite locks within 6 seconds in open environments and offers superior signal resistance in harsh RF conditions such as drone high-power image transmission and high-voltage surroundings. Equipped with a 2.5dBi high-gain ceramic antenna, IST8310 electronic compass, and Murata SAWF double filters, it delivers outstanding signal stability even at valley bottoms or urban canyons.

---

Key Features

• Dual Anti-Interference Technology:

  • De-interference: 78dB attenuation with two-stage SAWF (Surface Acoustic Wave Filters) filters out-of-band noise.

  • Anti-interference: High linear LNA (-3dBm input compression) minimizes in-band noise effects.

• High Precision GNSS Module:

  • Utilizes Ublox M10050 chip, better than GNSS 7N solutions.

  • Supports BD1, GPS L1, Galileo E1, GLONASS G1 across triple frequencies: 1561±1MHz, 1575±1MHz, 1602–1610MHz.

  • Quad satellite system operation for enhanced positioning reliability.

• Ultra-fast Satellite Lock:

  • Acquires 20 satellites within 6 seconds (hot start).

  • Cold start in 26 seconds.

• Robust Industrial Design:

  • Professional PCB layout, patented appearance, and RF-optimized design.

  • 2.5dBi ceramic antenna ensures long-range reception and selectivity.

• Automatic Protocol Detection:

  • Default NMEA protocol with automatic detection of flight controller type (e.g., PX4, ArduPilot) and automatic protocol matching.

---

Specifications

---

Internal Components

• Ublox M10050 GPS Chip

• 2.5dBi High-Gain Ceramic Antenna

• High-Precision Compass IST8310 (I2C)

• High-Gain MMIC Amplifier Chip

• Double SAWF Filter (Murata)

• Internal Battery

---

Wiring Definition

---

Professional Design

With over 20 years of RF experience, RadioLink engineers designed the SE100 to overcome IC sensitivity limitations through optimized circuit layout and PCB placement. It combines both technical sophistication and a sleek aesthetic backed by an appearance patent.

---

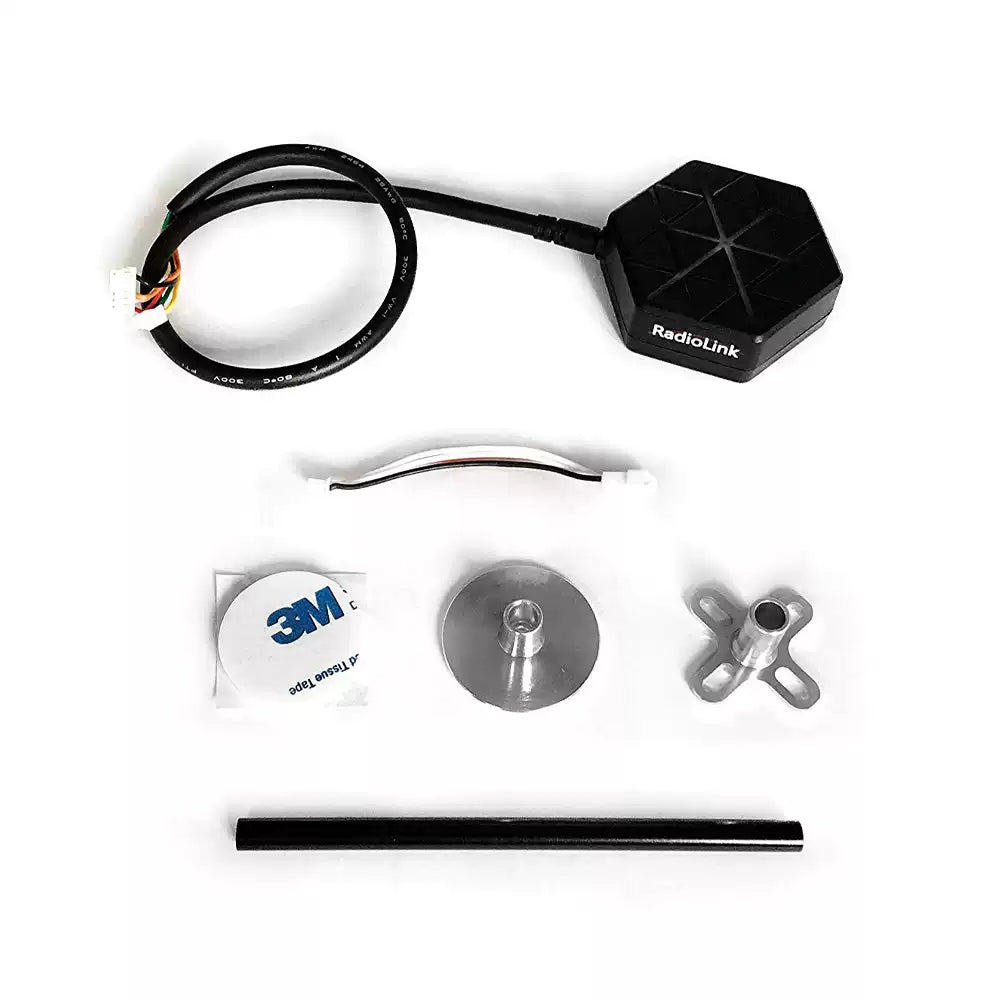

What's Included (Packing List)

• SE100 GPS Module × 1

• GPS Holder Kit × 1 (mount rod, base, and fixing parts)

• Packing Bag × 1

Details

RadioLink SE100 M10N GPS uses dual anti-interference tech for reliable performance near UAV image transmission, high-voltage lines, or strong signals. It offers 50cm accuracy, locks onto 20 satellites in 6 seconds outdoors, and maintains positioning even in valleys. Features include Murata’s two-stage SAWF, triple-frequency quad satellite support, and 2.5dBi high-gain ceramic antennas. Built for precision and durability across diverse environments.

Dual Anti-interference Technology: 78dB attenuation filters out-of-band interference. -3dBm LNA minimizes in-band interference. Resists strong signals, such as high-power drone transmissions.

Excellence in performance, precise positioning accuracy within 50cm using 20 satellites in 6 seconds even at open ground and valley bottoms. Triple-frequency support for BDI GPS L1, Galileo E1, GLONASS G1. Quad-satellite system operation available.

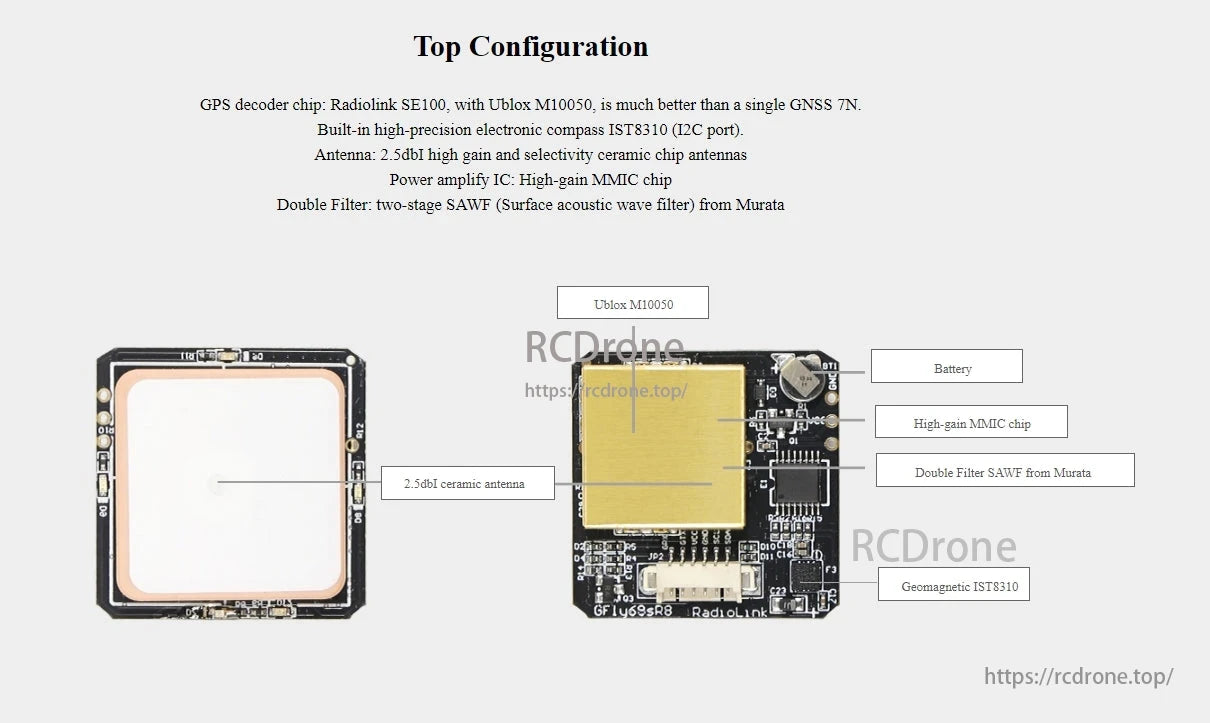

RadioLink SE100 M10N GPS includes Ublox M10050, IST8310 compass, 2.5dBi antenna, MMIC chip, Murata SAWF filter, and geomagnetic sensor for improved accuracy and performance.

Professional Design. 20 years of RF experience. Radiolink SE100 excels in wireless technology, from circuit design to PCB placement.

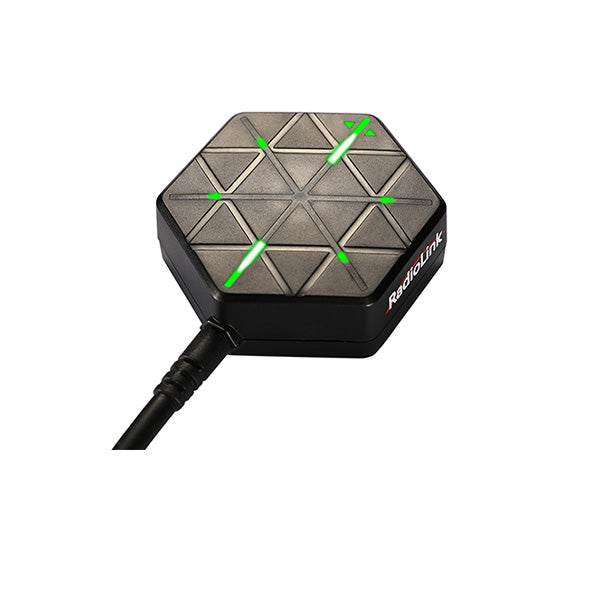

RadioLink SE100 M10N GPS: Excellent industrial design, combining technology and art. Features a sleek appearance with functional precision for seamless performance.

RadioLink SE100 M10N GPS wiring diagram. Connects to PIXHAWK flight controller via VCC, TX, RX, GND, SCL, SDA for GPS and I2C ports.

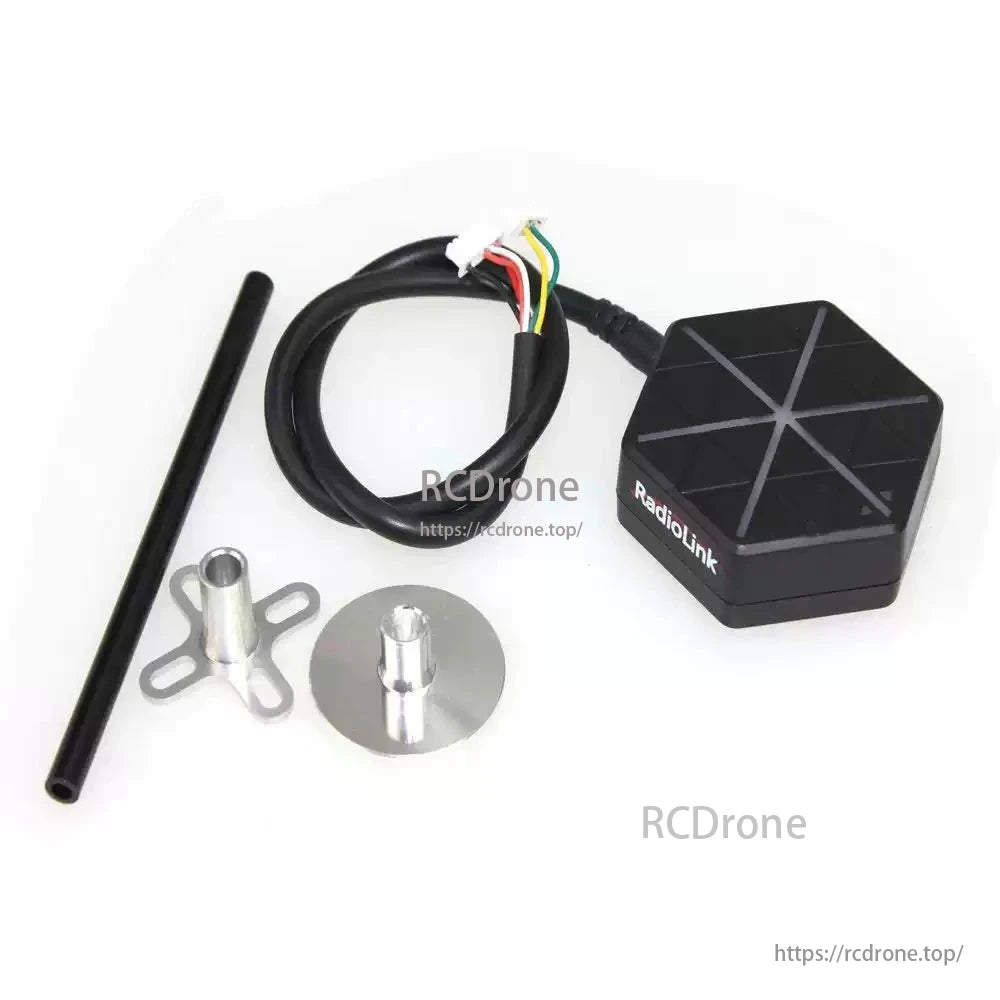

SE100 Packing List: SE100, GPS Holder, Packing Bag included.
