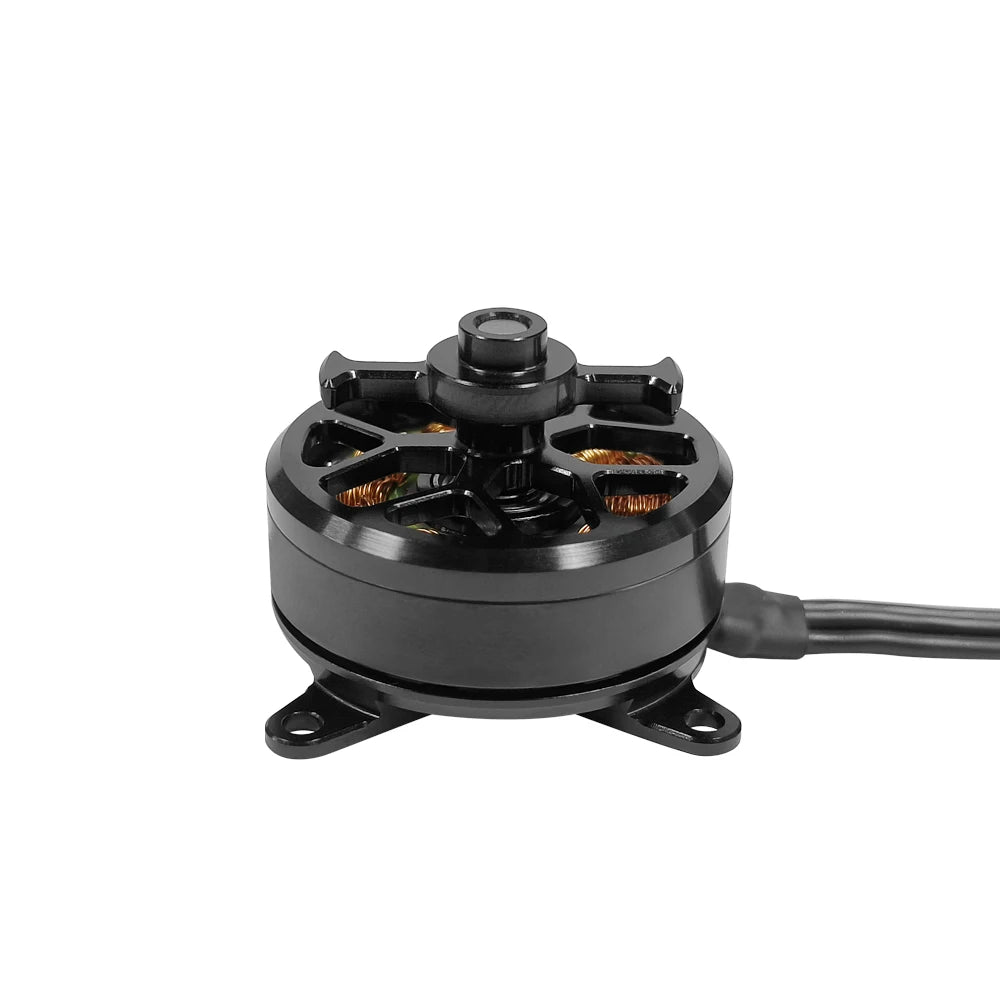

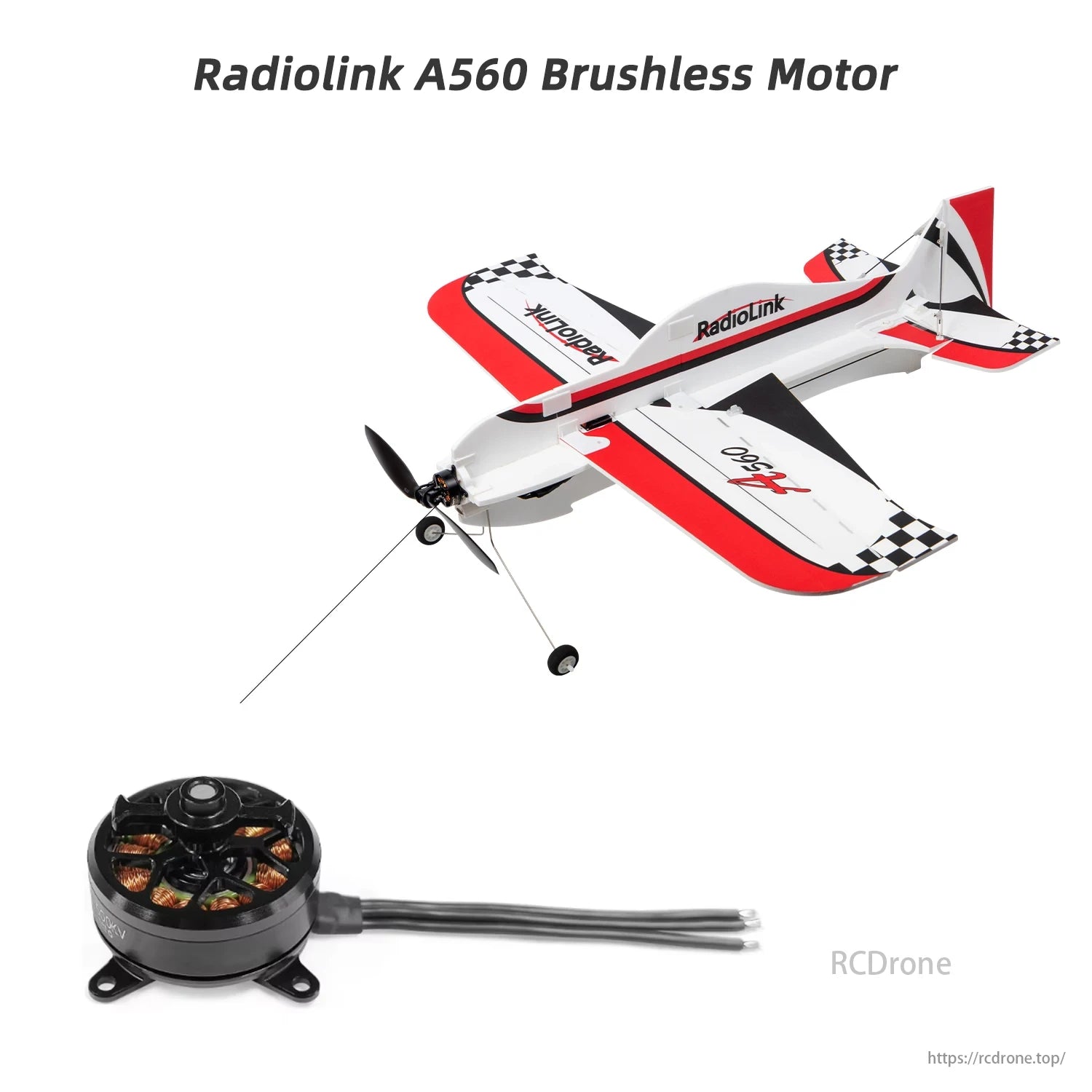

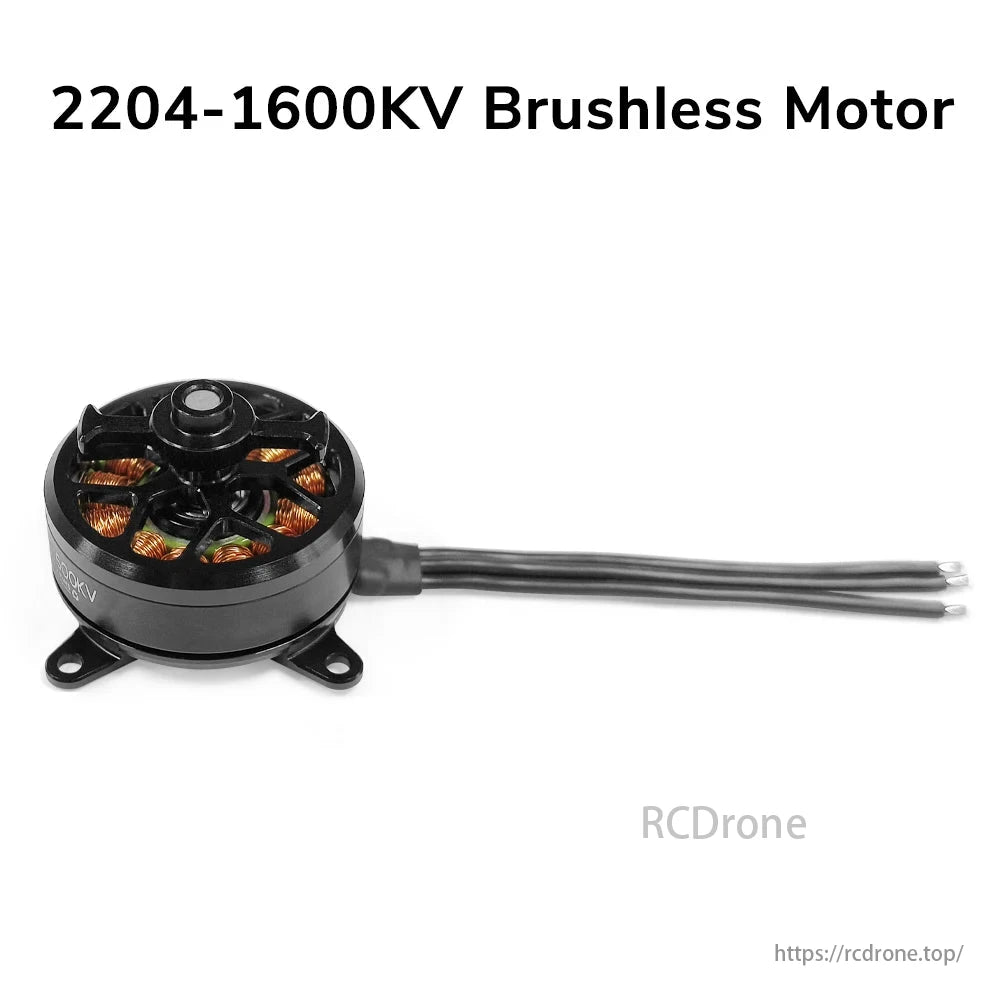

Radiolink SZ-SPEED 2204 1600KV Brushless Motor for A560 Fixed-Wing Aircraft

The Radiolink SZ-SPEED 2204 1600KV Brushless Motor is an official replacement part for the Radiolink A560 fixed-wing aircraft. Designed for smooth and efficient operation, this motor delivers consistent performance with low vibration, ideal for stable flight and long-term reliability.

Constructed with precision engineering and lightweight materials, the SZ-SPEED 2204 motor features a 1600KV rating optimized for fixed-wing applications. With a compact size and 4.6g weight, it’s easy to install and well-suited for the Gemfan Flash 7035-ABS 7" propeller with a 5.3mm center hole (not included).

Specifications:

• Brand: SZ-SPEED

• Model: 2204

• KV Rating: 1600KV

• Weight: 4.6g

• Compatible with: Radiolink A560 fixed-wing aircraft

• Recommended Motor Range: 1806KV–2204KV

• ESC Compatibility: 15A Brushless ESC (2–3S LiPo input)

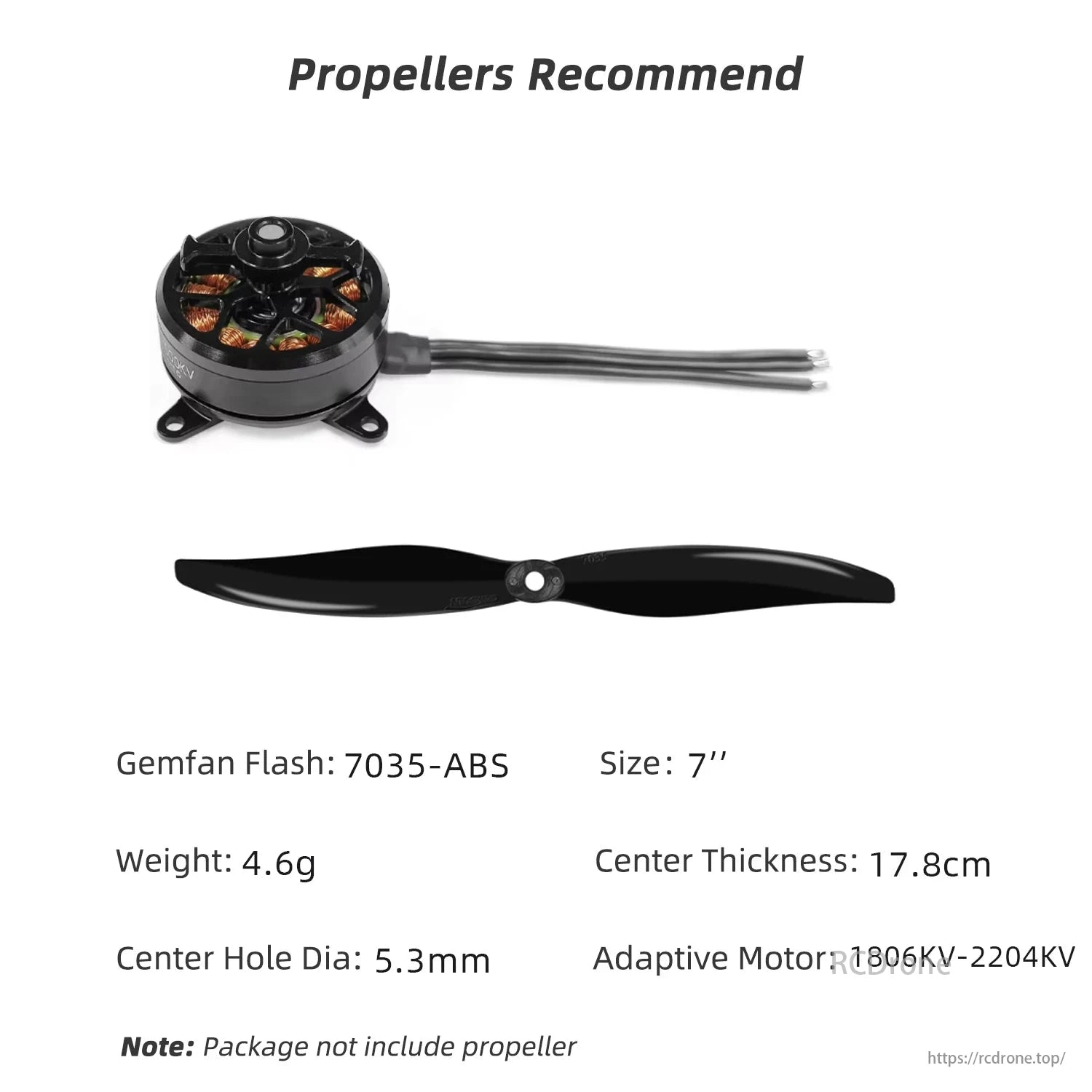

• Propeller Compatibility: 7035-ABS 7" Propeller, 5.3mm center hole

Installation Tip:

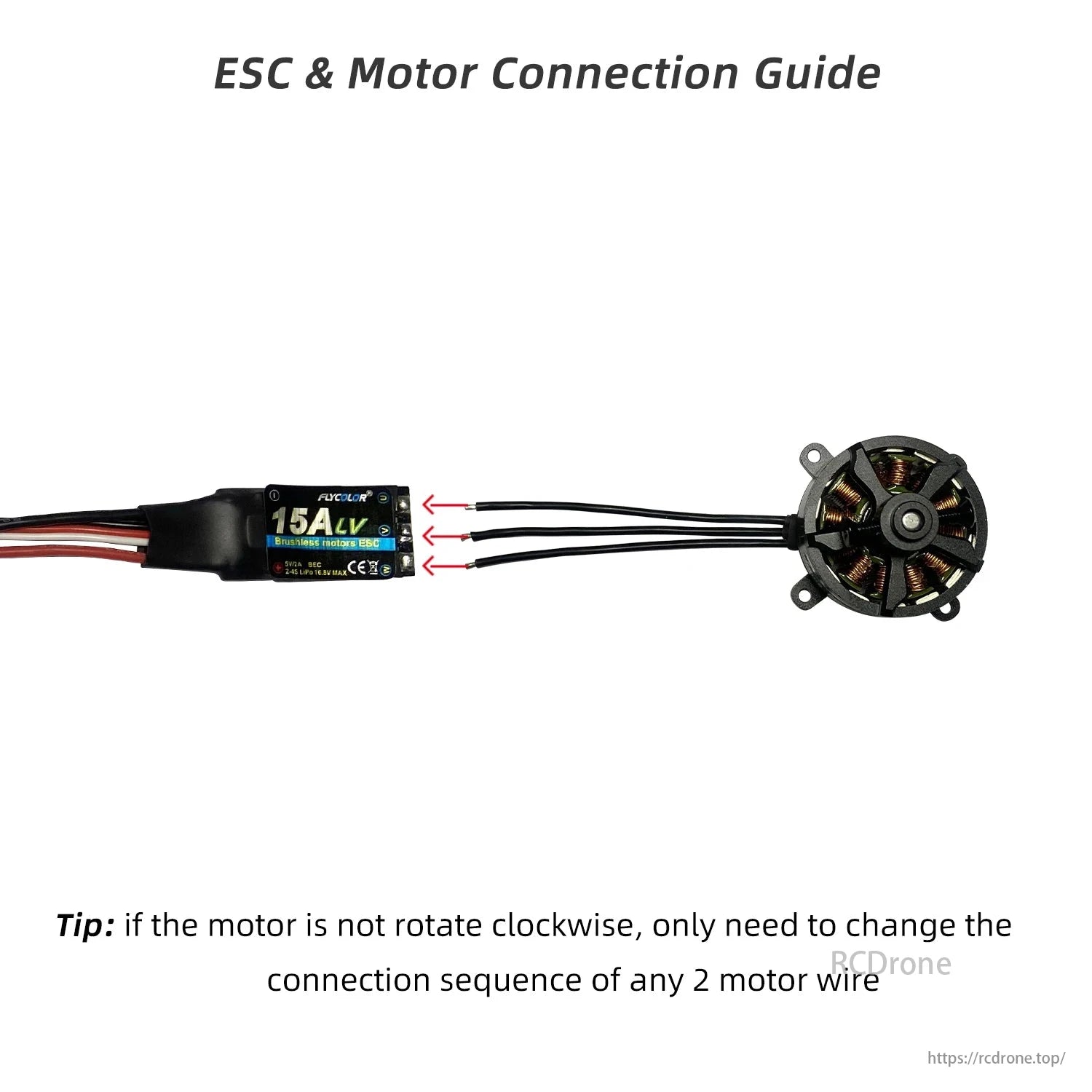

If the motor does not rotate clockwise, simply reverse the connection of any two motor wires as shown in the diagram.

Package Includes:

• 1 x SZ-SPEED 2204 1600KV Brushless Motor

Note: Propeller not included in package.
