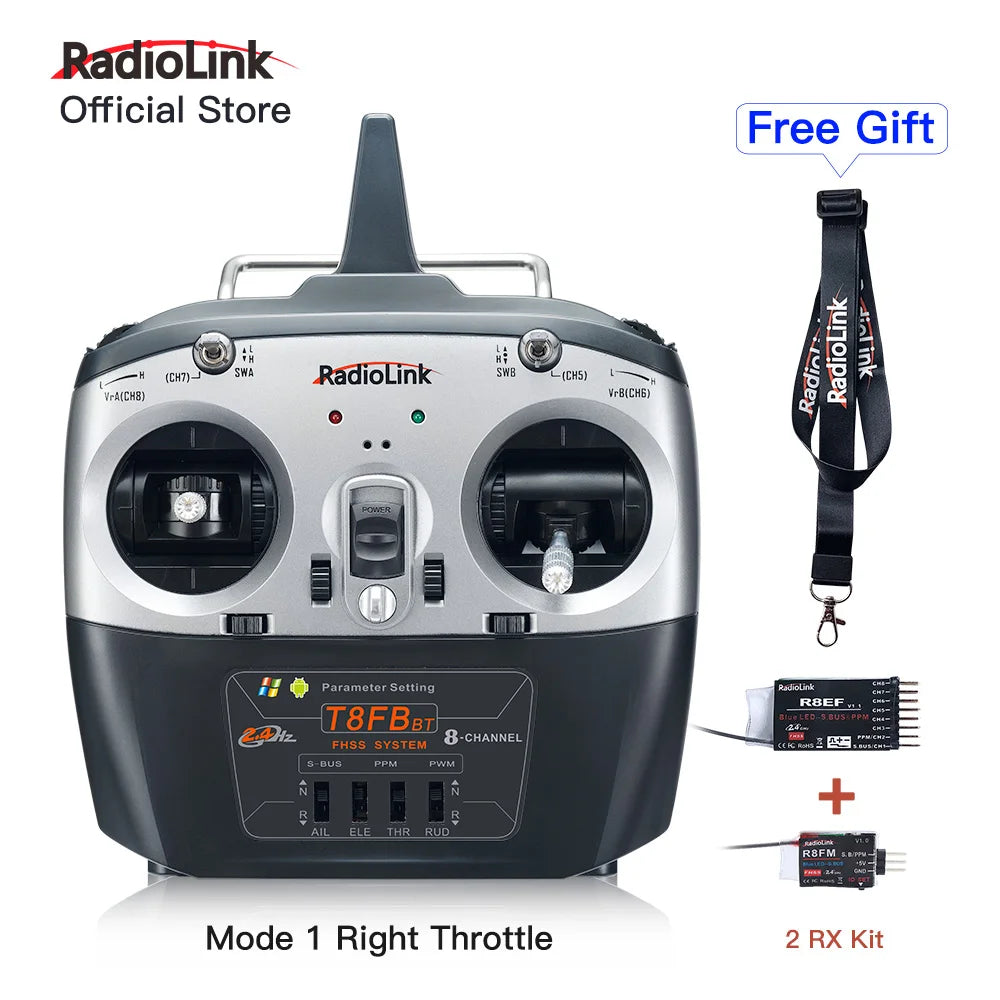

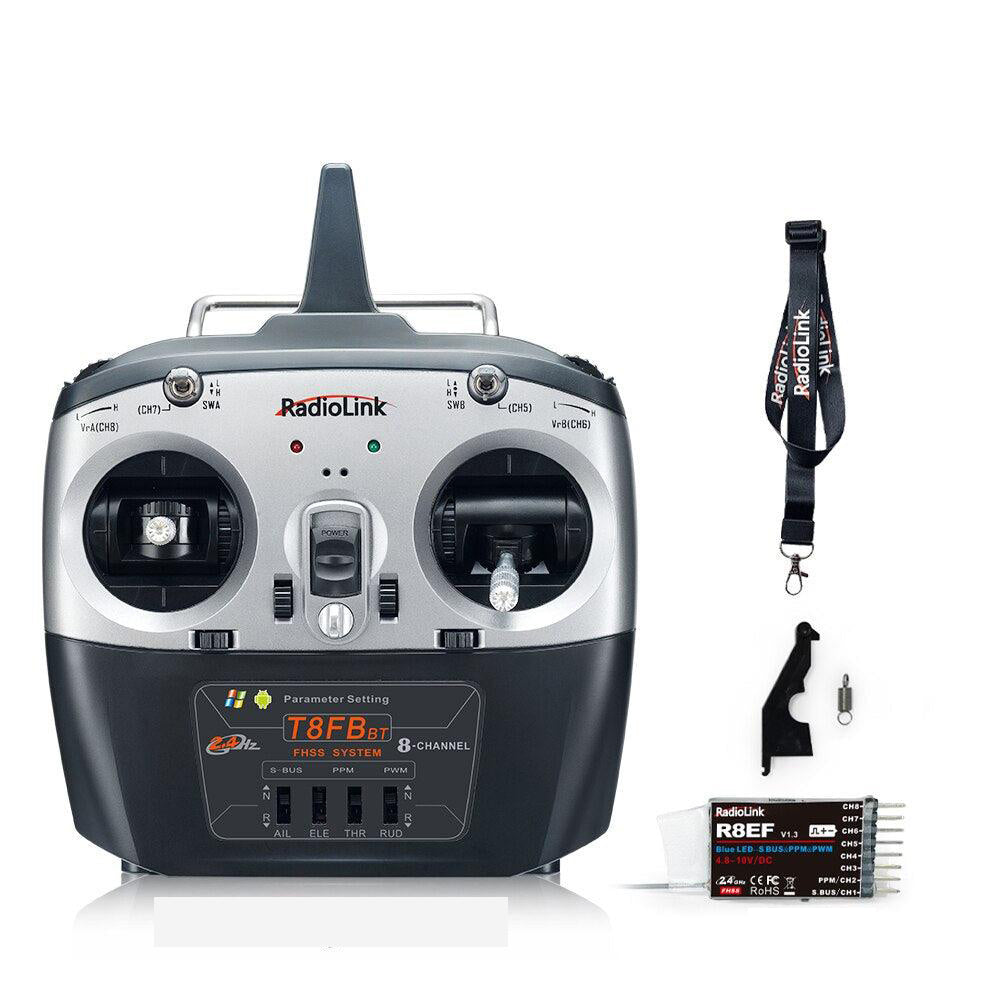

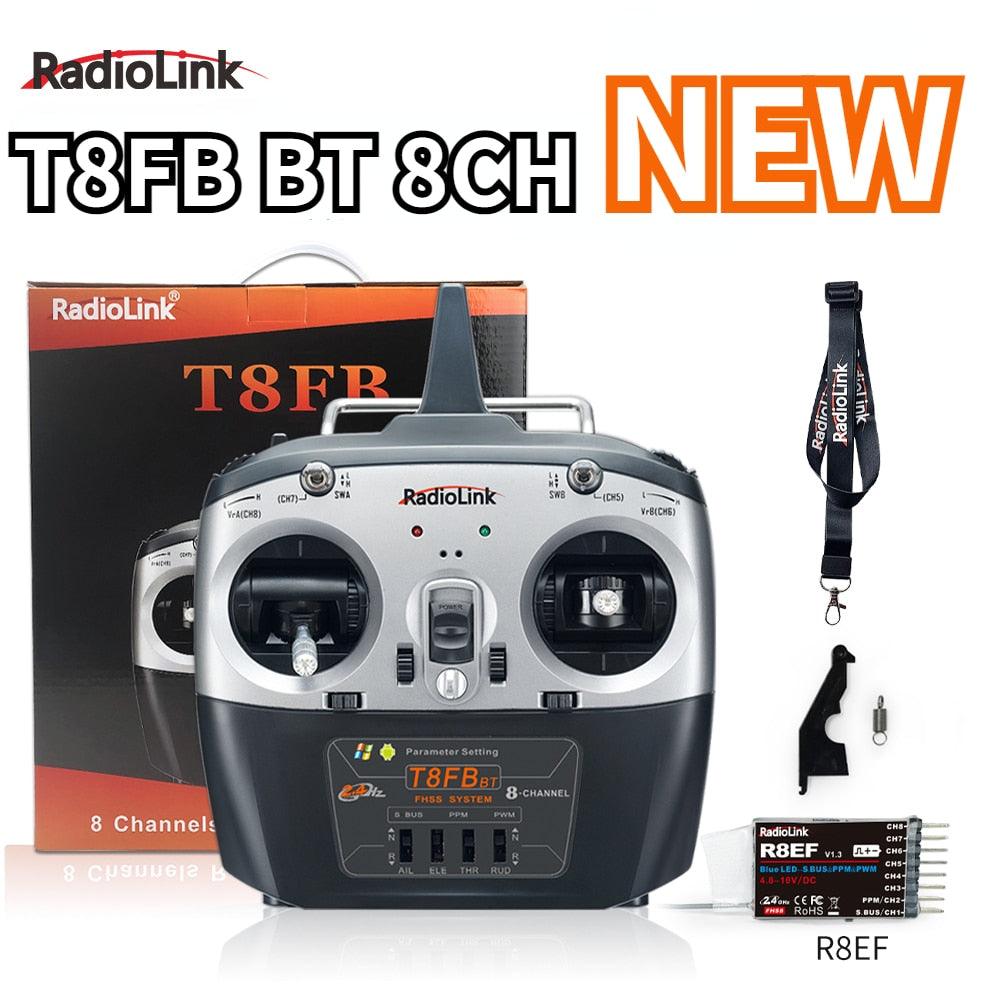

T8FB 8 Channels RC Transmitter and Receiver Support Bluetooth Connect to App for Setting, 2.4Ghz Remote Controller Works for Racing Drone Fixed Wing, Aircraft, Airplane, Multicopter, Quad, Car, Boat and More

Mobile Phone App System Support: Android /IOS

iPhone Apple IOS: Go to App Store search "Radiolink" to download app.

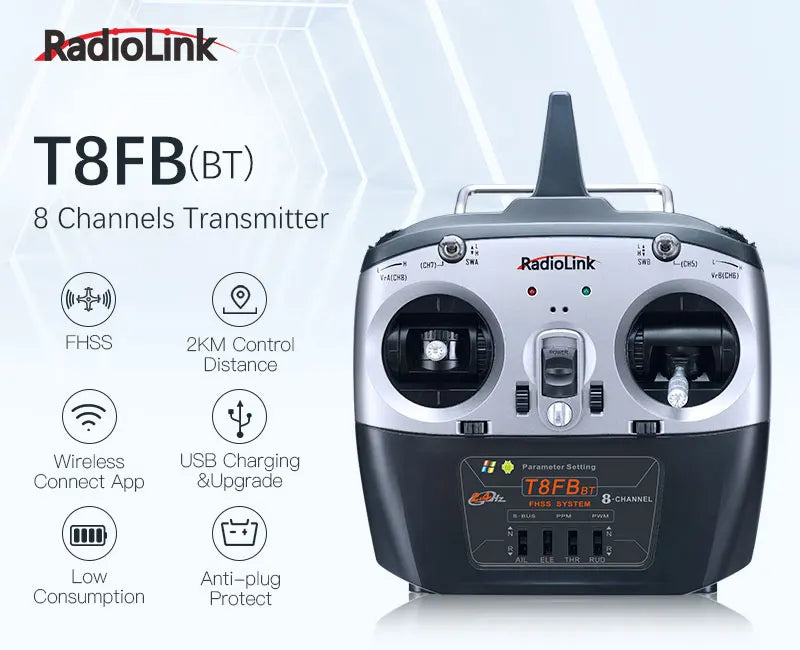

T8FB BT 8CH Radio Controller Overview:

8 channels,excellent anti-interference, long range control, wireless connect to mobile app,fast response, power polarity protection, failsafe protection, mix channel control and more features. Works with racing drone, fixed wing, airplane, multicopter, quad, car, boat and more.

T8FB BT version key features:

• Excellent Anti-interference: Real pseudo random algorithm FHSS communication technology makes T8FB with stable signal, control range up to 1.3 mile (2KM).

• Lower Latency: TI CC2500 chip, 4096 0.5us per section, fast response for all 8 channels.

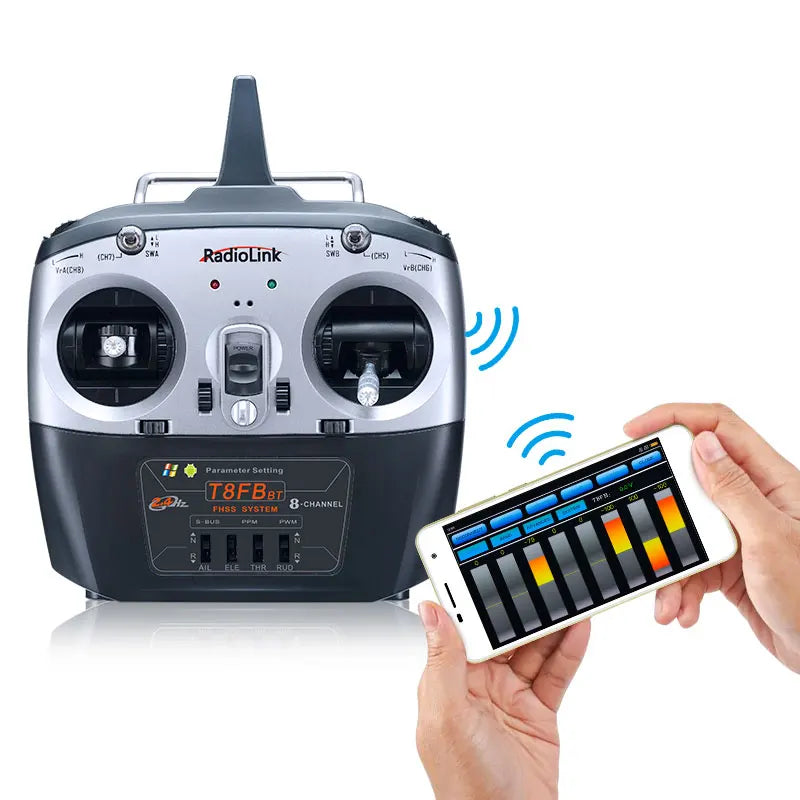

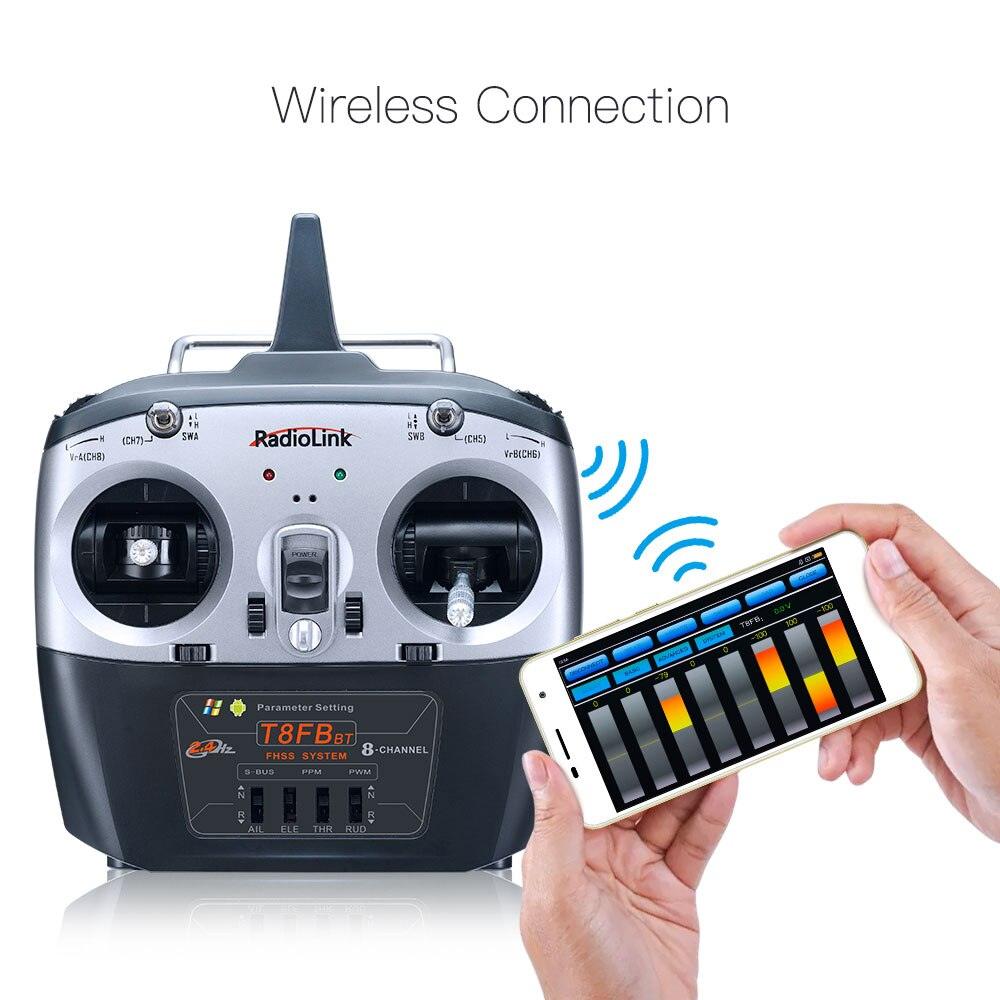

• Wireless Connection: wireless connect controller with Android and iPhone app to parameter setting, like Fail-safe, End Point Adjustment, Dual Rate, Programmable Mix Control etc.

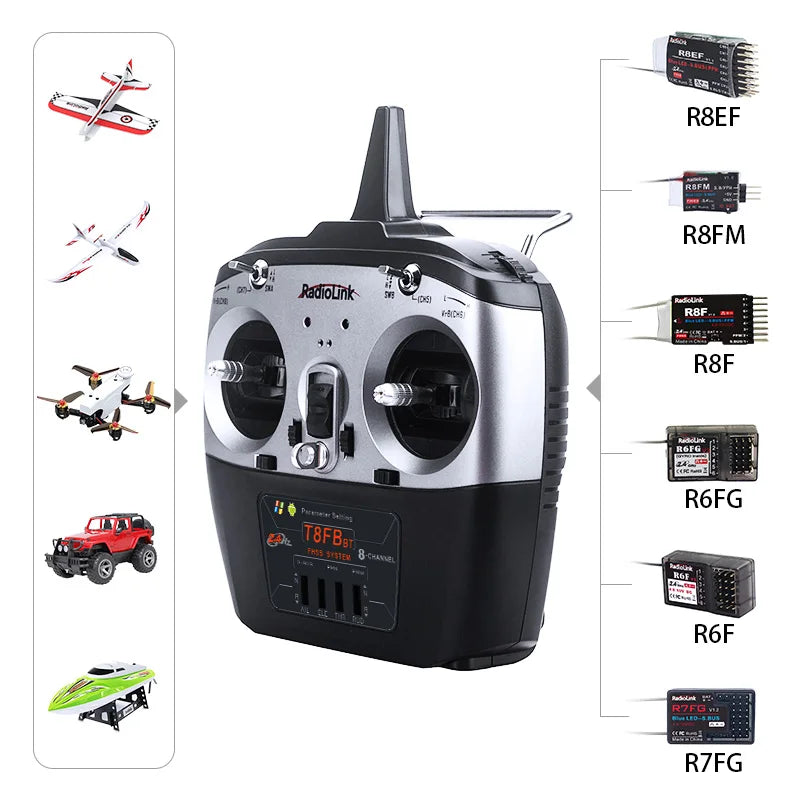

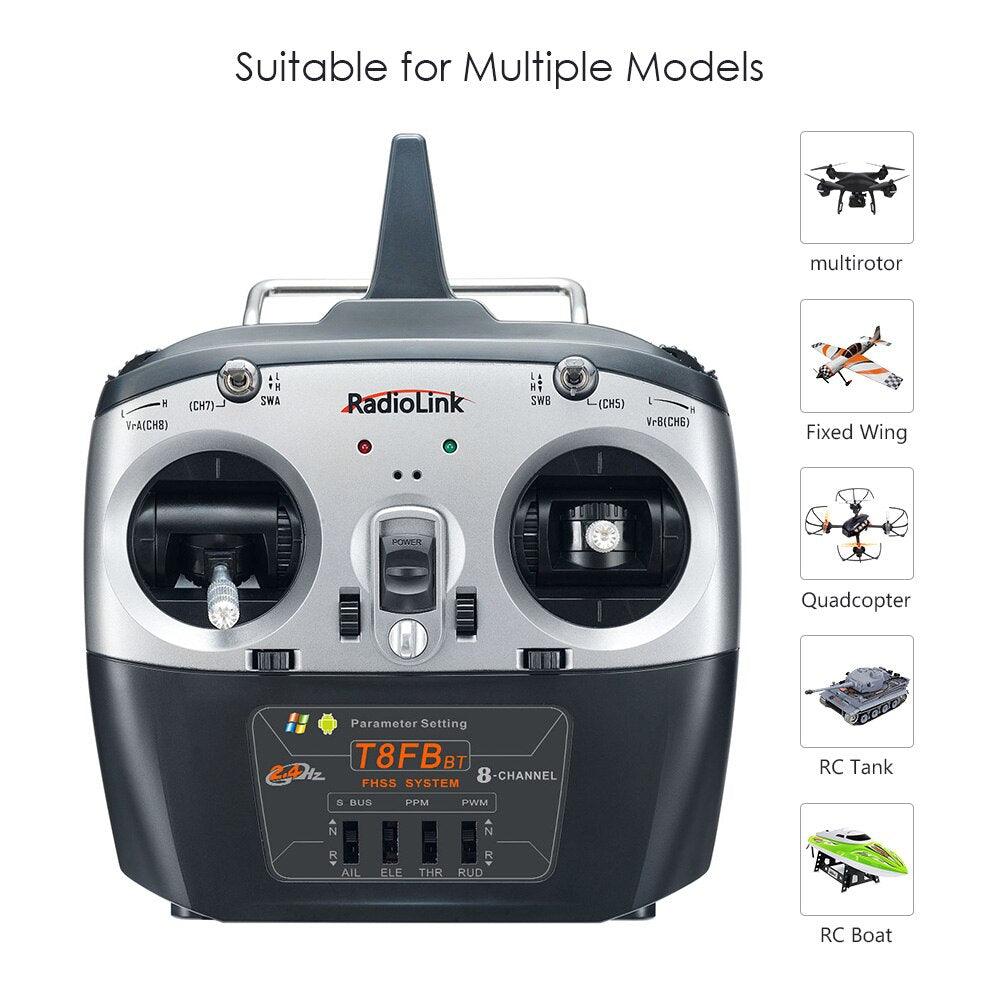

• Suit for Multiple Models: Press 1 second to bind with receiver R8EF, R8F, R8FM, R8SM, fit a wide range of RC aircraft models: FPV racing drone, fixed-wing, quadcopter, multirotors, RC boat and car

• Anti-polarity Protection: Not damage even if you insert wrong polarity. Universal JST connector supports multiple batteries: 4 pcs AA or 2s-4s LiPo battery. (Not included batteries)

T8FB BT version Transmitter Specifications:

• Channels: 8CH

• Frequency: 2.4GHz ISM band（2400MHz~2483.5MHz）

• Channel Bands width: 1200KHz

• Spread Spectrum: FHSS

• Adjacent Channel rejection: >38dbm

• Transmitter Power: <100mW (20dBM

• Operating Voltage: 4.8V~18V

• Sensitivity: -104dB

• Speed Rate：38kbps

• PWM Output: 1.0ms~2.0m

• Size: 17.3*10.2*20.6cm

• Weight: 0.74kg

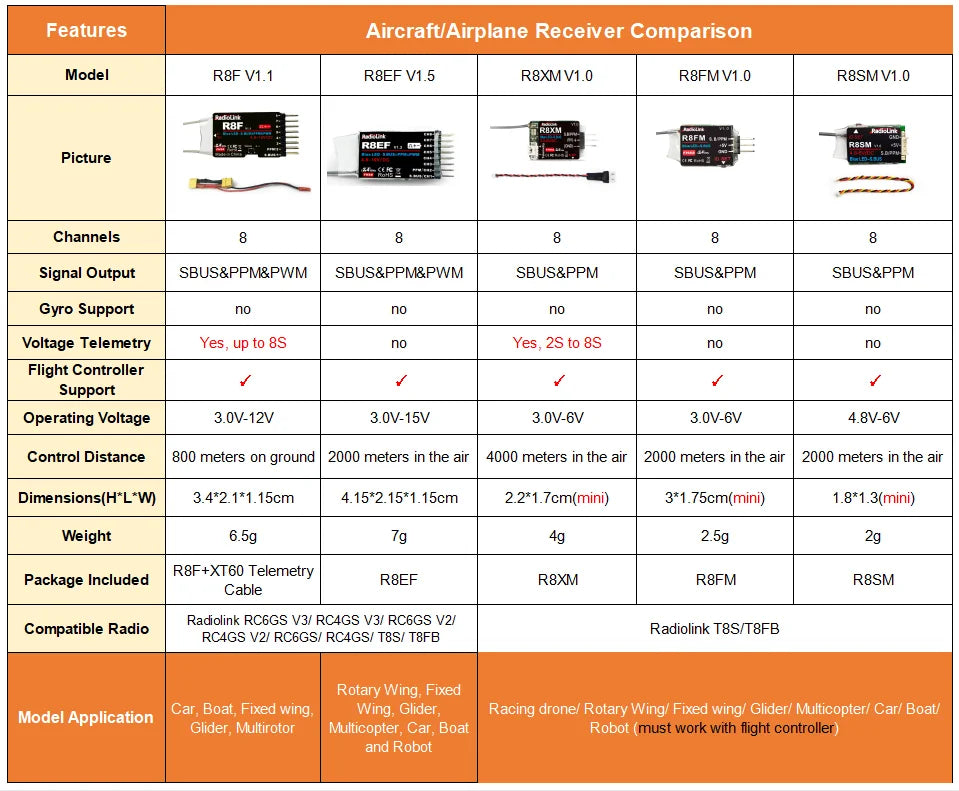

R8EF Receiver Specifications

• Signal output: S-BUS & PPM & PWM

• Channel: 8CH

• Control Distance: 2000m in air,actually control distance depends on the environment.

• Working Voltage: 3.0-12V

• Working Current: 30mA(input voltage 5V)

• Section precision: 4096

• Size: 4.8*2.1*1.1cm

• Weight: 7g

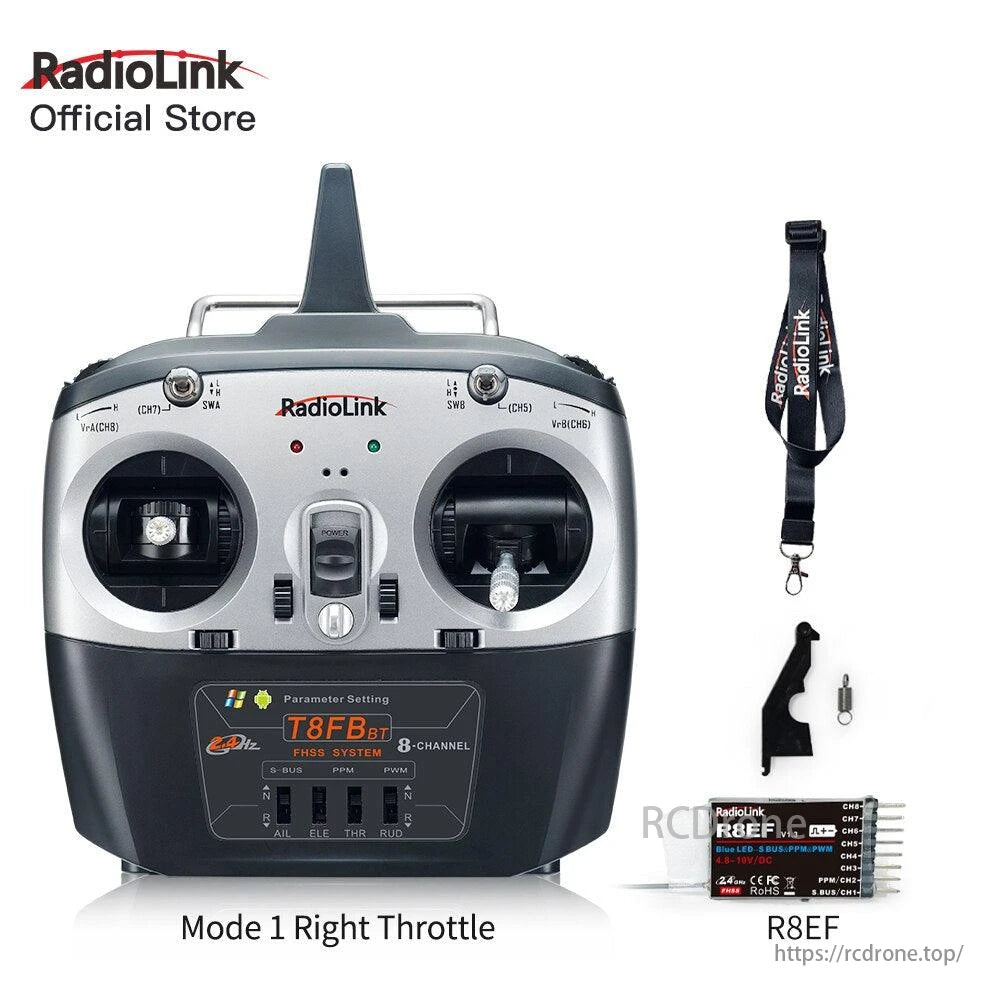

• T8FB  x 1

• R8EF receiver x 1

• Spring Accessories x 1

• User Manual x 1

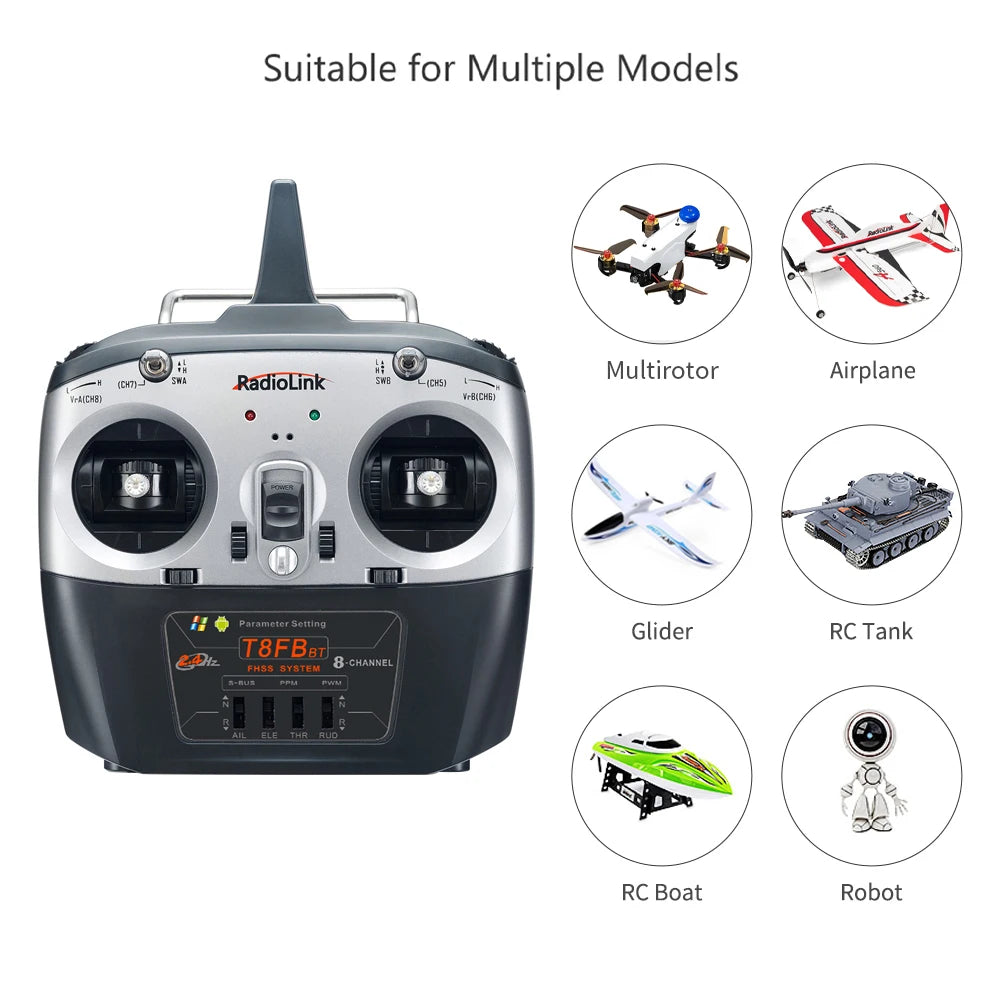

Compatible with Radiolink products: RC6GS V3, RCAGS V3i, and others. This radio controller, Radiolink T8FB BT, is suitable for various models including fixed-wing airplanes, gliders, racing drones, rotor multicopters, car models, boat models, and Carl boats.

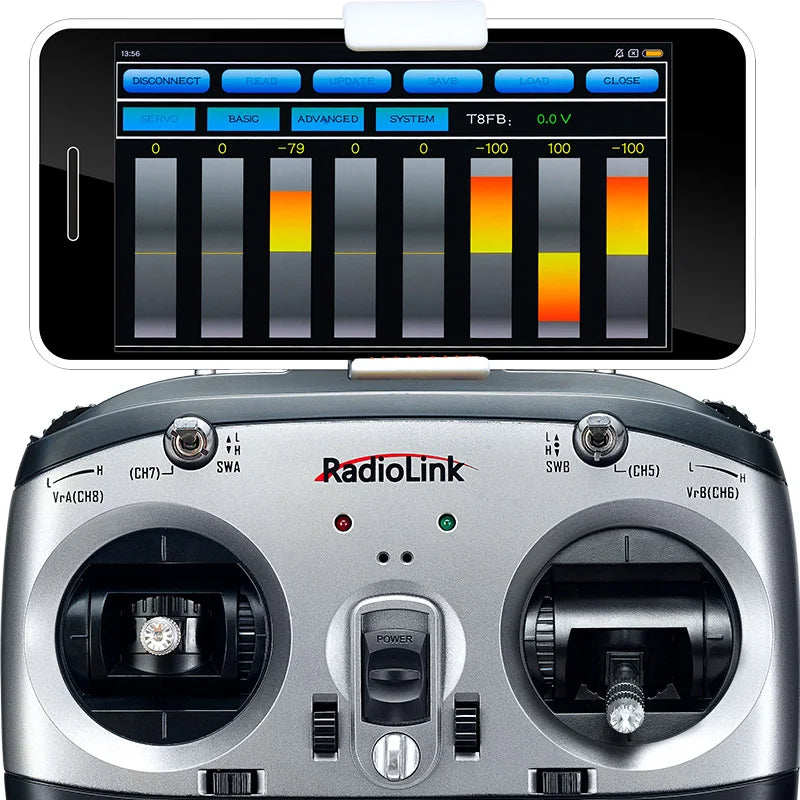

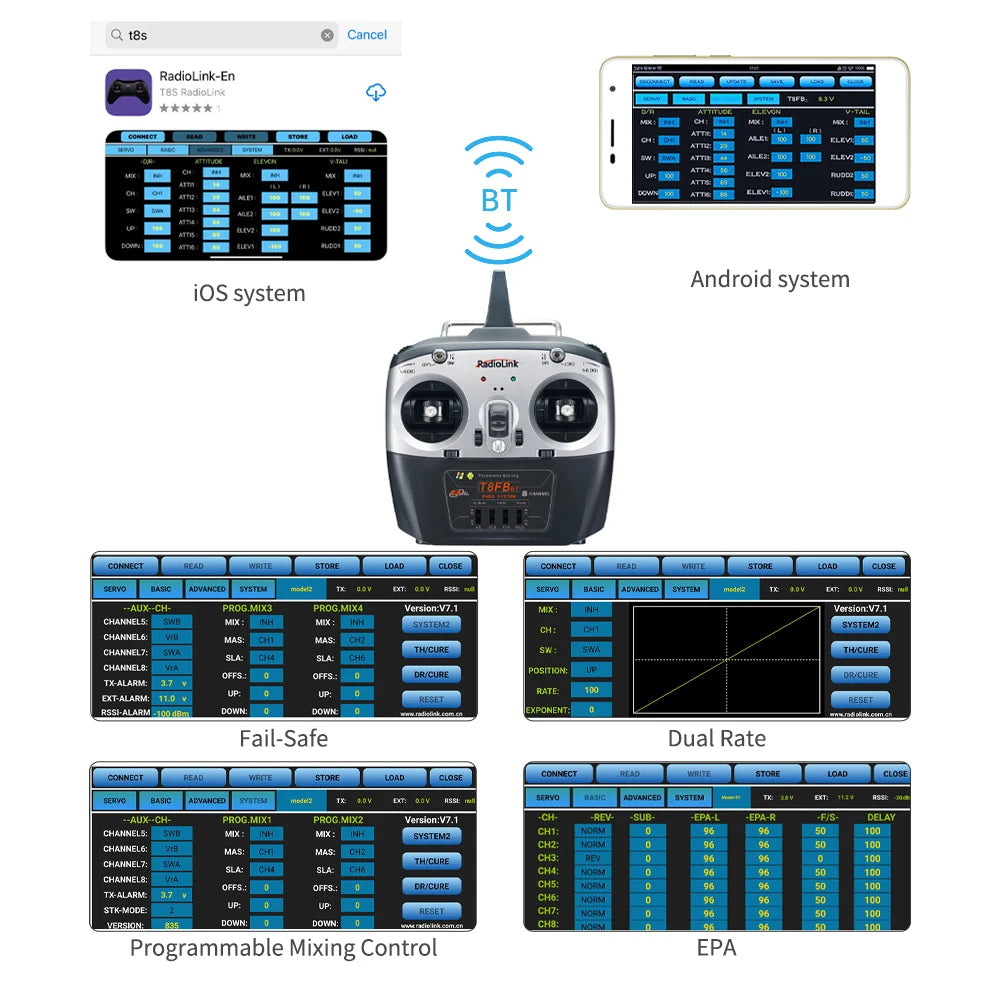

RadioLink-En T85 Rodiolnx Aatettti Klnint corhlou Cn Tir CL Ha Elly Iodbi an Anuitn BT Mnda Android system iOS system RadioLink TBFBui Helil CORNLCT MRME STOaL CLOSC CONNEC MIAME StokL cLosE Nxvo Masic Aovangn Gasn medcze 56RV0 alataic A

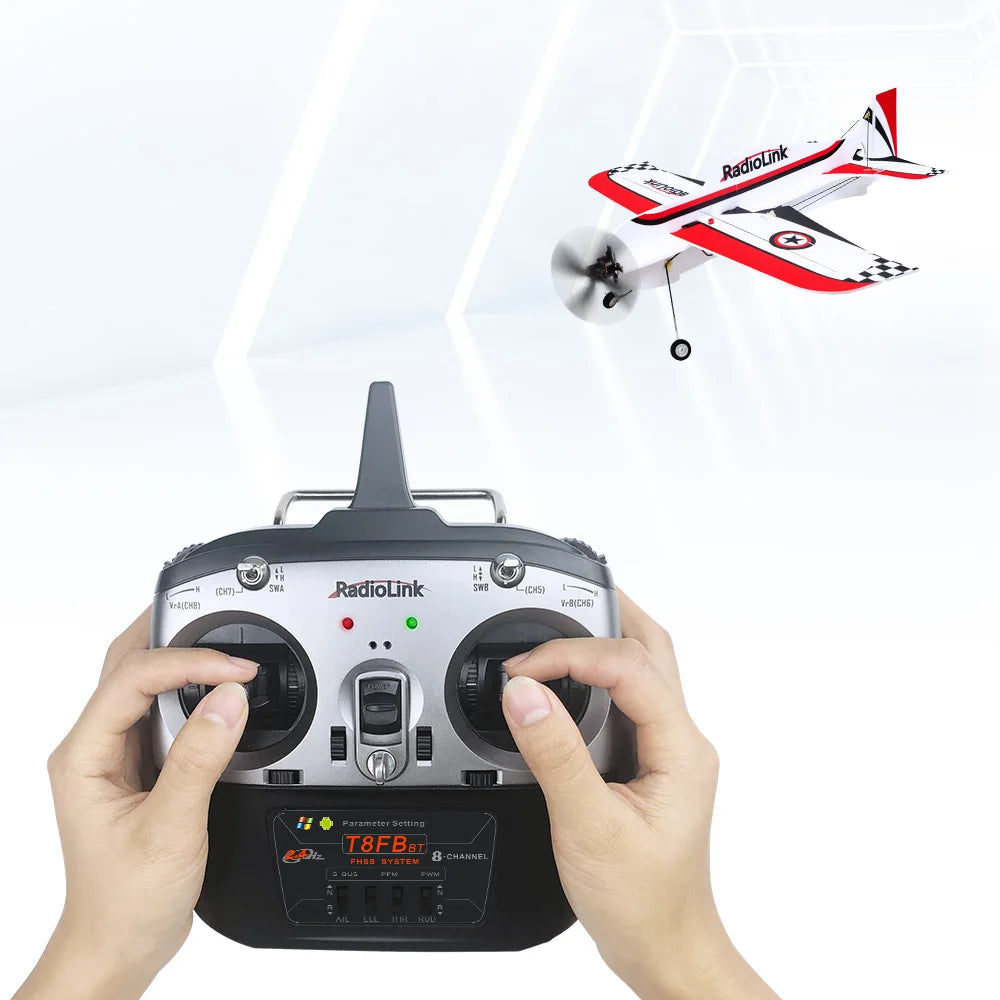

RadioLink (CHS) VAChB) NBUCHG) paremetersctting (TBEBBI) 8 CHANNEL FhBE RadioLink atatem

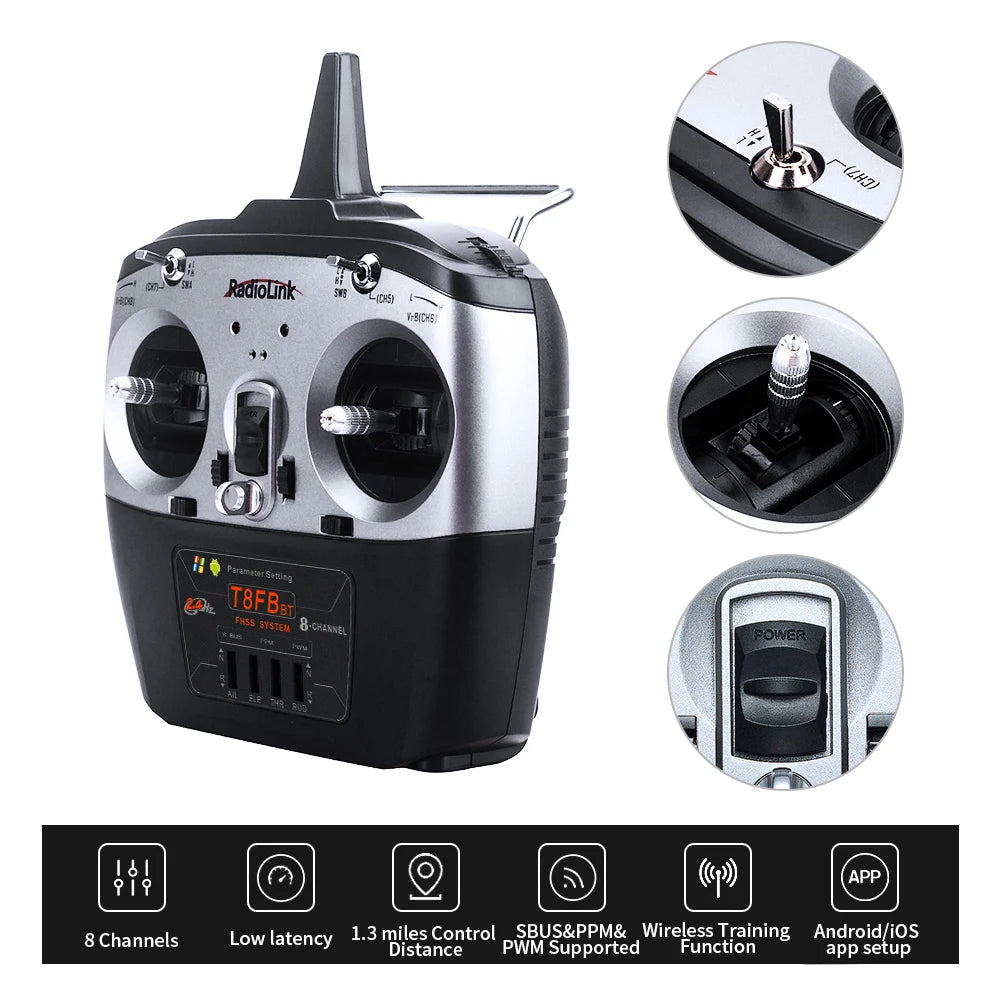

The Radiolink T8FB BT controller supports up to 8 channels, featuring low latency control with a range of approximately 1.3 miles. It also supports SBUS, PPM, and wireless training via the Che Fuss Rower APP, compatible with Android and iOS devices, which allows for PWM distance function setup.

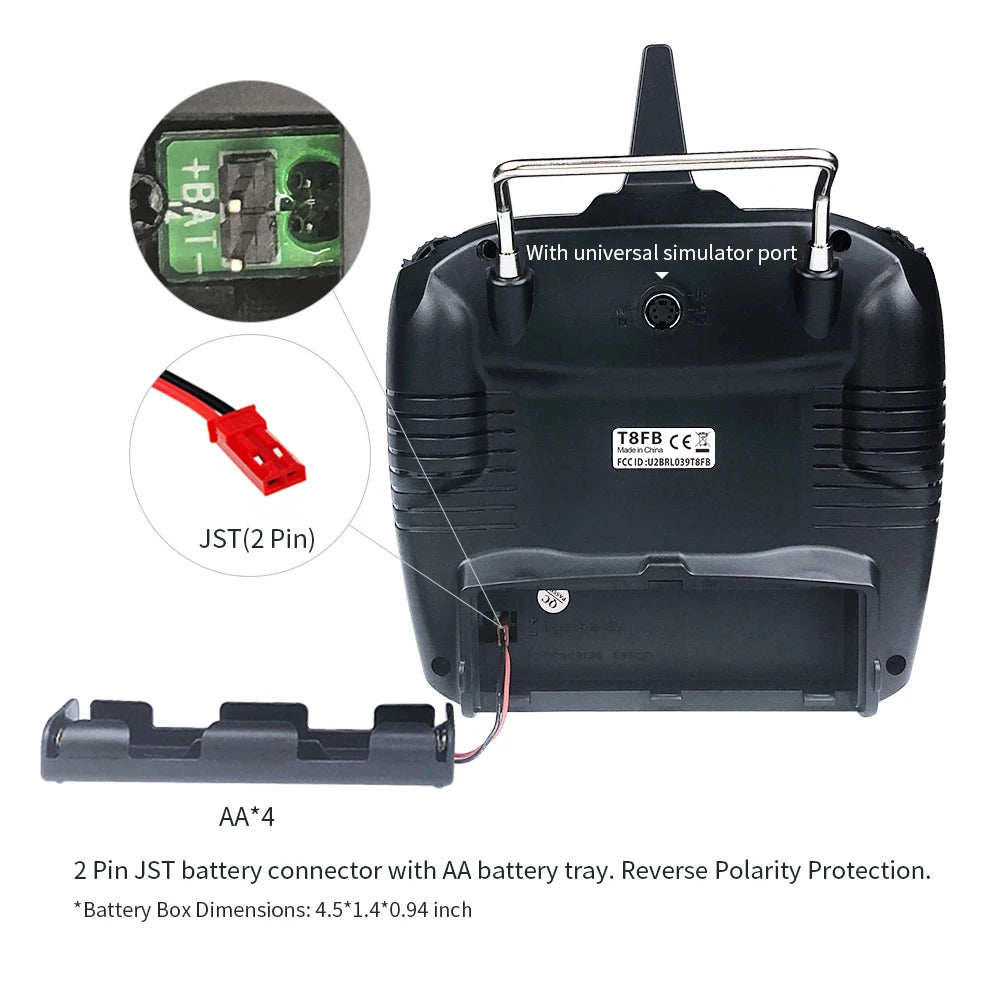

AA*4 2 Pin JST battery connector with AA battery tray: Reverse Polarity Protection: Battery Box Dimensions: 4.5*1.4*0.94 inch .

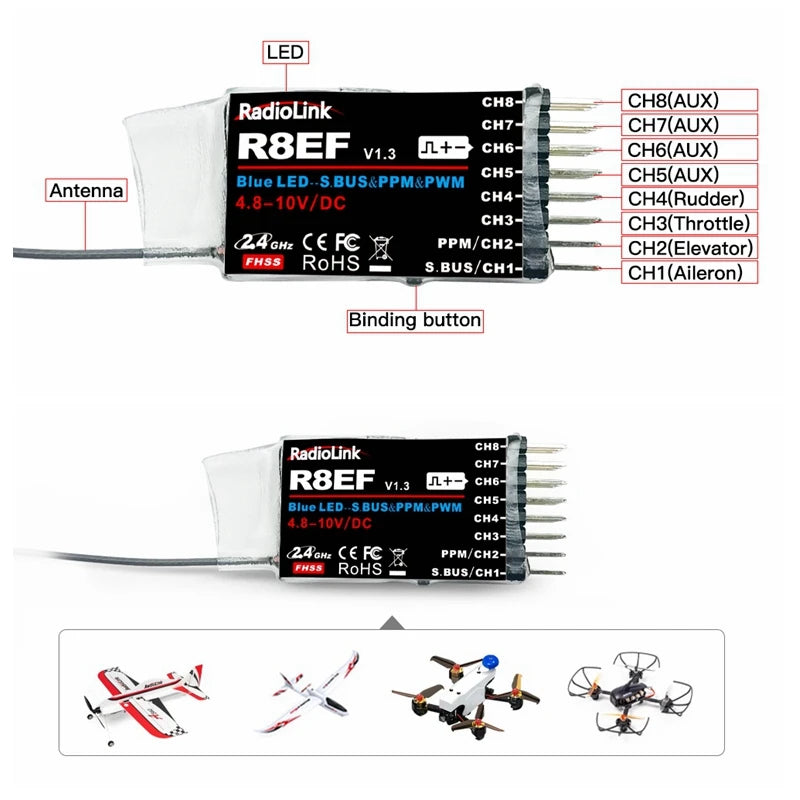

RadioLink Ch7 R8EF V1.3 n+ Ch6 CHG(AUX) Blue LED-S BUSCPPMAPWM CHS CHS(aux) € FC PPM/cH2 CH2(Elevator) FHSS RoHS S.Bus/ch1- CHI (Aileron)

Product Features: 1.63-inch LED display; 0.85-inch channel changeable Fc; 0.45-inch RadioLink R8EF receiver compatible with 8 channels (V1.3); Blue light indication on channels 6-7; Operating voltage: 4.8-12V; Bus mode: PWM/IDC; Channel selection: CH1-Z4; Compliant with RoHS regulations; PPM/e bus system.

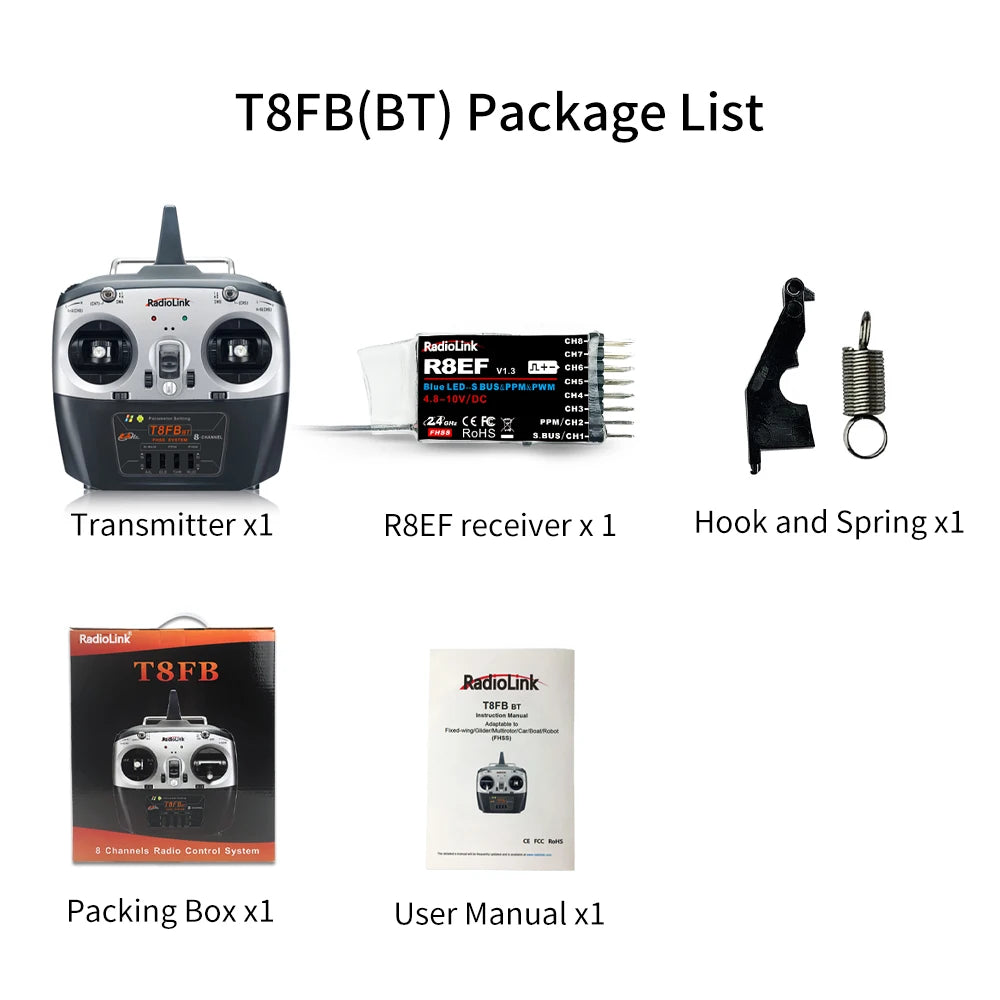

Radiolink T8FB (BT) Package List includes RadioLink R8EF LED, BUSE PPM/AWMM over/over current, Ch3, 2.4GHz. The Radiolink T8FB (BT) package contains an 8-channel radio controller with a receiver and transmitter for FPV drone fixed-wing airplane applications.
