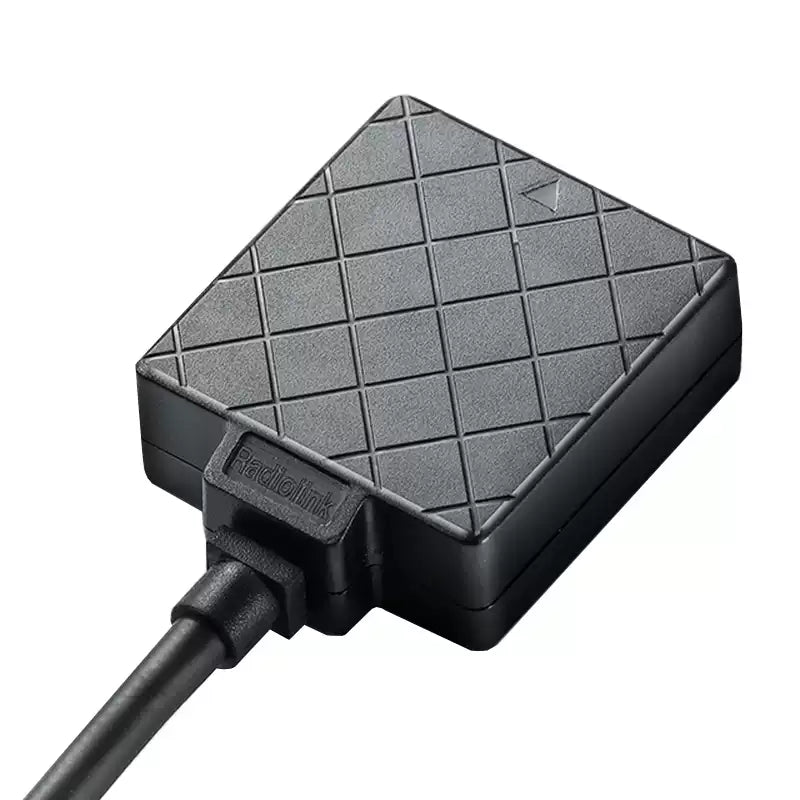

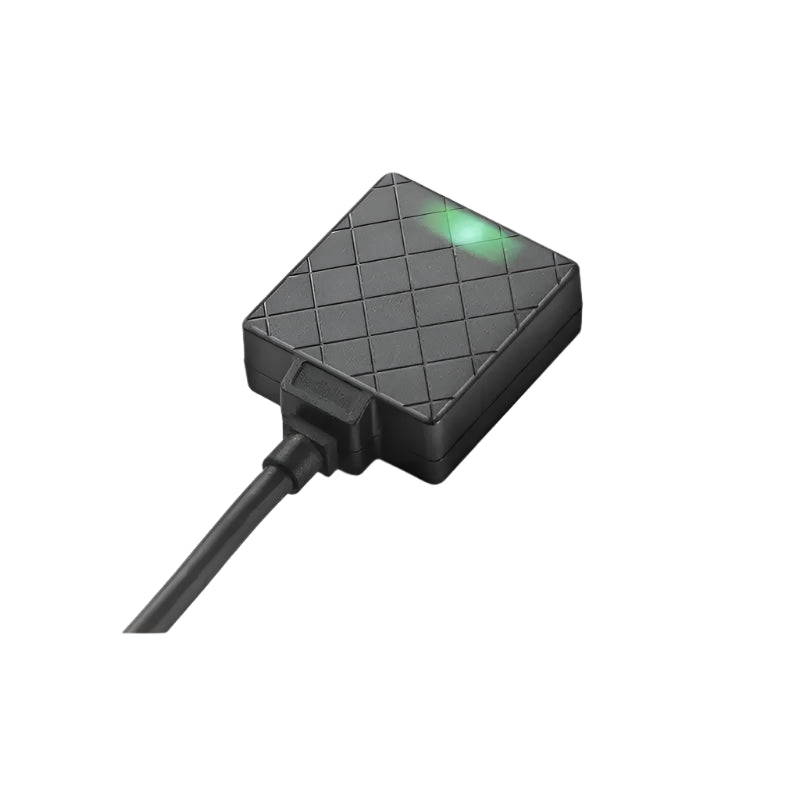

RadioLink TS100 v2.0 Mini M10N GPS Module – Triple-Frequency GNSS with Dual Anti-Interference and 50cm Accuracy

Overview

The RadioLink TS100 v2.0 is a compact and advanced M10N GNSS module designed for high-performance UAVs and racing drones. Powered by the Ublox M10050 chip, it offers triple-frequency support (L1 band for GPS, Galileo, GLONASS, and Beidou), ensuring 50cm real-time positioning accuracy. Unlike its predecessor (TS100 v1.0 based on M8N), TS100 v2.0 brings enhanced multi-constellation compatibility, quad-mode GNSS, and 20Hz update rate, making it ideal for precise navigation even in interference-prone environments like urban canyons or high-power image transmission scenarios.

---

Key Features

• M10N GNSS Chip (Ublox M10050)
  Delivers superior sensitivity and positioning accuracy compared to the previous M8N version.

• Triple-Frequency, Quad-Constellation Support
  Supports BD1, GPS L1, Galileo E1, GLONASS G1 with triple-frequency bands:
  1561±1MHz, 1575±1MHz, 1602–1610MHz.

• Dual Anti-Interference Technology

  • De-interference: 78dB attenuation via Murata two-stage SAWF filter eliminates out-of-band interference.

  • In-band protection: High linear LNA (-3dBm 1dB compression point) reduces in-band interference.

• High Performance and Reliability

  • 50cm accuracy (quad-mode), 250cm (single mode)

  • Acquires 20 satellites within 6 seconds

  • Station-keeping capability in valley or blocked environments

  • 20Hz update rate ensures real-time response for high-speed flights

• Industrial-Grade Hardware

  • 2.5dBi high-gain ceramic chip antenna

  • Built-in IST8310 geomagnetic compass (I2C)

  • Low-loss pre-LNA matching ensures strong signal capture

• Automatic Protocol Adaptation
  Default NMEA, but auto-switches to match the connected flight controller protocol (e.g., ArduPilot, PX4) and reverts to NMEA if disconnected.

• Lightweight Compact Design for Racing Drones
  Pairs perfectly with Mini Pix flight controller, enabling Super Simple Mode for beginner-friendly operation.

---

Specifications

---

Internal Components

• Ublox M10050 GNSS Chip (M10N)

• 2.5dBi Ceramic High-Gain Antenna

• IST8310 Geomagnetic Compass

• Murata SAWF Double Filter

• Pseudocapacitance for stable signal regulation

---

Wiring Definition

Compatible with Mini Pix flight controller. Automatically maps signals for GPS and compass.

---

Application Scenarios

• Racing Drones & FPV Builds

• Freestyle Quadcopters

• Compact UAVs in Interference-Rich Environments

• Drone Training & Beginner Mode (Super Simple Mode)

---

Packing List

---

What’s New in TS100 v2.0 vs TS100 v1.0 (M8N)



Details

Mini M10N GPS offers dual anti-interference, 50 cm accuracy, tracks 20 satellites in 6 seconds, and has high-gain ceramic antennas for reliable performance.

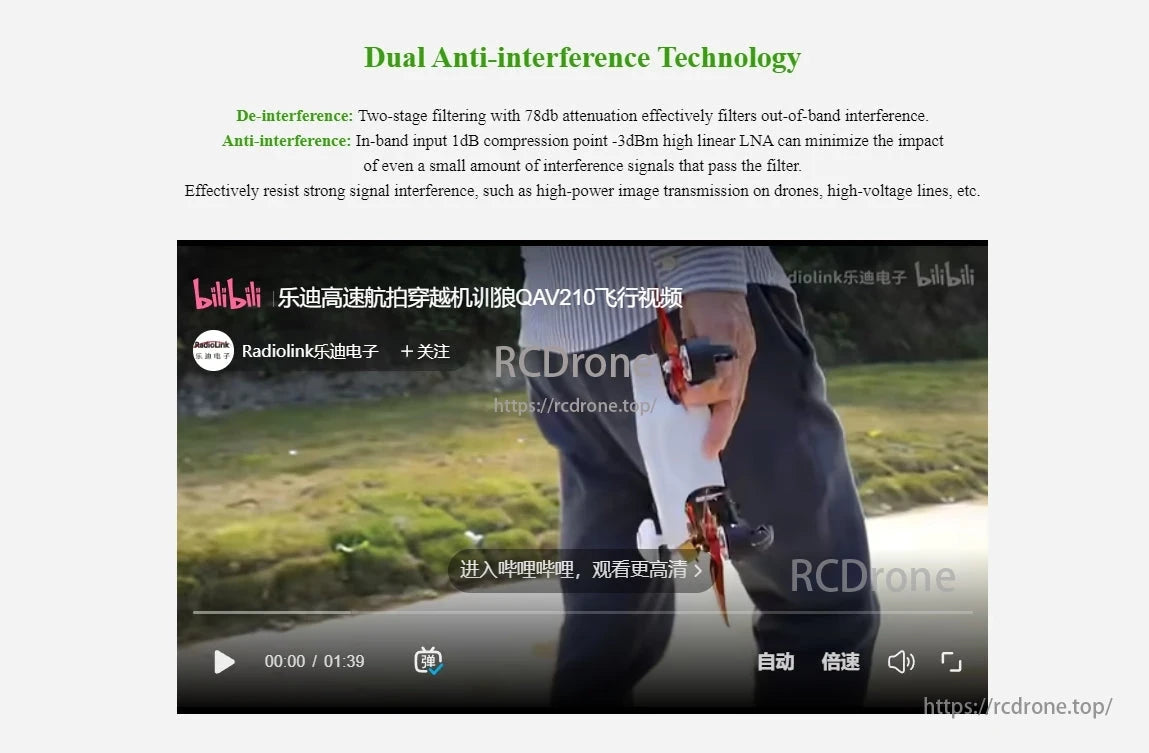

Dual Anti-interference Technology. De-interference: Two-stage filtering with 78dB attenuation. Anti-interference: In-band input 1dB compression point -3dBm high linear LNA minimizes interference impact. Resists strong signals.

TS100 v2.0 GPS offers excellent performance with pre-LNA low-loss circuit design, capturing weak signals. It supports multiple satellite systems, ensuring 50 cm accuracy and quick positioning. Protocol auto-adjusts for flight controllers.

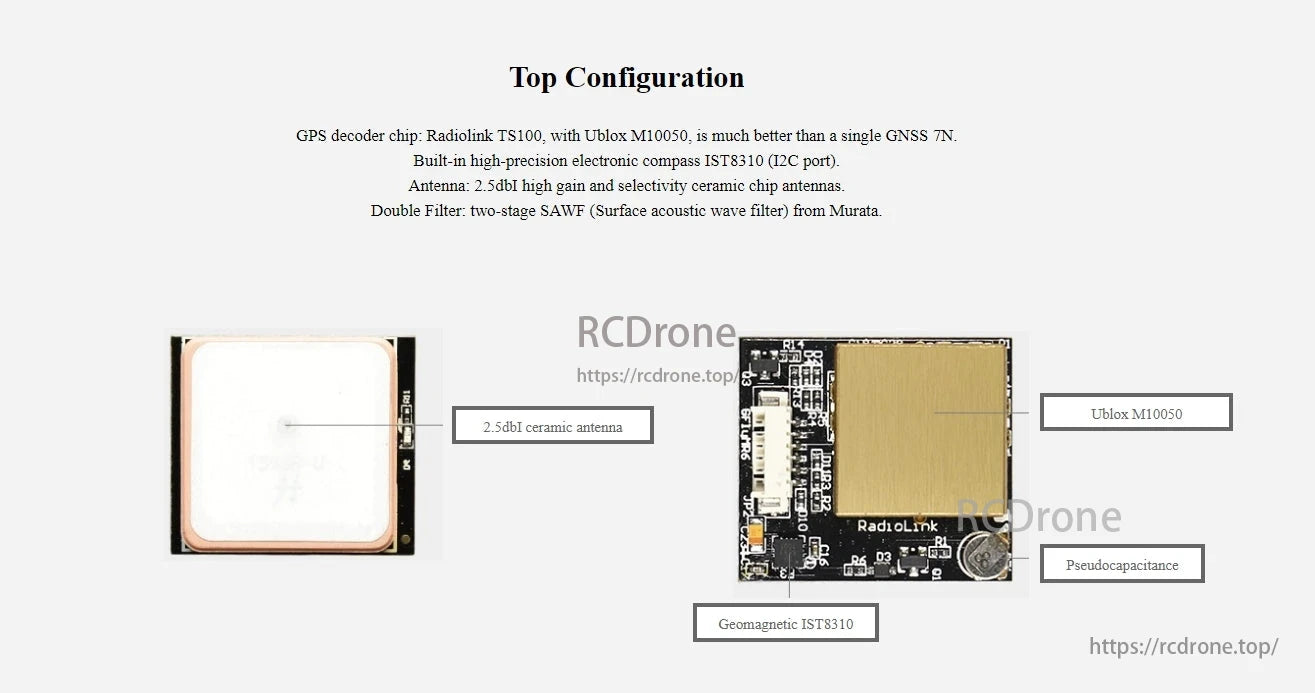

RadioLink TS100 v2.0 Mini M10N GPS includes Ublox M10050, IST8310 compass, ceramic antenna, and Murata SAWF filters. Compact design offers high precision and reliability for advanced navigation.

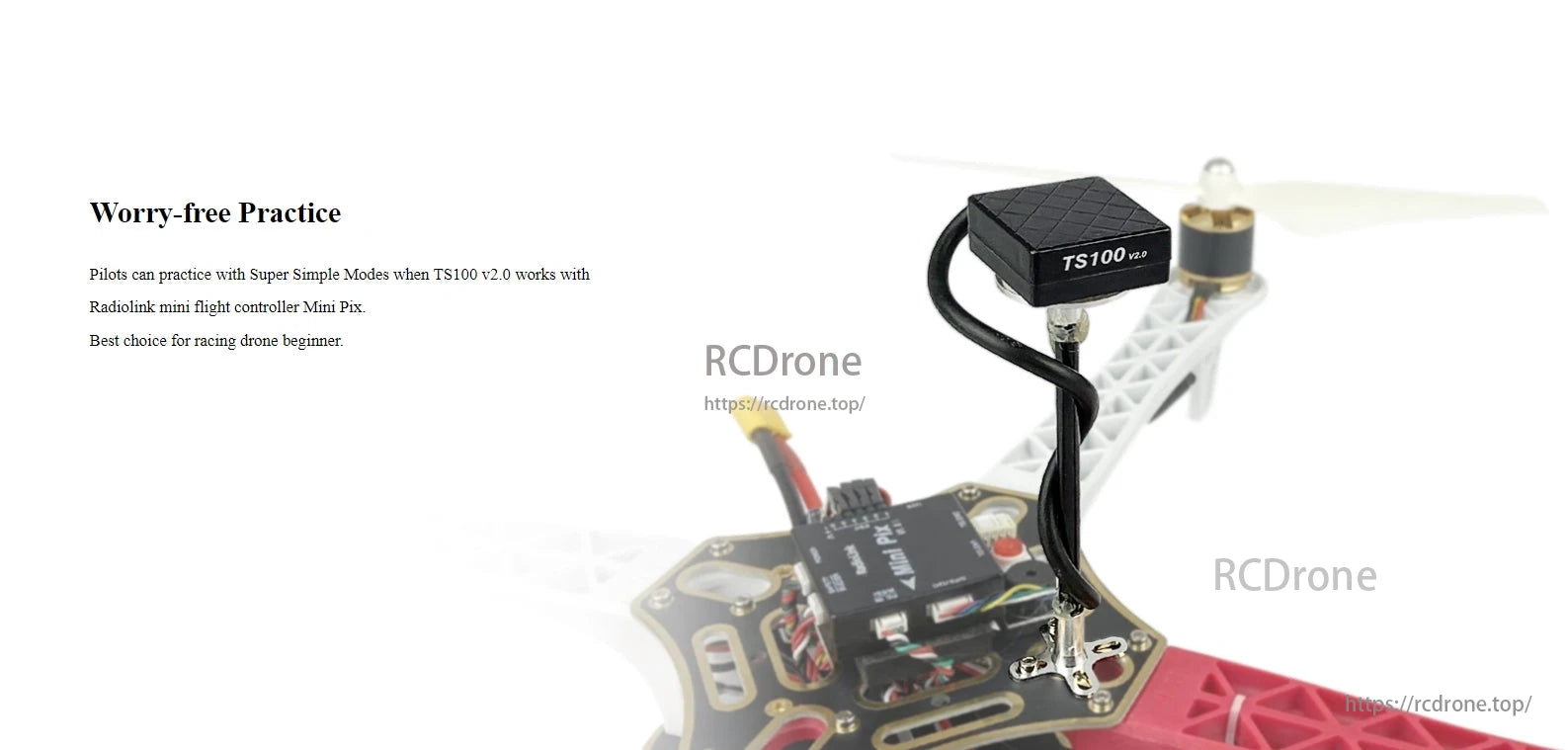

TS100 v2.0 GPS with Mini Pix flight controller offers worry-free practice for racing drone beginners.

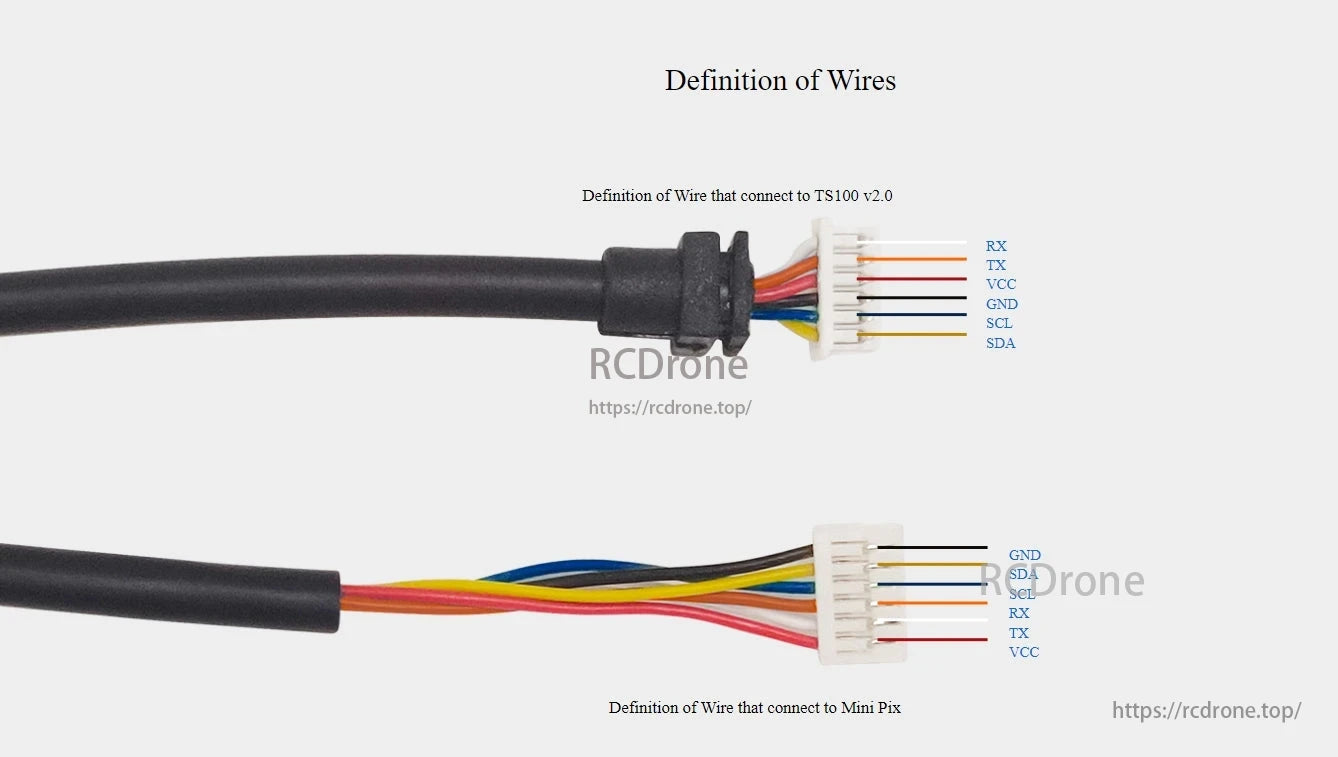

Wires for TS100 v2.0 and Mini Pix: RX, TX, VCC, GND, SCL, SDA connections explained.

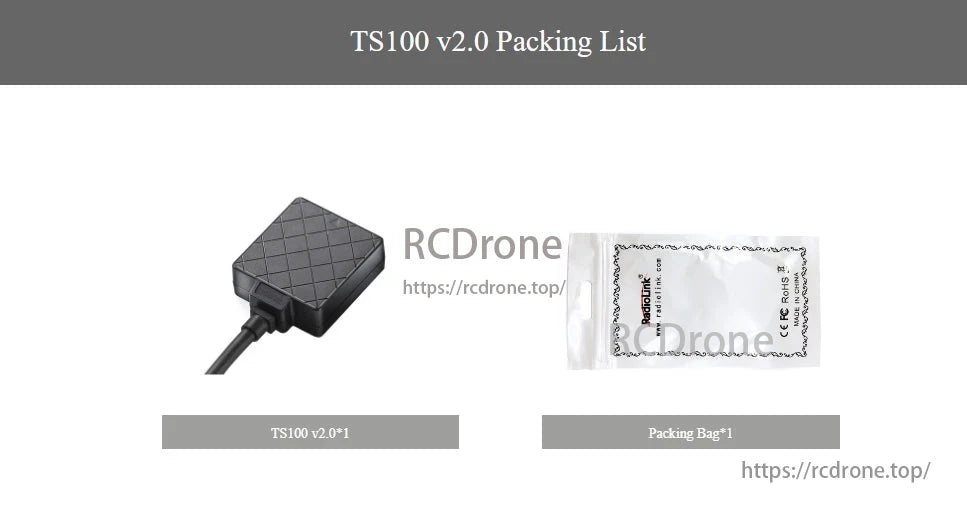

TS100 v2.0 Mini M10N GPS packing list: device and packing bag included.

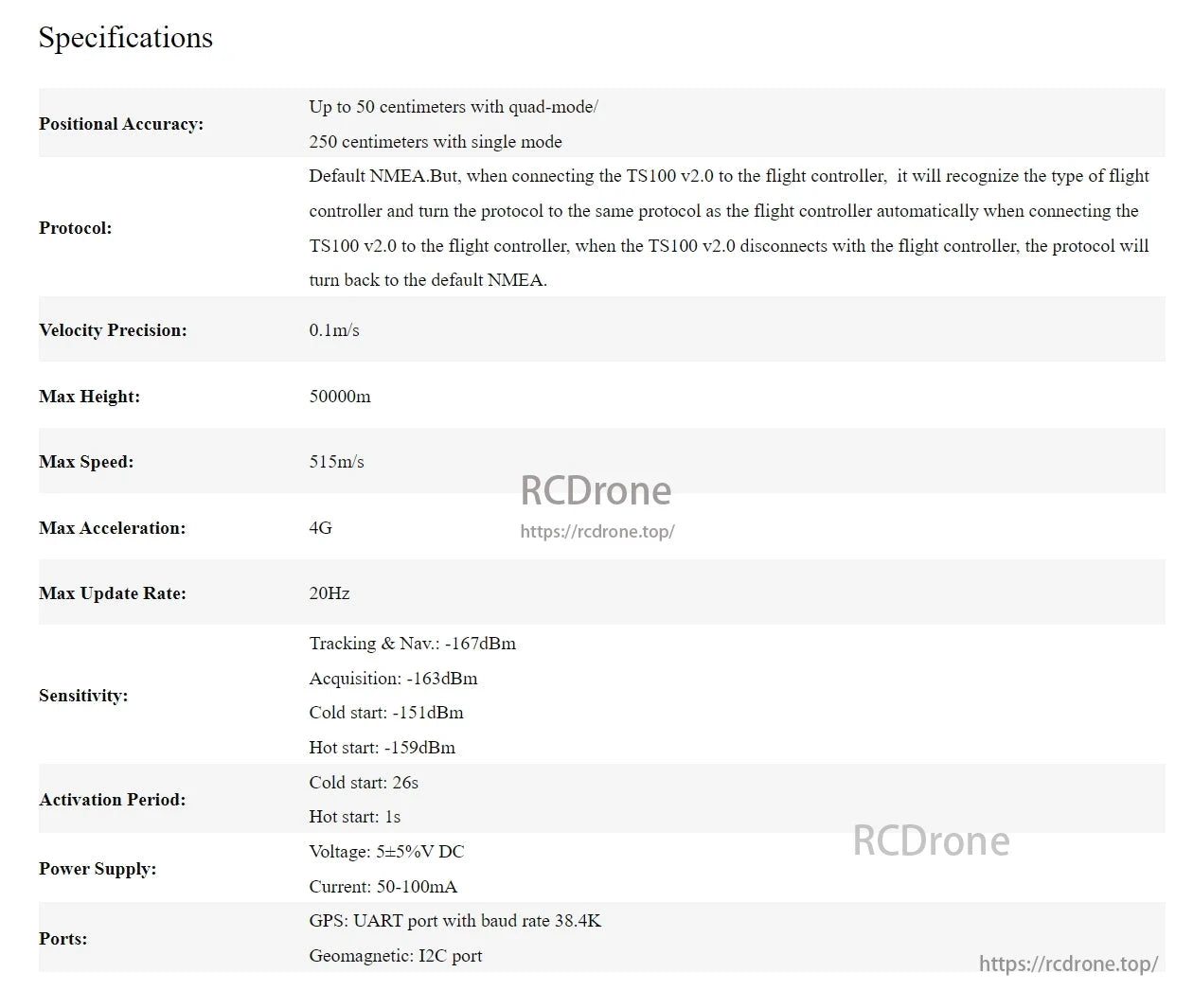

RadioLink TS100 v2.0 Mini M10N GPS: 50 cm quad-mode accuracy, NMEA protocol, 0.1 m/s velocity precision, 50 km max height, 515 m/s speed, 4G acceleration, 20Hz update rate, -167dBm sensitivity, 26s cold start, 5V DC power, UART and I2C ports.
