After extensive research and collaboration with the ExpressLRS team, we are thrilled to unveil the all-new Bandit Micro ExpressLRS RF Module. This cutting-edge module represents the culmination of our efforts to deliver unparalleled performance and reliability for your long-range drone and UAV applications.
Features
- Up to 1 Watt power output
- Packet rates up to 200Hz

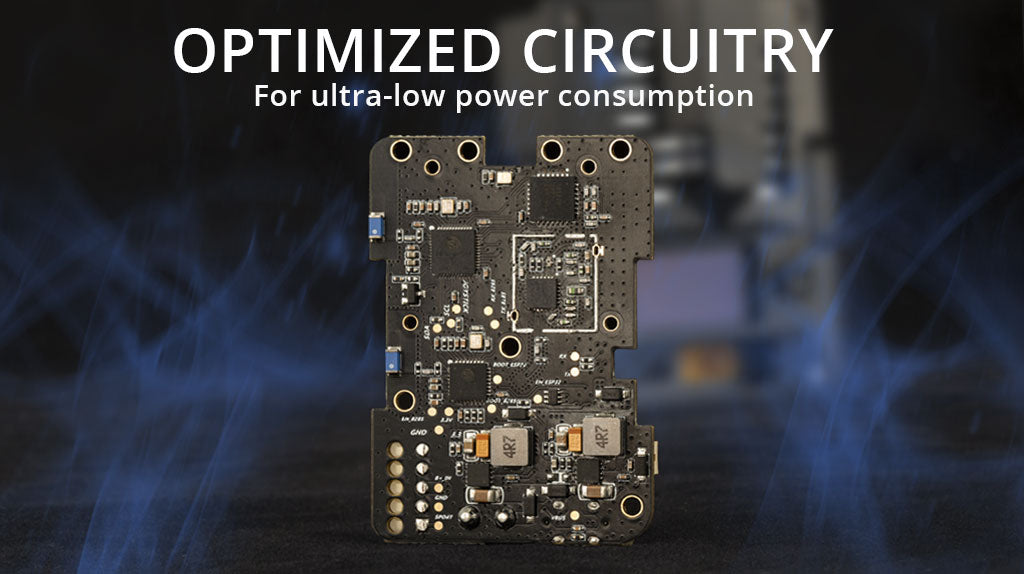

- Optimized circuitry for ultra-low power consumption

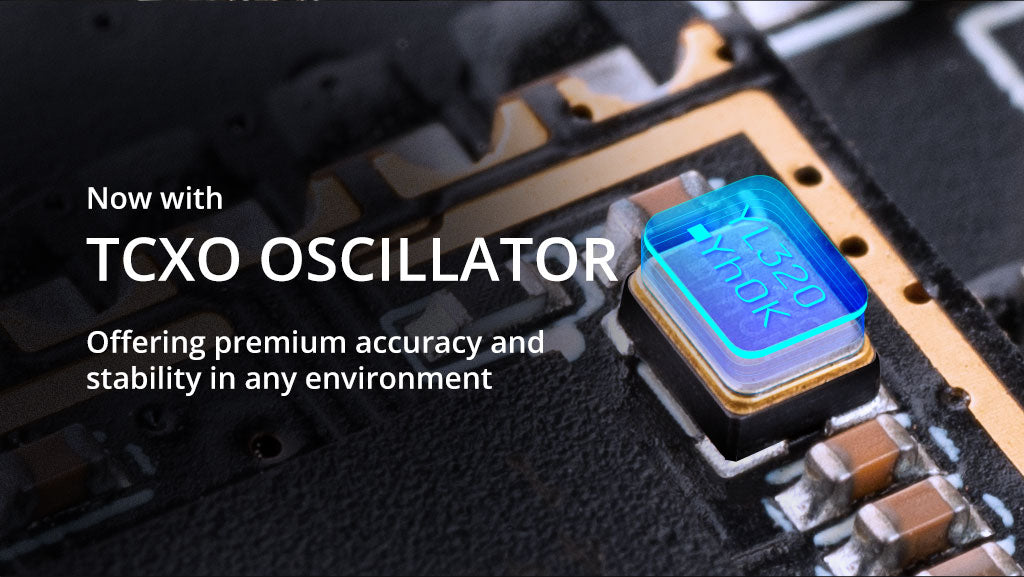

- Built-in TCXO oscillator
- Low noise, high comfort
- High contrast OLED display
- Innovative convection cooling design
- Wifi and Bluetooth support
- Built-in ExpressLRS backpack
- 5 Directional nav key
- 915/868MHz T Antenna included
- With the Micro connector, support TX16S MKII, Boxer, and TX12 MKII radio

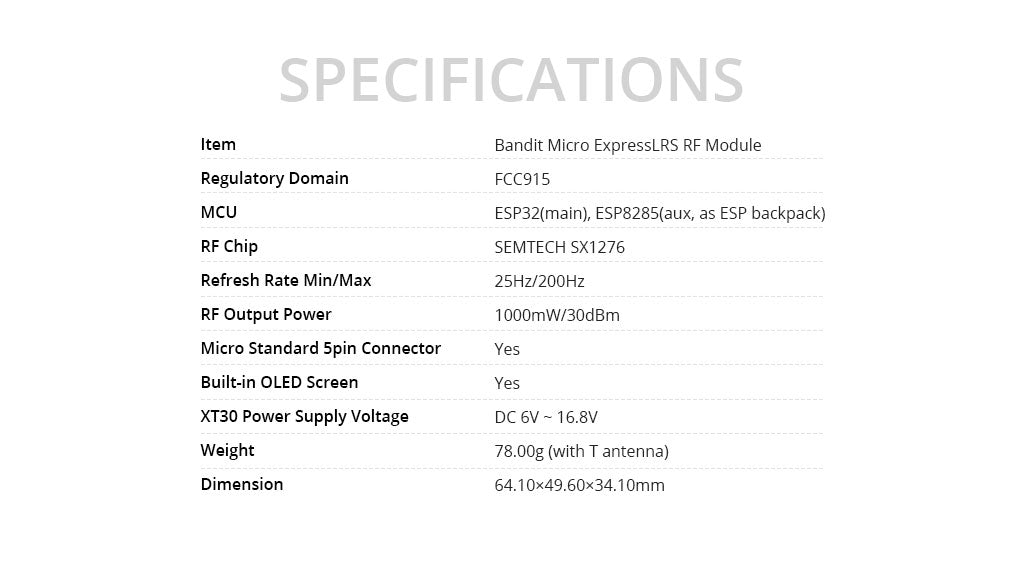

Specifications
- Item: Bandit Micro ExpressLRS RF Module
- Regulatory Domain: FCC915
- MCU: ESP32(main), ESP8285(aux, as ESP backpack)
- RF Chip: SEMTECH SX1276
- Refresh Rate Min/Max: 25Hz/200Hz
- RF Output Power: 1000mW/30dBm
- Micro standard 5pin connector
- Built-in OLED screen
- XT30 Power Supply Voltage: DC 6V ~ 16.8V

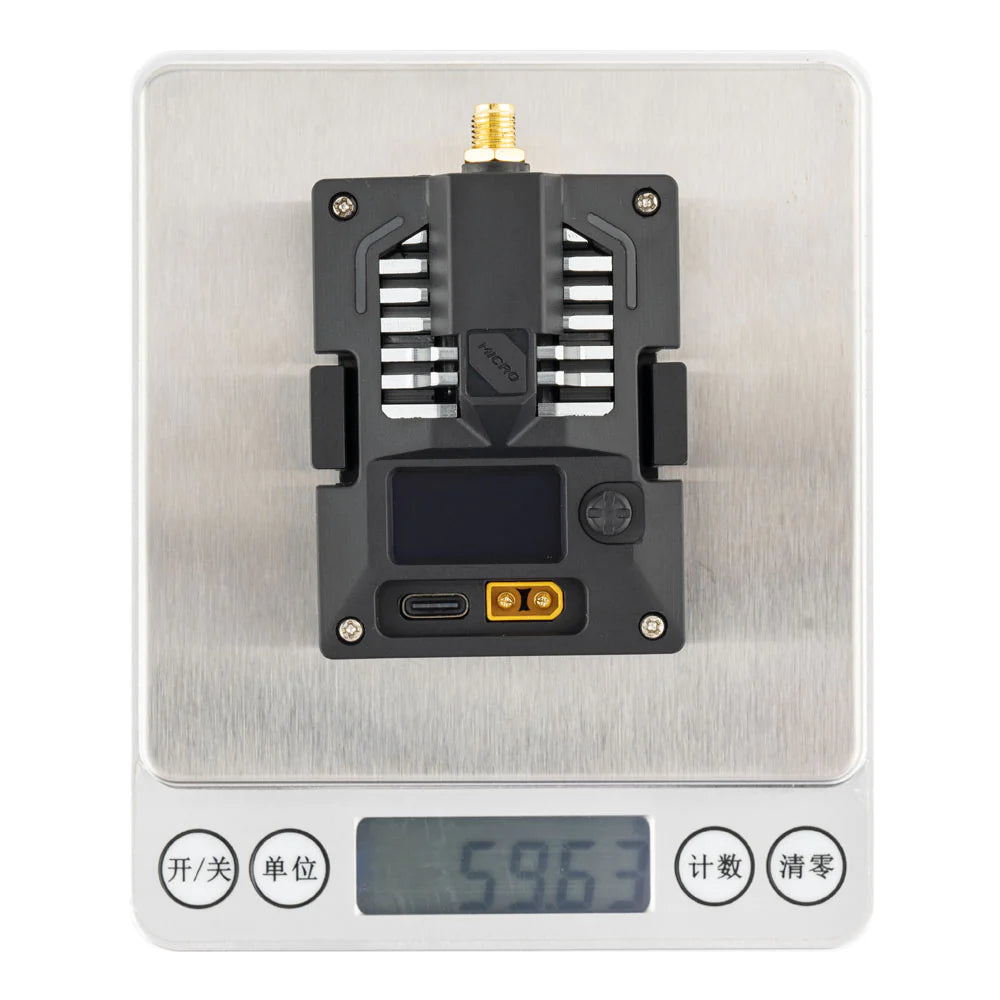

- Weight: 78.0grams (with T antenna)
- Dimension: 64.1*49.6*34.1mm
Keep Your Cool!

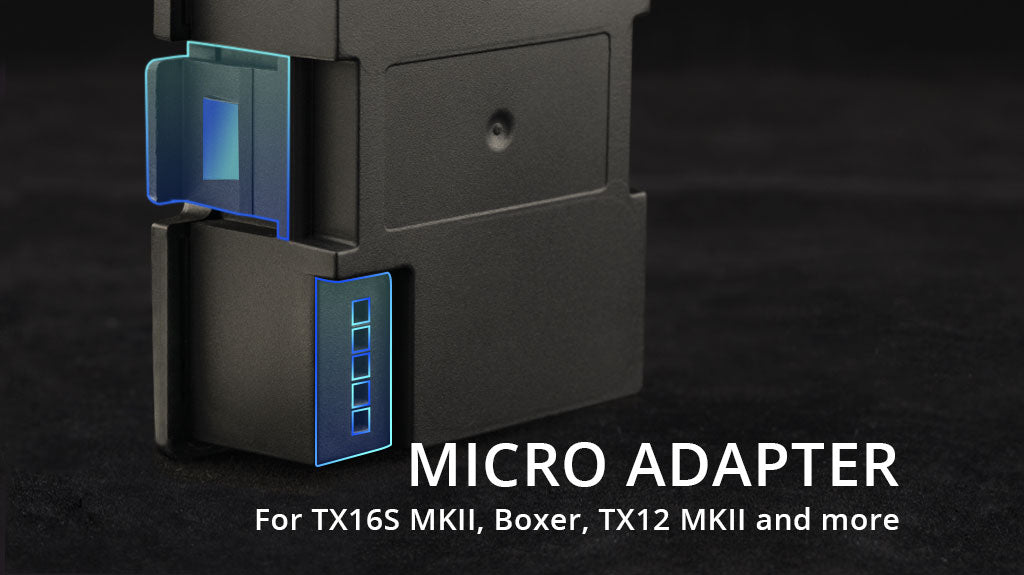

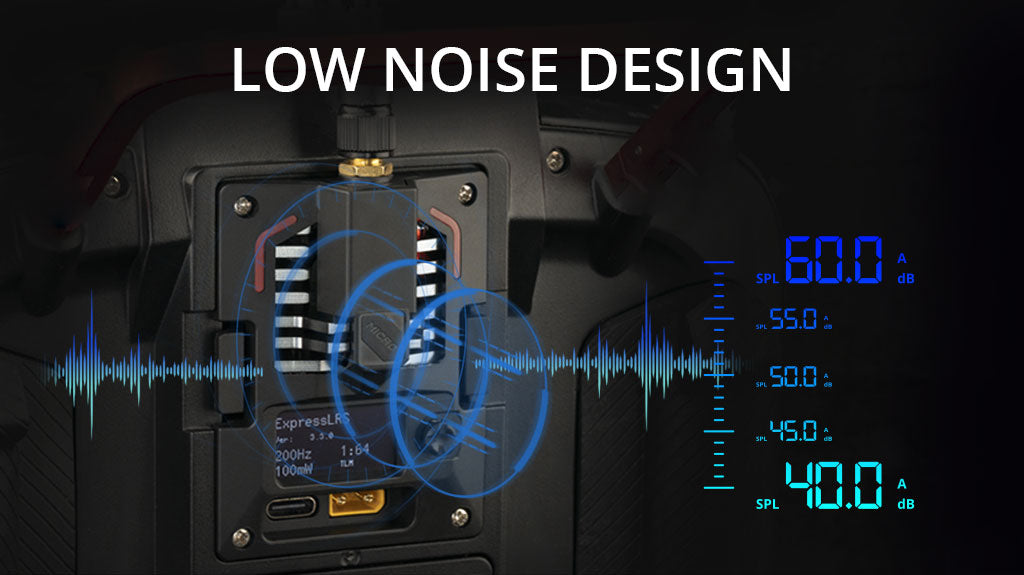

With its innovative convection cooling system and built-in turbo fan, the Bandit Micro ExpressLRS module ensures optimal temperature control and operates with minimal noise. The Bandit Micro form factor is ready to go with our TX16S MKII, Boxer, TX12 MKII and other radios with a Micro Module bay.
Intuitive Control at Your Fingertips

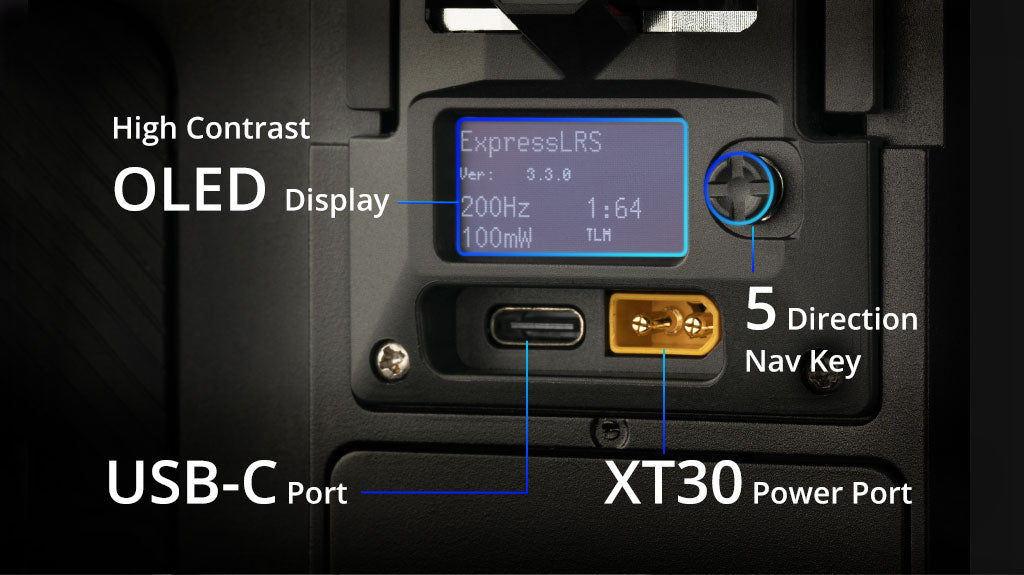

The Bandit Micro ExpressLRS features an OLED display, a five-directional navigation key, ensuring an unparalleled flying experience.
Versatile Antenna Options for Diverse Applications

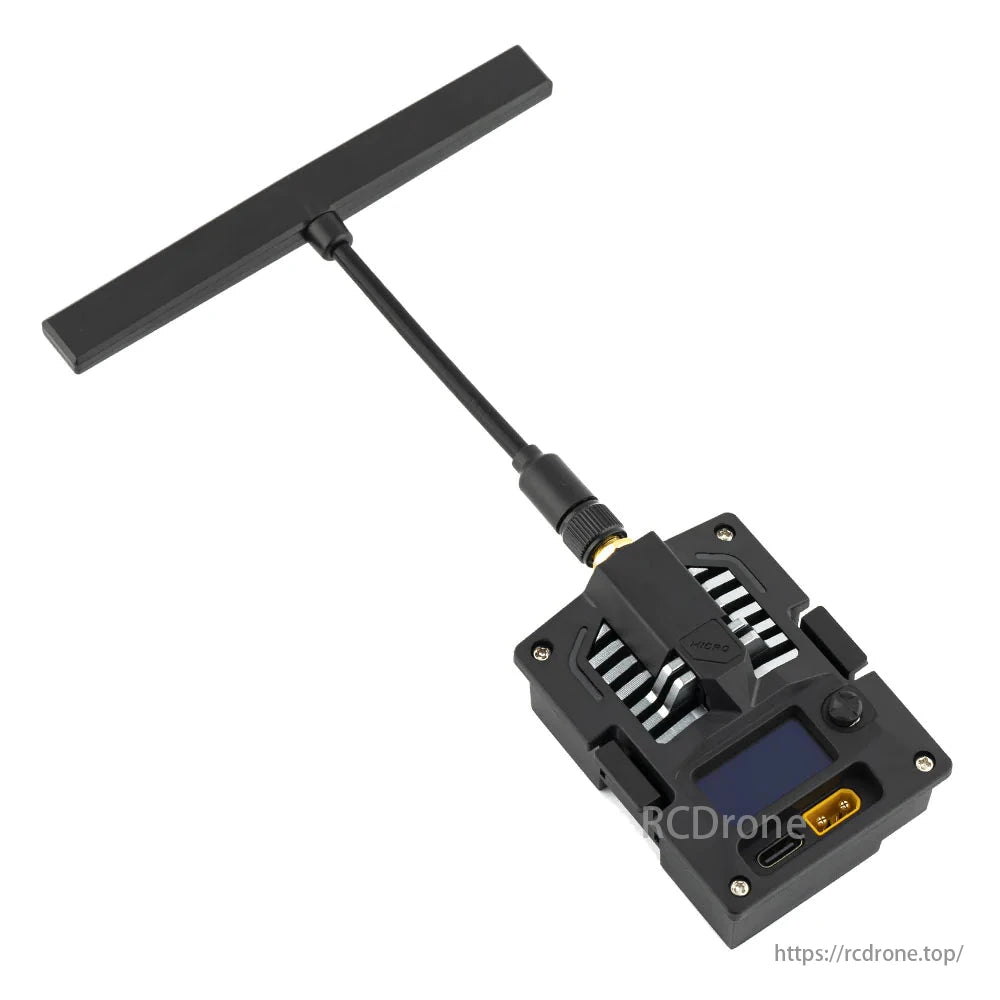

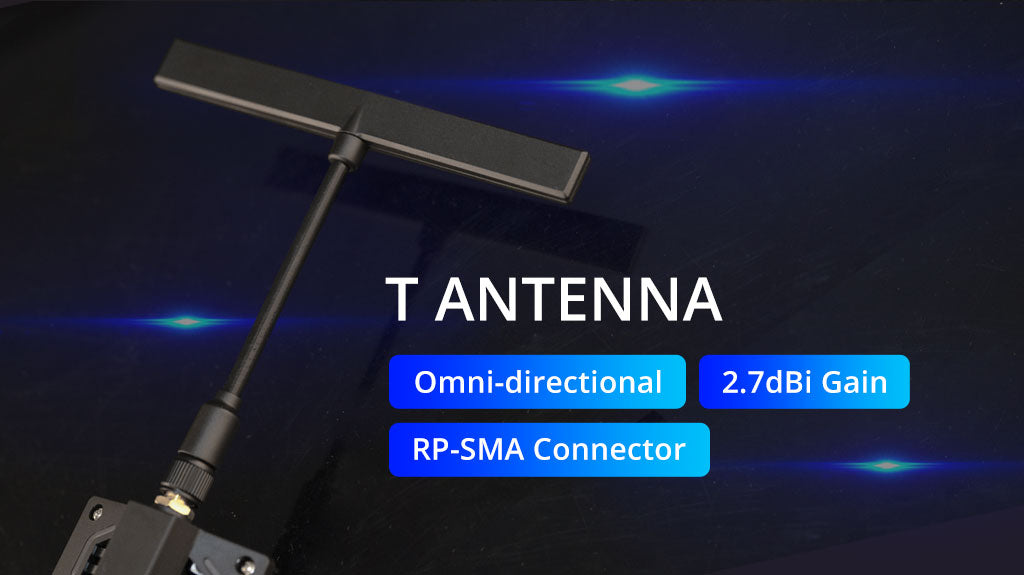

The Bandit Micro ExpressLRS comes equipped with a RadioMaster T Antenna for general-purpose flying. The RadioMaster Moxon antenna is available separately for long-range directional applications. This versatility empowers you to adapt your setup to suit any flying scenario, from everyday recreational flights to professional drone and UAV operations.
But wait.. there's more!

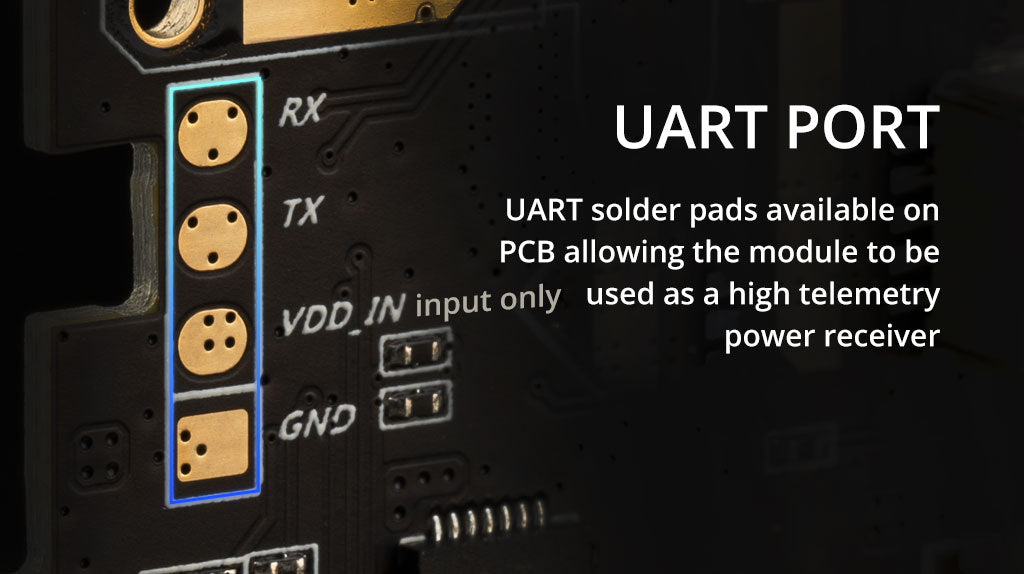

The Bandit Micro has UART solder pads on the PCB and may also be repurposed as a receiver! That's right, you can use the Bandit Micro as a 1000mW Telemetry receiver for ultra long range flights.
The Ideal Solution for Demanding Applications
Whether you're an experienced drone enthusiast or a professional UAV operator, the Bandit Micro ExpressLRS RF Module is the perfect choice for your demanding applications. Its unmatched performance, rugged construction, intuitive controls, and versatile antenna options make it an indispensable tool for those seeking the very best in long-range drone and UAV technology.

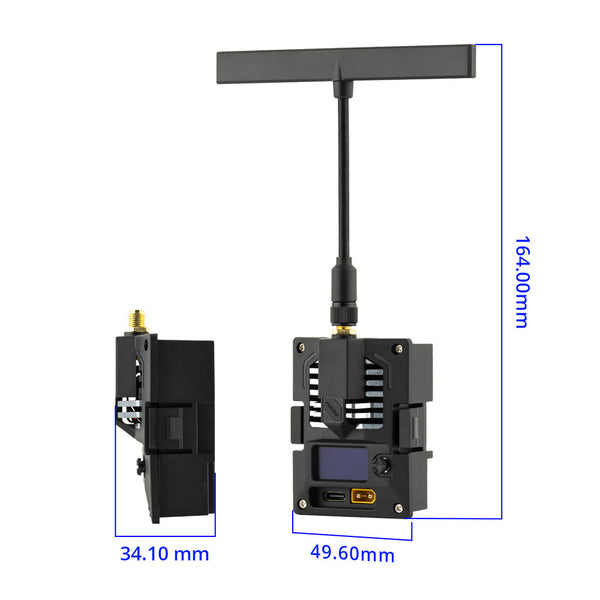

Dimensions
Bandit Series
- Bandit ExpressLRS RF Module
- Bandit Micro ExpressLRS RF Module
- Bandit Nano ExpressLRS RF Module
- Bandit BR1 Receiver
- Bandit BR3 Receiver
- Bandit MOXON Antenna
- Bandit T Antenna
- UFL 915Mhz T & Y Antenna for BR Series Receivers

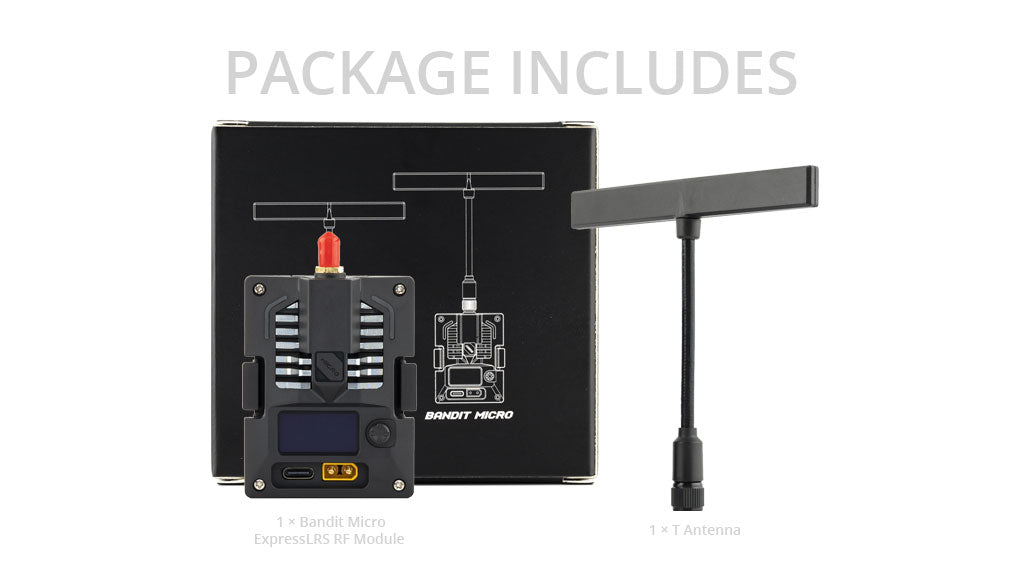

Package Includes
- 1 * Bandit Micro ExpressLRS RF Module
- 1 * 900Mhz T Antenna
- 1 * Manual
