Mode 1-Right-hand throttle
Mode 2-Left hand throttle

Notes:

CC2500 (standard) Version supports all CC2500 protocols

ELRS (standard) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependnant)

----

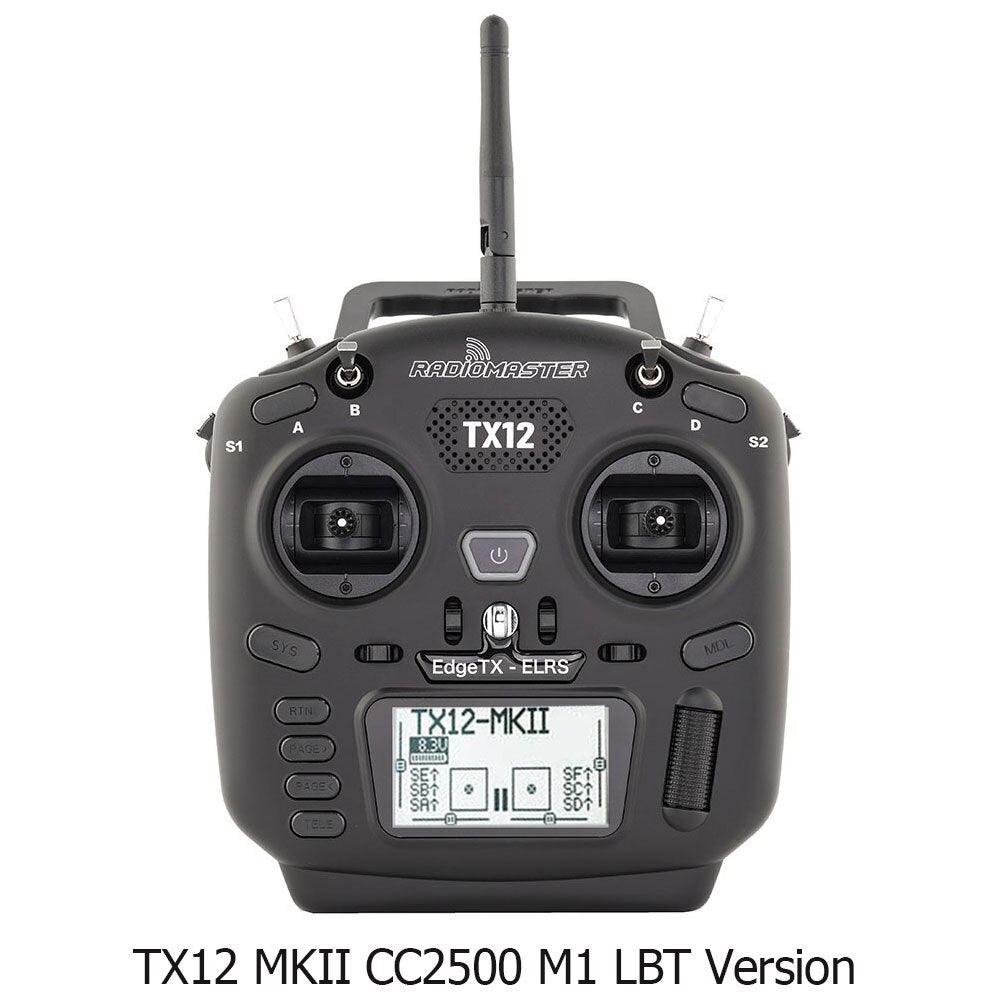

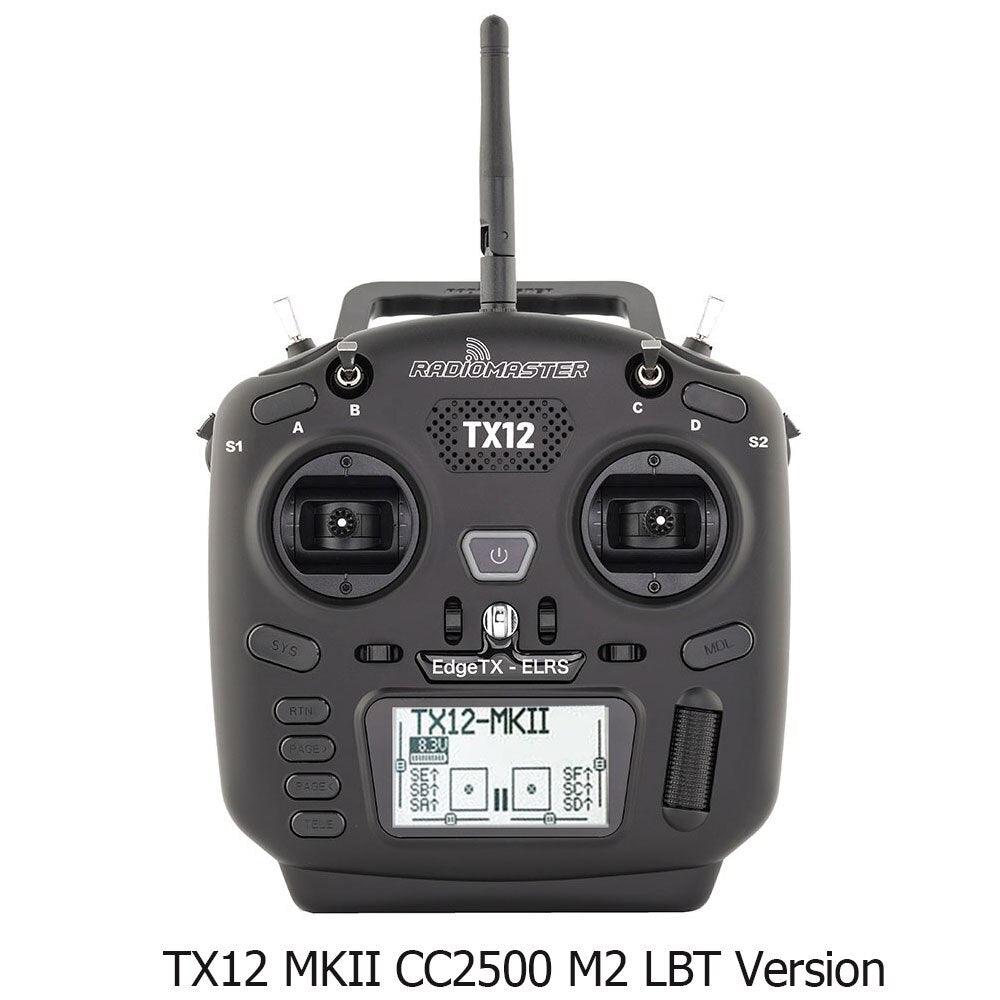

CC2500 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT & HoTT LBT

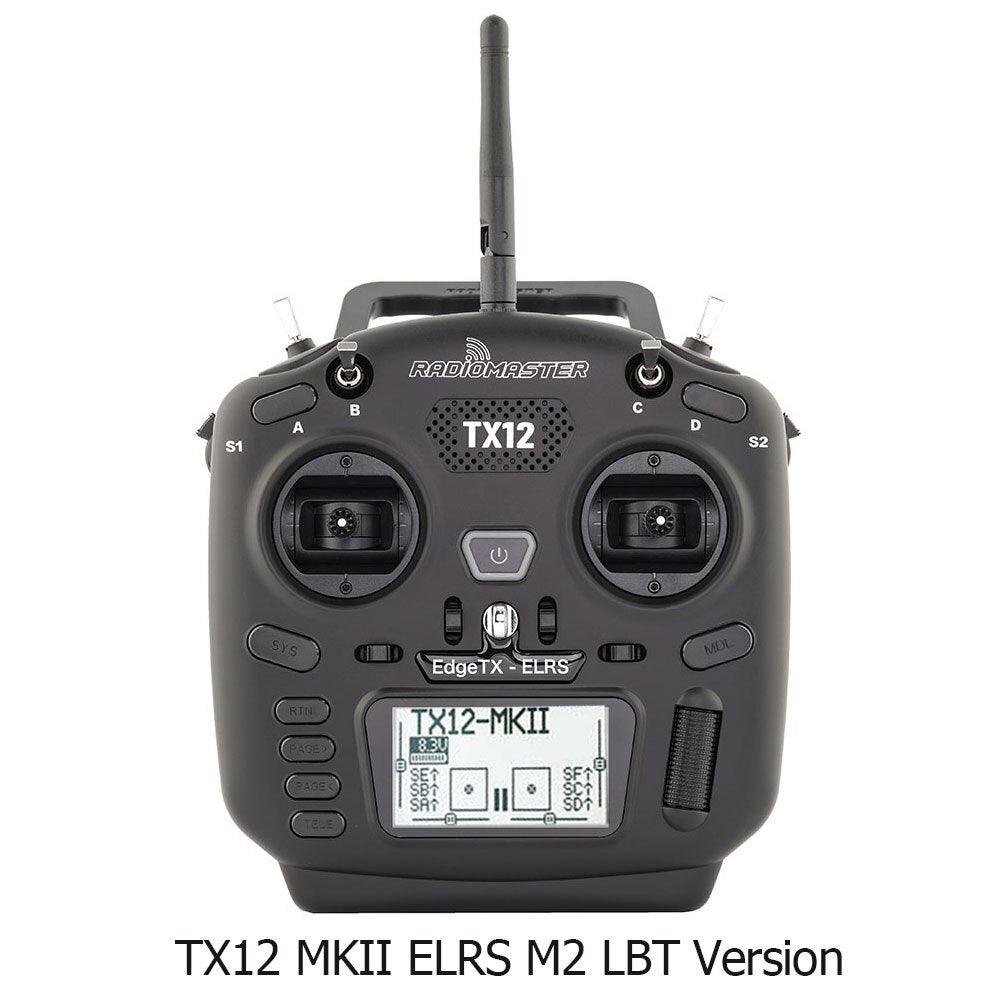

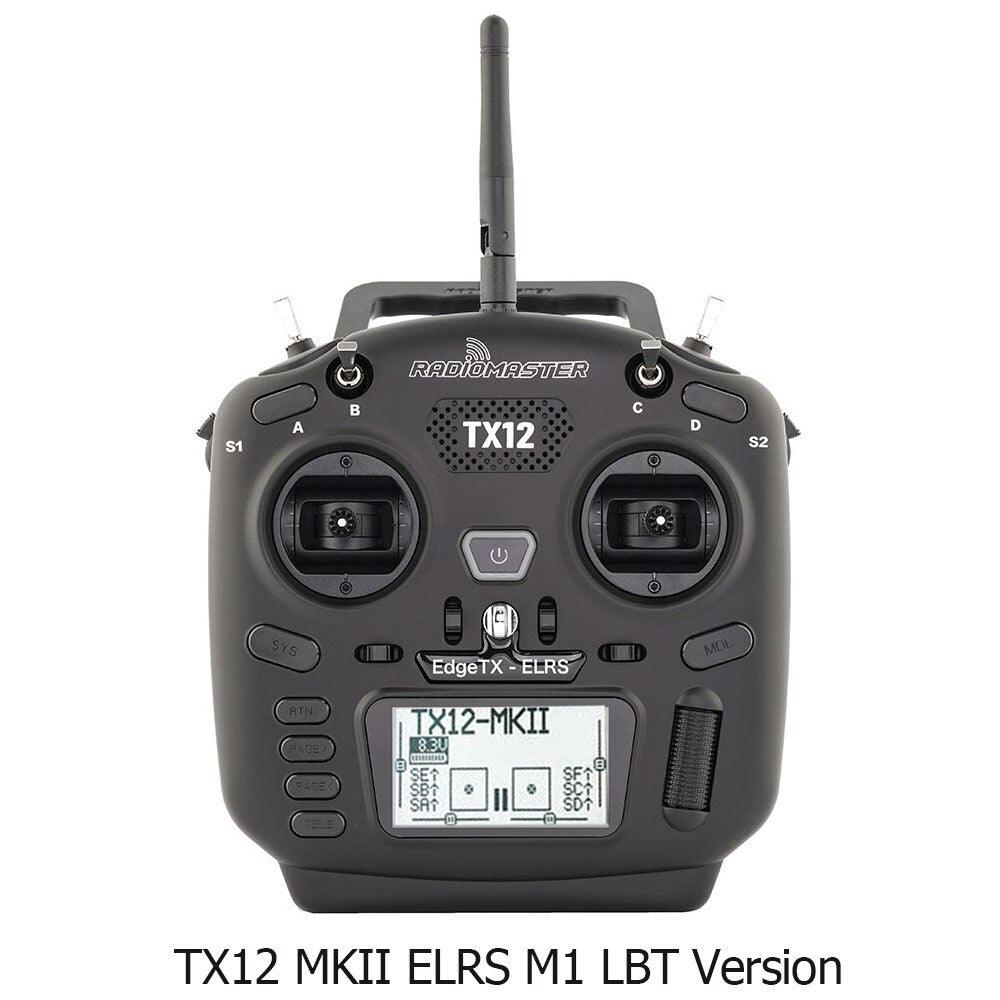

ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

TX12 MKII Feature:

• Size: 170*159*108mm

• Weight: 363g

• Frequency: 2.400GHZ-2.480GHZ

• RF Chip: ExpressLRS (ELRS)/CC2500 MPM

• Transmitting Power: 20dbm

• Antenna Gain: 2db

• Working Current: 320mA@8.4V

• Voltage Range:6.6-8.4v DC

• Range: > 2km (depending on receiver)

• Radio Firmware: EdgeTX (Transmitter) / ExpressLRS (RF module)

• Channels: Up to 16 (depending on receiver)

• Display:128*64 Monochrome LCD display

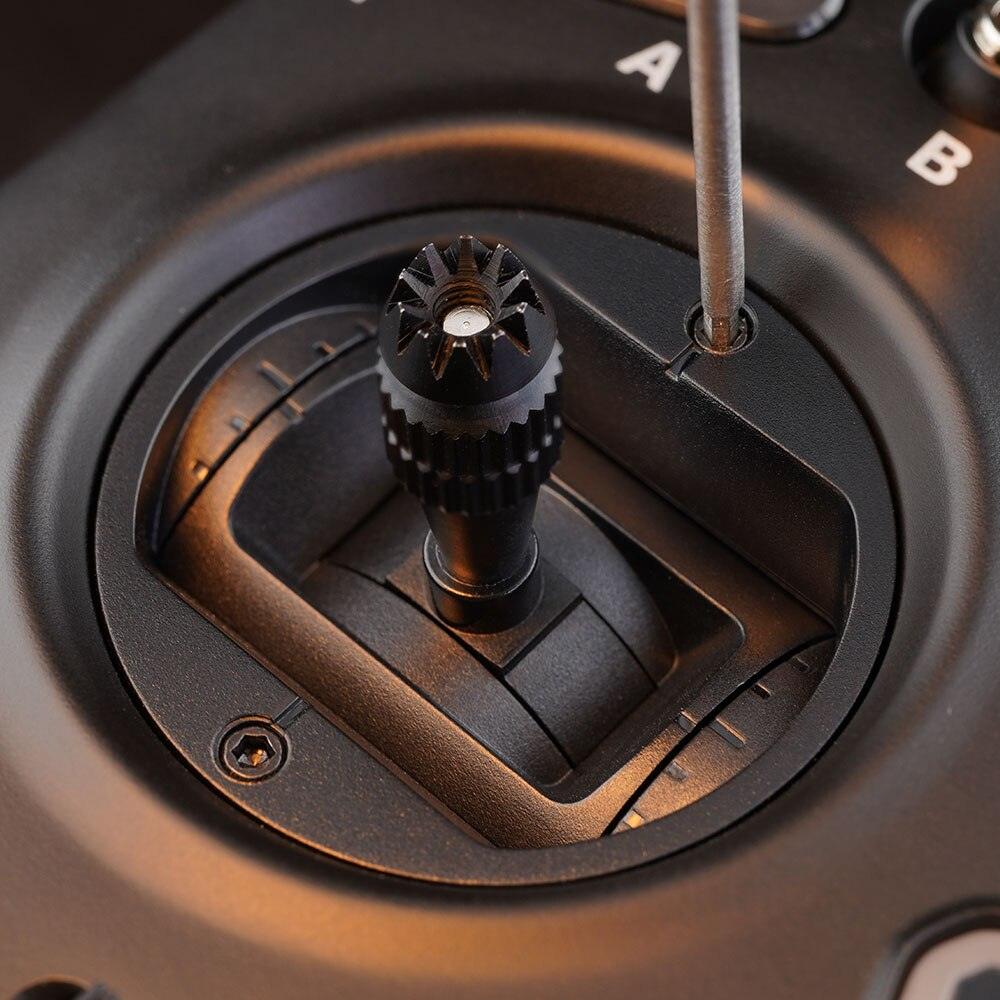

• Gimbal: High precision hall gimbals

• External module:JR/FrSKY/Crossfire compatible

• Upgrade Method: USB/SD card & EdgeTX Buddy online or EdgeTX Companion PC software

• USB Charging: QC3 USB-C

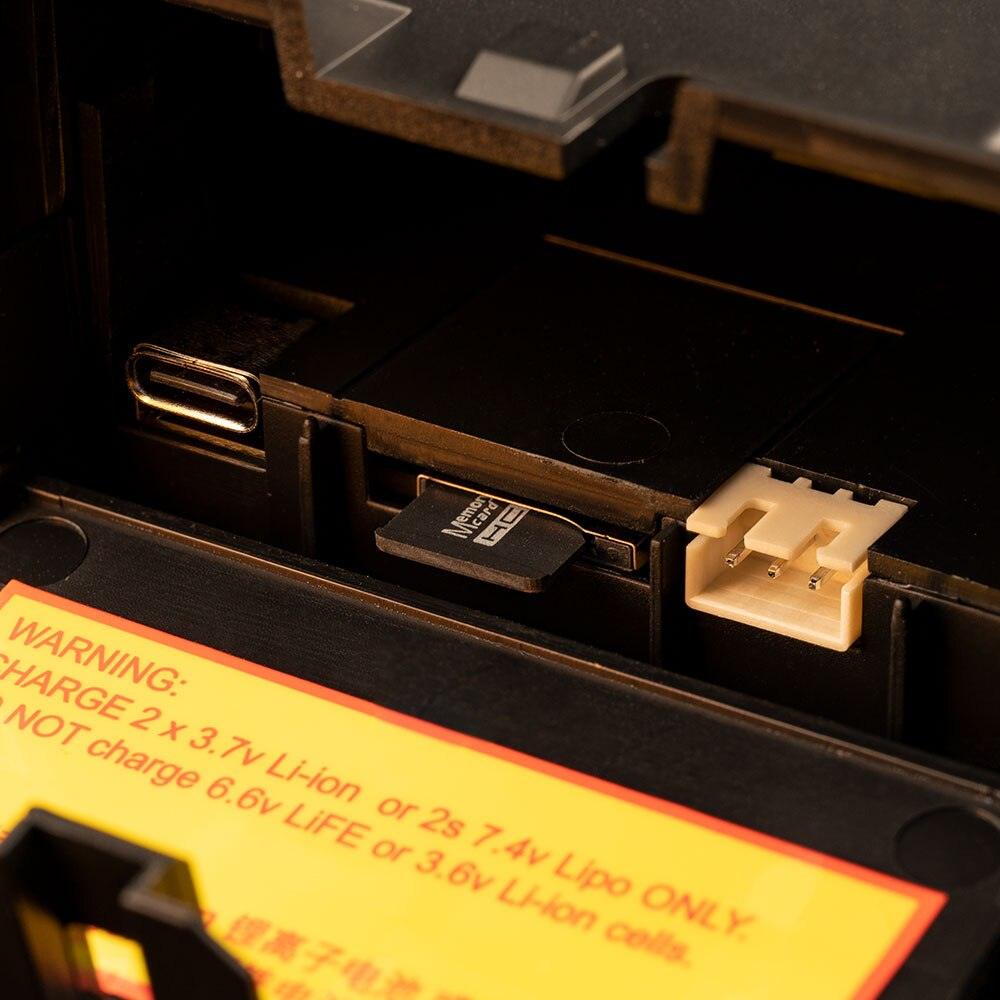

• SD Card: Included

New to TX12 MKII ELRS Version

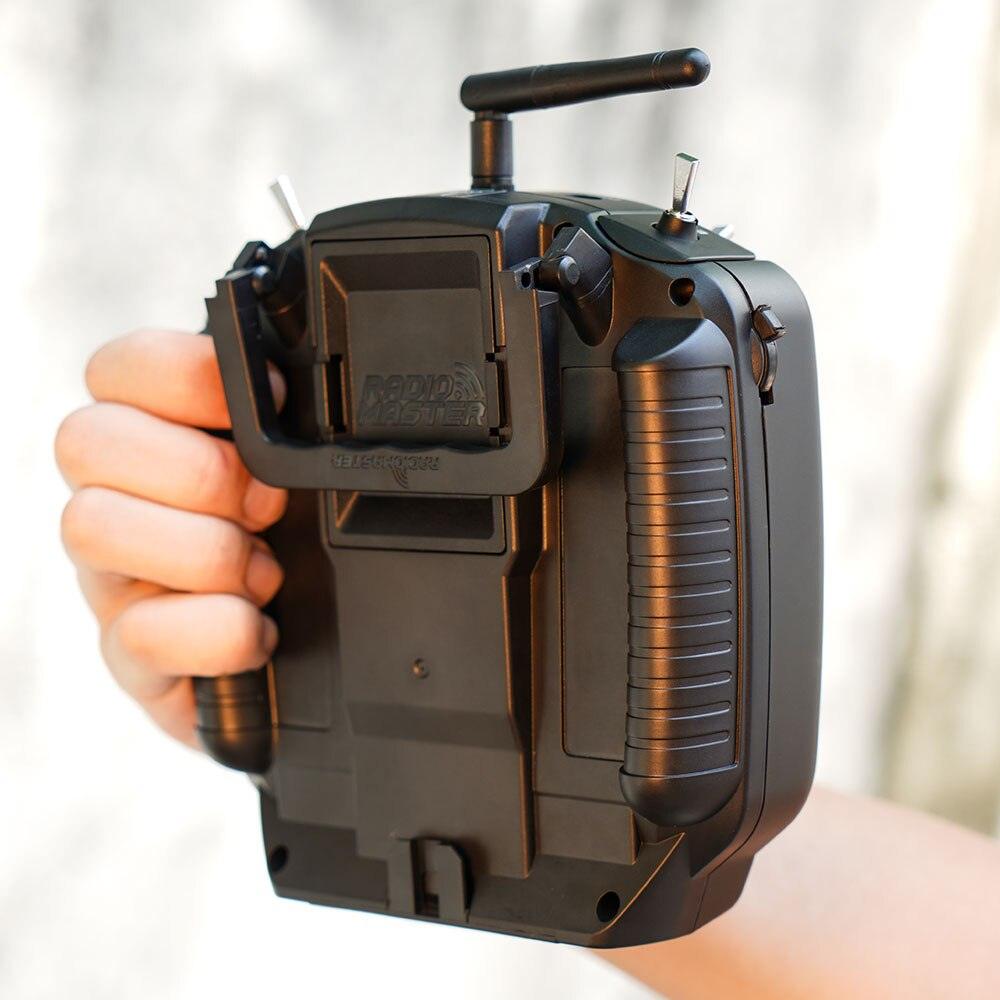

• Updated rear case with comfortable grips

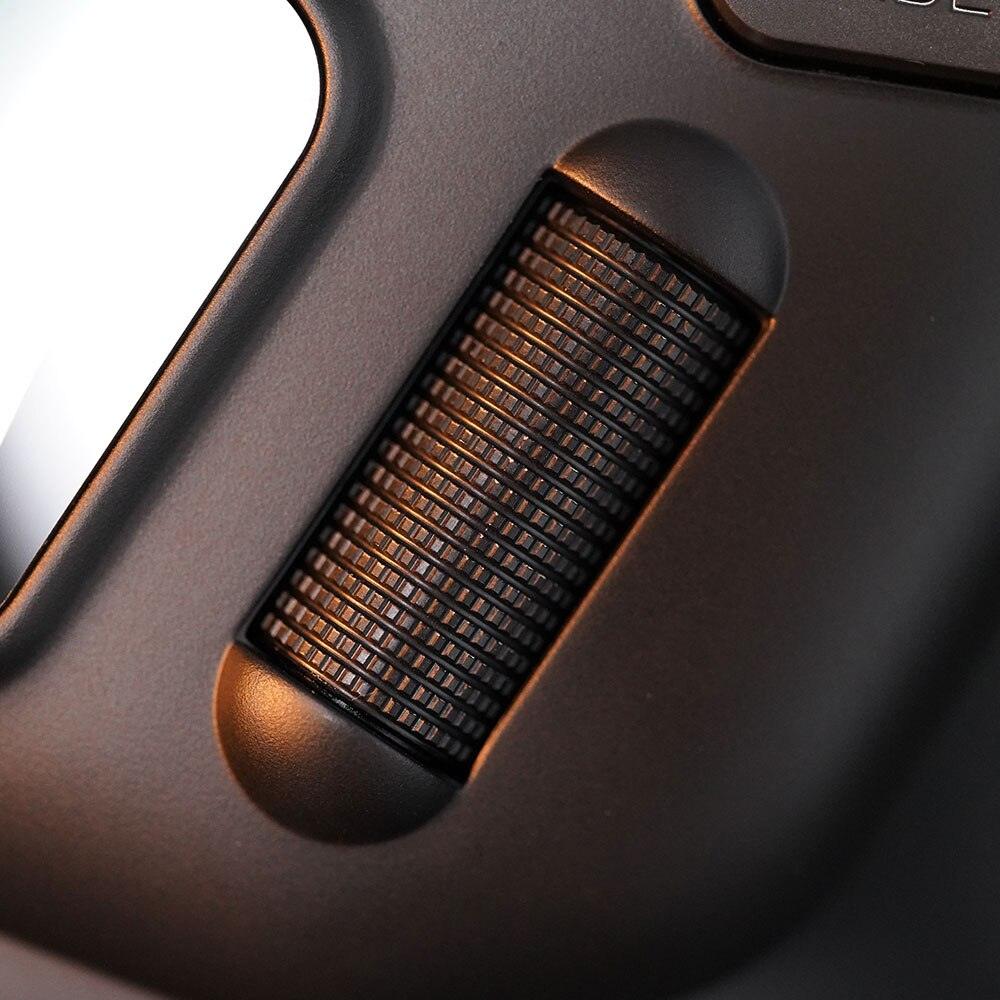

• Improve S1 / S2 Grips

• Improved USB-C QC 3.0 Charging

• Updated main board design

• Updated MCU STM32F407

• EdgeTX factory installed

• SD Card included

• Internal ExpressLRS RF Module

New to TX12 MKII CC2500 Version
Updated rear case with comfortable grips
Improve S1 / S2 Grips
Improved USB-C QC 3.0 Charging
Updated main board design
Updated MCU to STM32F407
EdgeTX factory installed
SD Card included

RadioMaster 6200mah 2S Lipo Transmitter Battery

Suitable for Boxer TX12 TX16S /TX16S MKII Radio Control

Specs:

Item: 2S 7.4V 6200mAh LiPo Battery

Nominal Voltage: 7.4V

Capacity: 6200mAh

Watt Hours: 45.88Wh

Connector: JST-XH and XT30

Charge current: Max 2A

Dimensions: 85mm x 50mm x 21mm

Weight: 203g

Fits RadioMaster Boxer and TX16S TX12 series

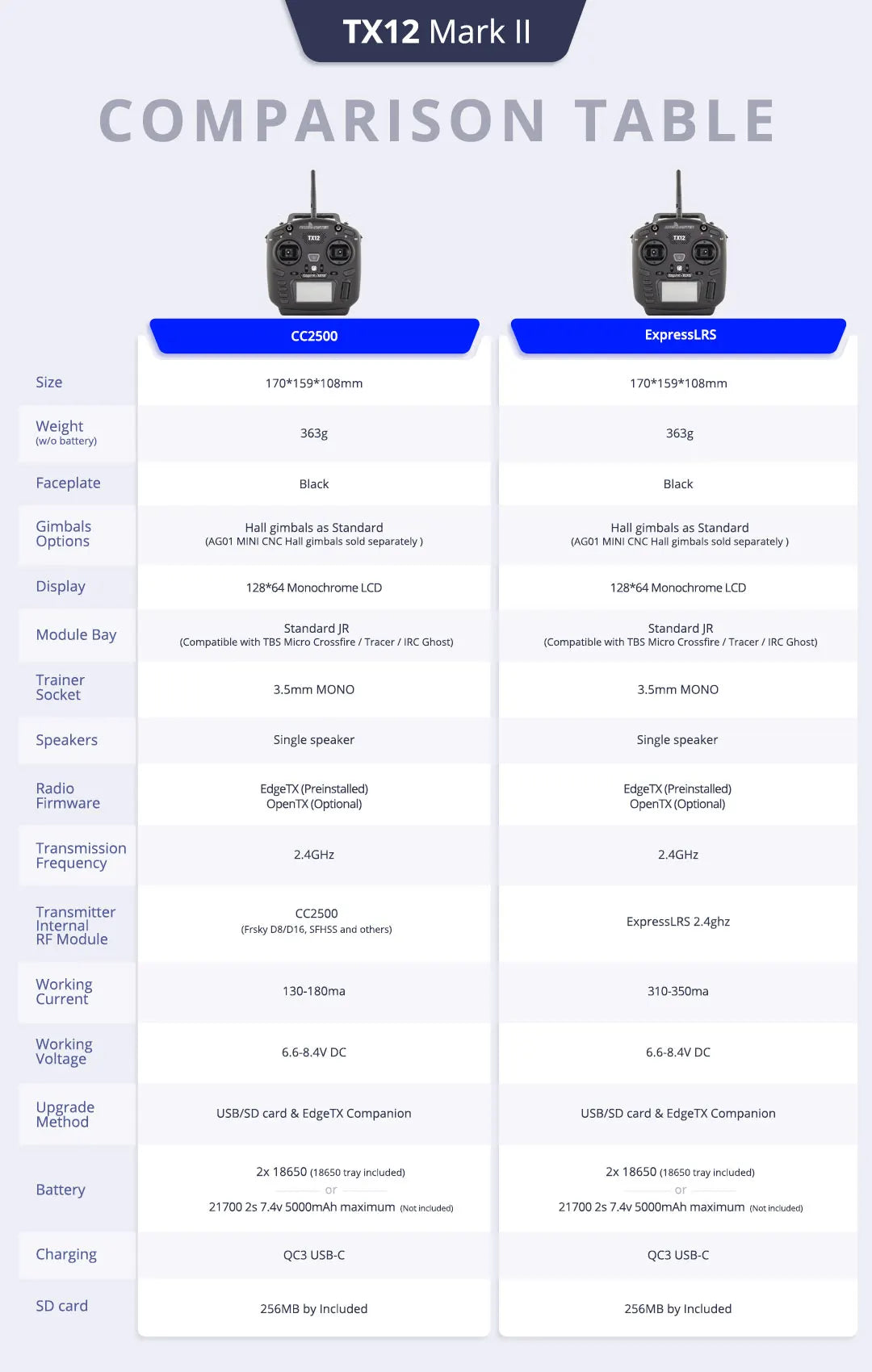

ExpressLRS 2.4ghz RF Module Worleng 130-18Oma 310-350ma Working 6.6-8.4V DC Voltage Upgrode USBISD card & EdgeTX Companion . 2x 18650 (18650 tray included) Battery 21700 2s 7.4v SOOmAh maximum .

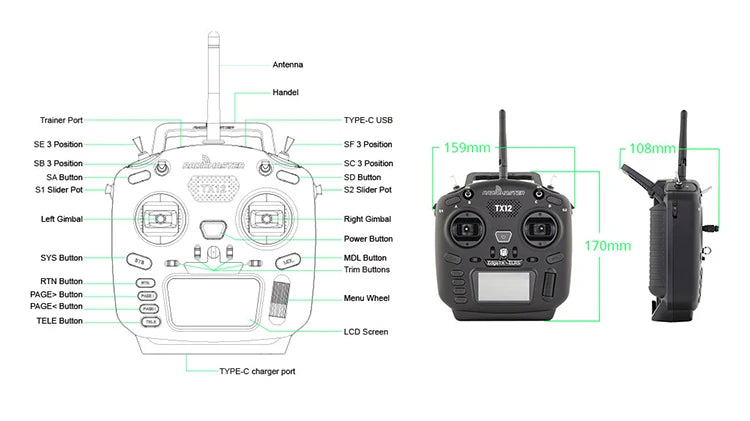

Aniennl Handcl Truintr Pont TYPE C USB SE Posion Posttkn 1591mm7 108rnrnt Doamen SCpordin EBron Snbnmn Slacr Pot Slc Pot Lei Gnhal Rioh: G mbal Polcr Humtton 17000 Sys Builon VOL Burcn Butonz FlBtrion PAGE > Button Weru Teci PiGE

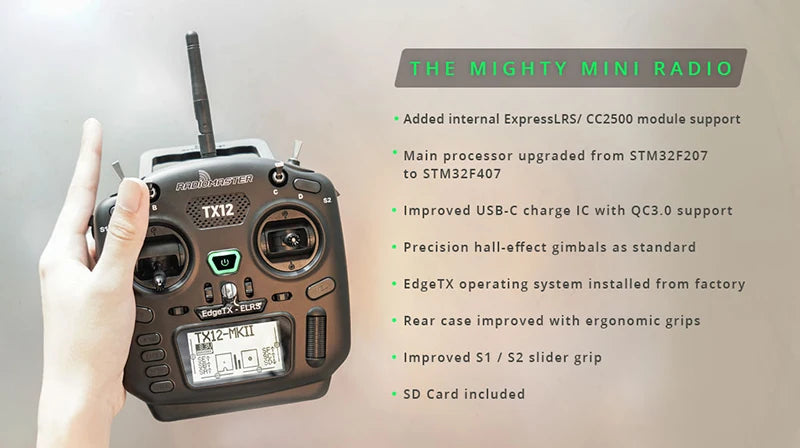

MGHTY MNT RADTO Added internal ExpressLRS/ CC25O0 module support Main processor upgraded from STM32F207 to Stm32F407 RELUBaaSitR 'TX12 Improved USB-C charge IC with QC3.0 support Precision hall-effect gimbals as standard EdgeTX operating system installed from factory Rear case improved with ergonomic grips Improved S1 / S2 slider grip SD Card included

TX12 Mark II ELRS CC2500 HALL Gimbals OPEN T EDGETX_ AND OPENTXSUPPORT Main processor upgraded from STM3ZF2O7 to STM32F4O7 . Rear case improved with ERGONOMIC GRIPS IMPROVED S1/52 SLIDER GRIP Data TRS 3.siim USB-C Port Trainer Socket | 8sn osa SUPPORTS USB SIMULAVORS
