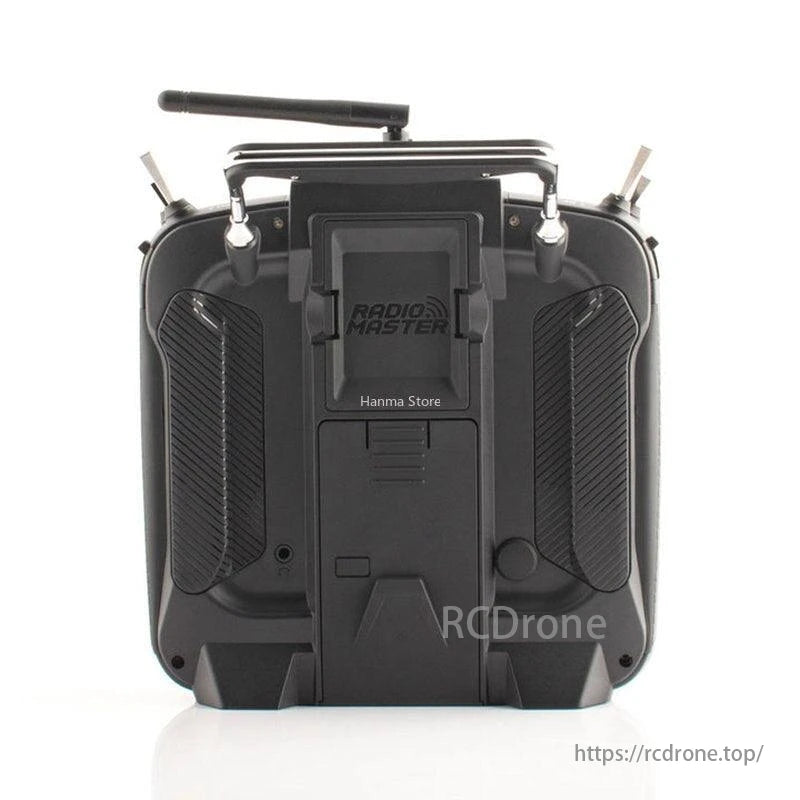

RadioMaster TX16S MKII V4.0 6CH 2.4G Hall Gimbals ELRS JP4IN1 Transmitter Remote Control Multi-protocol OpenTX and EdgeTX

RadioMaster TX16S MKII V4.0 6CH 2.4G Hall Gimbals ELRS JP4IN1 Transmitter Remote Control Multi-protocol OpenTX and EdgeTX

RadioMaster

Regular price $271.51 USD
Regular price $380.11 USD Sale price $271.51 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

14 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

RadioMaster TX16S MKII V4.0 SPECIFICATIONS

name: hanma

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Tool Supplies: Battery

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 14+y

RC Parts & Accs: Radio Systems

Quantity: 1 pcs

Origin: Mainland China

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: abay

Note:
  • The gifts for option A/B are different
  • Please select the desired option to purchase the product
  • 4in1 (standard) Version supports all MPM protocols

    ELRS (standard) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependnant)

Features
Improved internal circuitry and optimized power supply.
New charge circuitry with integrated reverse-polarity protection.
Optimized charge IC now allows up to 2.2A internal USB-C charge current.
Rear-mounted audio jack provided headphone output.
V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).
Optional high/low rear grips are included for improved ergonomics.
Improved S1/S2 knobs with clear centre-detents.
Improved LS/RS Sliders with smoother feel and better centre-detents.
Redesigned battery cover for improved battery access.
Retooled body shell with improved fit and finish.
Trainer socket changed to standard TRS 3.5mm socket.
Rear DIY Socket added for personalized mods.
Improved internal plastics for better longevity.
Available ELRS and 4in1 versions.


Specification
Item: TX16S Mark II
Size: 287x129x184mm
Weight: 750g (without battery)
Transmission frequency: 2.400GHz-2.480GHz
Transmitter module:  Option 1: Internal 4-in-1 multi-protocol module (CC2500 CYRF6936 A7105 NRF2401); Option 2: Internal ELRS (SX1280)
Transmitting power: Internal 4-in-1 multi-protocol module : Max 100mw (protocol dependent); Internal ELRS : Max 250mw (transmitting power is adjustable)
SD card: 256MB by default, 8GB maximum
Antenna gain: 2db (transmit power adjustable)
Working current: 400mA
Working voltage: 6.6-8.4v DC
Remote control distance:> 2km @ 22dbm
Radio firmware: EdgeTX
Module Firmware: Multiprotocol- Module (4IN1) -OR- ExpressLRS (ELRS)
Channels: Up to 16 channels (depending on the receiver)
Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
Gimbal: Option 1: V4.0 Hall sensor with Aluminium fascia;  Option 2: AG01 CNC Hall sensor
Module Bay: JR compatible module bay
Upgrade method: Supports USB-C online / SD card offline upgrade

RadioMASTER TX16S Mark II ELRS 4INI ViAAO

RadioMASTER TX16S Mark II ELRS Version 4.0 transmitter features adjustable hall gimbals without disassembly, supporting OpenTX and EdgeTX protocols, with available 4-in-1 and ELRS versions for multi-protocol compatibility.



Package Includes
1 * TX16S Mark II Radio Controller
1 * 18650 Tray
1 * USB-C Cable
1 * Screen Protector
1 pair of flat grips
1 pair of raised grips (installed on radio by default)
1 * TX16S Key Chain
