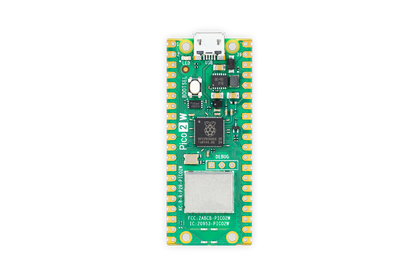

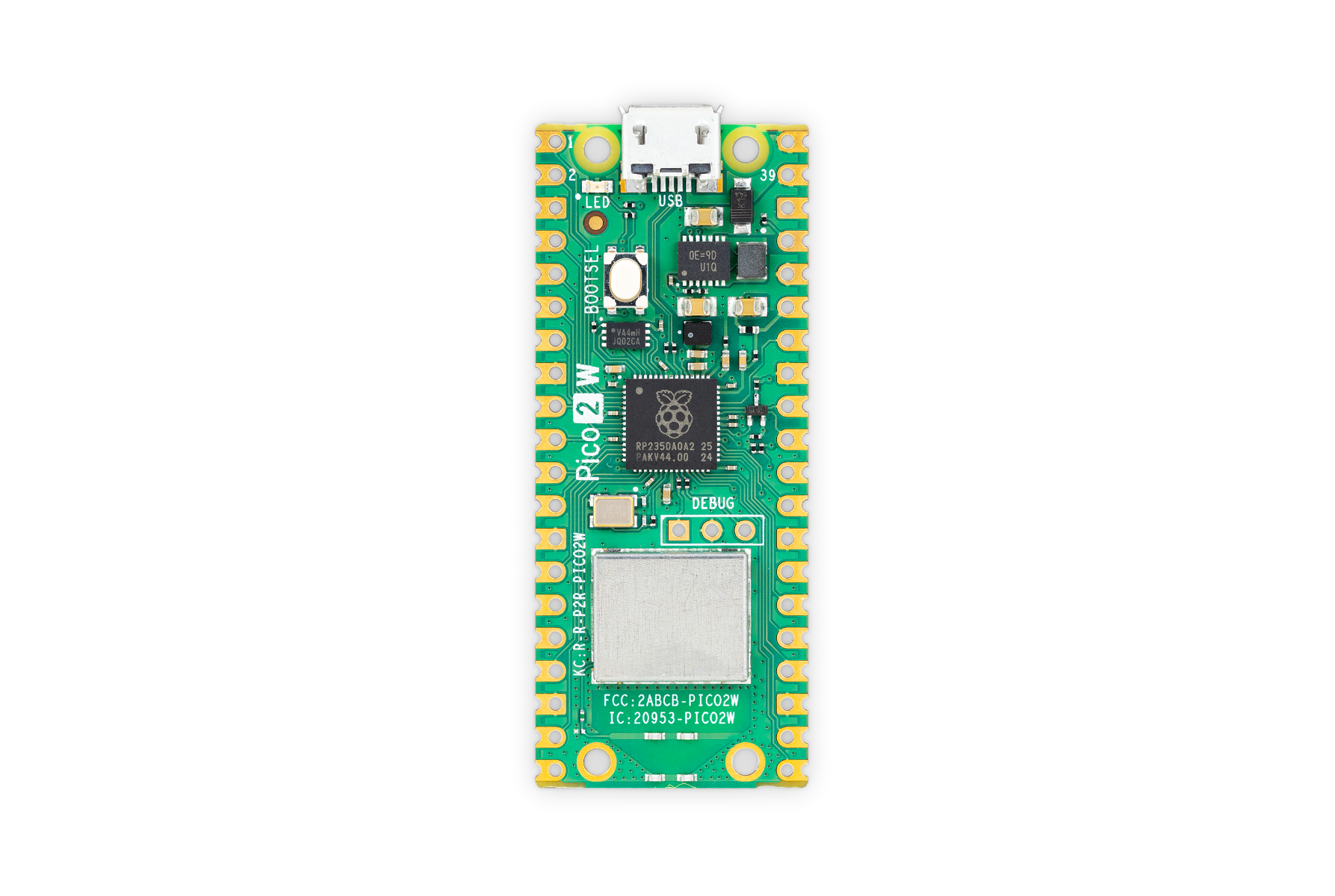

• Raspberry Pi Pico 2 W features RP2350 dual-core, Wi-Fi, Bluetooth, 4MB flash, 520KB SRAM, USB, LED, debug pins, FCC/IC IDs.
  • Raspberry Pi Pico 2 W Microcontroller Board | RP2350 Dual‑Core, 2.4GHz 802.11n Wi‑Fi & Bluetooth 5.2, 4MB Flash, 520KB SRAM

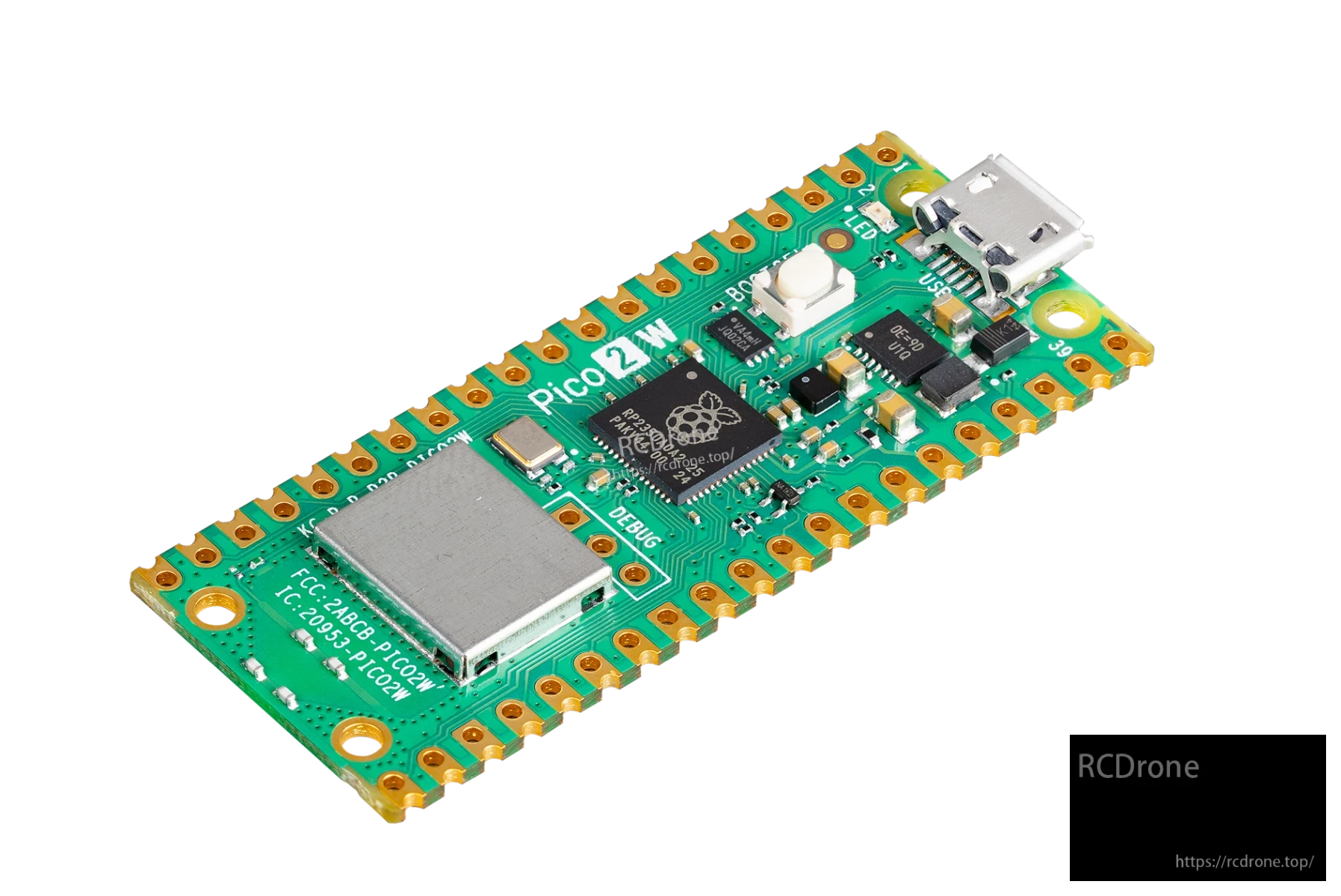

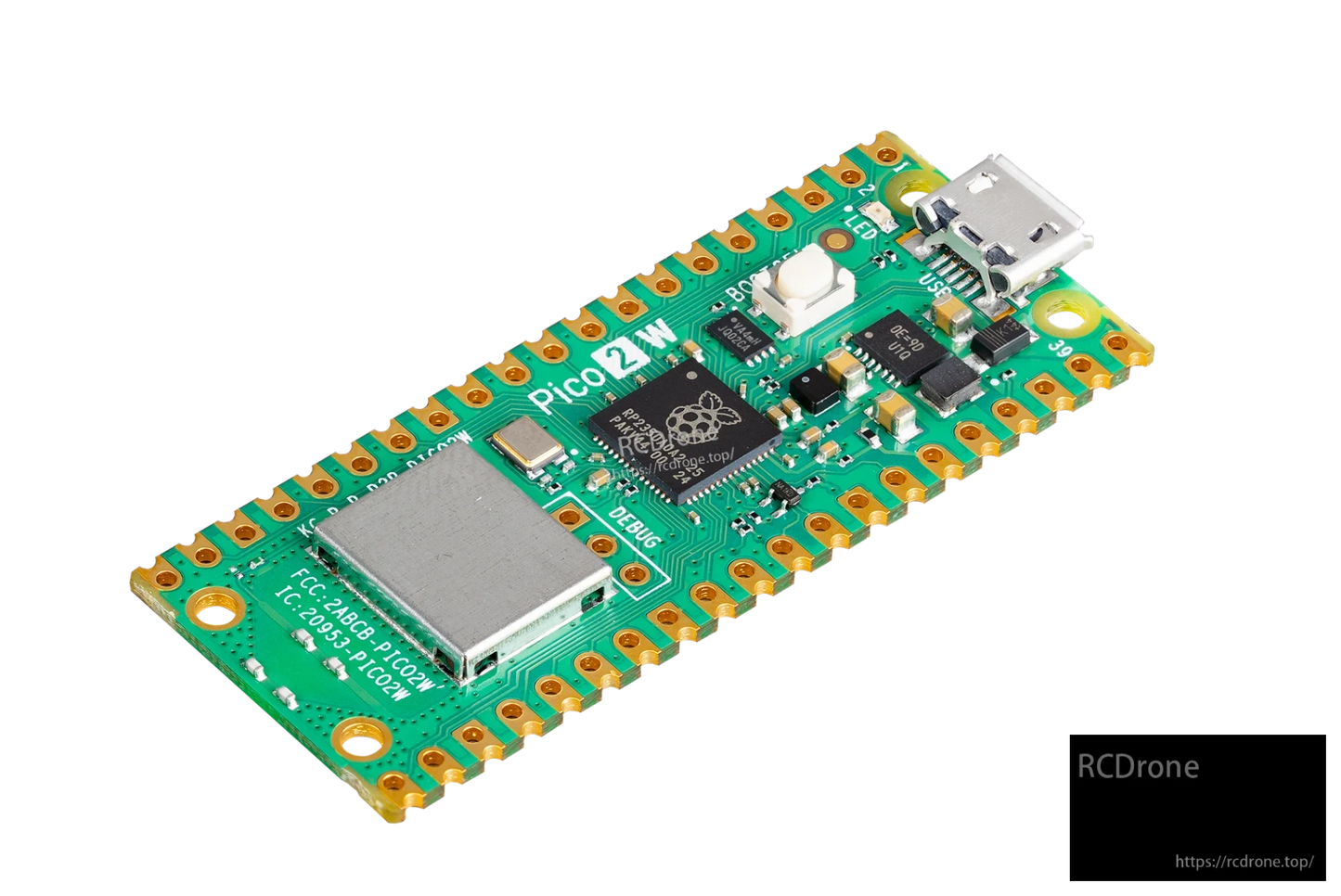

  • Raspberry Pi Pico 2 W: dual-core RP2350, Wi-Fi, Bluetooth 5.2, 4MB flash, 520KB SRAM, USB-C, LED, GPIO, debug interface, FCC ID.
1 3

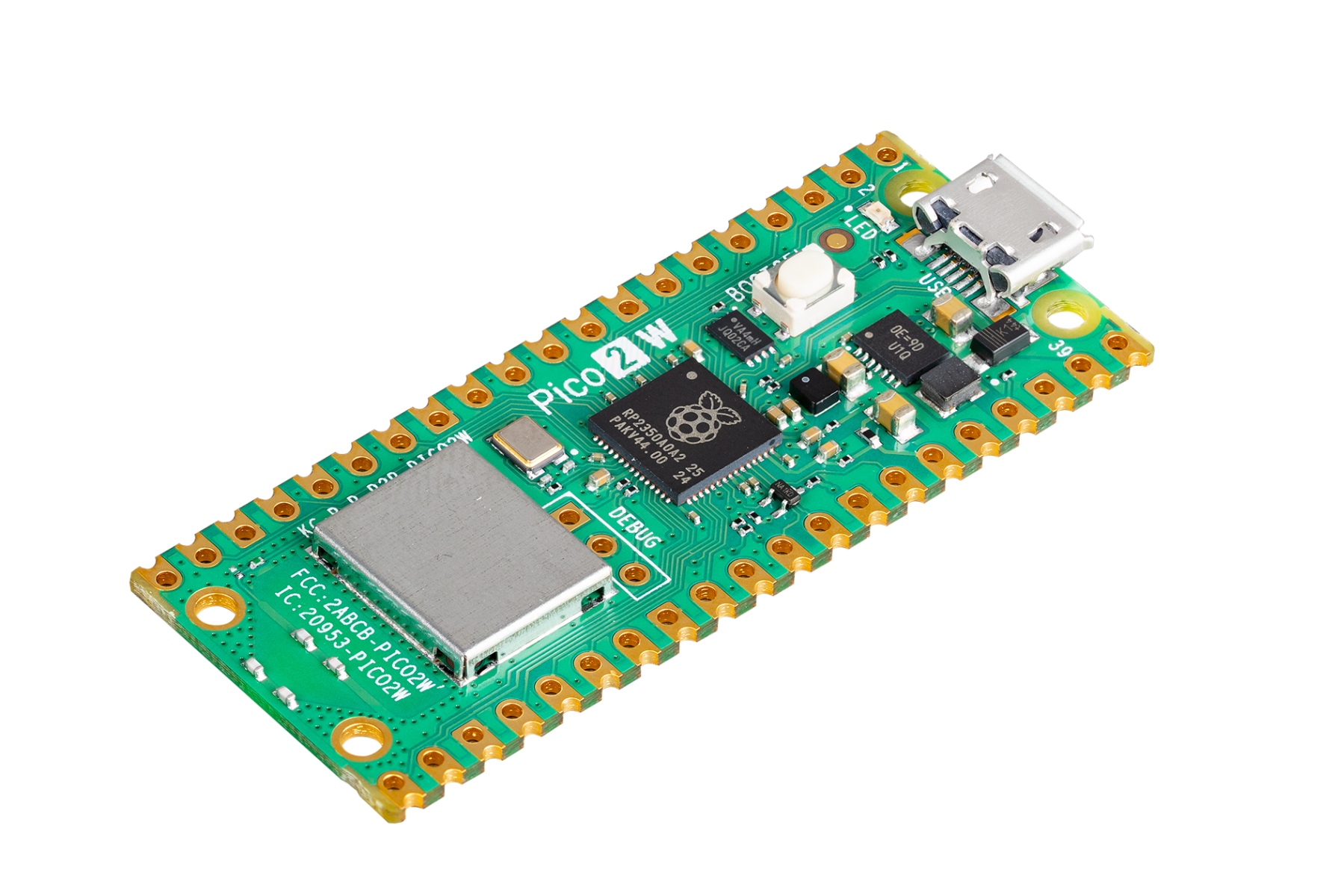

Raspberry Pi Pico 2 W Microcontroller Board | RP2350 Dual‑Core, 2.4GHz 802.11n Wi‑Fi & Bluetooth 5.2, 4MB Flash, 520KB SRAM

Raspberry Pi Pico 2 W Microcontroller Board | RP2350 Dual‑Core, 2.4GHz 802.11n Wi‑Fi & Bluetooth 5.2, 4MB Flash, 520KB SRAM

Seeed Studio

$19.00 USD
$19.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

Raspberry Pi Pico 2 W is a compact microcontroller board based on the high‑performance, secure Raspberry Pi RP2350 microcontroller. Building on Pico 2, the Pico 2 W integrates the Infineon CYW43439 to add single‑band 2.4GHz 802.11n Wi‑Fi and Bluetooth connectivity (including Bluetooth 5.2). It supports development in C/C++ and Python, offers enhanced security features such as secure boot and hardware encryption, and is hardware/software compatible with Raspberry Pi Pico 1.

Key Features

  • High‑Performance Chip: RP2350 microcontroller with a clock speed of up to 150MHz
  • Wireless Connection Supported: Wi‑Fi IEEE 802.11n wireless LAN, soft access point supporting up to four clients, and Bluetooth 5.2
  • Double Memory: 520KB on‑chip SRAM
  • Double Storage: 4MB on‑board QSPI flash
  • Dual‑Core Architecture: Choose between Arm Cortex‑M33 cores or open‑source RISC‑V Hazard3 cores
  • Enhanced Security: Comprehensive security architecture with secure boot and hardware encryption
  • Easy to Develop: Supports C/C++ and Python programming
  • Backward Compatible: Hardware and software compatible with Raspberry Pi Pico 1

Specifications

Parameter Description
Form factor 21 mm × 51 mm
CPU Dual Arm Cortex‑M33 or dual RISC‑V Hazard3 processors @ 150MHz
Memory 520 KB on‑chip SRAM; 4 MB on‑board QSPI flash
Connectivity 2.4GHz 802.11n wireless LAN and Bluetooth 5.2
Interfacing 26 multi‑purpose GPIO pins, including 4 that can be used for ADC
Peripherals 2 × UART
2 × SPI controllers
2 × I2C controllers
24 × PWM channels
1 × USB 1.1 controller and PHY, with host and device support
12 × PIO state machines
Input power 1.8–5.5V DC
Operating temperature -20°C to +85°C
Supported input power 1.8–5.5V DC
On‑chip resources Accelerated floating point libraries on‑chip

Hardware Overview

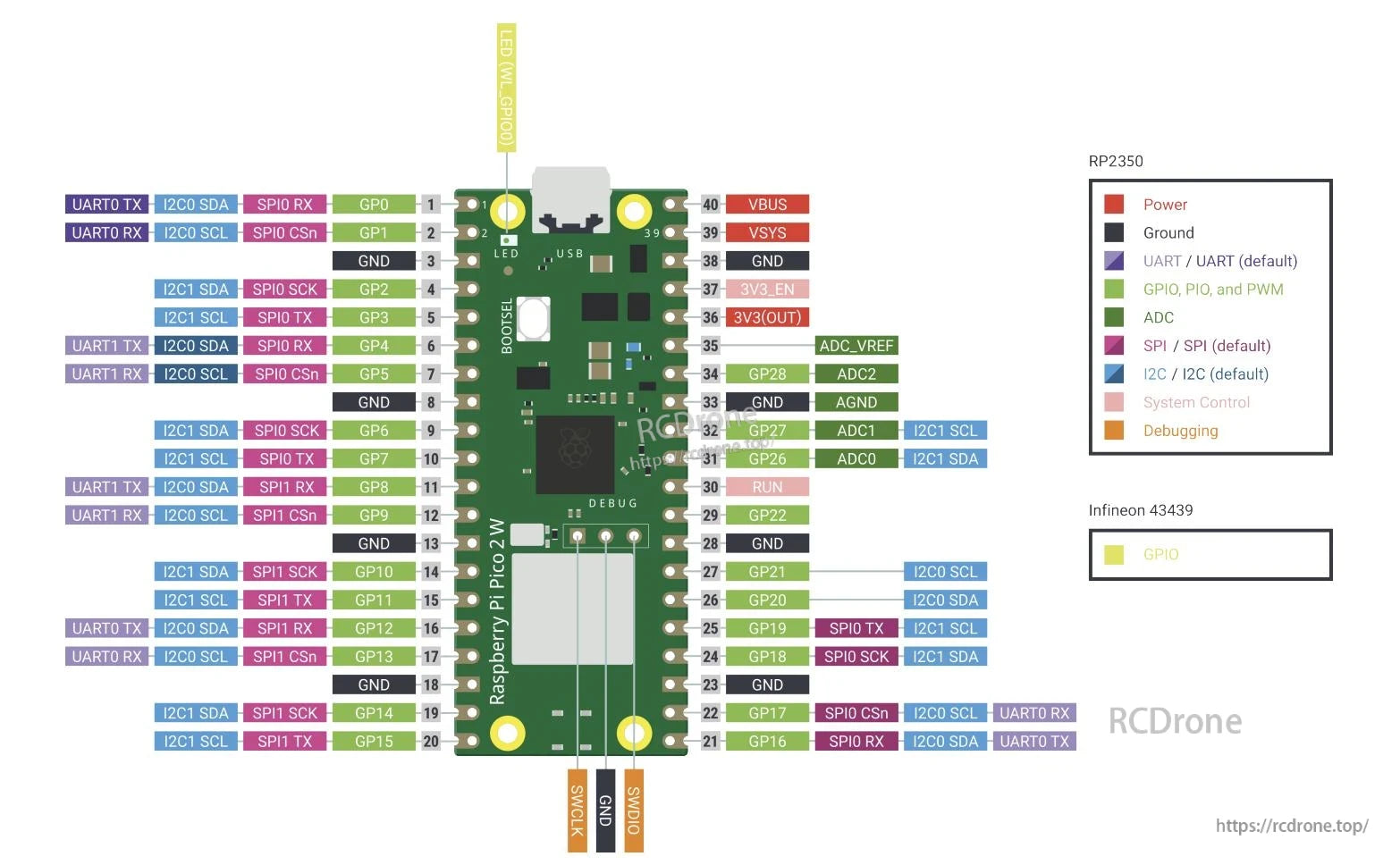

Pinout


Applications

Documents

ECCN/HTS

HSCODE 8473309000
USHSCODE 8473309100
UPC
EUHSCODE 8471707000
COO UNITED KINGDOM

What’s Included

  • Raspberry Pi Pico 2 W ×1

Details

Raspberry Pi Pico 2 MCU, Raspberry Pi Pico 2 W Microcontroller Board features dual-core CPU, Wi-Fi and Bluetooth capabilities.

9-pin RP2350 connector with UART, I2C, SPI, and GPIO interfaces. The board features VBUS power, VSYS voltage regulator, and LED indicators for US and B signals.
