Raspberry Pi Pico H microcontroller board, RP2040, 26 GPIO, 2MB Flash, pre‑soldered headers, USB Type‑C

Overview

Raspberry Pi Pico H is a microcontroller board built around the RP2040 dual‑core ARM Cortex‑M0+ MCU. This Pico H variant adds pre‑soldered male headers on all through‑holes and a 3‑pin debug connector; the 2.54 mm pitch remains breadboard‑compatible. It offers high performance with rich on‑board interfaces at an accessible cost, making it suitable for electronics beginners and IoT control applications. Drag‑and‑drop programming over USB is supported via MicroPython and Arduino.

Key Features

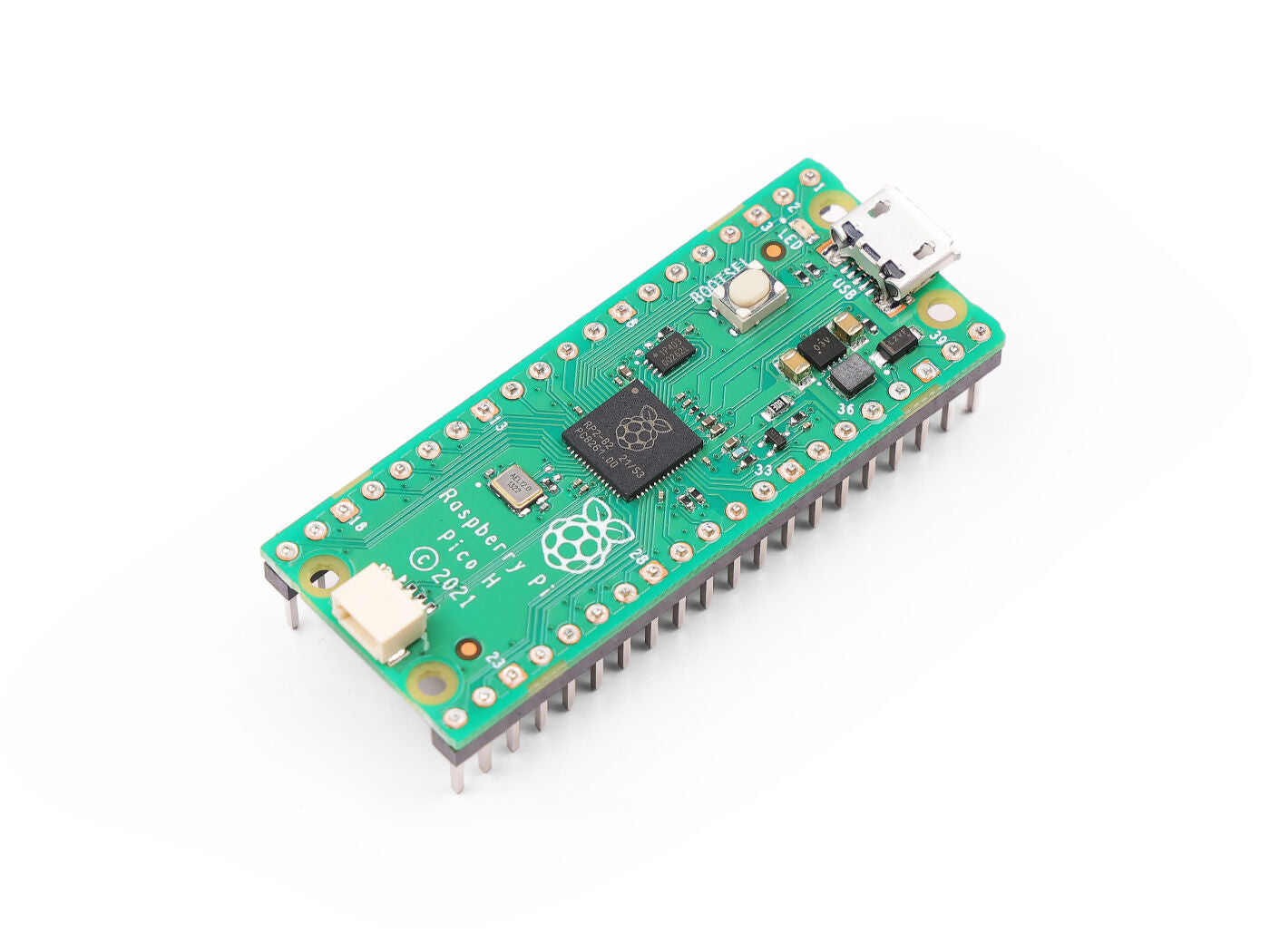

• Pre‑soldered male headers and 3‑pin debug connector; 2.54 mm pitch for breadboards.
• RP2040 dual‑core ARM Cortex‑M0+ processor, flexible clock up to 133 MHz.
• 264 kB SRAM and 2 MB on‑board Flash memory.
• 26 multifunction GPIO pins, including 3 analogue inputs.
• Interfaces: 2× SPI, 2× I2C, 2× UART, 3× 12‑bit ADC, 16× controllable PWM channels.
• USB Type‑C power supply and programming; drag‑and‑drop with MicroPython & Arduino.
• Suitable for embedded machine learning; supports TensorFlow Lite.
• Operating temperature: −20 °C to +85 °C (Pico, Pico H); −20 °C to +70 °C (Pico W, Pico WH).

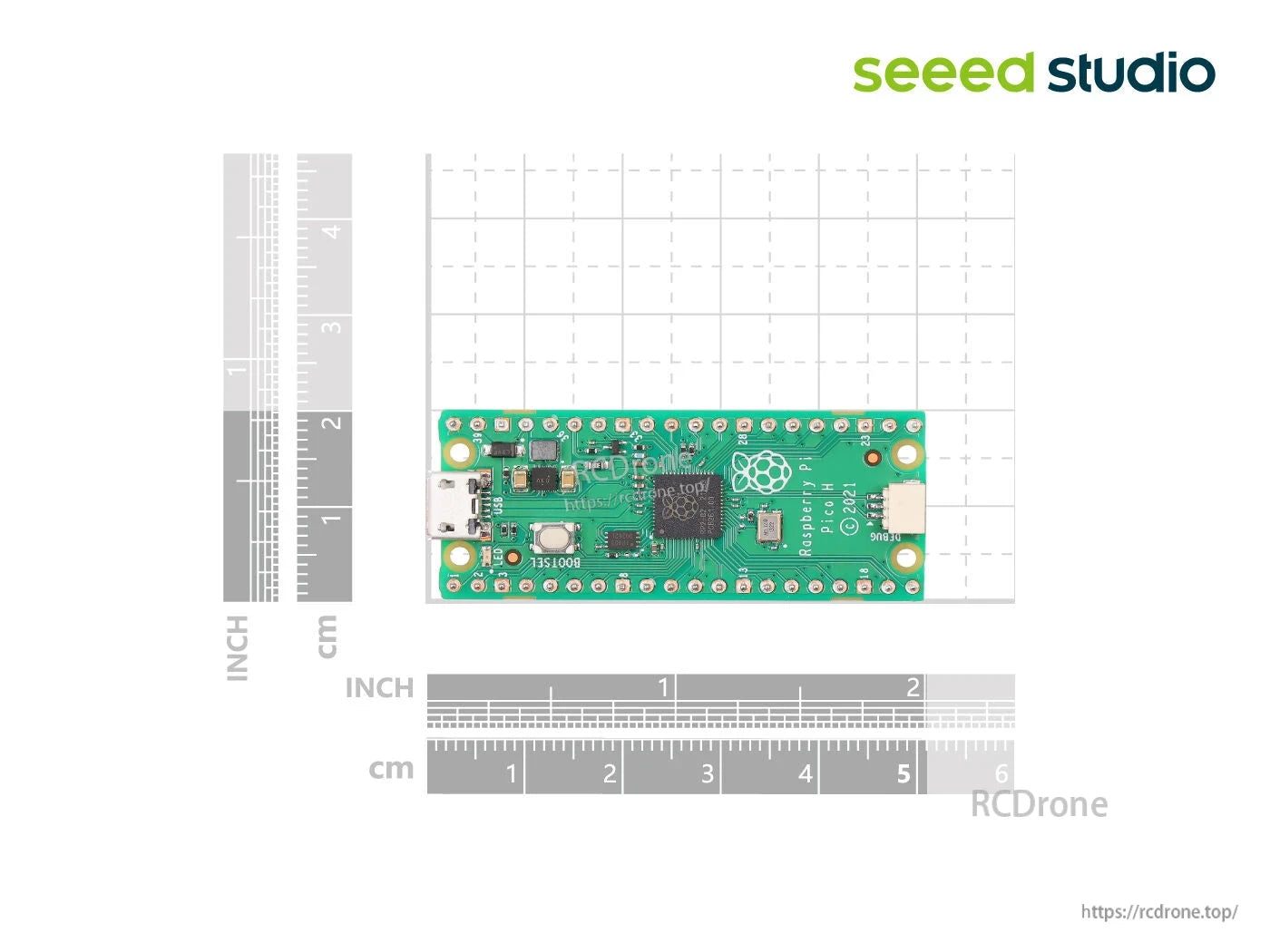

• Supported input power: 1.8–5.5 V DC; compact 21 mm × 51 mm form factor.
• Getting started options include the Grove Starter Kit for Raspberry Pi Pico Series with projects and MicroPython courses.

Specifications

Hardware Overview

Pinout

Refer to the pinout diagram in the Details section for GPIO, power, ADC, UART, I2C, SPI, PWM, system control and debugging pin mappings.

Application

• Intruder Detection
• Electronics learning with the Grove Starter Kit for Raspberry Pi Pico
• Home facilities control in conjunction with wireless microcontrollers
• Machine Learning applications
• IoT applications

ECCN/HTS

What’s Included

• Raspberry Pi Pico H ×1

Details

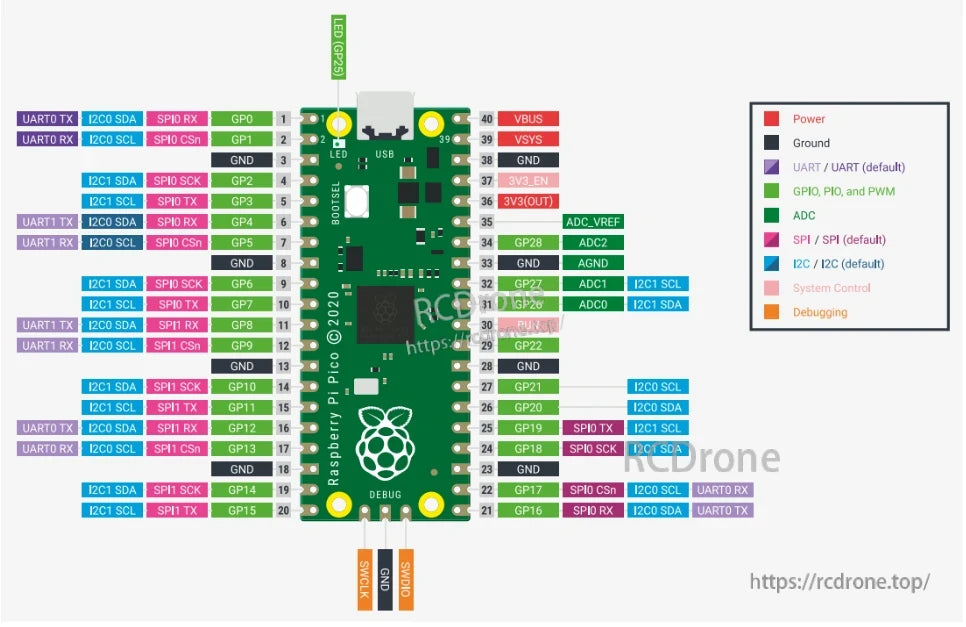

Raspberry Pi Pico microcontroller with GPIO pins, labeled functions including UART, SPI, I2C, ADC, power, ground, and debugging. Features USB, LED, BOOTSEL, and SWD interface. Color-coded pin types for easy identification.
